JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body)

Export reference
From $14,583
MSRP ¥10.5M CNY
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: JAC493
Transmission: Lu'an
Curb Weight:: 2.5ton
seating capacity: 3Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.795t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1048P71K1C2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: JACHFC4DA1-2C
transmission: Lu'an LC5T28
Cab length: 5.995m
Cab width: 2.17m
Cab height: 2.39m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 2.5ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2C
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Engine Type: Turbocharged intercooled, inline 4-cylinder
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.06m
Cargo box height: 0.4m
*Cargo box interior width: 2.0599999427795
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1615kg
rear axle description: 2875
rear axle allowable load: 2875kg
Leaf spring count: 11/8+6
Tire
Tire Size: 700R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

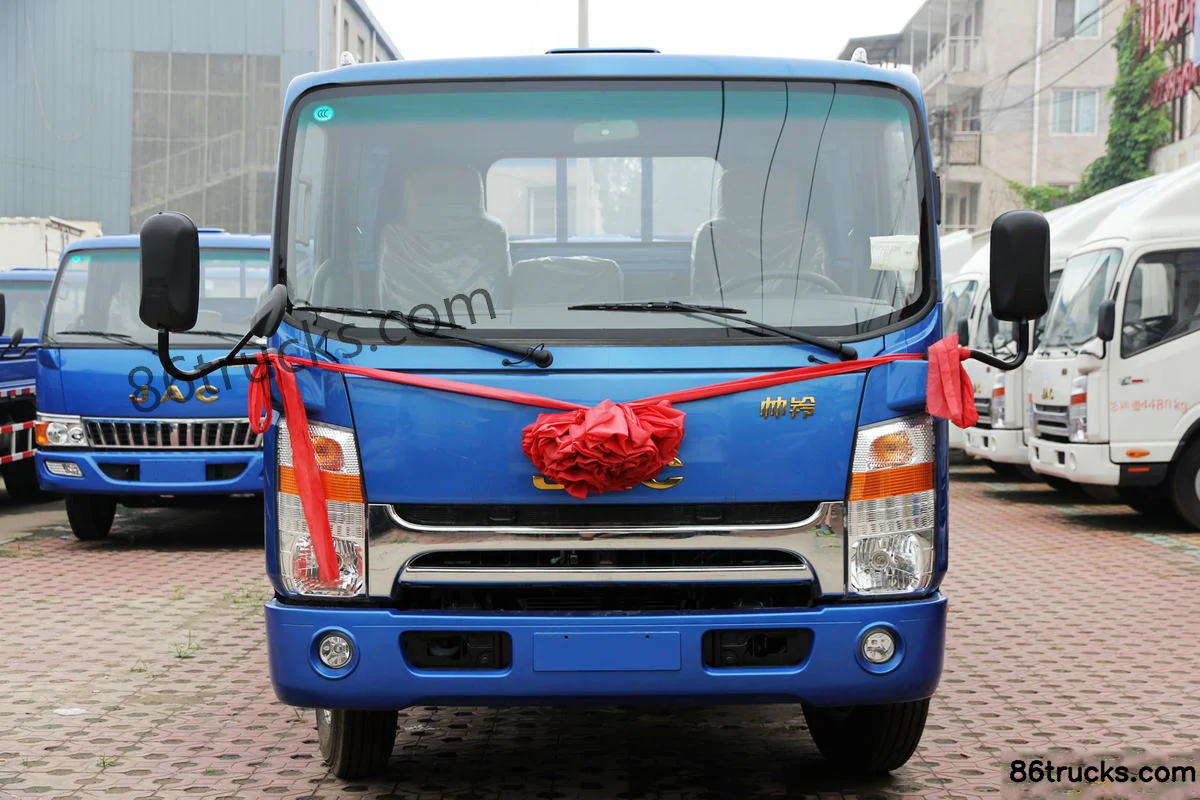

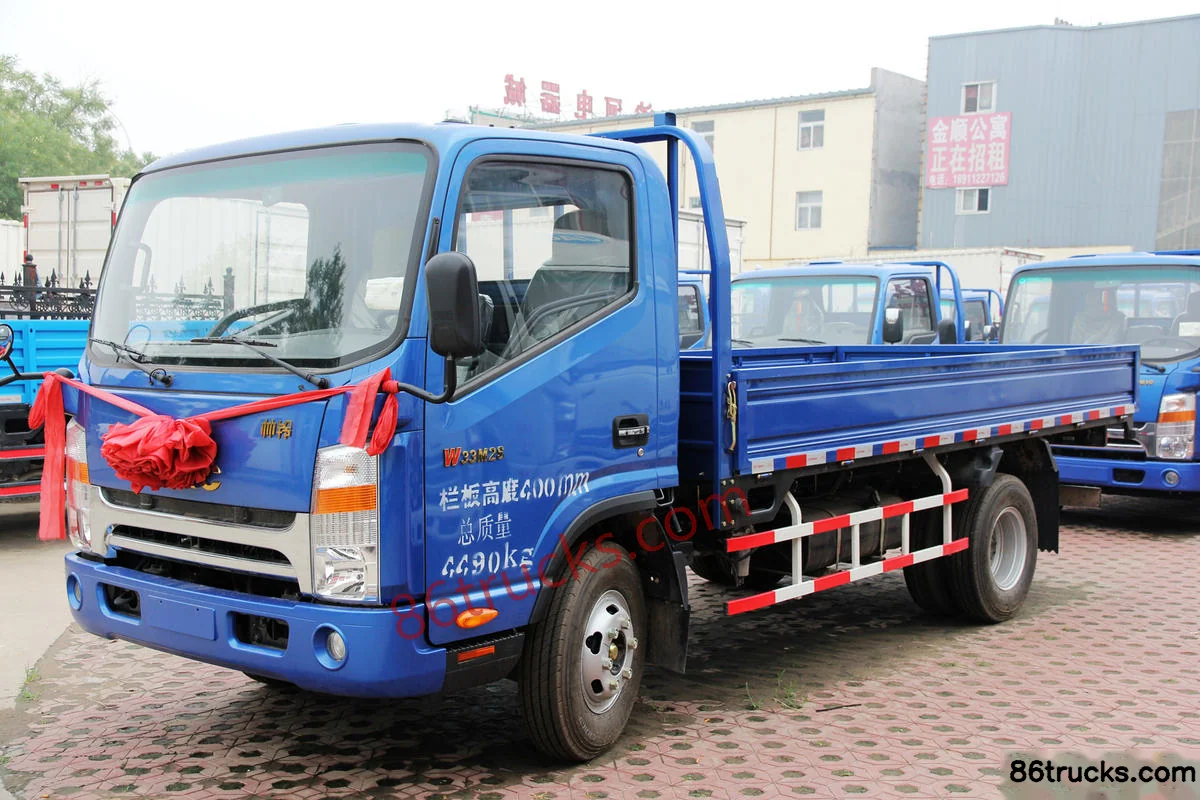

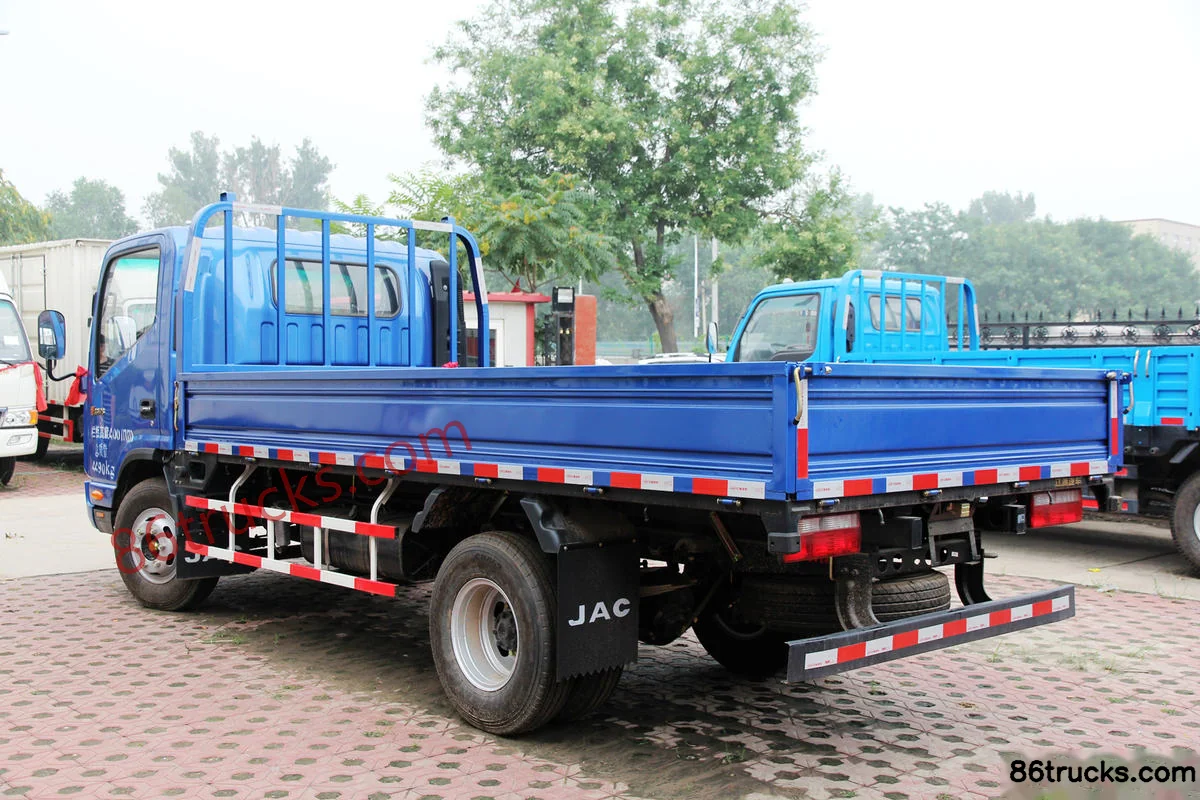

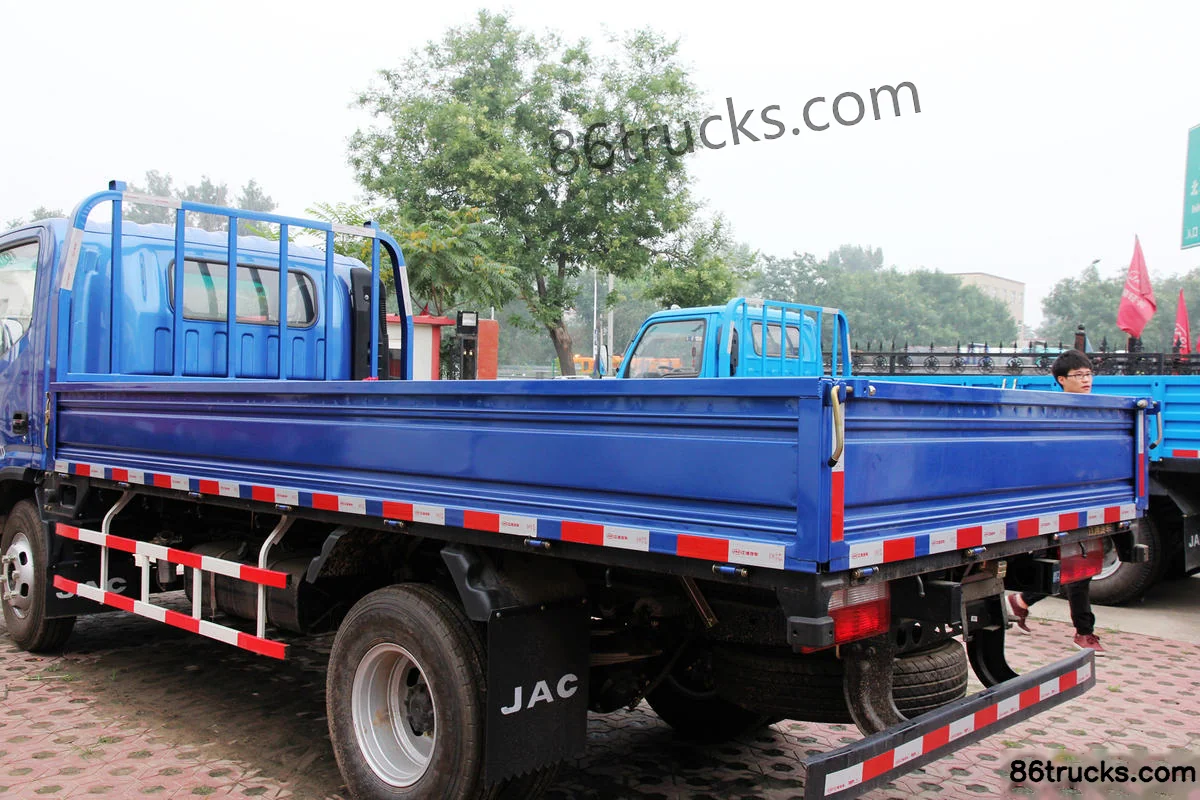

Exterior3

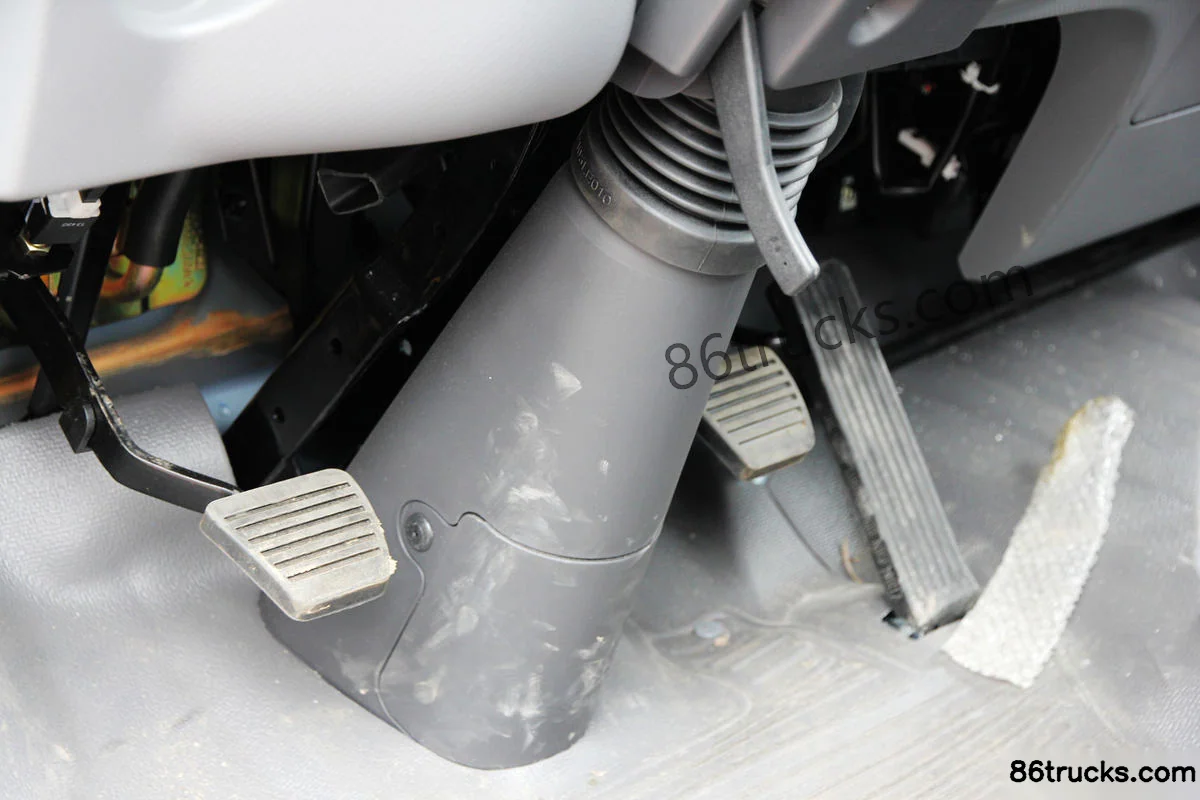

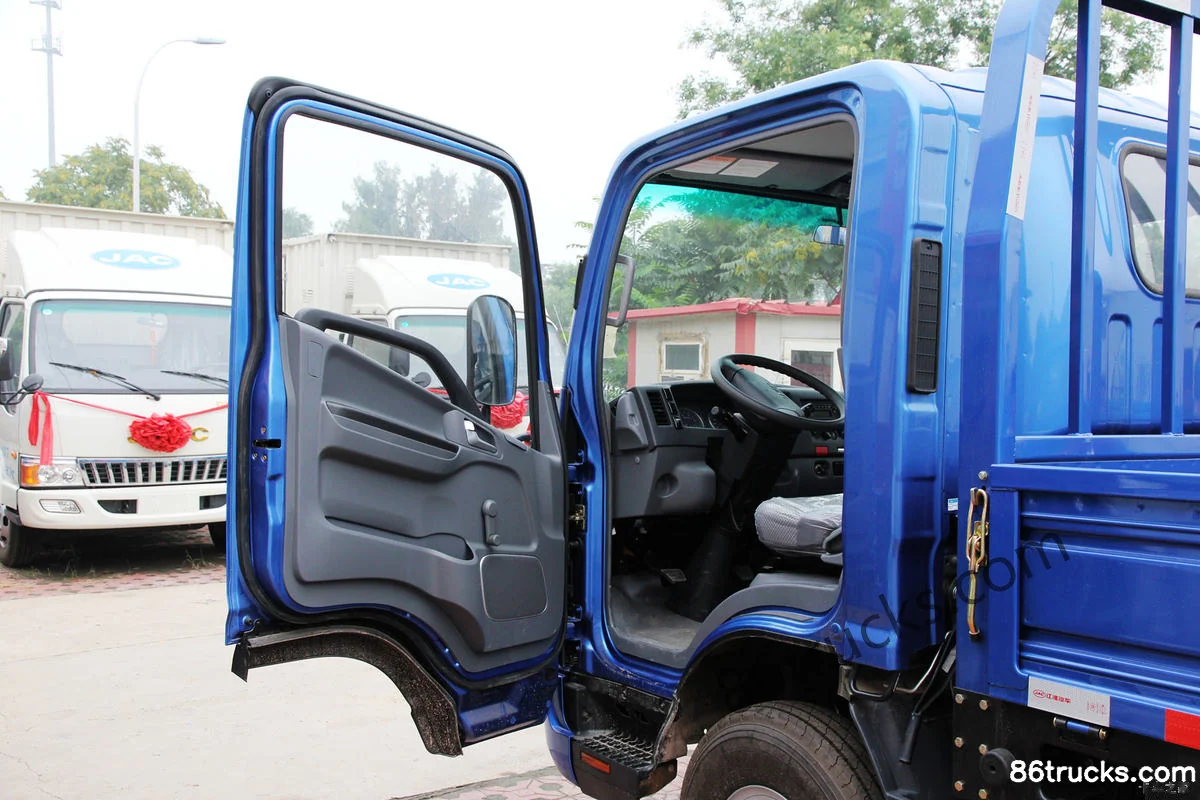

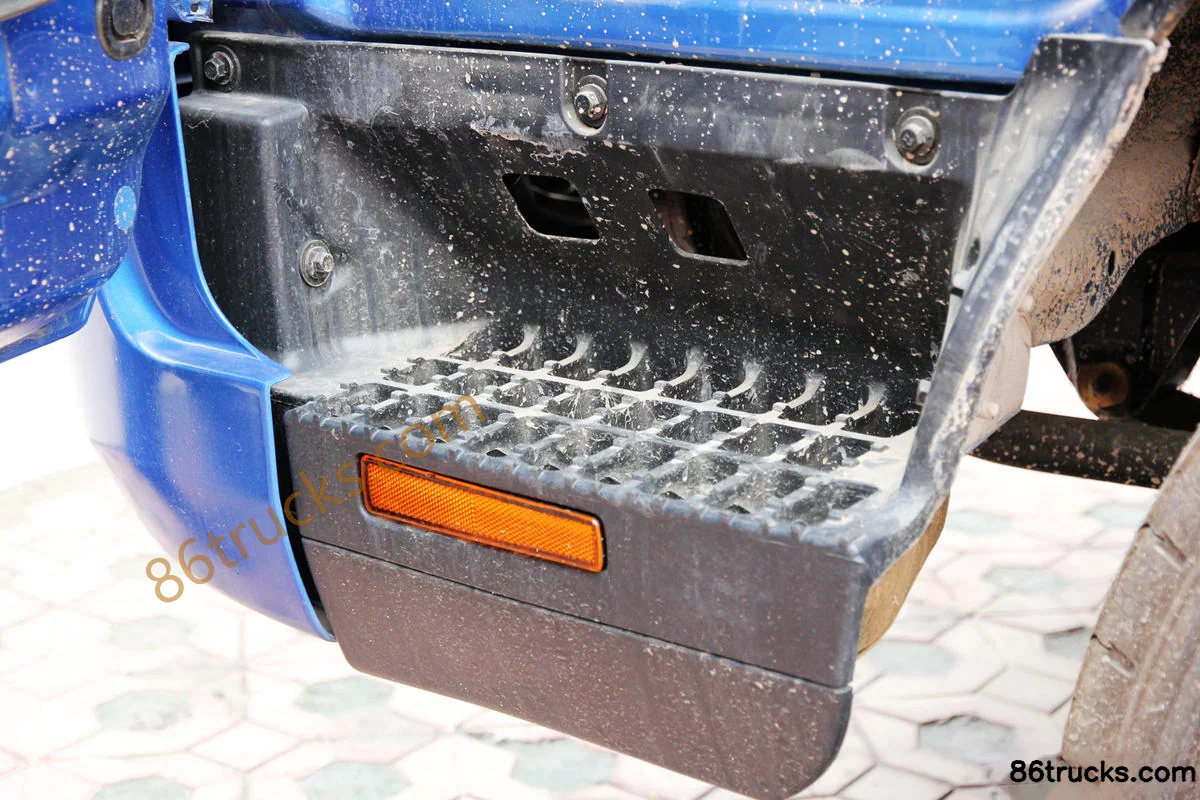

Cab3

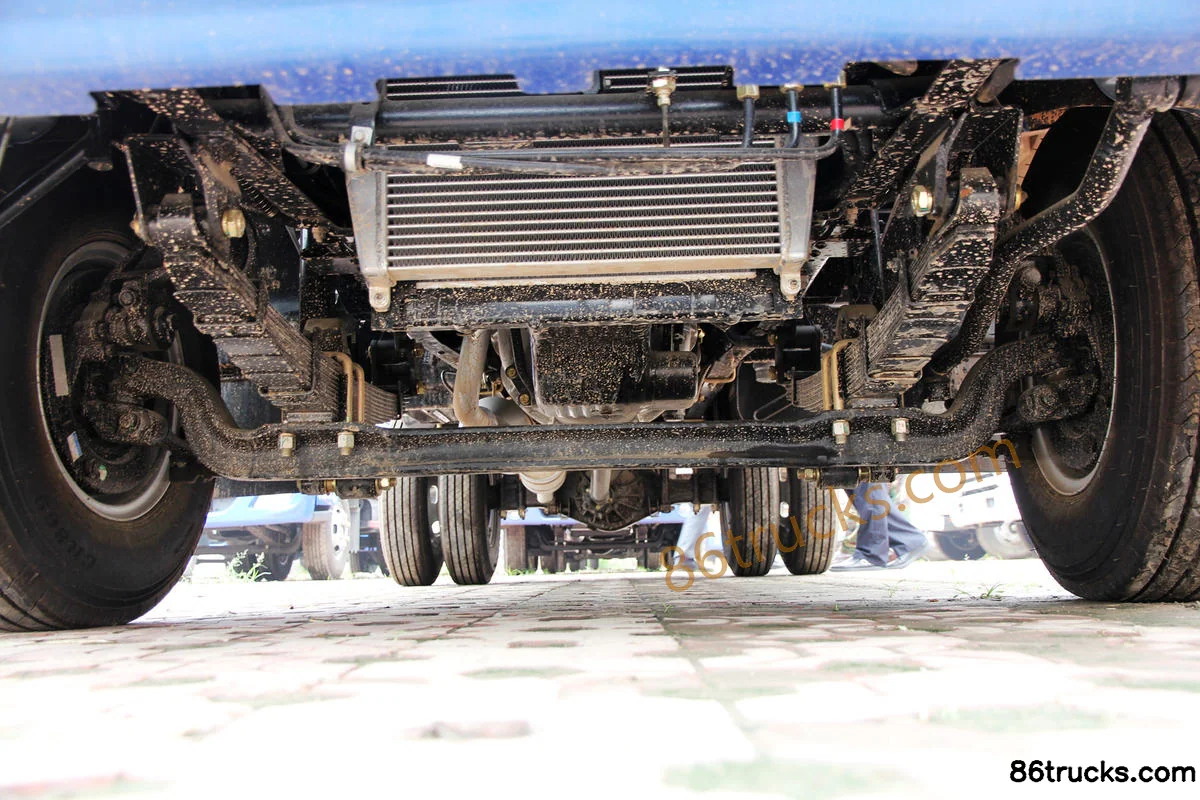

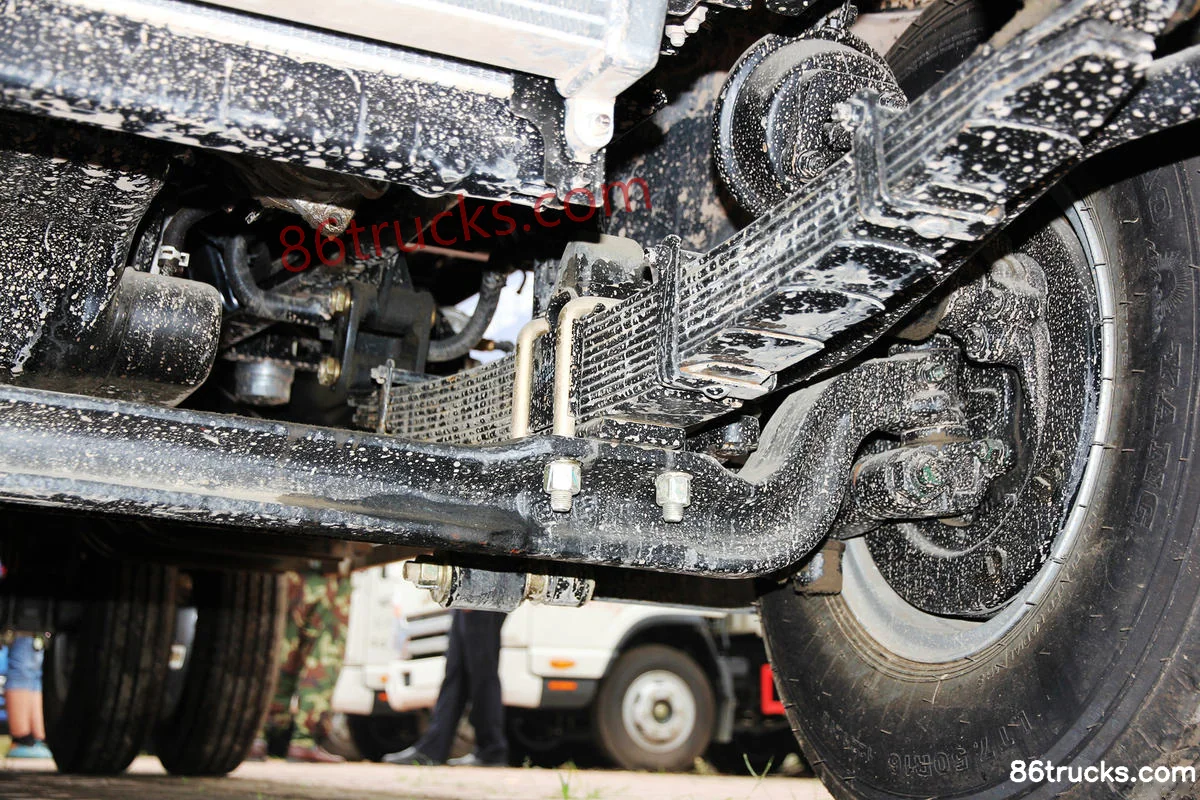

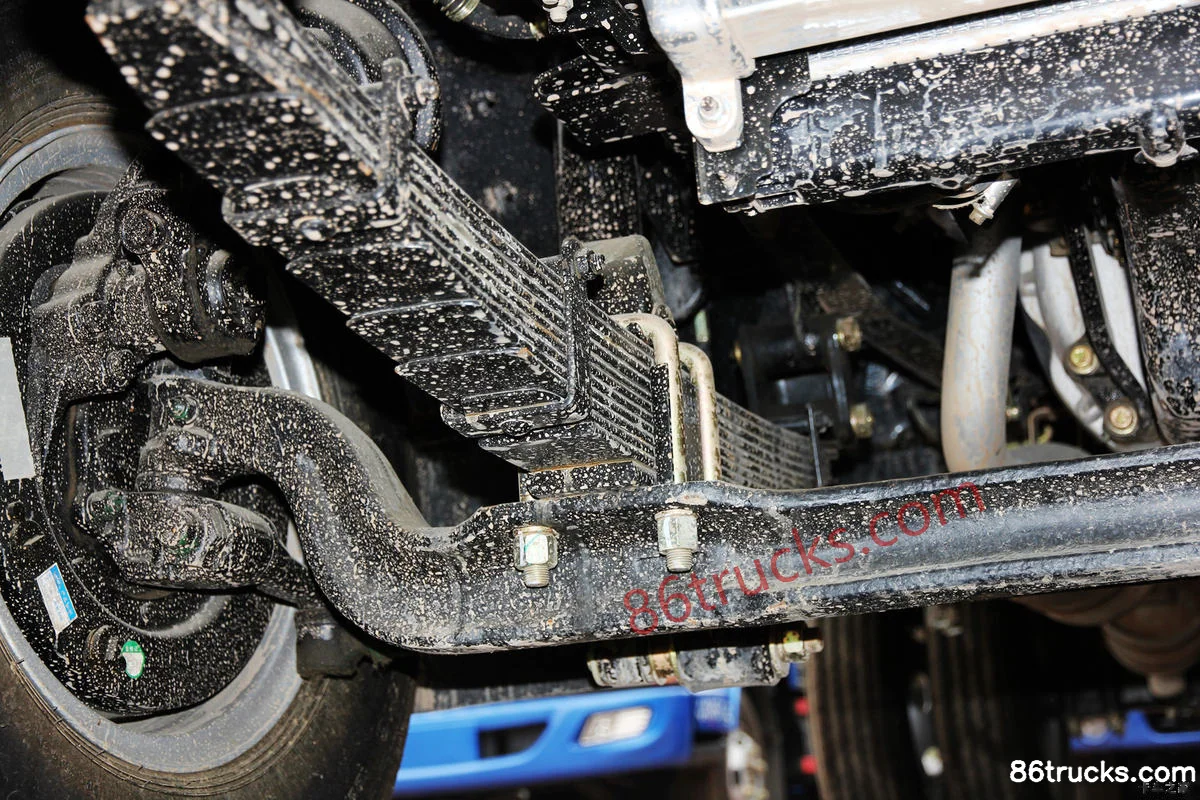

Chassis3

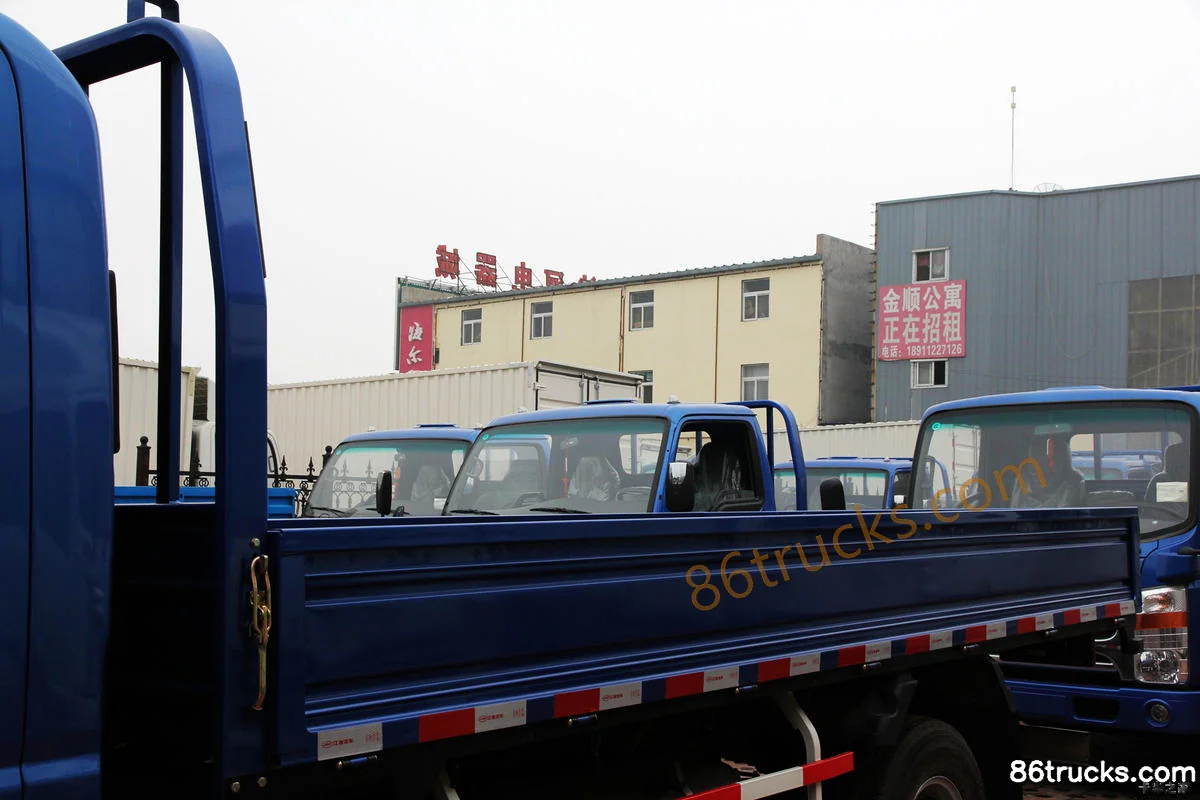

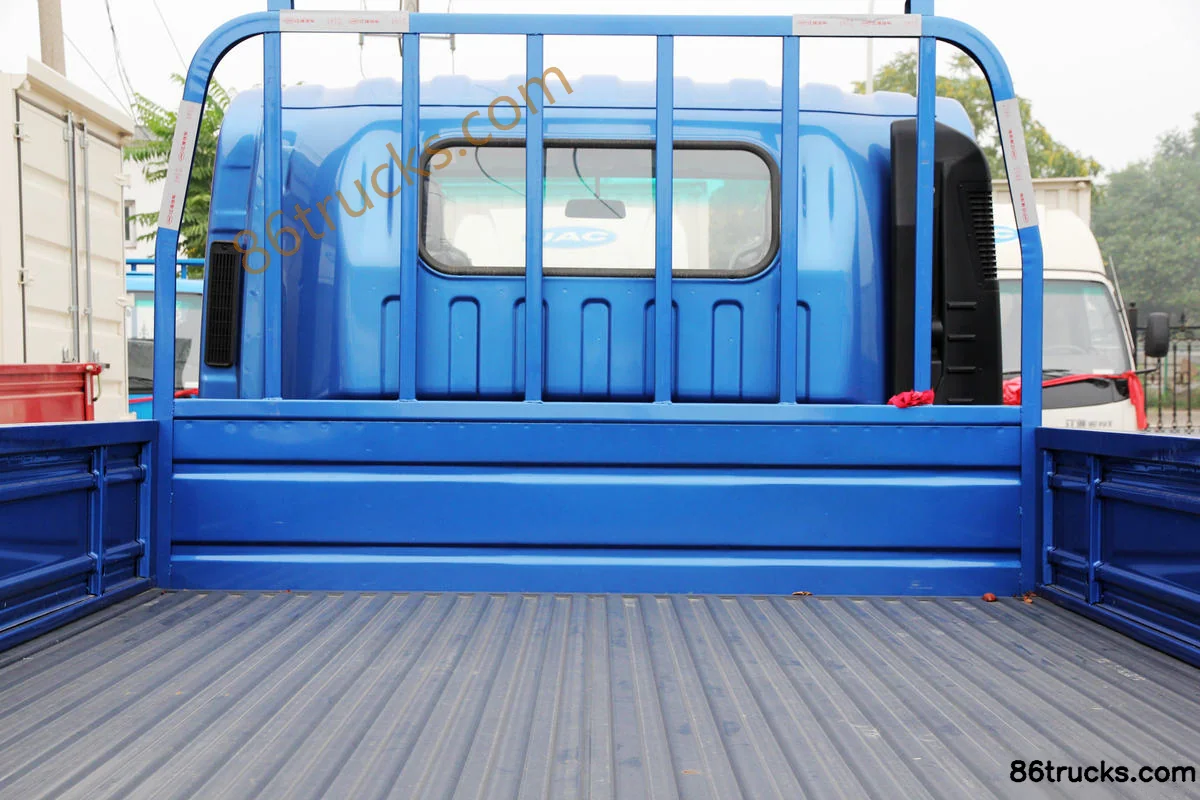

Body3

12 photos

FAQ

What is the export price of JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body), and what does it include?

JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) export reference is about From $14,583; MSRP is ¥10.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body)?

Key specs of JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body): Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: JAC493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) suited for?

JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) differ from other variants in the same series?

JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body) belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H330 120 hp 4X2(6 wheels) 4.18m Single Row Flatbed Light Truck (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
