Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck

Export reference
MSRP N/A
Horsepower: 125
Emission: China V
Fuel: Diesel
Engine: SOFIM 2.8L
Transmission: NAVECO
Curb Weight:: 2.16ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck is a Light Truck featuring 3.775m cargo length, stake body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SOFIM 2.8L engine, 125 hp, 4X2 (6 wheels) drive and China V emissions.

China V 125 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJ1042ZFDCNZ1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: SOFIM 8140.43DV
transmission: NAVECO2830.5
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.03m
Cab height: 2.33m
Front track width: 1519mm
rear track: 1485mm
Curb Weight: 2.16ton
Rated payload: 1.495ton
GVWR: 3.785ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.118/1.569m
Energy Type: Diesel
Engine parameters
Engine Brand: NAVECO
Engine Model: SOFIM 8140.43DV
Engine info: SOFIM 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.798L
Emission standard: China V
Max output power: 92kW
Max hp: 125Horsepower
Max torque: 320N·m
Max torque speed: 1600rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: NAVECO2830.5
Transmission Brand: NAVECO
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.775m
Cargo box width: 1.9m
Cargo box height: 0.42m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1650kg
rear axle allowable load: 2135kg
Axle ratio: 4.875
Leaf spring count: 8/8+7,3/8+7
Tire
Tire Size: 6.50R16LT 8PR,7.00-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

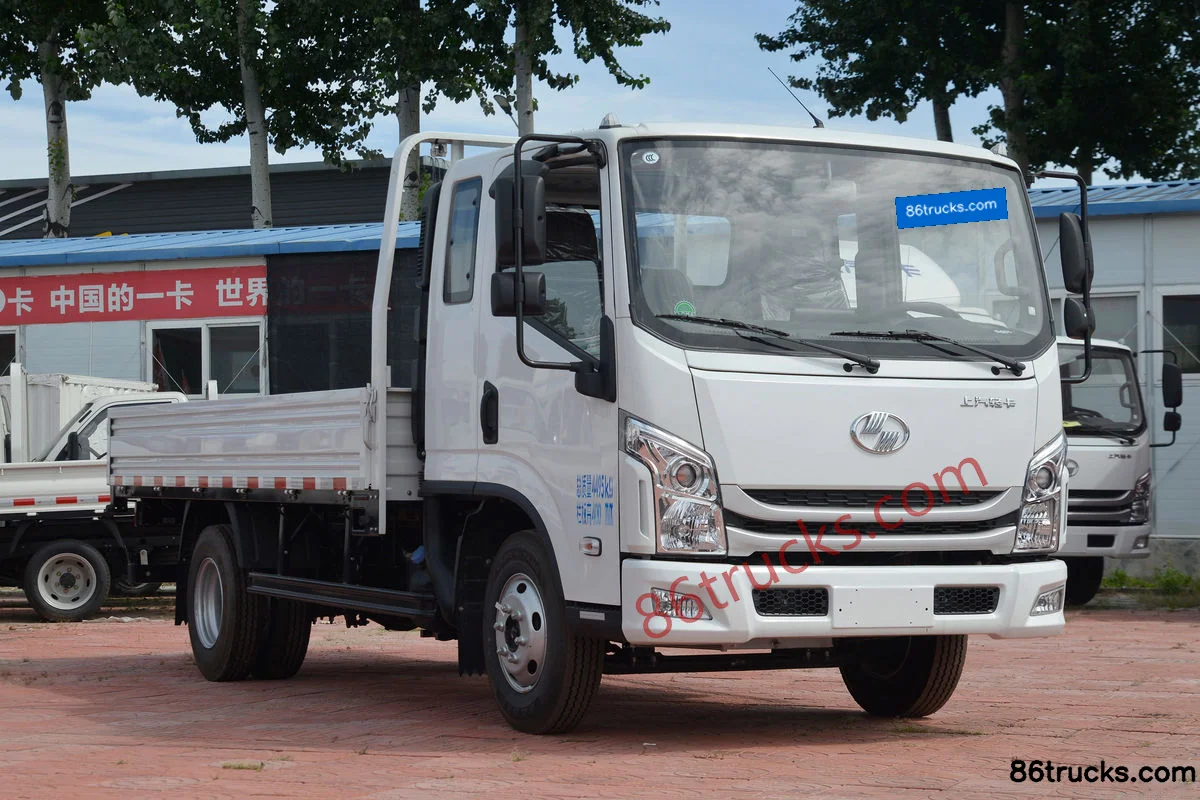

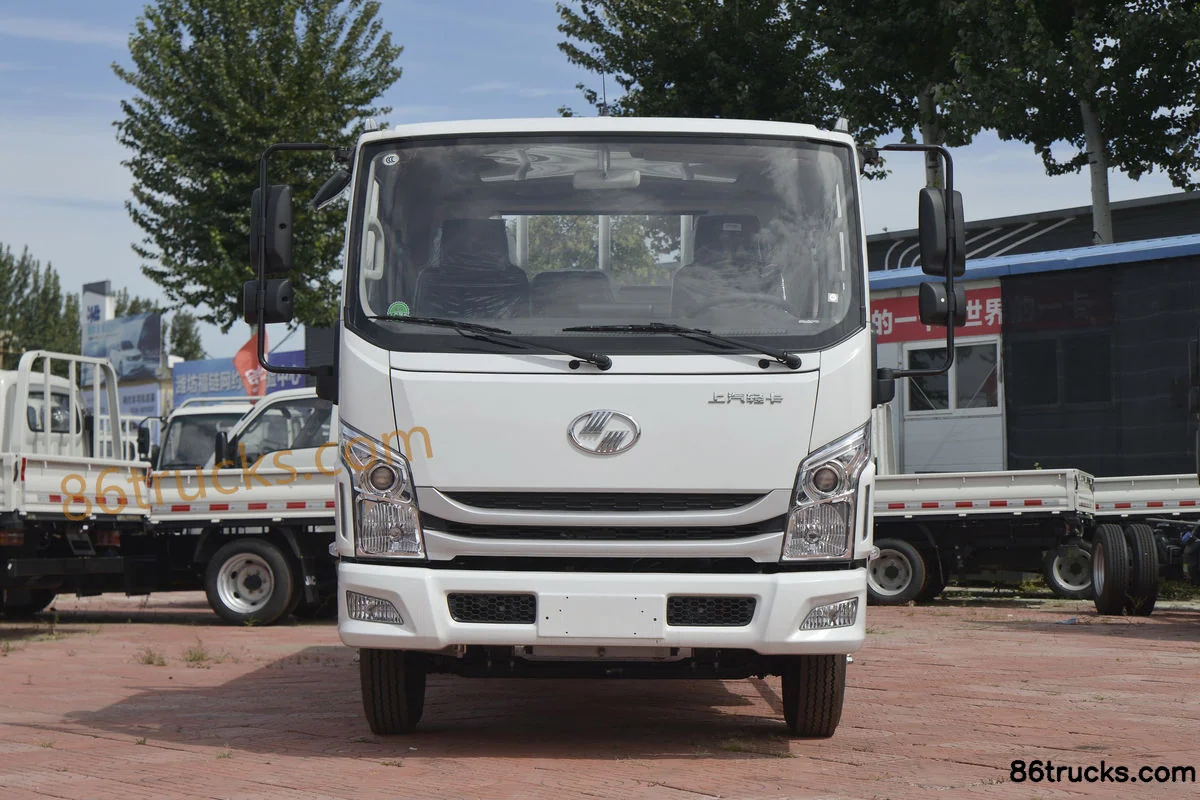

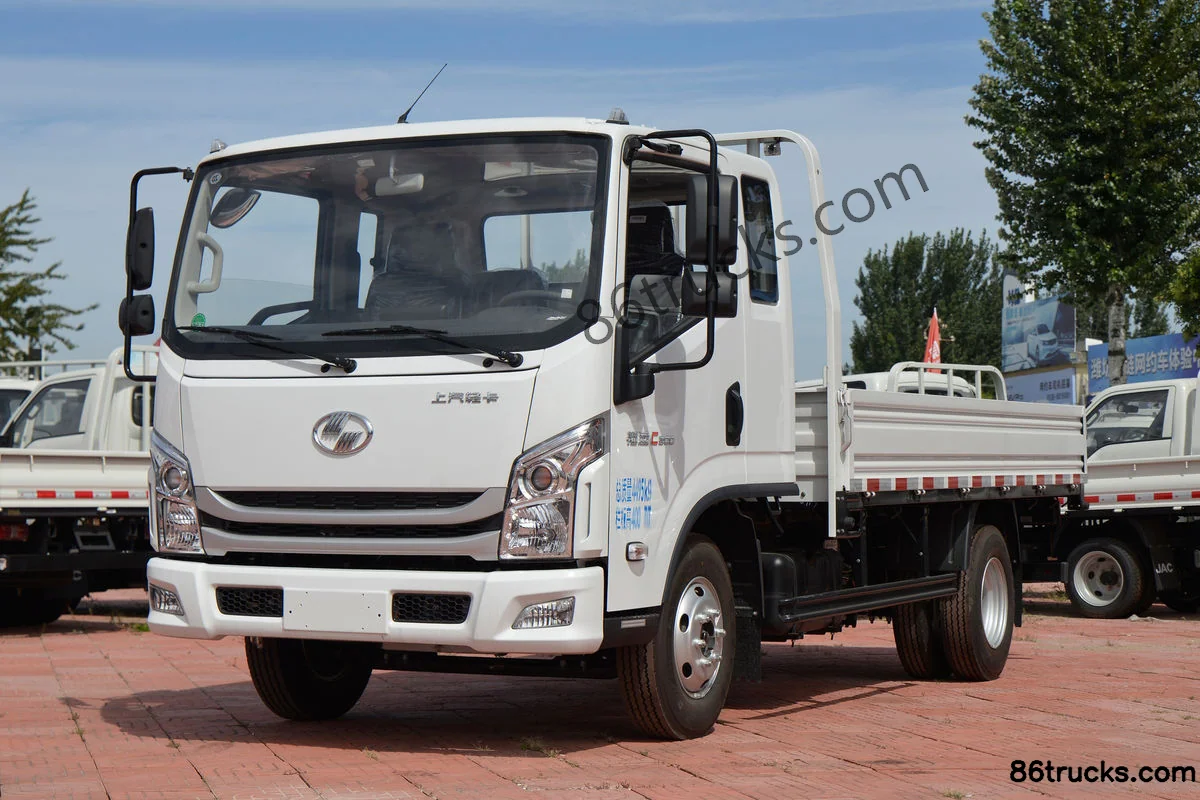

Exterior3

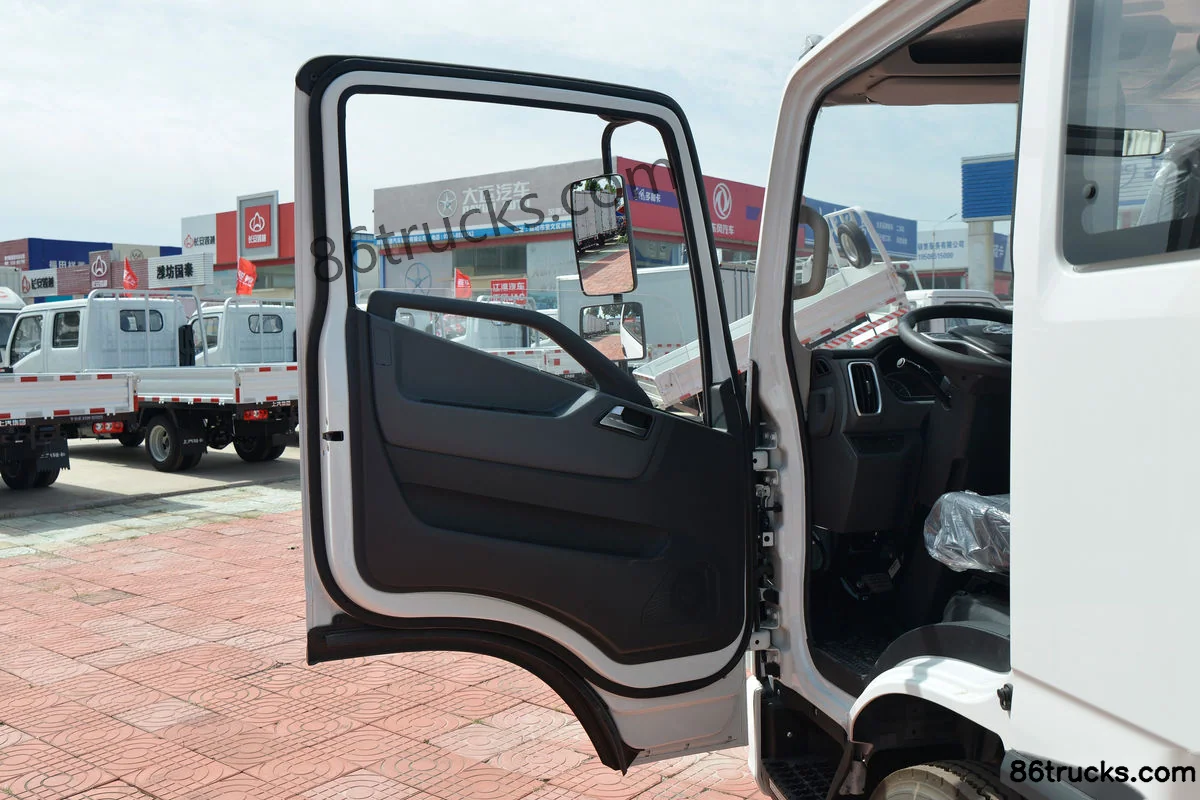

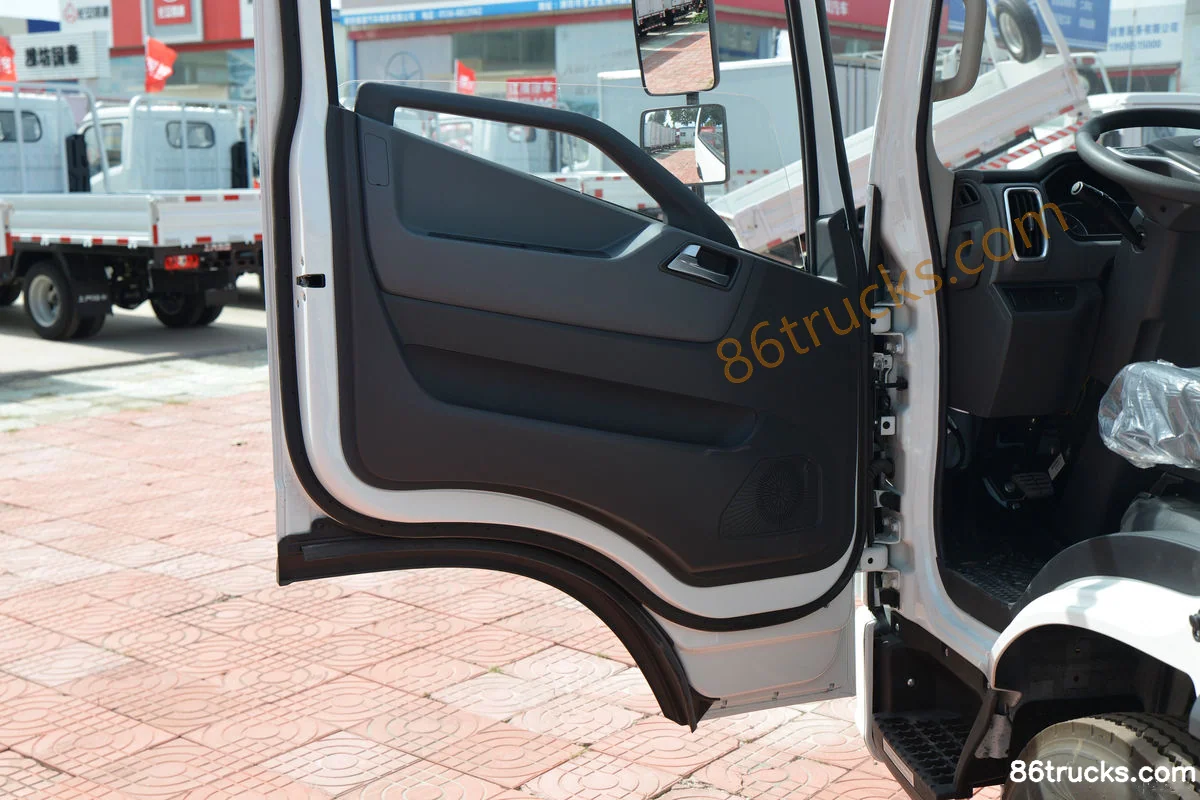

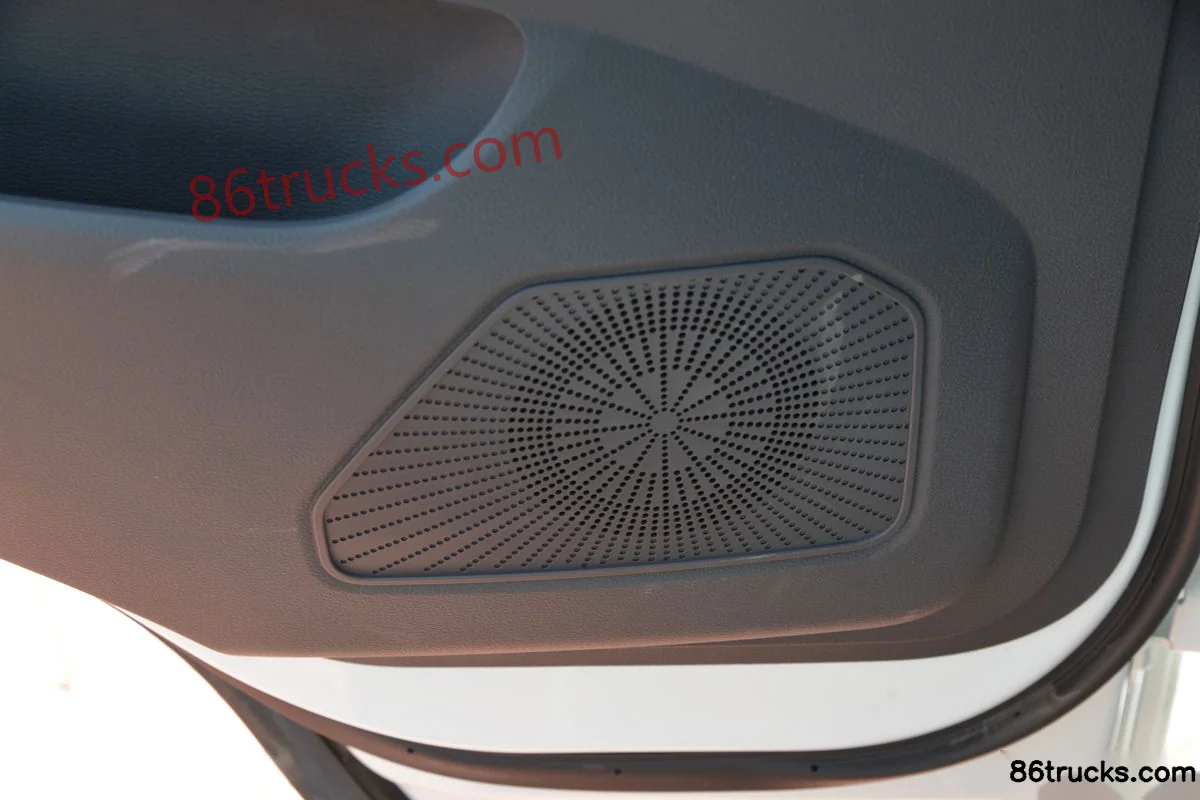

Cab3

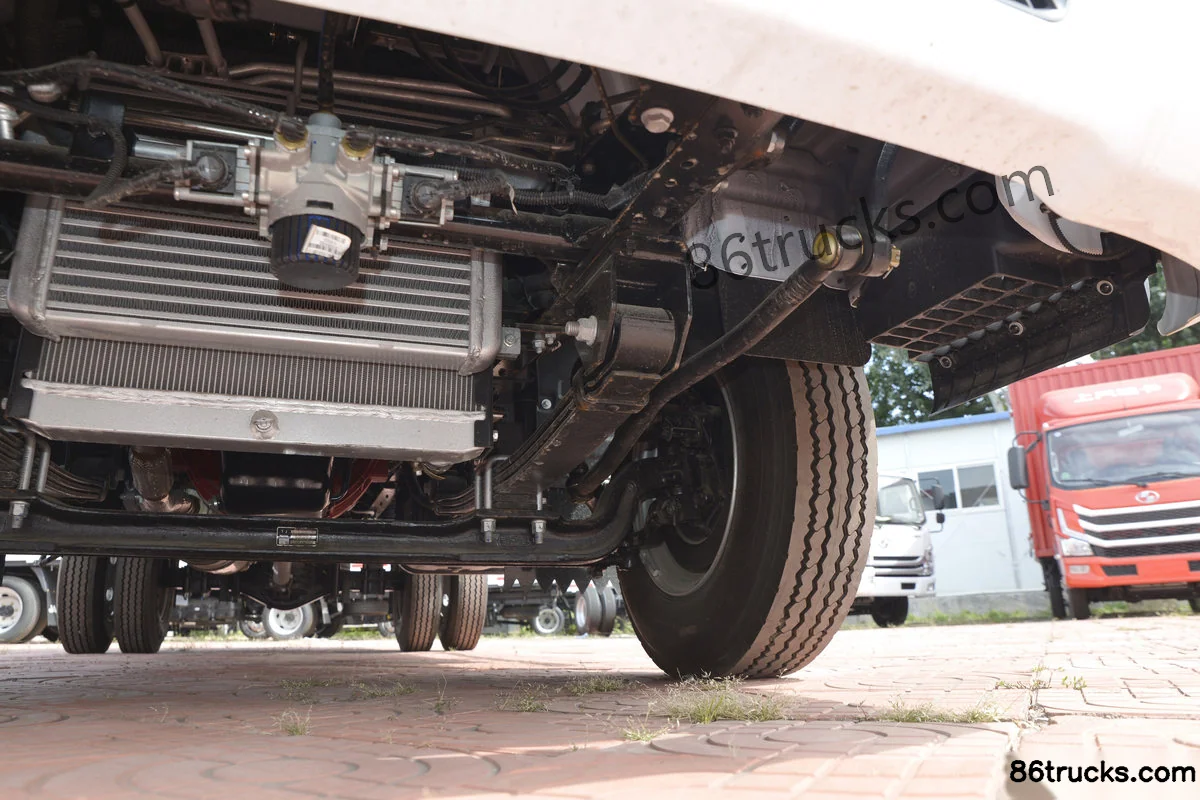

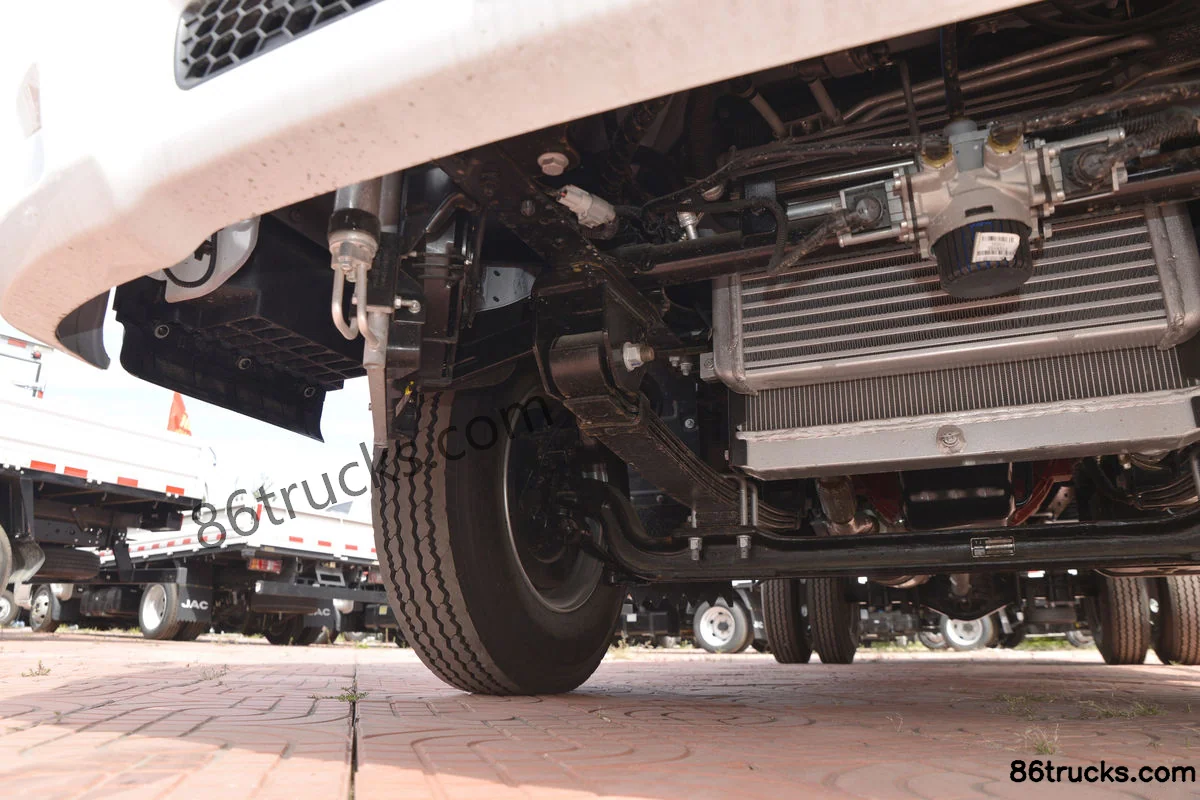

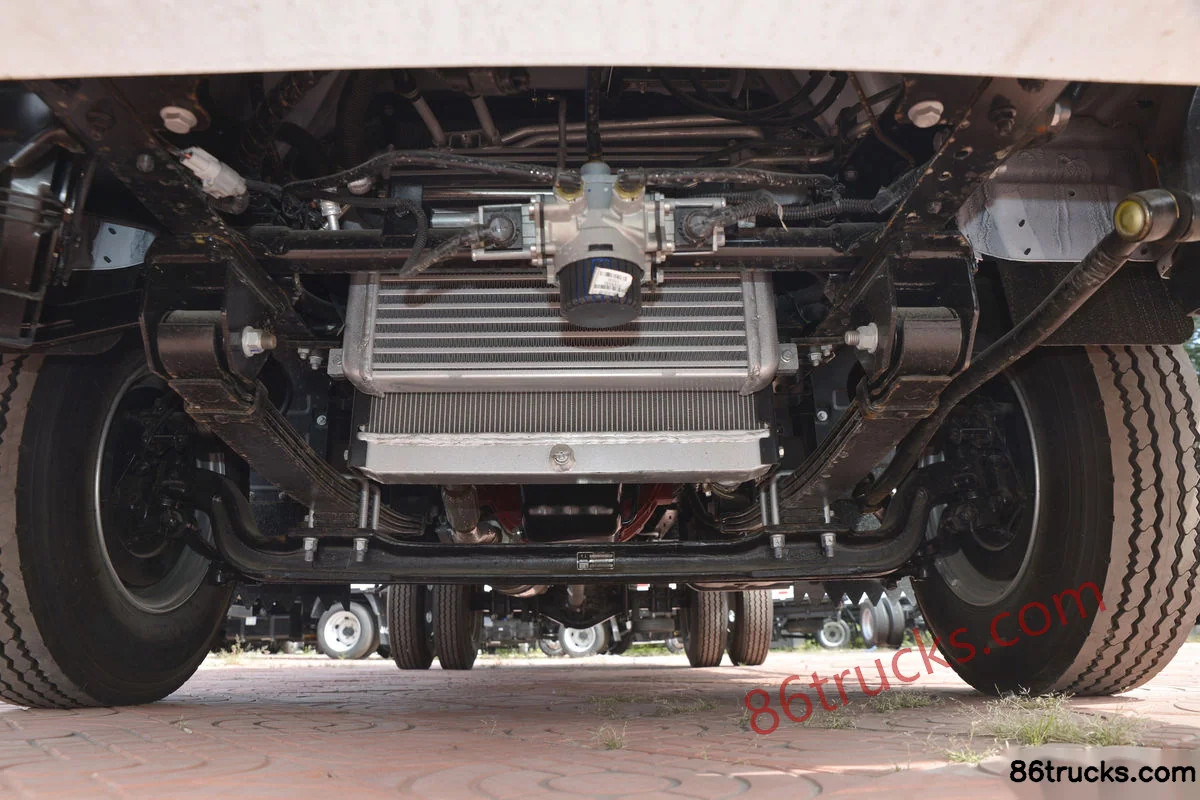

Chassis3

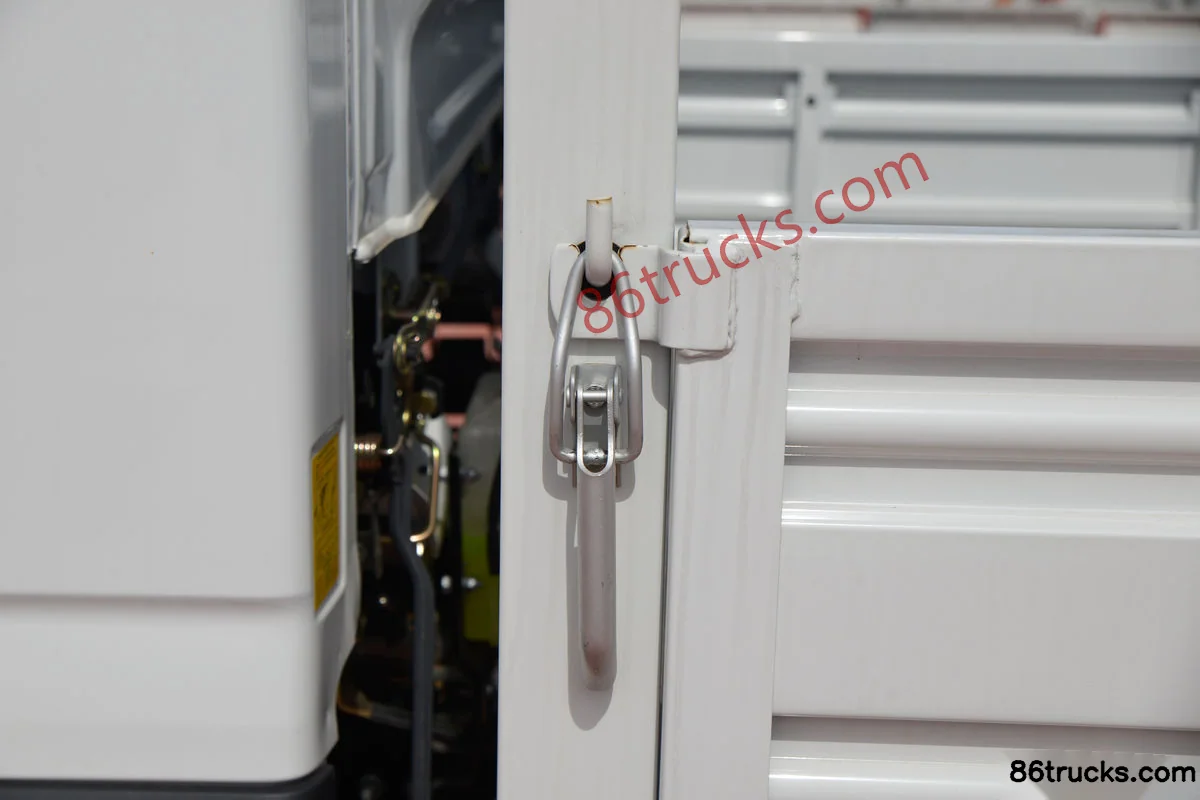

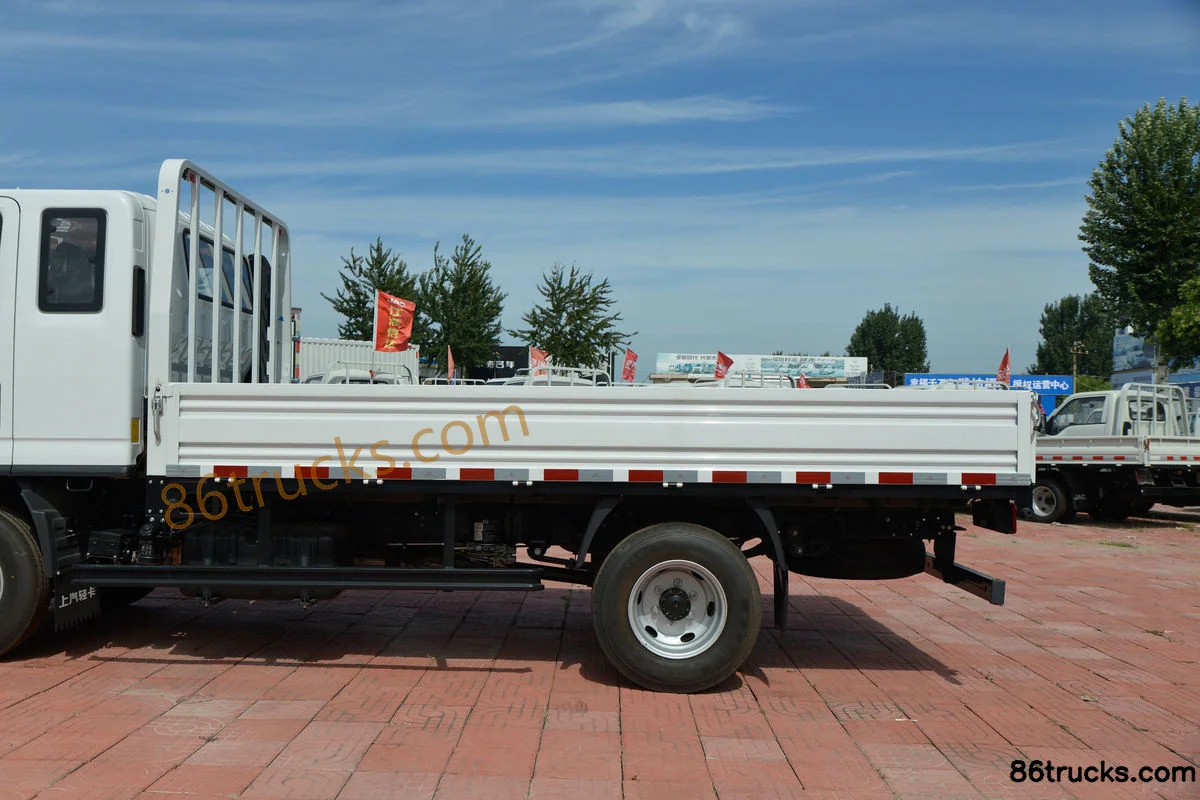

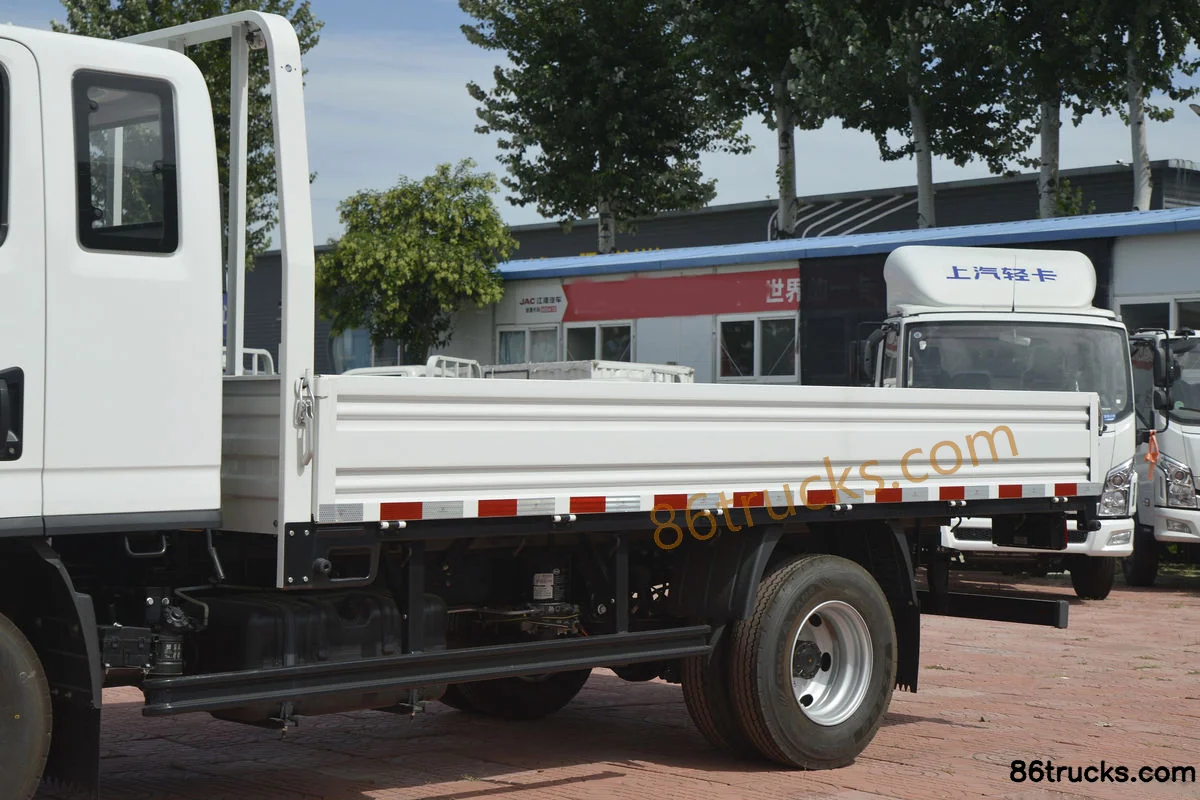

Body3

12 photos

FAQ

What emission standard does Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck?

Key specs of Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck: Drive: 4x2; Horsepower: 125 hp; Emission: China V; Fuel: Diesel; Engine: SOFIM 2.8L; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck suited for?

Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck differ from other variants in the same series?

Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C100-33 125 hp 4X2(6 wheels) 3.775m semi-cab flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
