SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension)

Export reference
From $49,306
MSRP ¥35.5M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3175+1400mm
Tire brand:: Linglong
Front axle allowable load:: 7000kg
Displacement:: 12.54L
Drive 6X4 (10 wheels)
Horsepower 500
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) is a Heavy truck featuring 6X4 (10 wheels) drive, 500 hp, 25t GVW and China V emissions. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP13.500E501 engine, Fast Gear transmission and Diesel fuel.

China V 500 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250XC4Q2
Drive type: 6X4
Wheelbase: 3175+1400mm
engine: WeichaiWP13.500E501
transmission: Fast Gear12JSD200T
Rear Axle Ratio: 2.846
Cab length: 6.85m
Cab width: 2.49m
Cab height: 3.65m
Front track width: 2036mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Daily industrial goods transport
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP13.500E501
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.54L
Emission standard: China V
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2400N·m
Max torque speed: 950-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 700L
Cab parameters
Cab: High roof
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Lower Bunk Width: 900mm
Chassis Specs
Suspension type: Front leaf spring + rear air bag
Front axle allowable load: 7000kg
Fifth wheel: 约斯特90#
rear axle description: 13T MAN single reduction rear axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 2.846
Leaf spring count: 3/-/-
Tire
Tire brand: Linglong
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: Plastic
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
smart configuration
Cruise control (CCS):

Photos

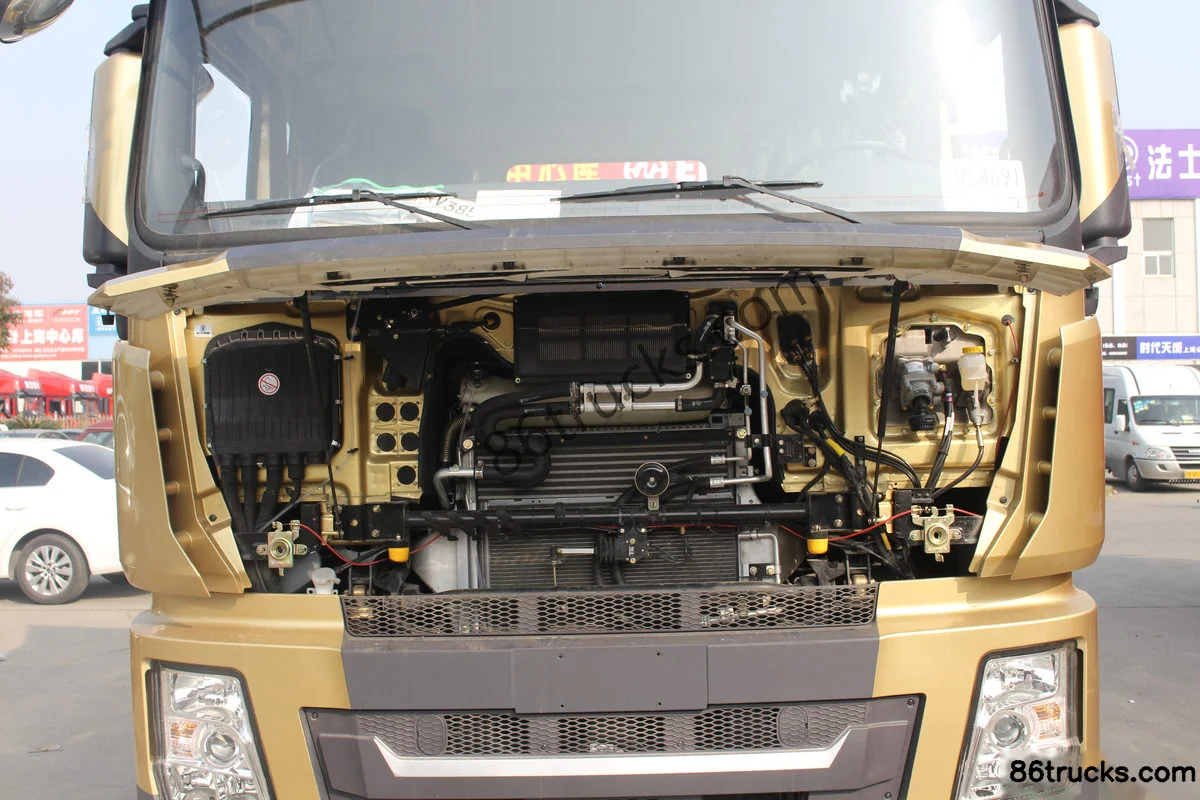

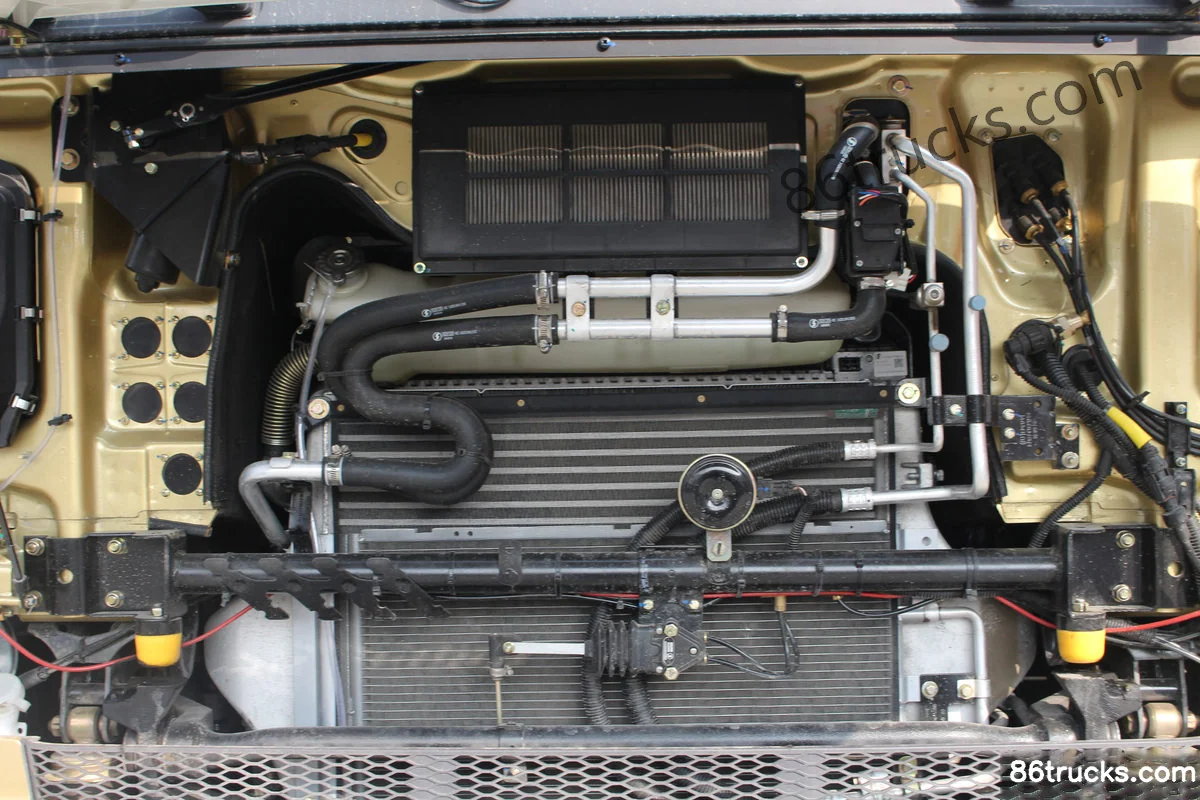

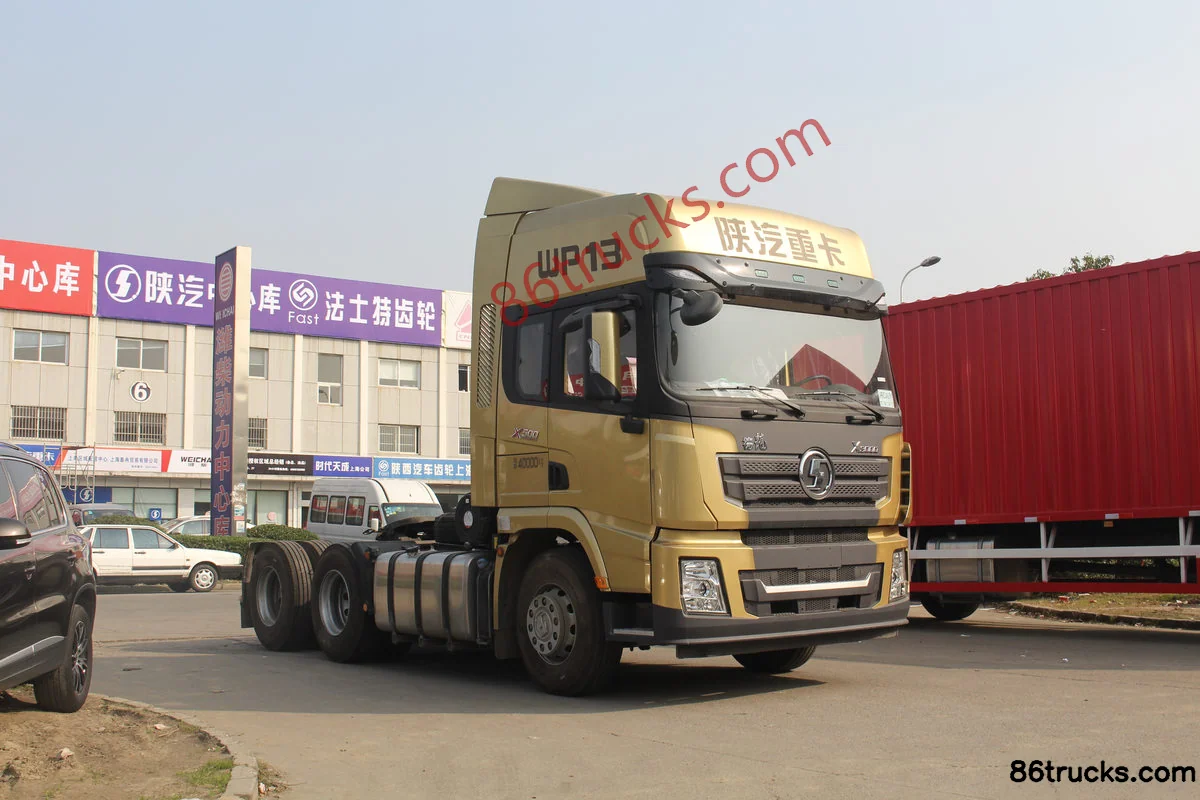

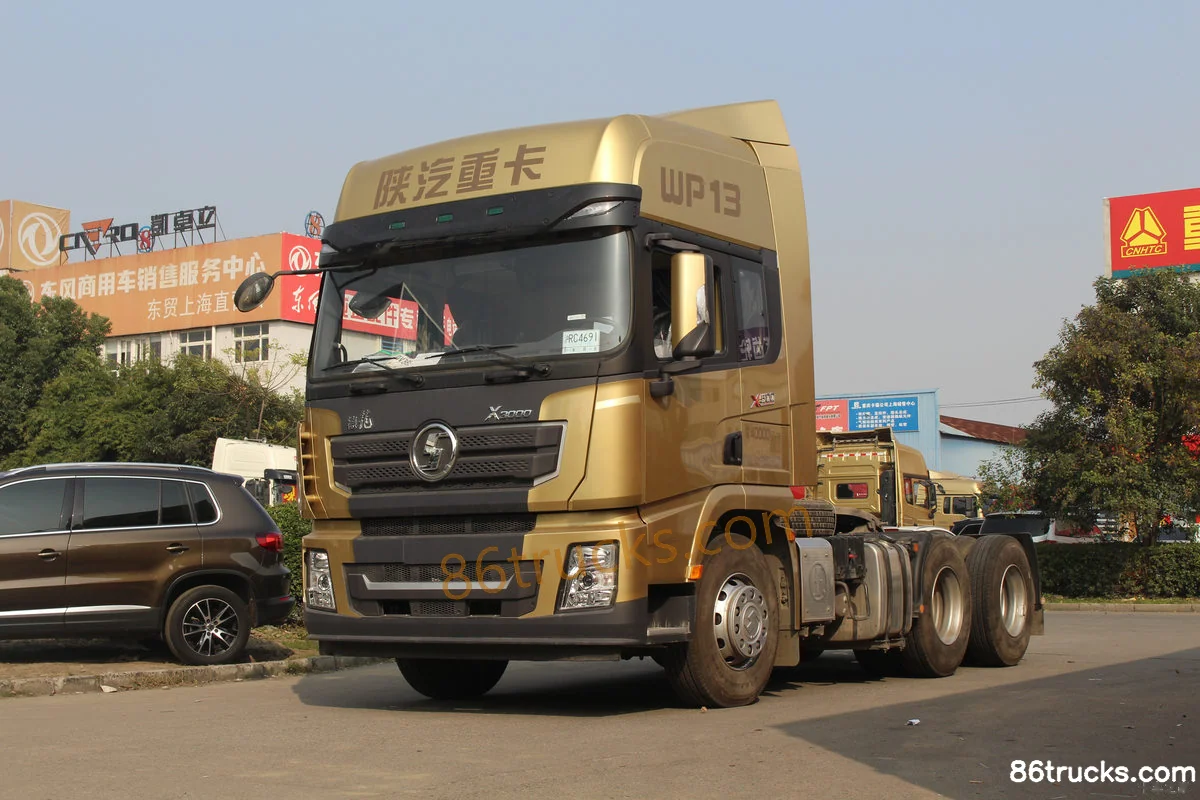

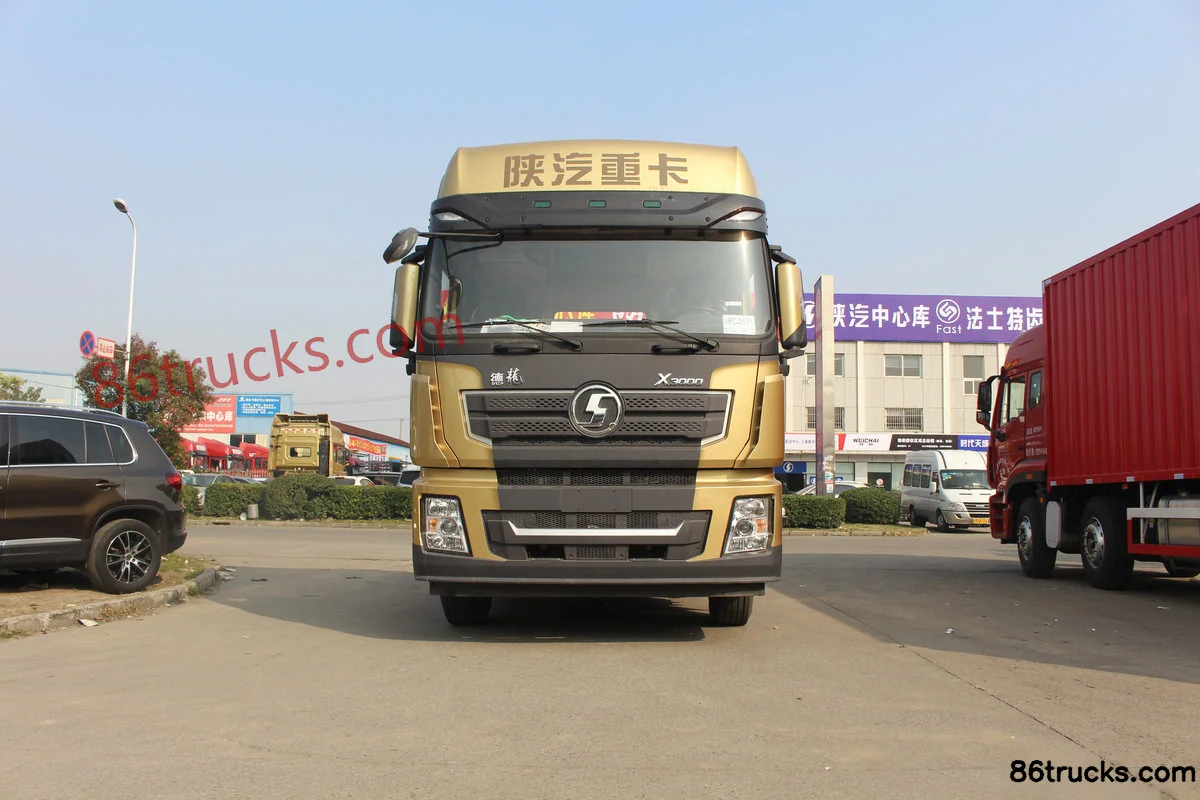

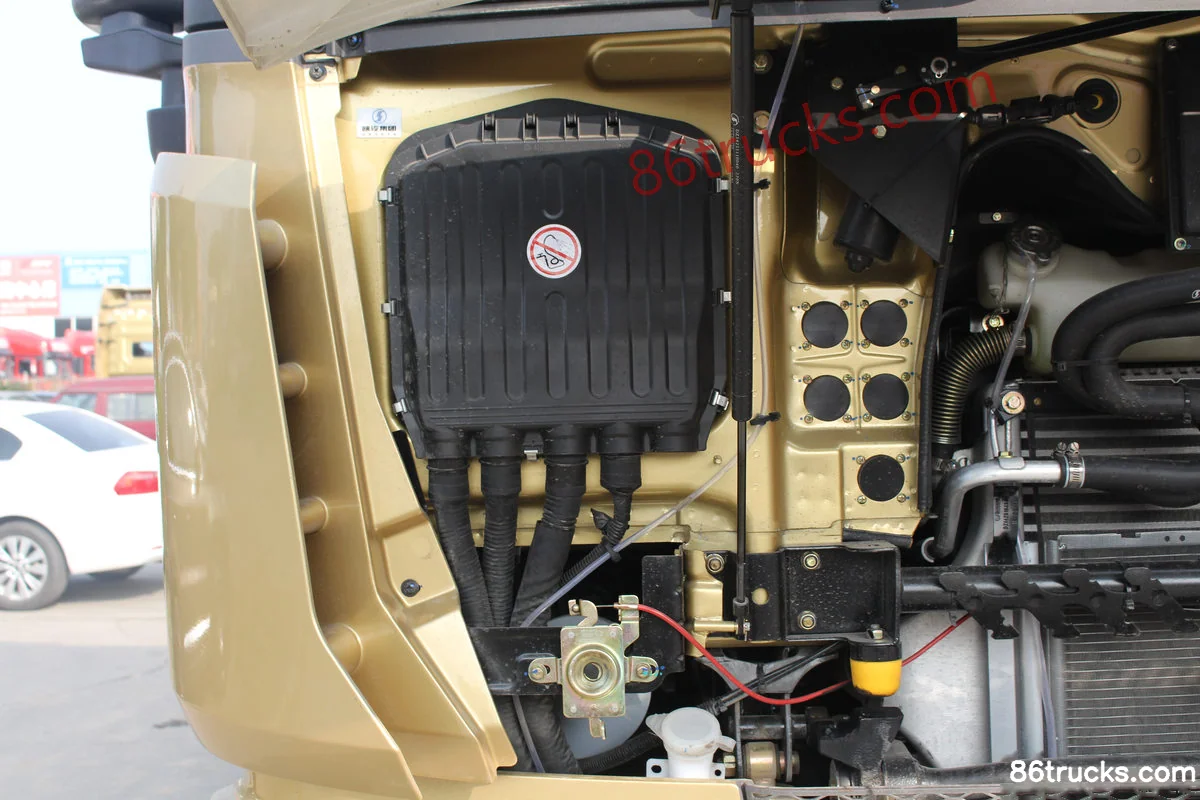

Exterior3

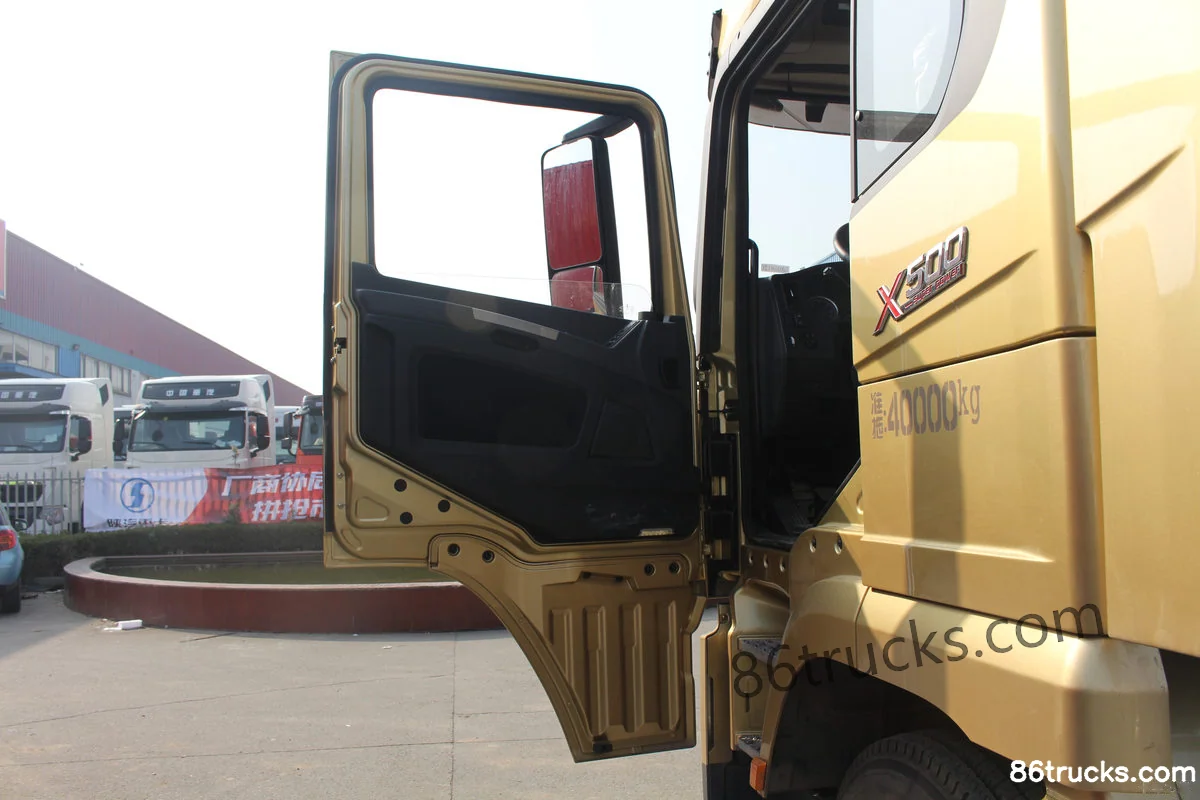

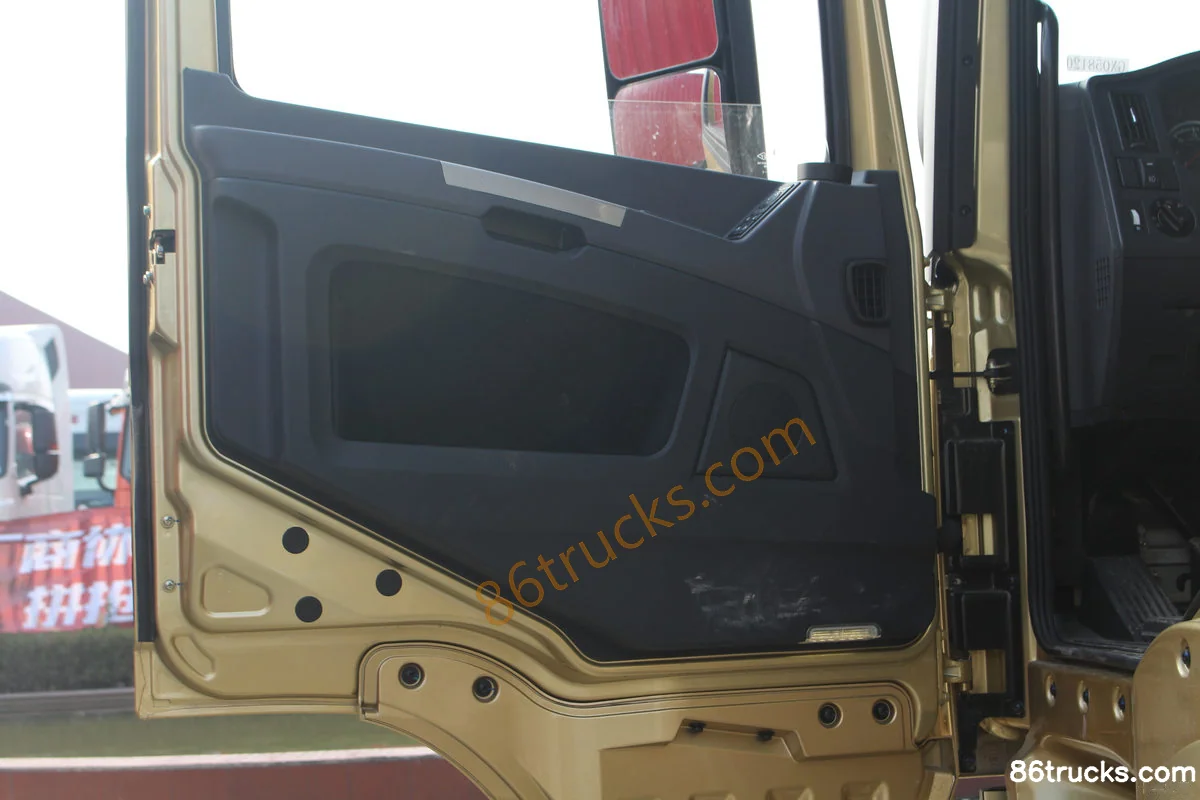

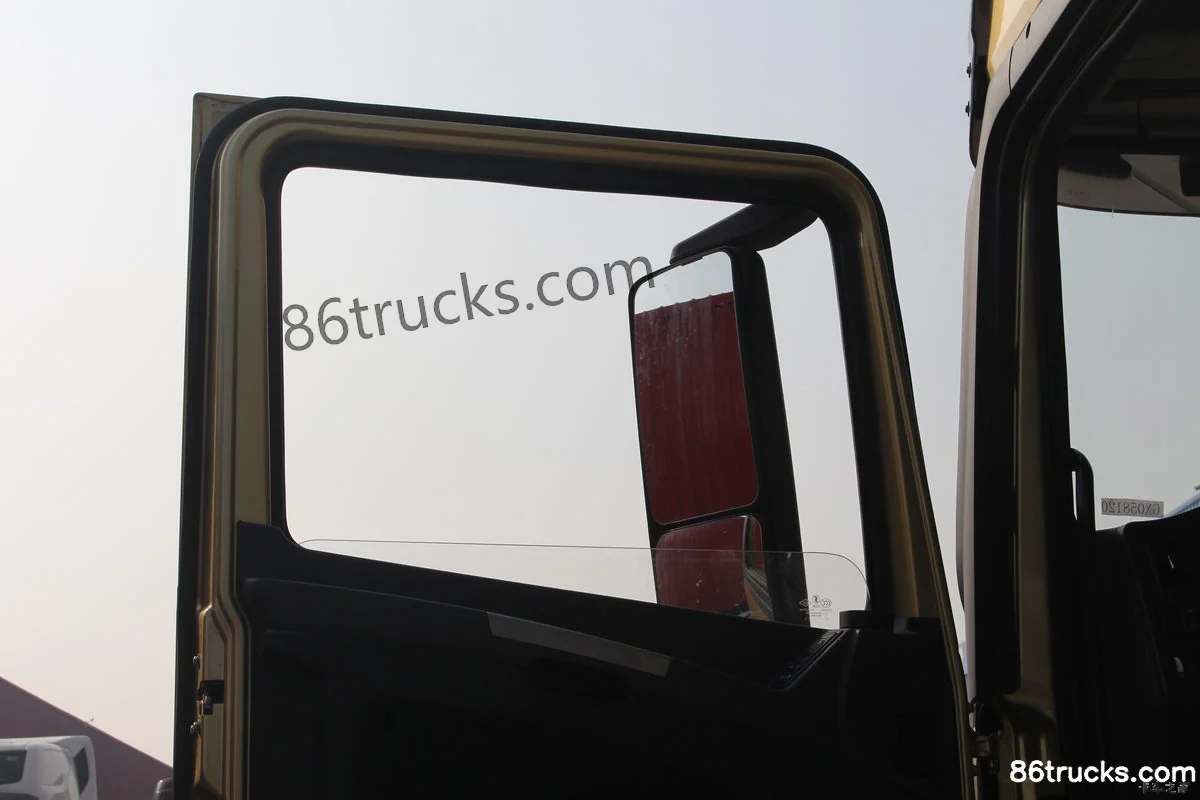

Cab3

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension), and what does it include?

SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) export reference is about From $49,306; MSRP is ¥35.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension)?

Key specs of SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension): Drive: 6x4; Horsepower: 500 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) suited for?

SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) differ from other variants in the same series?

SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension) belongs to SHACMAN Delong X3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 500 hp 6X4(10 wheels) tractor truck (air suspension)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
