FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis

Export reference
From $22,750
MSRP ¥16.38M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: FAW Jiefang
Curb Weight:: 5.8ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis is a Medium-duty truck featuring 6.7m cargo length, Chassis cargo body, 3Personnel volume and 9.8t payload. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1160P62K1L4A1E5
Type: Chassis
Drive type: 4X2
Wheelbase: 5300mm
engine: DachaiCA4DK1-18E5
transmission: FAW JiefangCA6T138
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.495m
Cab height: 2.9m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 5.8ton
Rated payload: 9.8ton
GVWR: 15.795ton
Max. speed: 96km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Remarks: J6L semi-floating flat top small cab with half row cab
Front/rear suspension: 1.4/2.2m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.76L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: FAW JiefangCA6T138
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.7m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
Cab suspension: Front: rigid connection; Rear: mechanical
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5800kg
rear axle allowable load: 9995kg
Axle ratio: 4.875
Leaf spring count: 7/7+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

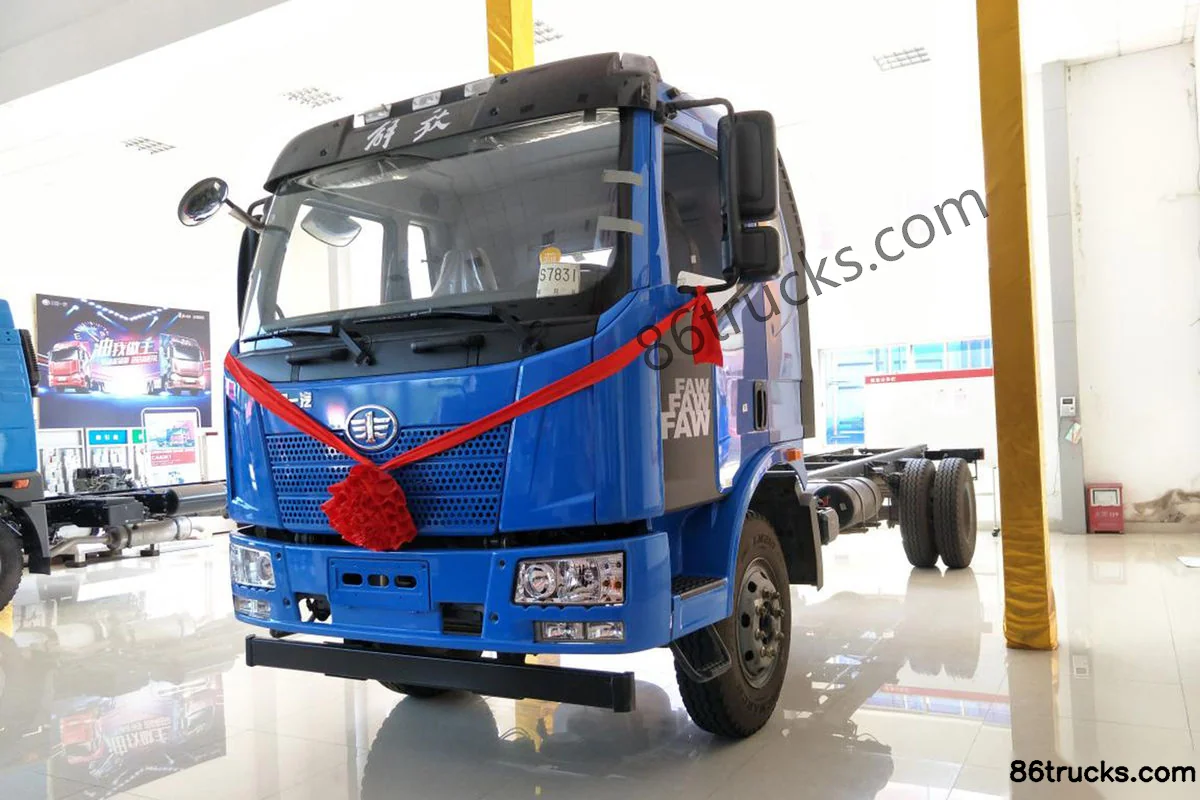

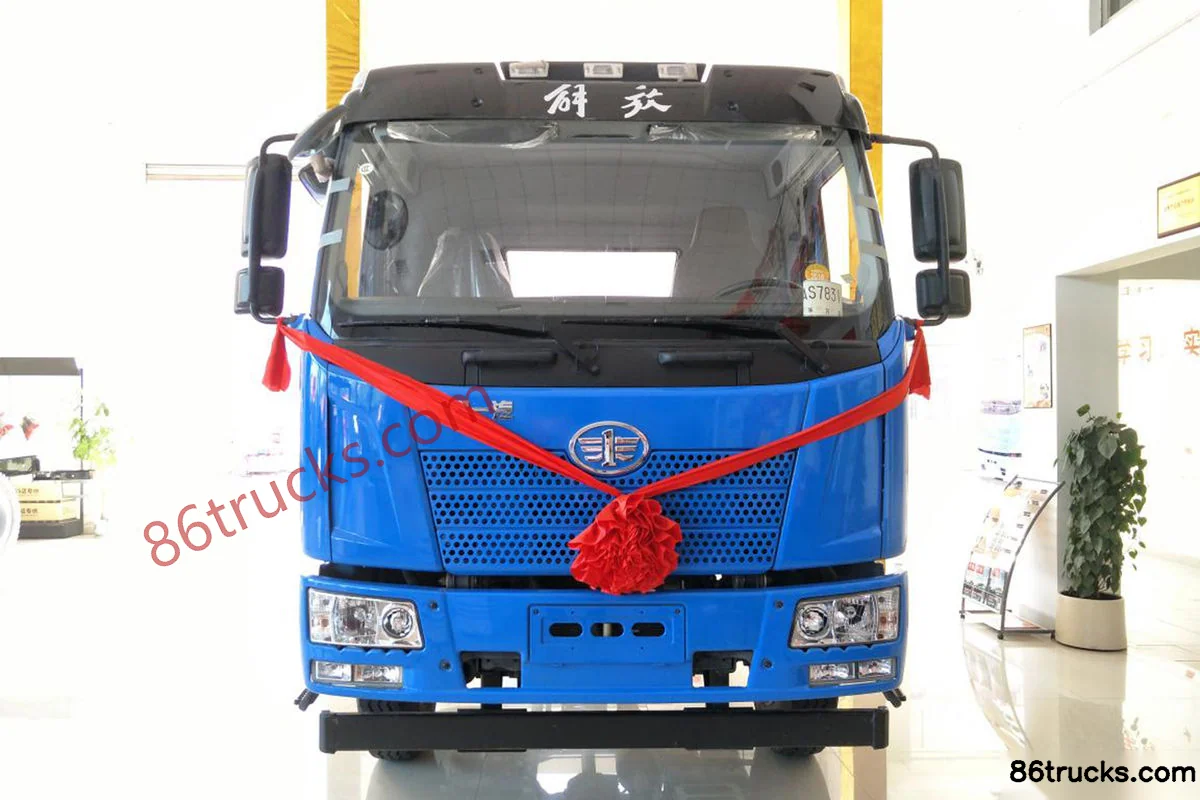

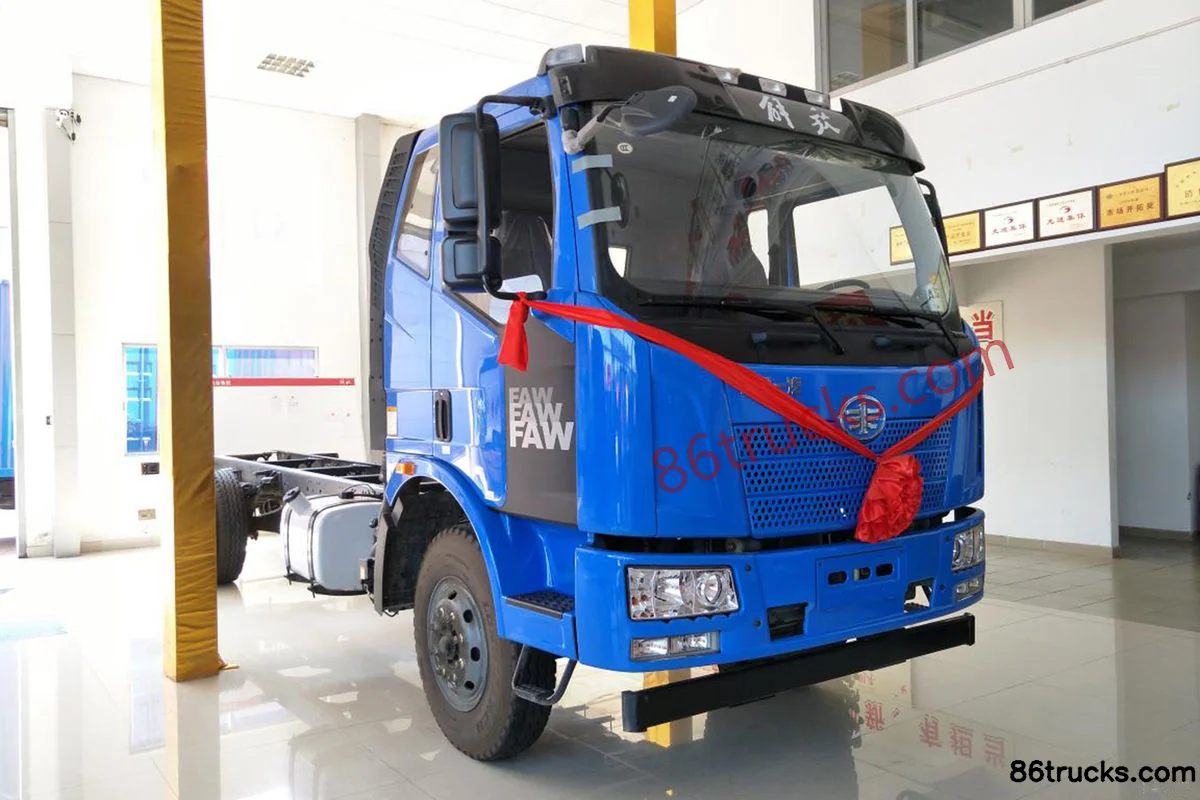

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis, and what does it include?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis export reference is about From $22,750; MSRP is ¥16.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis?

Key specs of FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis suited for?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck 180 hp 4X2(6 wheels) 5300mm Wheelbase Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
