Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.1
Transmission: Fast Gear
Curb Weight:: 5.35ton
seating capacity: 3Personnel
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck is a Light Truck featuring 5.66m cargo length, stake body cargo body, 3Personnel volume and 9.995t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.1 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1168A48P5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4500mm
Box length class: 5.6m
engine: WeichaiWP4.1Q160E50
transmission: Fast Gear 8-speed
Cab length: 7.93m
Cab width: 2.5m
Cab height: 2.75m
Front track width: 1750mm
rear track: 1725mm
Curb Weight: 5.35ton
Rated payload: 9.995ton
GVWR: 15.54ton
Max. speed: 90km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 17°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.3/2.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q160E50
Engine info: WeichaiWP4.1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088L
Emission standard: China V
Max output power: 115kW
Max hp: 160Horsepower
Max torque: 520N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.66m
Cargo box width: 2.32m
Cargo box height: 0.55m
*Cargo box interior width: 2.3199999332428
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5380kg
rear axle allowable load: 10160kg
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

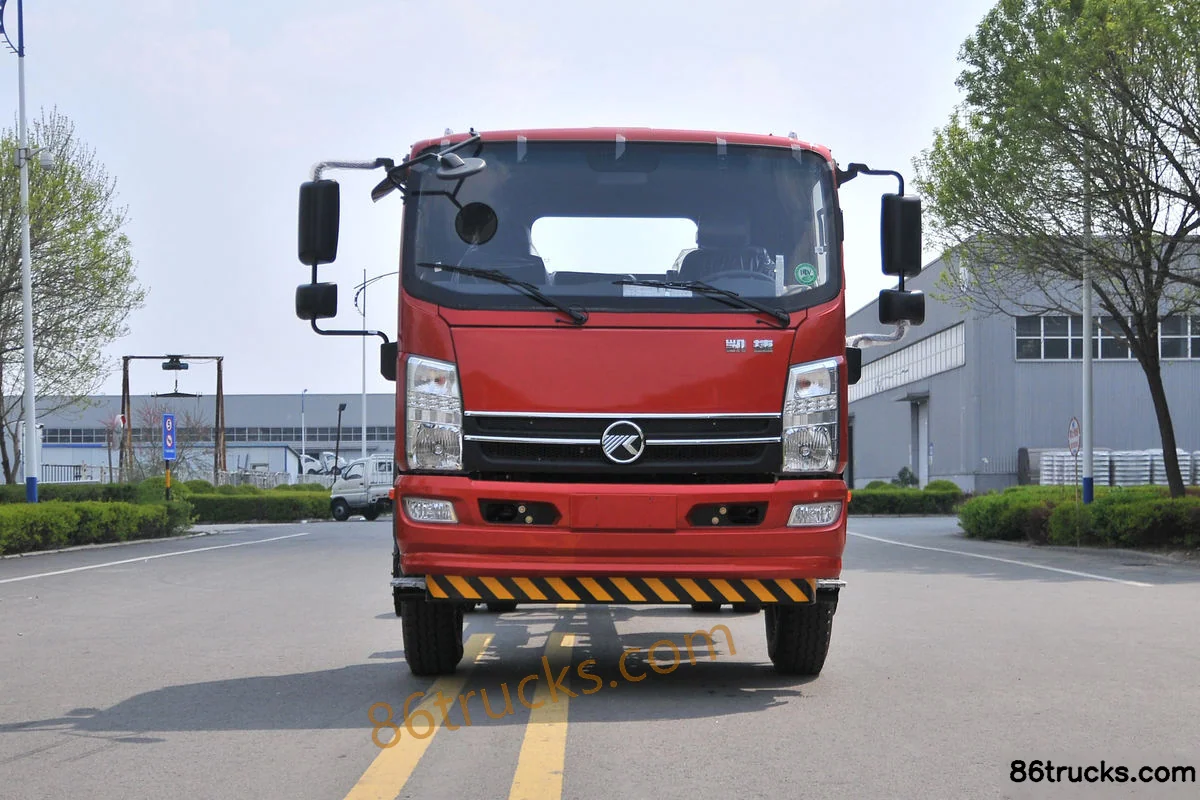

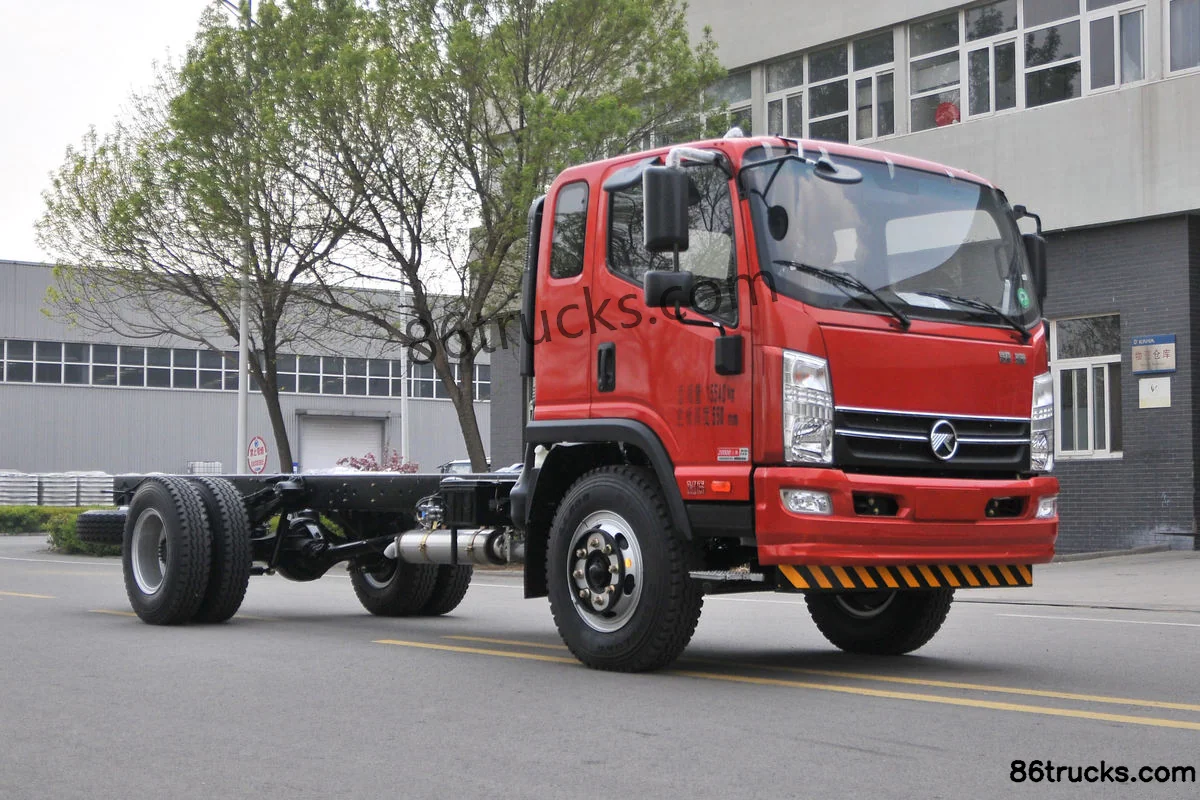

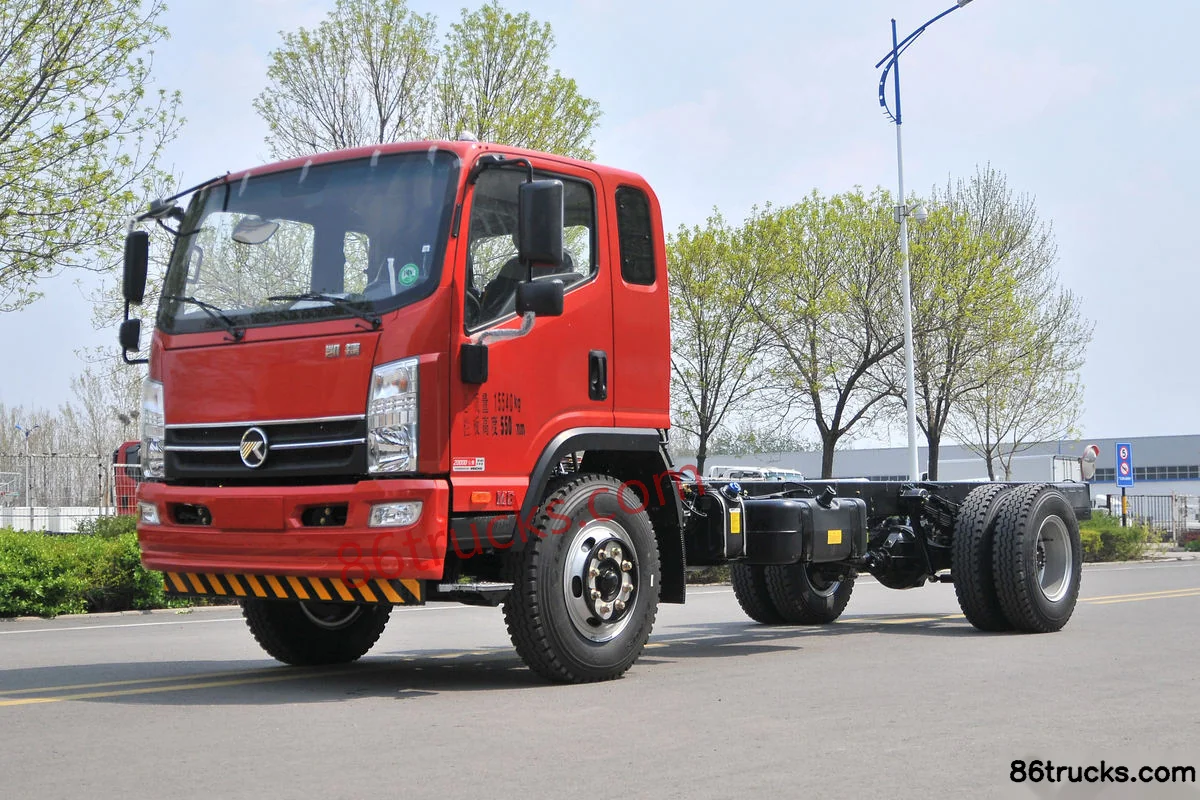

Exterior3

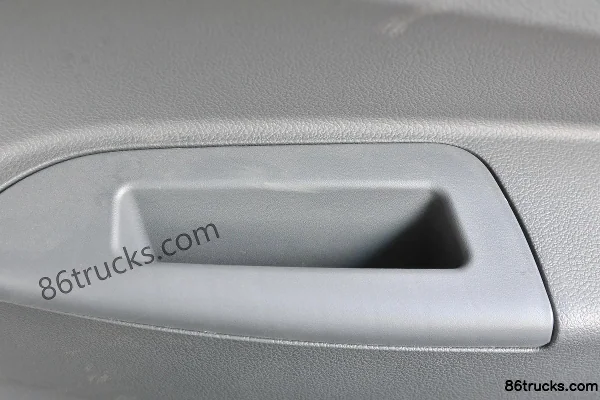

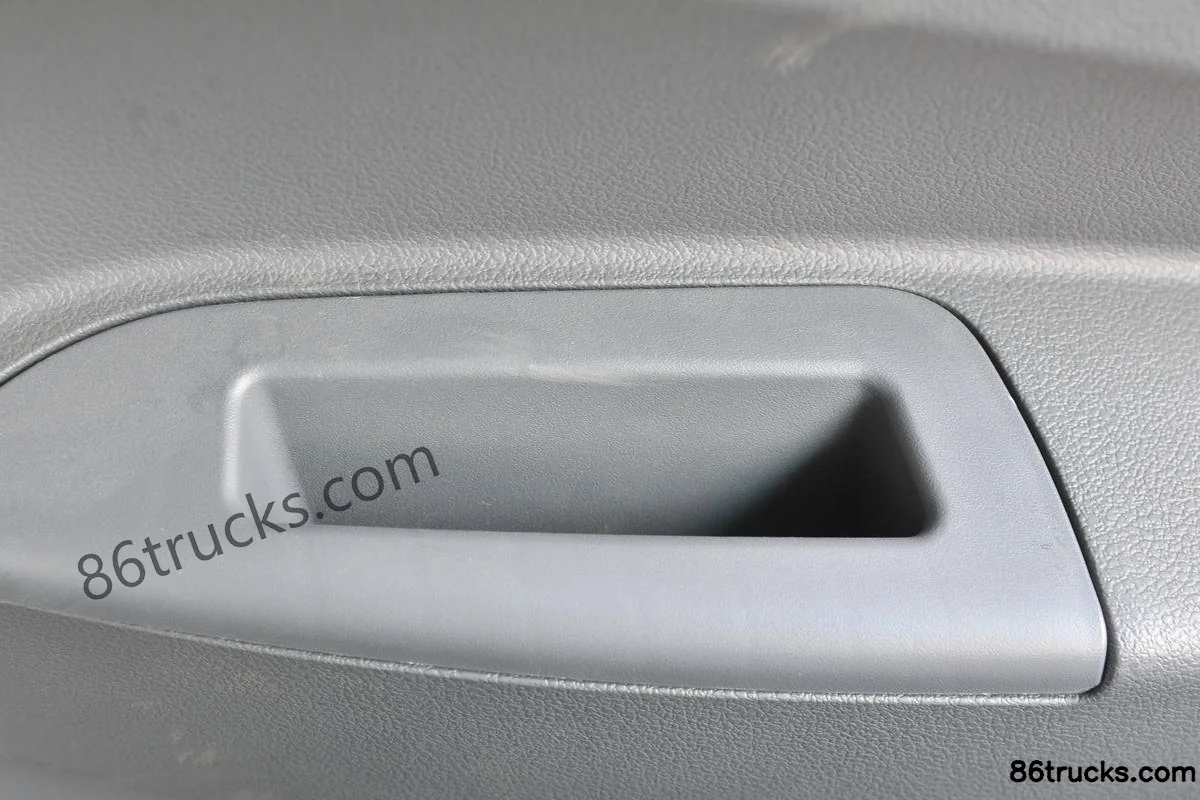

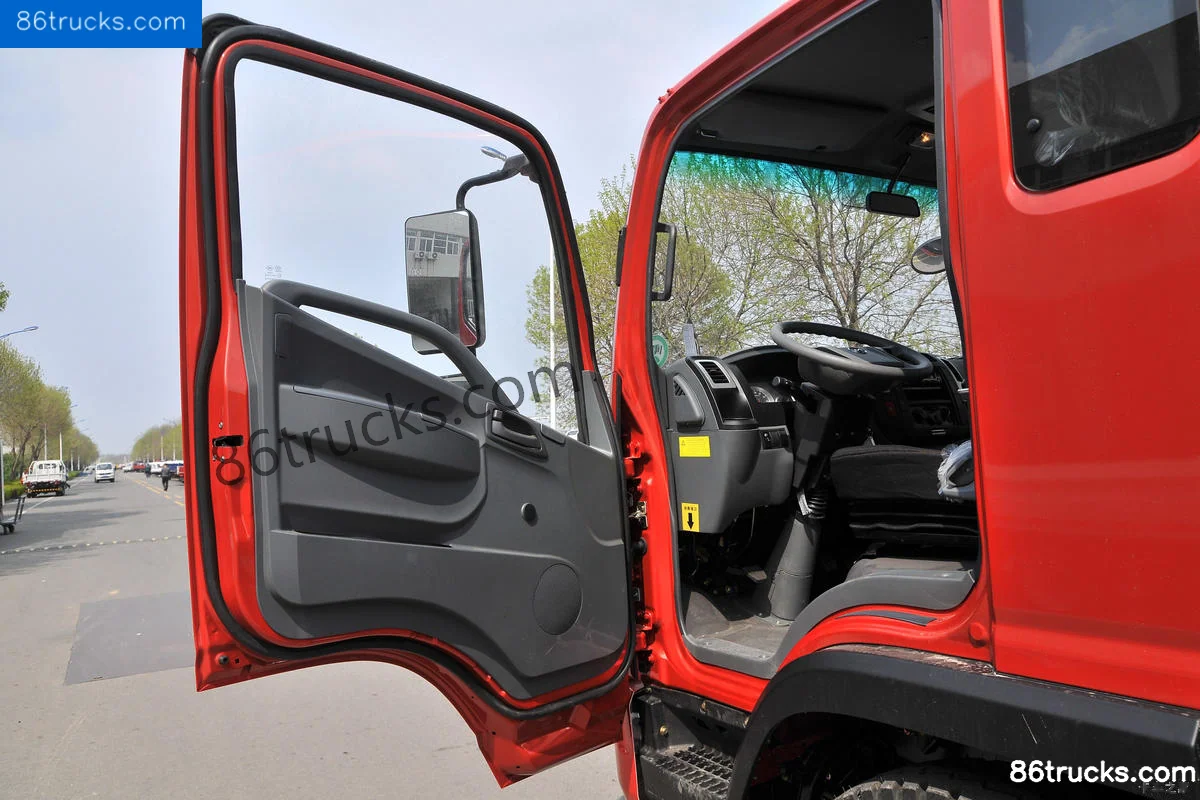

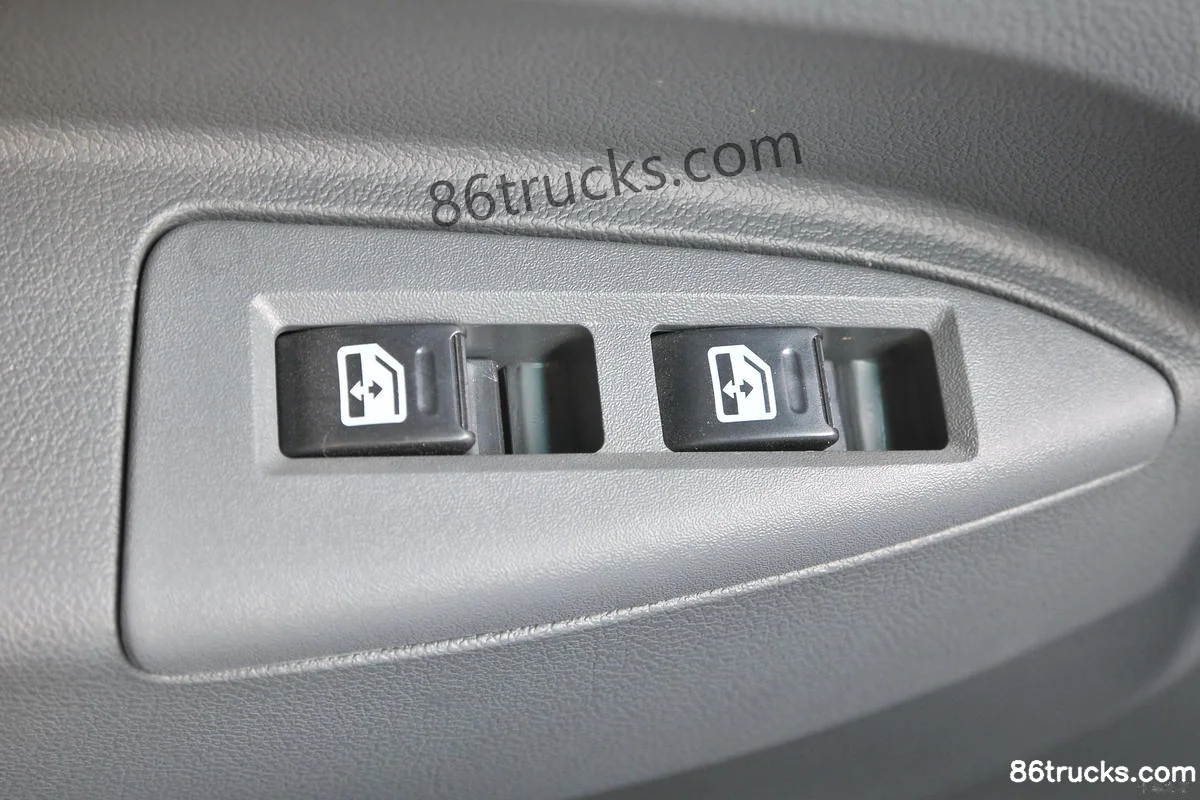

Cab3

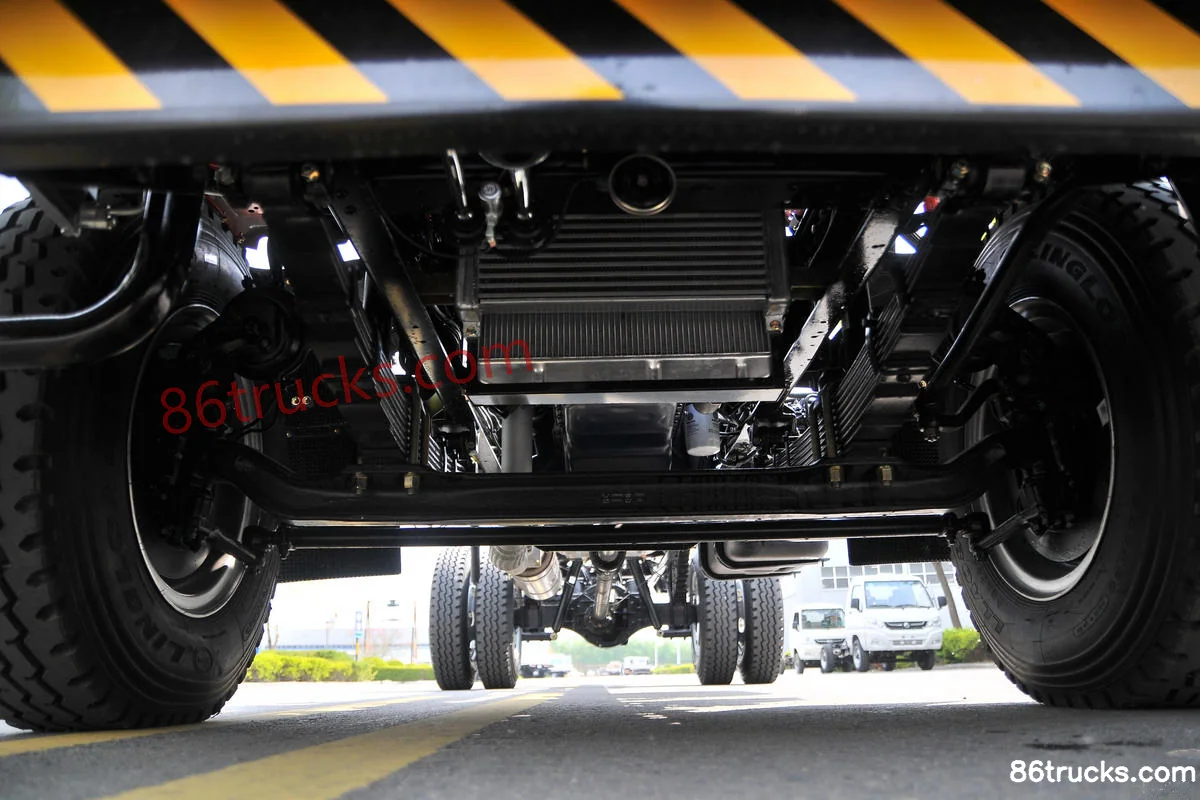

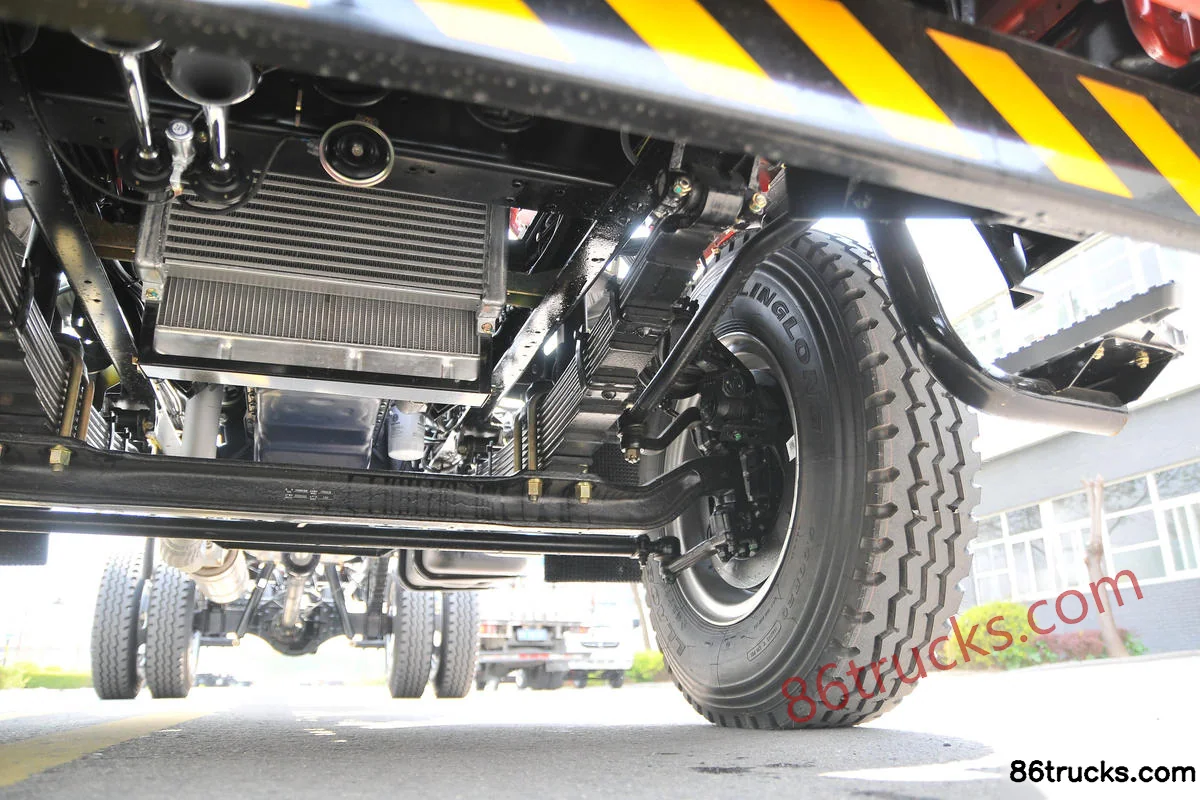

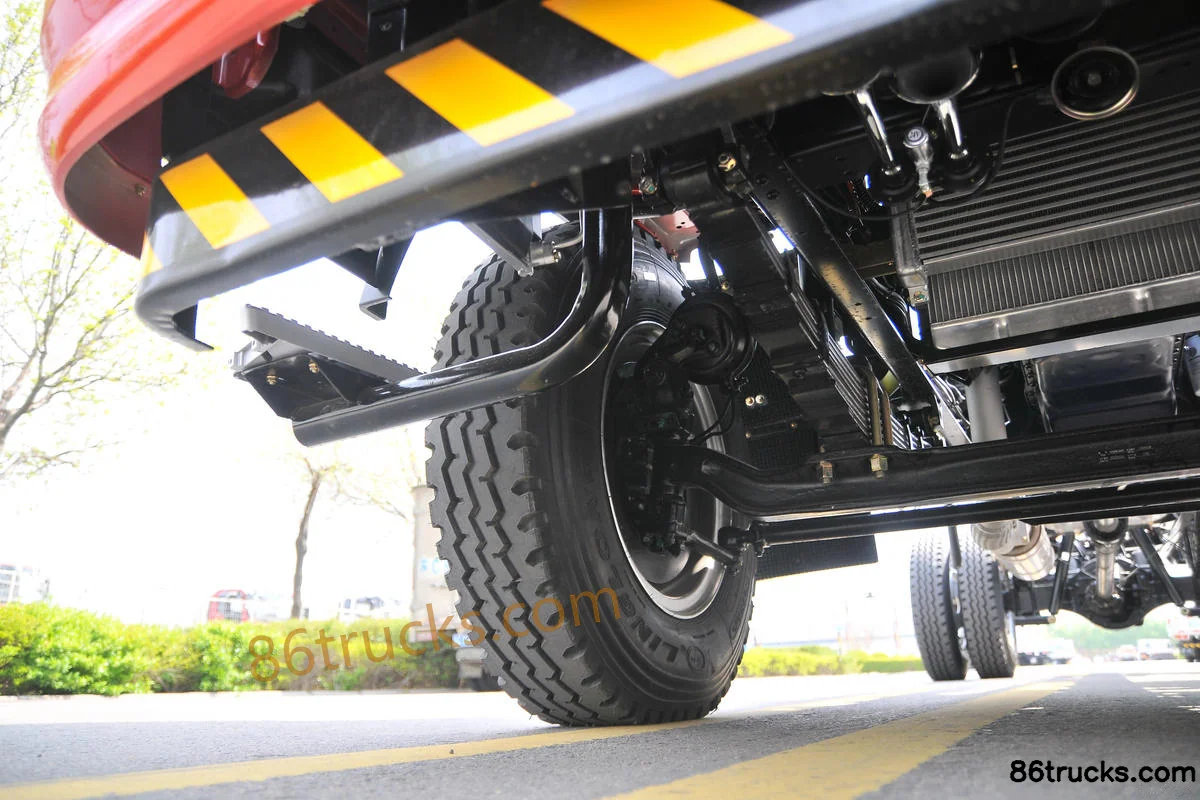

Chassis3

9 photos

FAQ

What emission standard does Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck?

Key specs of Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.1; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck suited for?

Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck differ from other variants in the same series?

Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck belongs to Kama Kaijie M6 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M6 160 hp 4X2(6 wheels) 5.66m Cab Chassis Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
