Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: Fukang 2.8
Transmission: WLY
Curb Weight:: 4.3ton
Wheelbase:: 3360mm
Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck exterior
View more photos (3)
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Van body
Horsepower 131

Overview

The Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck is a Light Truck featuring Van body cargo body, 3Personnel volume and 3360mm wheelbase. On the powertrain side, it comes with a Fukang 2.8 engine, 131 hp, 4X2 (6 wheels) drive and China V emissions.

China V 131 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5048XXC-FA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
engine: FotonISF2.8s5129T
transmission: WLYWLY5G40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.25m
Cab height: 3.18m
Front track width: 1730mm
rear track: 1615mm
Curb Weight: 4.3ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Remarks: Three-sided LED screen, liftable, with additional display cabinet
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF2.8s5129T
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China V
Max output power: 96kW
Max hp: 131Horsepower
Max torque: 300N·m
Max torque speed: 1500-2900rpm
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY5G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cab parameters
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1800kg
rear axle description: NPR
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 3/7+6,3/8+6,3/4+2,3/5+2
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

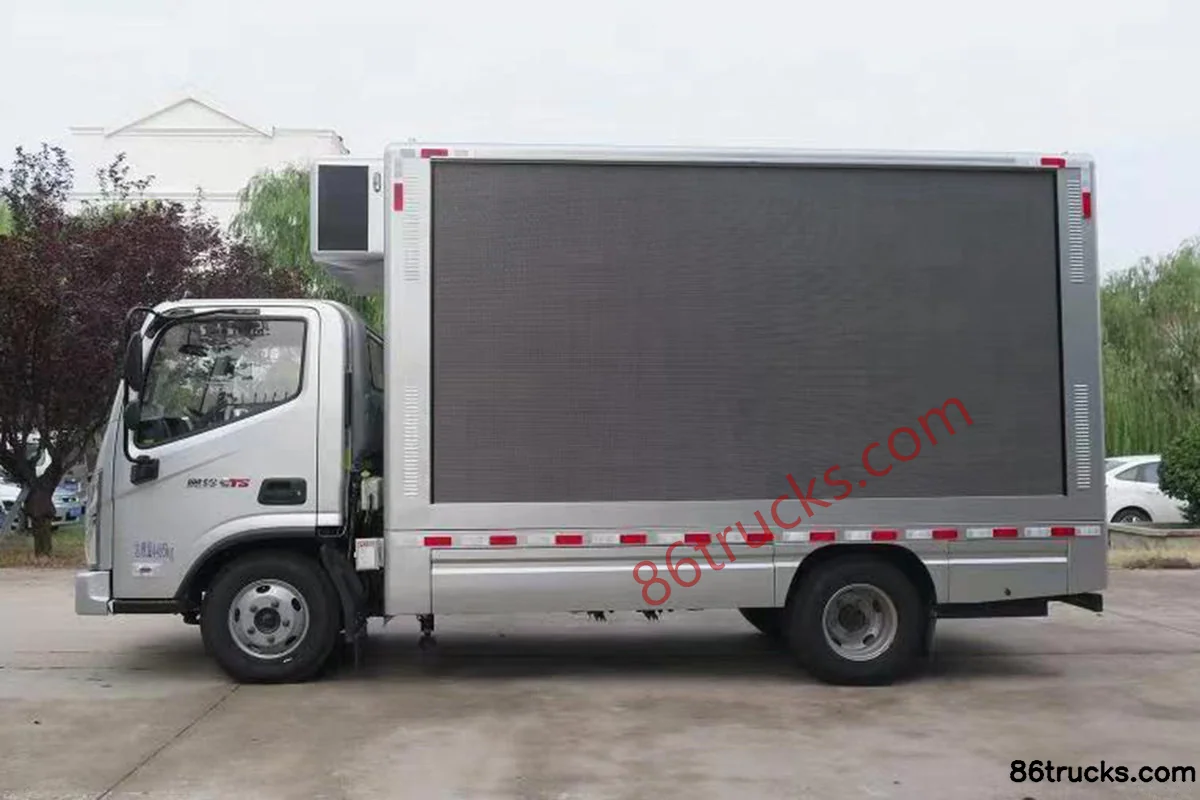

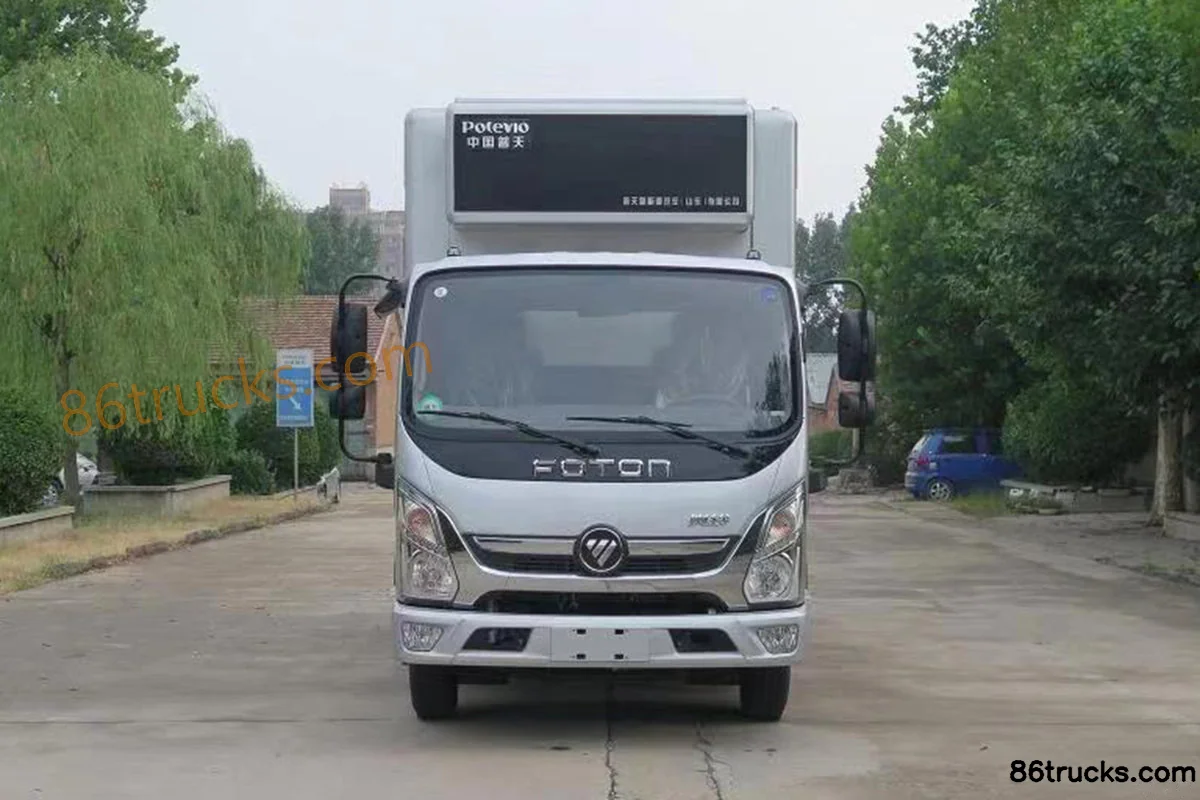

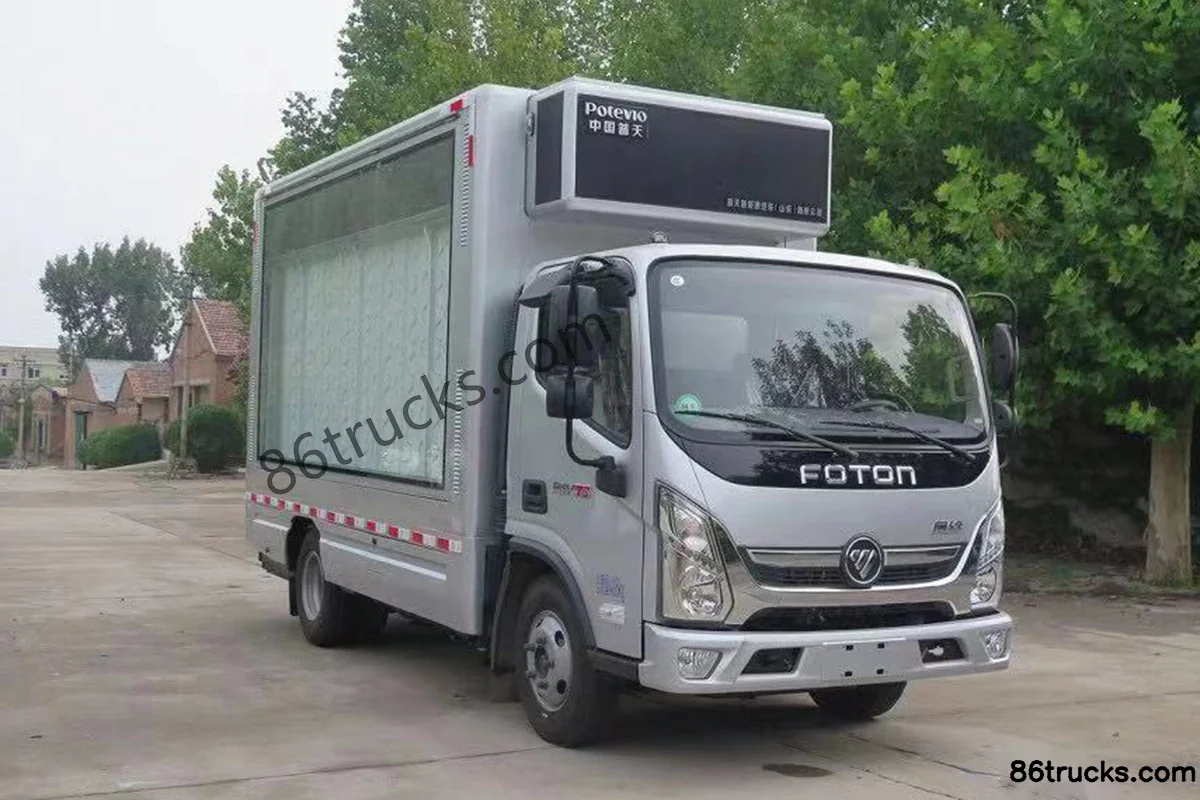

Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck Exterior (1) | 86Trucks Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck Exterior (2) | 86Trucks Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck?

Key specs of Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck: Drive: 4x2; Horsepower: 131 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 2.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck suited for?

Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck differ from other variants in the same series?

Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck belongs to Foton CTS Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTS 131hp 4X2(6 wheels) Single Row Billboard Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
