Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck

Export reference
MSRP N/A
Horsepower: 68
Emission: China IV
Fuel: Diesel
Engine: Laidong 485
Transmission: Mengwo
Curb Weight:: 1.76ton
Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck exterior
View more photos (3)
seating capacity: 5Personnel
Rated payload: 1.41ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Heibao Auto Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck is a mini truck featuring 3m cargo length, stake body cargo body, 5Personnel volume and 1.41t payload. On the powertrain side, it comes with a Laidong 485 engine, 68 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 68 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1030W10FS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3030mm
Box length class: 3m
engine: Huayuan Laidong4L18CF
transmission: MengwoMT78
Cab length: 5.53m
Cab width: 1.798m
Cab height: 2.11m
Front track width: 1299mm
rear track: 1370mm
Curb Weight: 1.76ton
Rated payload: 1.41ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Beijing
tonnage class: mini truck
Approach angle: 30°
departure angle: 14°
Front/rear suspension: 0.925/1.575m
Energy Type: Diesel
Engine parameters
Engine Brand: Huayuan Laidong
Engine Model: Huayuan Laidong4L18CF
Engine info: Laidong 485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.809L
Emission standard: China IV
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000-2400rpm
Rated speed: 3200rpm
Engine Type: Direct injection high-pressure common rail, turbocharged & intercooled, EGR (intercooled), aftertreatment (DOC)
Transmission Parameters
Transmission Model: MengwoMT78
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3m
Cargo box width: 1.66m
Cargo box height: 0.35m
*Cargo box interior width: 1.6599999666214
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 50L
Chassis Specs
Front axle allowable load: 1230kg
rear axle allowable load: 2265kg
Leaf spring count: 6/8+4
Tire
Tire Size: 6.00-15LT 8PR
Tire Type: Steel-belted tire
Number of tires: 6pcs

Photos

Exterior3

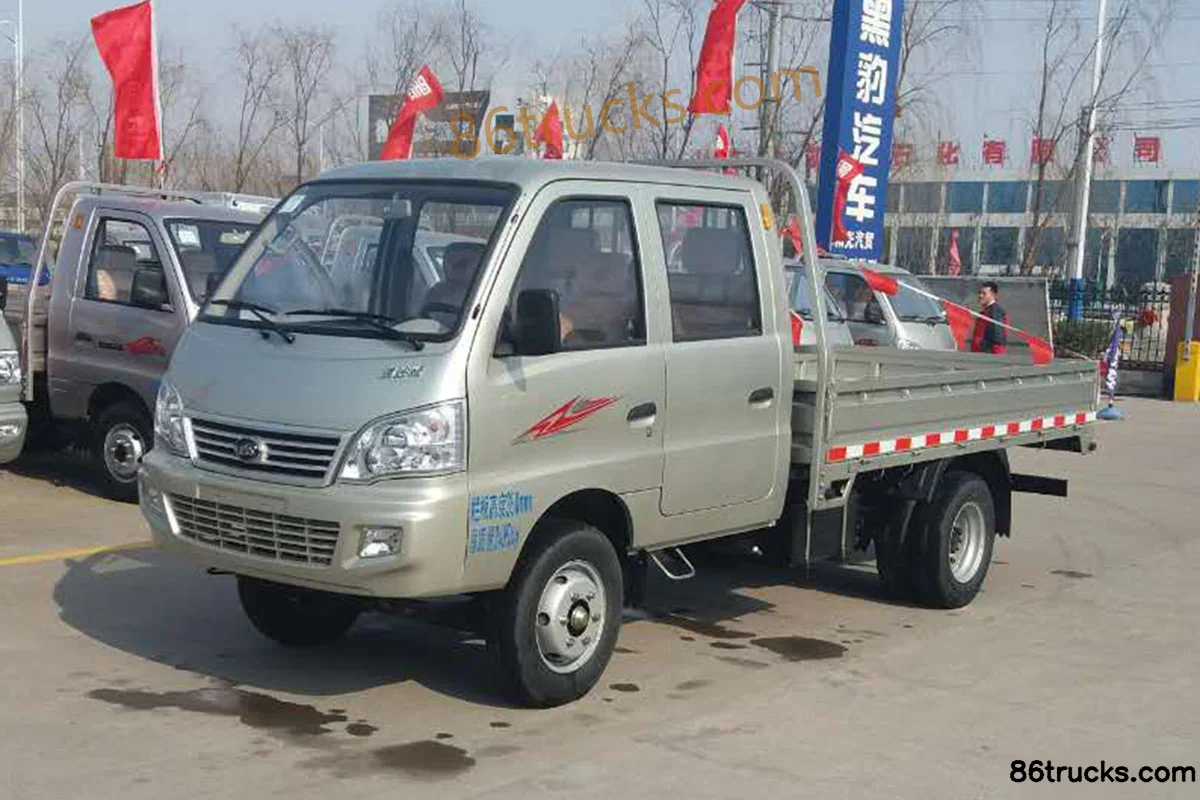

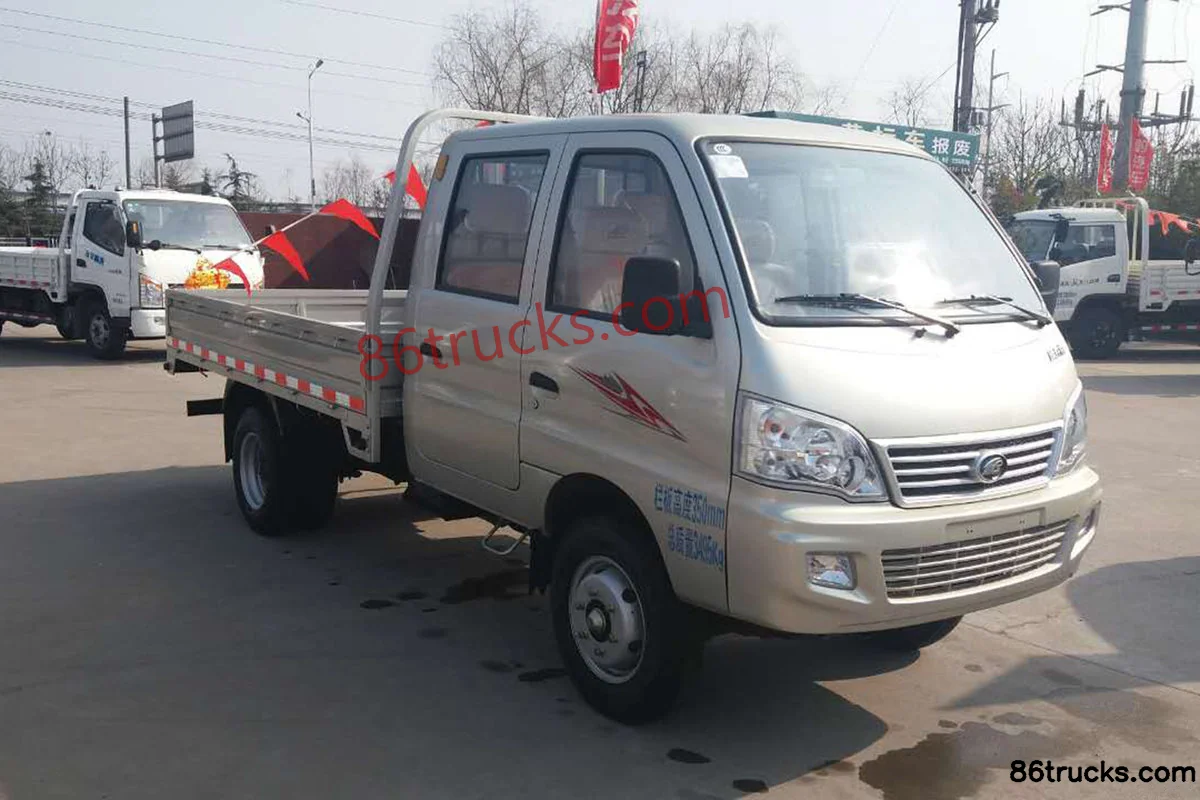

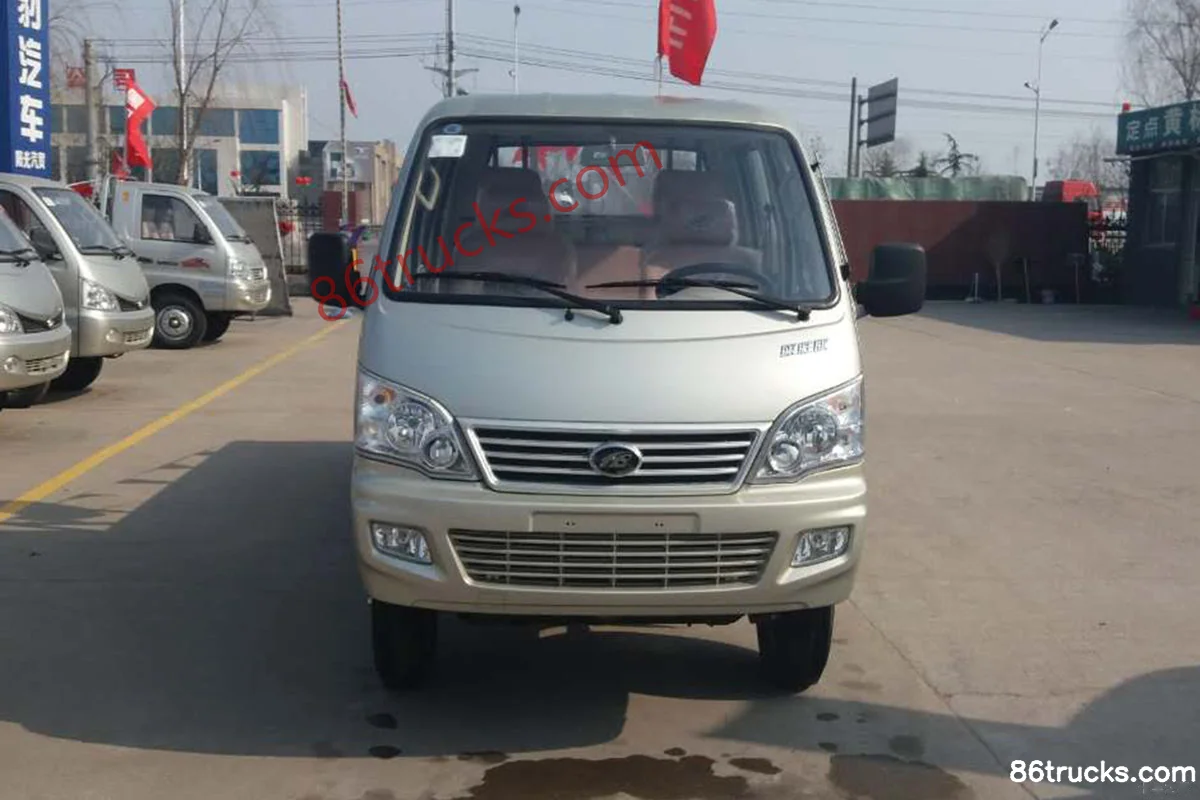

Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck Exterior (1) | 86Trucks Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck Exterior (2) | 86Trucks Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck?

Key specs of Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 68 hp; Emission: China IV; Fuel: Diesel; Engine: Laidong 485; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck suited for?

Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck differ from other variants in the same series?

Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck belongs to BAIC Heibao H3 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiqi Heibao H3 1.8L 68hp 4X2(6 wheels) Diesel 3m Double Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
