JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels)

Export reference
From $27,625
MSRP ¥19.89M CNY
Rated payload:: 1.27ton
Wheelbase:: 3365mm
Cargo box volume:: 13.1m³
Model code (announced):: HFC5040XXYEV3
Type:: enclosed cargo truck
Box length class:: 3.2m
Drive 4X2 (6 wheels)
CLTC range: 290km
Motor 1 Brand: Daoyi Power
Curb Weight: 2.9ton

Overview

The JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) is a Light Truck featuring 290km battery/range, Daoyi Power motor, 4X2 (6 wheels) drive and 1.27t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5040XXYEV3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 3.2m
Cab length: 5.995m
Cab width: 2.15m
Cab height: 3m
CLTC range: 290km
Curb Weight: 2.9ton
Rated payload: 1.27ton
GVWR: 4.495ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Daoyi Power
Motor 1 Model: TZ220XSJHK
Max torque: 340N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 45kW
Peak power: 110kW
total peak torque: 340N·m
total rated torque: 140N·m
Battery/Charging
Battery Brand: Lishen
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 64.64kWh
fast charge time: 1.5h
Battery rated voltage: 320V
Energy Density: 139.2
Battery total voltage: 320V
Battery Model: LSX1P50S-202Ah
Cargo box parameters
Cargo box volume: 13.1m³
Cargo box type: Van body
Cargo box length: 3.2m
Cargo box width: 2.05m
Cargo box height: 2m
Cab parameters
Cab: JAC i5 Double Cab
Cab width: 1725mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1845kg
rear axle allowable load: 2650kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

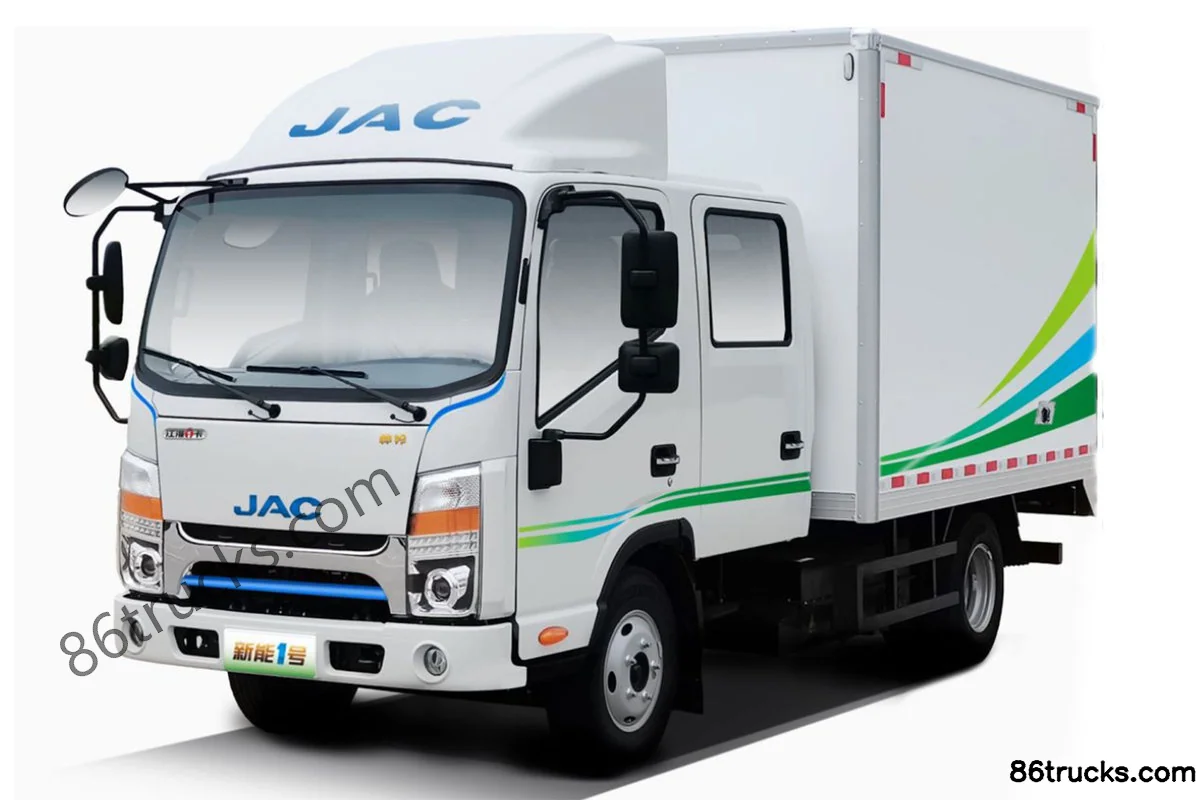

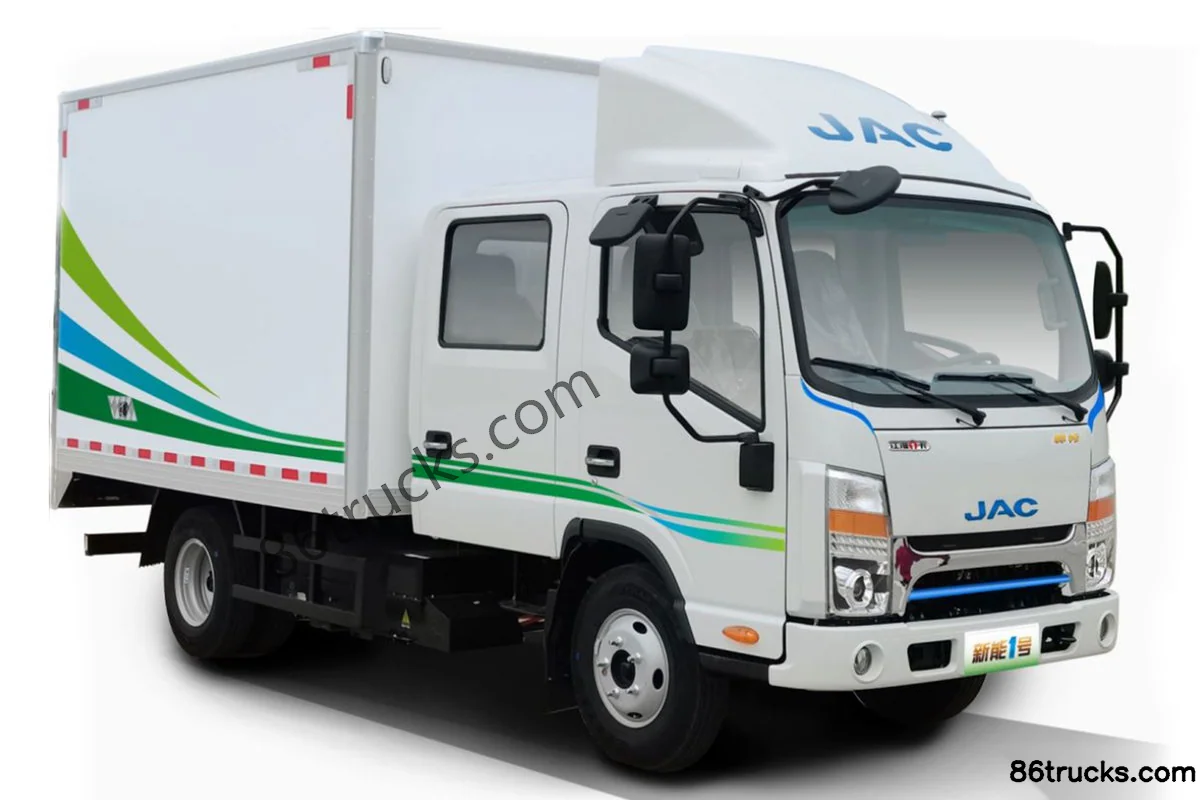

Photos

Exterior2

2 photos

FAQ

What is the export price of JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels), and what does it include?

JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) export reference is about From $27,625; MSRP is ¥19.89M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) suited for?

JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels) belongs to JACEQ3 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i5 4.5T 3.2m Double Row Pure Electric Box Van Light Truck 64.64kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
