Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI)

Export reference
From $14,167
MSRP ¥10.2M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.25ton
Wheelbase:: 2860mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 3.98ton
Drive 4X2 (6 wheels)
Horsepower 110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) is a Light Truck featuring 3.98t payload, 7.36t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-11E6 engine, 110 hp, China VI emissions and WLY transmission.

China VI 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3076W16K6-1
Drive type: 4X2
Wheelbase: 2860mm
engine: XichaiCA4DB1-11E6
transmission: WLYWLY10H35
Rear Axle Ratio: 6.167
Cab length: 5.11m
Cab width: 1.86m
Cab height: 2.15m
Front track width: 1430mm
rear track: 1425mm
Curb Weight: 3.25ton
Rated payload: 3.98ton
GVWR: 7.36ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-11E6
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.2L
Emission standard: China VI
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: WLYWLY10H35
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.2m
Cargo box width: 1.76m
Cargo box height: 0.65m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab: Aochi T1
Cab width: 1730mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 2640kg
rear axle description: 4T
rear axle allowable load: 4720kg
Axle ratio: 6.167
Leaf spring count: 5/7+6
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

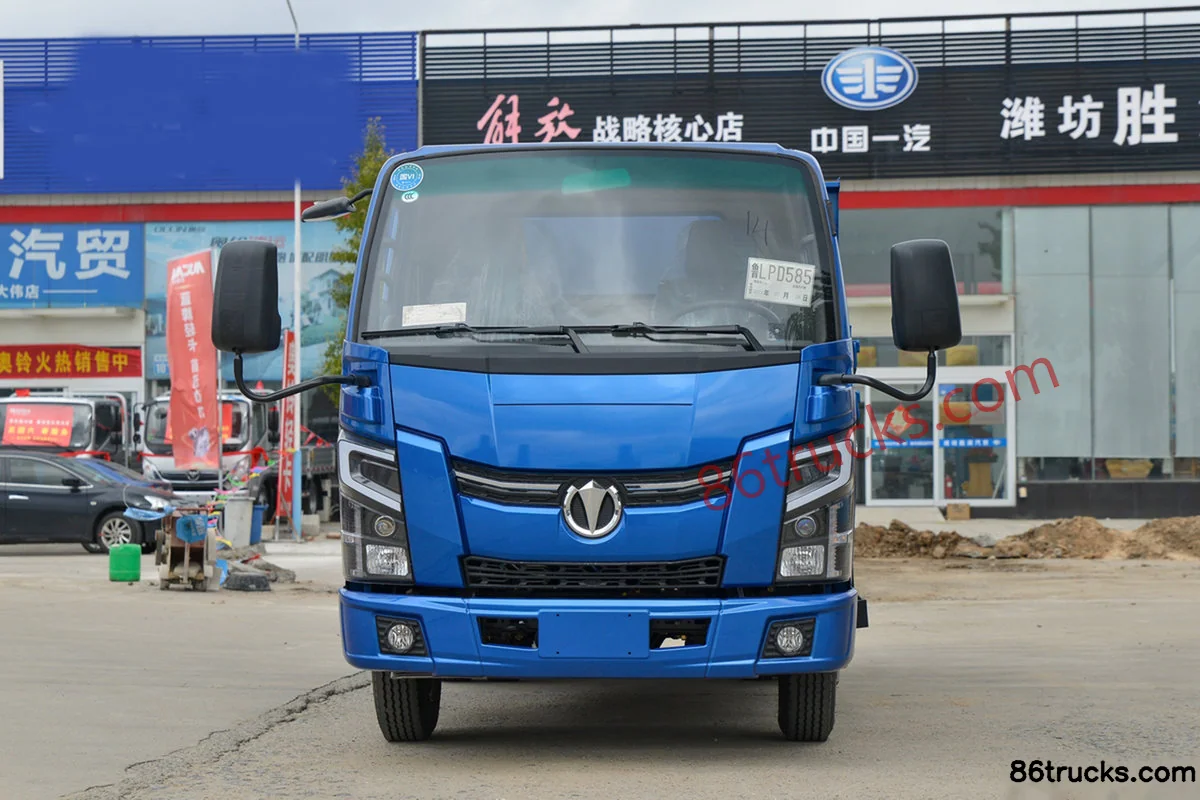

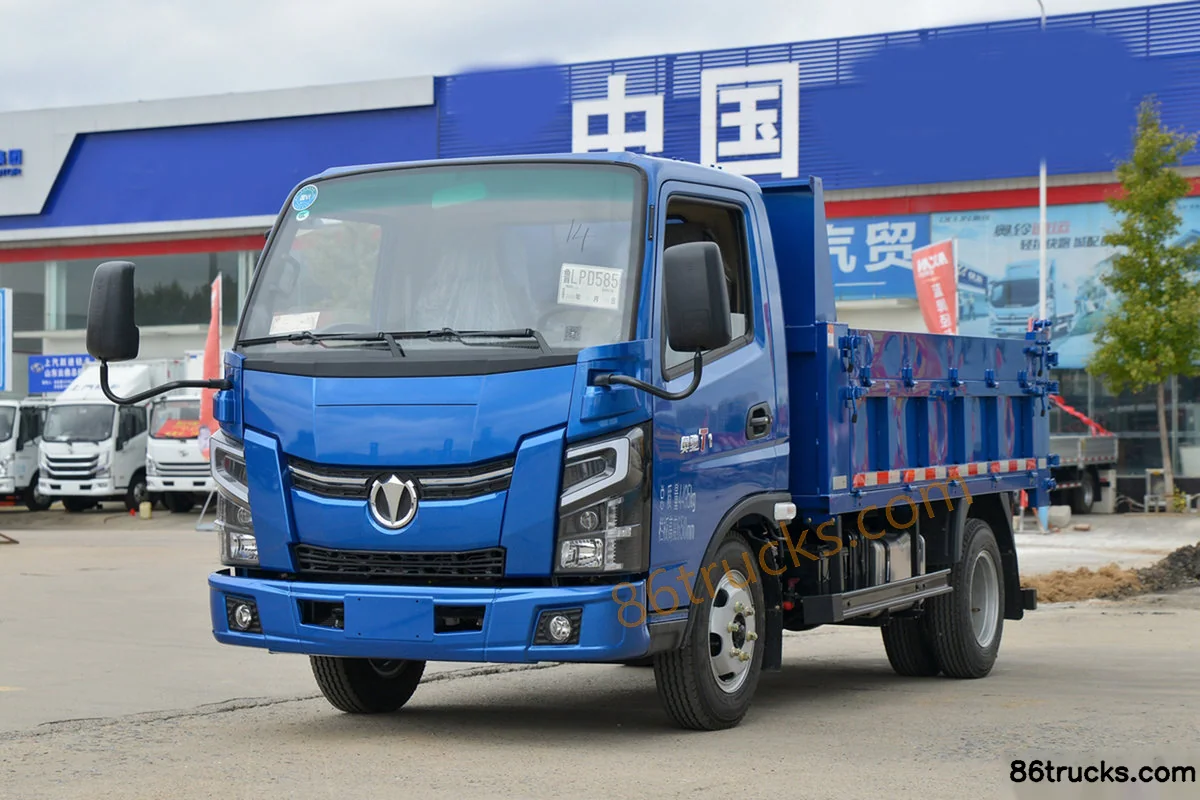

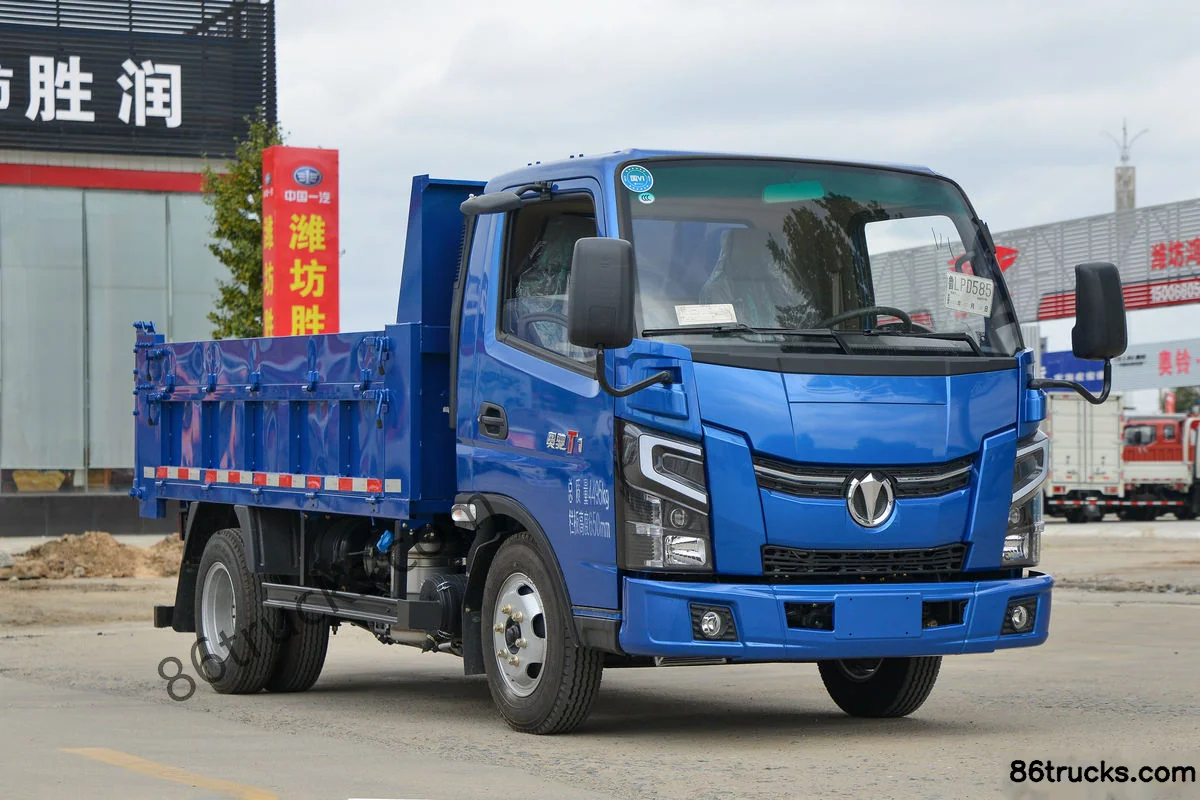

Exterior3

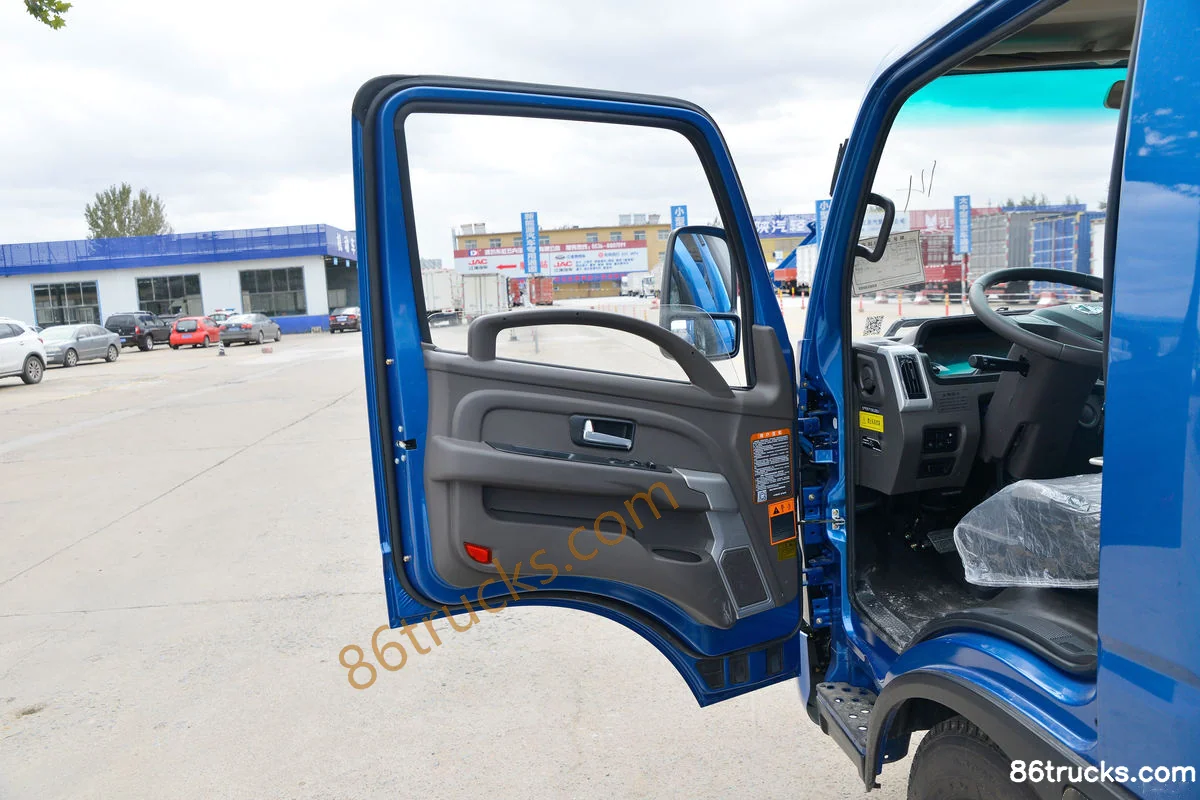

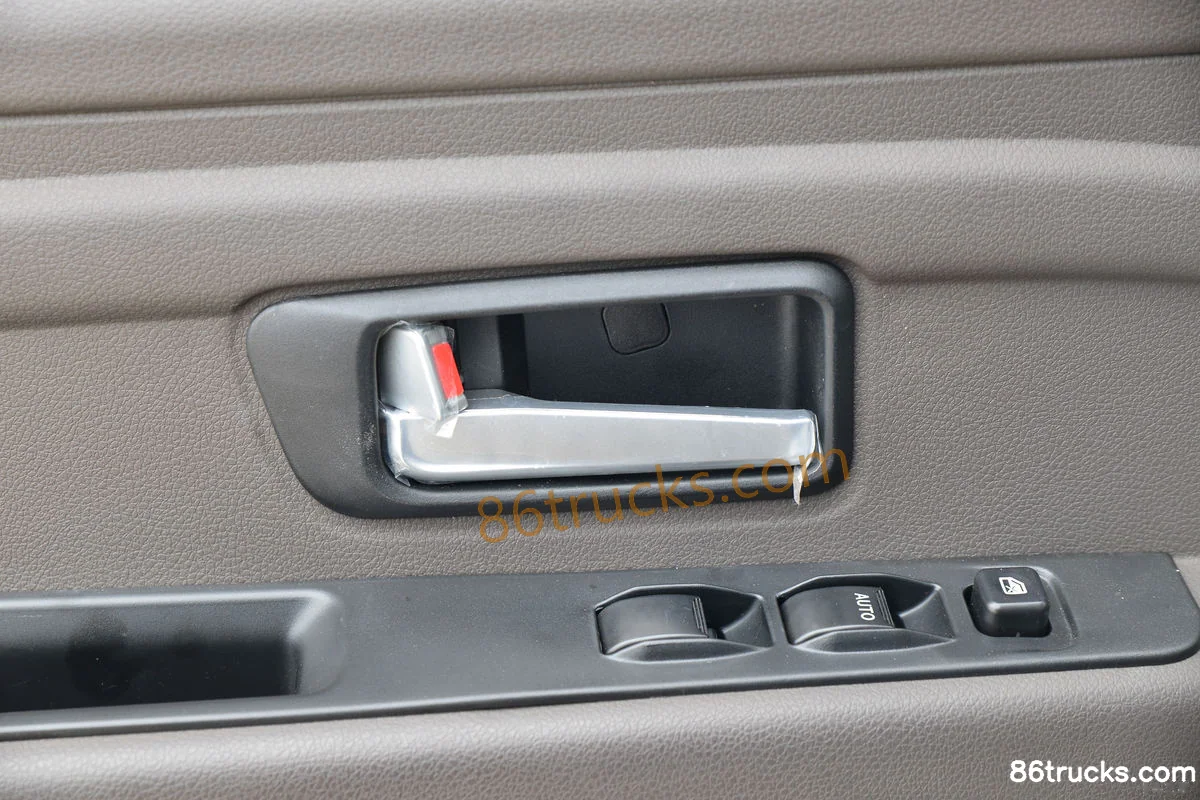

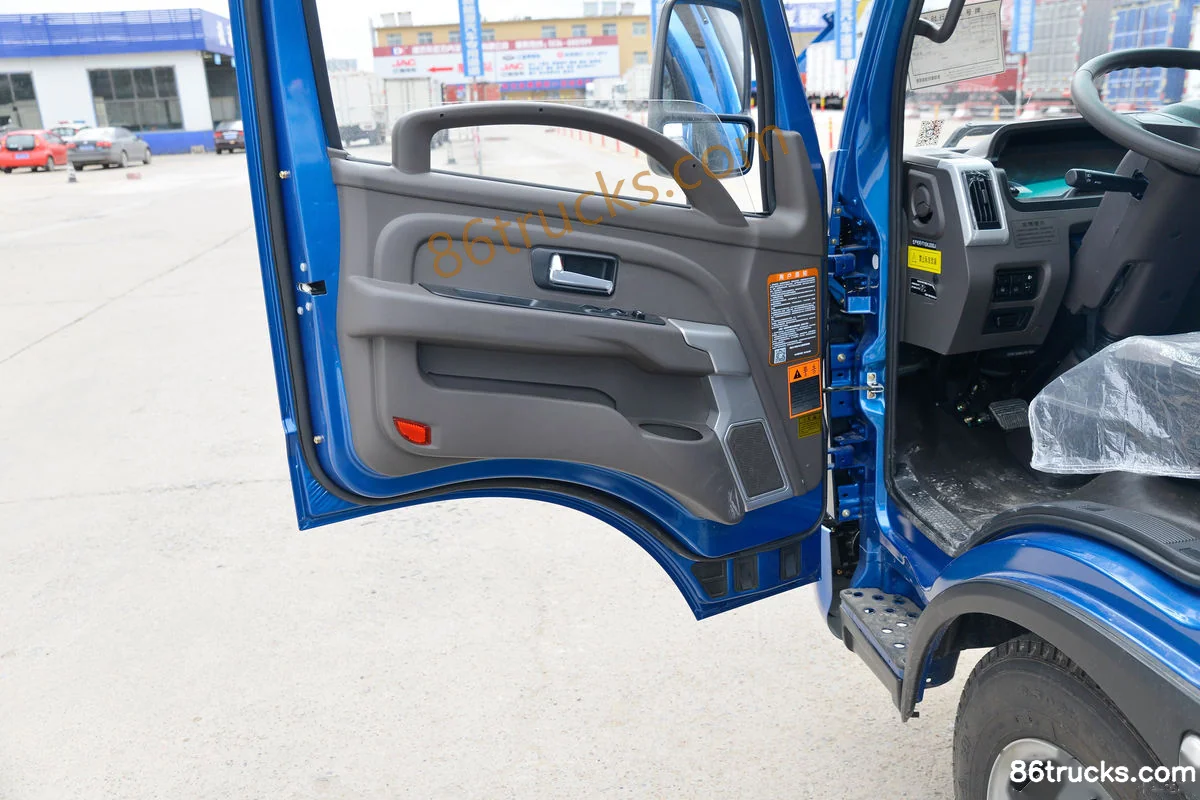

Cab3

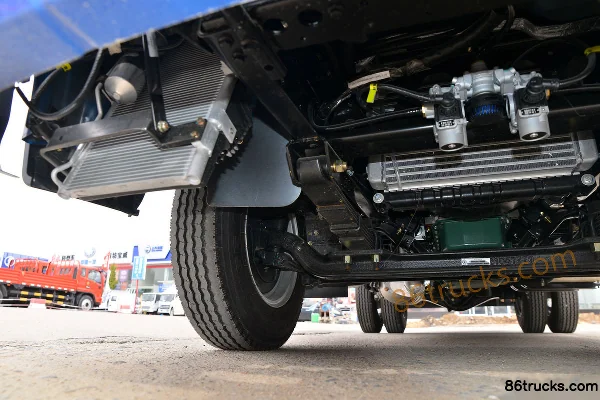

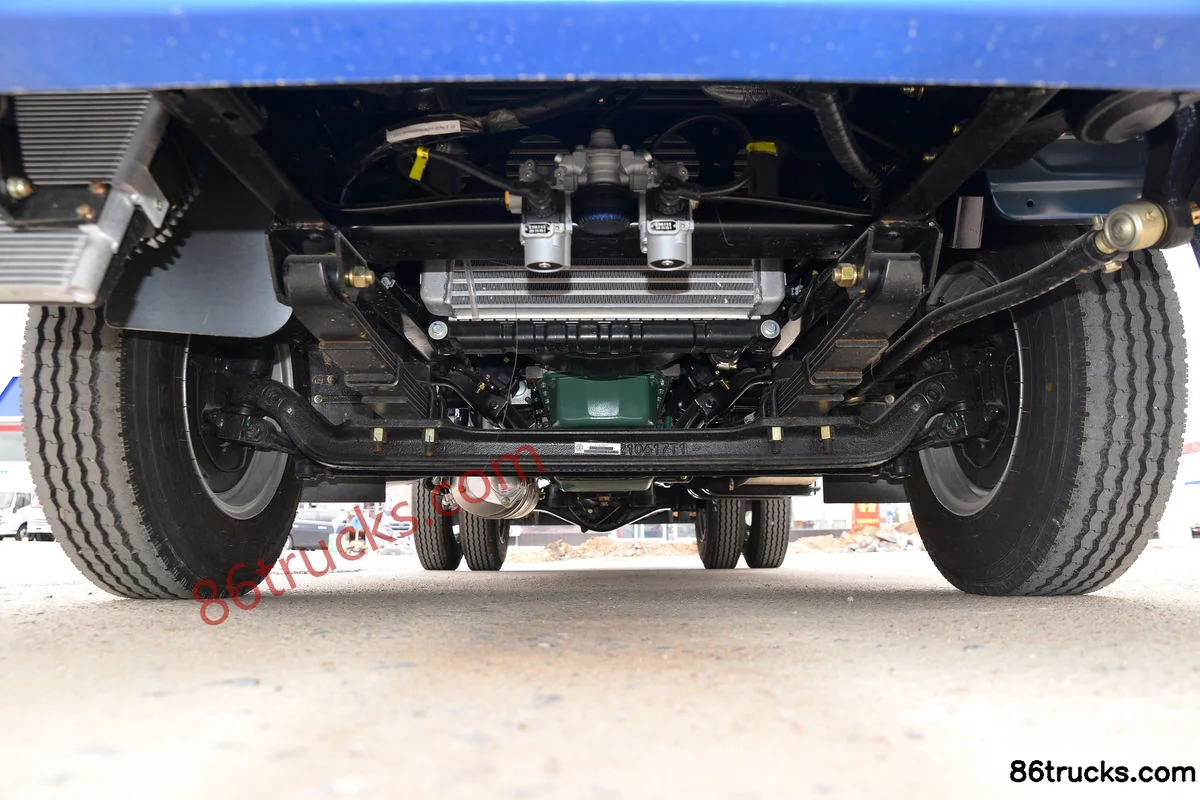

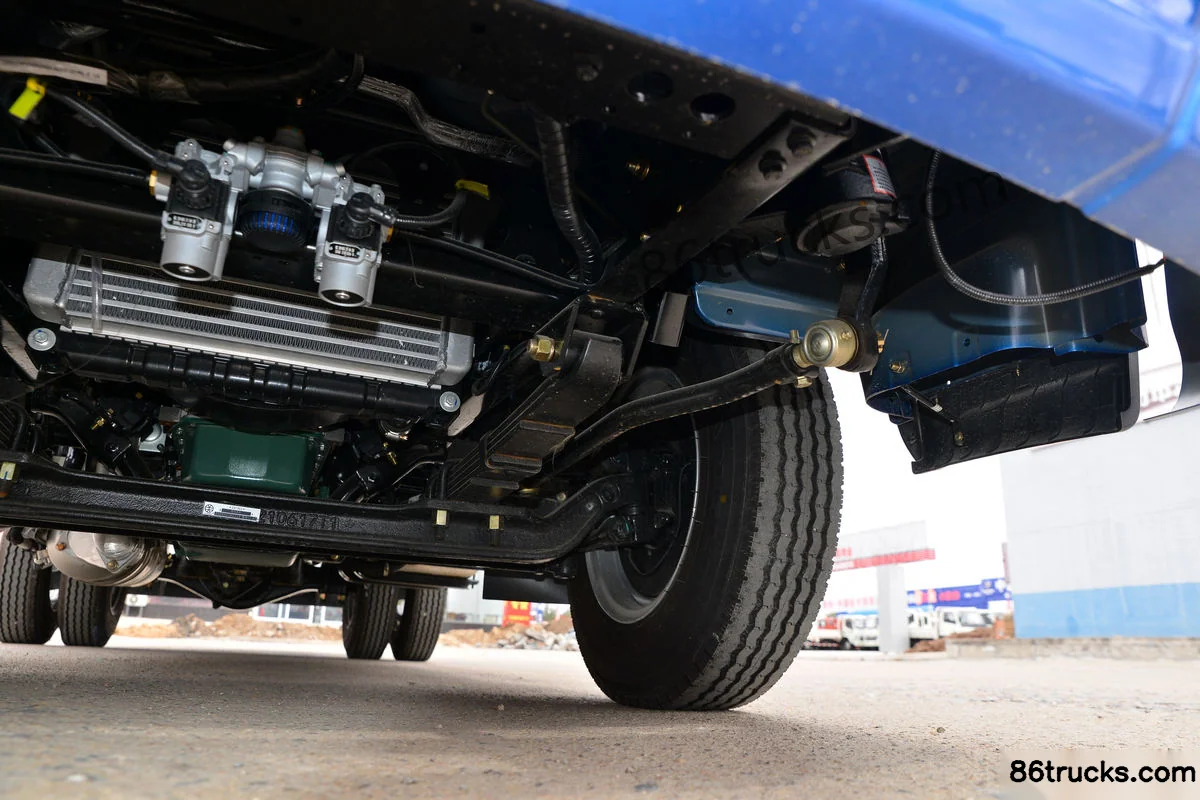

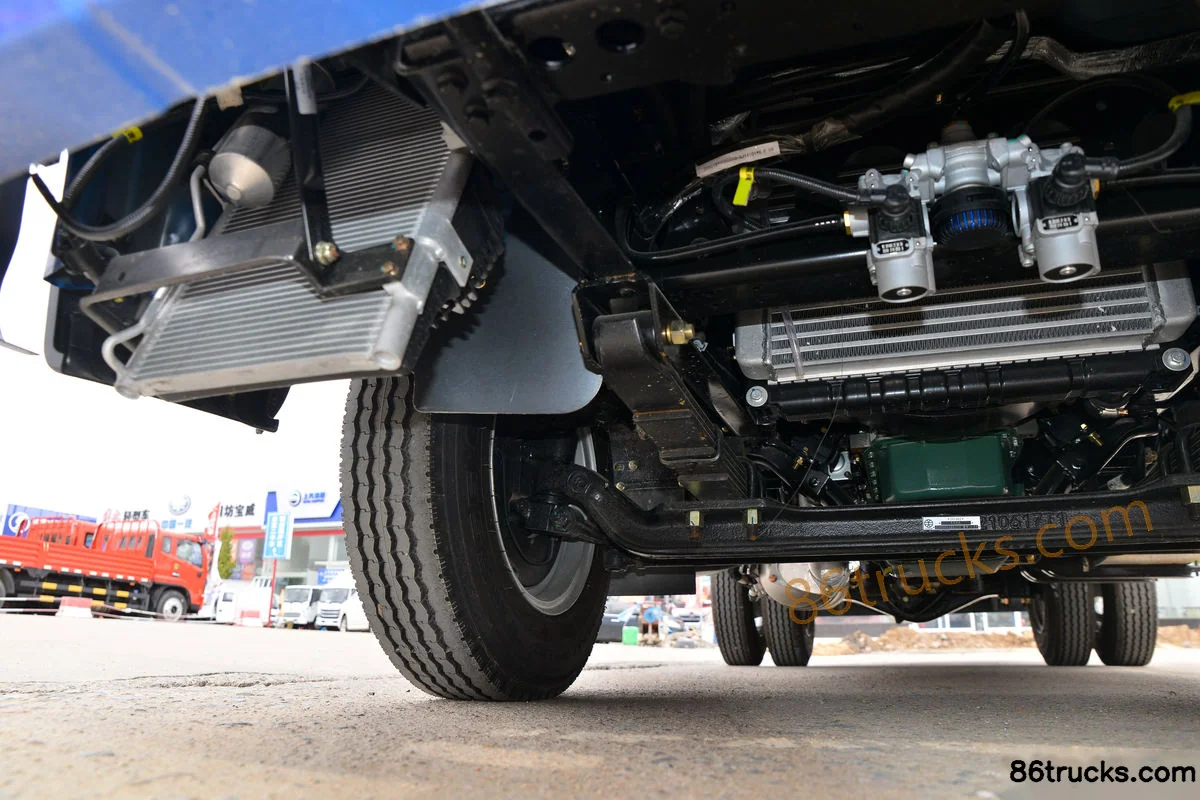

Chassis3

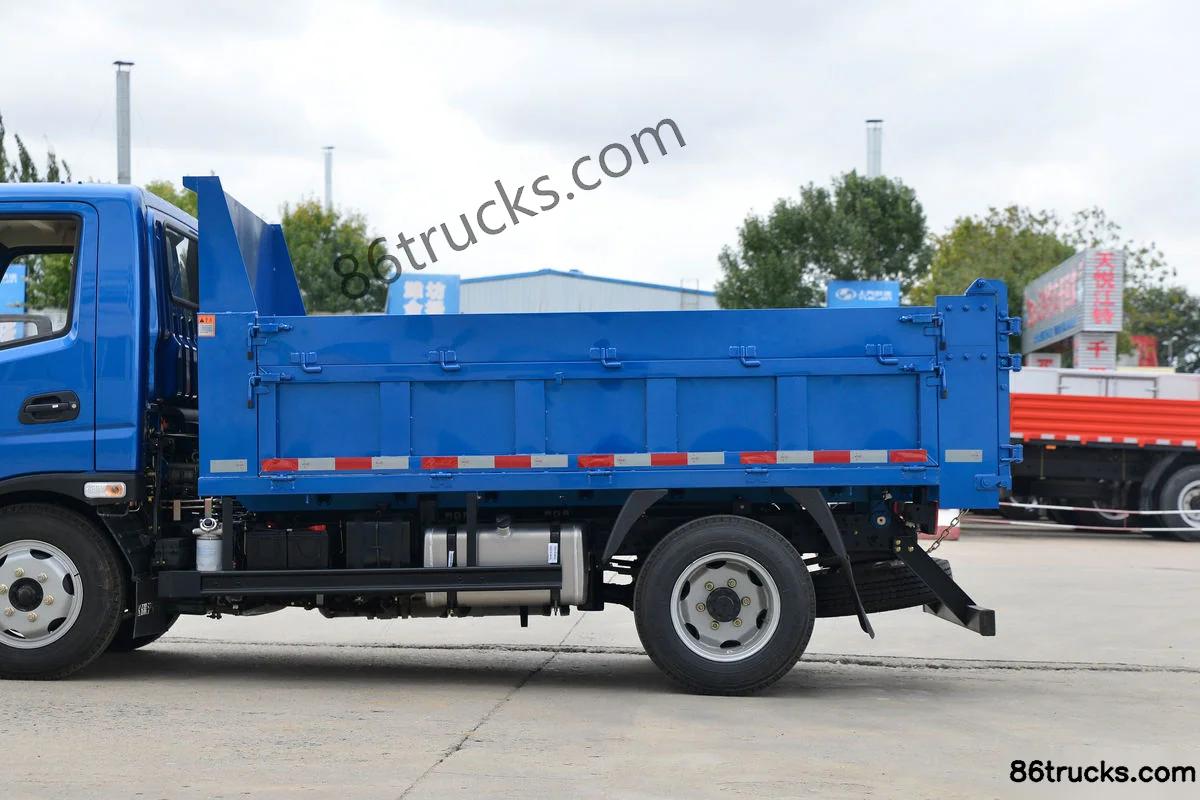

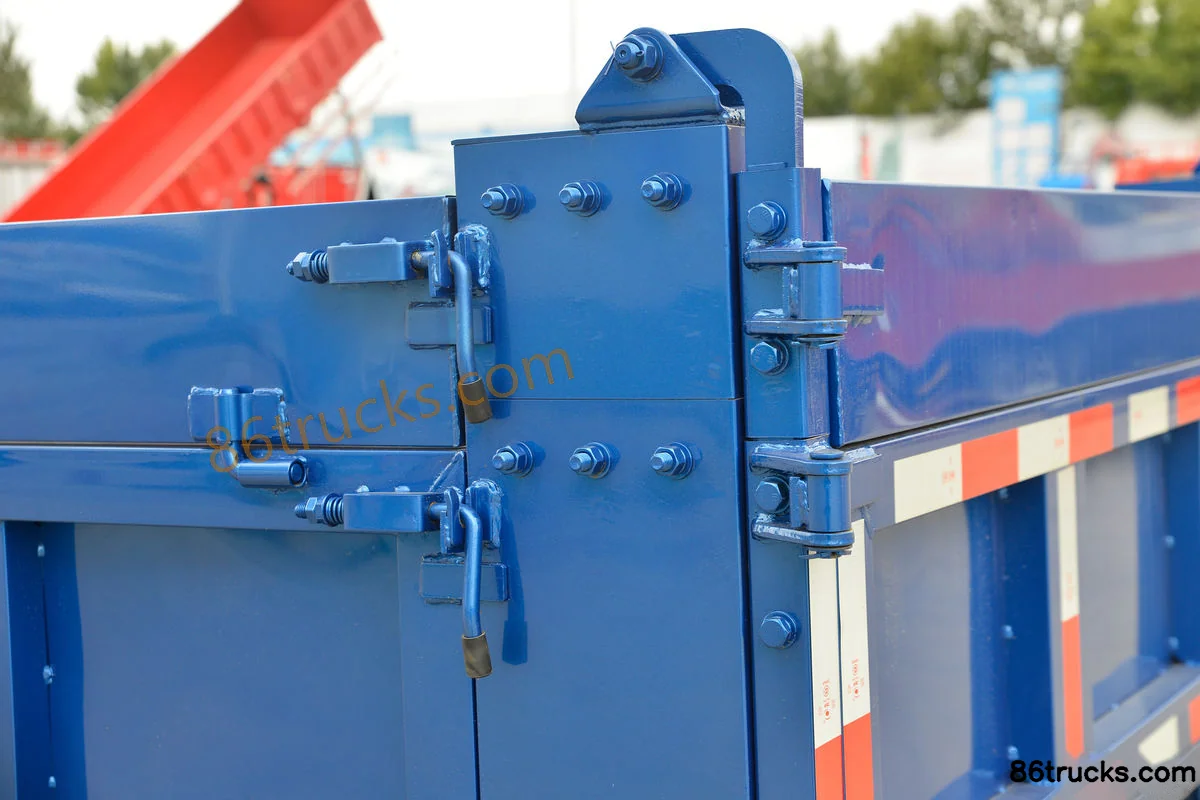

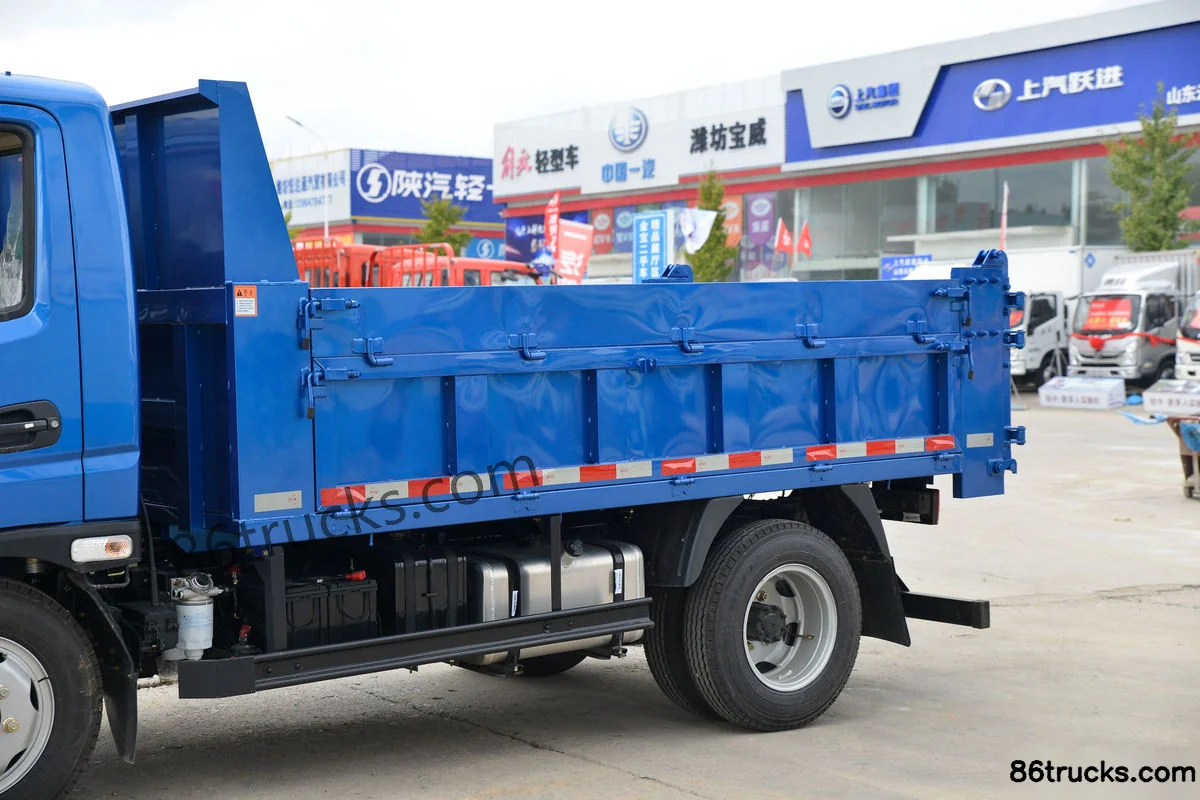

Body3

12 photos

FAQ

What is the export price of Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI), and what does it include?

Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) export reference is about From $14,167; MSRP is ¥10.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Key specs of Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI): Drive: 4x2; Horsepower: 110 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) suited for?

Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) differ from other variants in the same series?

Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI) belongs to Feidi Jinniu X3 (formerly Aochi T series) light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
