NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh

Export reference
From $44,444
MSRP ¥32M CNY
Rated payload:: 1.015ton
Wheelbase:: 3200mm
Cargo box type:: Dump type
Model code (announced):: NJA3040EDF33BEV
Cab length:: 5.76m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Curb Weight: 3.35ton

Overview

The NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh is a Light Truck featuring CATL battery/range, Fast Gear motor, 4X2 (6 wheels) drive and 1.015t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040EDF33BEV
Drive type: 4X2
Wheelbase: 3200mm
Cab length: 5.76m
Cab width: 2m
Cab height: 2.405m
Curb Weight: 3.35ton
Rated payload: 1.015ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ262XSSFZ01
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 98kWh
Transmission Parameters
Number of gears: 4Gear
Transmission Model: Fast Gear 4-speed
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 3.5m
Cargo box width: 1.9m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1930kg
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

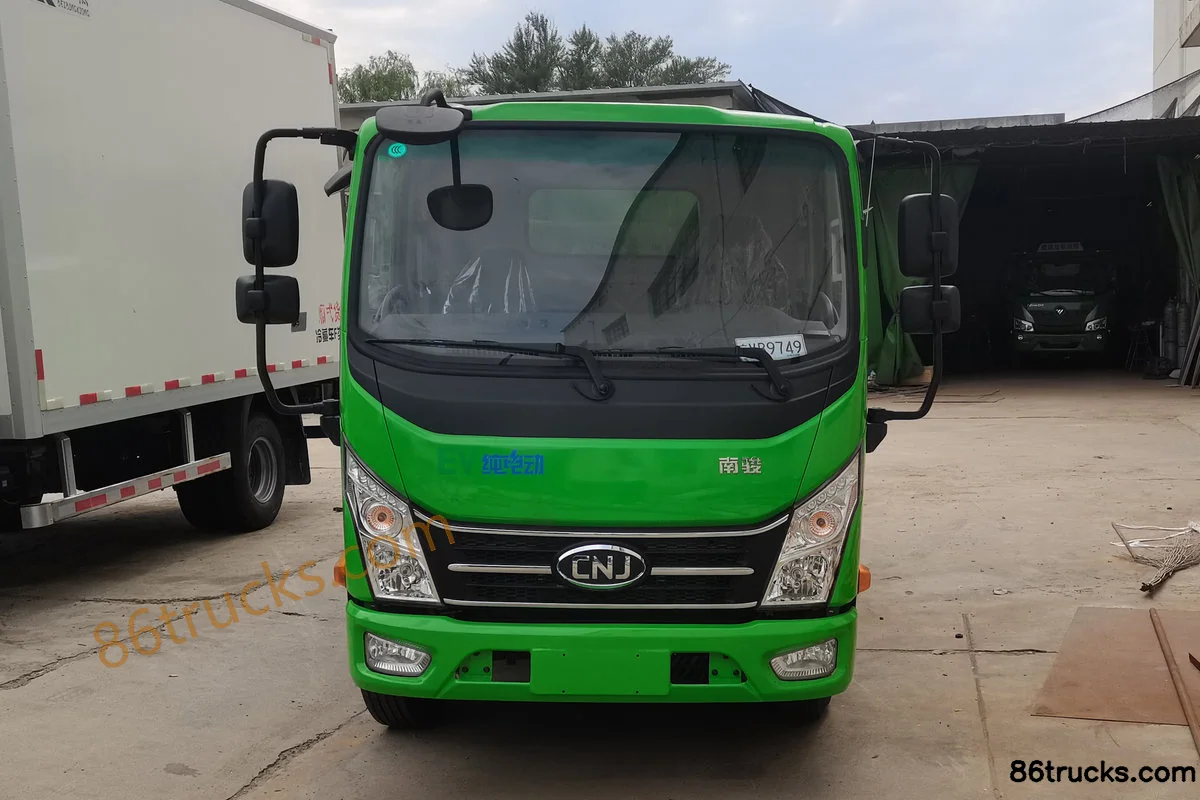

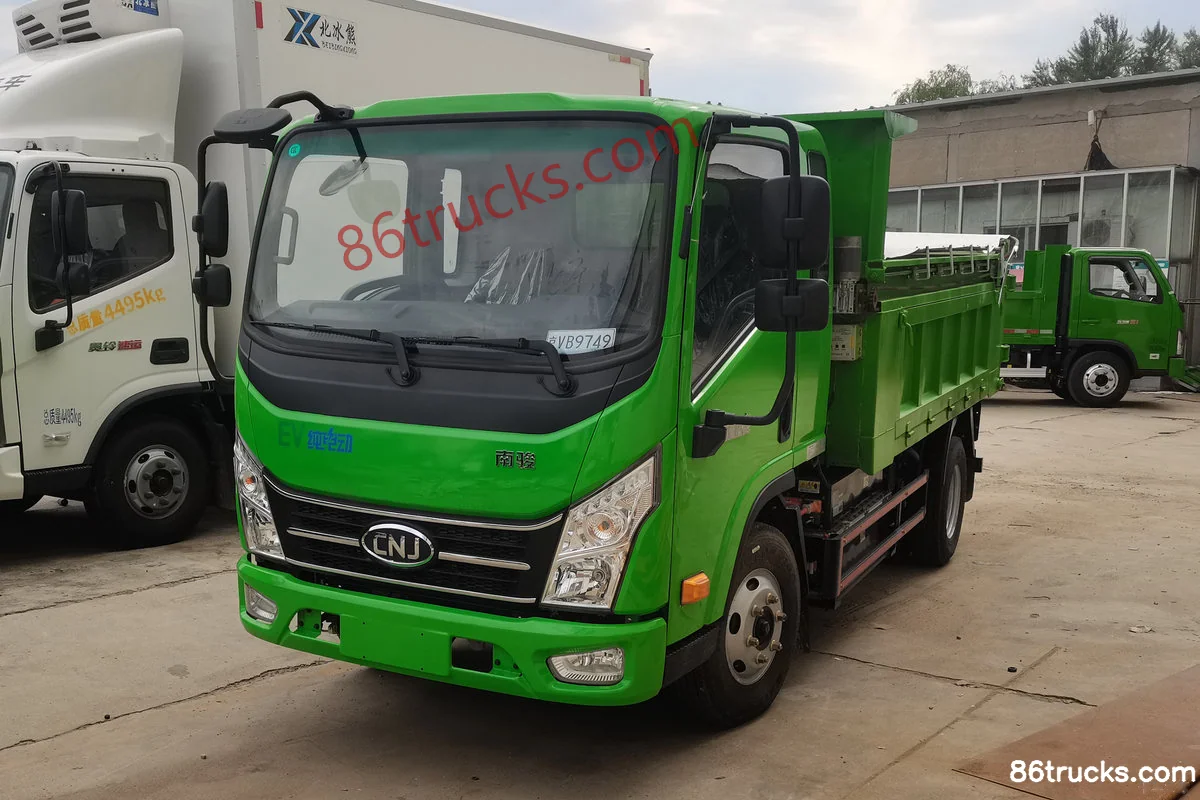

Exterior3

3 photos

FAQ

What is the export price of NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh, and what does it include?

NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh export reference is about From $44,444; MSRP is ¥32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh?

Key specs of NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh suited for?

NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh differ from other variants in the same series?

NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh belongs to NanJun Ruijie D20 Light Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D20 4X2(6 wheels) 3.5m Pure Electric Dump Truck 98kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
