FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 320
Emission: China VI
Fuel: Diesel
Engine: Dachai7.8L
Transmission: FAW Jiefang
Curb Weight:: 8.5ton
seating capacity: 2Personnel
Rated payload: 9.37ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck is a Medium-duty truck featuring 9.7m cargo length, Van body cargo body, 2Personnel volume and 9.37t payload. On the powertrain side, it comes with a Dachai7.8L engine, 320 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 320 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5181XXYP26K2L7E6A80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7000mm
Box length class: 9.7m
engine: DachaiCA6DK2B32E65
transmission: FAW JiefangCA8TAX110FS1
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2020mm
rear track: 1878mm
Curb Weight: 8.5ton
Rated payload: 9.37ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle:
Front/rear suspension: 1.5/3.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK2B32E65
Engine info: Dachai7.8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.751L
Emission standard: China VI
Max output power: 238kW
Max hp: 320Horsepower
Engine Type: DOC+DPF+HI+SCR
Transmission Parameters
Transmission Model: CA8TAX110FS1
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.7m
Cargo box width: 2.45m
Cargo box height: 2.7m
Cab parameters
Cab: Flat floor crew cab high roof cab
Cab suspension: Four-point air suspension
Cab width: 2500mm
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: DH401 front axle
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×(6.5+4)mm
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 3.7
Leaf spring count: 2/3+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
clutch booster:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
LCD instrument cluster:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Fatigue driving monitoring:

Photos

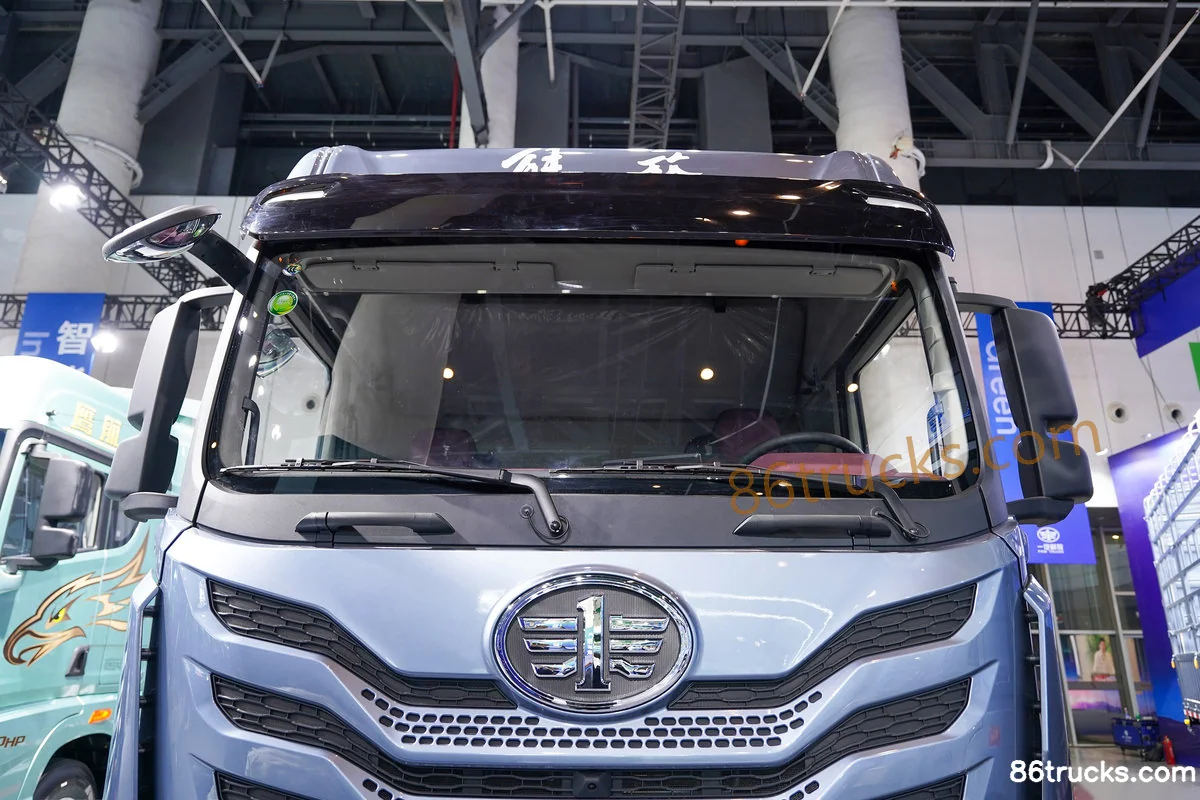

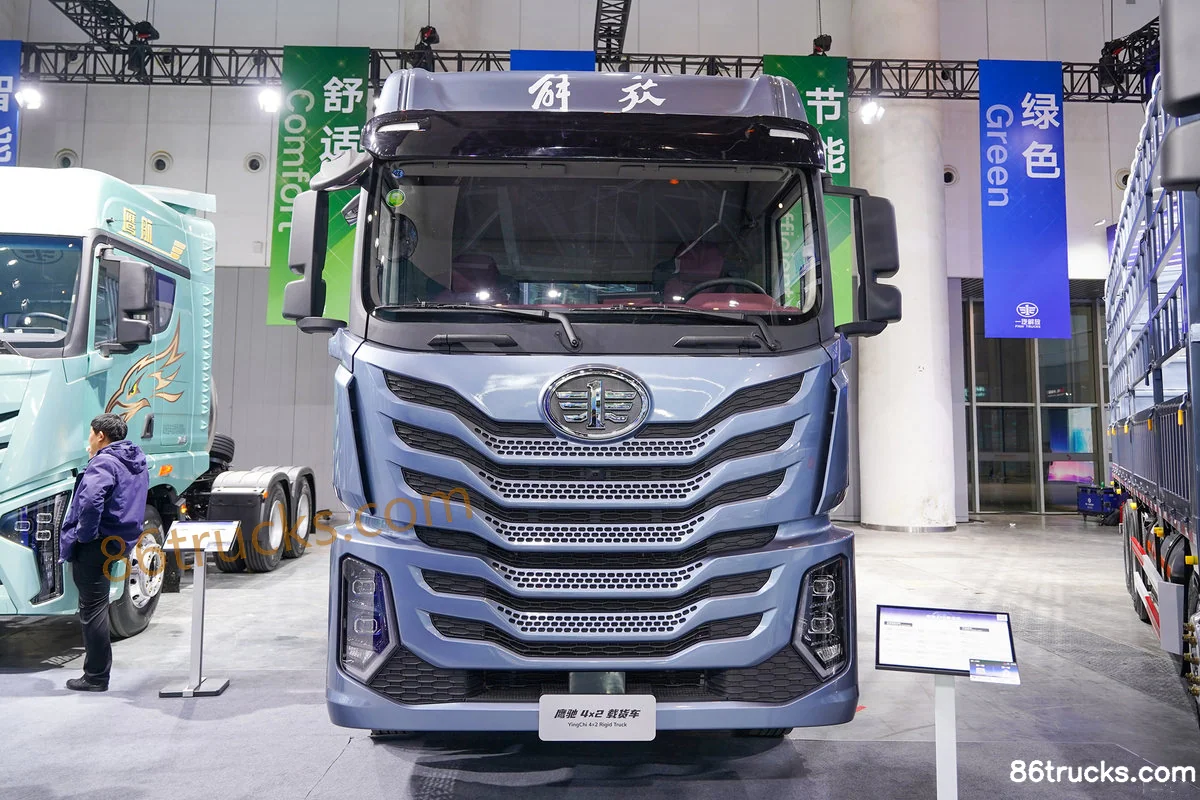

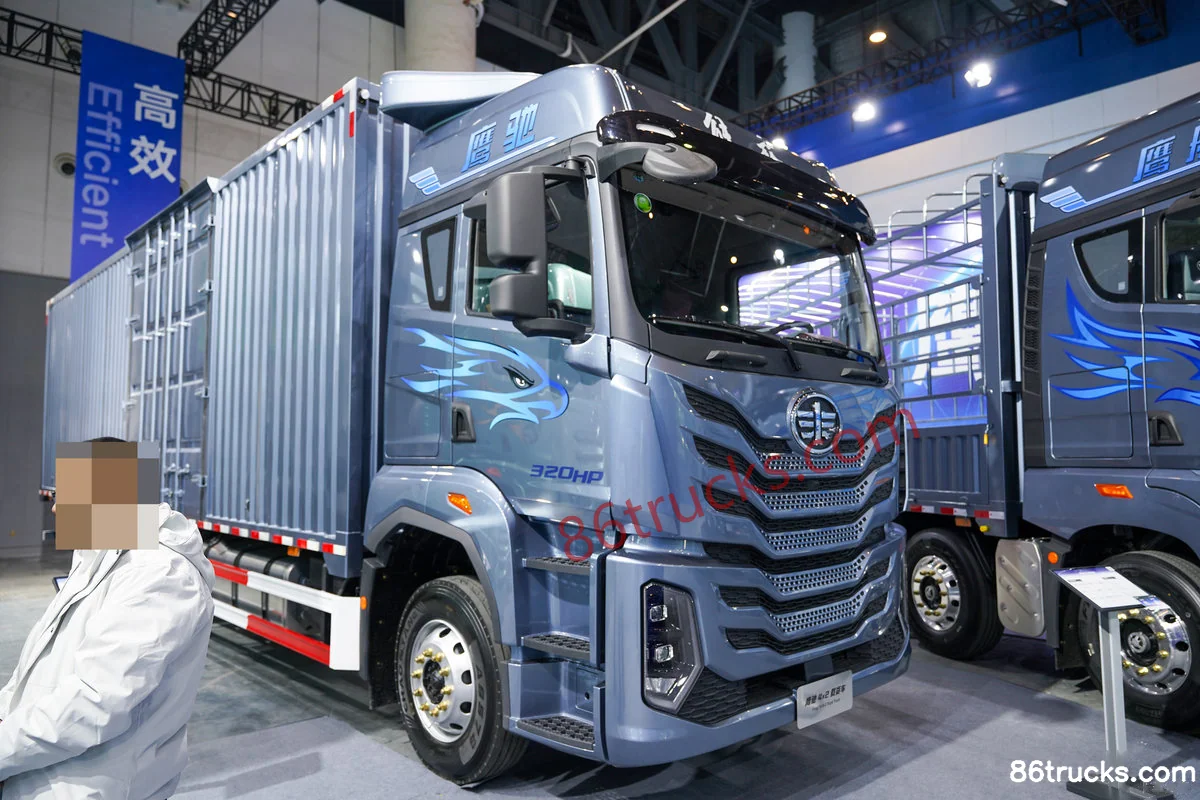

Exterior3

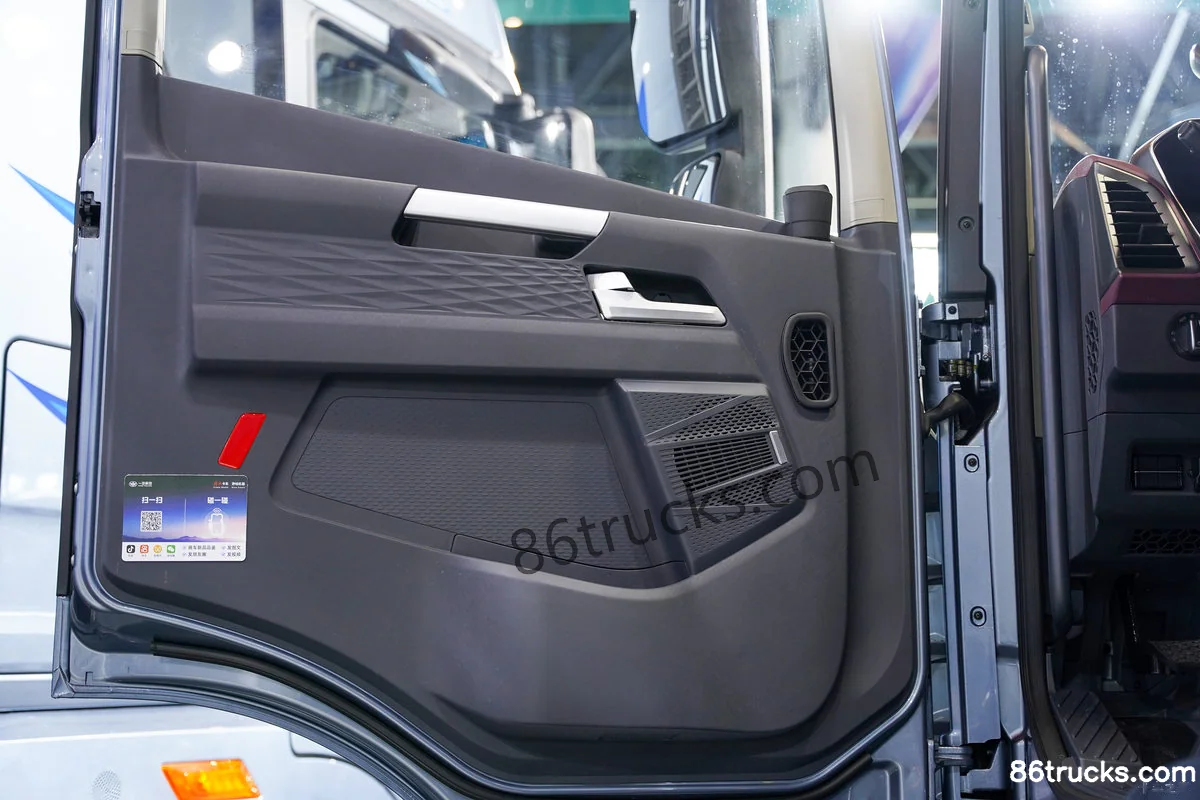

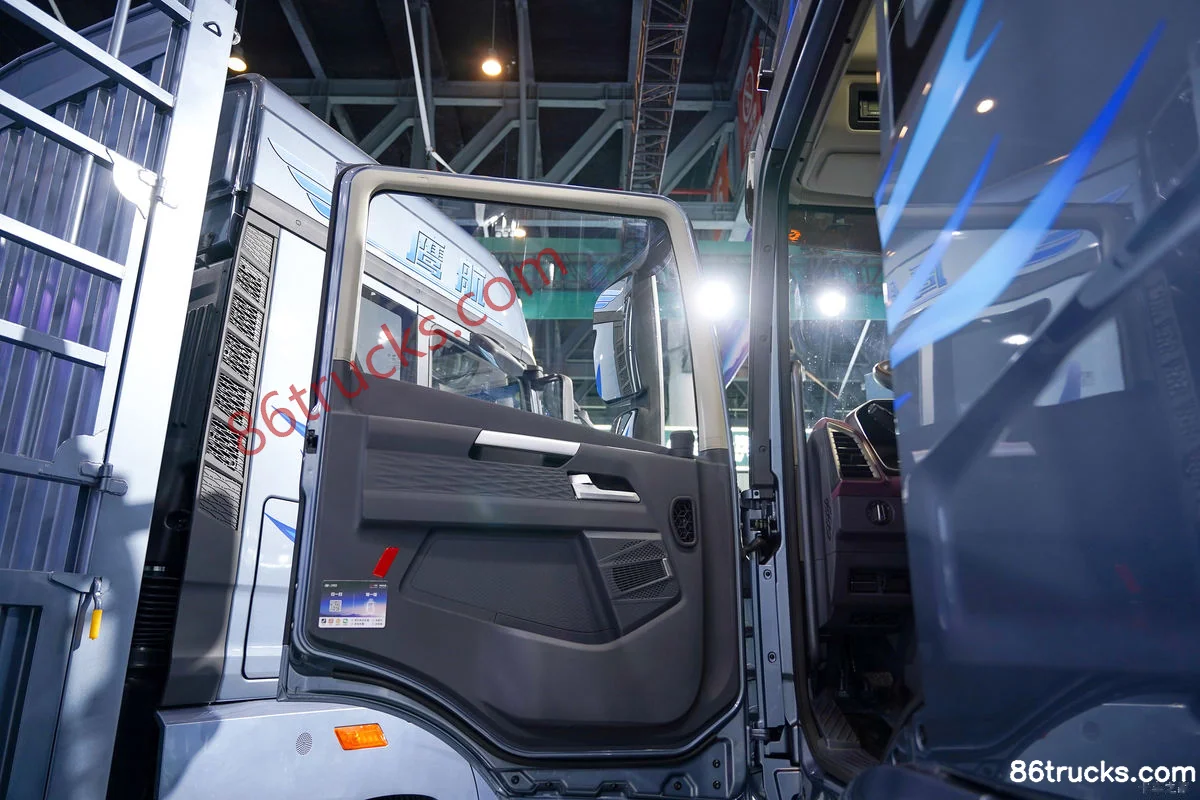

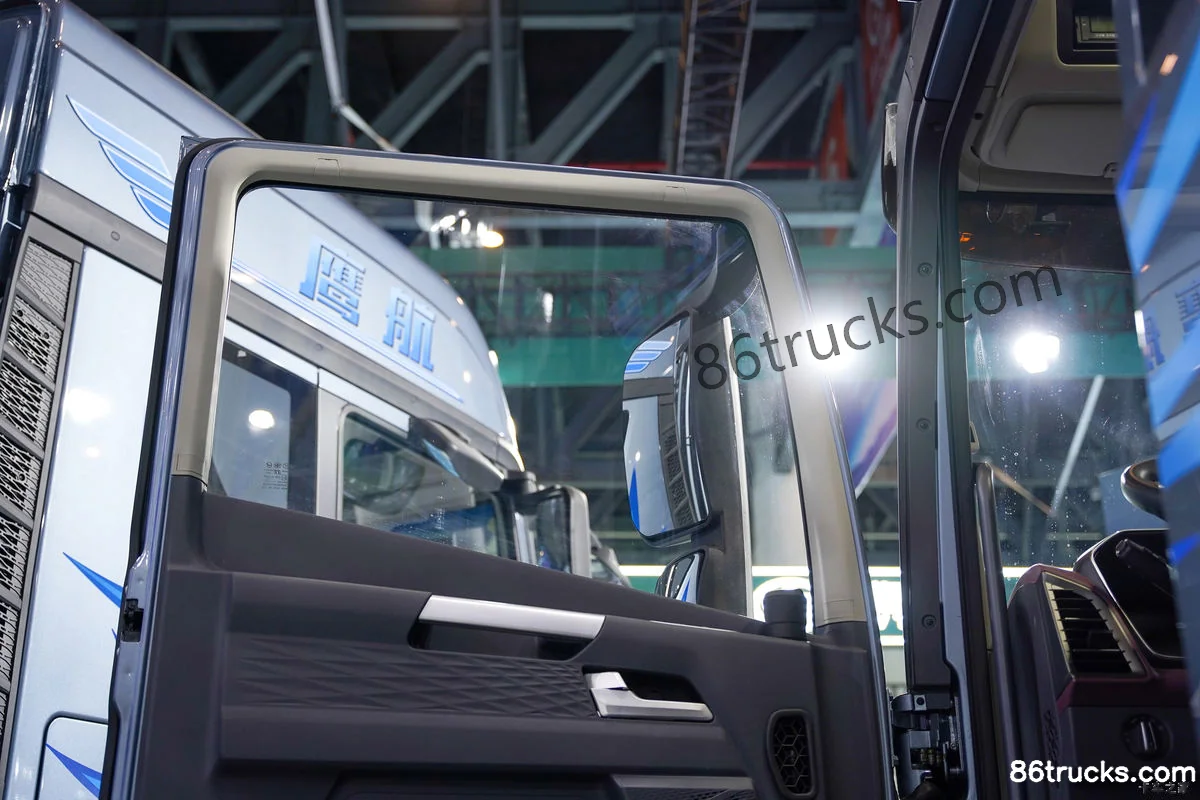

Cab3

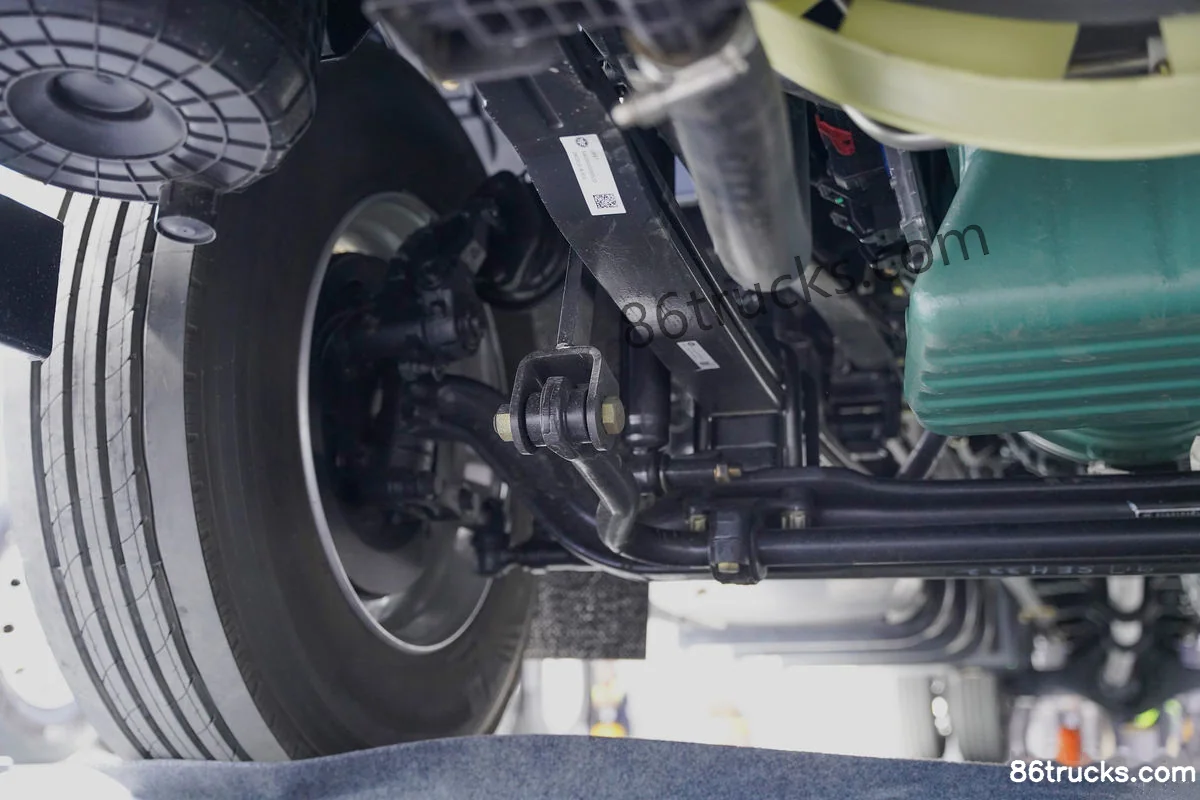

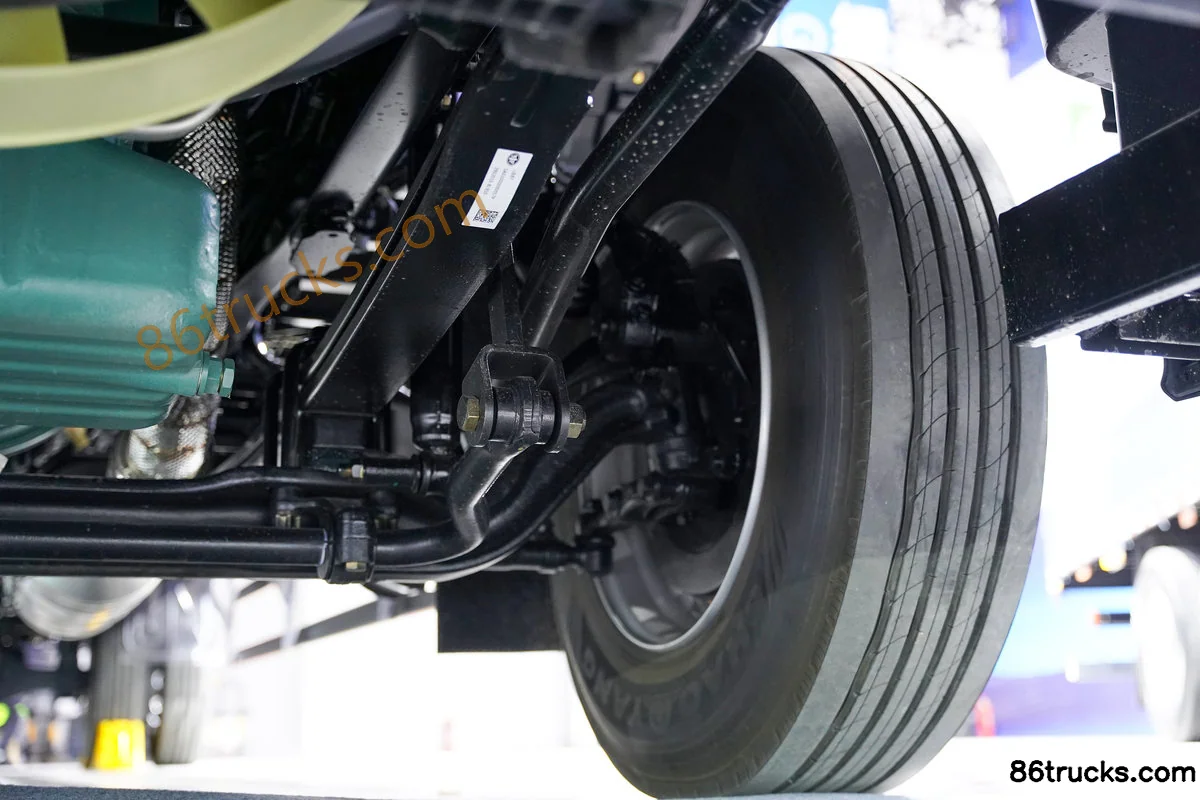

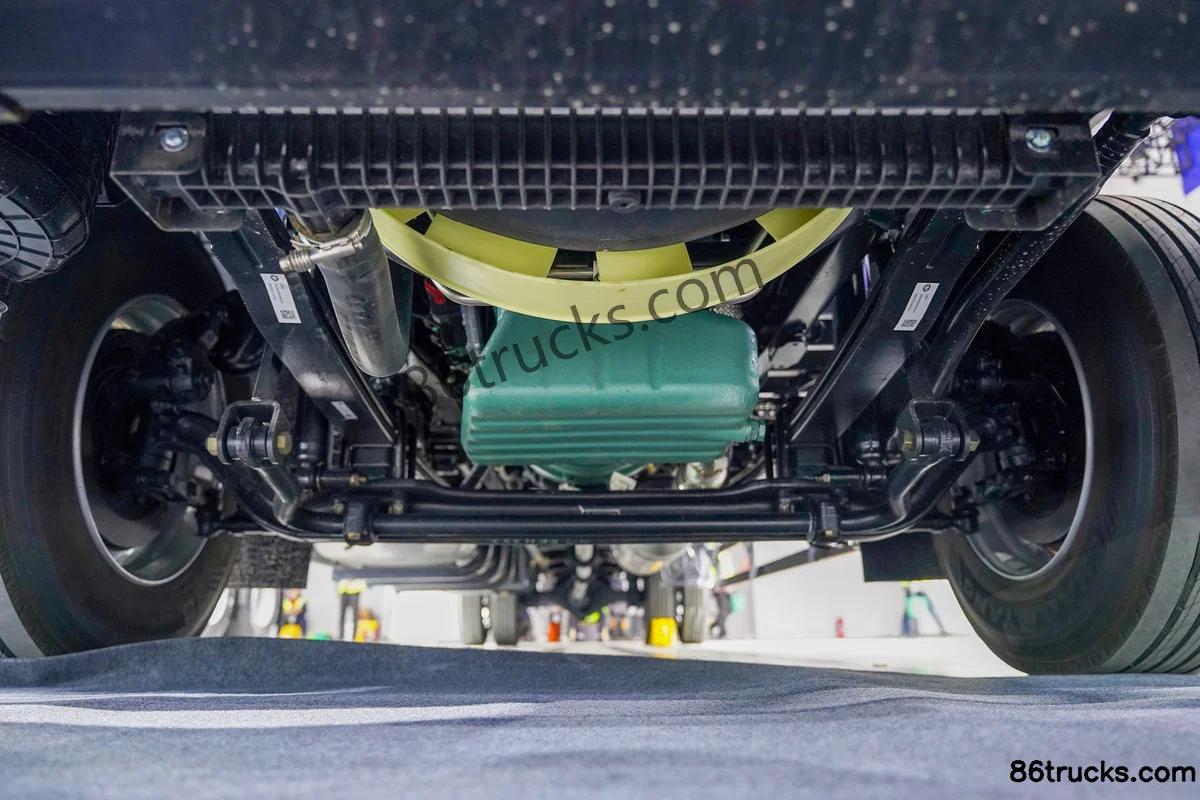

Chassis3

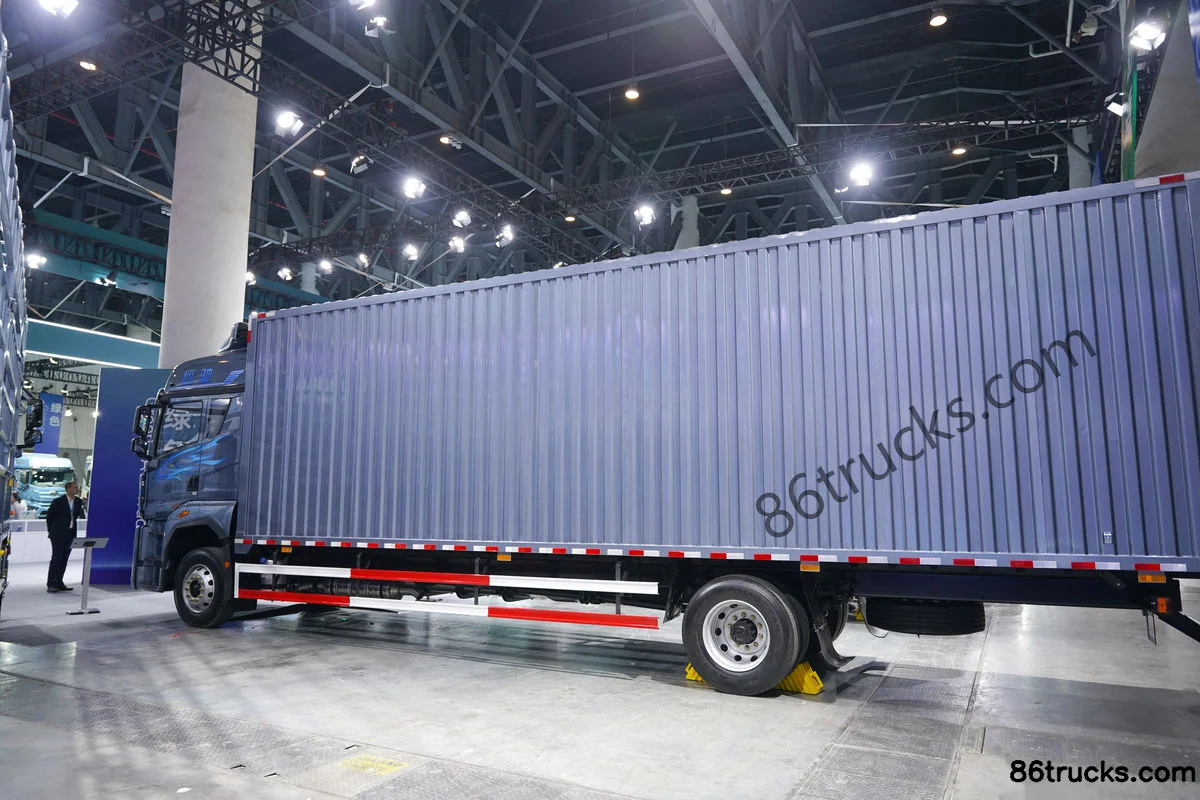

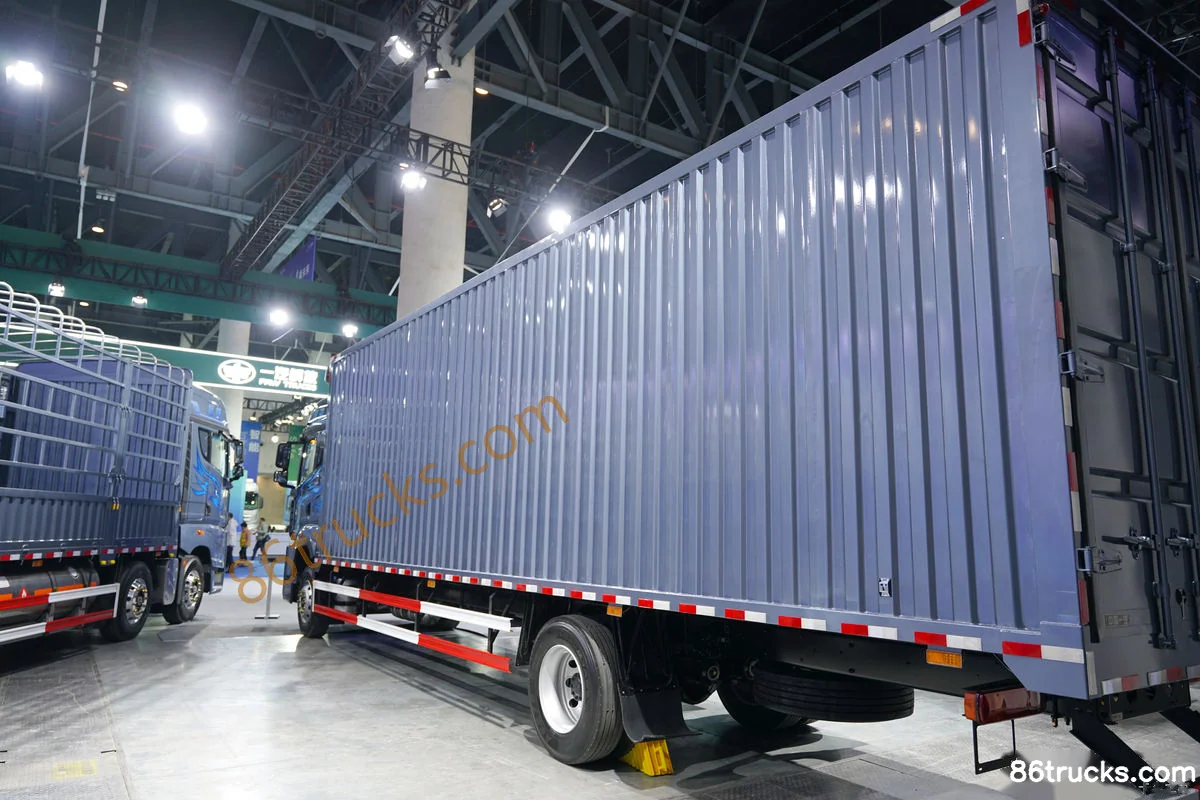

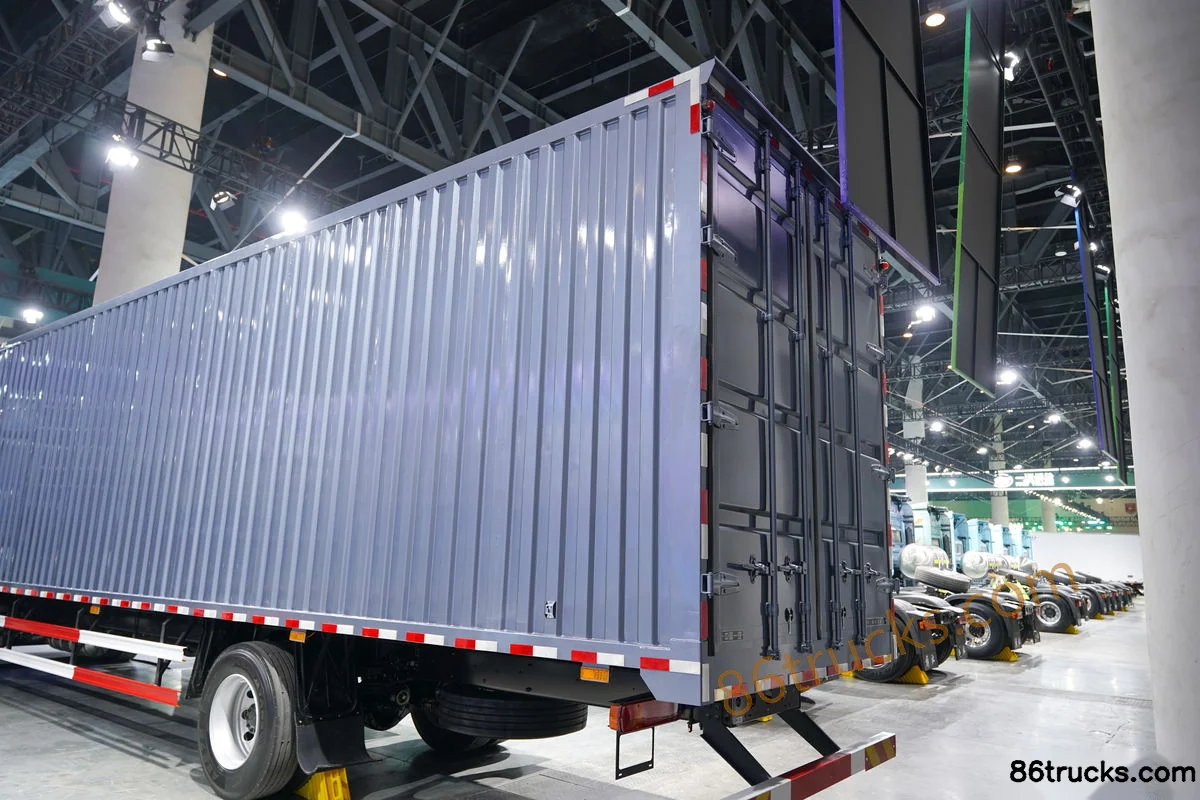

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck?

Key specs of FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck: Drive: 4x2; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai7.8L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck suited for?

FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck belongs to FAW Jiefang Qingdao Yingchi Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Yingchi 7.8L Diesel 320hp 4X2(6 wheels) FAW Jiefang 8-speed 9.7m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
