FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck

Export reference
From $18,750
MSRP ¥13.5M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai4102
Transmission: Fast Gear
Curb Weight:: 2.6ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yuchai4102 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CAL5041CCYDCRE5
Type: stake truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 4.2m
engine: YuchaiYC4S160-50
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.48m
Cab height: 2.98m
Front track width: 1710mm
rear track: 1590mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 90km/h
Origin: Lingyuan, Liaoning
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.155/1.24m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S160-50
Engine info: Yuchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Single Row
Cab width: 2080mm
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 3T
Front axle allowable load: 1590kg
Frame Dimensions: 192×(6+4) 860mm wide
rear axle description: 8T
rear axle allowable load: 2700kg
Axle ratio: 4.33
Leaf spring count: 10/12+8
Tire
Tire Size: 8.25R16 6PR
Tire Type: all-steel radial tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake
Exhaust brake:

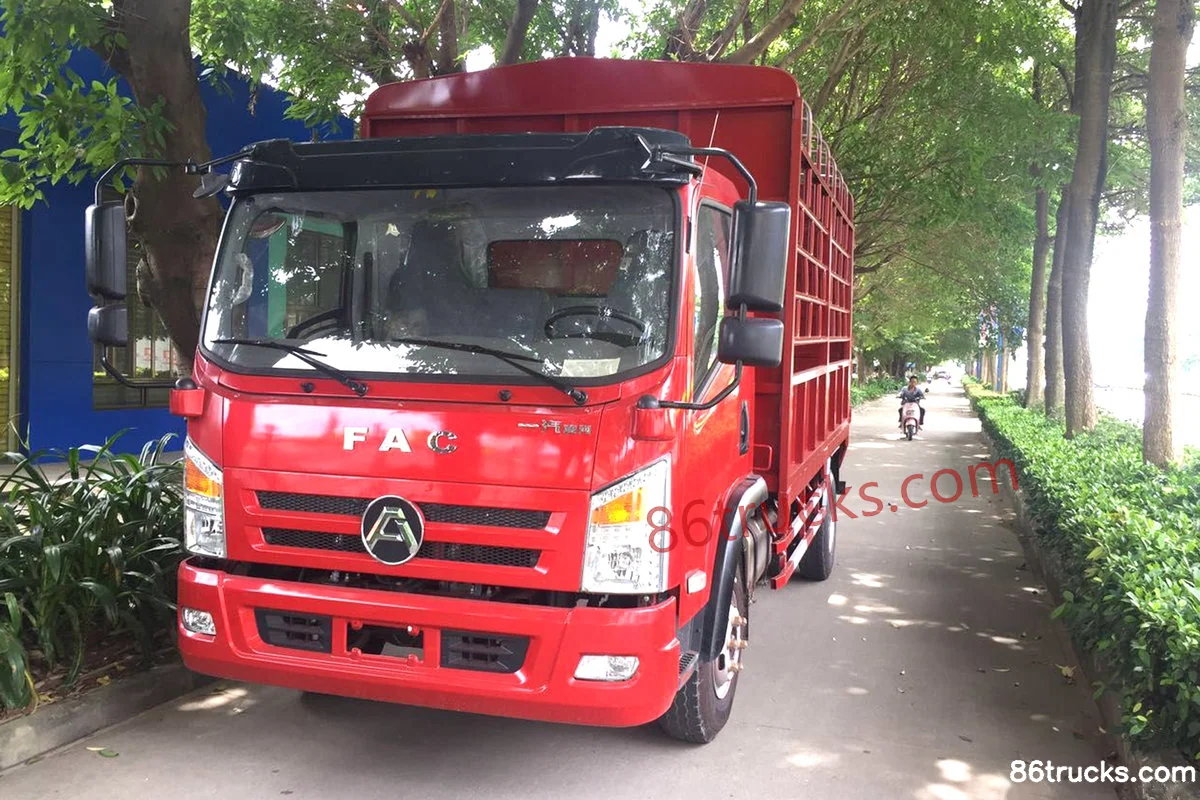

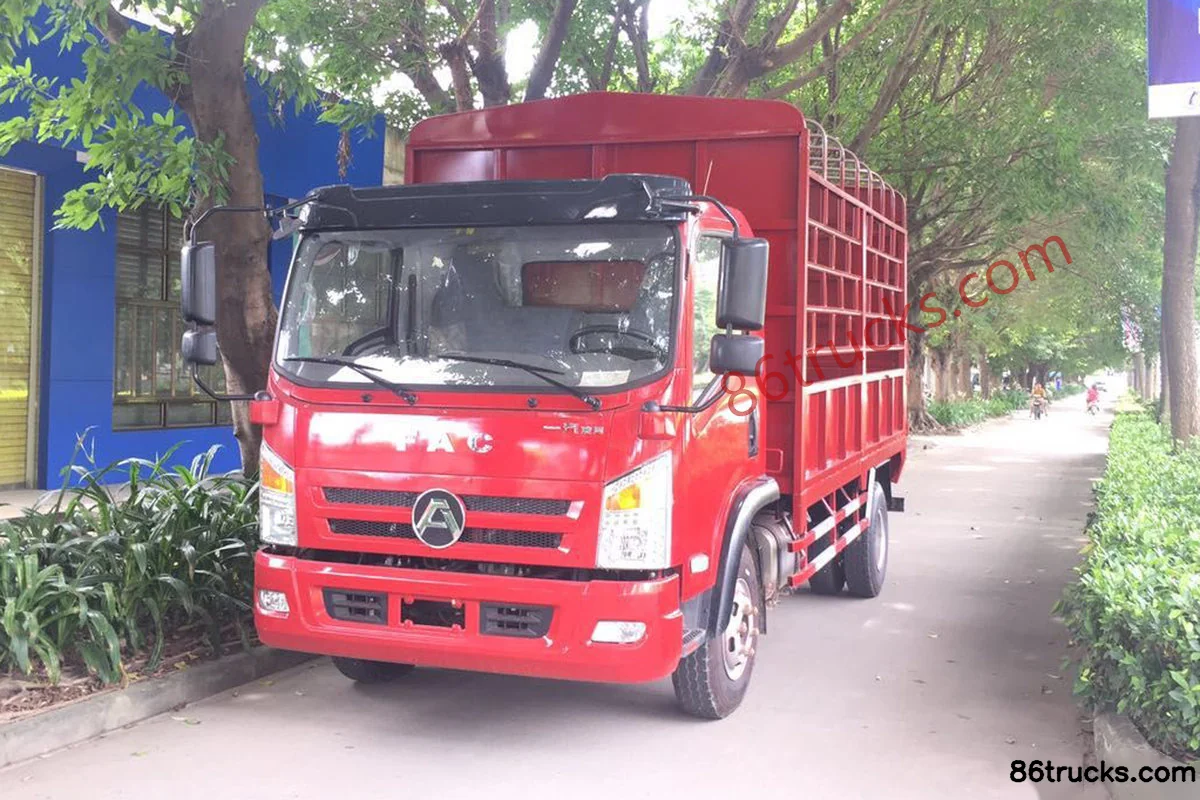

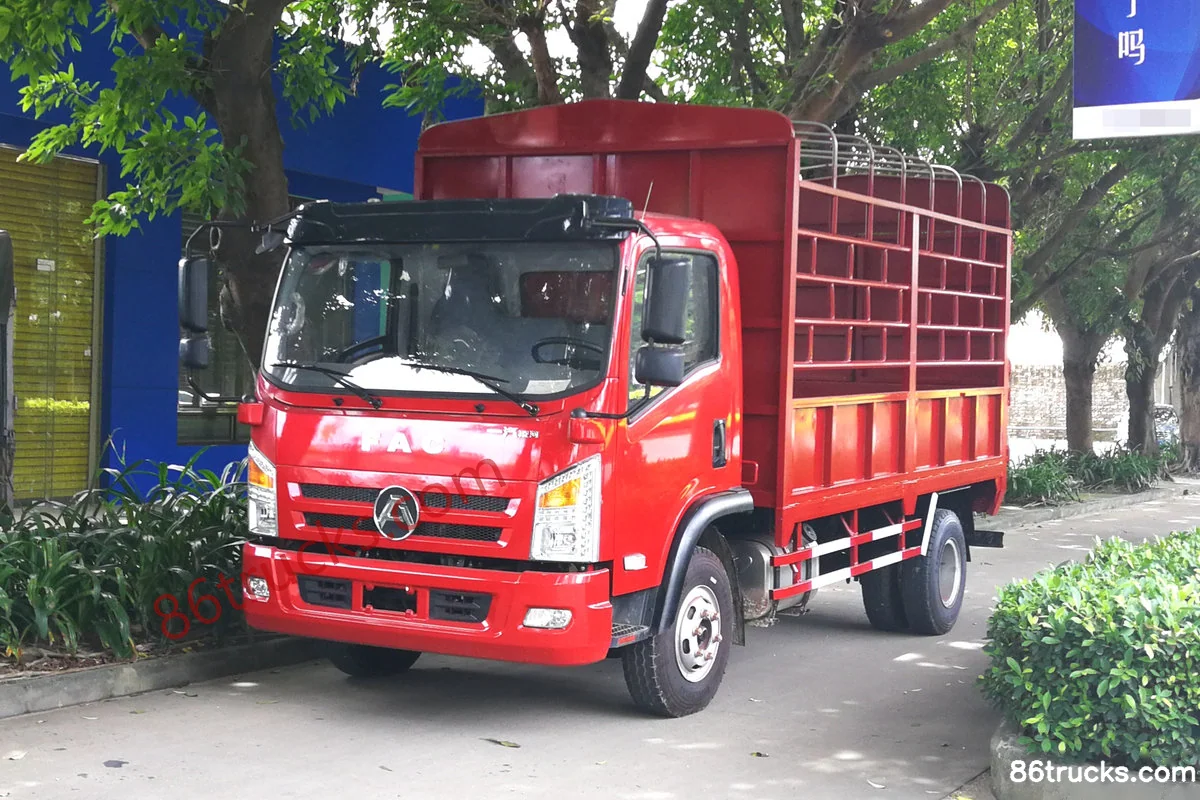

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck, and what does it include?

FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck export reference is about From $18,750; MSRP is ¥13.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Key specs of FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai4102; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck suited for?

FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck differ from other variants in the same series?

FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck belongs to FAW Linghe Oriental Star Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Linghe Dongfang Star 160hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
