Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI)

Export reference
MSRP N/A
Horsepower: 115
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Curb Weight:: 2.8ton
Wheelbase:: 2850mm
seating capacity: 2Personnel
Rated payload: 1.565ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) is a Light Truck featuring 3.7m cargo length, Van body cargo body, 2Personnel volume and 1.565t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 115 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB5041XXYKDD6L
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.7m
engine: QuanchaiQ23-115E60
transmission: 8-speed gearbox
Rear Axle Ratio: 4.875
Cab length: 5.6m
Cab width: 2.035m
Cab height: 2.8m
Front track width: 1509mm
rear track: 1425mm
Curb Weight: 2.8ton
Rated payload: 1.565ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
Front/rear suspension: 1.153/1.597m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: 8-speed gearbox
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.7m
Cargo box width: 1.9m
Cargo box height: 1.9m
*Cargo box interior width: 1.9
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Axle ratio: 4.875
Leaf spring count: 3/5+5
Tire
Tire brand: Chaoyang
Tire Size: 6.50R16LT 12PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
Radio:
standard instrument cluster:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

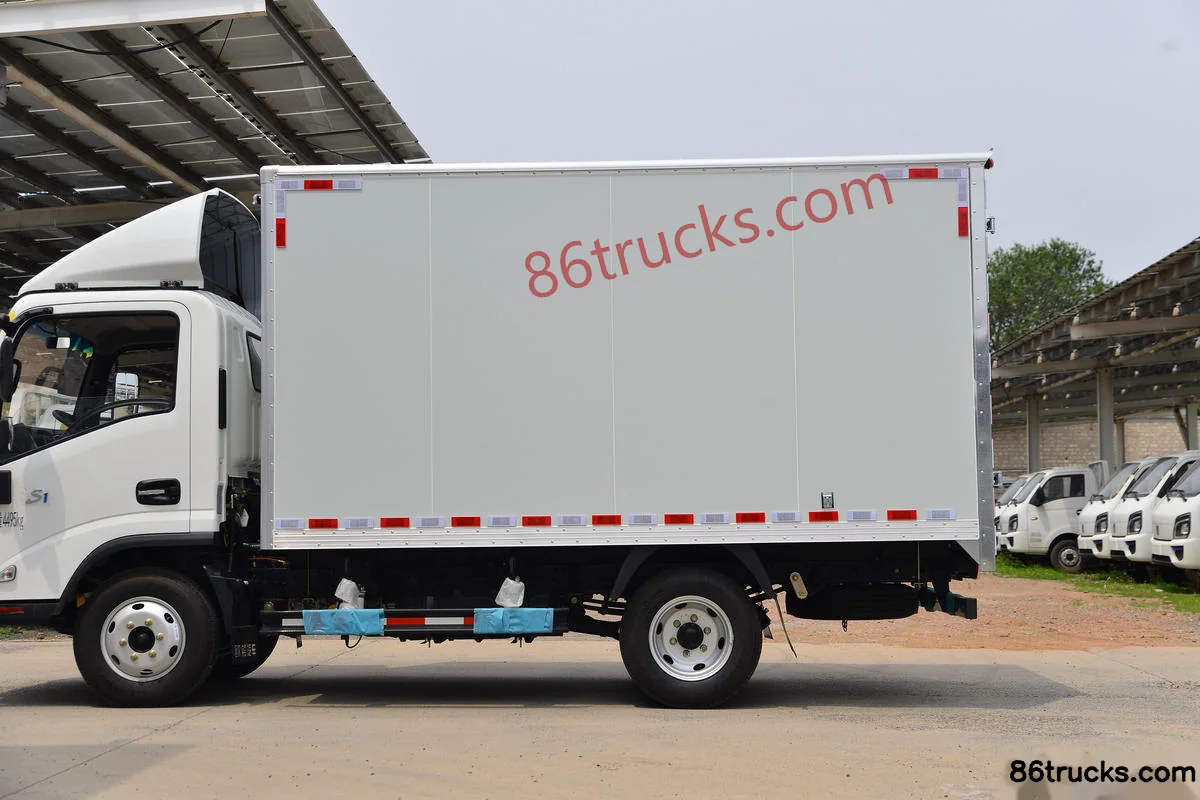

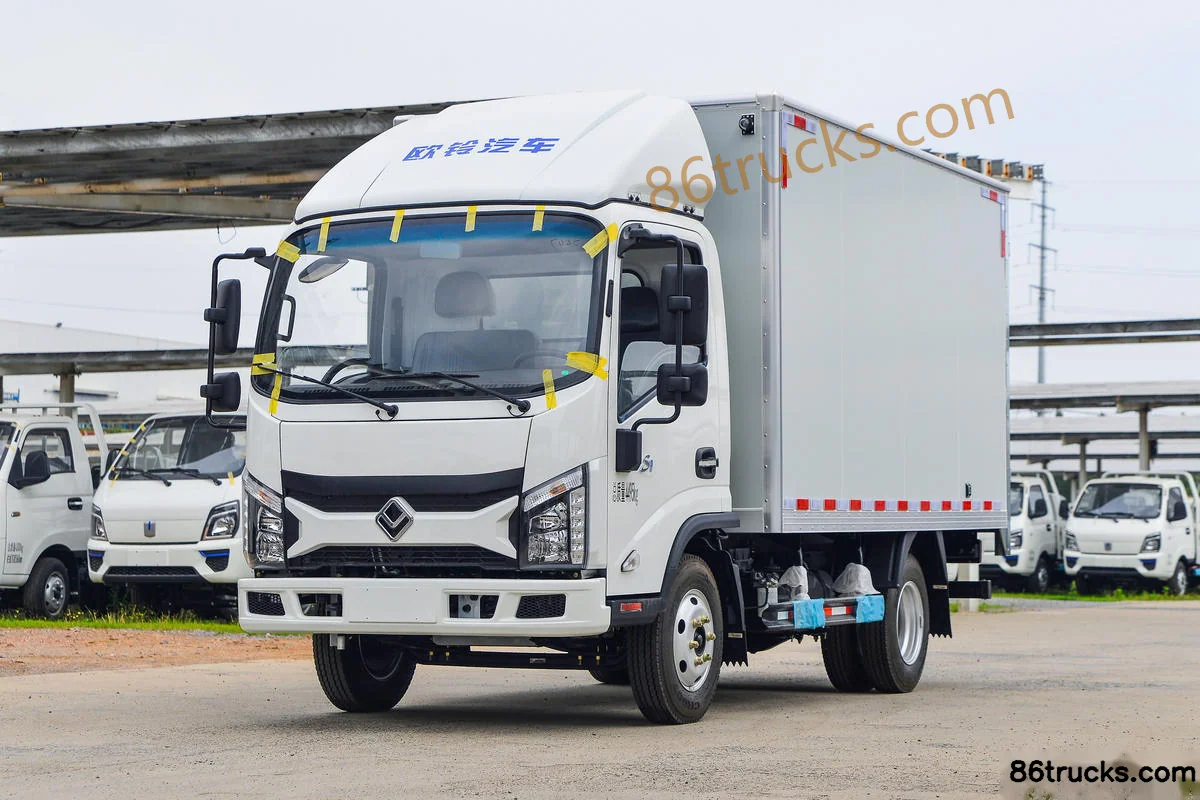

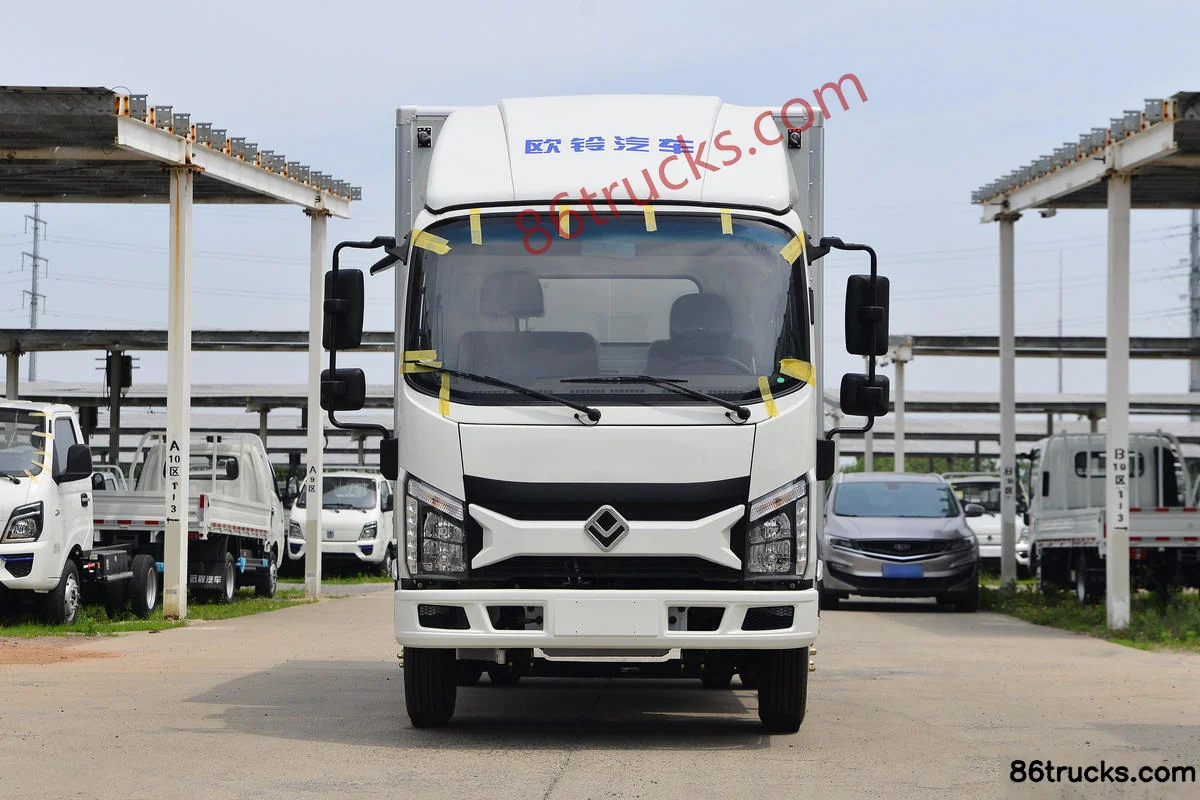

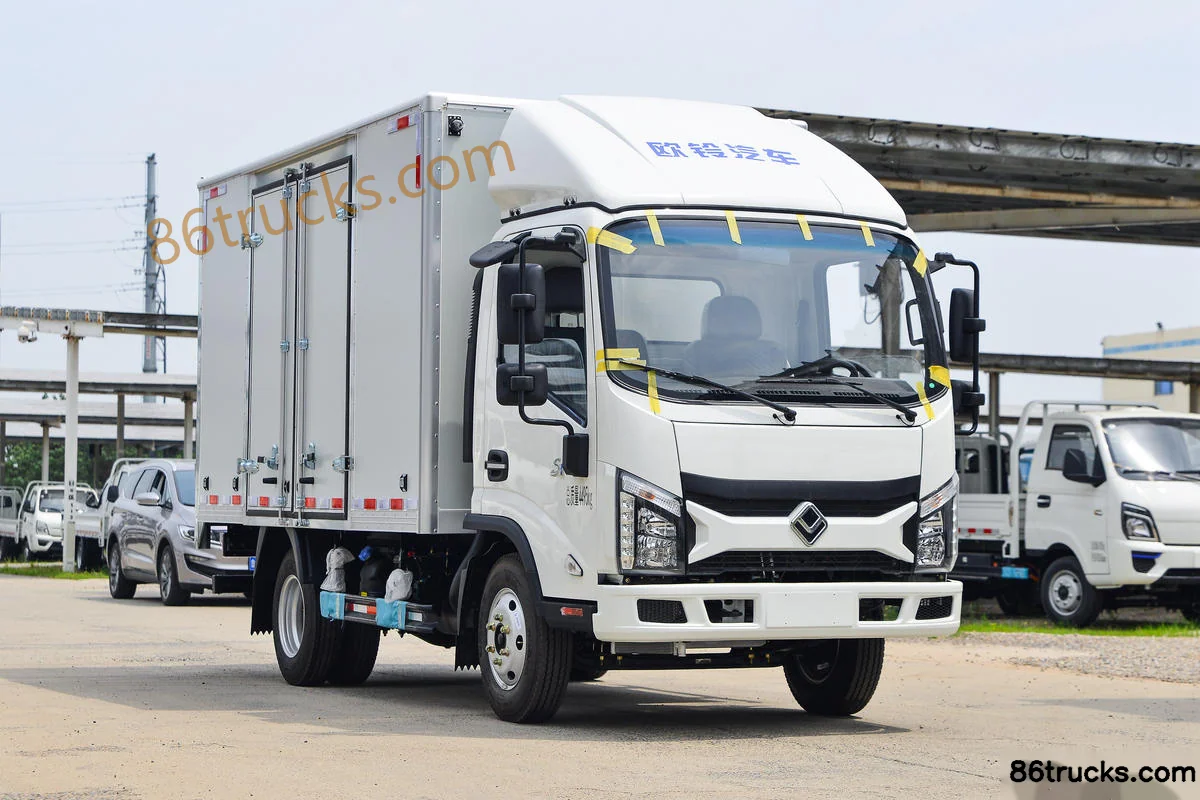

Exterior3

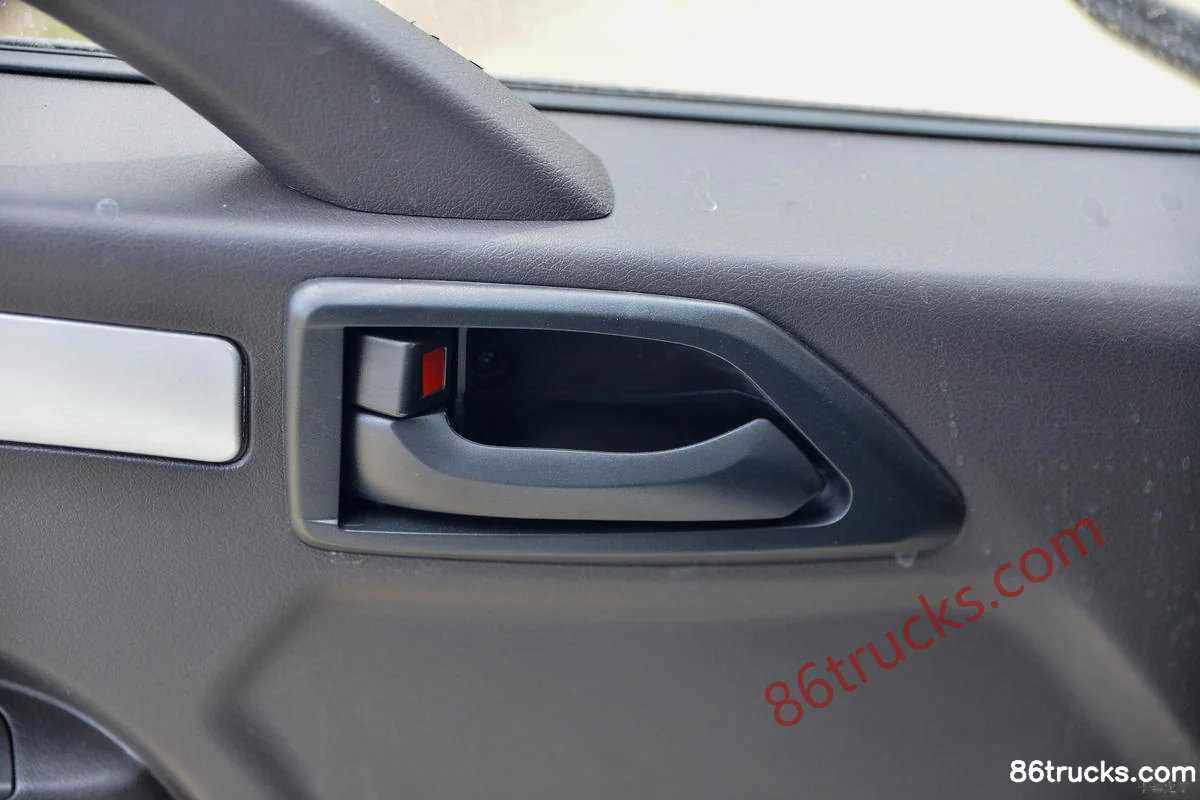

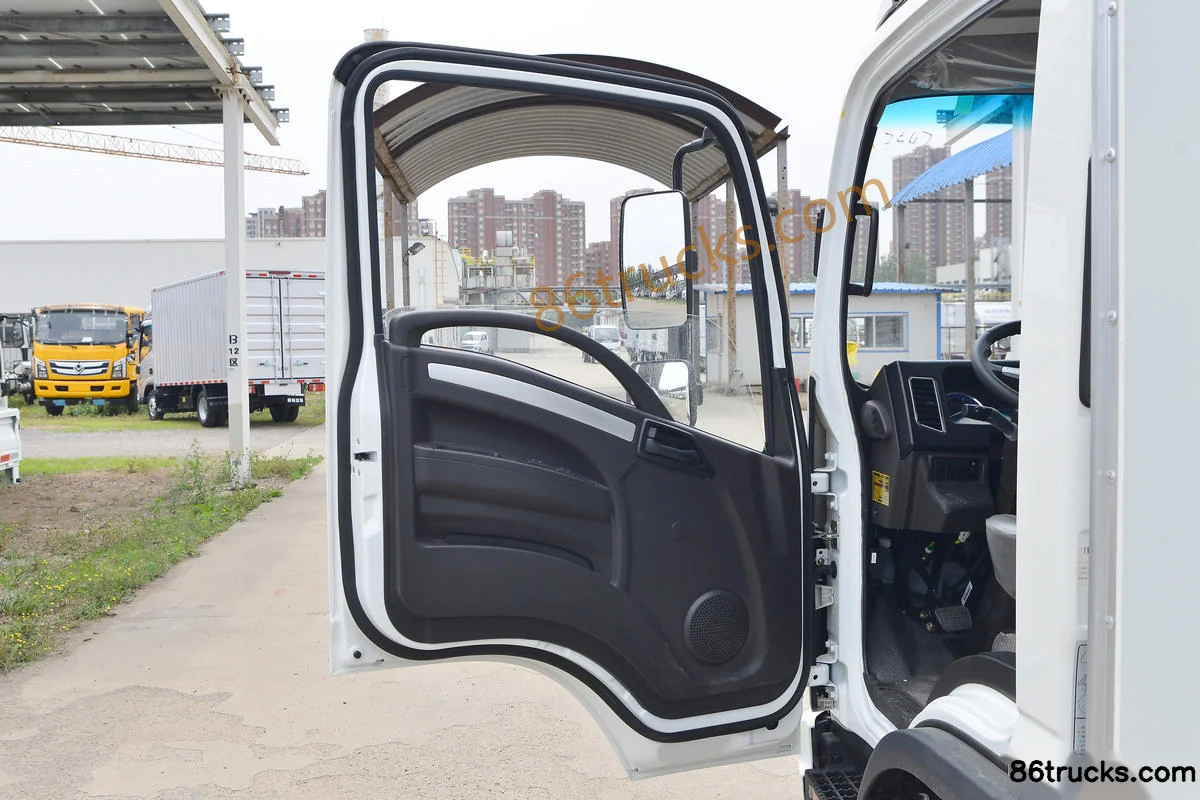

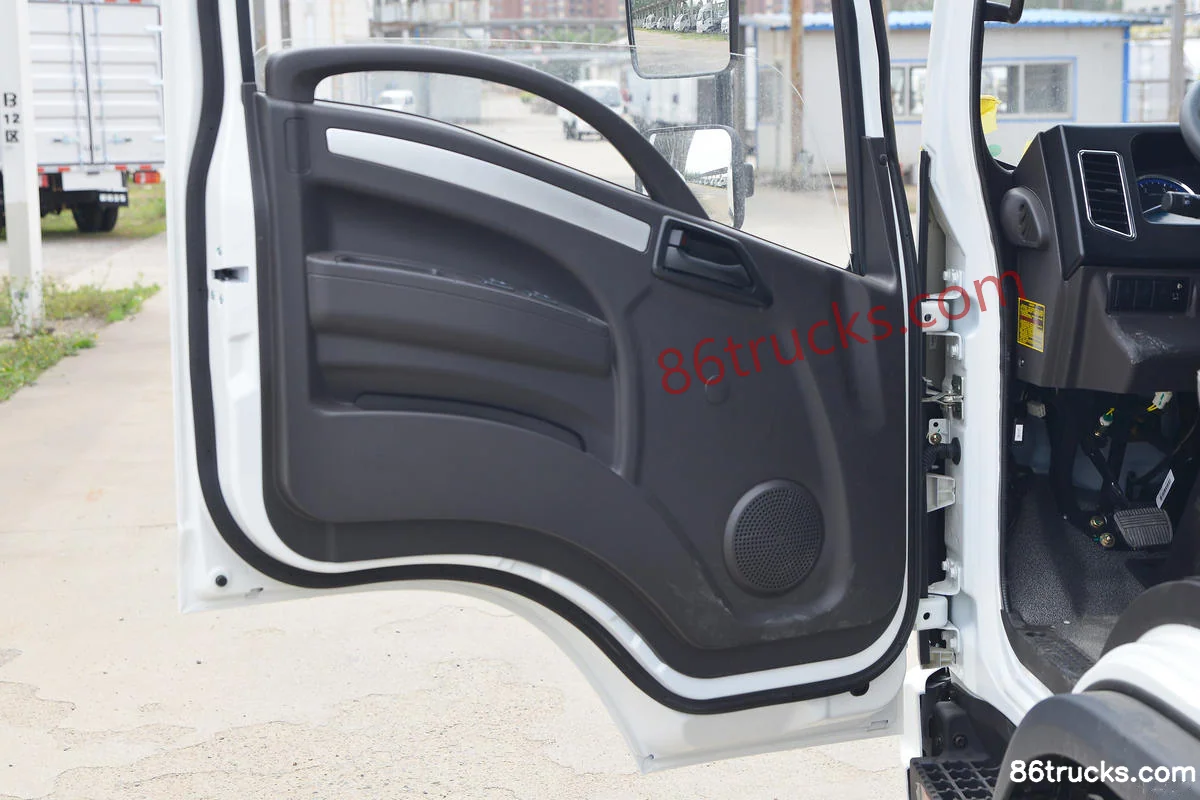

Cab3

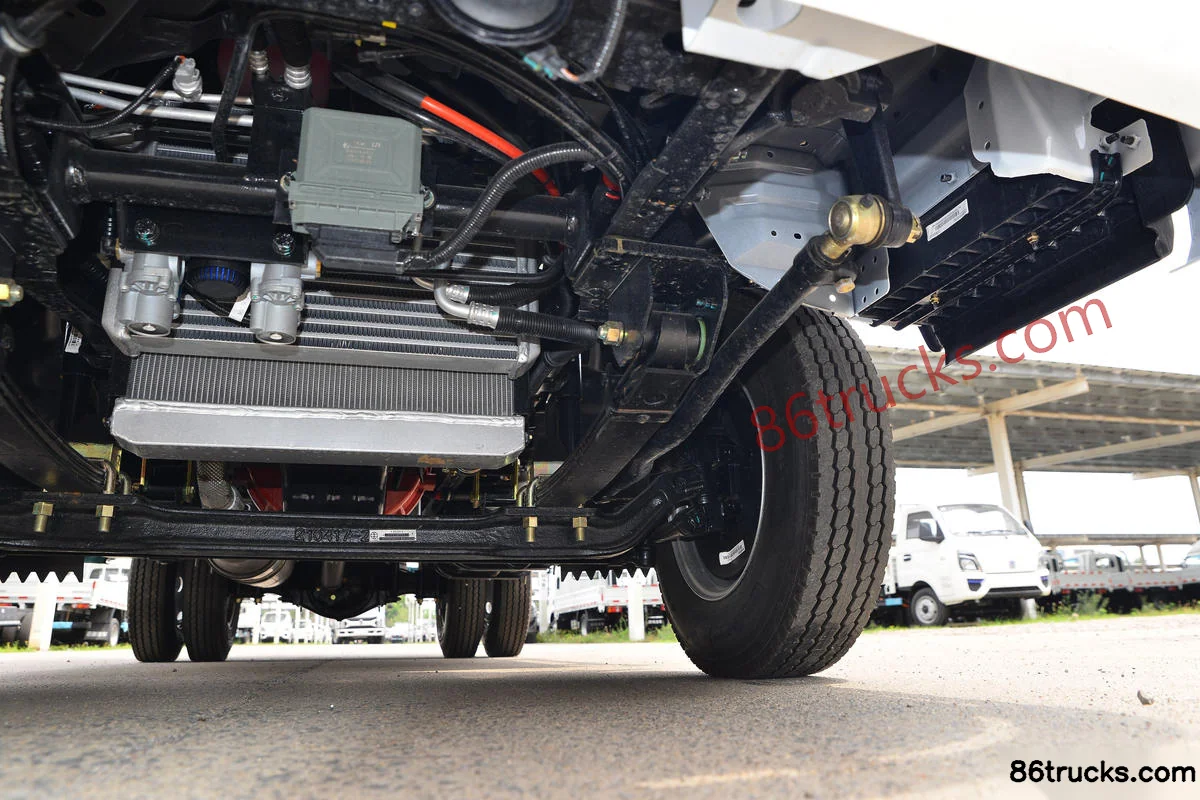

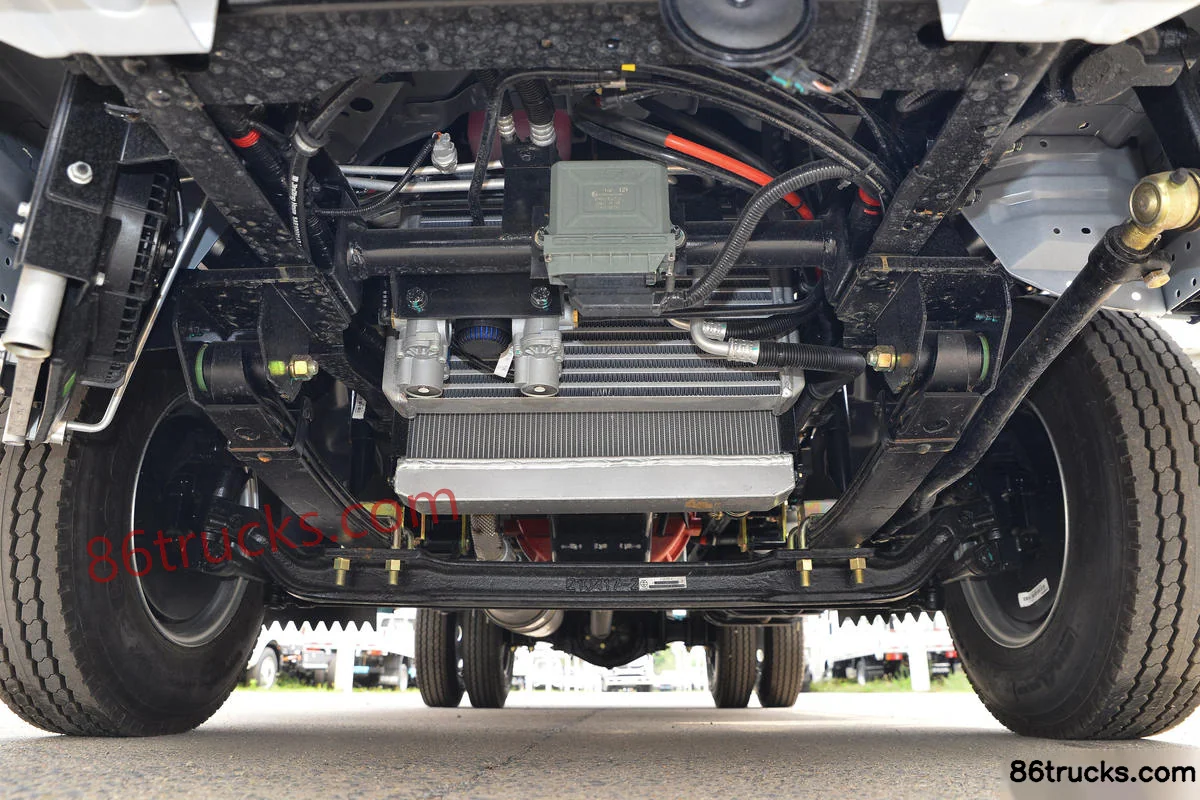

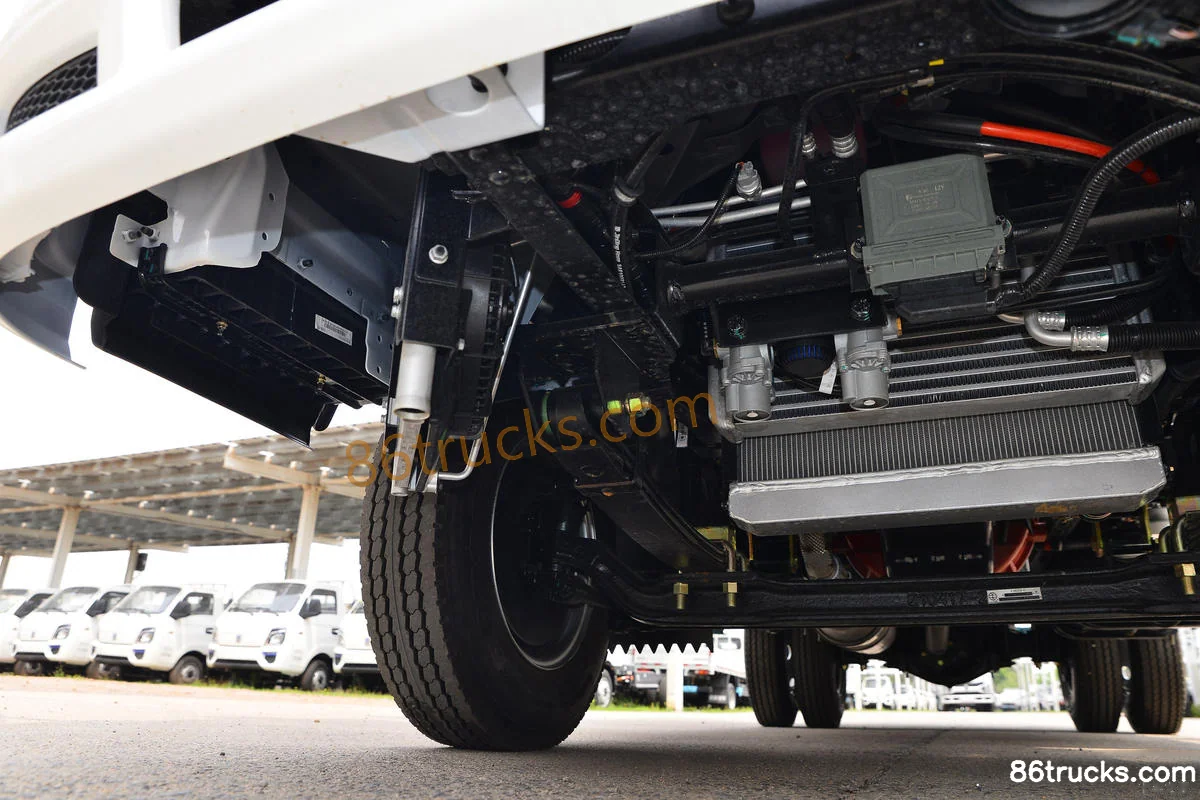

Chassis3

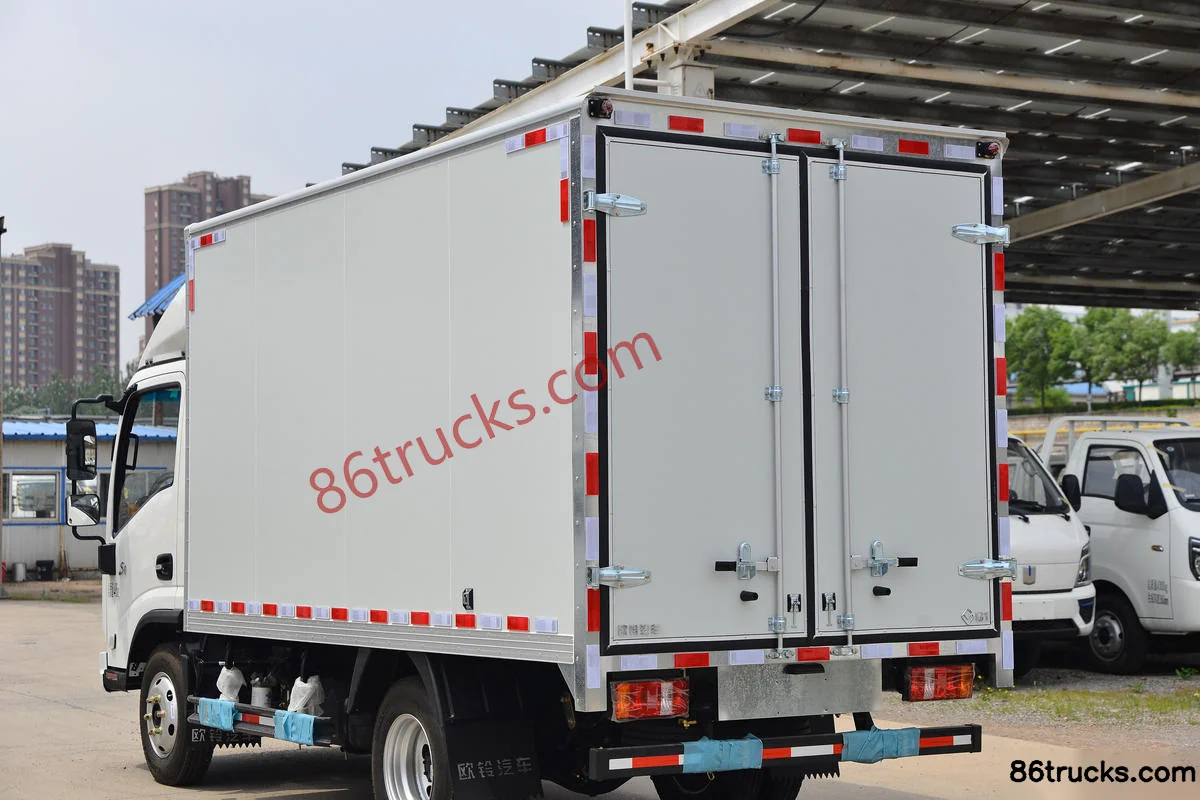

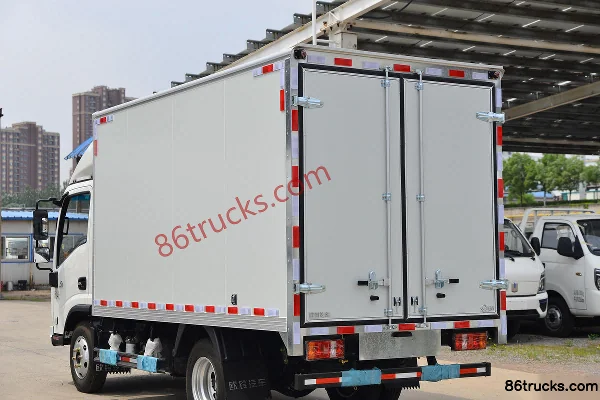

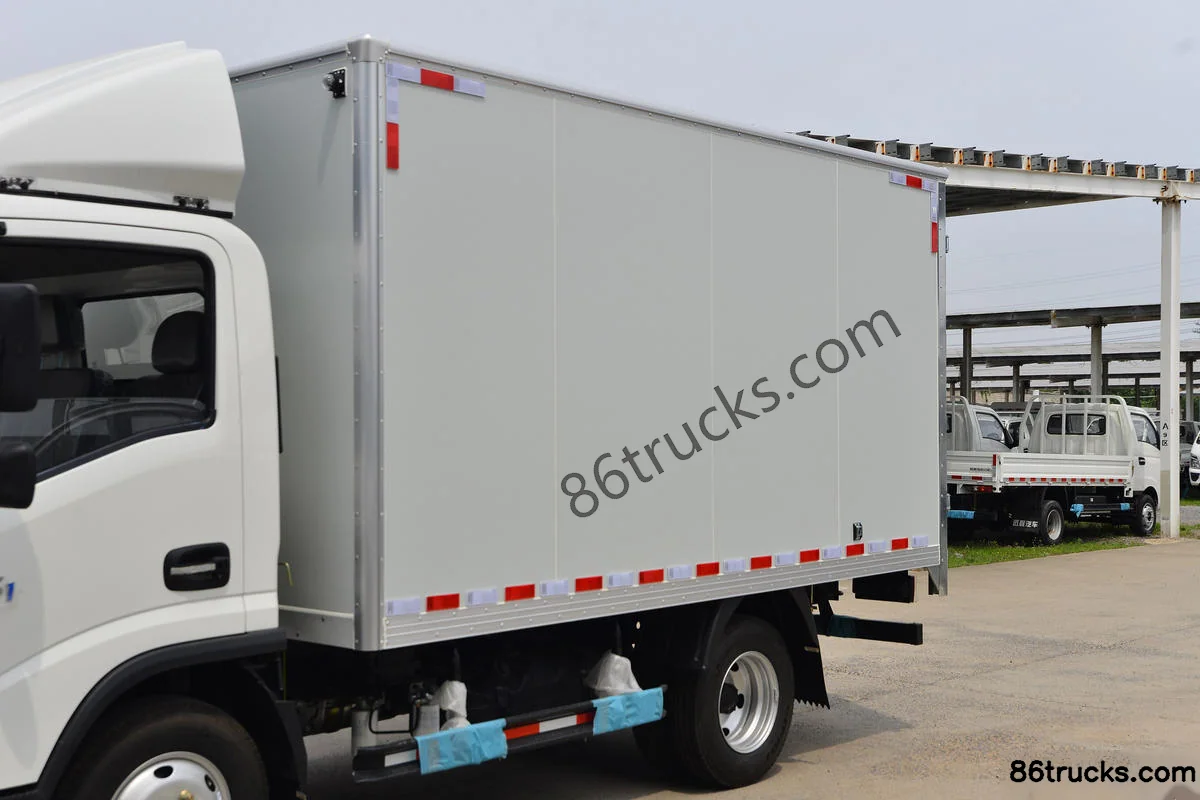

Body3

12 photos

FAQ

What emission standard does Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI)?

Key specs of Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) suited for?

Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) differ from other variants in the same series?

Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI) belongs to Ouling S1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouling S1 Series 115hp 4X2(6 wheels) 3.7m single-row van light truck (8-speed)(China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
