Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh

Export reference
From $105,278
MSRP ¥75.8M CNY
Rated payload:: 5.17ton
Wheelbase:: 4625+1350mm
Cargo box volume:: 30.3m³
Model code (announced):: ZZ3252V4647Z1BEV
Cab length:: 9.77m
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 535km
Motor 1 Brand: Sinotruk
Curb Weight: 19.7ton

Overview

The Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh is a Heavy truck featuring 535km battery/range, Sinotruk motor, 6X4 (10 wheels) drive and 5.17t payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3252V4647Z1BEV
Drive type: 6X4
Wheelbase: 4625+1350mm
Cab length: 9.77m
Cab width: 2.55m
Cab height: 3.45m
CLTC range: 535km
Curb Weight: 19.7ton
Rated payload: 5.17ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ370XSCDW03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
total peak torque: 2500N·m
total rated torque: 1400N·m
Battery/Charging
Charging method: Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 618.24V
Battery capacity: 400kWh
Energy Density: 150
Transmission Parameters
Number of gears: 4Gear
Cargo box parameters
Cargo box volume: 30.3m³
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
rear axle description: 16T
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
Power steering: hydraulic power steering
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

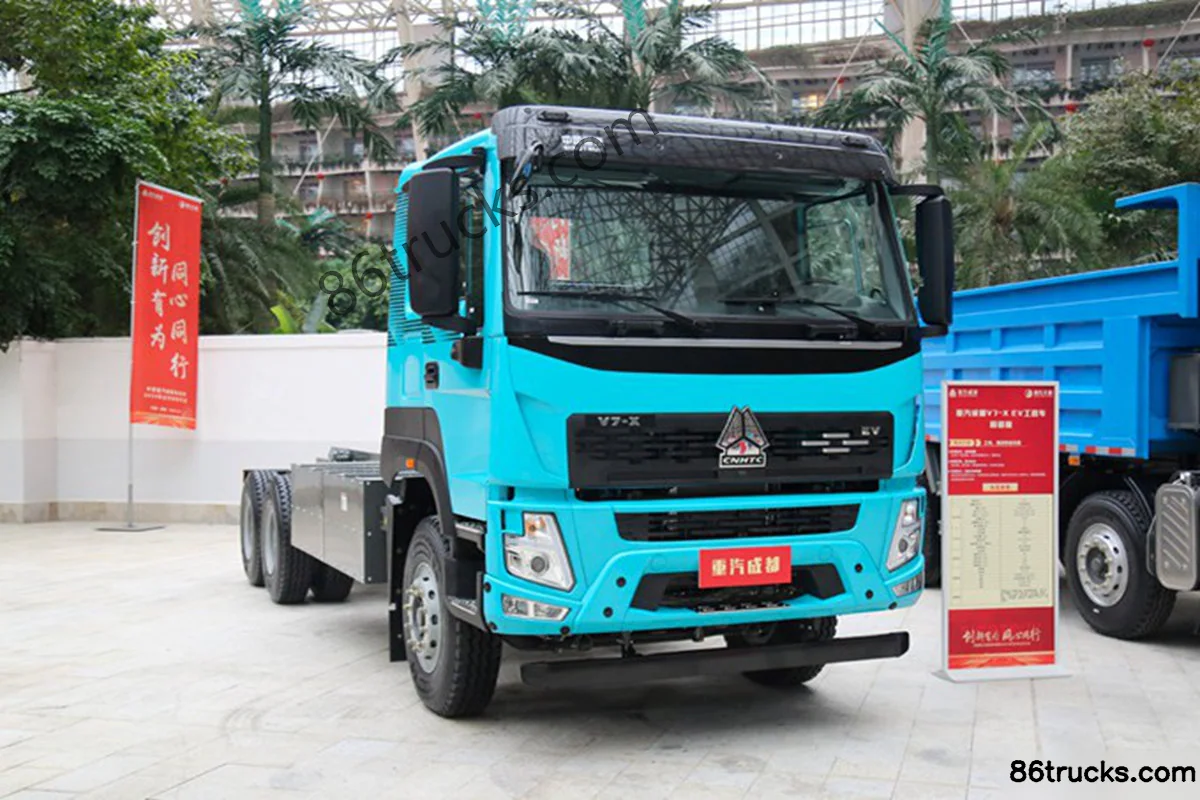

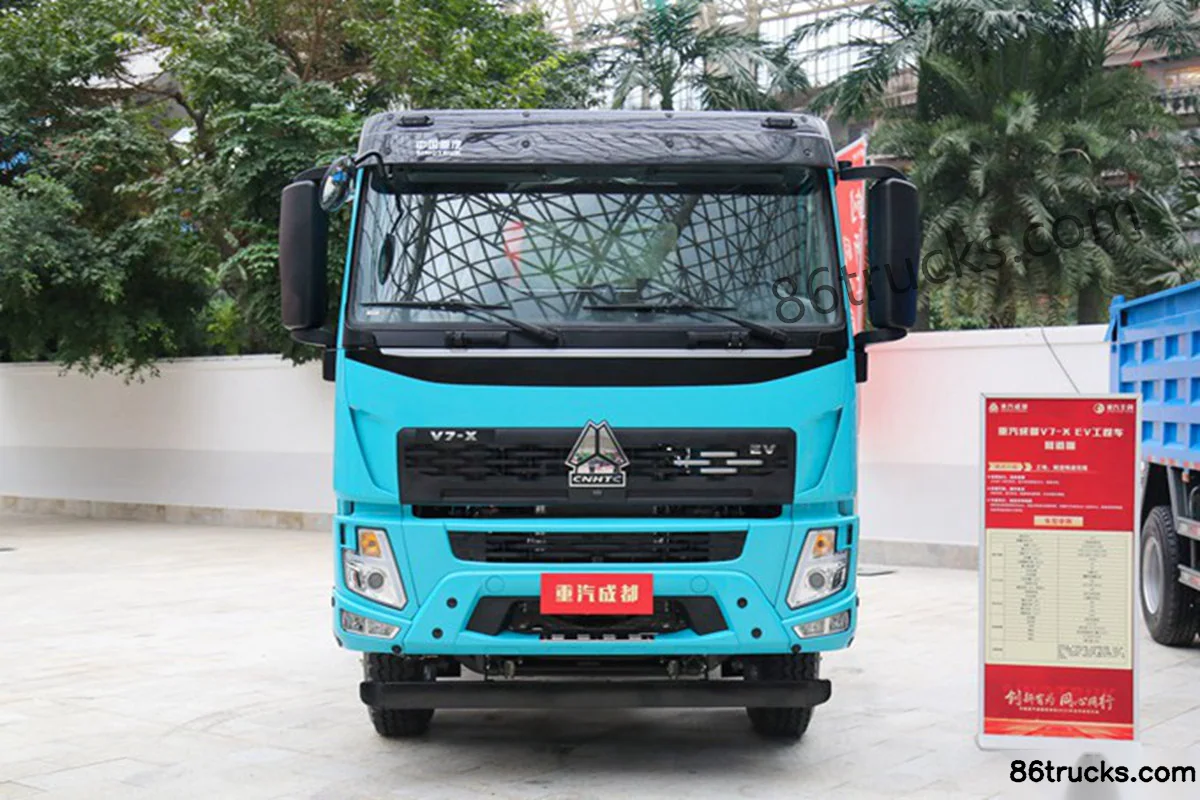

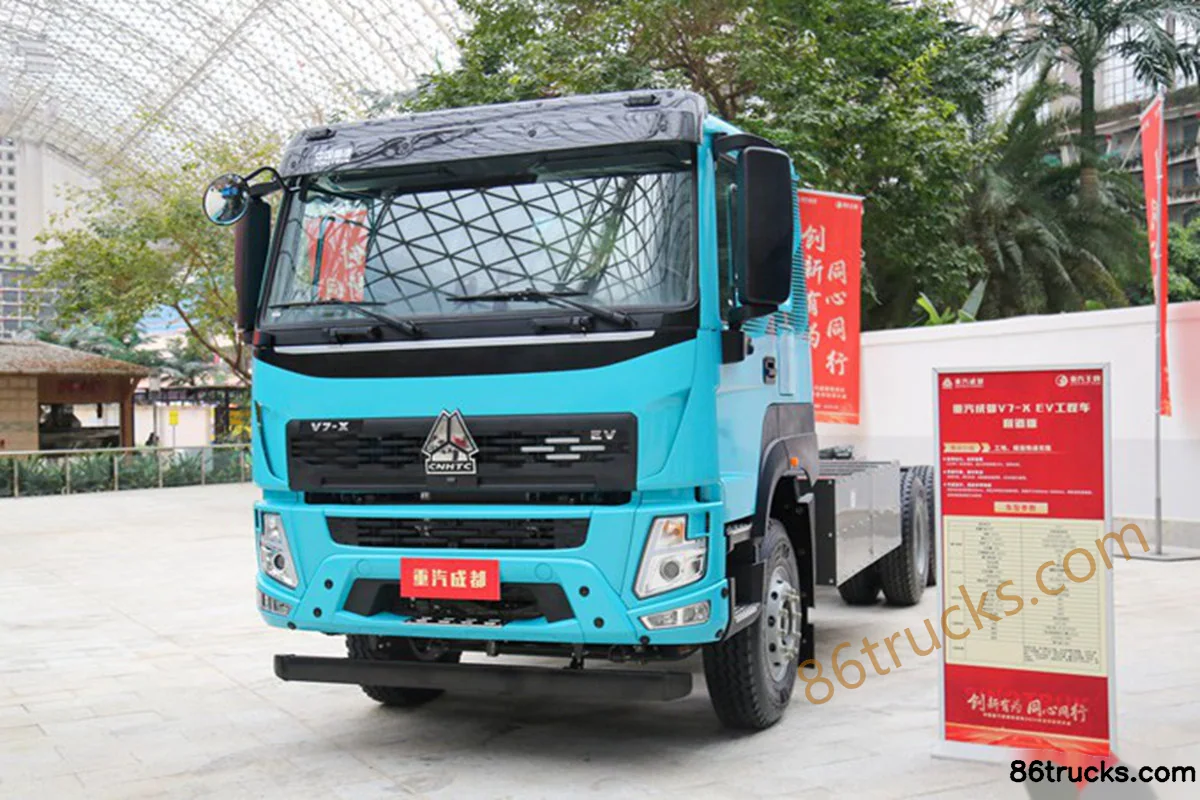

Exterior3

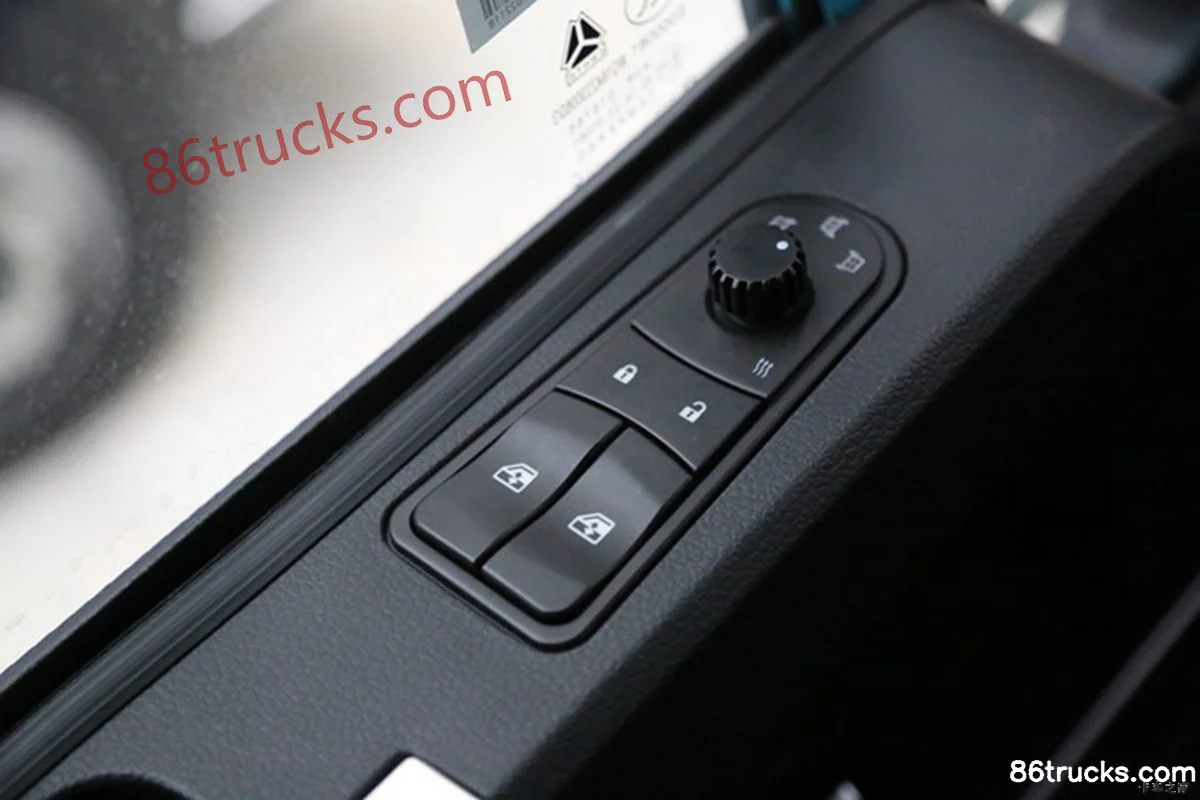

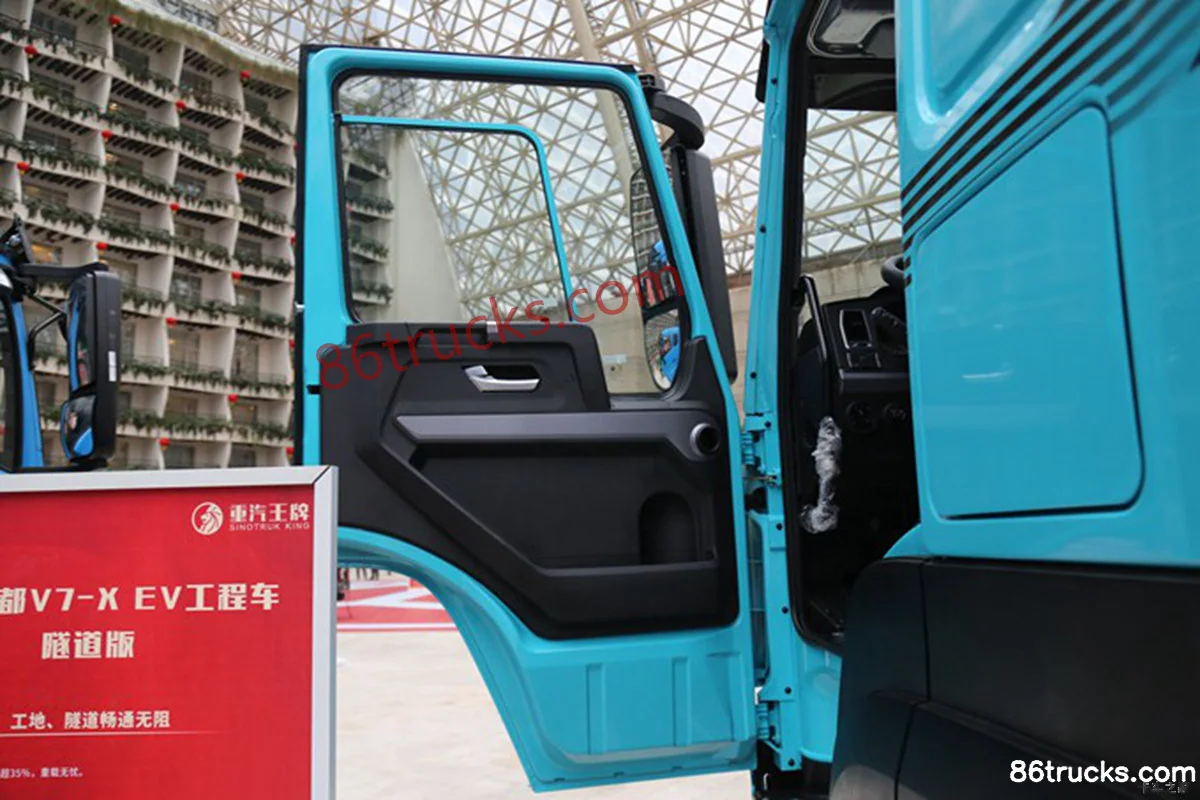

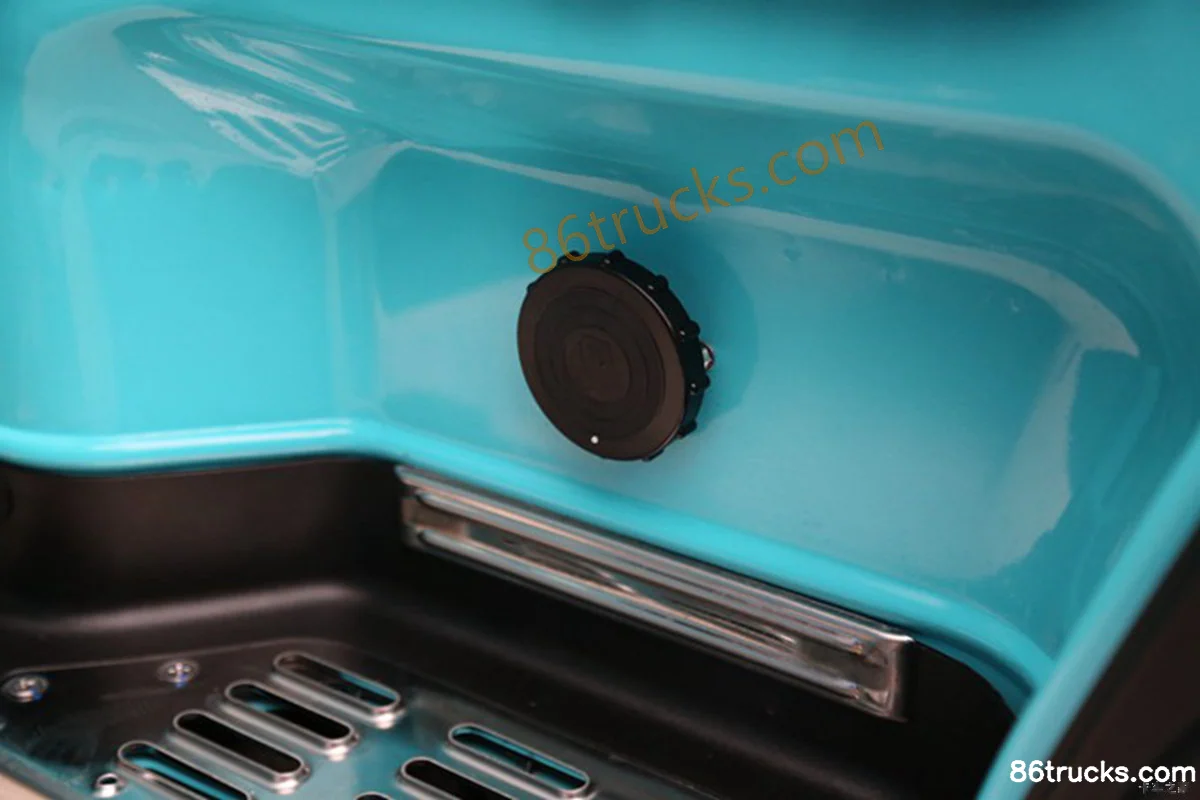

Cab3

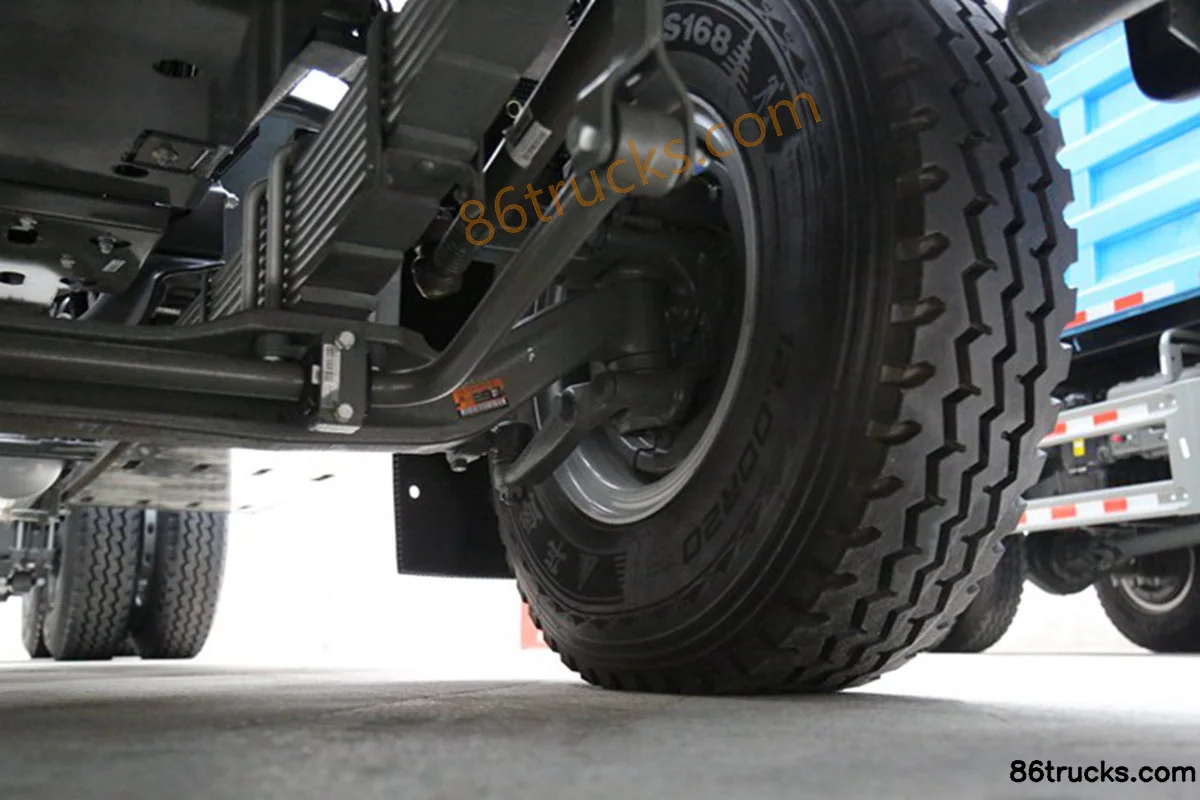

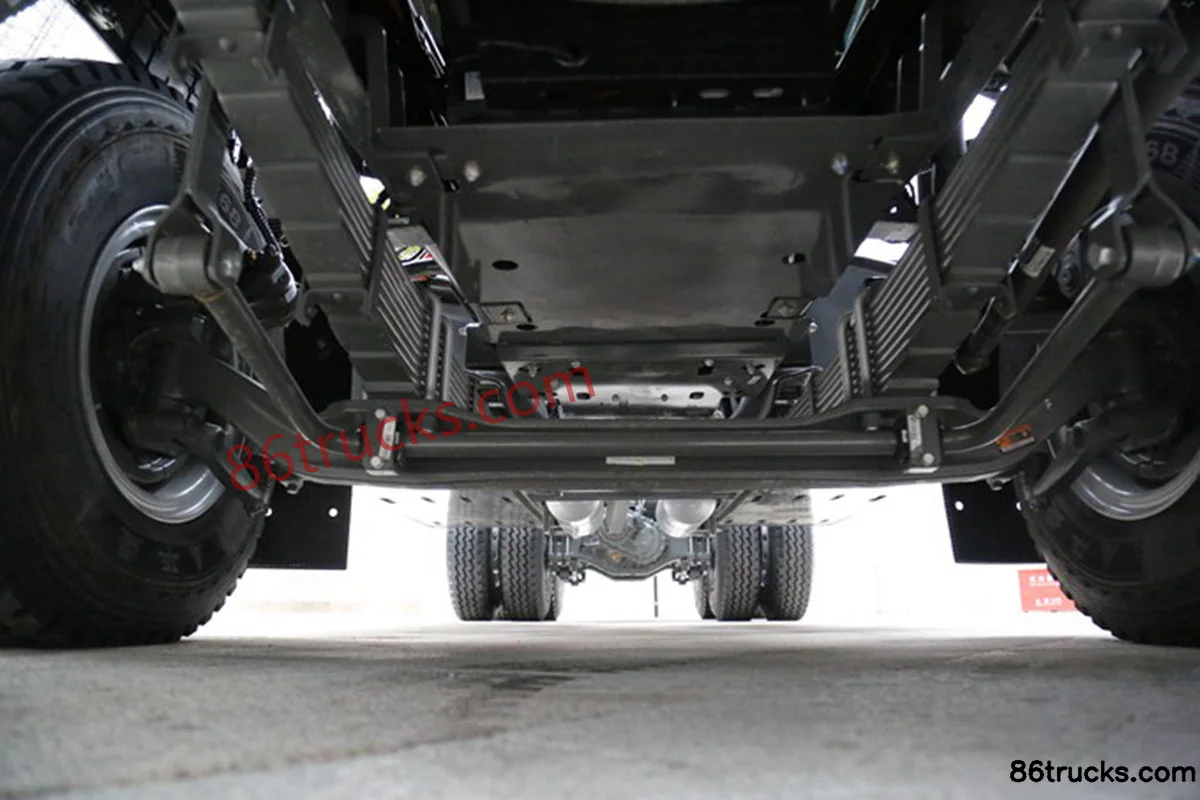

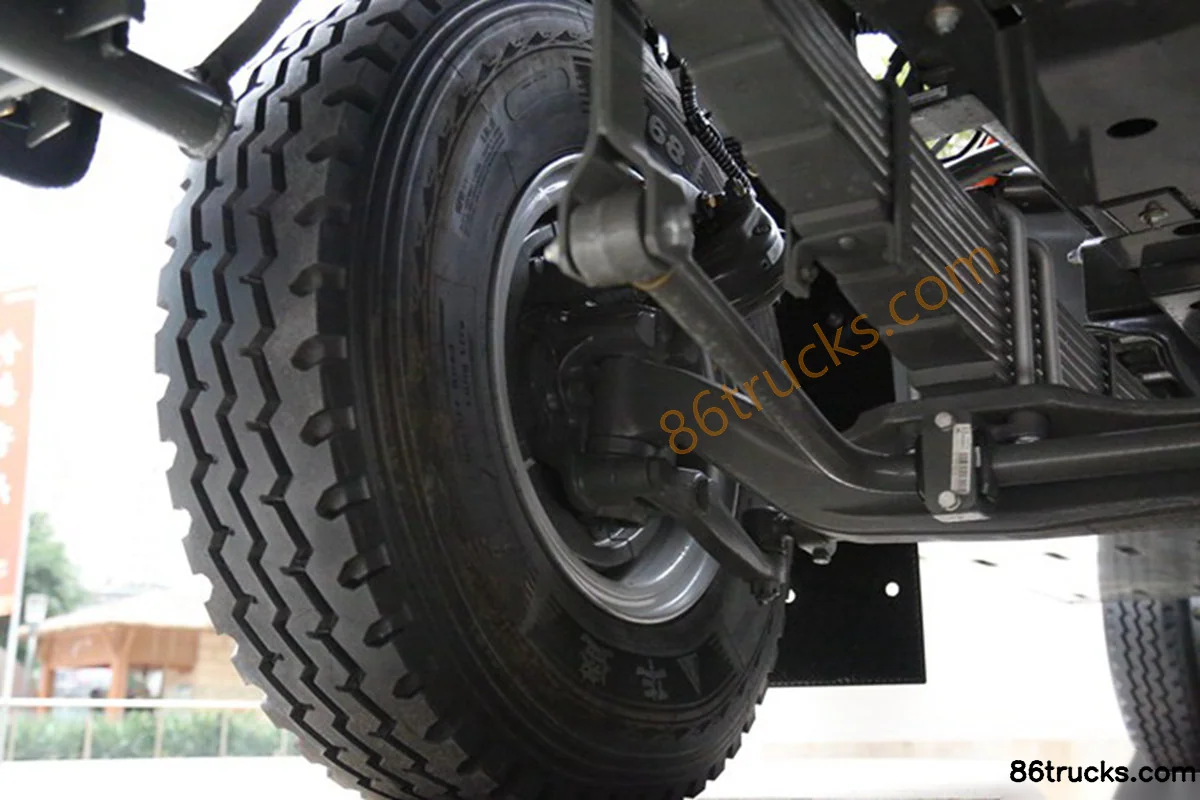

Chassis3

9 photos

FAQ

What is the export price of Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh, and what does it include?

Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh export reference is about From $105,278; MSRP is ¥75.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh?

Key specs of Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh suited for?

Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh differ from other variants in the same series?

Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh belongs to SinotrukHOWOV7-X (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V7-X Tunnel Edition 25T 6X4(10 wheels) 6.8m Pure Electric Dump Truck 400kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
