Dayun Yitu 4X2(6 wheels) 3m Pure Electric Dump Truck 98.03kWh

Export reference
MSRP N/A
Rated payload:: 0.865ton
Wheelbase:: 2700mm
Cargo box length:: 3m
Model code (announced):: DYQ3041BEVAB
Cab length:: 4.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Langao
Curb Weight: 3.5ton

Overview

The Dayun Yitu 4X2(6 wheels) 3m Pure Electric Dump Truck 98.03kWh is a Light Truck featuring 220km battery/range, Langao motor, 4X2 (6 wheels) drive and 0.865t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3041BEVAB
Drive type: 4X2
Wheelbase: 2700mm
Cab length: 4.995m
Cab width: 1.925m
Cab height: 2.2m
CLTC range: 220km
Curb Weight: 3.5ton
Rated payload: 0.865ton
GVWR: 4.495ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ342XSLGV01
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 98.03kWh
Cargo box parameters
Cargo box length: 3m
Cargo box width: 1.8m
Cargo box height: 0.65m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

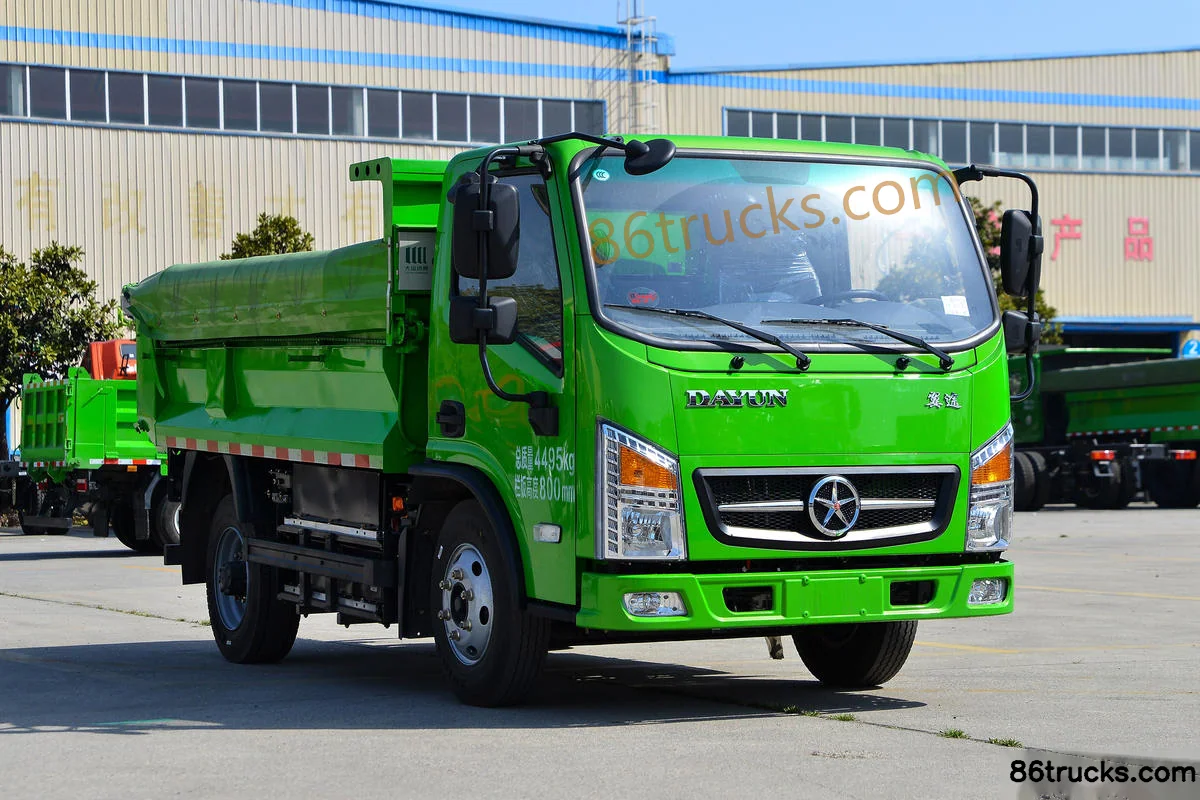

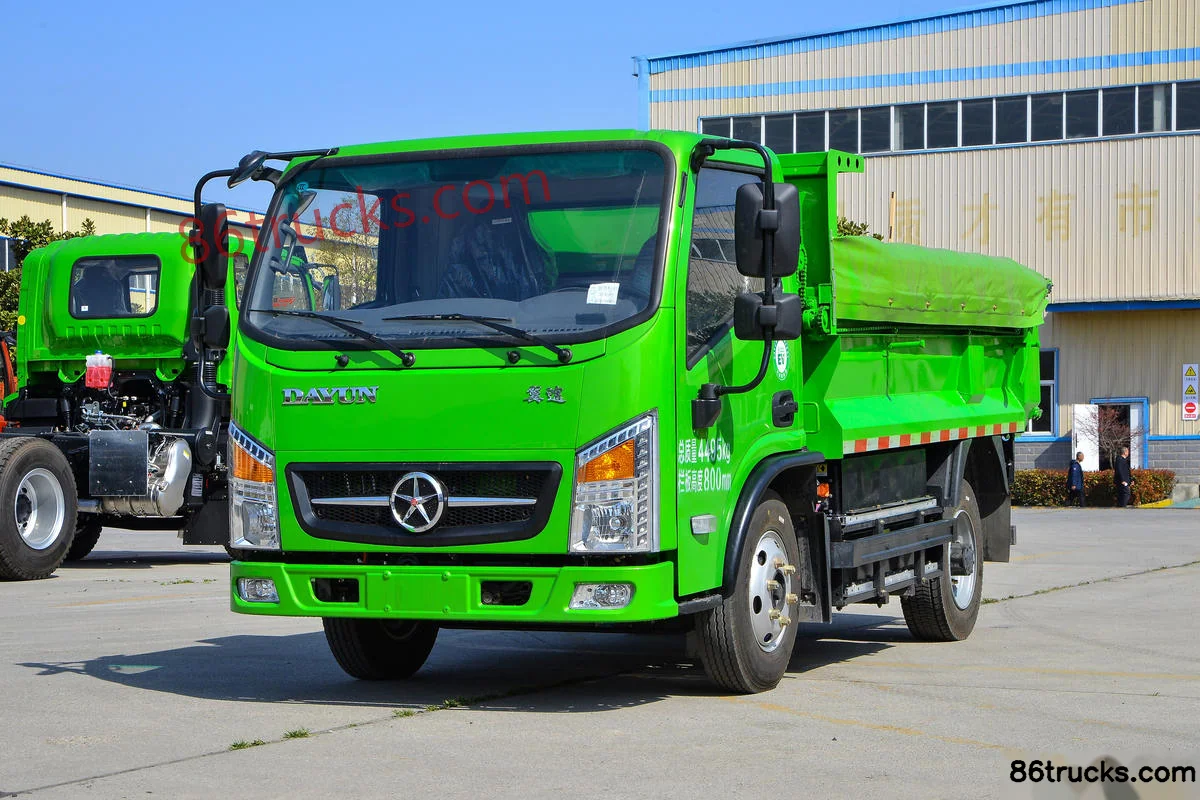

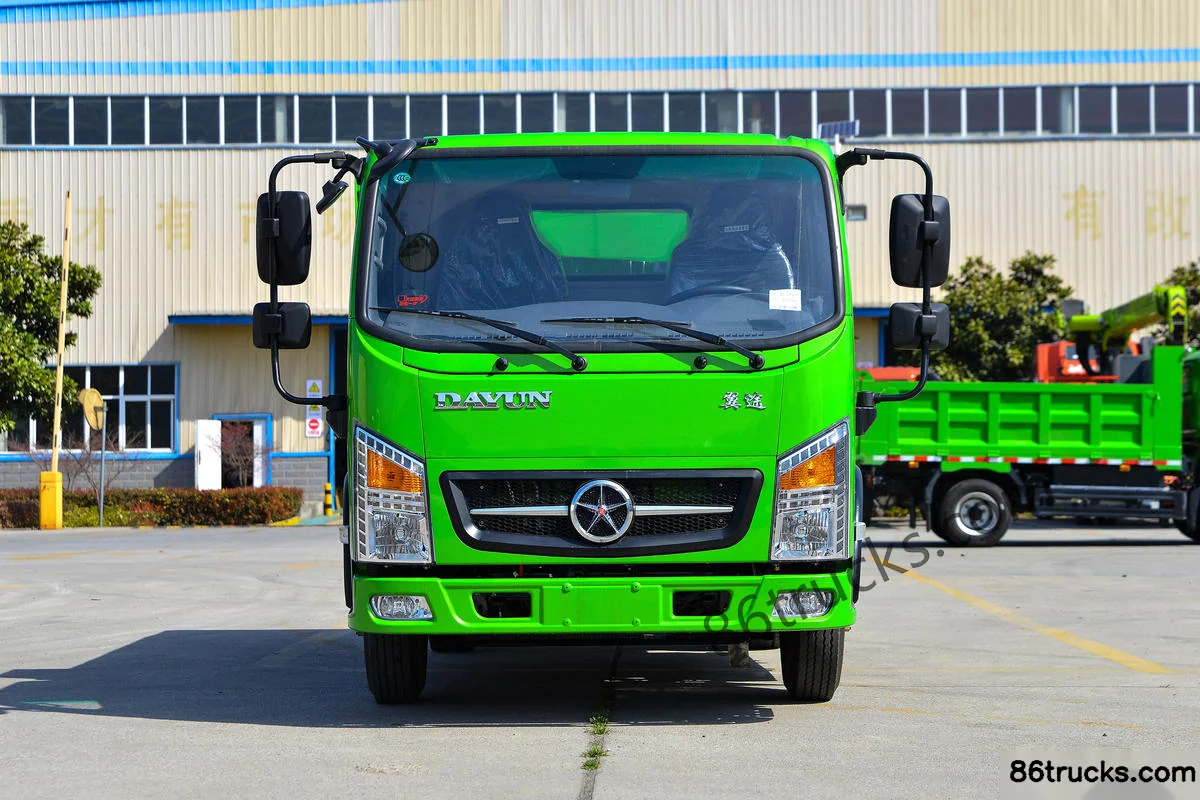

Exterior3

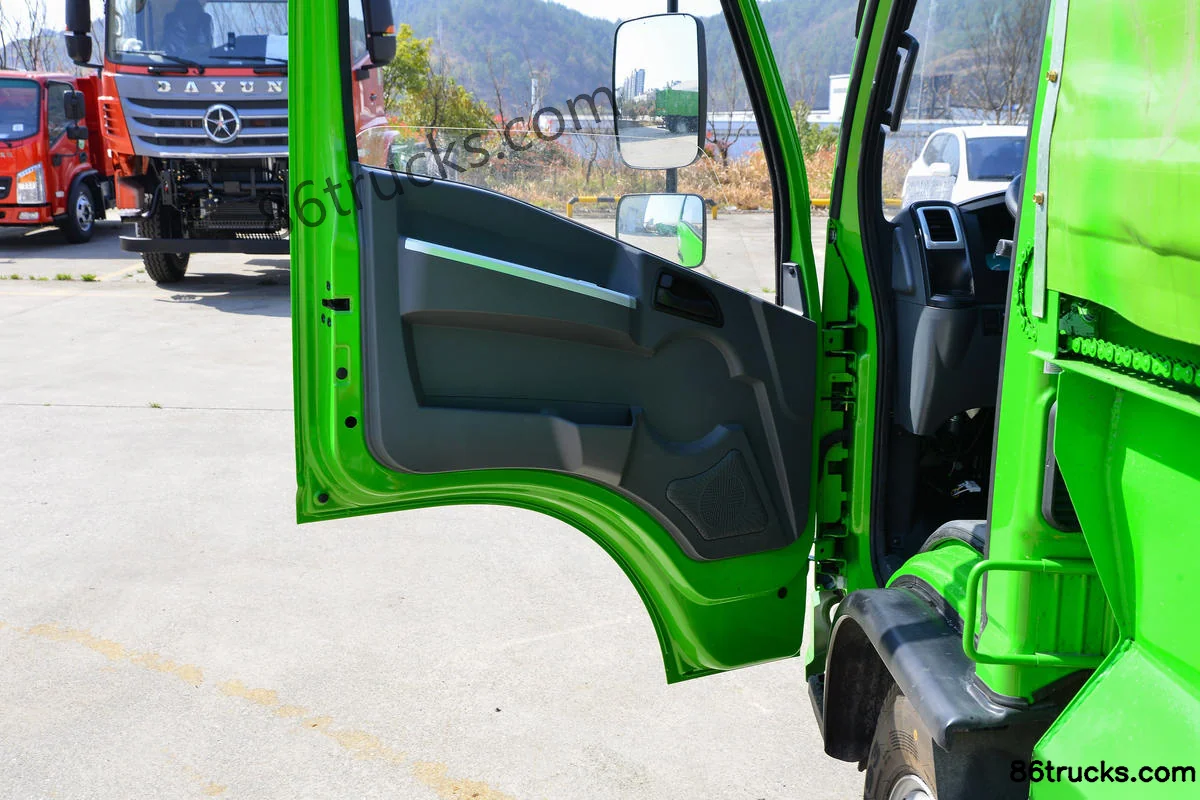

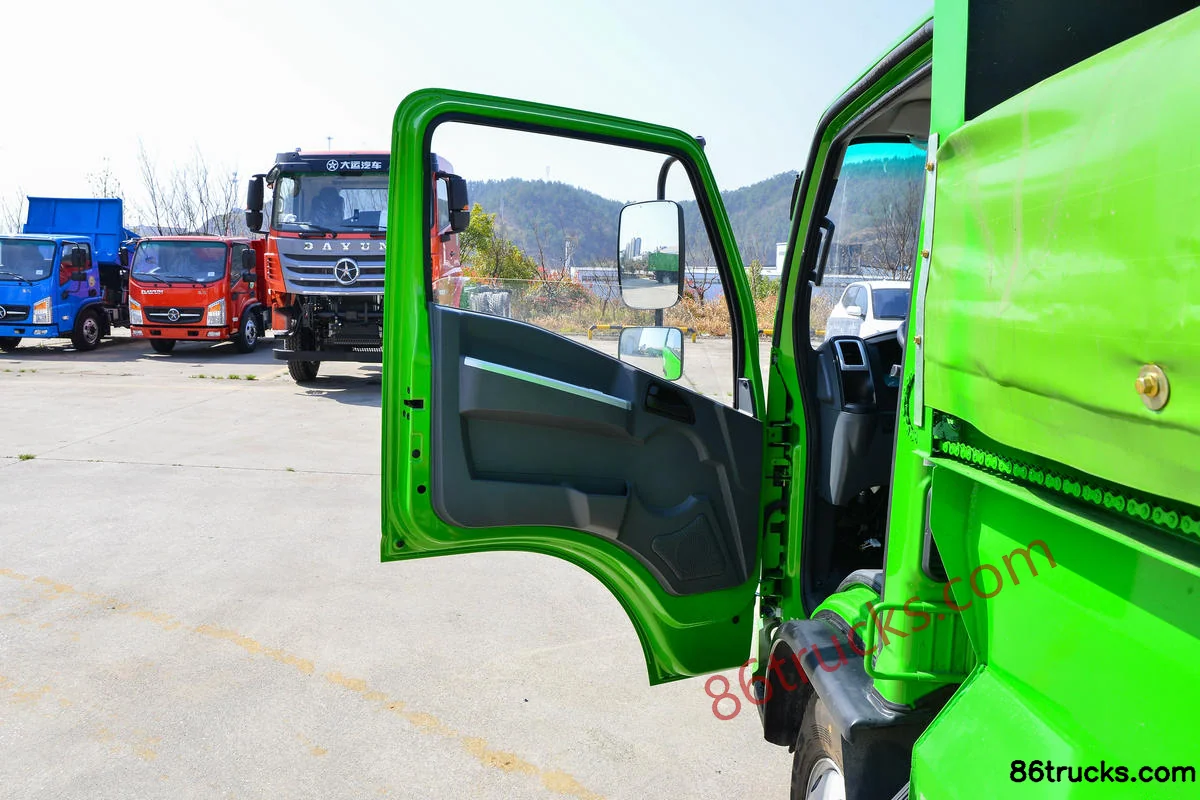

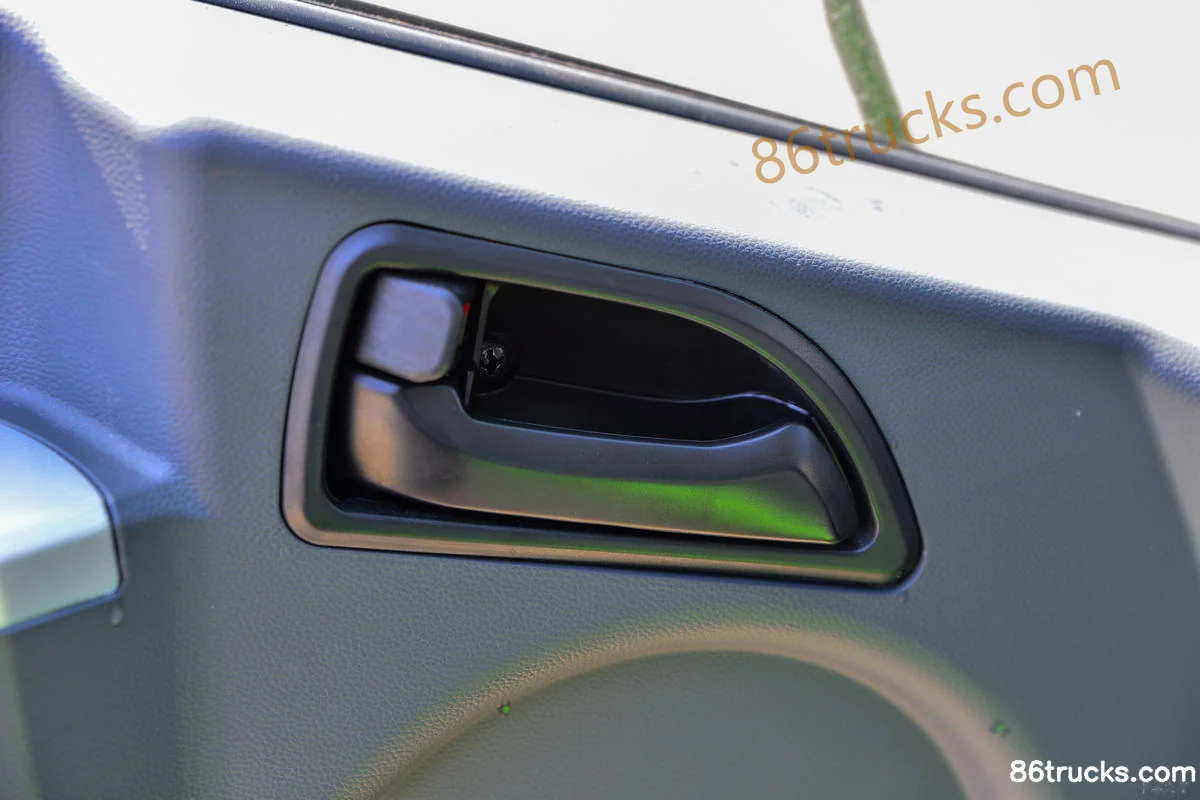

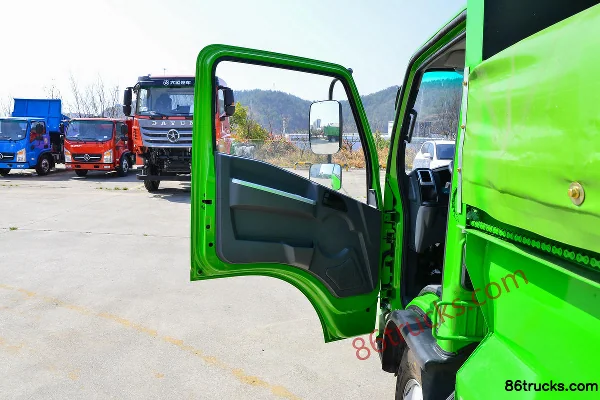

Cab3

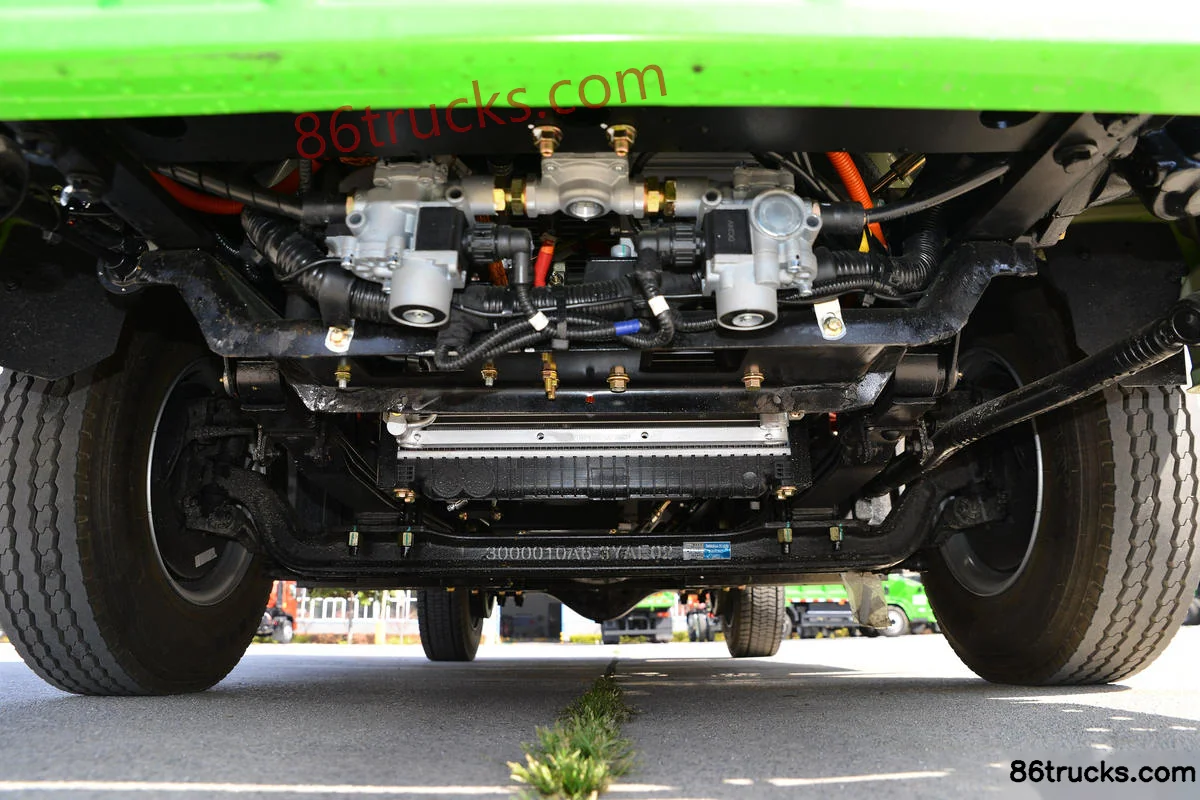

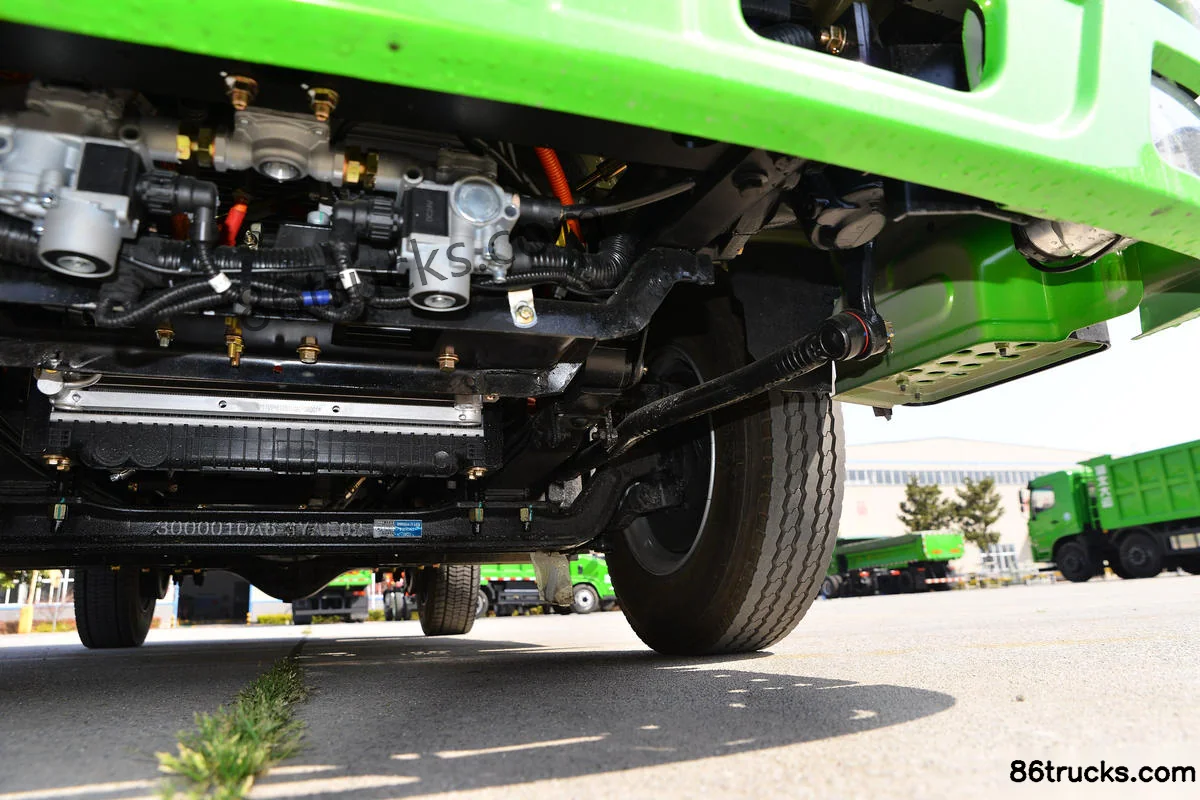

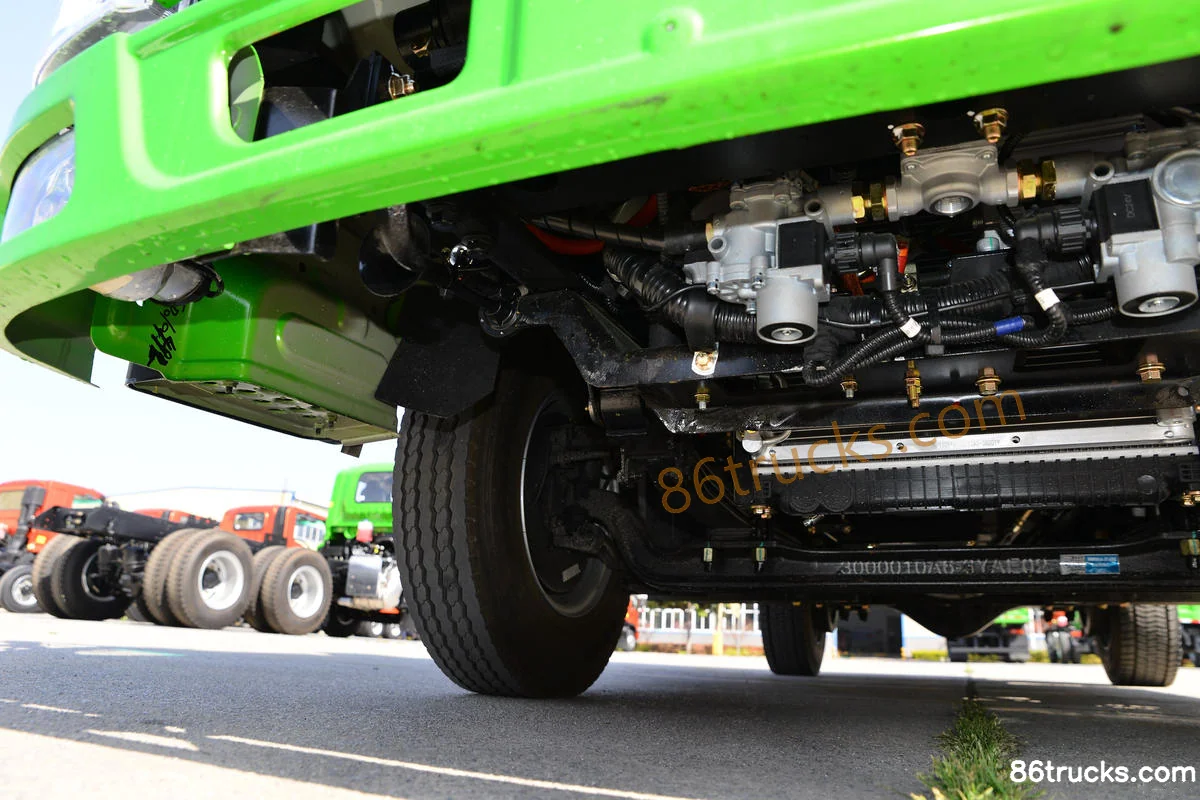

Chassis3

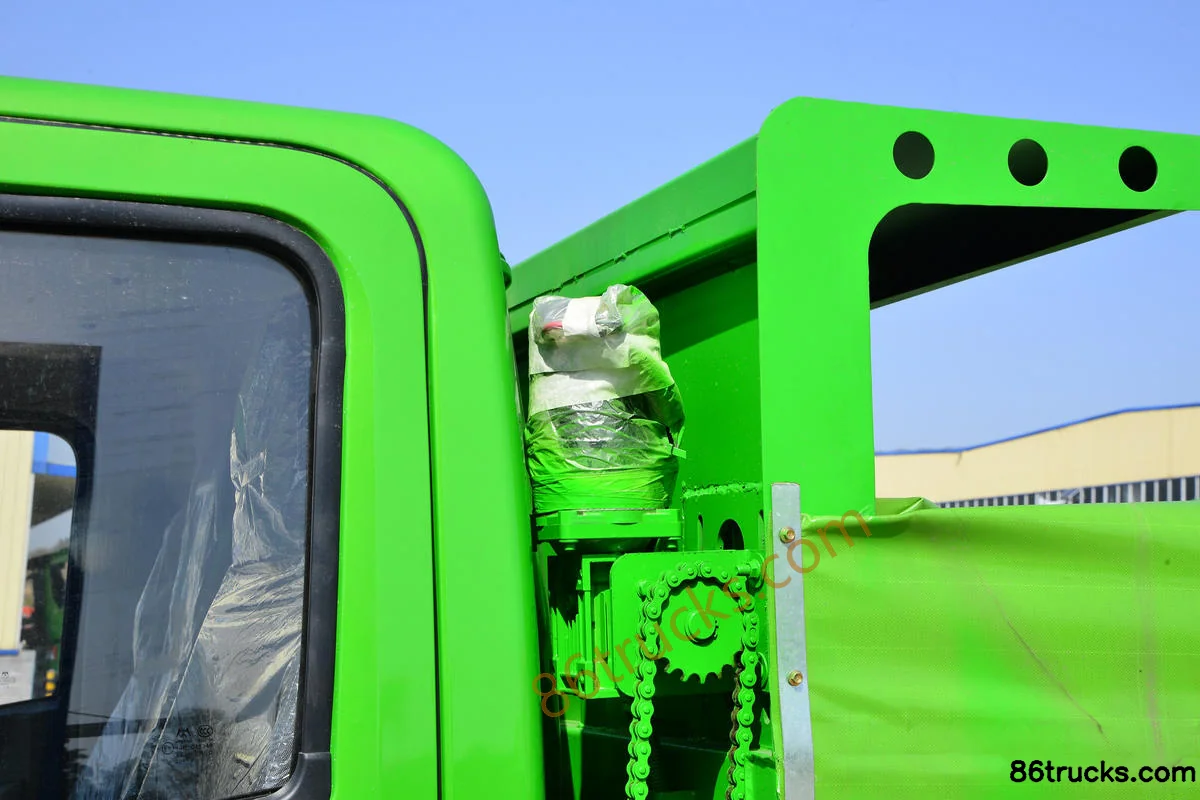

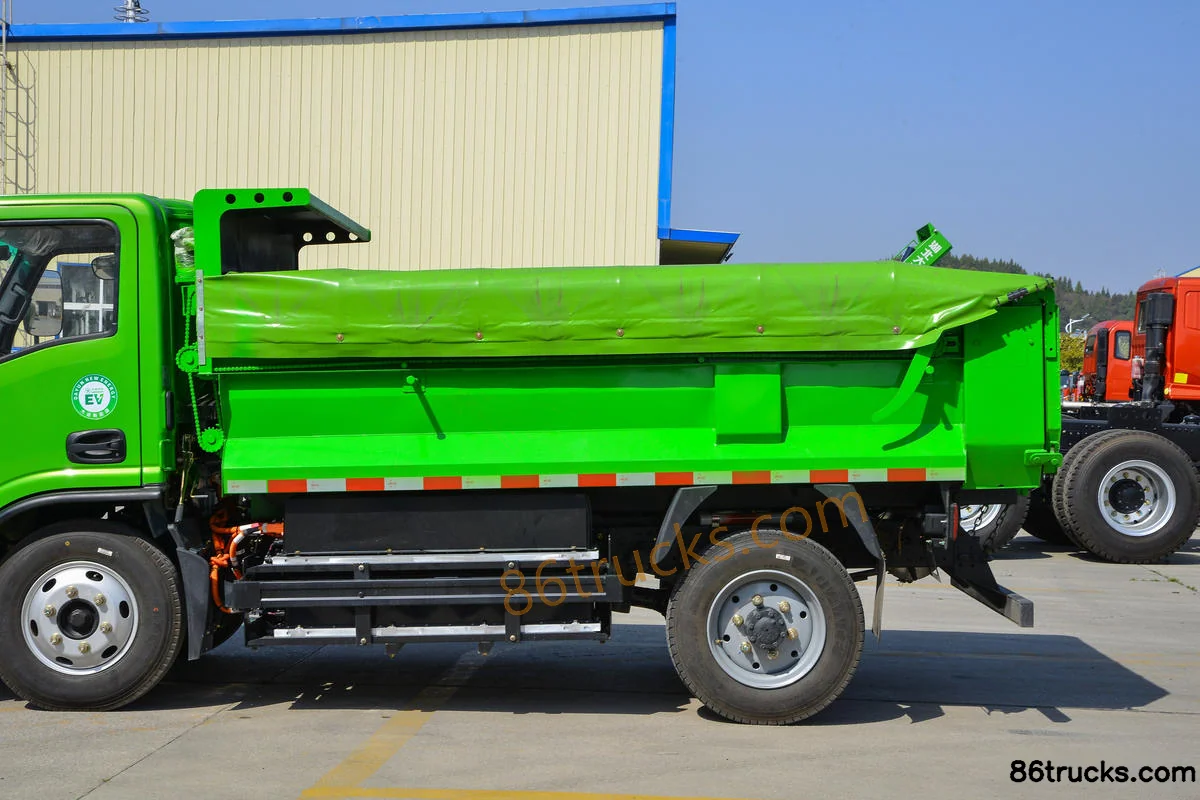

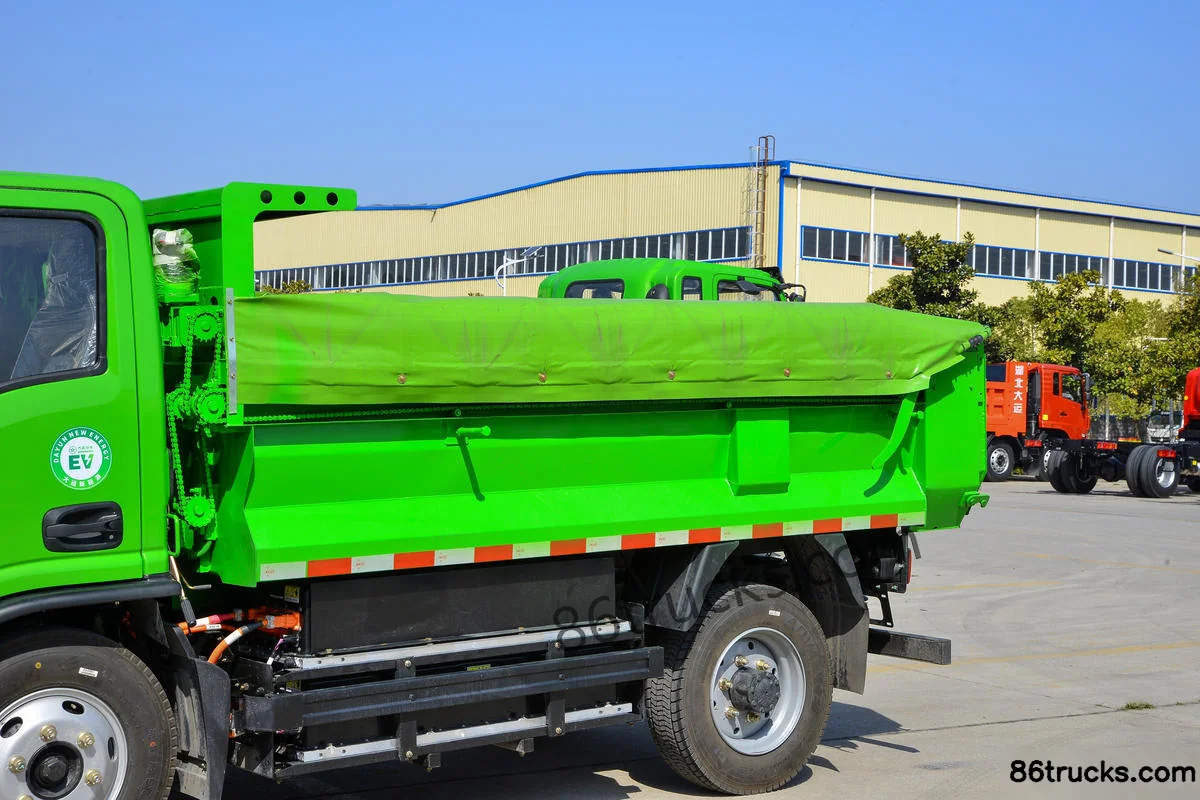

Body3

12 photos
