Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand)

Export reference
From $23,889
MSRP ¥17.2M CNY
Curb Weight:: 4.08ton
Emission: China V
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 6.4×2.1×2.6m
Truck Type:: Fuel tanker truck
Tank Size: 4.2 (incl. fuel dispenser compartment 0.8) × 1.96 × 1.32
Rated payload: 4.07ton
Drive 4X2 (6 wheels)
Horsepower 141

Overview

The Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) is a fuel tanker truck featuring 4.2 (incl. fuel dispenser compartment 0.8) × 1.96 × 1.32 tank capacity, 4.07t payload, 6m³ volume and 4.08ton GVW. On the powertrain side, it comes with 141 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.4×2.1×2.6m
Drive type: 4X2
Truck Type: Fuel tanker truck
Wheelbase: 3360mm
Vehicle origin: Suizhou, Hubei
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 4.08ton
Rated payload: 4.07ton
Max. speed: 80km/h
Front/rear suspension: 1.12/1.92m
Energy Type: Diesel
Body Parameters
Tank Size: 4.2 (incl. fuel dispenser compartment 0.8) × 1.96 × 1.32
Tank Volume: 6m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: CLQ5081GJY5BJ
Body Brand: Chufei Brand
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1089VEJEA-F3
Axle ratio: 3.727
Leaf spring count: 3+1/6+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6T120
Tire
Tire Size: 7.50R16
Number of tires: 6pcs

Photos

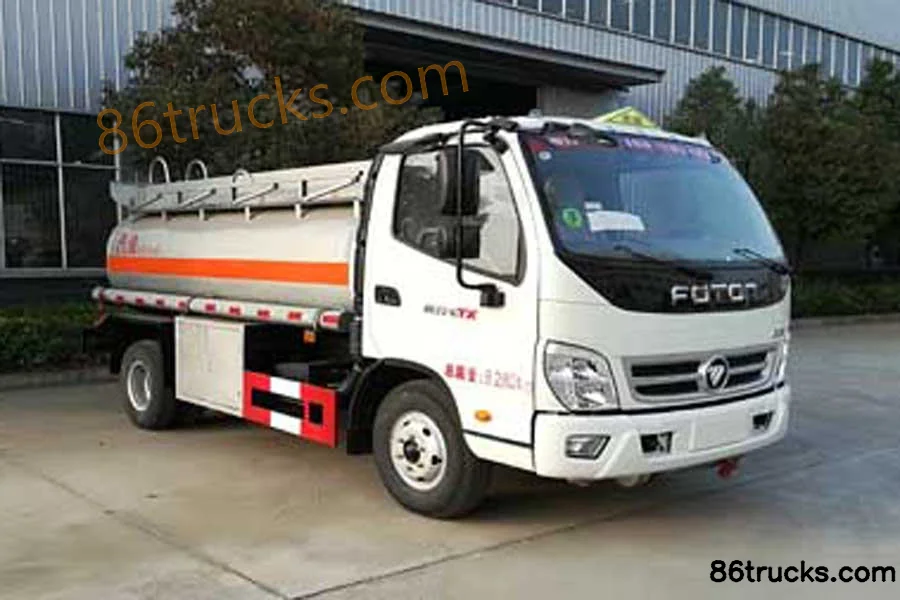

Exterior1

1 photos

FAQ

What is the export price of Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand), and what does it include?

Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) export reference is about From $23,889; MSRP is ¥17.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand)?

Key specs of Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand): Drive: 4x2; Horsepower: 141 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) suited for?

Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) differ from other variants in the same series?

Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand) belongs to Chufei Foton chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 141hp 4X2(6 wheels) refueling truck (Chufei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
