SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels)

Export reference
From $32,889
MSRP ¥23.68M CNY
Rated payload:: 1.435ton
Wheelbase:: 3360mm
Cargo box volume:: 18.3m³
Model code (announced):: SH5047XXYMFEVMZ1
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 320km
Motor 1 Brand: SAIC MAXUS
Curb Weight: 2.865ton

Overview

The Yuejin SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) is a Light Truck featuring 320km battery/range, SAIC MAXUS motor, 4X2 (6 wheels) drive and 1.435t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5047XXYMFEVMZ1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.16m
Cab height: 3.13m
CLTC range: 320km
Curb Weight: 2.865ton
Rated payload: 1.435ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC MAXUS
Motor 1 Model: TZ210XS104
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
Energy Density: 159.56
Cargo box parameters
Cargo box volume: 18.3m³
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2050mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1760kg
rear axle allowable load: 2735kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual

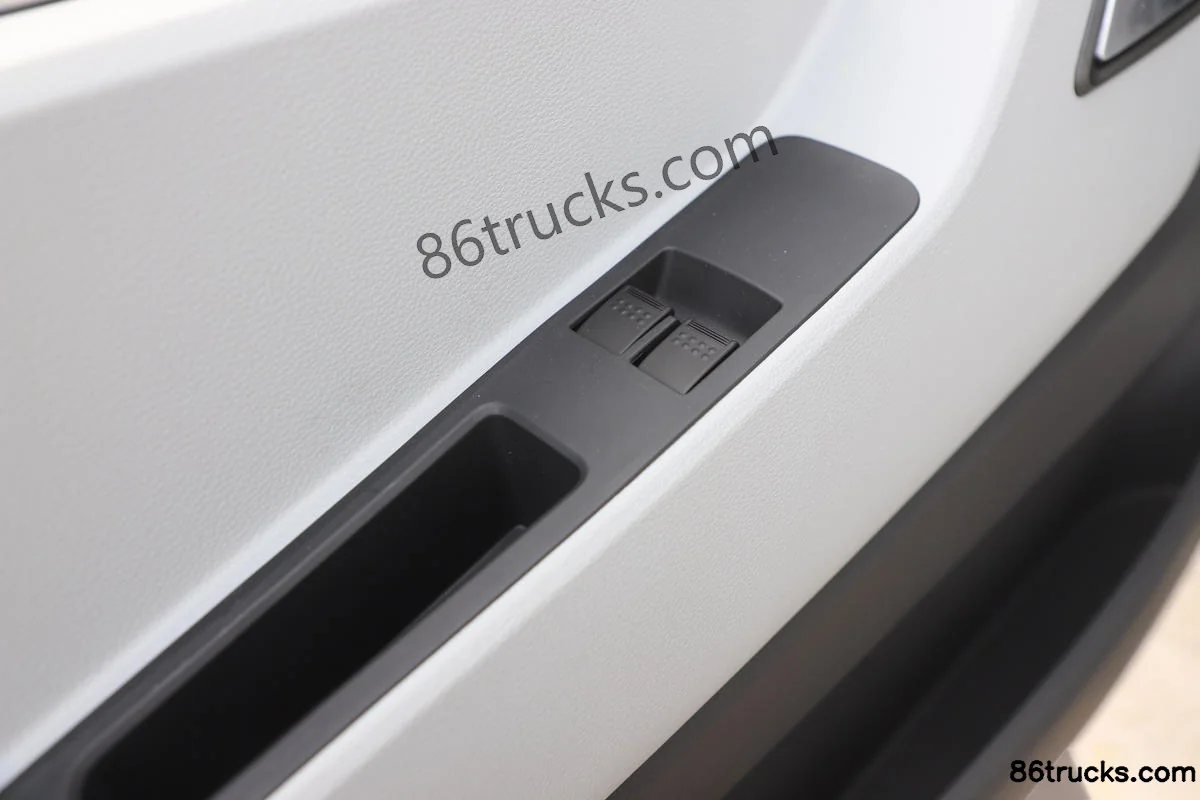

Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
smart configuration
Cruise control (CCS):

Photos

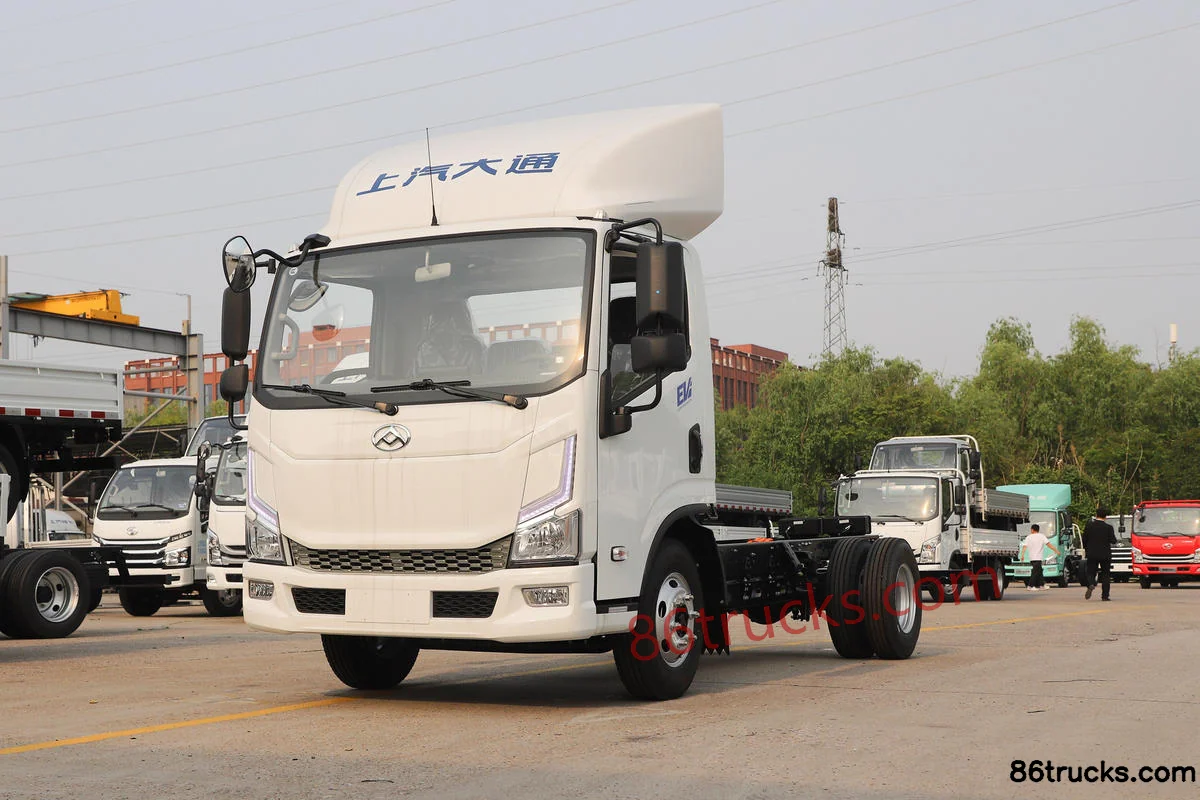

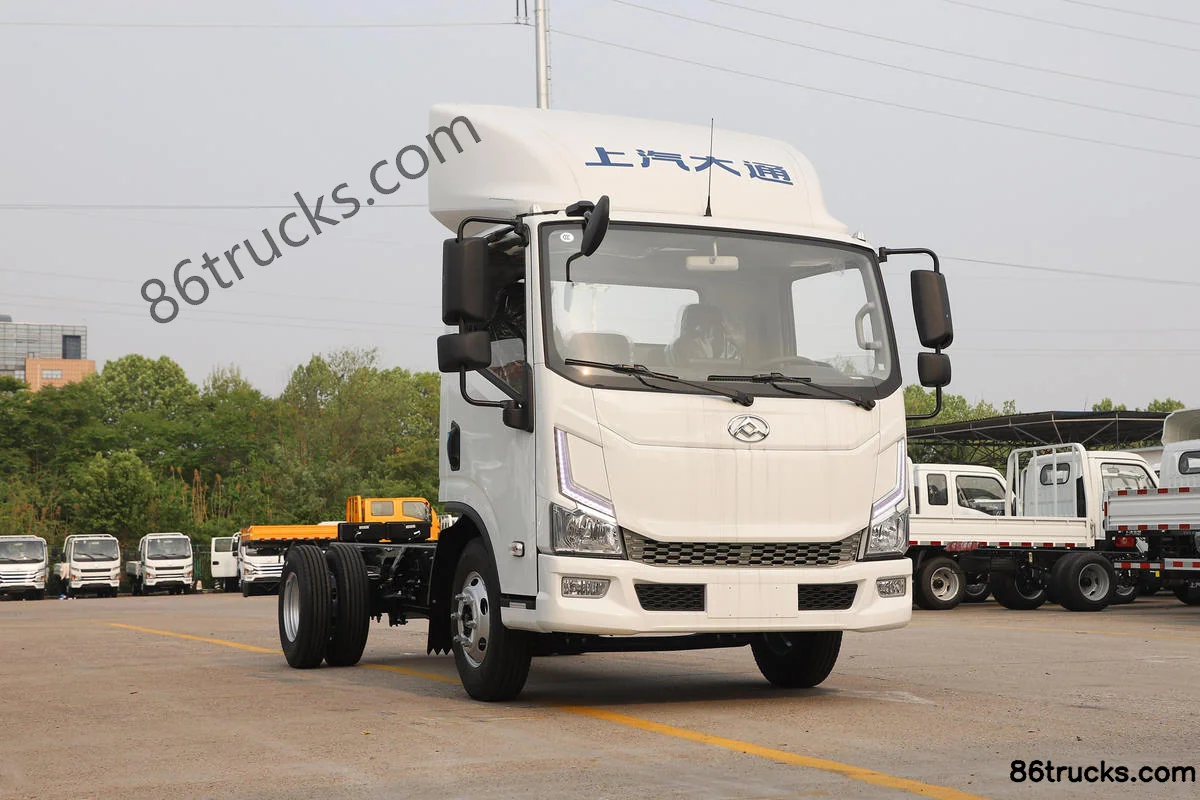

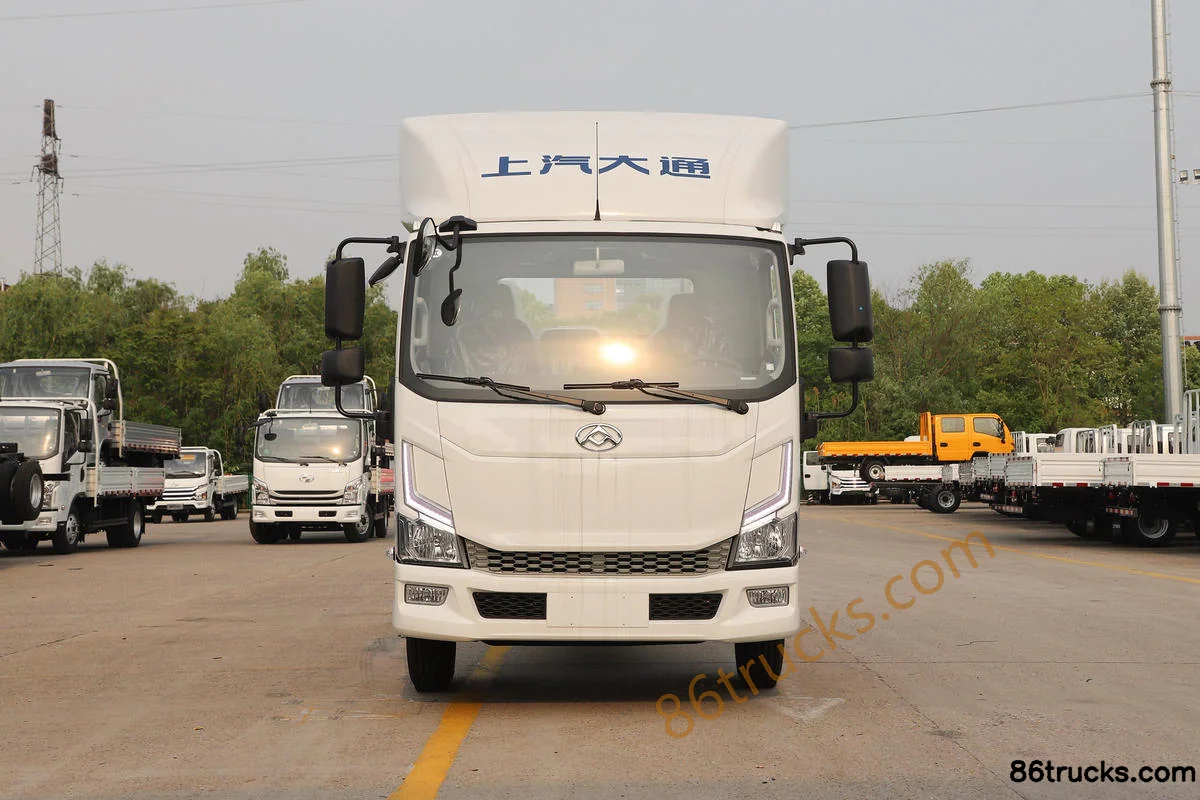

Exterior3

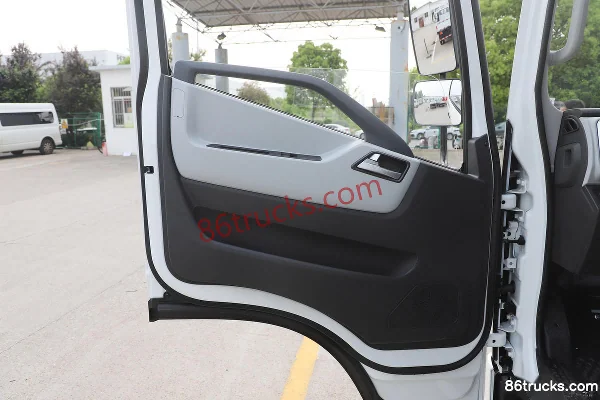

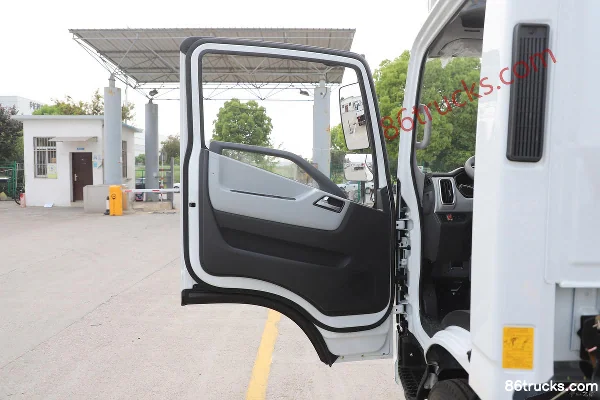

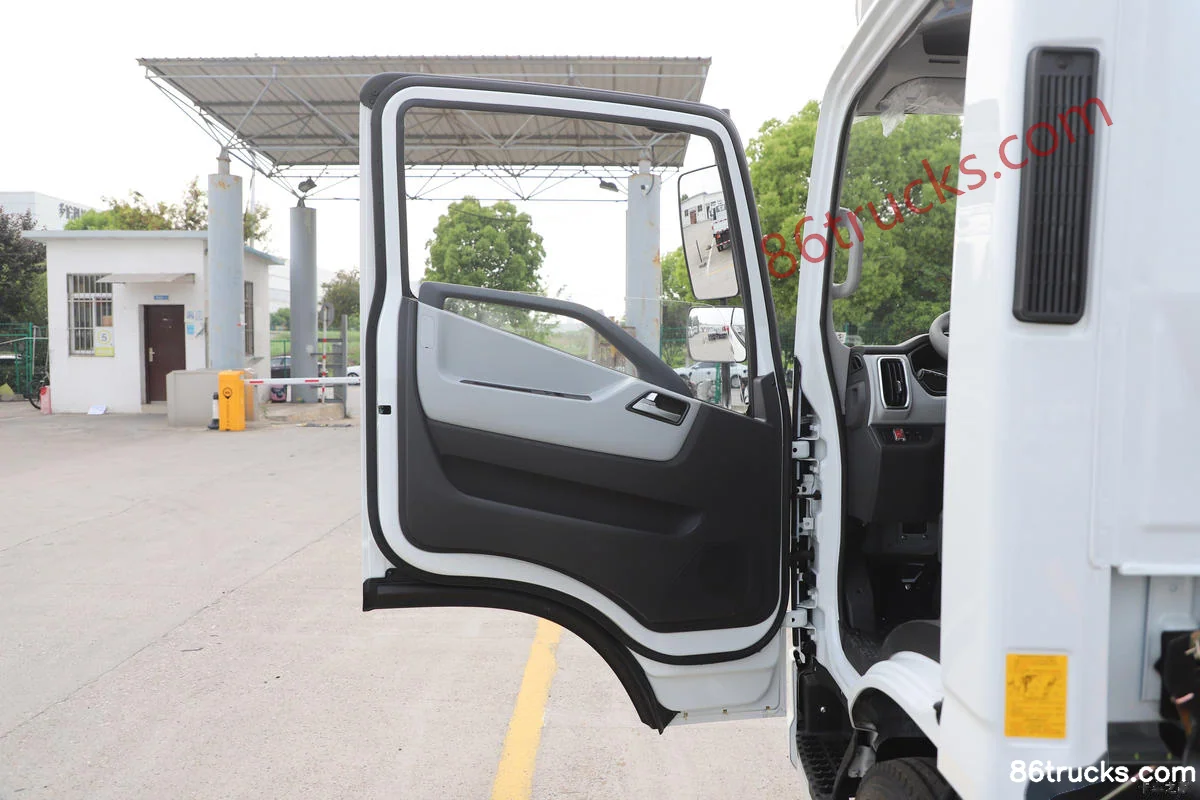

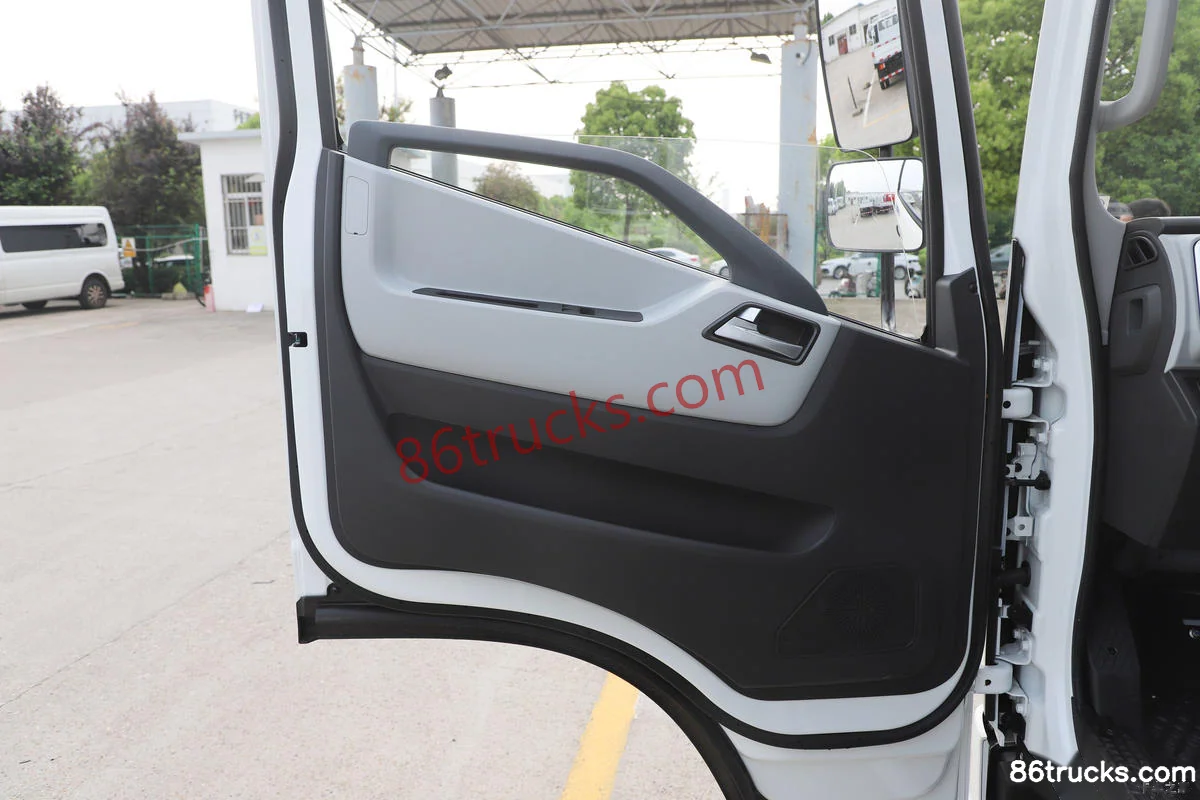

Interior3

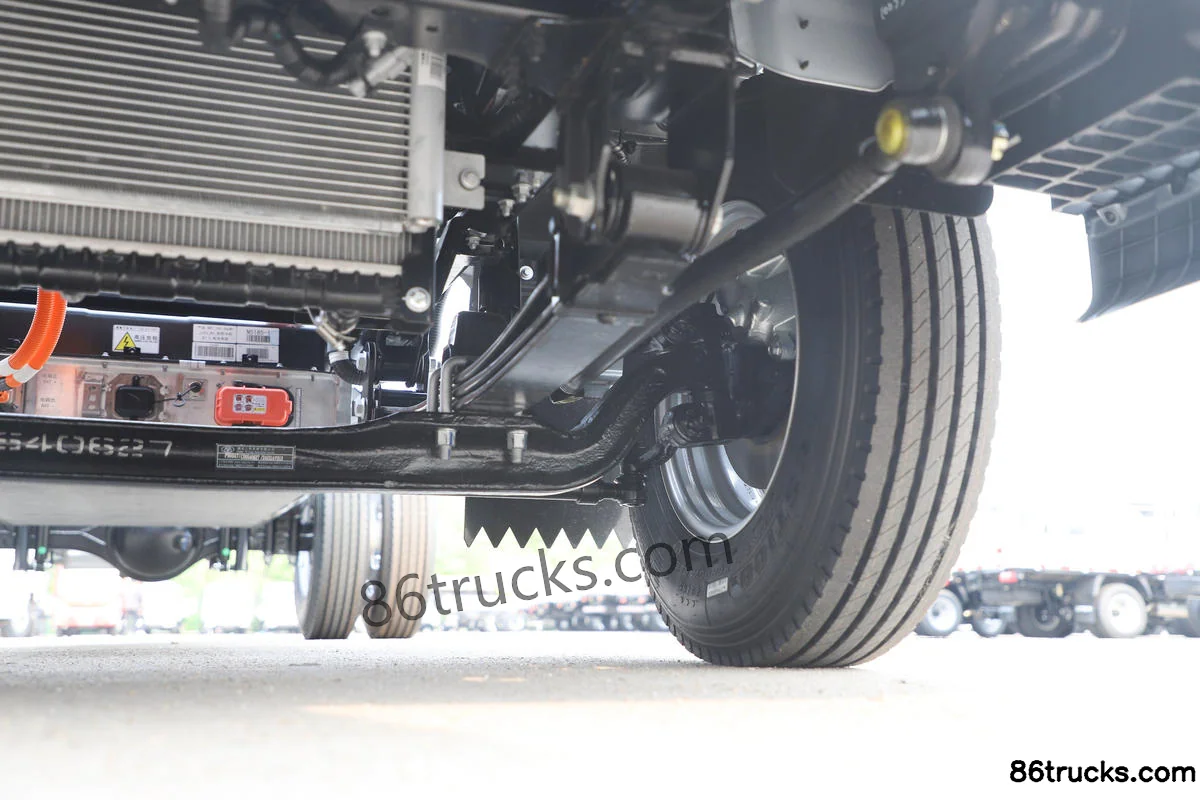

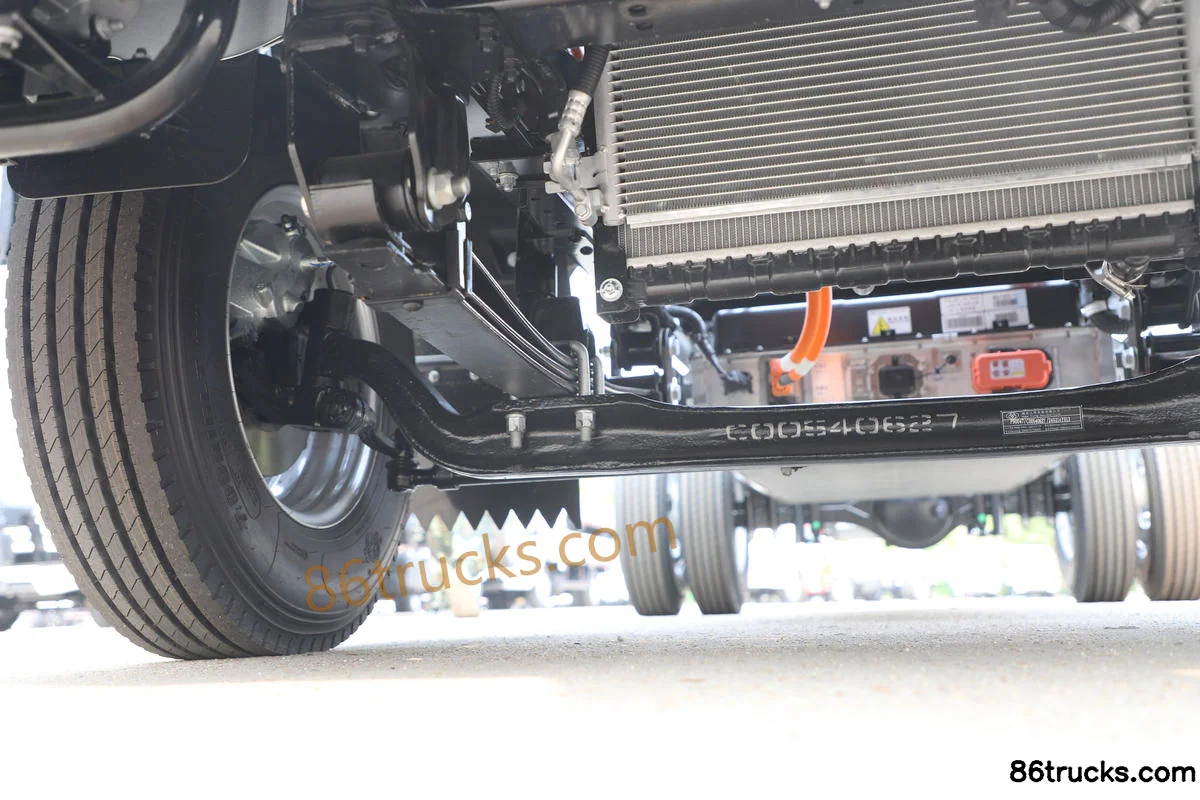

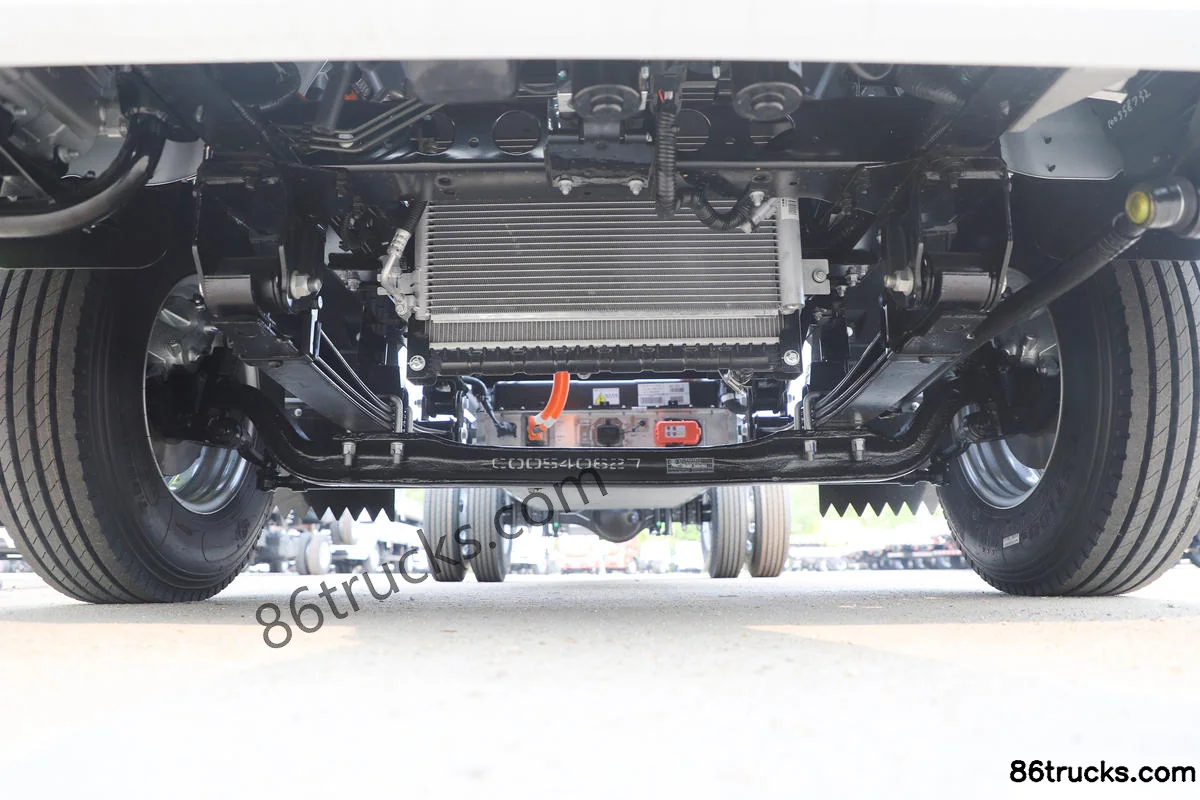

Chassis3

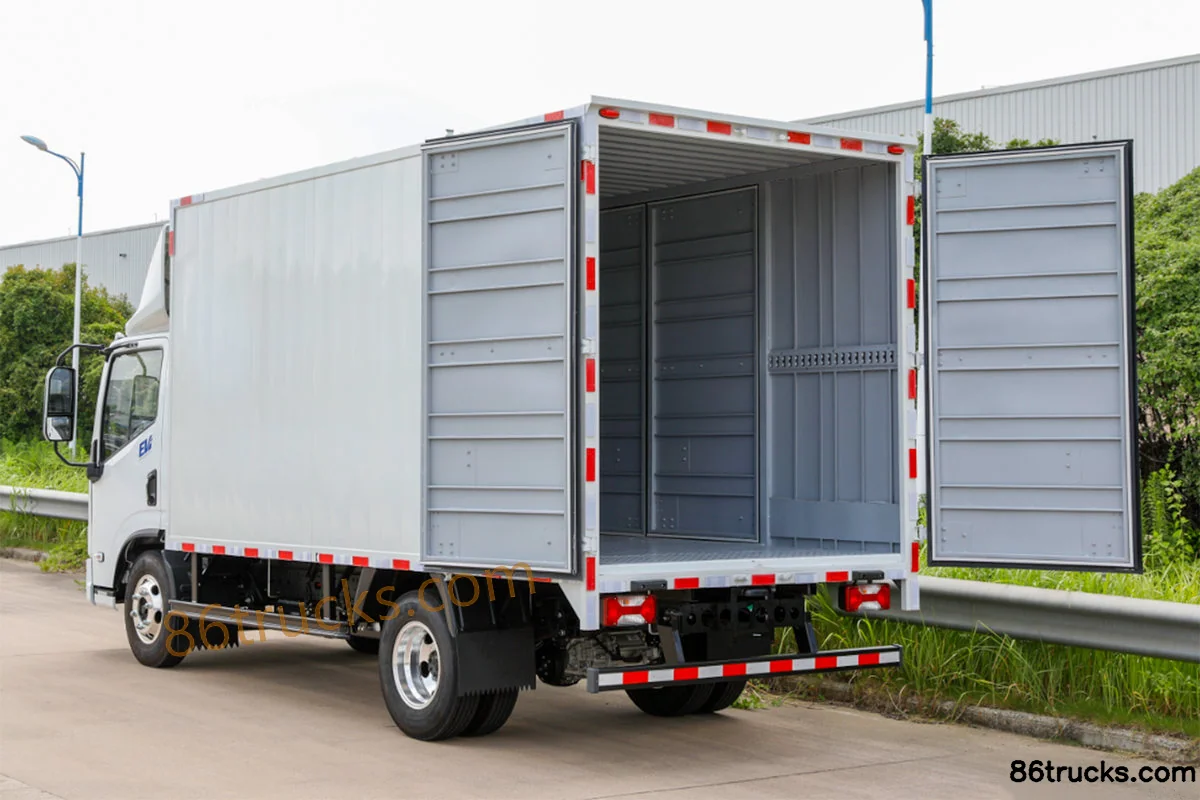

Body1

10 photos

FAQ

What is the export price of SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels), and what does it include?

SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) export reference is about From $32,889; MSRP is ¥23.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Key specs of SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) suited for?

SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) differ from other variants in the same series?

SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels) belongs to SAIC MAXUS Dana T1 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Light Truck Dana T1 4.5T 4.17m Single Row Pure Electric Van Light Truck 100.46kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
