JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh

Export reference
From $34,278
MSRP ¥24.68M CNY
Wheelbase:: 3570mm
Cargo box volume:: 12
Model code (announced):: HFC5049XXYEV12H
Cab length:: 5.99m
GVWR:: 4.495ton
Max. speed:: 100km/h
CLTC range: 380km
Motor 1 Brand: Ankai Jinda
Curb Weight: 2.79ton
Rated payload: 1.575ton

Overview

The JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh is a Electric Panel Van featuring 380km battery/range, Ankai Jinda motor, 1.575t payload and 12 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5049XXYEV12H
Wheelbase: 3570mm
Cab length: 5.99m
Cab width: 2.098m
Cab height: 2.645m
CLTC range: 380km
Curb Weight: 2.79ton
Rated payload: 1.575ton
GVWR: 4.495ton
Max. speed: 100km/h
Front/rear suspension: 0.965/1.455m
Version: Logistics Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Ankai Jinda
Motor 1 Model: TZ260XS060
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total rated torque: 382N·m
total peak torque: 920N·m
Battery/Charging
Battery Brand: CATL
Charging method: Separate fast charger
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 77.28kWh
Body parameters
Cargo box volume: 12
Max body depth: 3.47
Max body width: 1.84
Cargo Box Height: 1.855
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 3Seats
Door Parameters
Number of Doors: 4
Tailgate type: split doors
Wheel brake
Front brake type: Disc brake
rear brake type: Disc brake
Front tire specification: 195/75R16LT 10PR
Rear Wheel Specification: 195/75R16LT 10PR
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
Stability control (ESP/DSC/VSC etc.):
interior configuration
Power-Adjustable Rearview Mirror:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

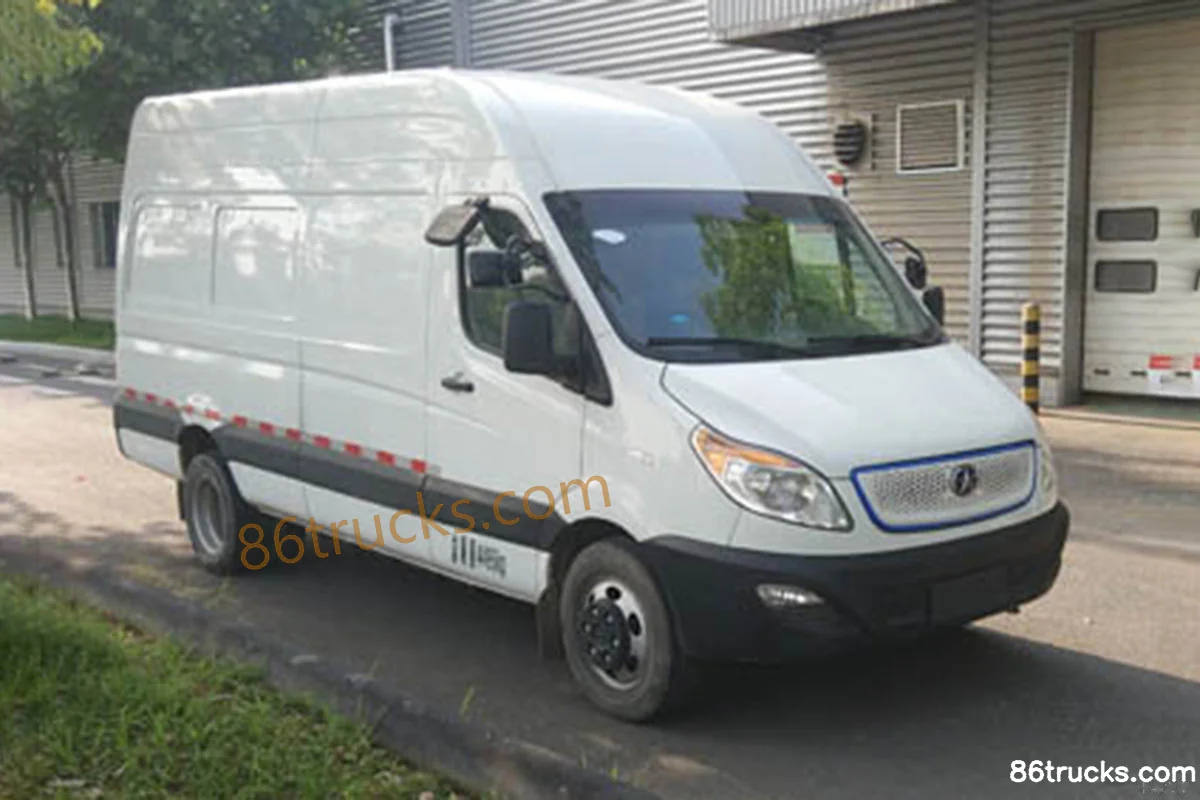

Exterior1

1 photos

FAQ

What is the export price of JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh, and what does it include?

JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh export reference is about From $34,278; MSRP is ¥24.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh suited for?

JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh differ from other variants in the same series?

JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh belongs to JACEV6 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Sunray EV6 2024 Model Logistics Version 3-Seat 5.99m Pure Electric Panel Van 77.28kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
