Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels)

Export reference
From $31,667
MSRP ¥22.8M CNY
Rated payload:: 1.315ton
Wheelbase:: 3300mm
Cargo box type:: Van body
Model code (announced):: CHM5046XXYZDC33BEV
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 210km
Motor 1 Brand: Jingjin
Curb Weight: 3.17ton

Overview

The Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) is a Light Truck featuring 210km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.315t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM5046XXYZDC33BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.175m
CLTC range: 210km
Curb Weight: 3.17ton
Rated payload: 1.315ton
GVWR: 4.495ton
Max. speed: 92km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XSA06
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total rated torque: 320N·m
Electronic Control
ECU Brand: Hyundai Commercial Vehicle
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.2h
Battery capacity: 81kWh
Energy Density: 146.7
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab width: 2080mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1990kg
rear axle allowable load: 2505kg
Tire
Tire Size: 7.00R16 12PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

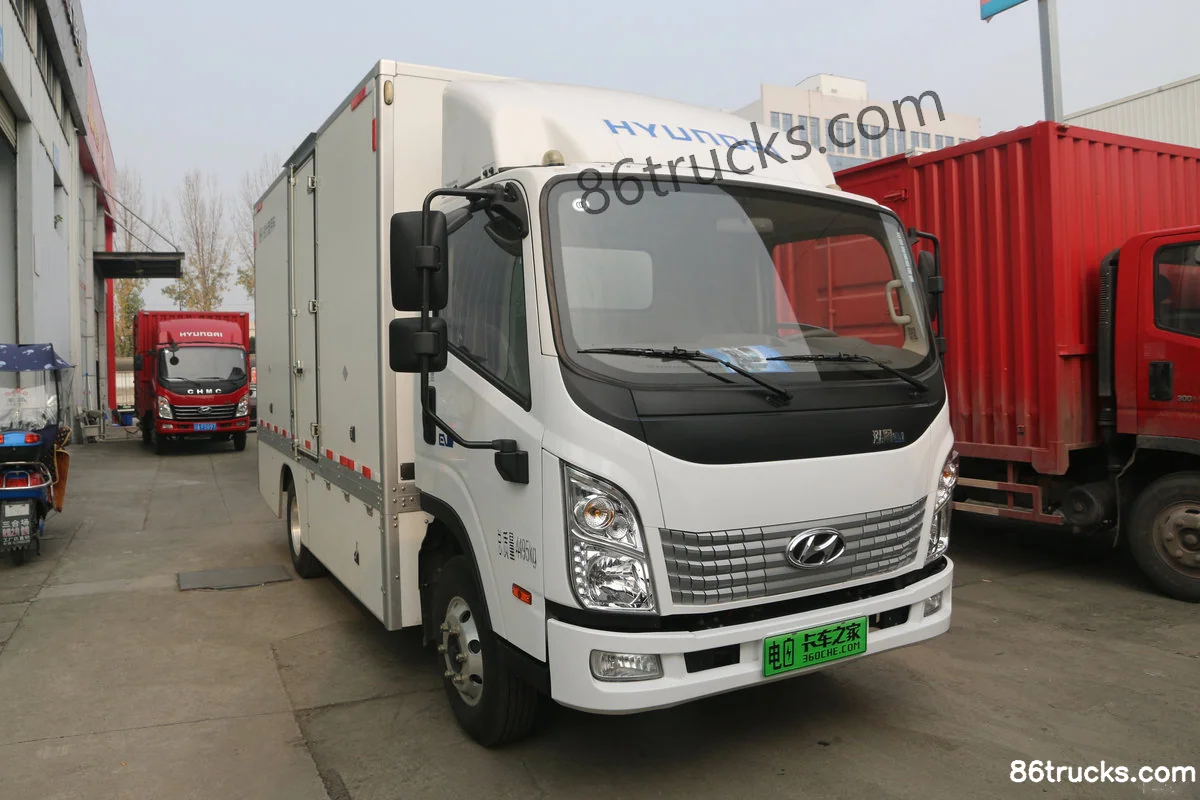

Exterior1

1 photos

FAQ

What is the export price of Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels), and what does it include?

Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) export reference is about From $31,667; MSRP is ¥22.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels)?

Key specs of Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) suited for?

Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) differ from other variants in the same series?

Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels) belongs to Hyundai Commercial Vehicle Hongtu EV light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle Hongtu EV 4.17m Single Row Pure Electric Box Van 81kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
