JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels)

Export reference
MSRP N/A
Curb Weight:: 2.805ton
Rated payload:: 1.495ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Emission: China IV
Model code (announced):: JX1044TG2SHEV
Drive 4X2 (6 wheels)
Battery Brand: CALB
Motor 1 Brand: Bosch
Horsepower 150

Overview

The JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) is a Light Truck featuring CALB battery/range, Bosch motor, 4X2 (6 wheels) drive and 1.495t payload. On the powertrain side, it comes with 150 hp.

China IV 150 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1044TG2SHEV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.44m
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ230XS001
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 70kW
Peak power: 135kW
total peak torque: 370N·m
total rated torque: 190N·m
Battery/Charging
Battery Brand: CALB
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 50.38kWh
Battery rated voltage: 309.12V
Battery Model: CA-B07SVA/CA-B04H
Engine parameters
Engine Model: JMCGE15A4H
Number of cylinders: 4cylinder
Displacement: 1.5L
Emission standard: China IV
Max output power: 110kW
Max hp: 150Horsepower
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 0.38m
Cab parameters
Cab width: 1890mm
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1930kg
rear axle allowable load: 2565kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
Load-sensing proportioning valve (SABS):
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Lane Departure Warning System (LDWS):

Photos

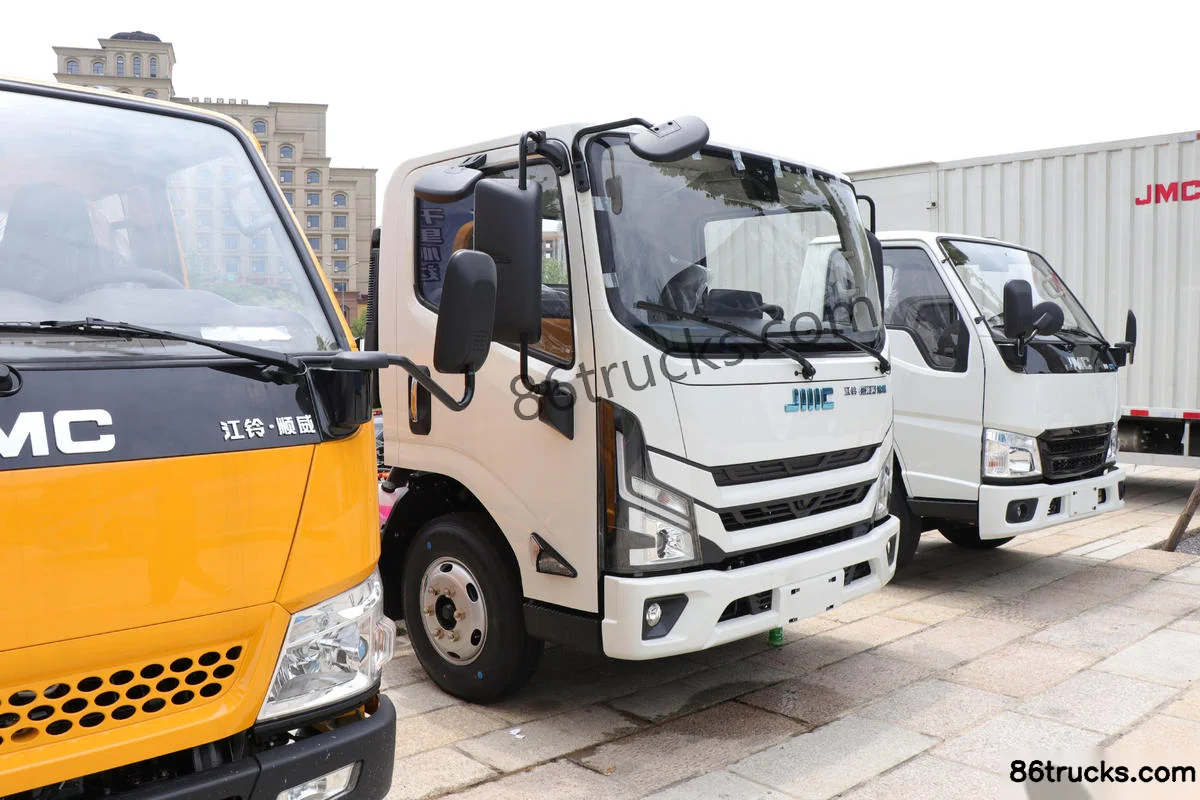

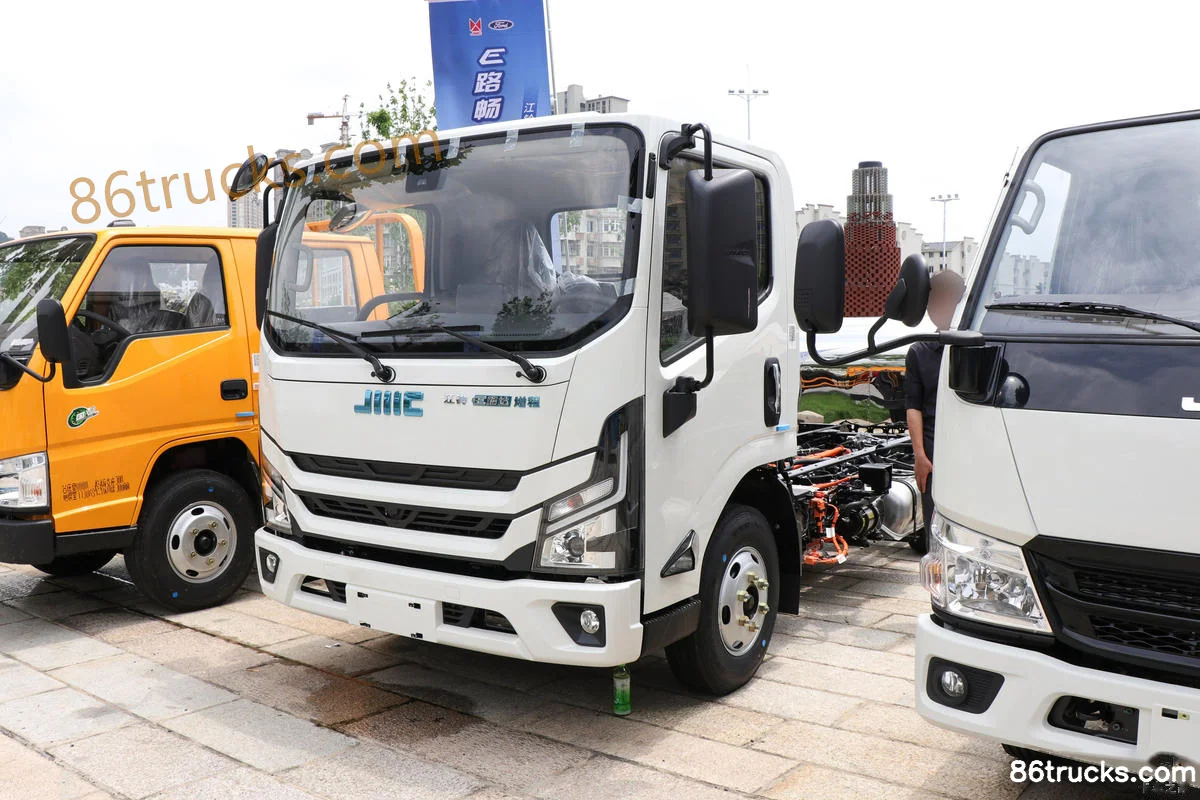

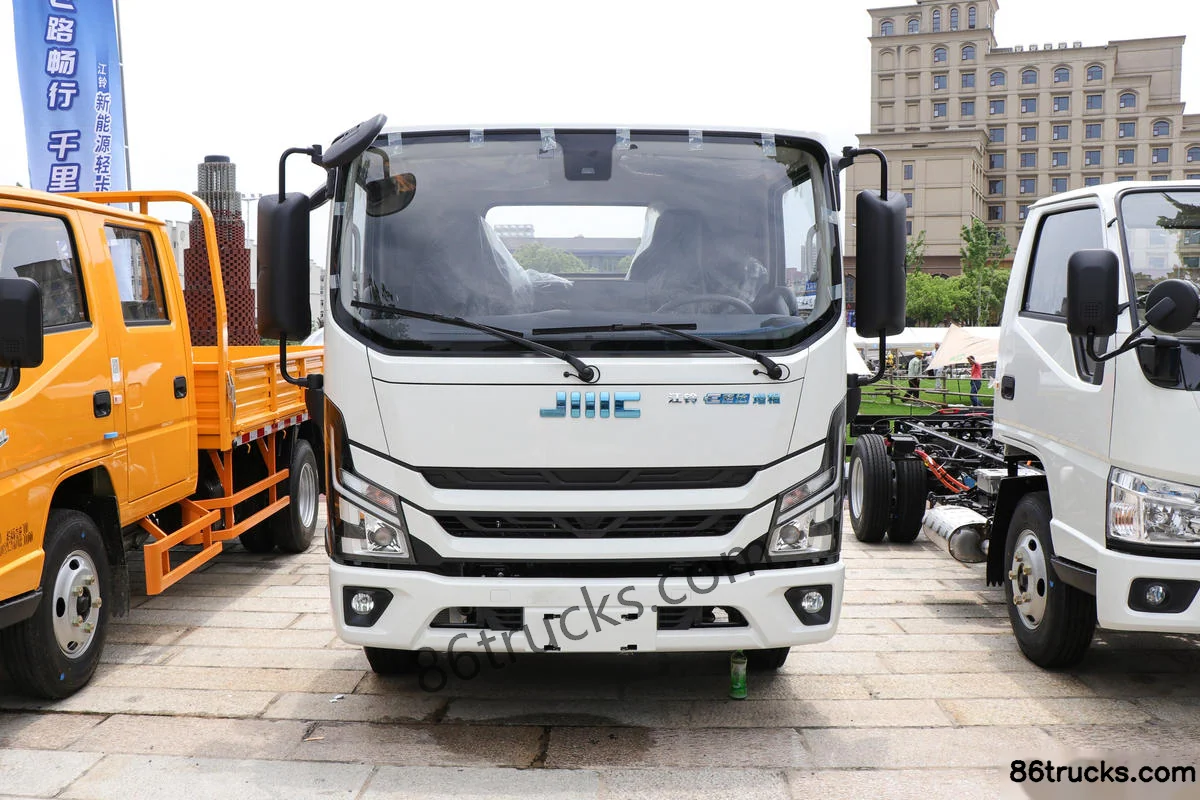

Exterior3

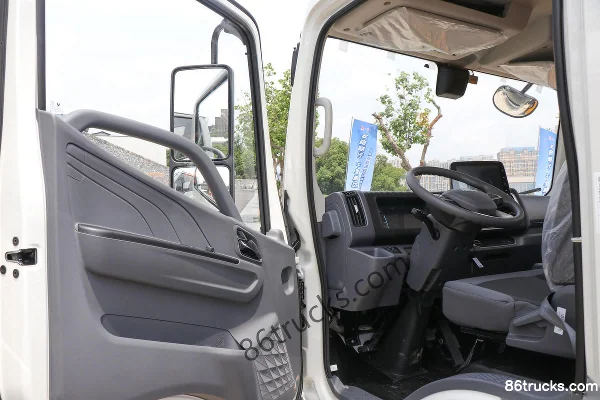

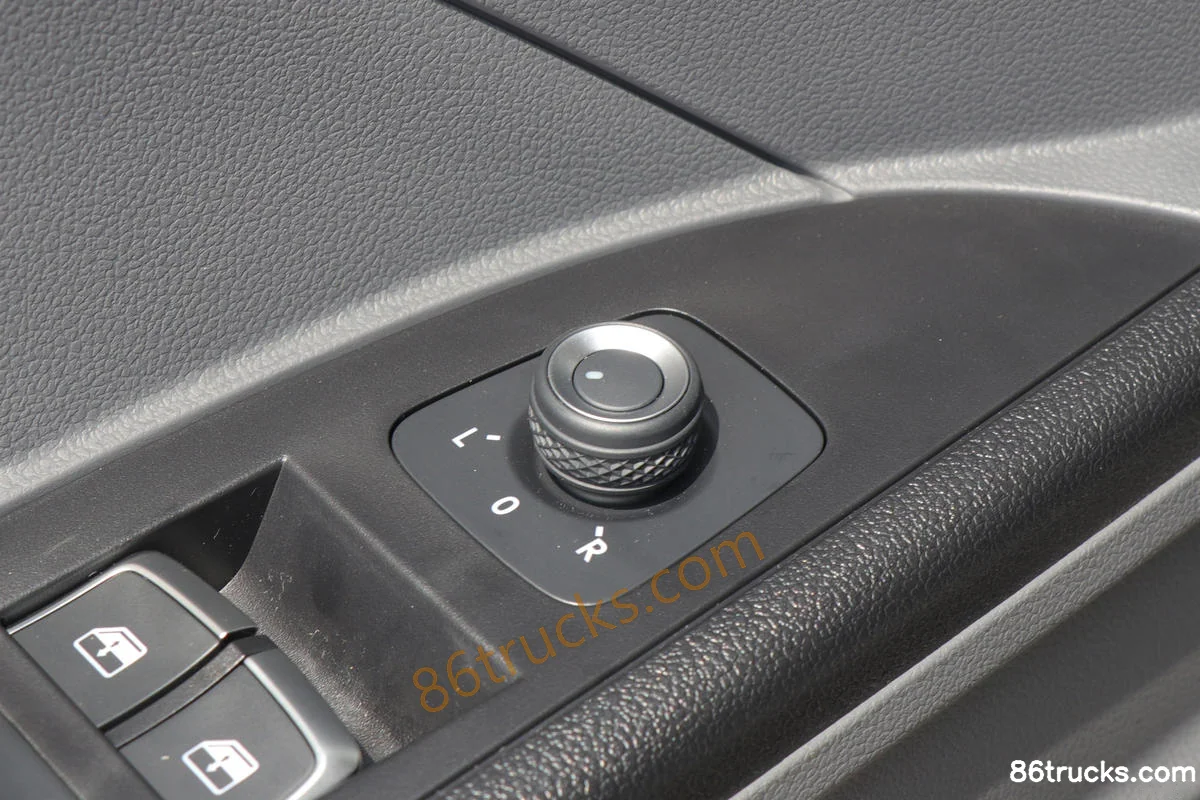

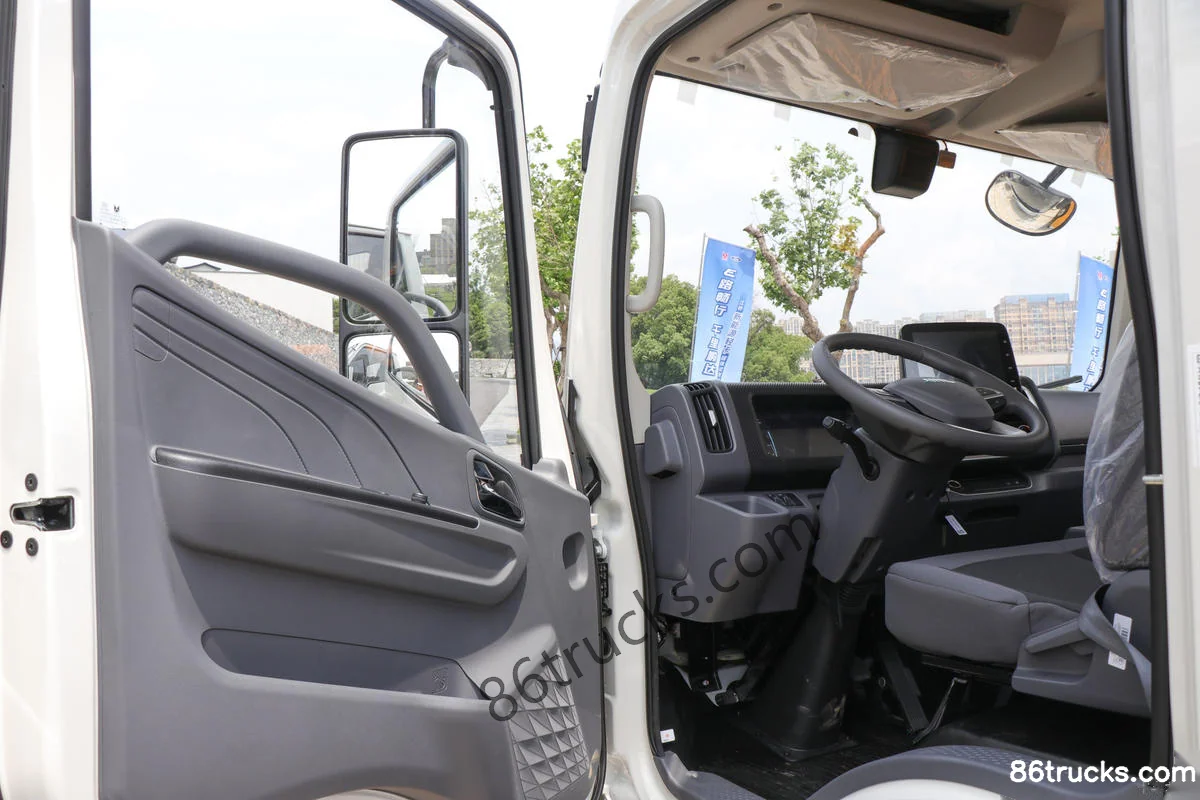

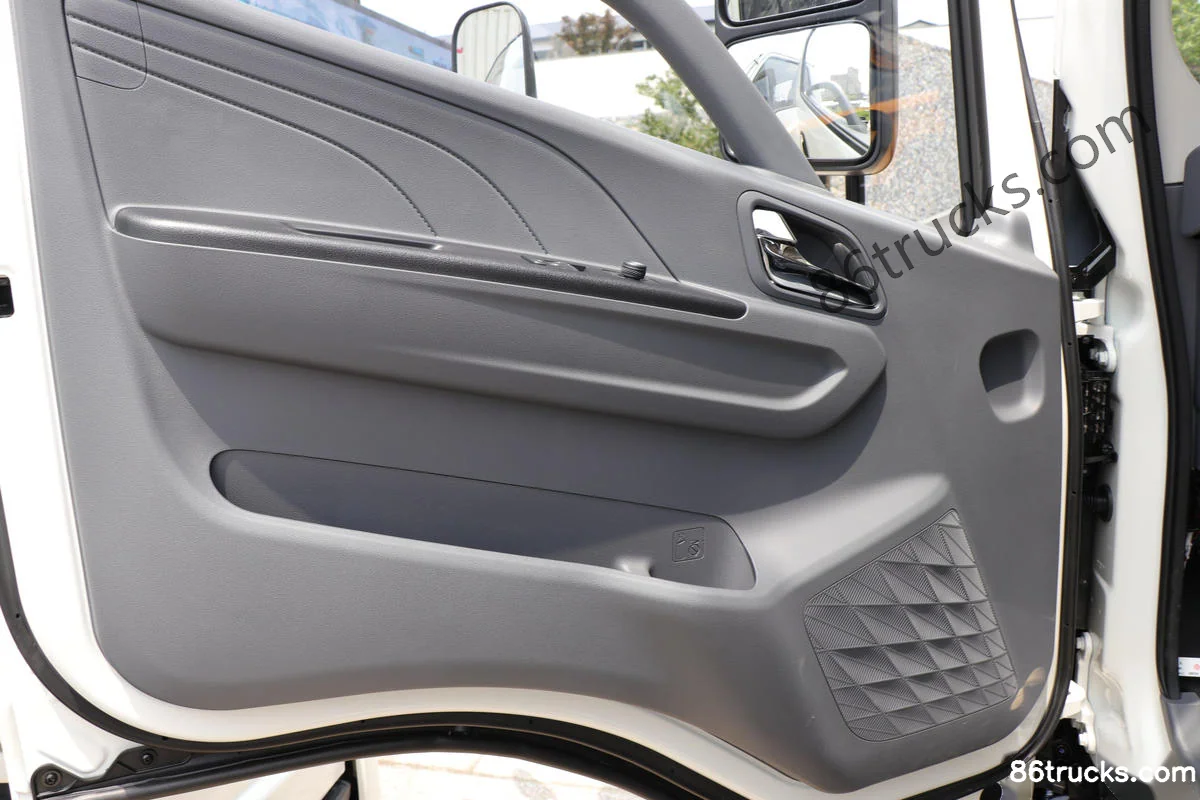

Interior3

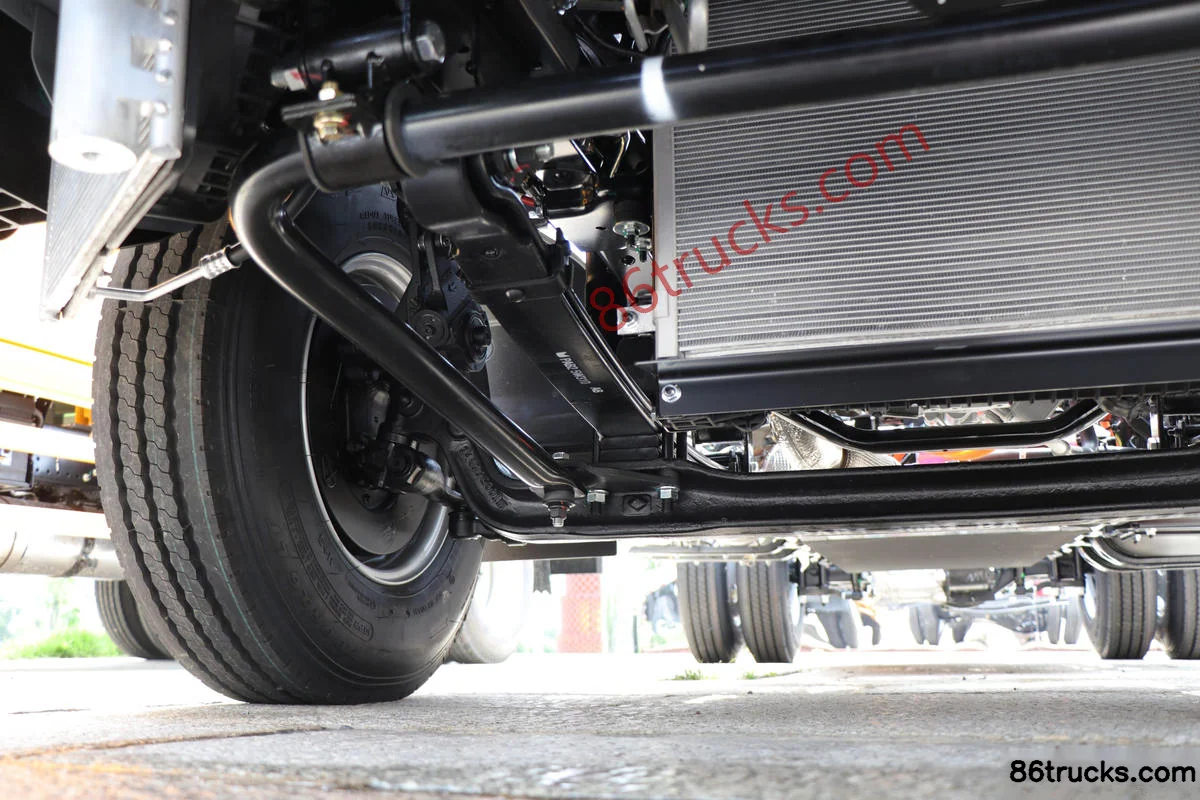

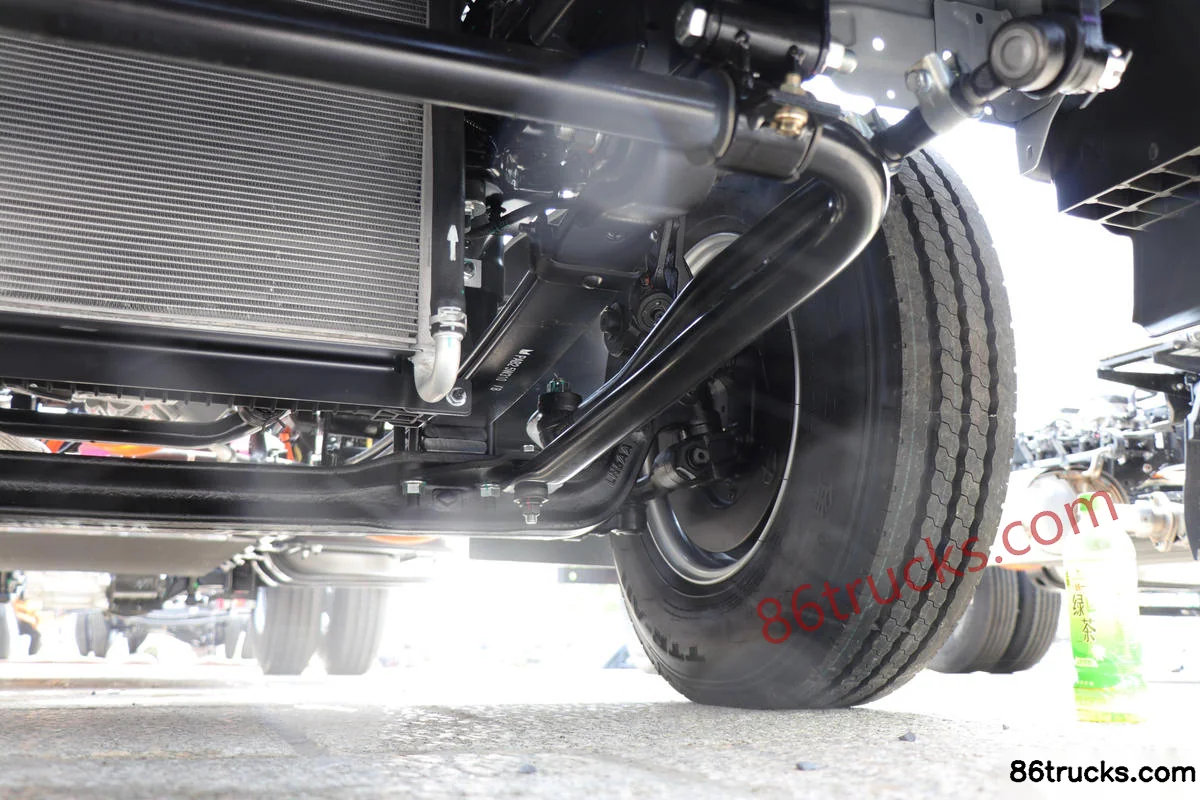

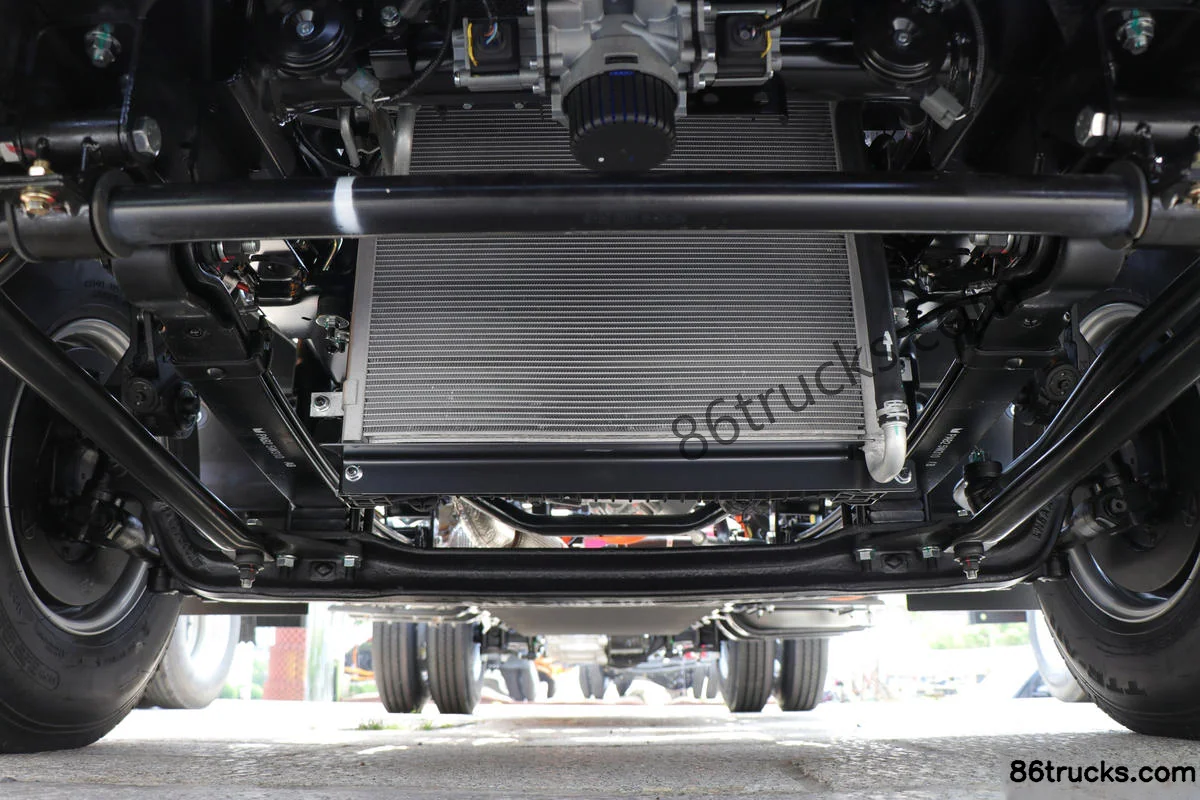

Chassis3

9 photos

FAQ

What emission standard does JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels)?

Key specs of JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 150 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) suited for?

JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) differ from other variants in the same series?

JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels) belongs to JMC E-Luda (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Lexing E-Luda 4.5T 4.2m Single-Cab Plug-in Range-Extended Hybrid Flatbed Light Truck (Air Brake) 50.38kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
