JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3845mm
Cab dimensions:: 7.05×2.47×3.35m
Type:: Flammable gas van truck
Front/rear track width:: 1705/1785mm
Front track width:: 1705mm
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 7.175ton
Emission China VI

Overview

The JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van is a Explosives Transport Truck featuring 11.92t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.05×2.47×3.35m
Type: Flammable gas van truck
Drive type: 4X2
Wheelbase: 3845mm
Front/rear track width: 1705/1785mm
Rated mass: 7.175ton
Curb weight: 4.55ton
Front track width: 1705mm
rear track: 1785mm
GVWR: 11.92ton
Max. speed: 80km/h
Front/rear suspension: 1.075/2.13m
Energy Type: Diesel
Body Parameters
rear guard section size: 150×60mm
Vehicle certification code: HFC5120XRQSZ
Body Brand: JAC Brand
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsHFC4DE2-2E
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.951L
Emission standard: China VI
Max output power: 117kW
Max hp: 160Horsepower
Max torque: 460N·m
Max torque speed: 1600-2400rpm
Rated speed: 2900rpm
Cargo box parameters
Cargo box dimensions: 5.2×2.4×2.2m
Cargo box type: Van body
Cargo box length: 5.2m
Cargo box width: 2.4m
Cargo box height: 2.2m
Chassis Specs
Chassis Series: JACV7
Tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

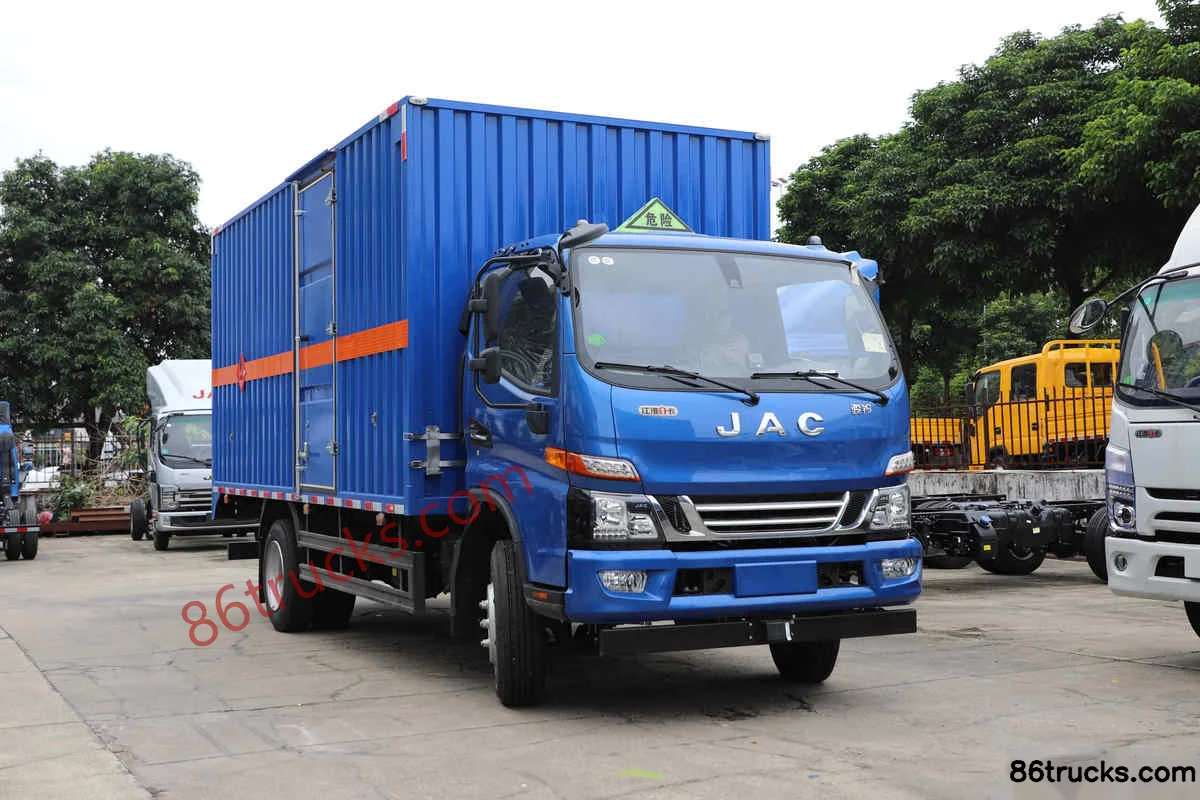

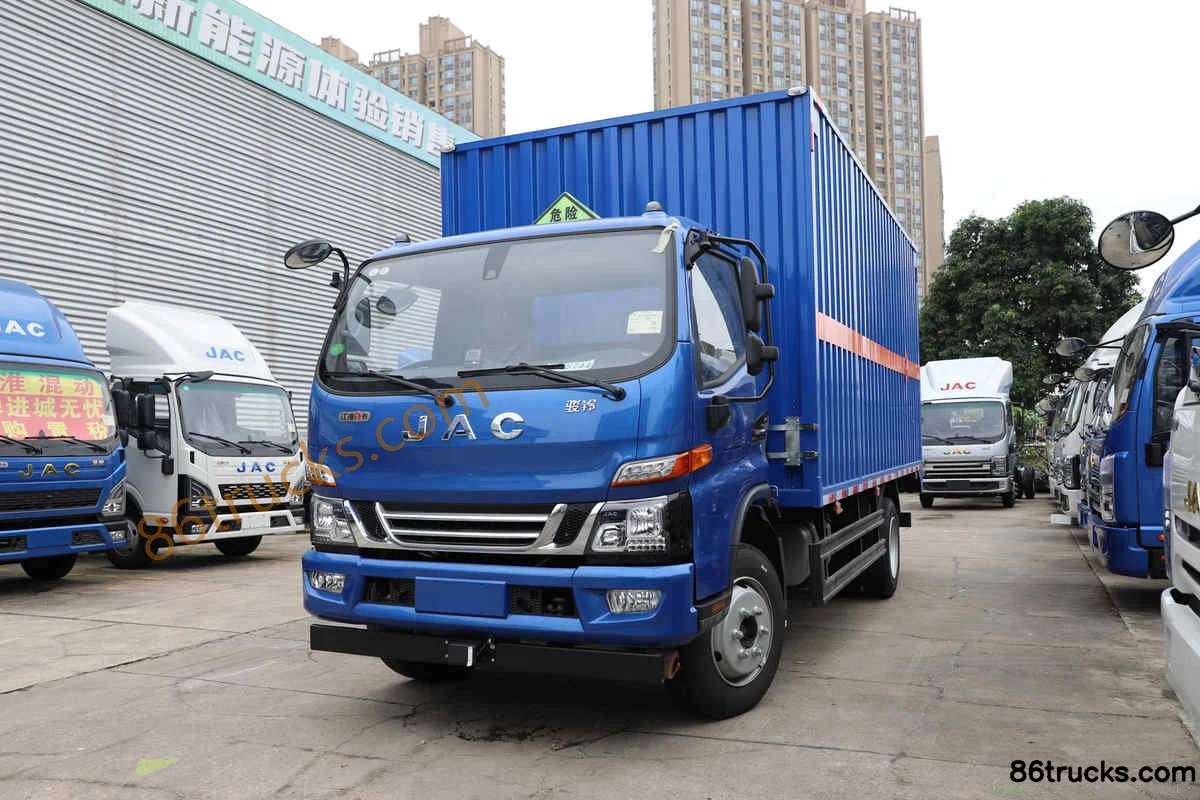

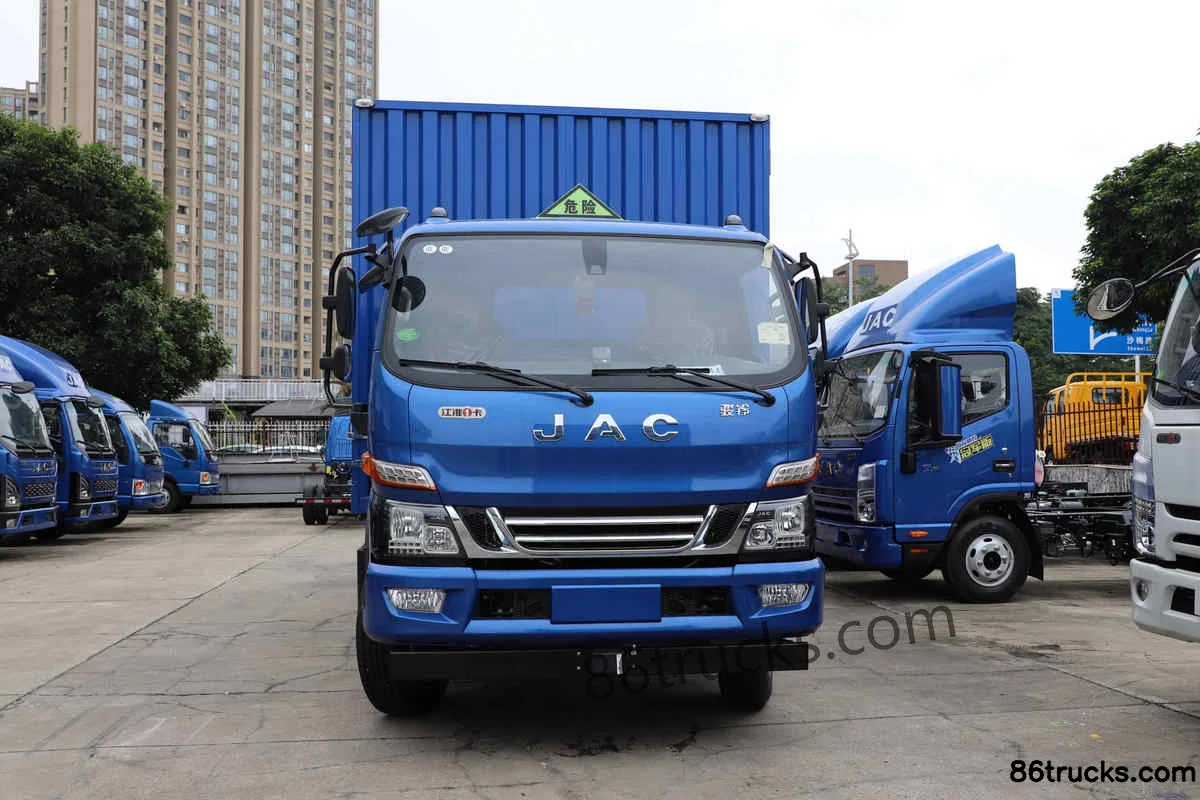

Exterior3

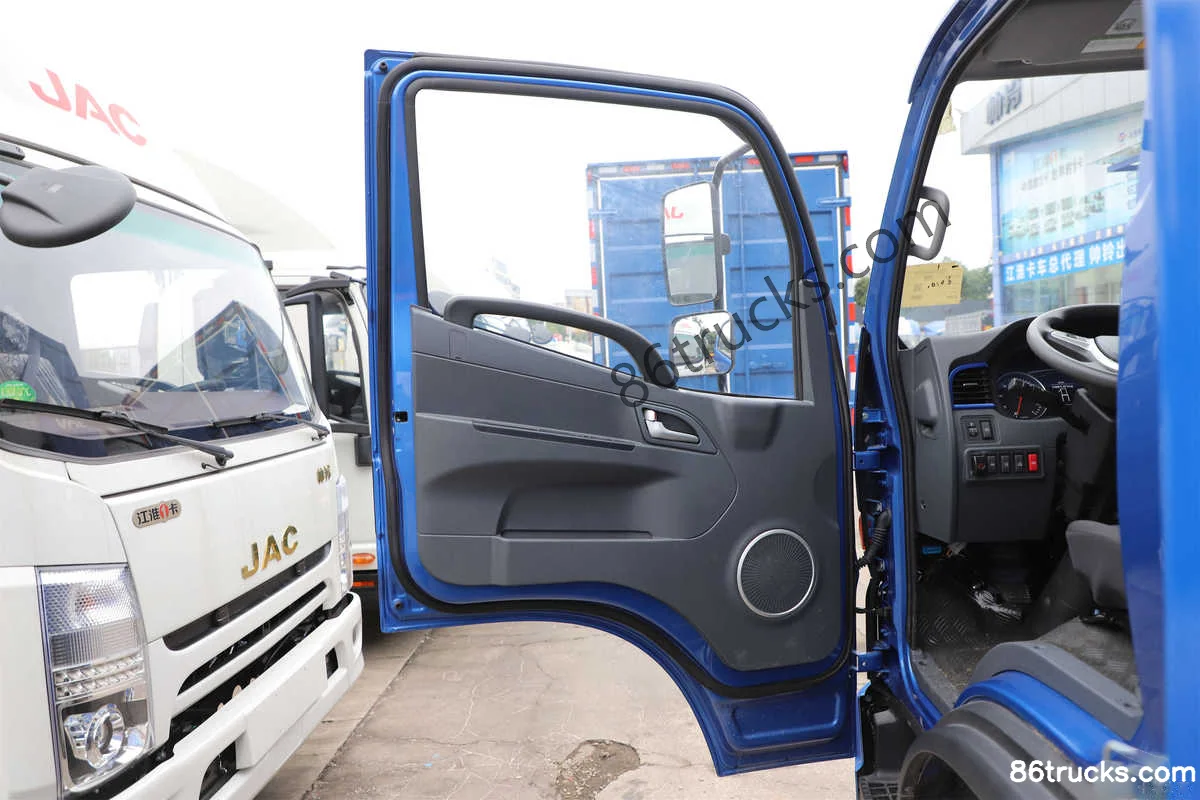

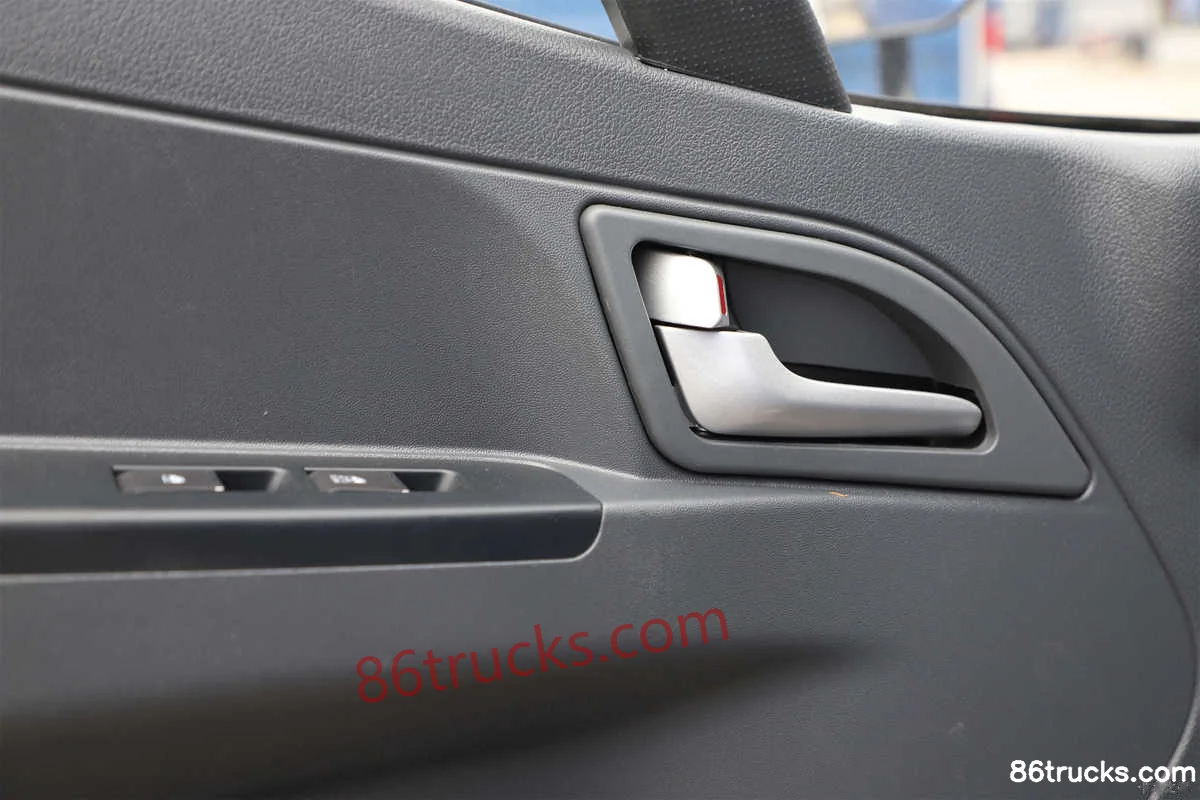

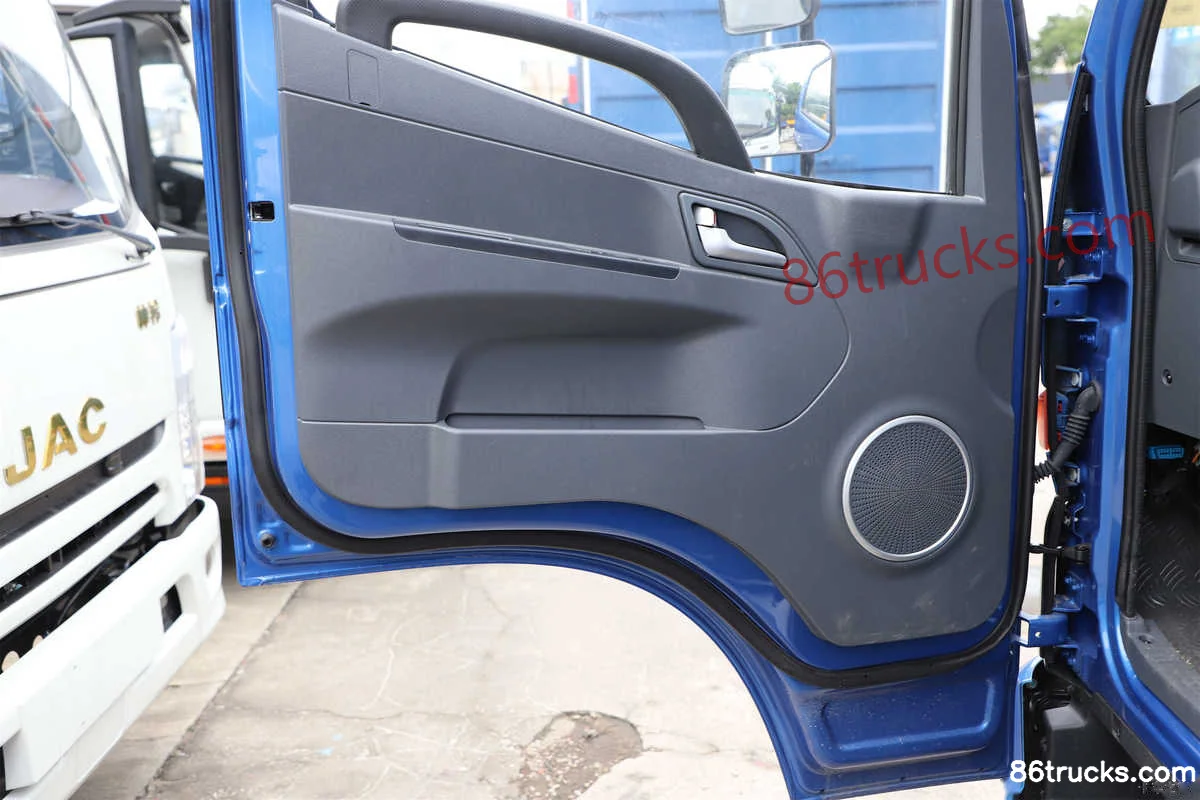

Cab3

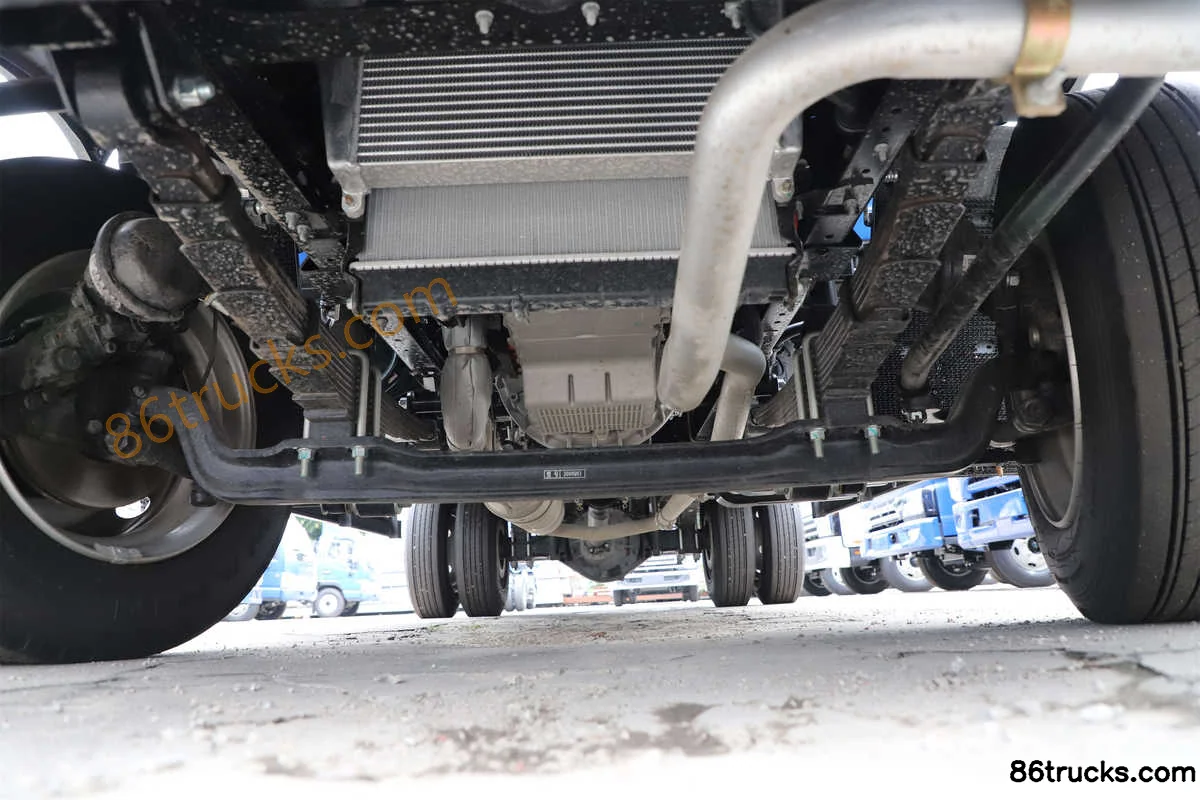

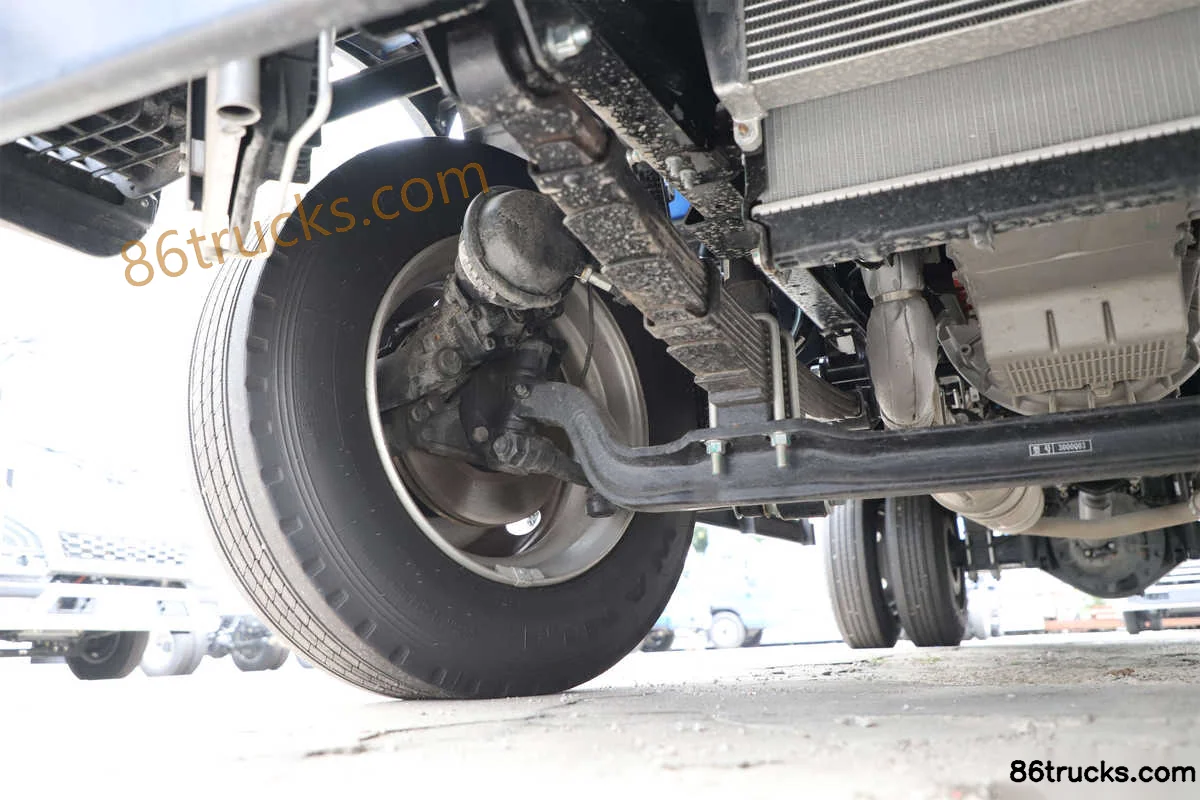

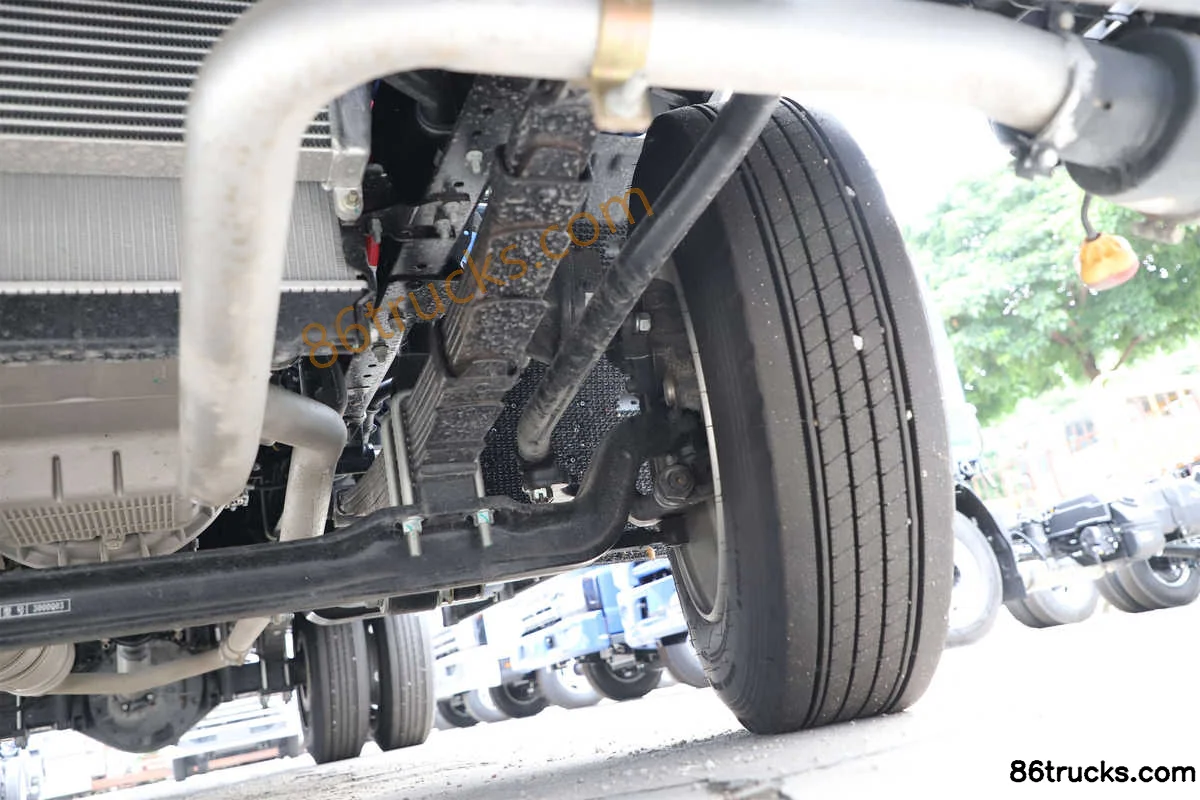

Chassis3

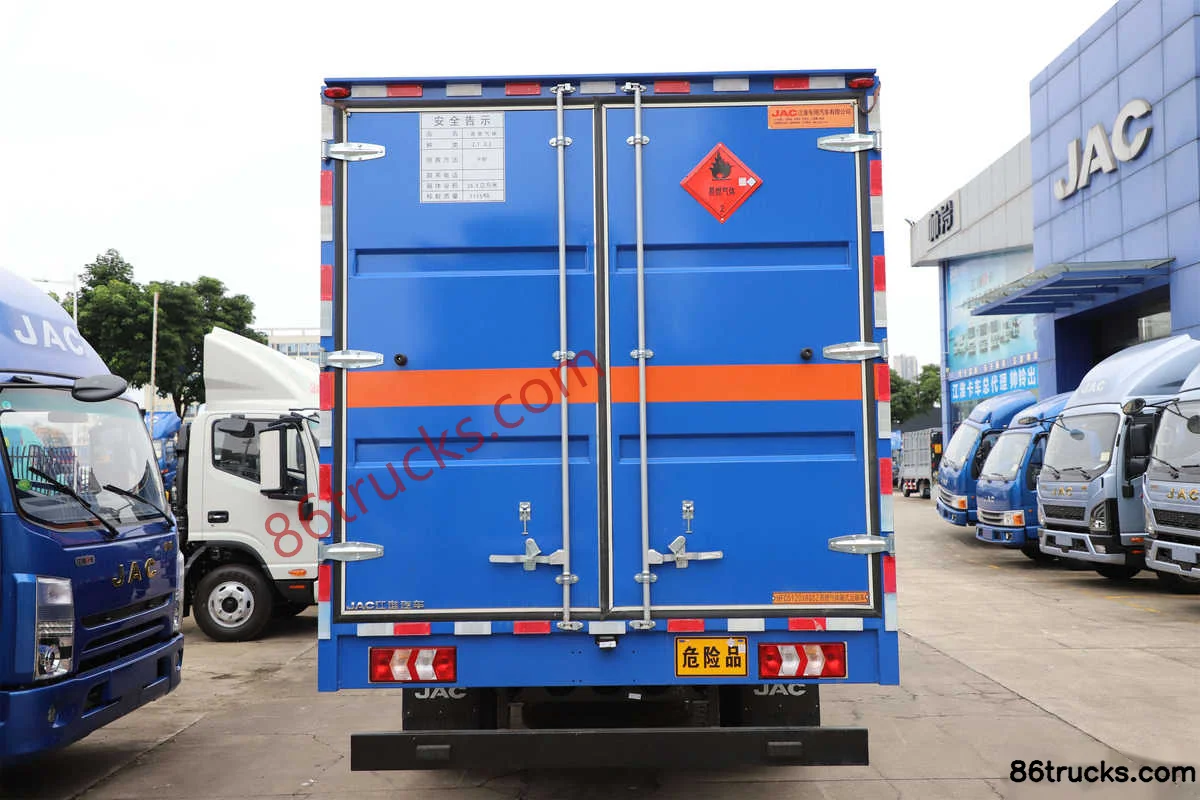

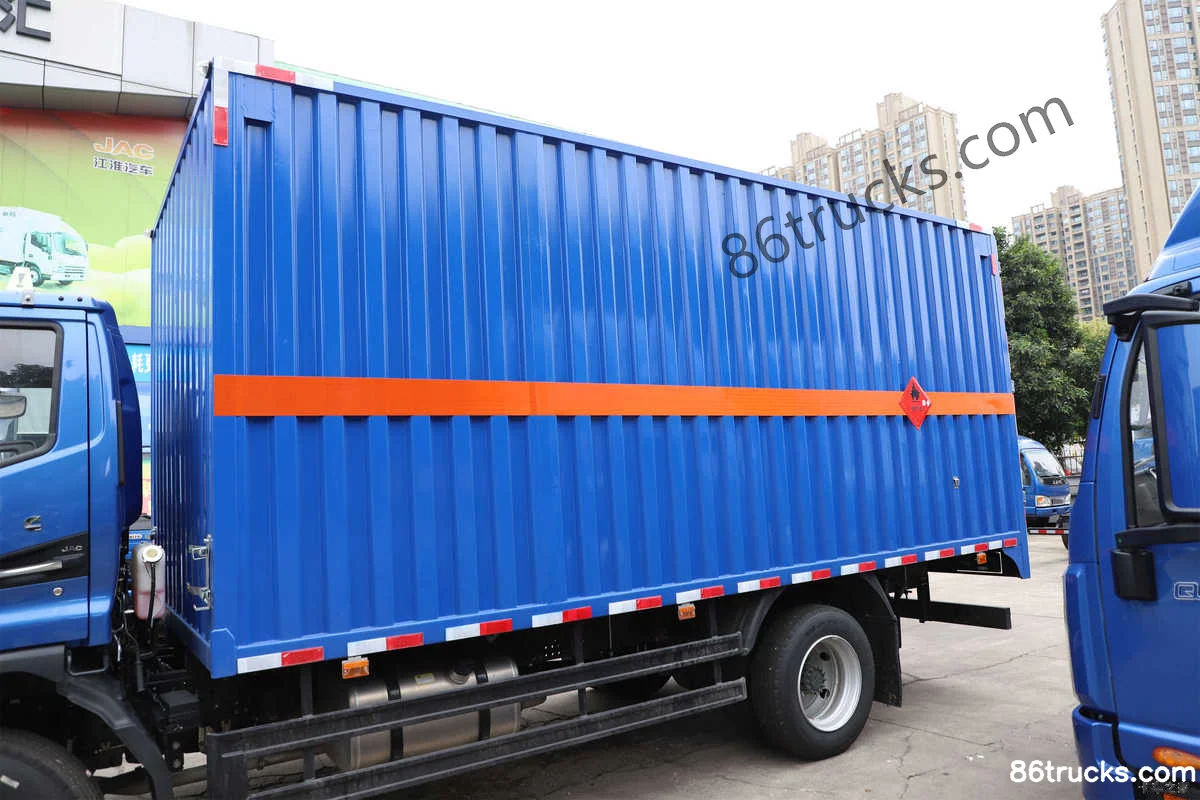

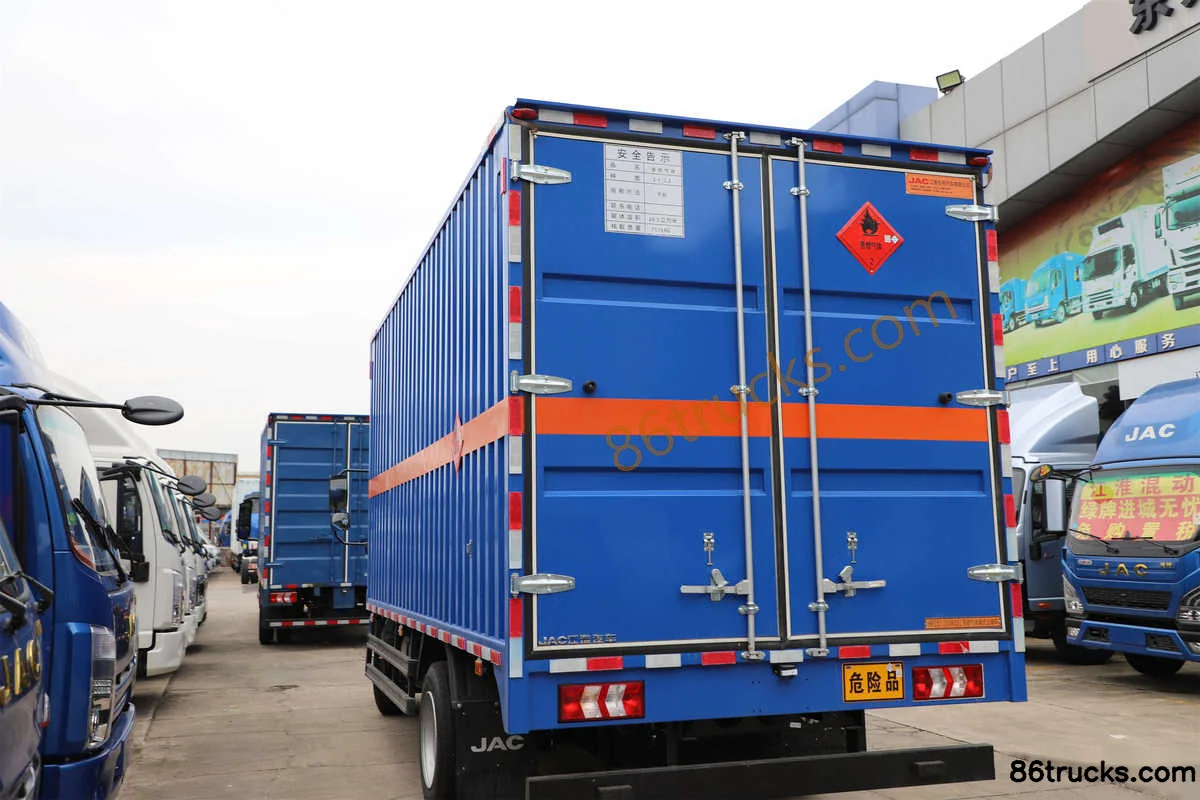

Body3

12 photos

FAQ

What emission standard does JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van?

Key specs of JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van suited for?

JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van differ from other variants in the same series?

JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van belongs to JAC V7 light truck (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC V7 160hp 4X2(6 wheels) 5.2m Flammable Gas Box Van?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
