Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck

Export reference
From $5,944
MSRP ¥4.28M CNY
Horsepower: 86
Emission: China V
Fuel: gasoline
Curb Weight:: 1.26ton
Wheelbase:: 3400mm
Tire Size:: 175/70R14LT 8PR
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The SRM Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck is a Light Truck featuring 2.55m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with 86 hp, 4X2 (6 wheels) drive, China V emissions and gasoline fuel.

China V 86 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC1030SB5E
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3400mm
Box length class: 2.6m
engine: Brilliance Xinyuan Jinbei SWCG12
transmission: 5-speed
Rear Axle Ratio: 4.778
Cab length: 5.47m
Cab width: 1.635m
Cab height: 2.11m
Front track width: 1375mm
rear track: 1230mm
Curb Weight: 1.26ton
Rated payload: 1.495ton
GVWR: 3.08ton
Max. speed: 120km/h
Origin: Chongqing
tonnage class: Light Truck
Approach angle: 35°
departure angle: 26°
Front/rear suspension: 0.75/1.32m
Energy Type: gasoline
Engine parameters
Engine Brand: Huachen Xinyuan Jinbei
Engine Model: Brilliance Xinyuan Jinbei SWCG12
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 1.298L
Emission standard: China V
Max output power: 63kW
Max hp: 86Horsepower
Transmission Parameters
Transmission Model: 5-speed
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.55m
Cargo box width: 1.54m
Cargo box height: 0.37m
*Cargo box interior width: 1.539999961853
Cab parameters
Cab suspension: Rigid connection
Cab width: 1680mm
seating capacity: 5Personnel
Seat rows: Double cab
Driver seat type: Rigid connection seat
Chassis Specs
Front axle allowable load: 1144kg
rear axle allowable load: 1936kg
Axle ratio: 4.778
Leaf spring count: -/6
Suspension (front/rear): Front independent, rear steel plate suspension
Tire

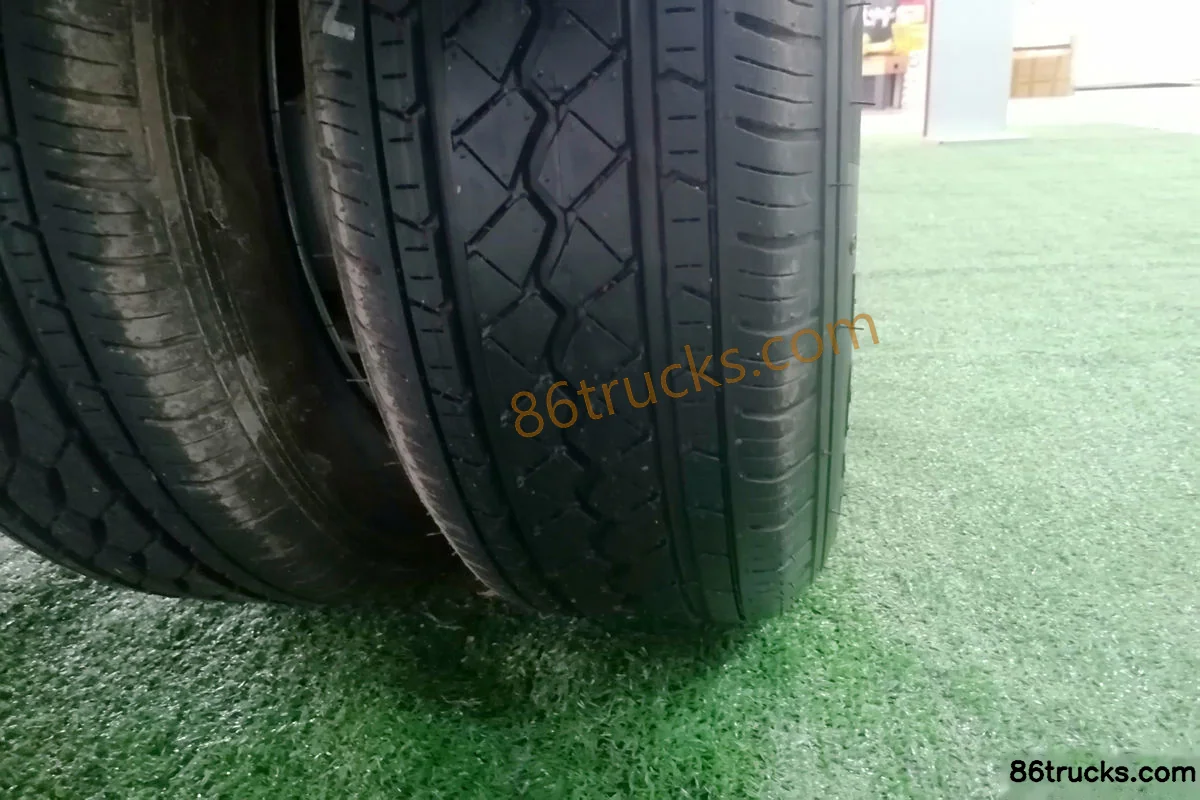

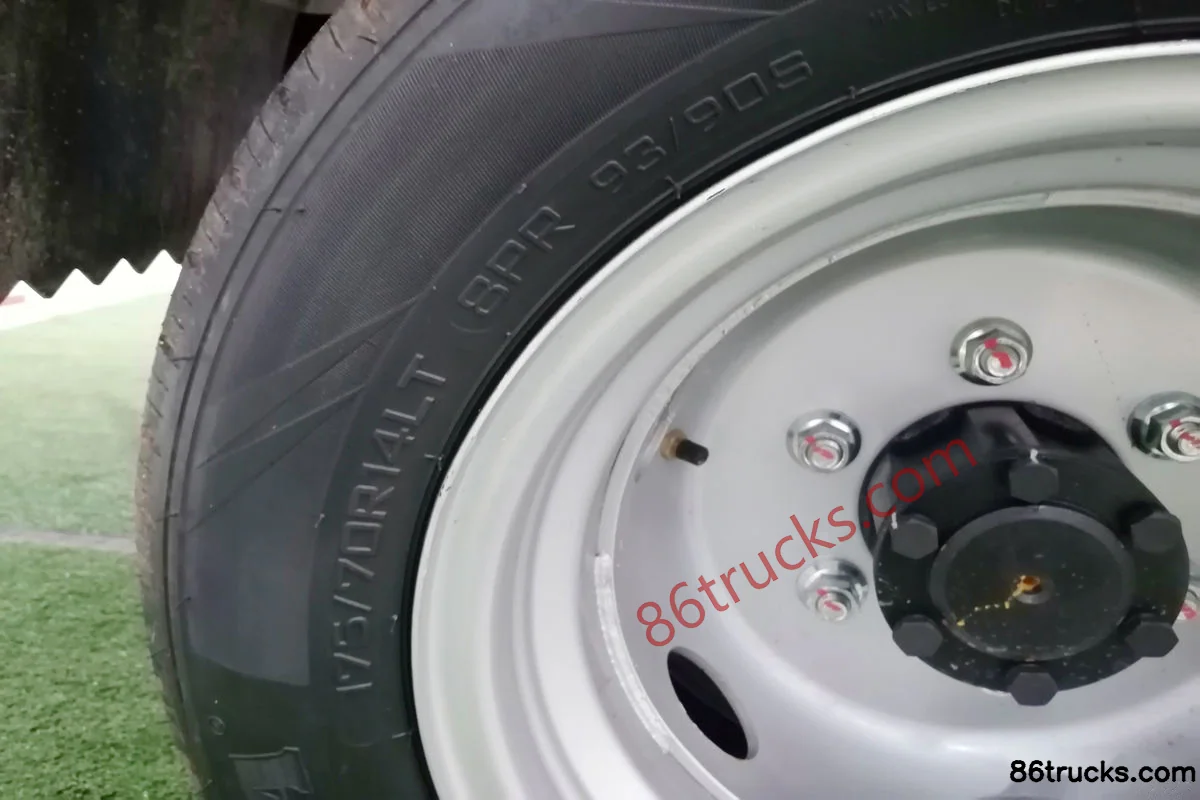

Tire Size: 175/70R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

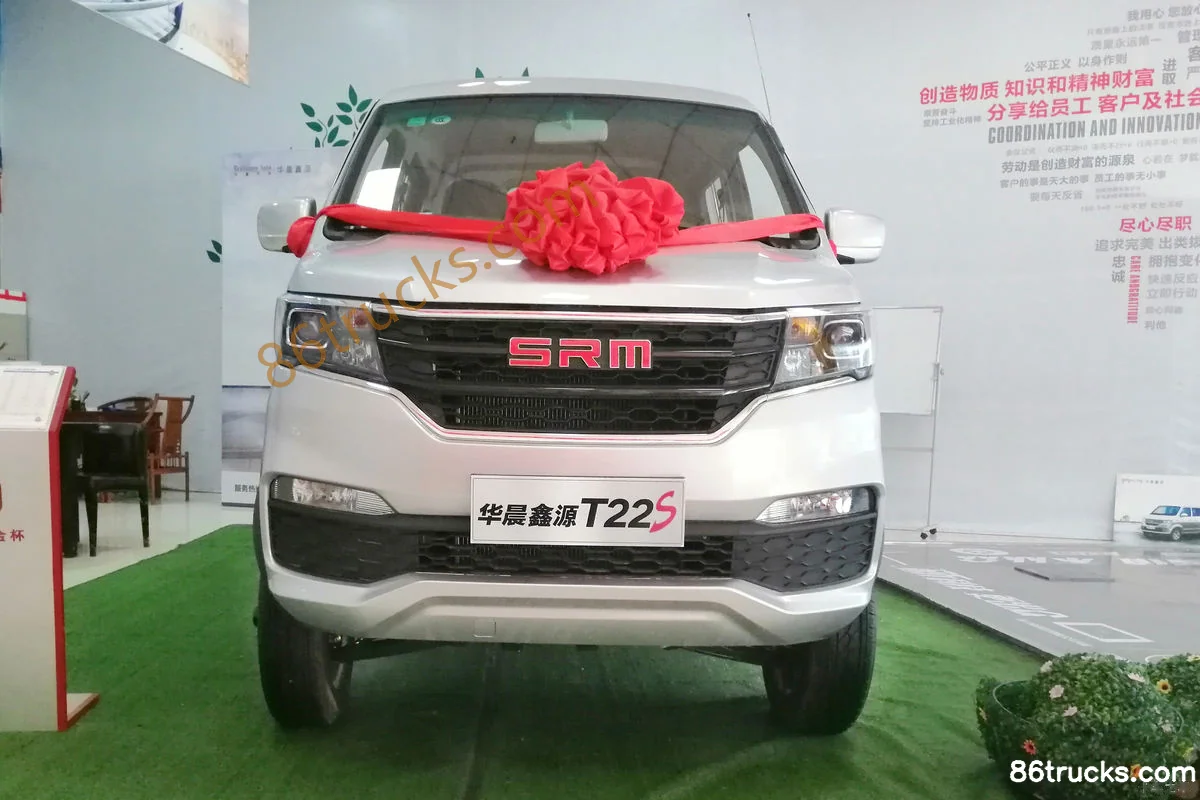

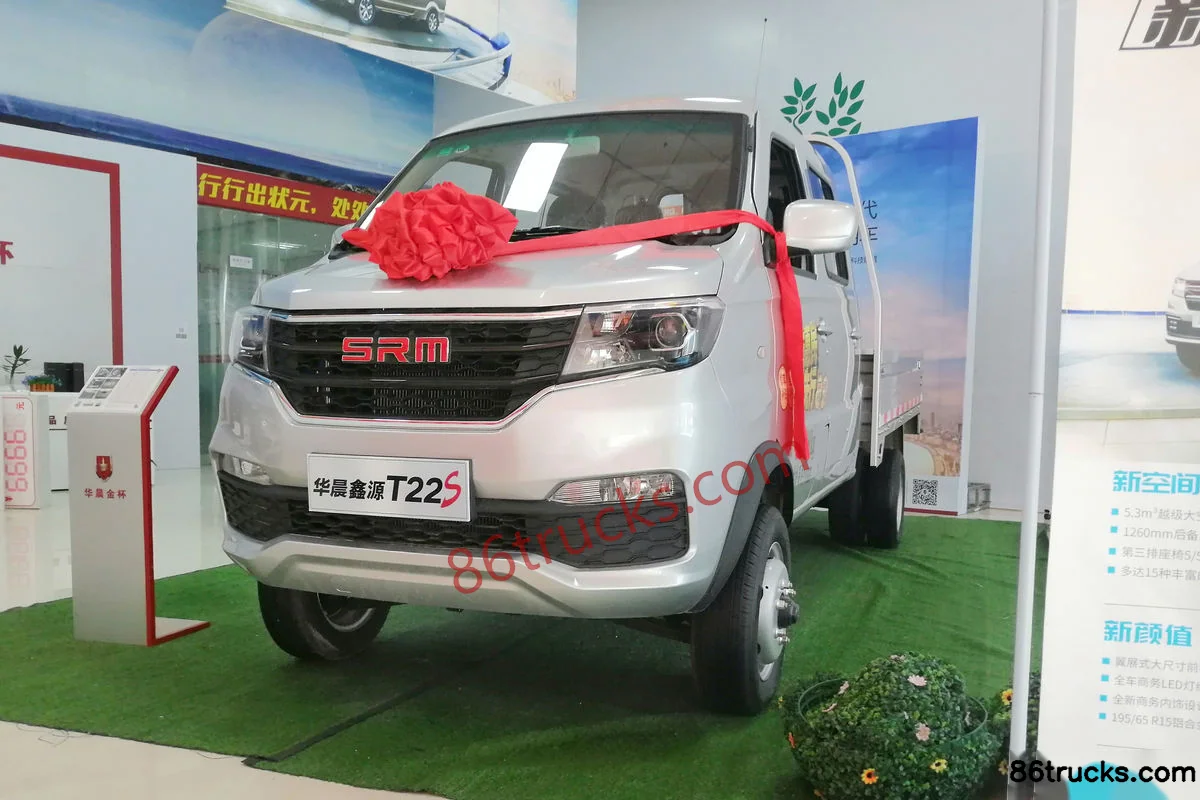

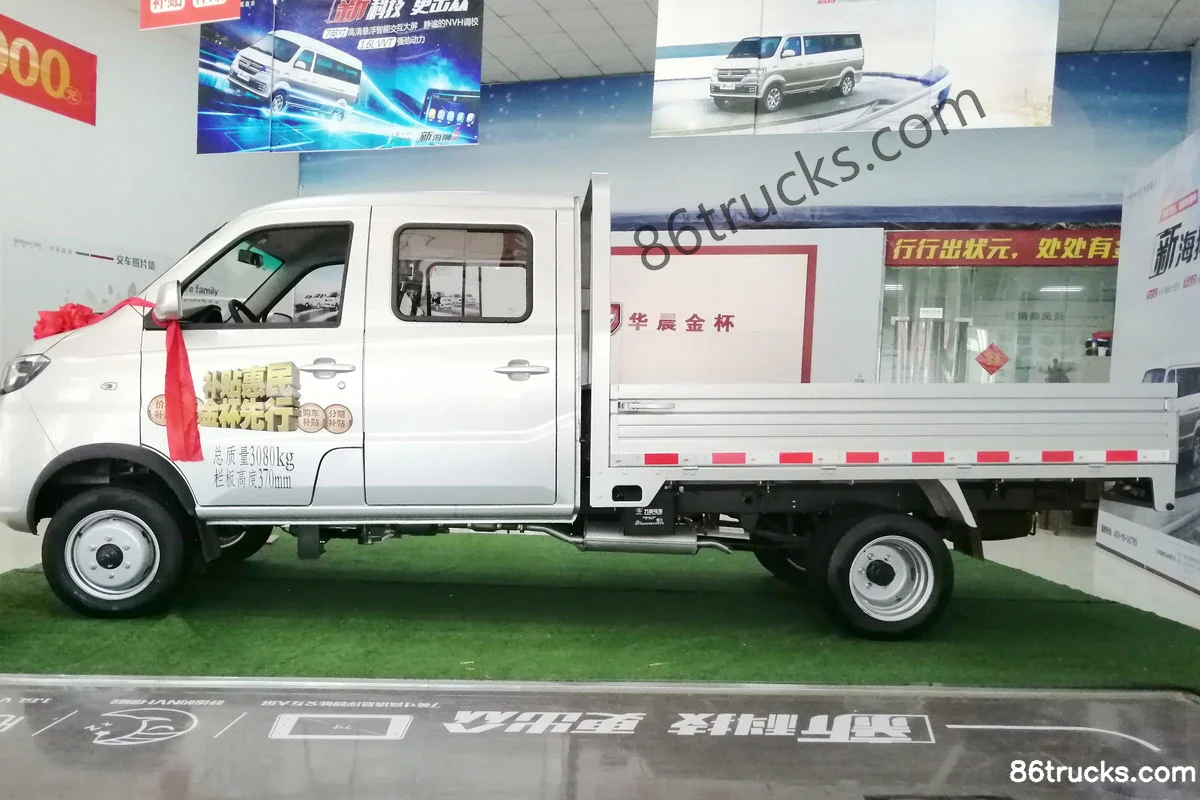

Exterior3

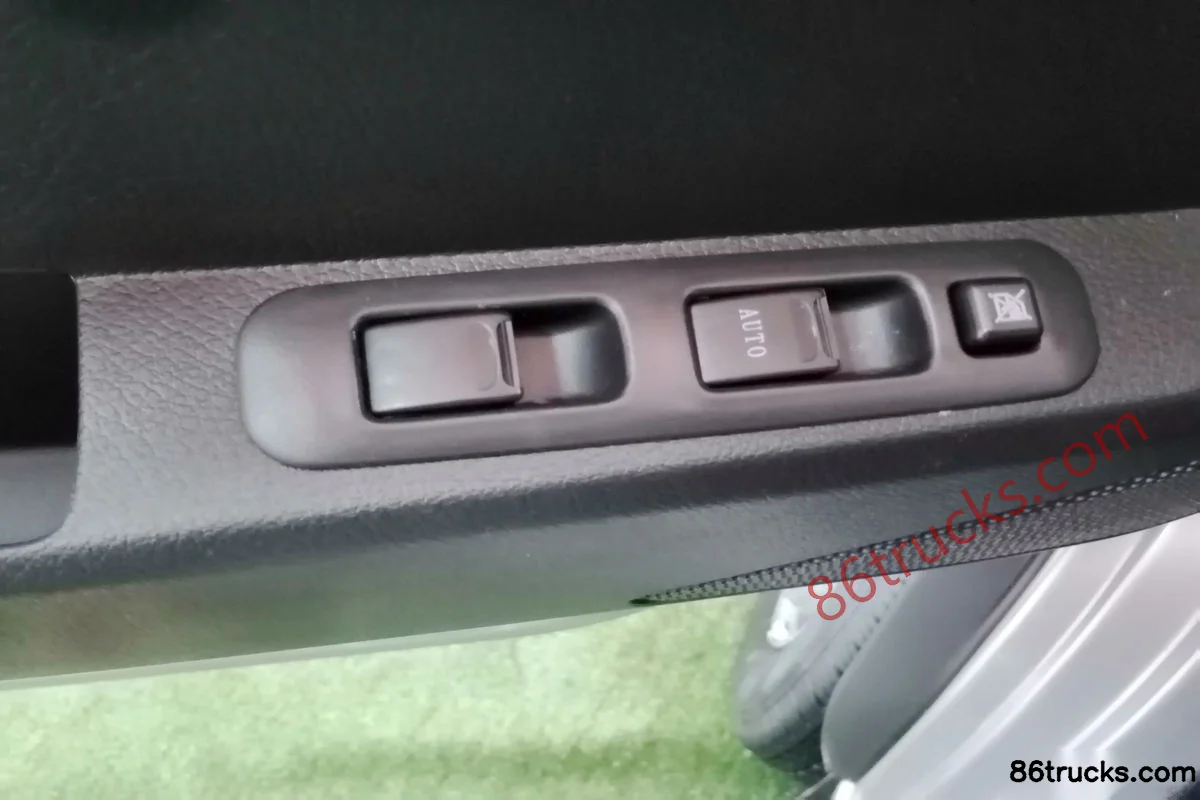

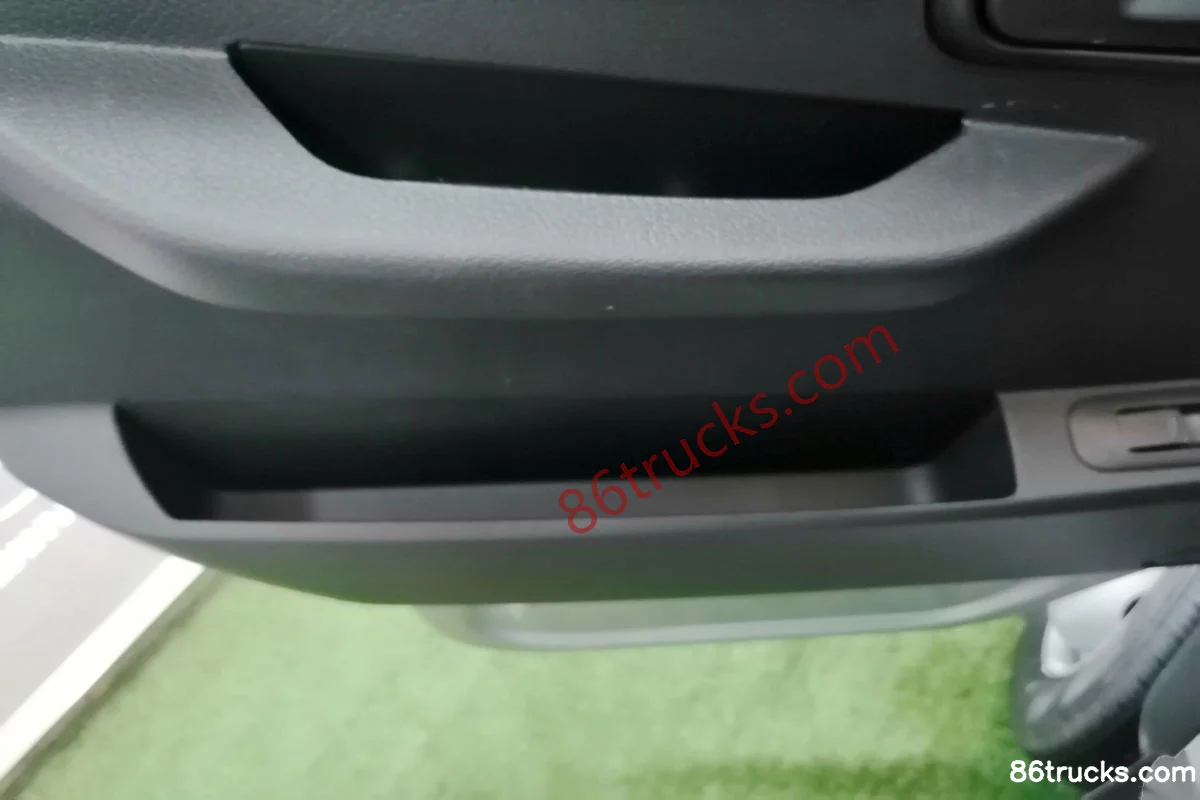

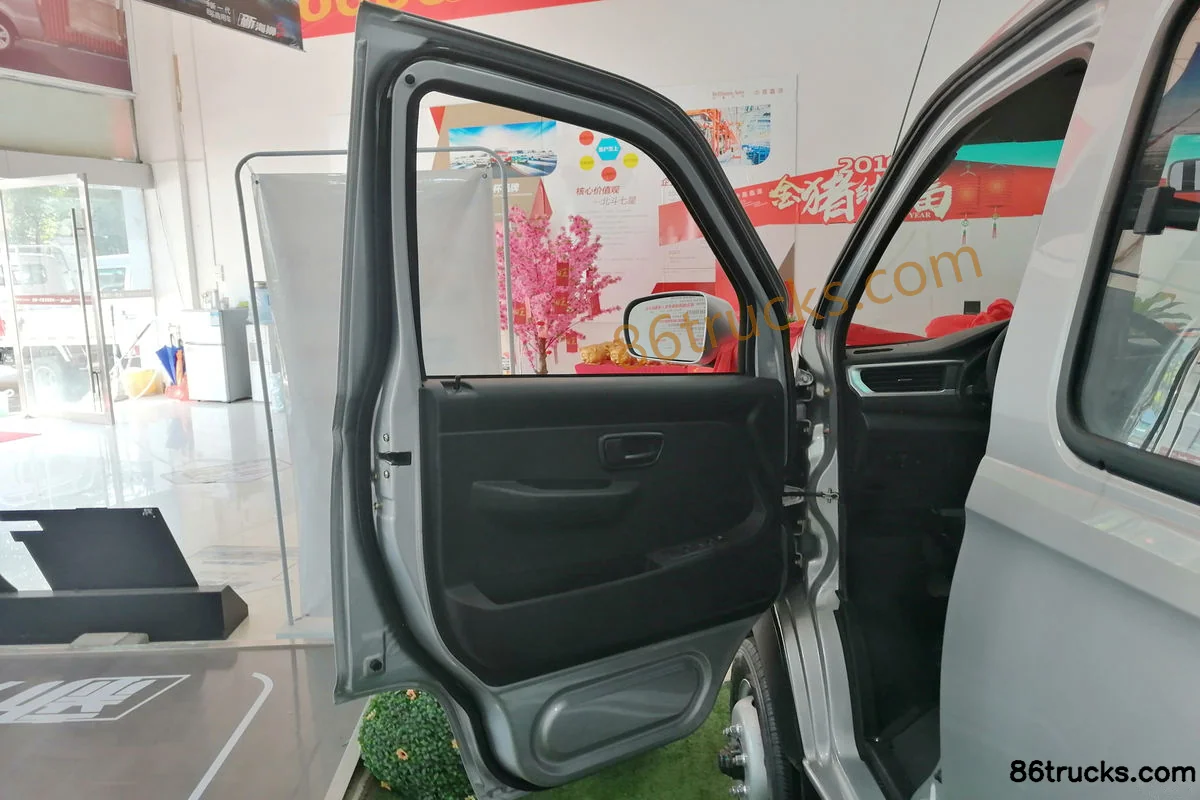

Cab3

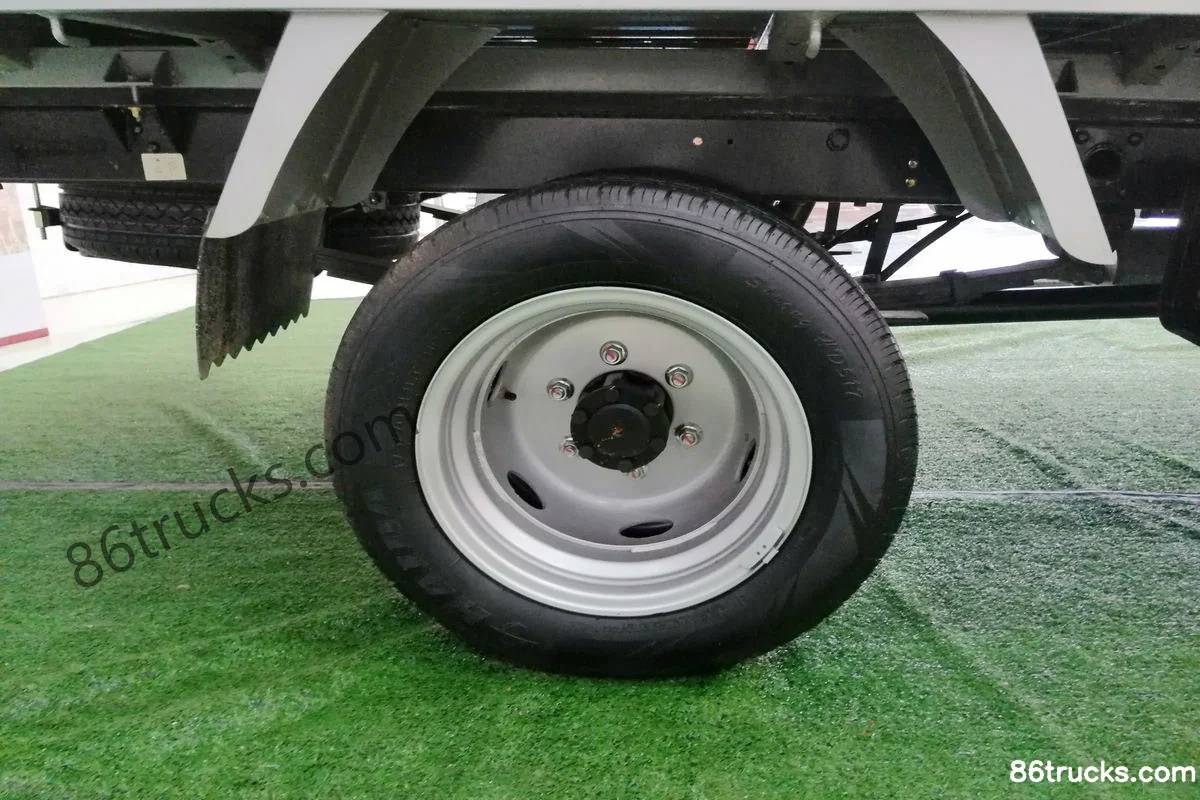

Chassis3

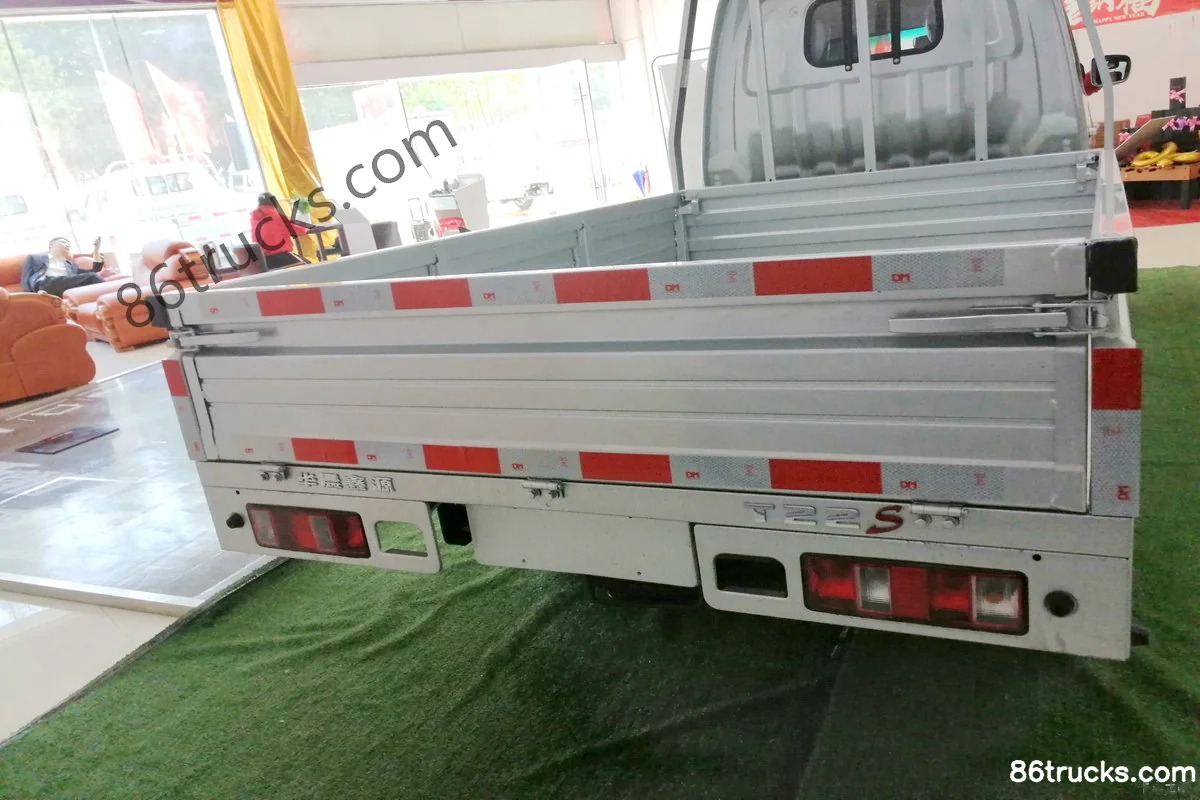

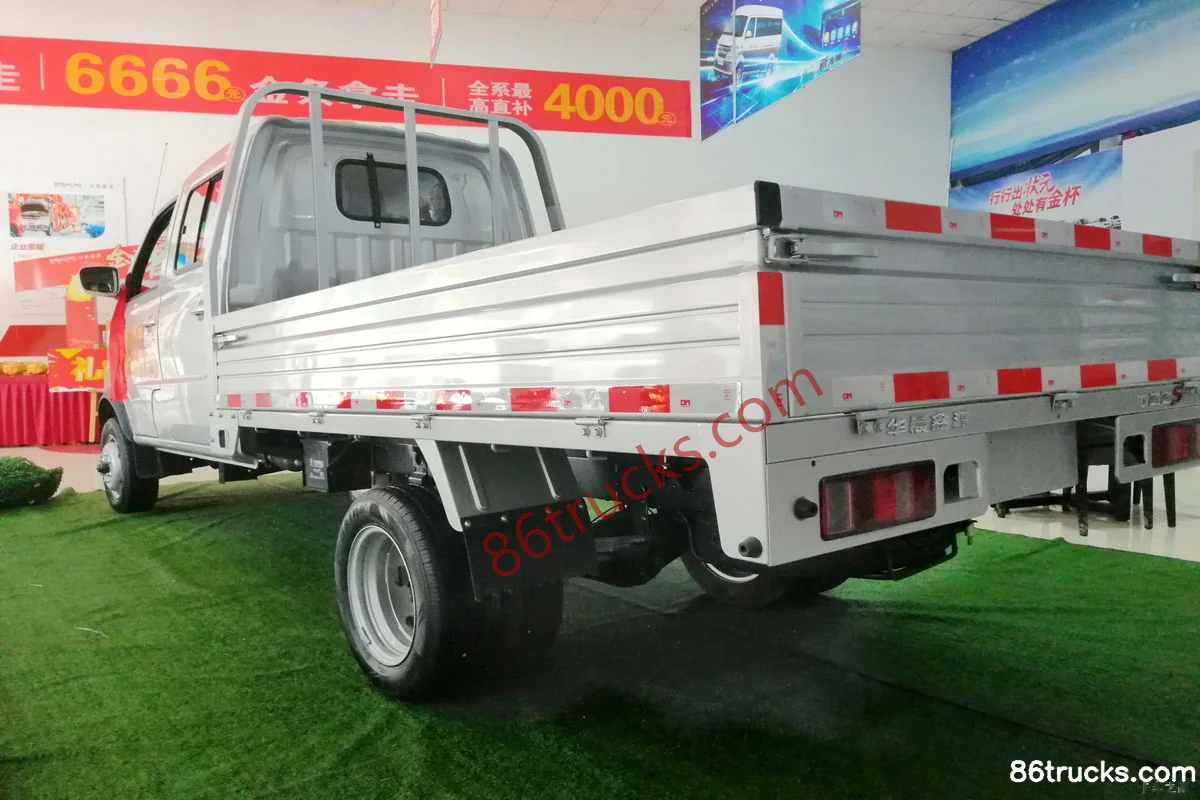

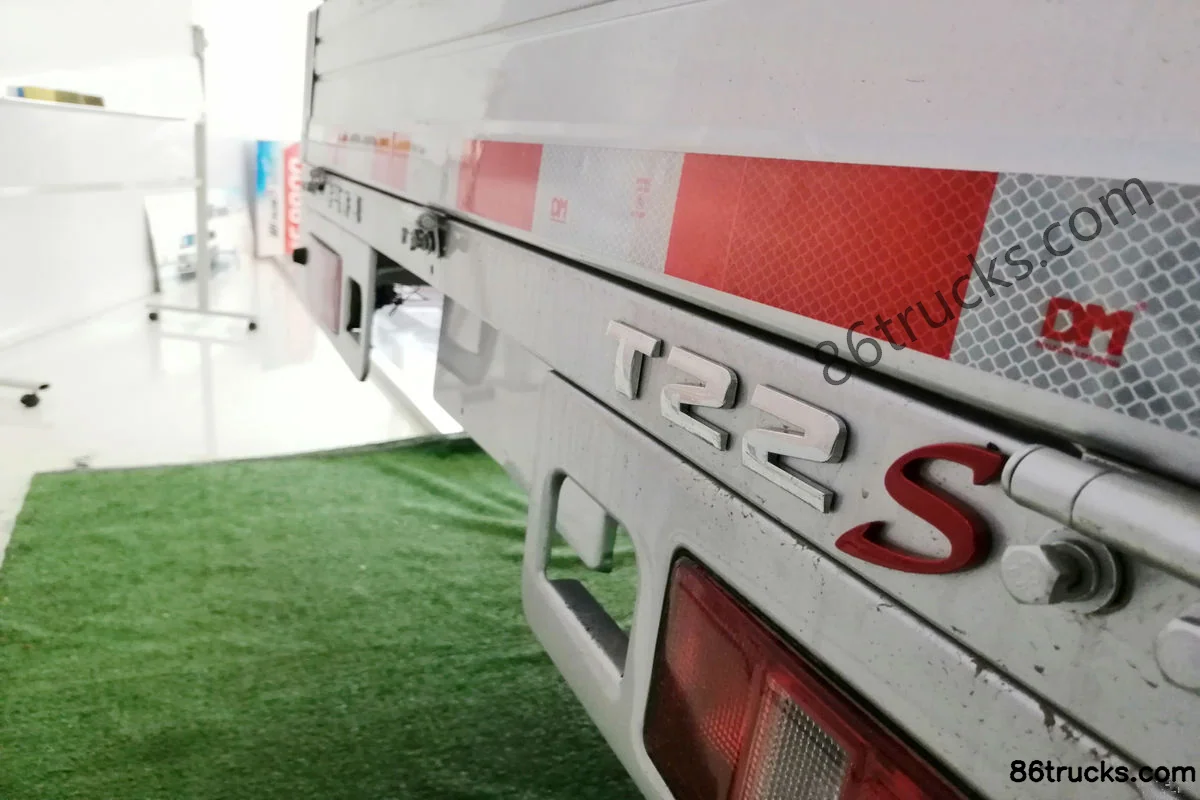

Body3

12 photos

FAQ

What is the export price of Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck, and what does it include?

Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck export reference is about From $5,944; MSRP is ¥4.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck?

Key specs of Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck: Drive: 4x2; Horsepower: 86 hp; Emission: China V; Fuel: gasoline. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck suited for?

Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck differ from other variants in the same series?

Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck belongs to Xinyuan T22S (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Xinyuan T22S 1.3L 85hp 4X2(6 wheels) gasoline 2.55m double-row flatbed micro truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
