Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Engine: Isuzu6WG1
Curb Weight:: 10.96ton
Wheelbase:: 2100+4400+1370mm
Tire Size:: 385/65R22.5 20PR/315/80R22.5 18PR
seating capacity: 2Personnel
Drive 8X4 (12 wheels)
Cargo box type: Chassis
Horsepower 520

Overview

The Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, Flat roof cab and 2100+4400+1370mm wheelbase. On the powertrain side, it comes with a Isuzu6WG1 engine, 520 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 520 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: Chassis
Drive type: 8X4
Wheelbase: 2100+4400+1370mm
engine: Qingling Isuzu6WG1-TCG62
transmission: 16-speed transmission
Rear Axle Ratio: 4.55
Cab length: 11.115m
Cab width: 2.54m
Cab height: 3.01m
Front track width: 2140/2140mm
rear track: 1855/1855mm
Curb Weight: 10.96ton
Max. speed: 85km/h
Origin: Jiulongpo, Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 24°
Front/rear suspension: 1.37/1.95m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6WG1-TCG62
Engine info: Isuzu6WG1
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 15.681L
Emission standard: China VI
Max output power: 382kW
Max hp: 520Horsepower
Max torque: 2250N·m
Max torque speed: 900-1300rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: 16-speed transmission
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Axle ratio: 4.55
Leaf spring count: 4/4/5
Tire
Tire Size: 385/65R22.5 20PR/315/80R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

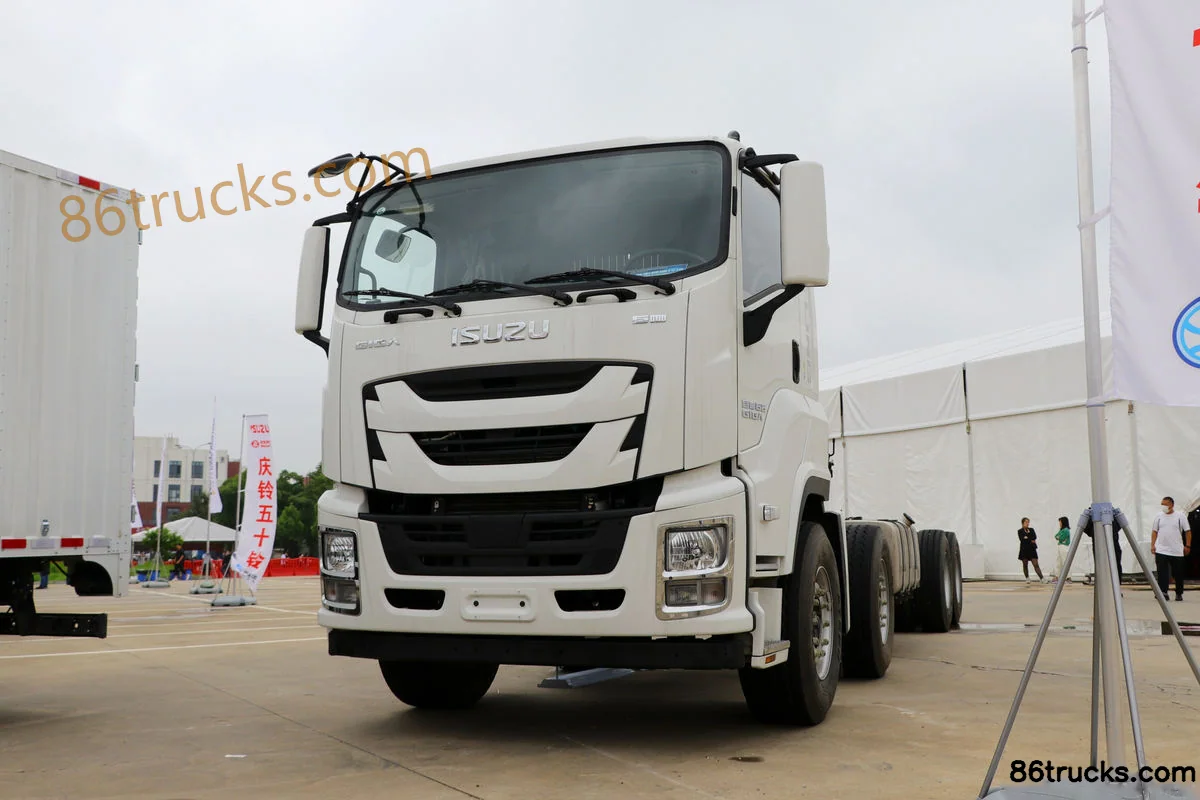

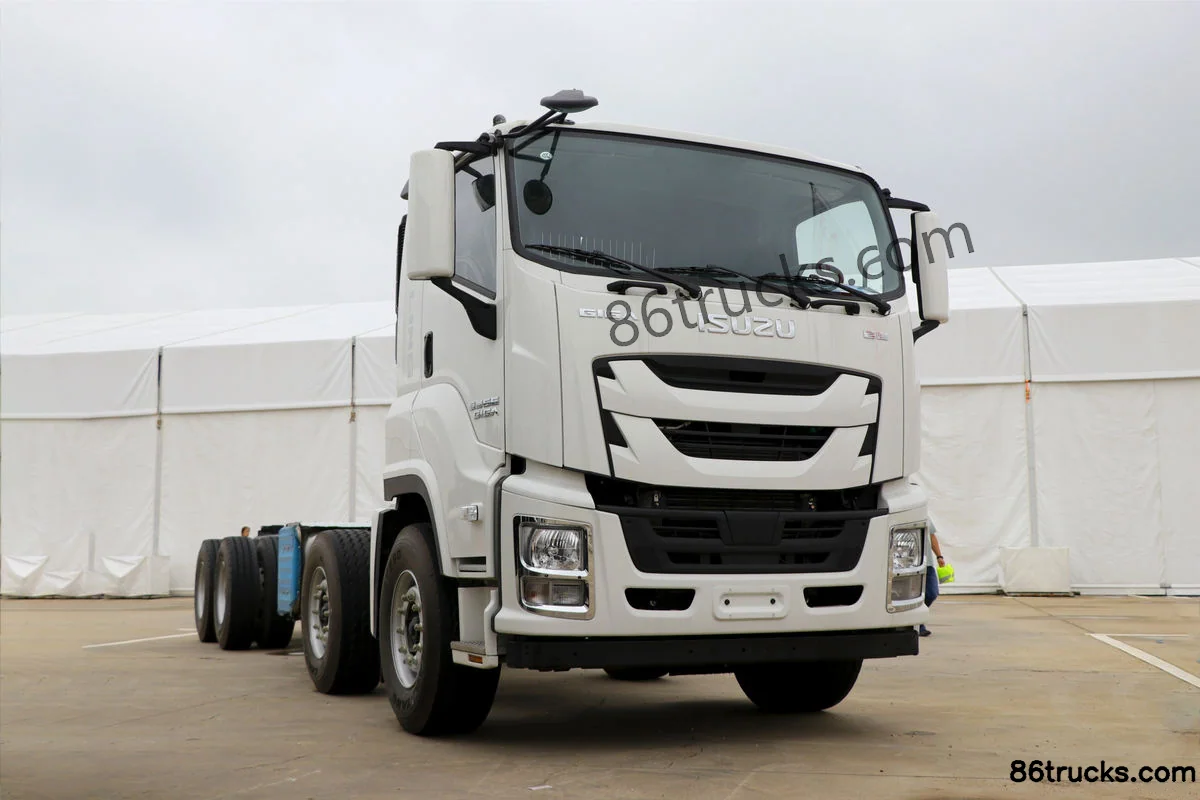

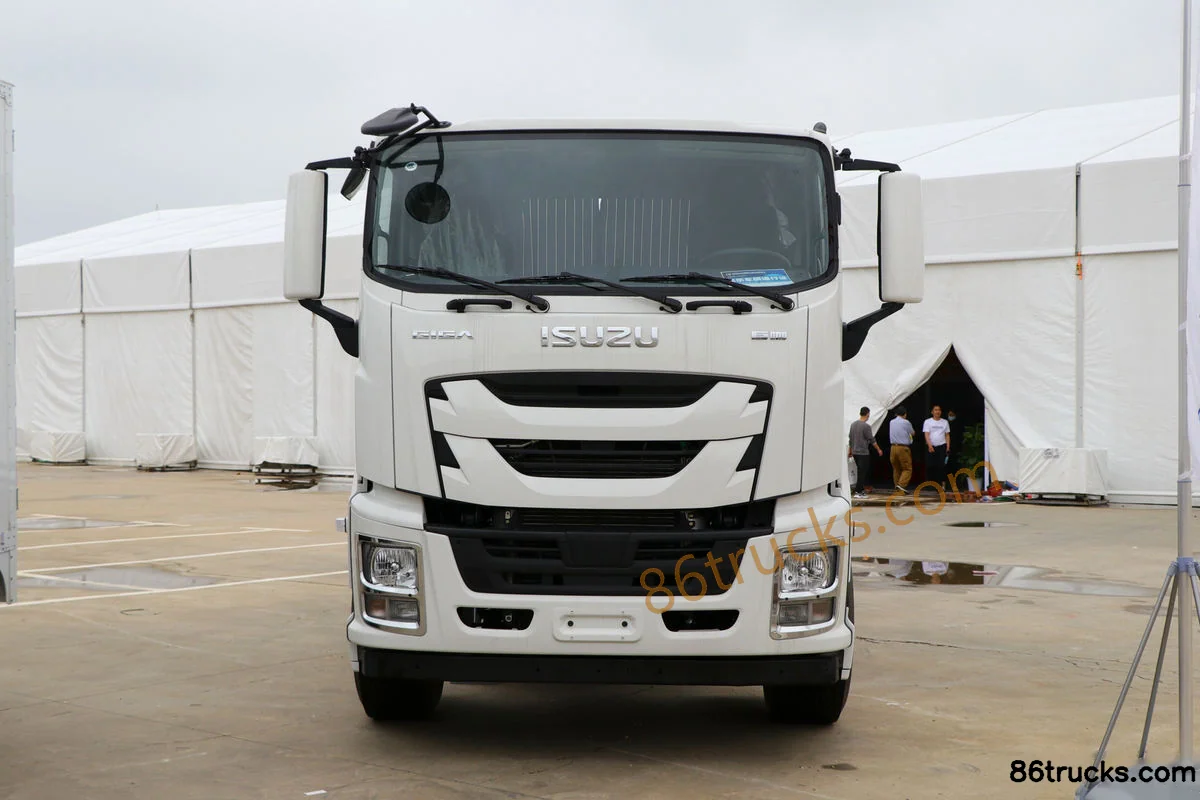

Exterior3

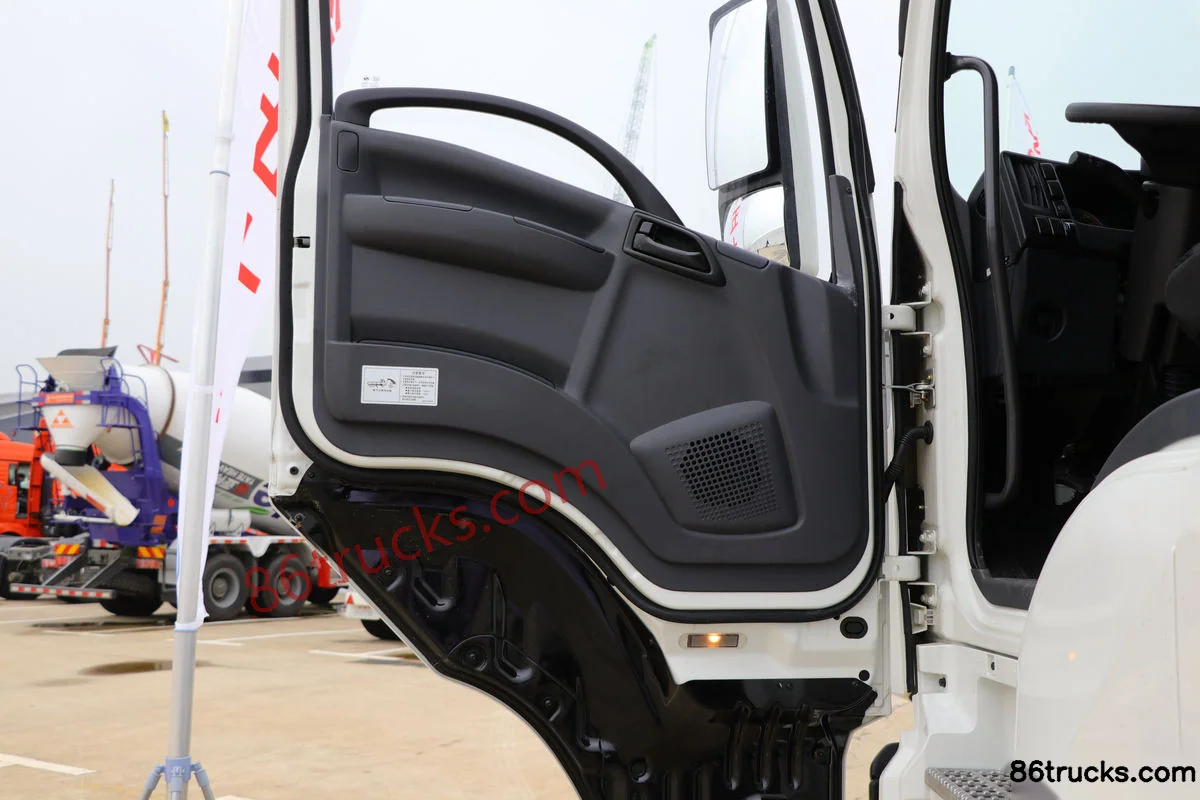

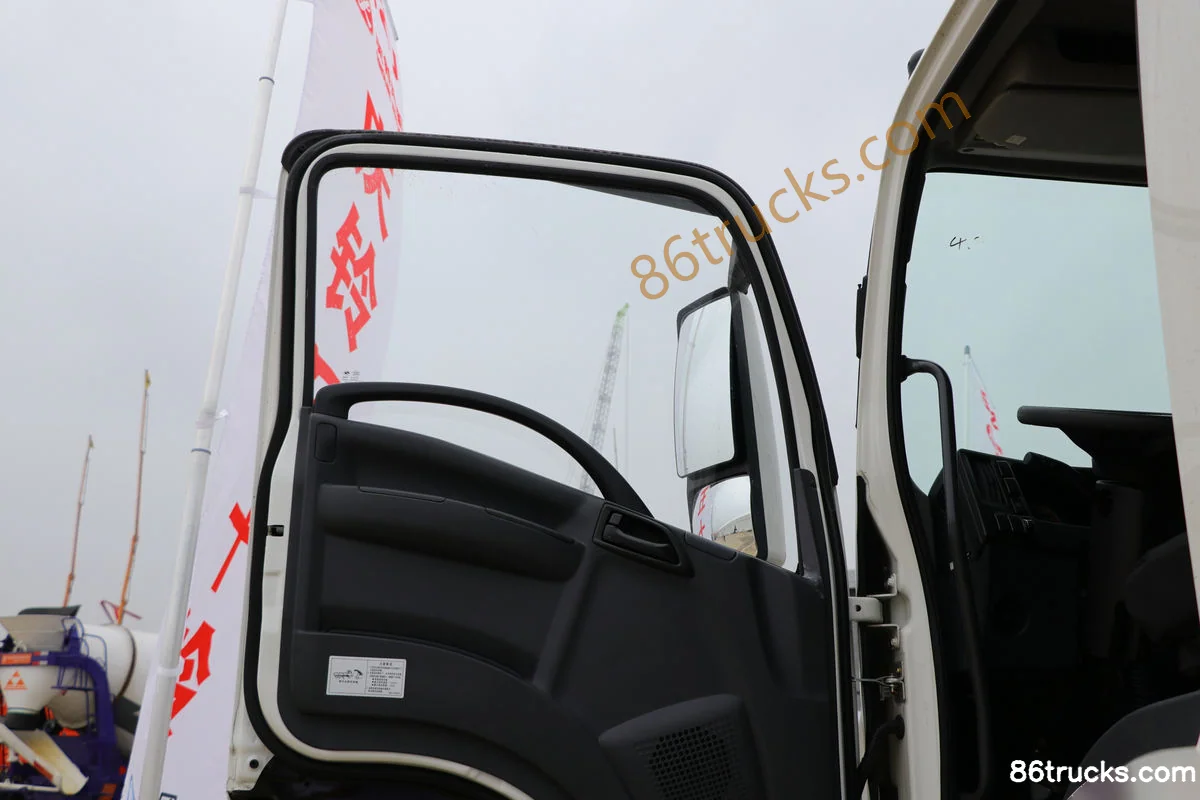

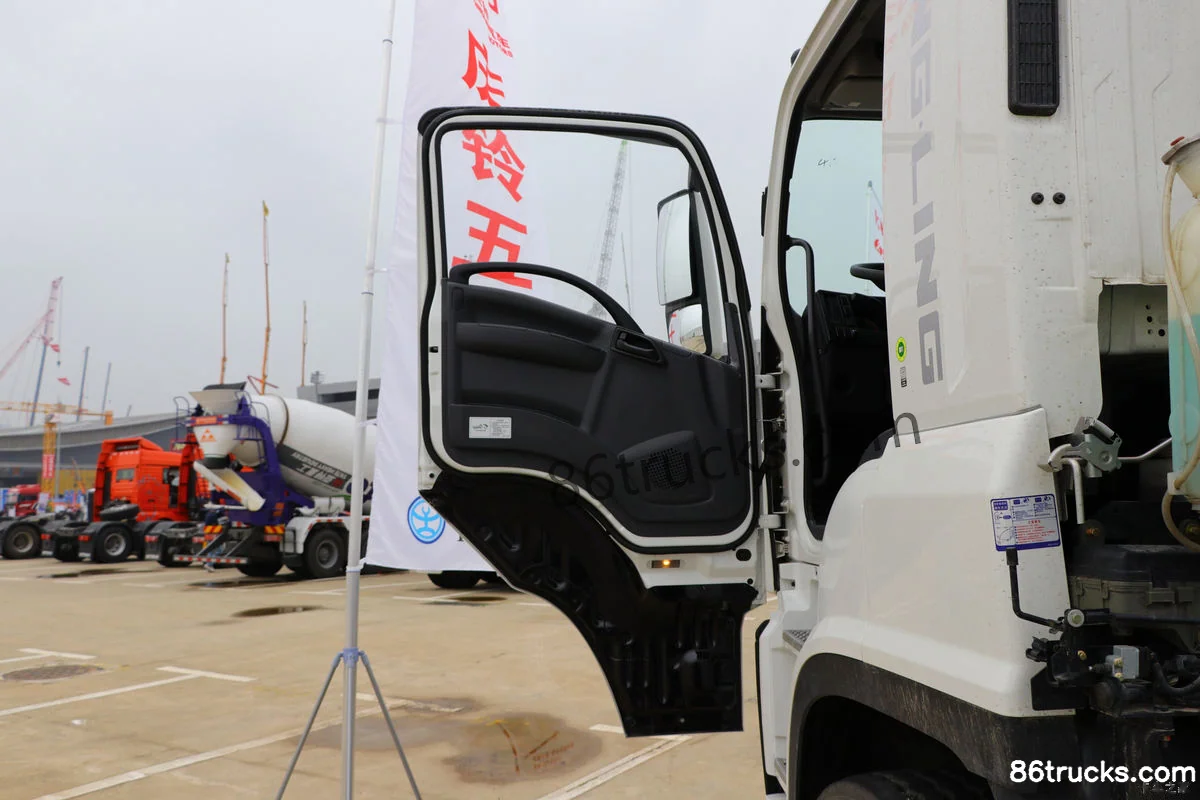

Cab3

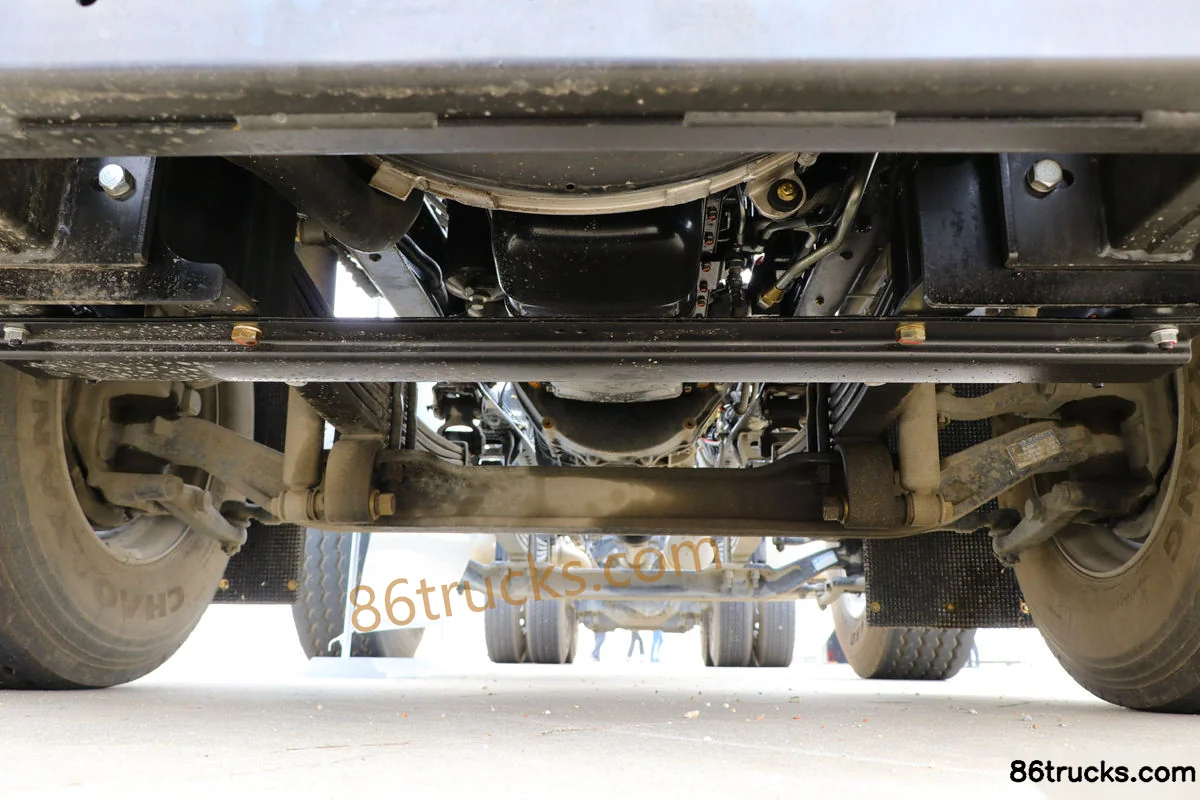

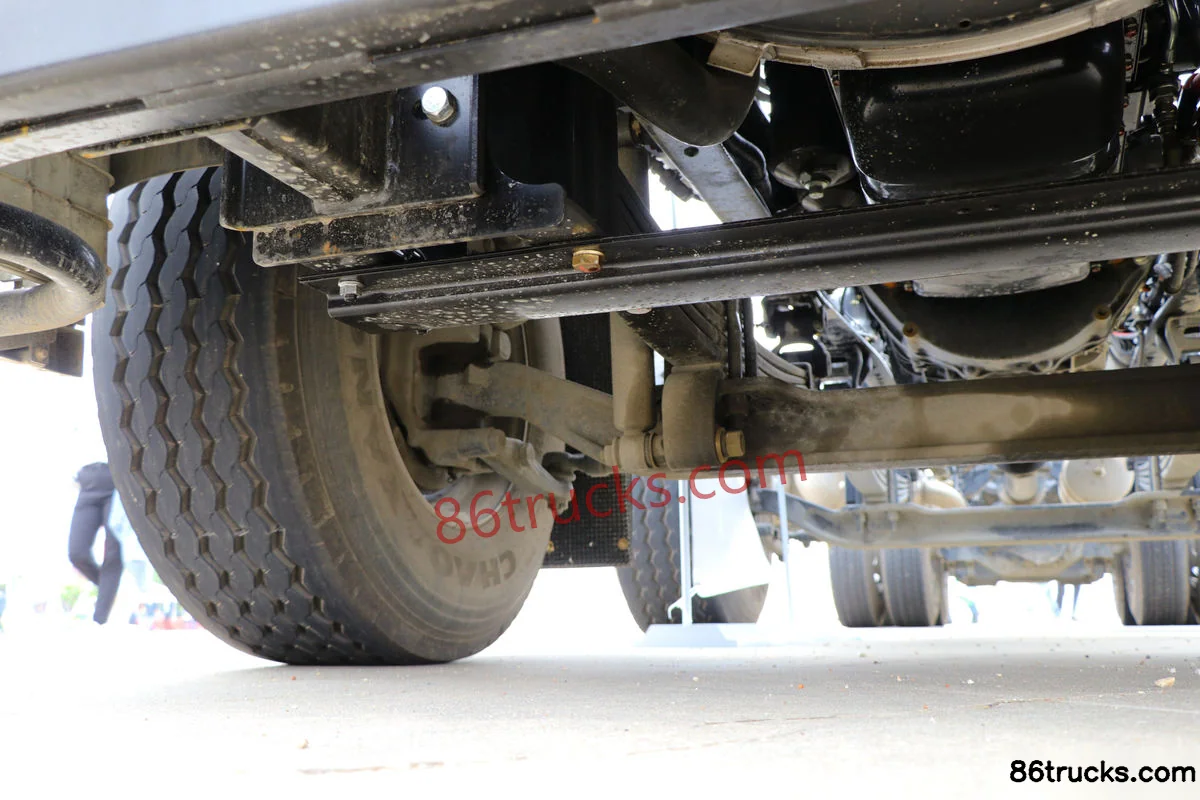

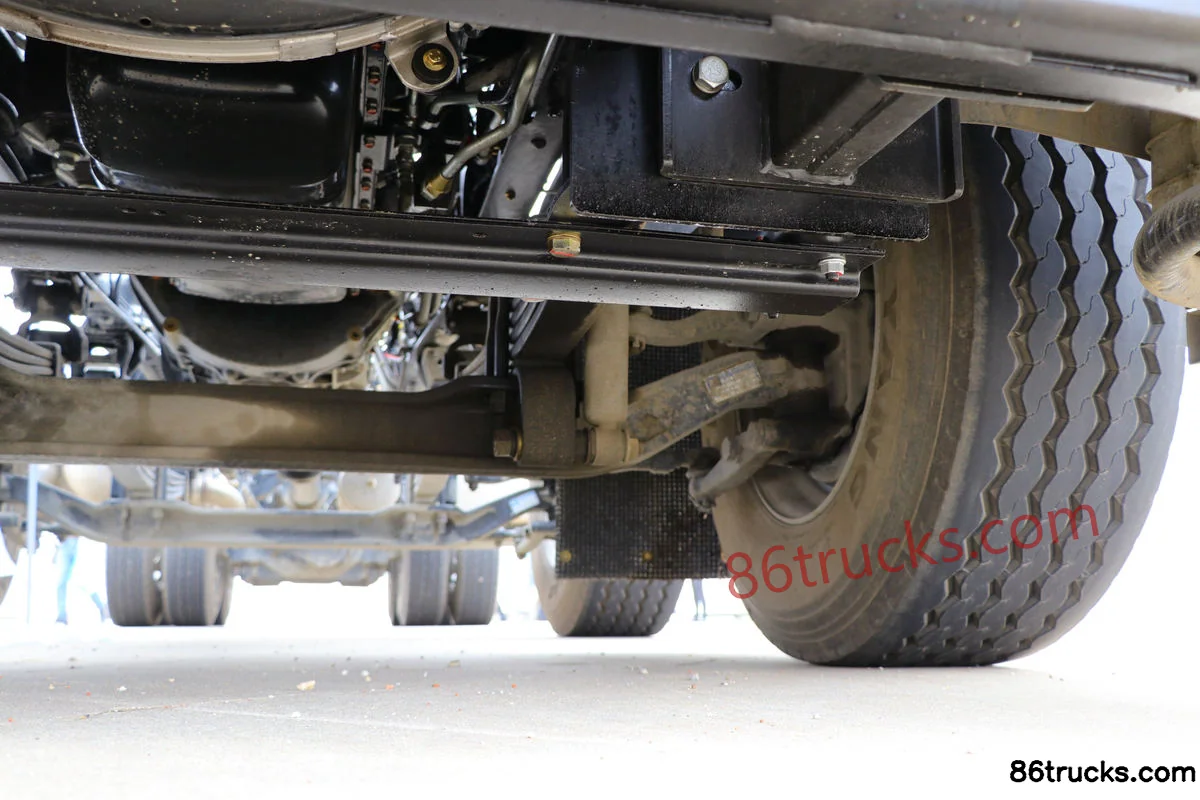

Chassis3

9 photos

FAQ

What emission standard does Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI)?

Key specs of Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI): Drive: 8x4; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel; Engine: Isuzu6WG1. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) suited for?

Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) differ from other variants in the same series?

Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI) belongs to Qingling Isuzu Giga (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu Giga 520hp 8X4(12 wheels) Special Operation Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
