Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle)

Export reference
From $43,514
MSRP ¥31.33M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 1950+4500+1350mm
Cab dimensions:: 12×2.55×3.96m
Type:: truck-mounted crane
GVWR:: 31ton
Lifting capacity: 12ton
Drive 8X4 (12 wheels)
Horsepower 350
Rated mass: 14.71ton

Overview

The Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) is a truck-mounted crane featuring 12ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.55×3.96m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 1950+4500+1350mm
Rated mass: 14.71ton
GVWR: 31ton
Front/rear suspension: 1.512/2.688m
Energy Type: Diesel
Body Parameters
Crane model: SQ12S,SQ12Z,URV1204,SQ1204,SQZ2503,SQS300,HTS1205A
Lifting capacity: 12ton
crane self-weight: 4.2ton
Vehicle certification code: LZ5310JSQH7FB
Body Brand: DongfengLiuqi
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L350-50
fuel type: Diesel
Displacement: 8.424L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongH5
Chassis Model: LZ1310M5FBT
Frame Dimensions: 300(8+4) double-layer framemm
rear axle description: 457 dual rear axle
Axle ratio: 5.286
Leaf spring count: 11/11/13
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140B
Cab parameters
Cab: H51S
Tire
Tire Size: 11.00-20
Number of tires: 12pcs

Photos

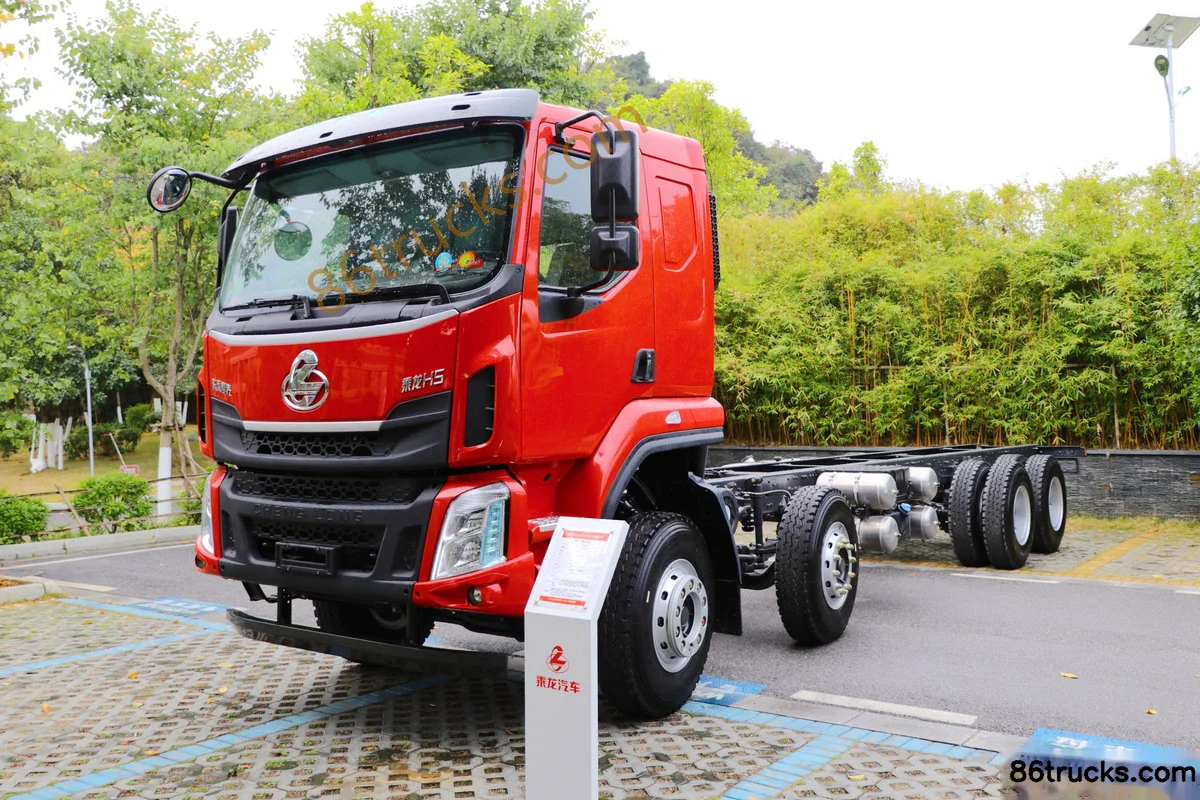

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle), and what does it include?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) export reference is about From $43,514; MSRP is ¥31.33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle)?

Key specs of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle): Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) suited for?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle) belongs to Dongfeng H5 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) Truck Mounted Crane (457 Rear Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
