Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck

Export reference
MSRP N/A
Horsepower: 158
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck exterior
View more photos (12)
Fuel tank capacity: 80L
Rated payload: 1.1ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.08×2.1×2.1m

Overview

The Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck is a Refrigerated Truck featuring 4.08×2.1×2.1m cargo body, 80L volume, 1.1t payload and 5.995×2.1×2.97m cab. On the powertrain side, it comes with 158 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 158 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 5.995×2.1×2.97m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Zhucheng, Shandong: Changping, Beijing
Wheelbase: 3360mm
Front track width: 1590mm
rear track: 1590mm
Curb Weight: 3.2ton
Rated payload: 1.1ton
GVWR: 4.495ton
Max. speed: 105km/h
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Model: Foton4F25TC
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 116kW
Max hp: 158Horsepower
Cargo box parameters
Cargo box dimensions: 4.08×2.1×2.1m
Cargo box width: 2.1m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: BJ5048XLC-F3
Chassis Specs
Chassis Brand: Foton
Chassis Series: Auman S1
Chassis Model: BJ1048V9JD6-F3
rear axle description: 4.5T class
Axle ratio: 4.33
Leaf spring count: 3/4+2;3/5+2
Transmission Parameters
Number of gears: 6Gear
Transmission Model: ZF 6-speed
fuel tank
Fuel tank capacity: 80L
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Electronic Central Lock:
lighting configuration
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

Exterior3

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Exterior (1) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Exterior (2) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Exterior (3) | 86Trucks

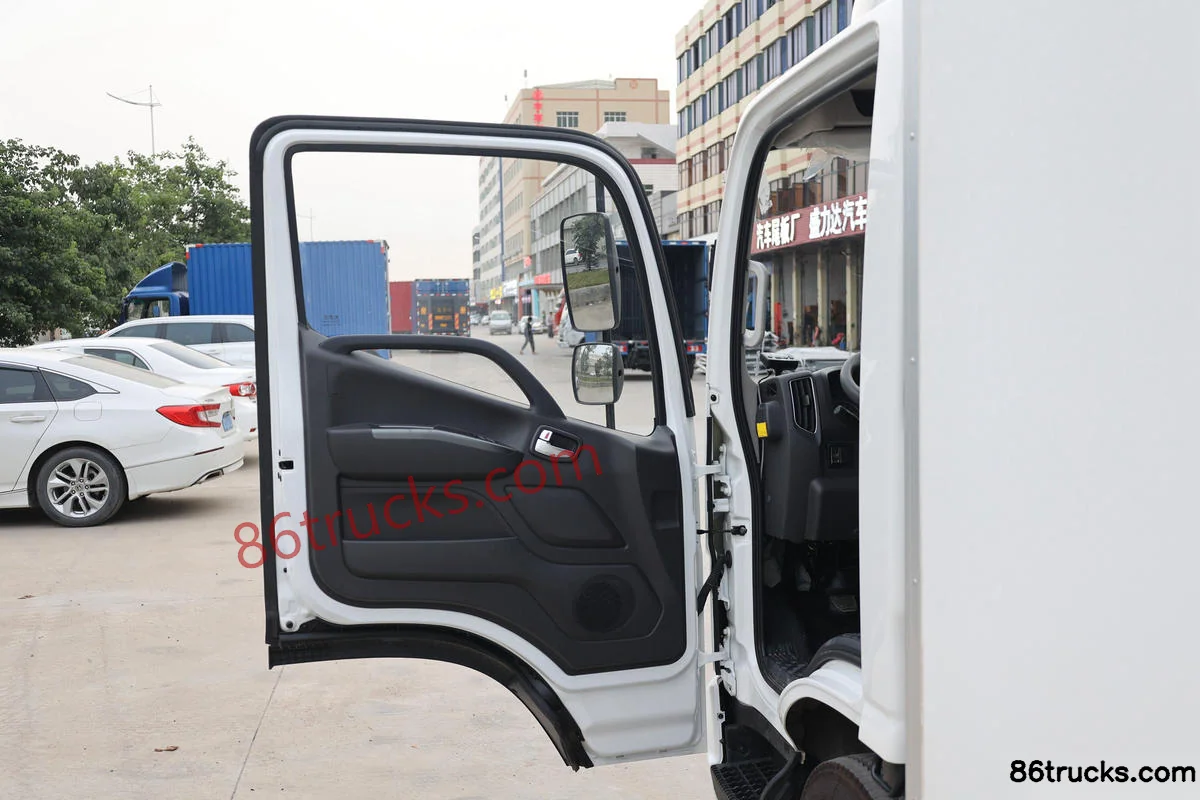

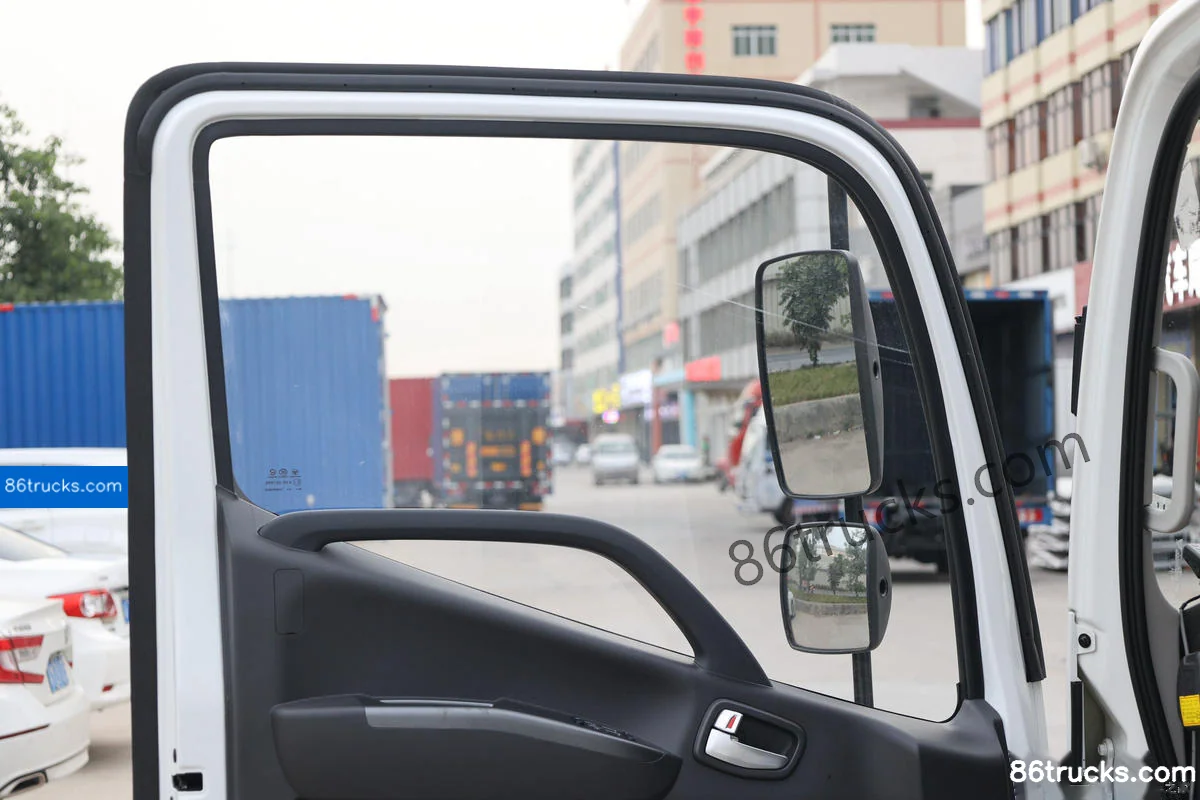

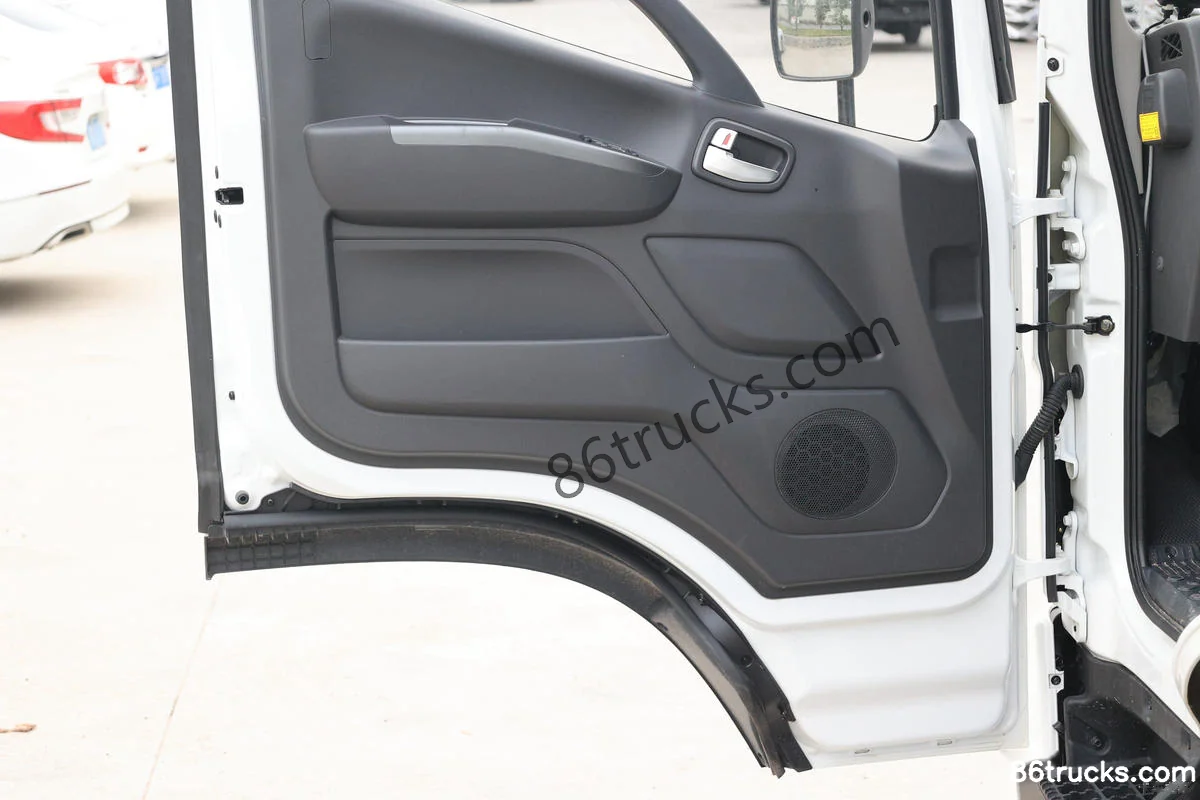

Cab3

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Cab (1) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Cab (2) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Cab (3) | 86Trucks

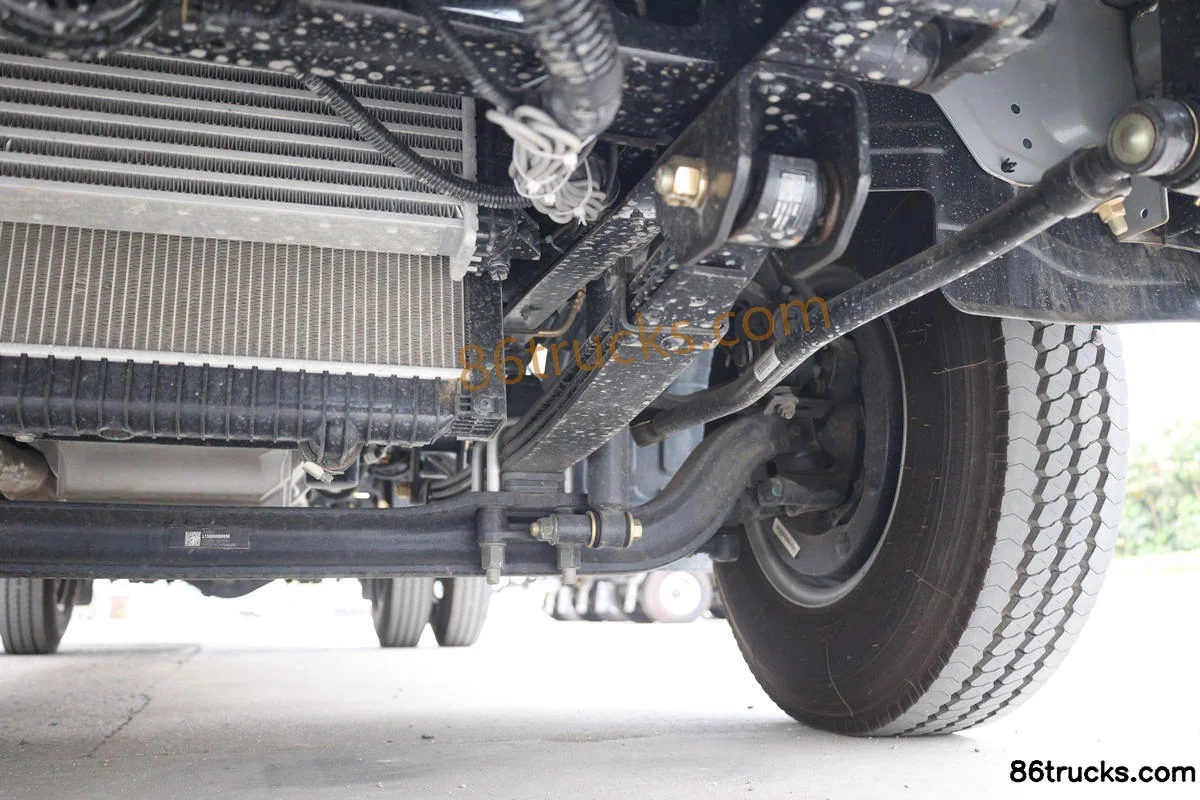

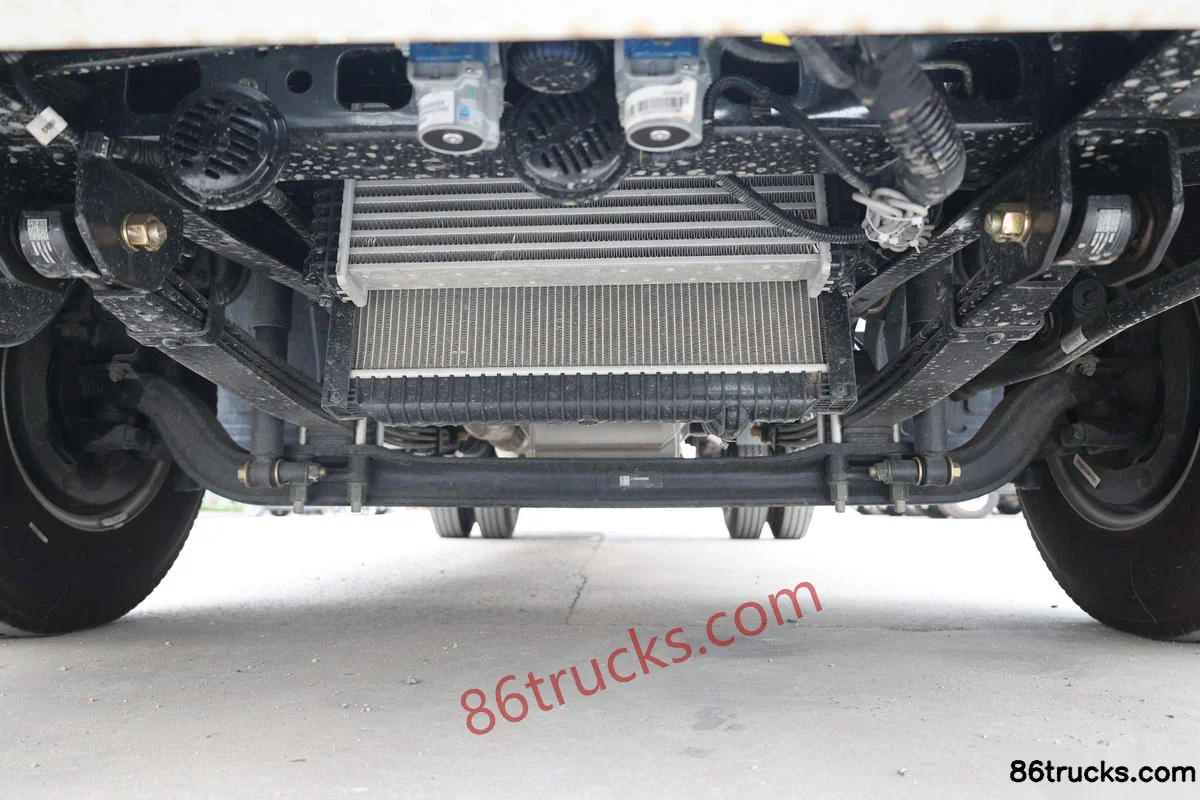

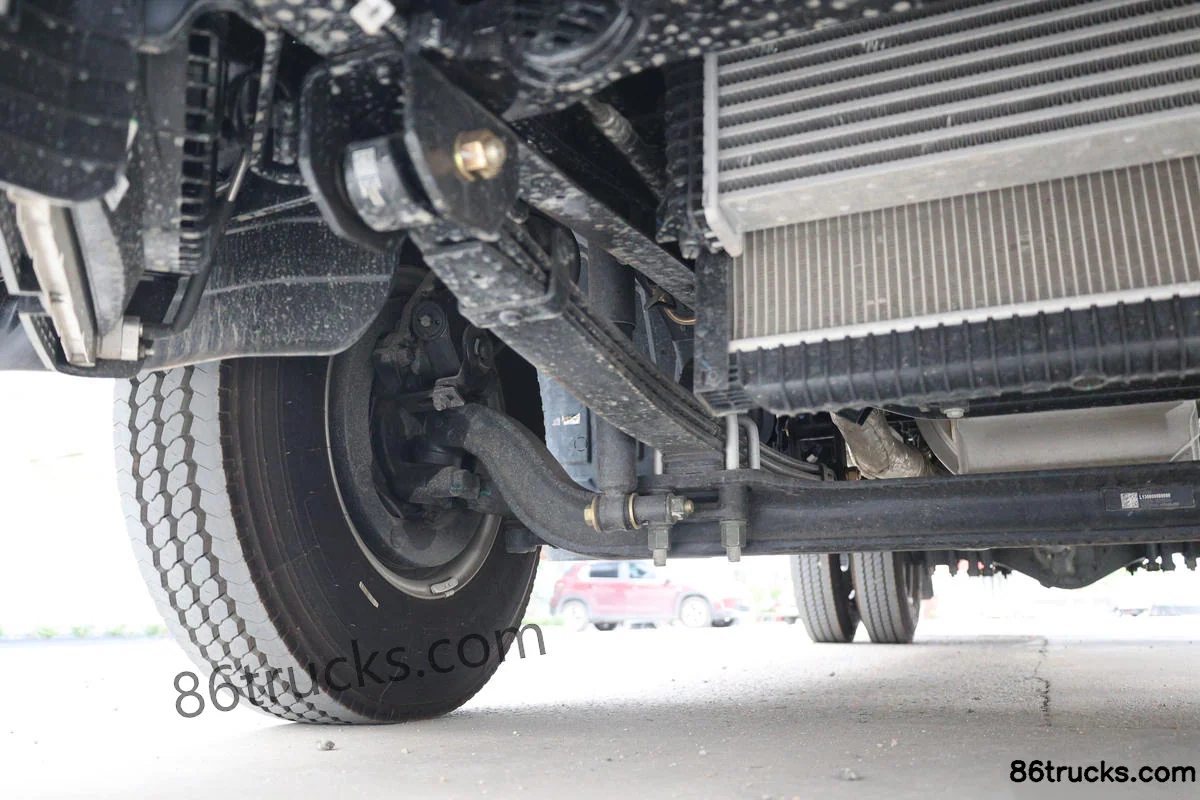

Chassis3

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Chassis (1) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Chassis (2) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Chassis (3) | 86Trucks

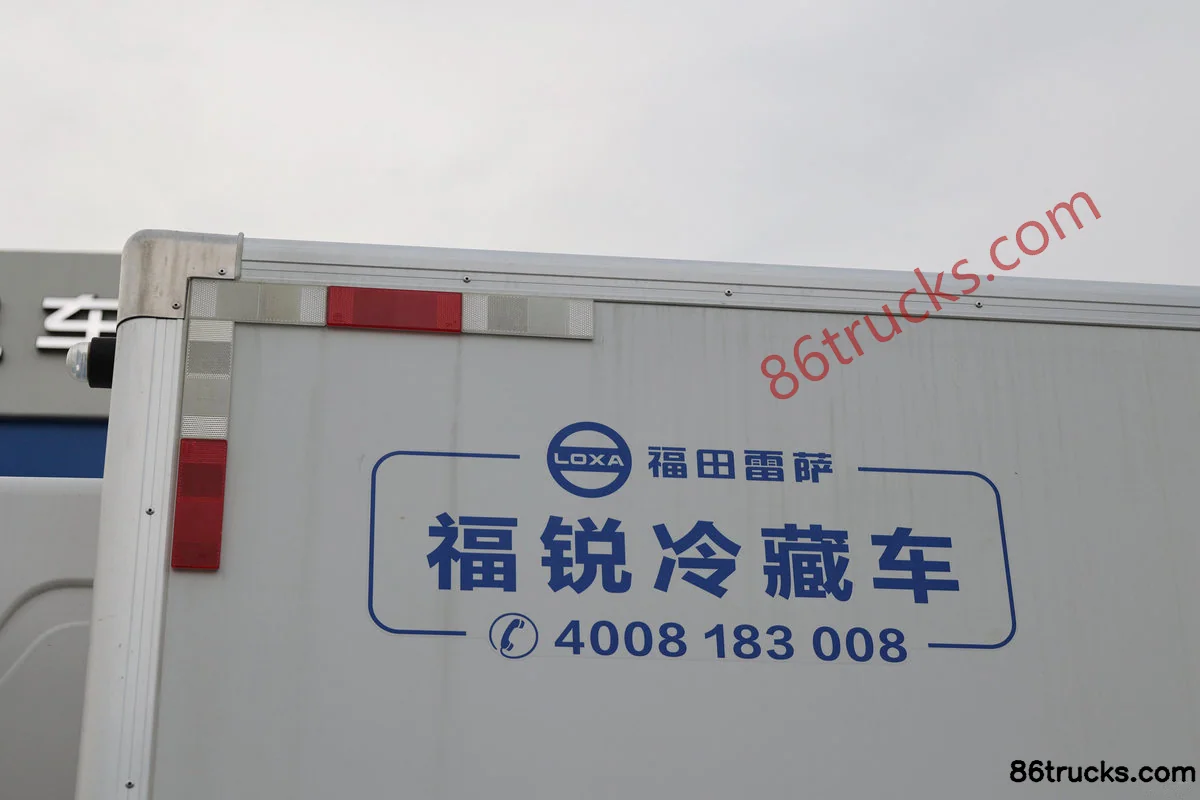

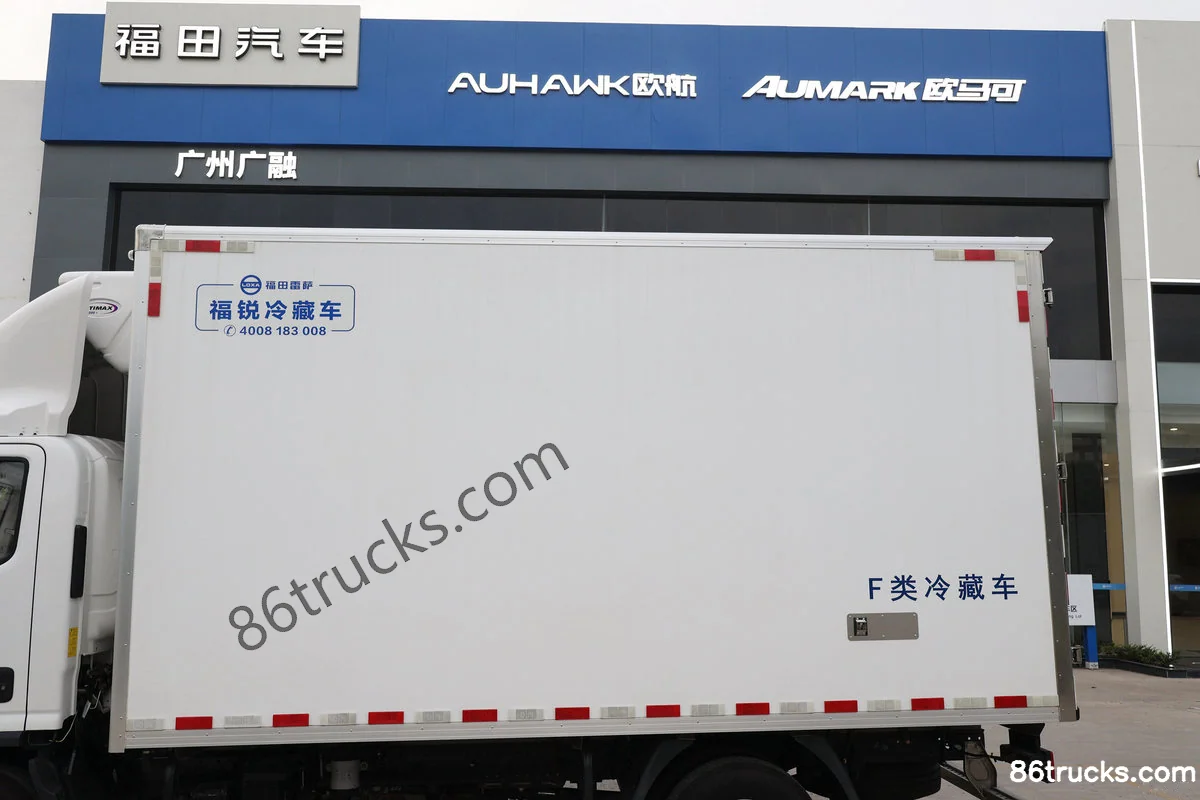

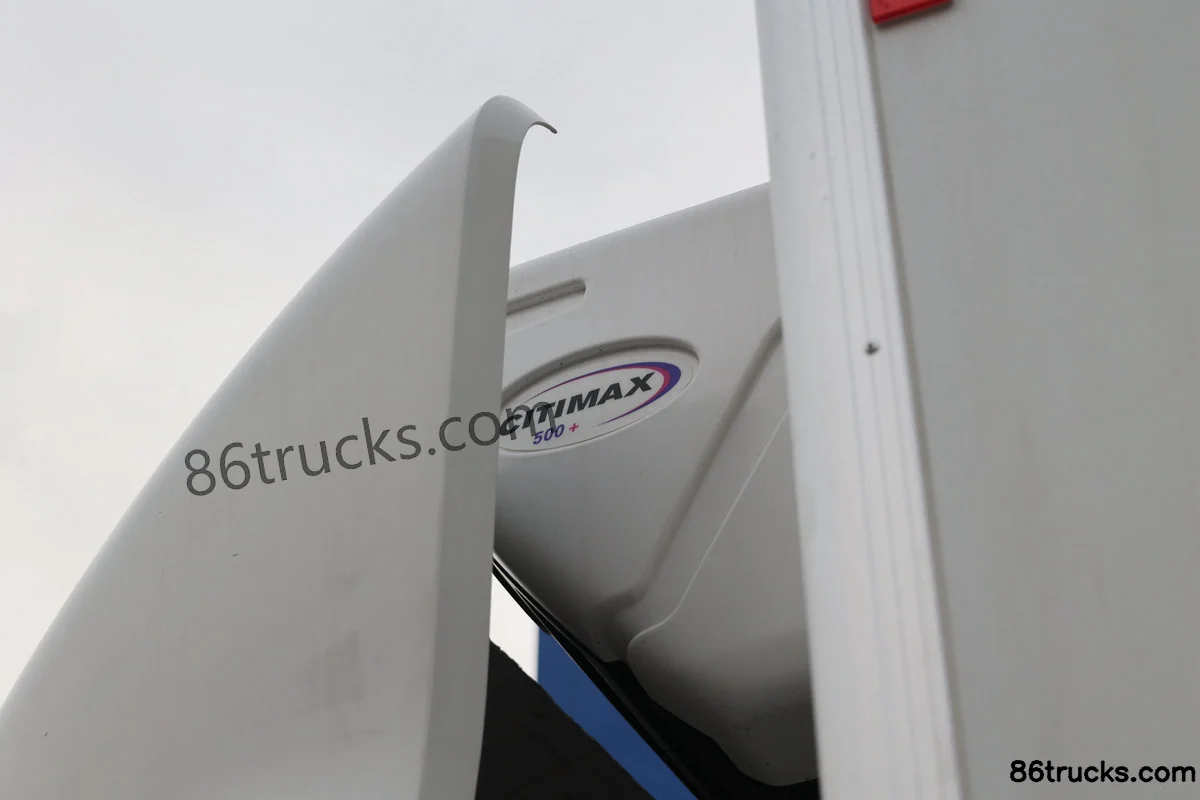

Body3

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Body (1) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Body (2) | 86Trucks Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck?

Key specs of Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck: Drive: 4x2; Horsepower: 158 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck suited for?

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck differ from other variants in the same series?

Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck belongs to Foton S1 Light Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman S1 158hp 4X2(6 wheels) 4.08m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
