Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 4500+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 13.48L
Drive 6X4 (10 wheels)
Horsepower 520
Emission China VI
Transmission Fast Gear

Overview

The Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 520 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a DongfengZ14NS6B520 engine, Fast Gear transmission and Diesel fuel.

China VI 520 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4250T7DC2
Drive type: 6X4
Wheelbase: 4500+1350mm
engine: DongfengZ14NS6B520
transmission: Fast GearAMT
Cab length: 8.105m
Cab width: 2.525m
Cab height: 3.8m
Front track width: 2010mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: Z14NS6B520
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.48L
Emission standard: China VI
Max output power: 388kW
Max hp: 520Horsepower
Max torque: 2500N·m
Rated speed: 1800rpm
Transmission Parameters
Transmission Brand: Fast Gear
shift method: AMT manual/auto
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 900L
Cab parameters
Cab: T77LS
Cab width: 2500mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
Frame Dimensions: 282mm
rear axle description: New 440 (Dana)
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
lighting configuration
LED headlight:
Exterior features
side skirt:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
hydraulic retarder:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

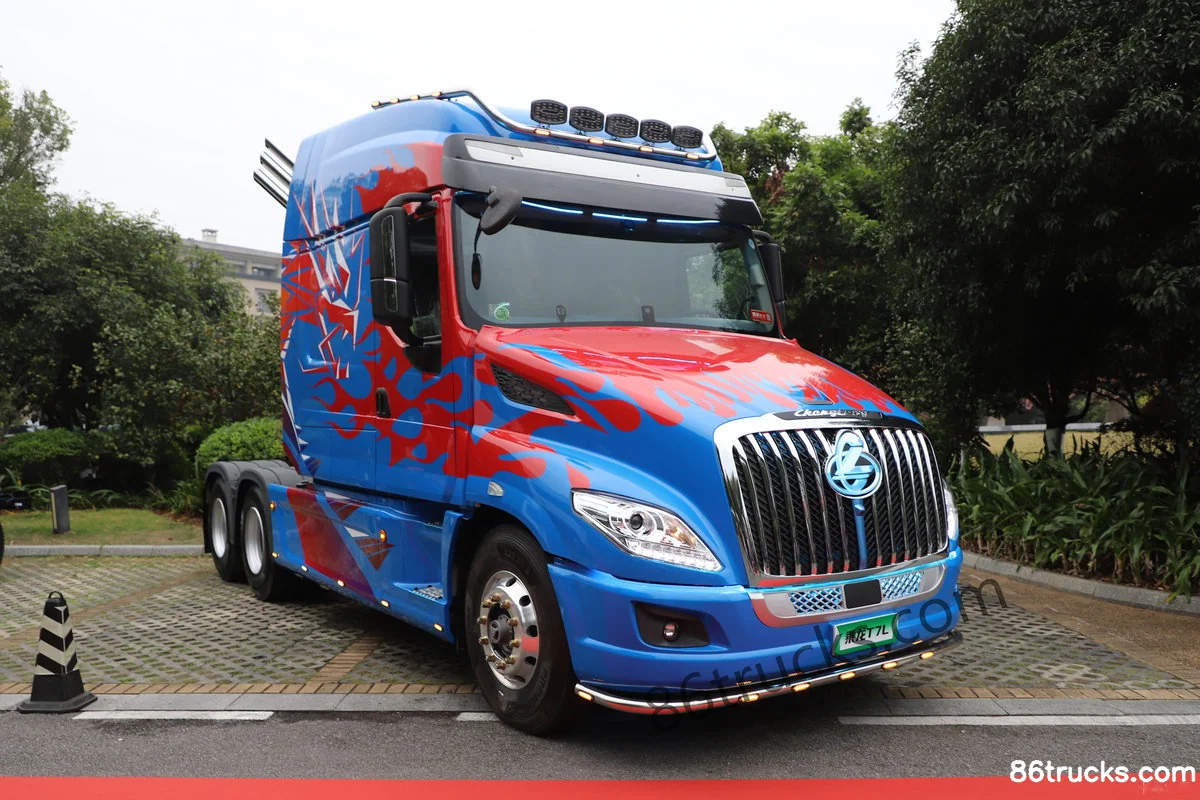

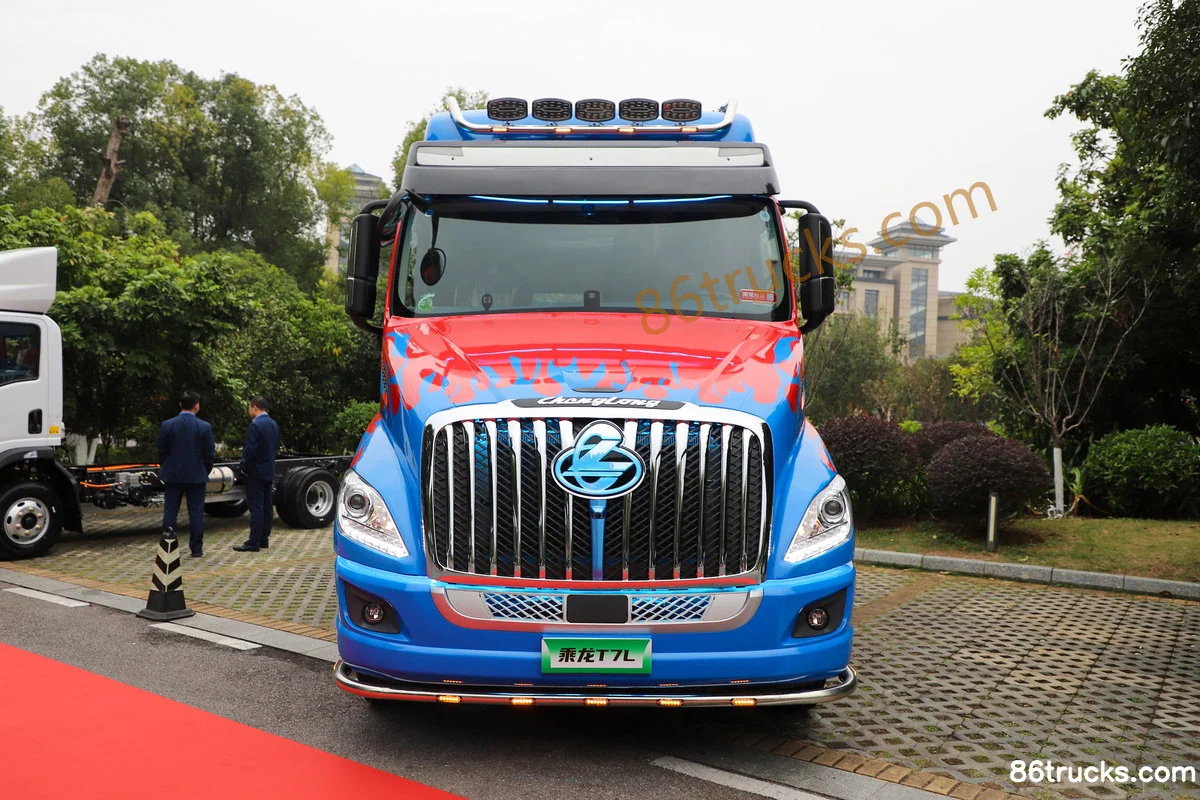

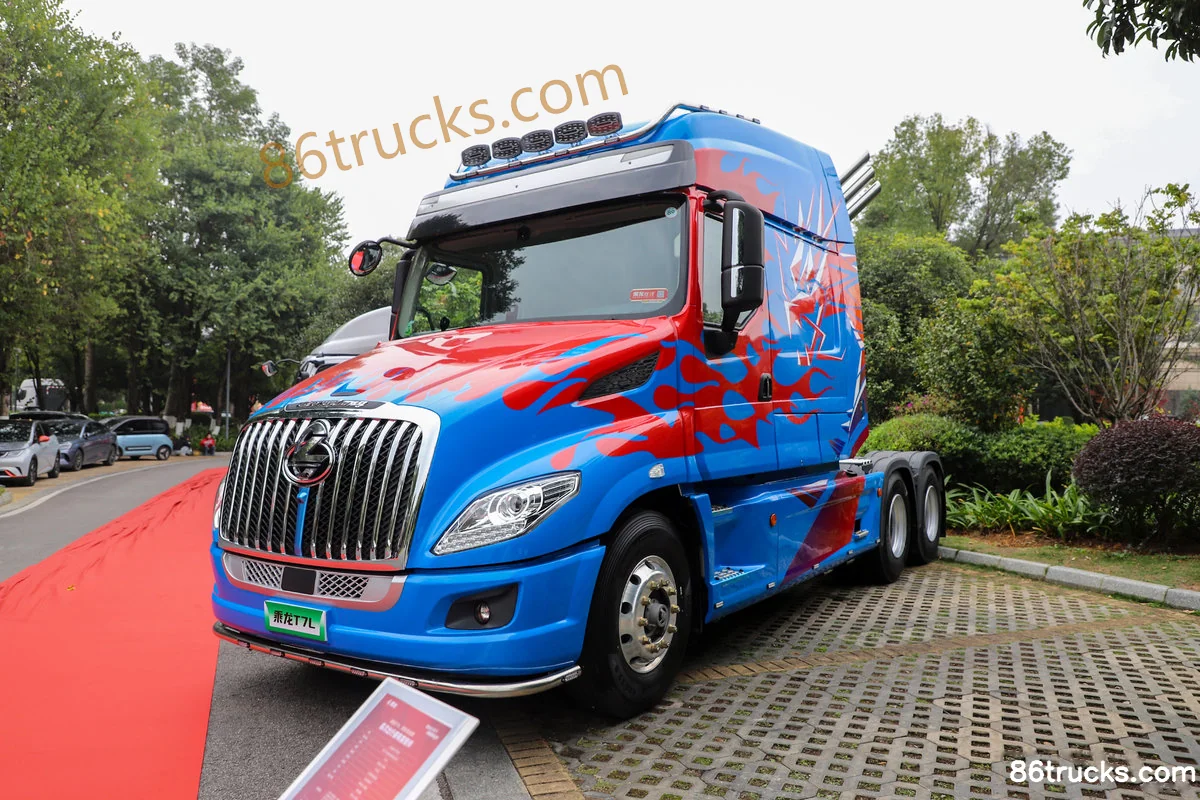

Exterior3

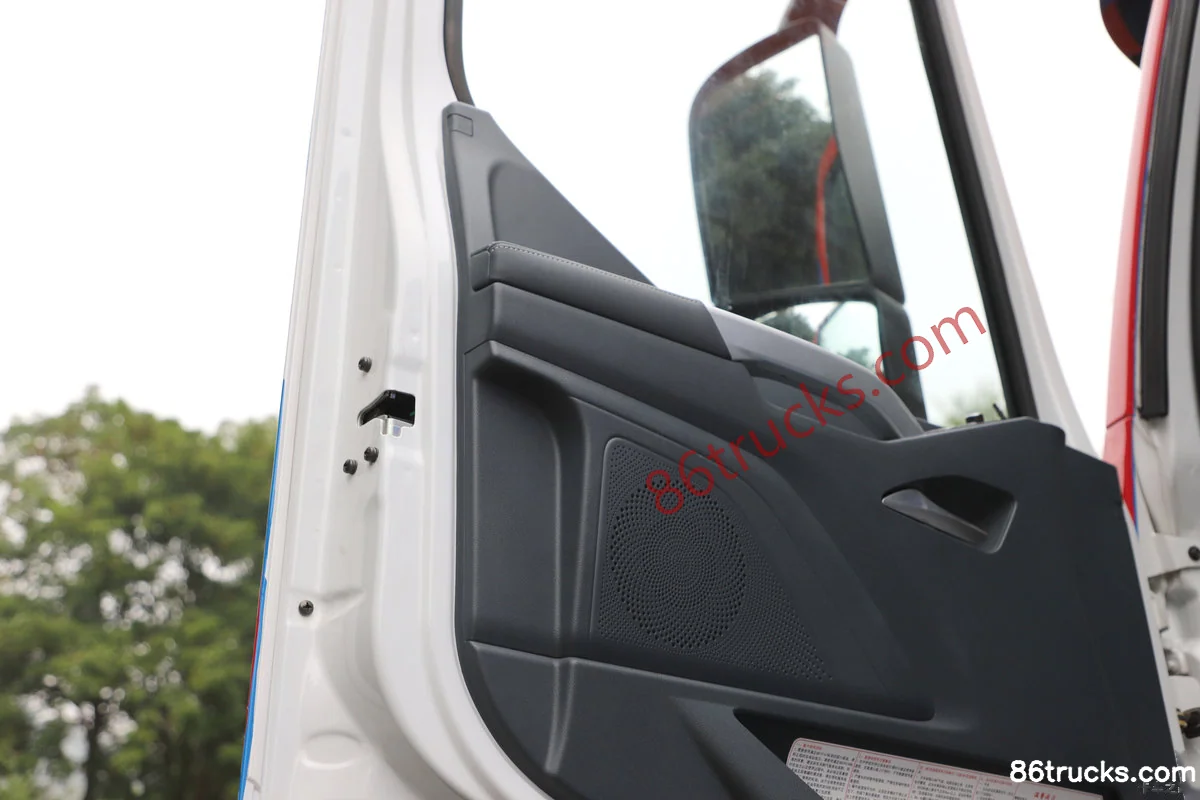

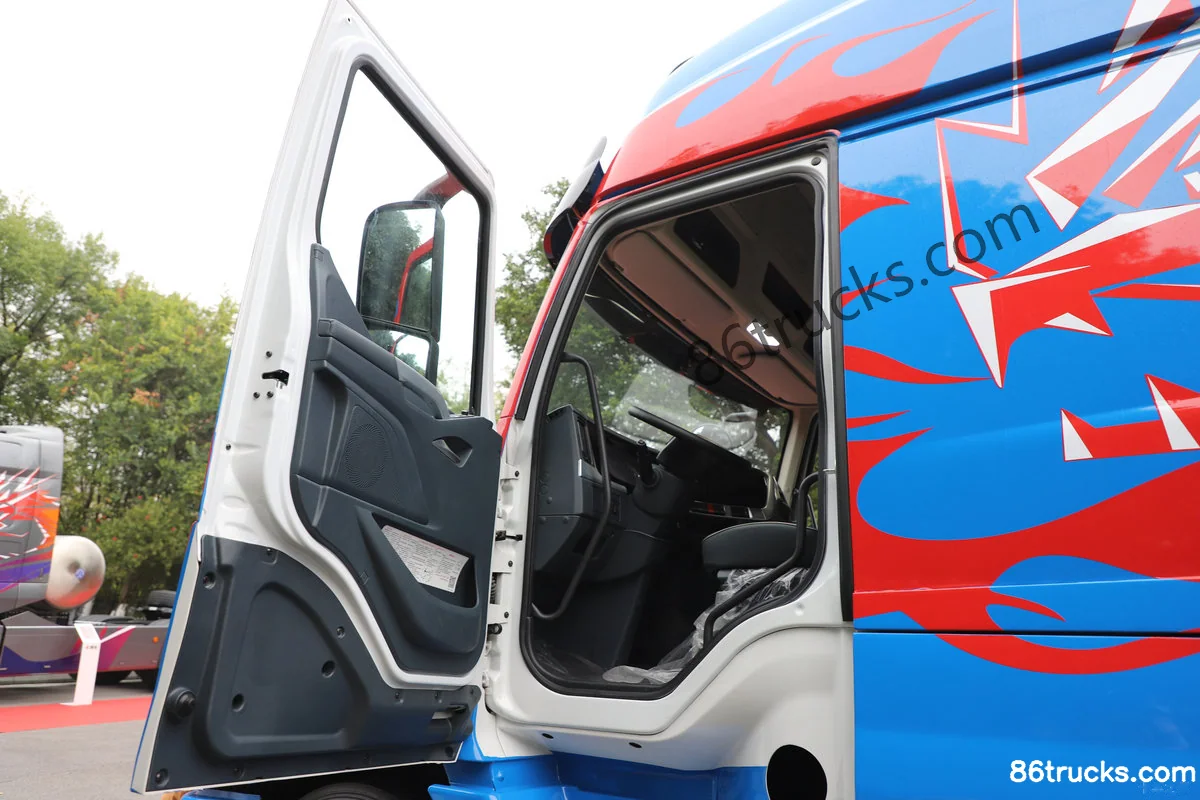

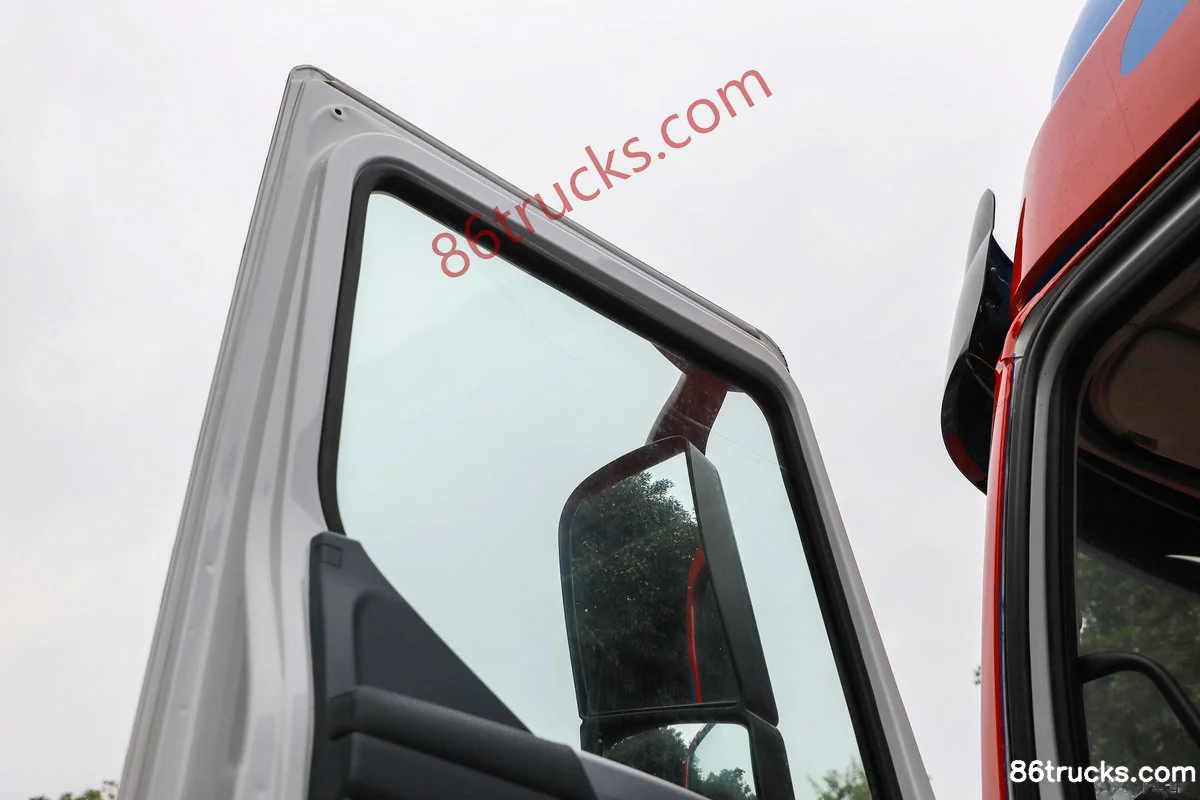

Cab3

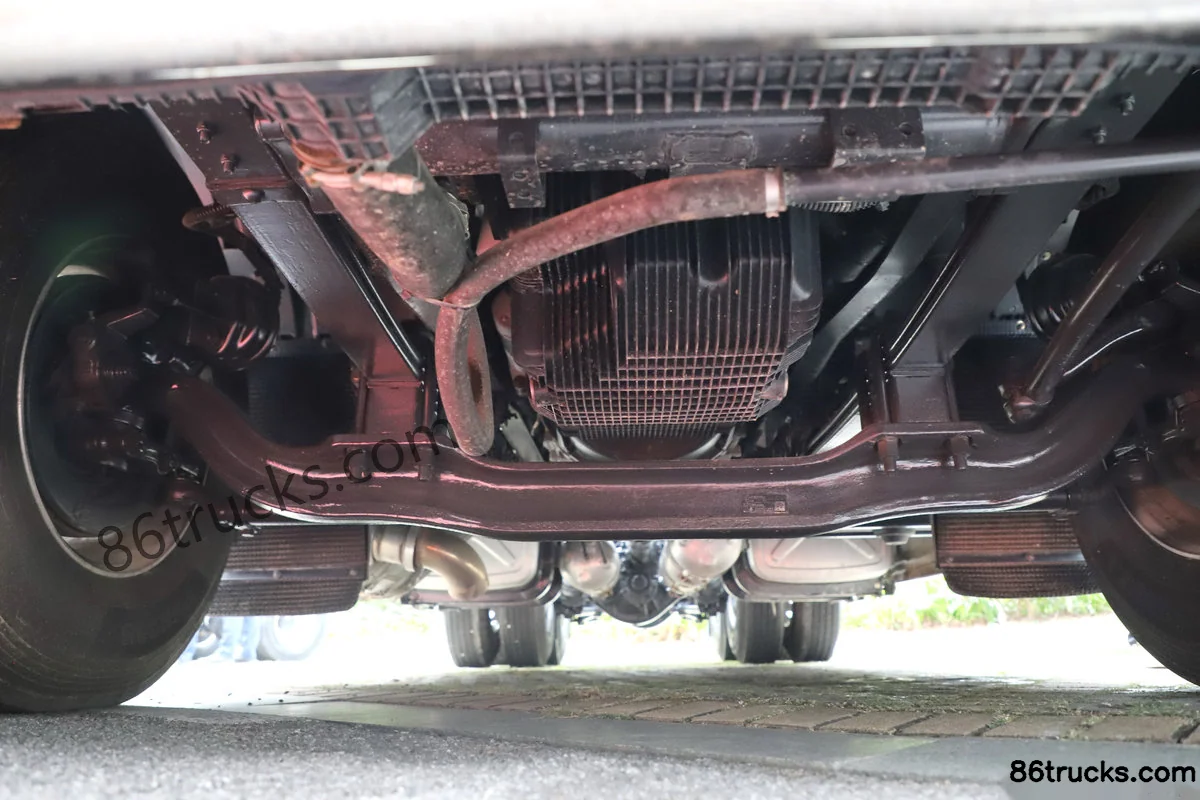

Chassis3

9 photos

FAQ

What emission standard does Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Key specs of Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck: Drive: 6x4; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck suited for?

Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck differ from other variants in the same series?

Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck belongs to Dongfeng T7L heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T7L 13.5L Diesel 520 hp 6X4(10 wheels) AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
