Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck

Export reference
From $52,139
MSRP ¥37.54M CNY
Horsepower: 520
Emission: China VI
Fuel: Diesel
Engine: Yuchai11.8L
Transmission: Fast Gear
Curb Weight:: 12.5ton
seating capacity: 2Personnel
Rated payload: 18.37ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck is a Medium-duty truck featuring 9.47m cargo length, Stake type cargo body, 2Personnel volume and 18.37t payload. On the powertrain side, it comes with a Yuchai11.8L engine, 520 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 520 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ5313CCYH7FC1
Type: stake truck
Drive type: 8X4
Wheelbase: 2050+4400+1350mm
Box length class: 9.5m
engine: YuchaiYCK12L520-66
transmission: Fast Gear12JSDX220TA-B
Rear Axle Ratio: 3.364
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.5ton
Rated payload: 18.37ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 11°
Front/rear suspension: 1.525/2675m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCK12L520-66
Engine info: Yuchai11.8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.76L
Emission standard: China VI
Max output power: 382kW
Max hp: 520Horsepower
Max torque: 2400N·m
Transmission Parameters
Transmission Model: 12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.47m
Cargo box width: 2.46m
Cab parameters
Cab: H7 Pro (rear bulge 80)
Cab suspension: Four-point air suspension
Cab width: 2500mm
seating capacity: 2Personnel
Cab tilting: Electro-hydraulic
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Lower Bunk Width: 100mm
fuel tank
Fuel tank capacity: 800L
Chassis Specs
Front axle description: 2*5.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 282(8)mm
rear axle description: 2*400
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.364
Leaf spring count: 3/3/4
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

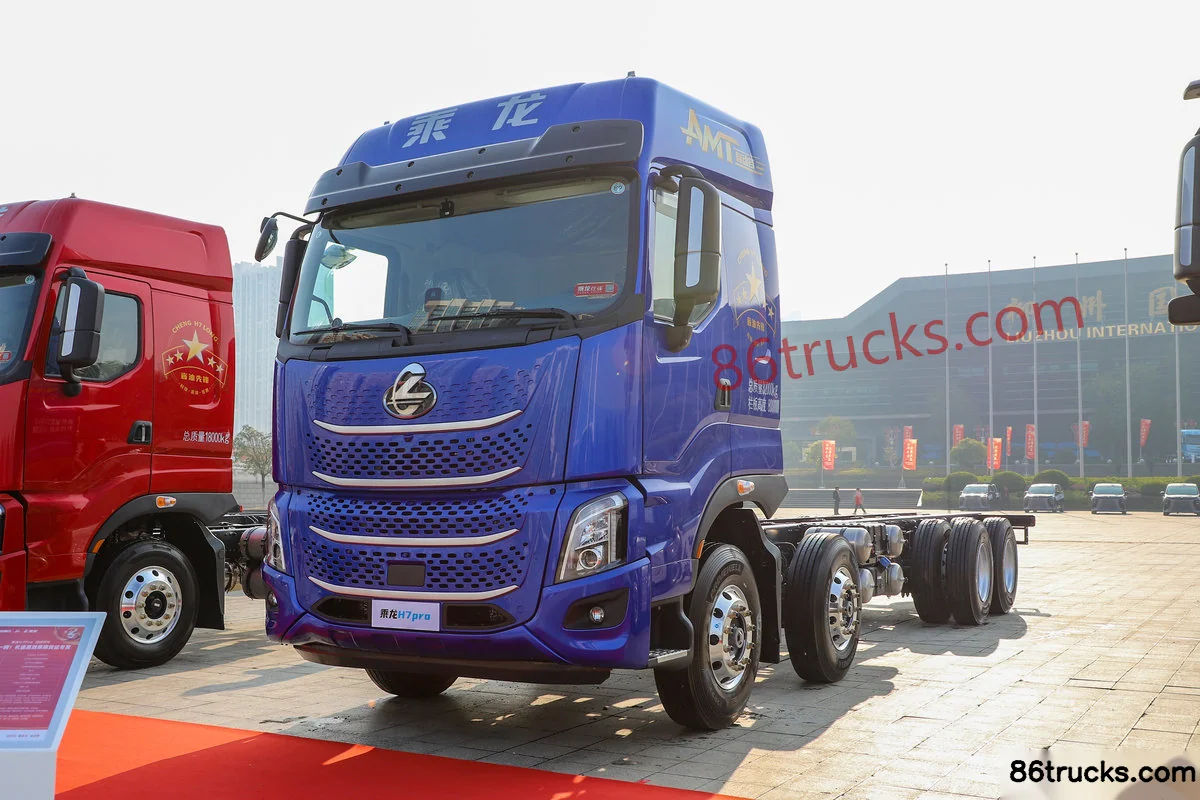

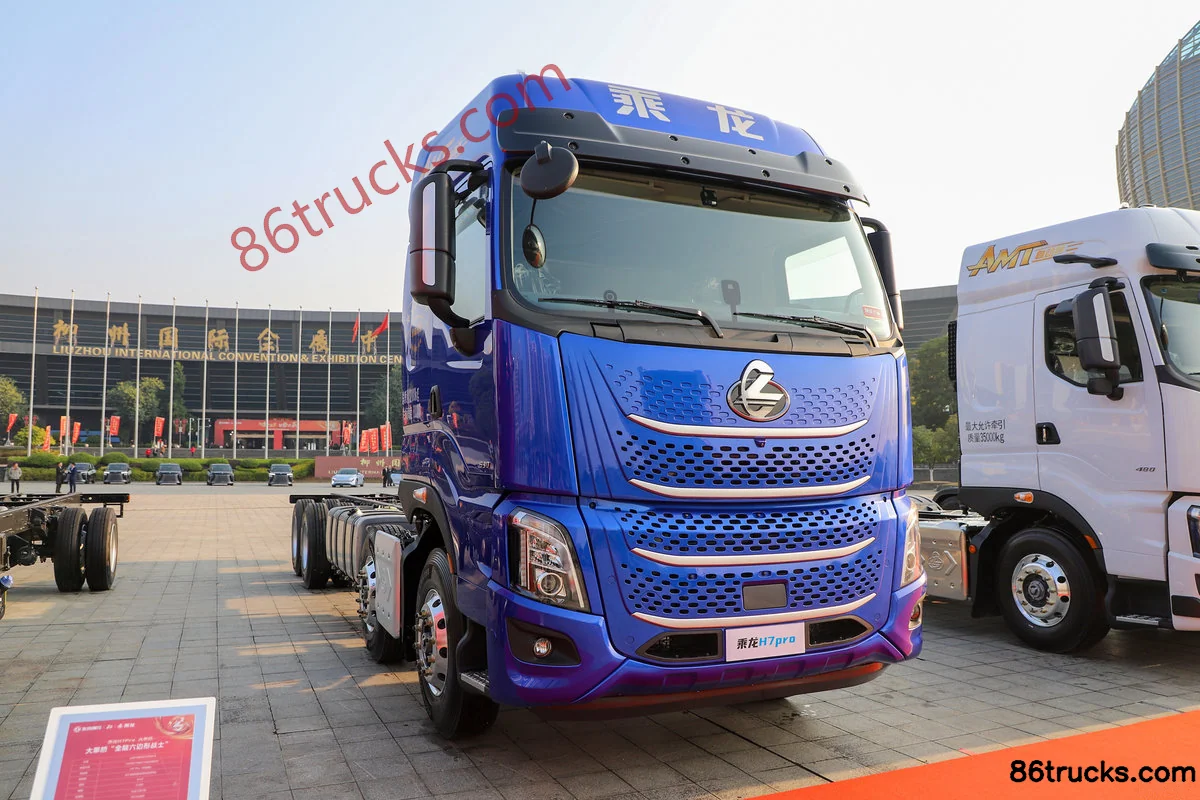

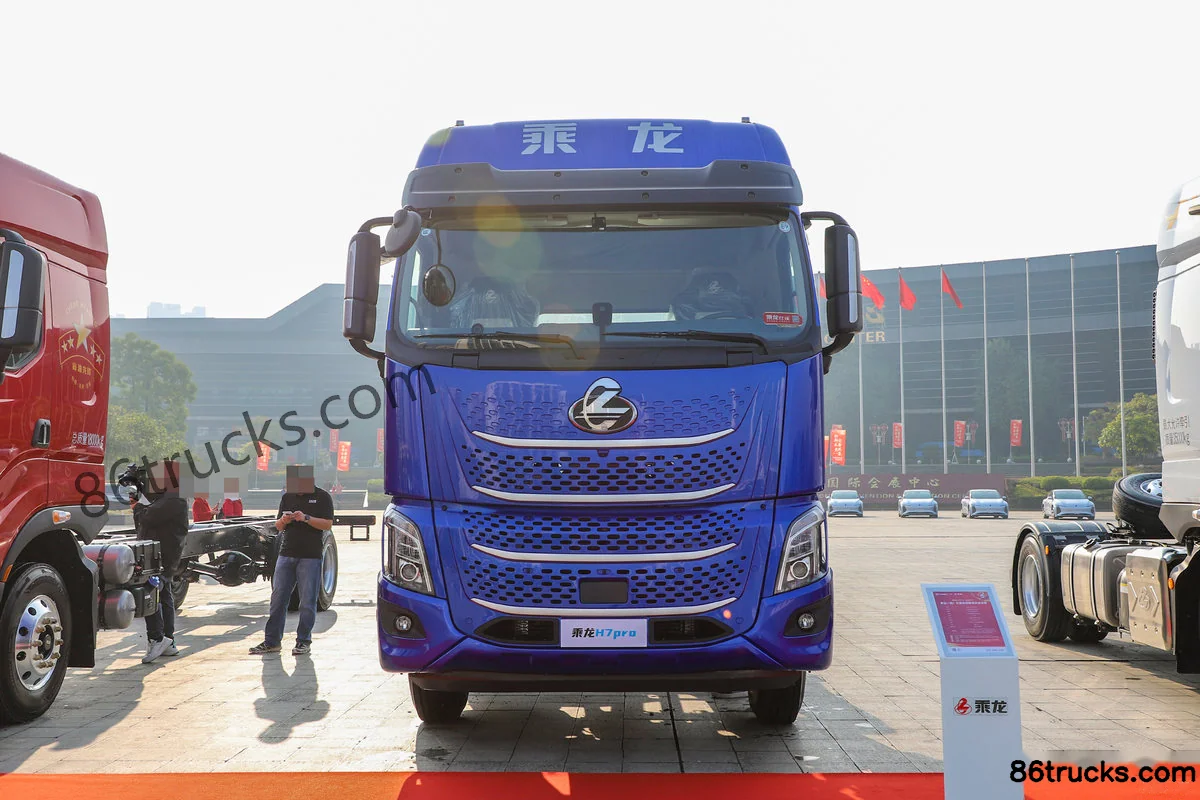

Exterior3

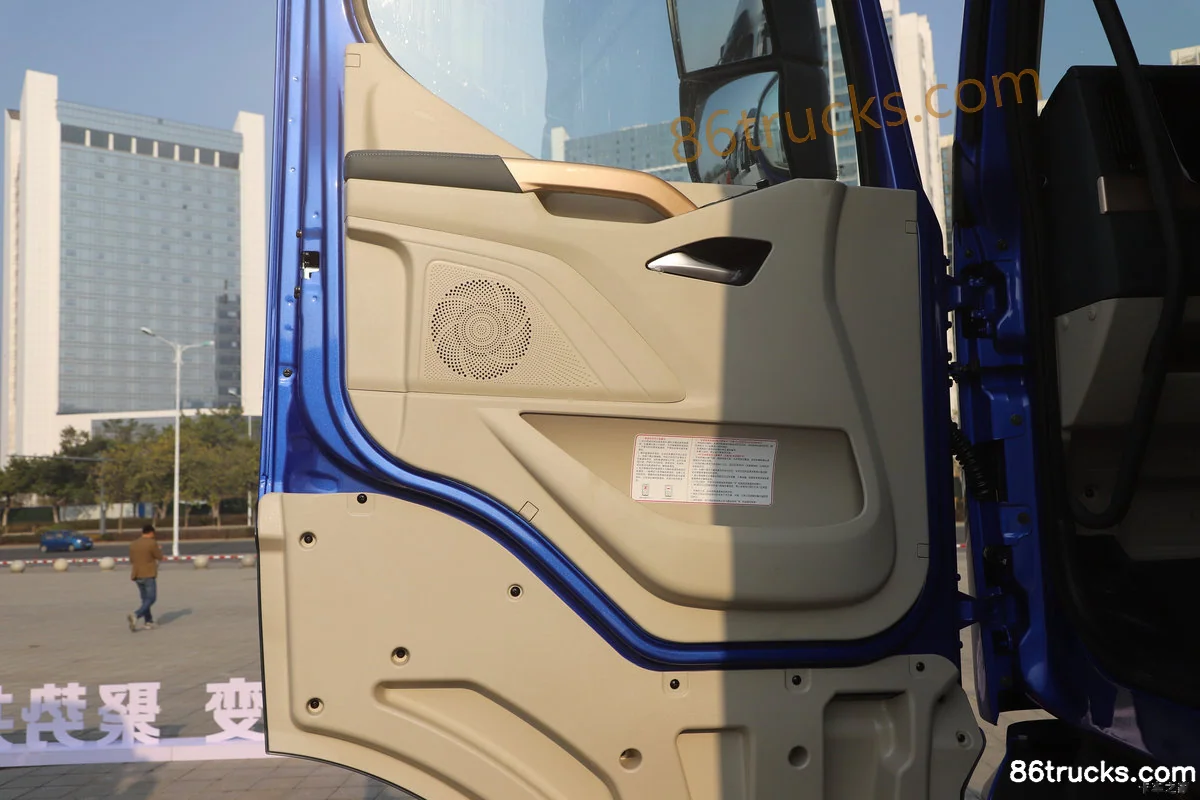

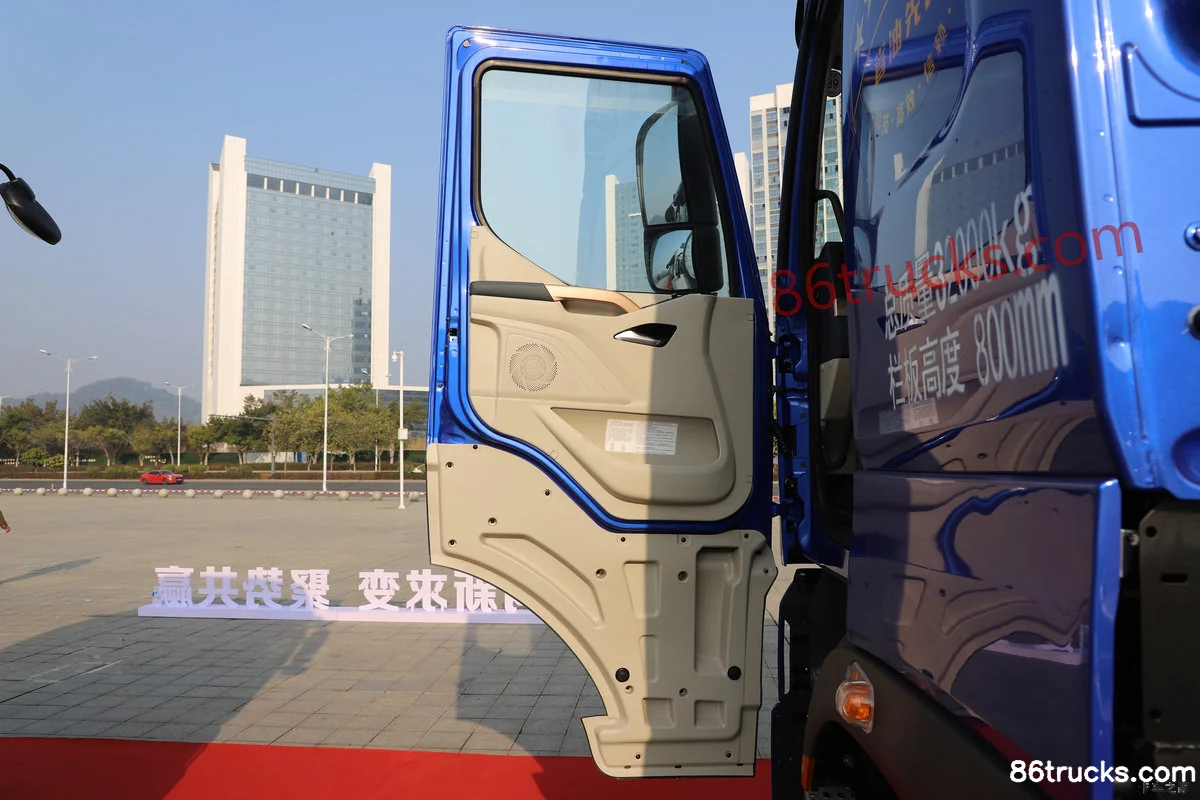

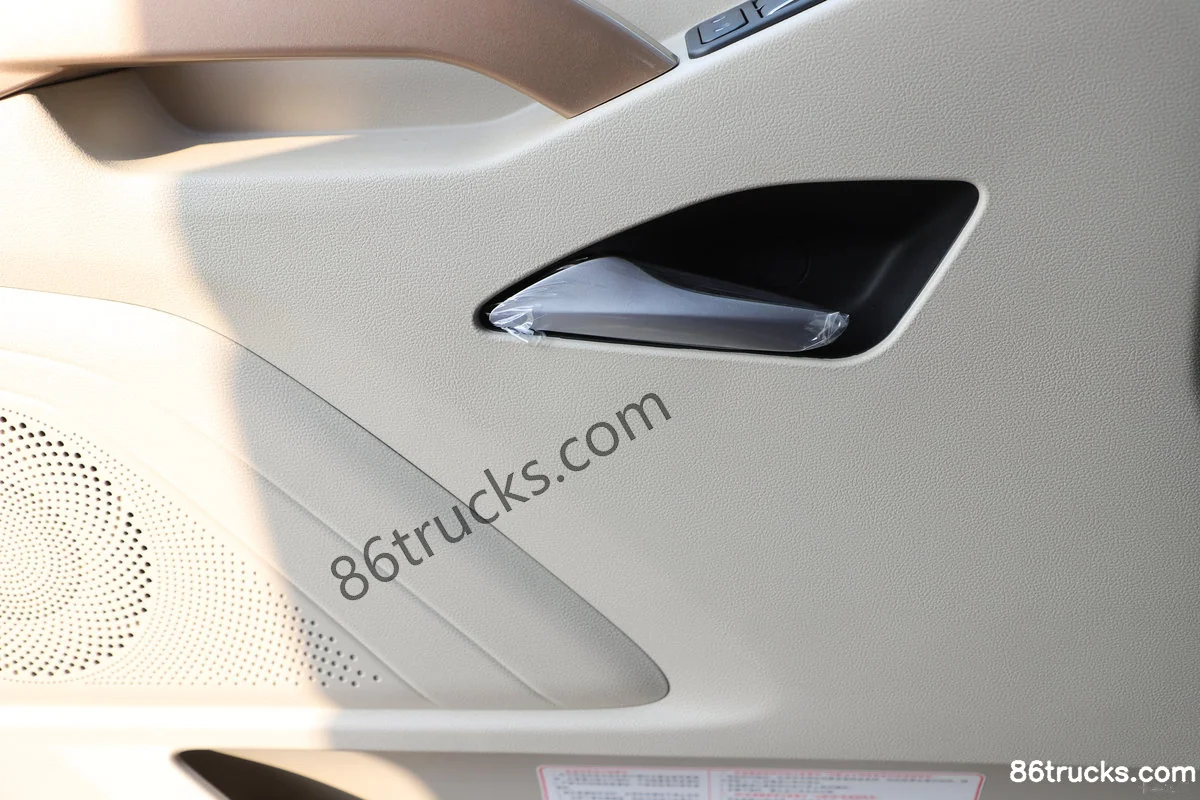

Cab3

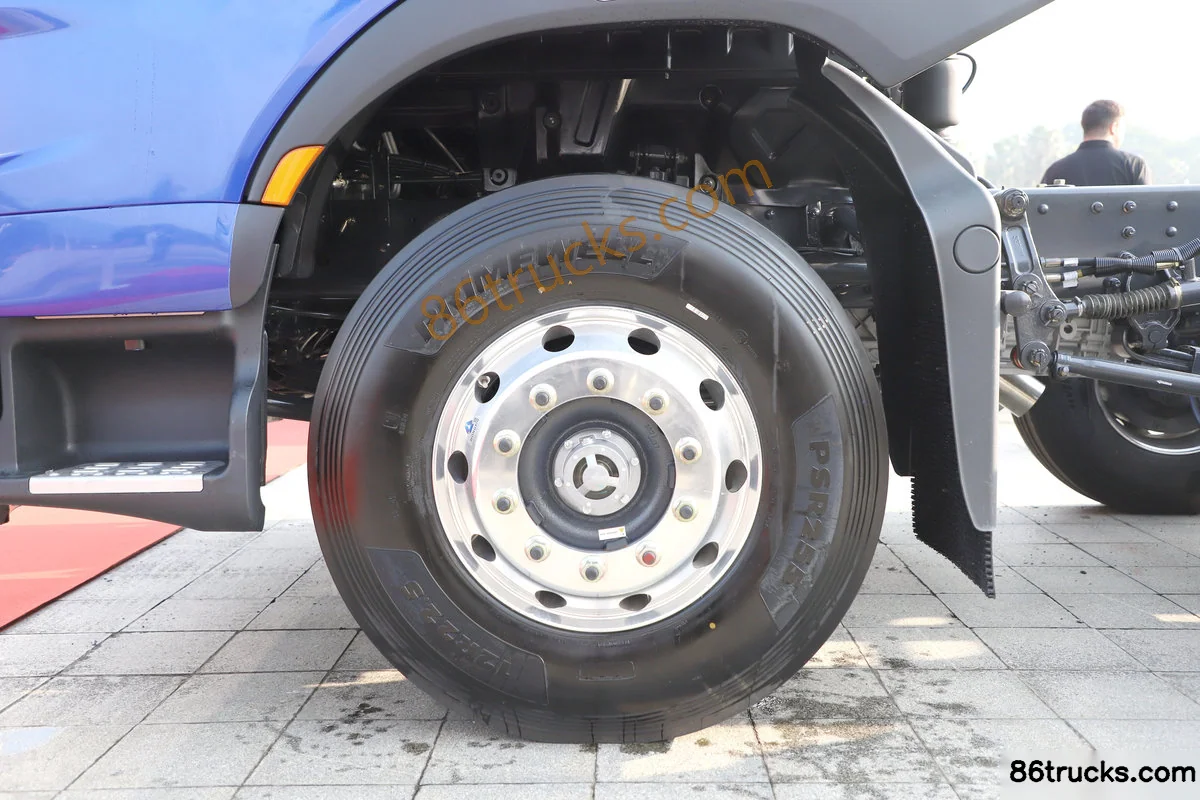

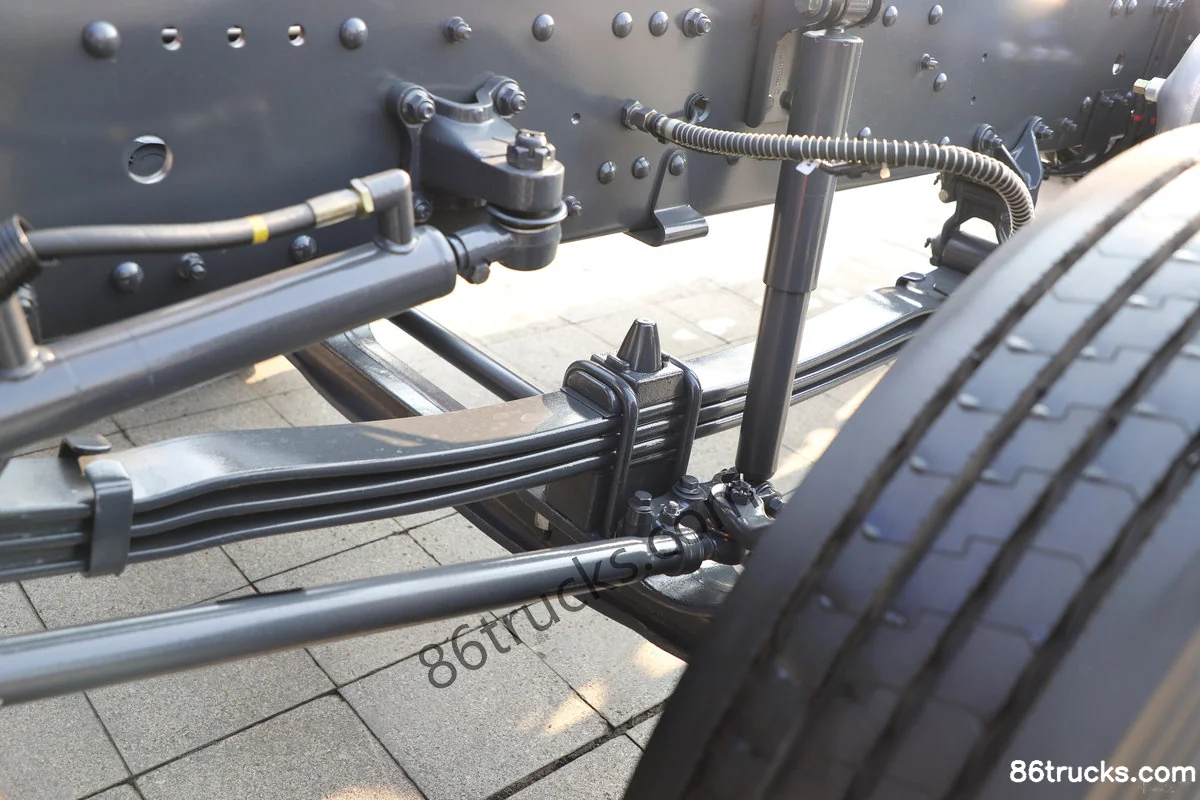

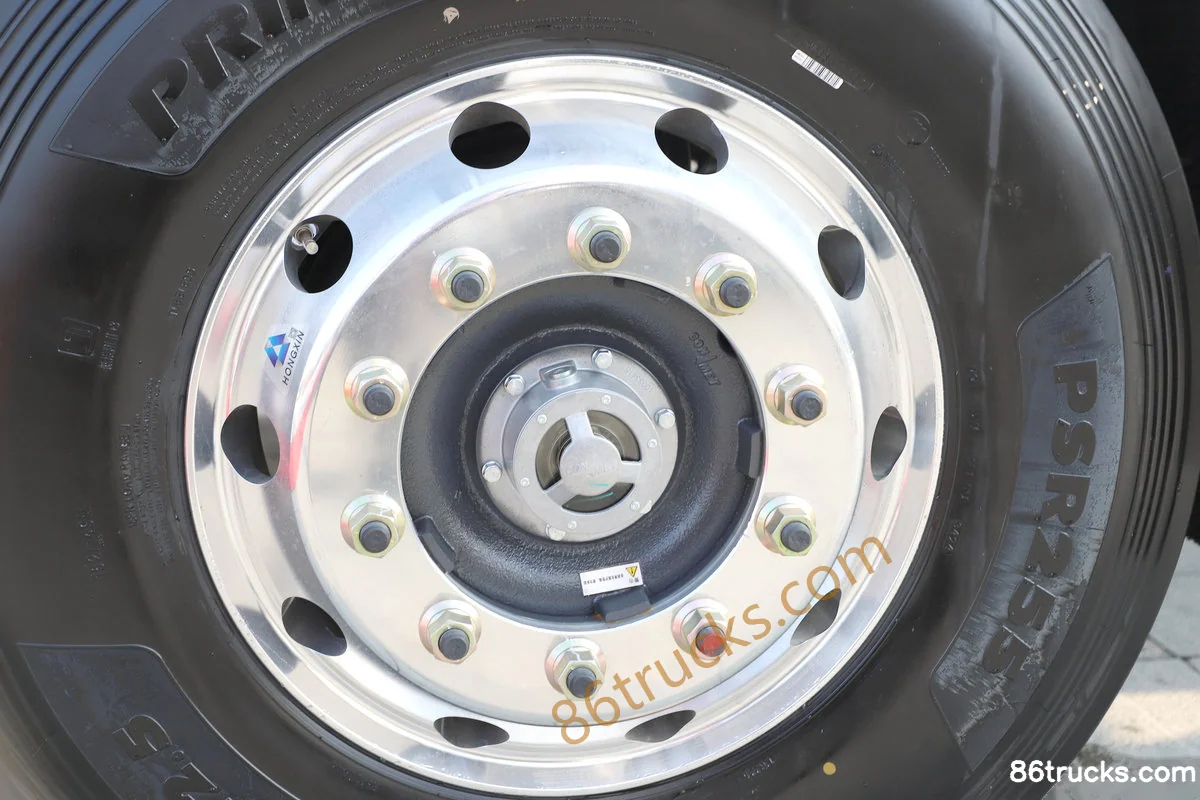

Chassis3

9 photos

FAQ

What is the export price of Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck, and what does it include?

Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck export reference is about From $52,139; MSRP is ¥37.54M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck?

Key specs of Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck: Drive: 8x4; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai11.8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck suited for?

Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck differ from other variants in the same series?

Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck belongs to Dongfeng Chenglong H7 pro heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H7 Pro 11.8L Diesel 520 hp 8X4(12 wheels) Fast Gear 12-speed 9.47m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
