DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 4550+1350mm
Model code (announced):: HFC4259SEV05
Front/rear track width:: Front track: 2090mm; Rear track: 1866/1866mm
Cab length:: 7.975m
GVWR:: 25ton

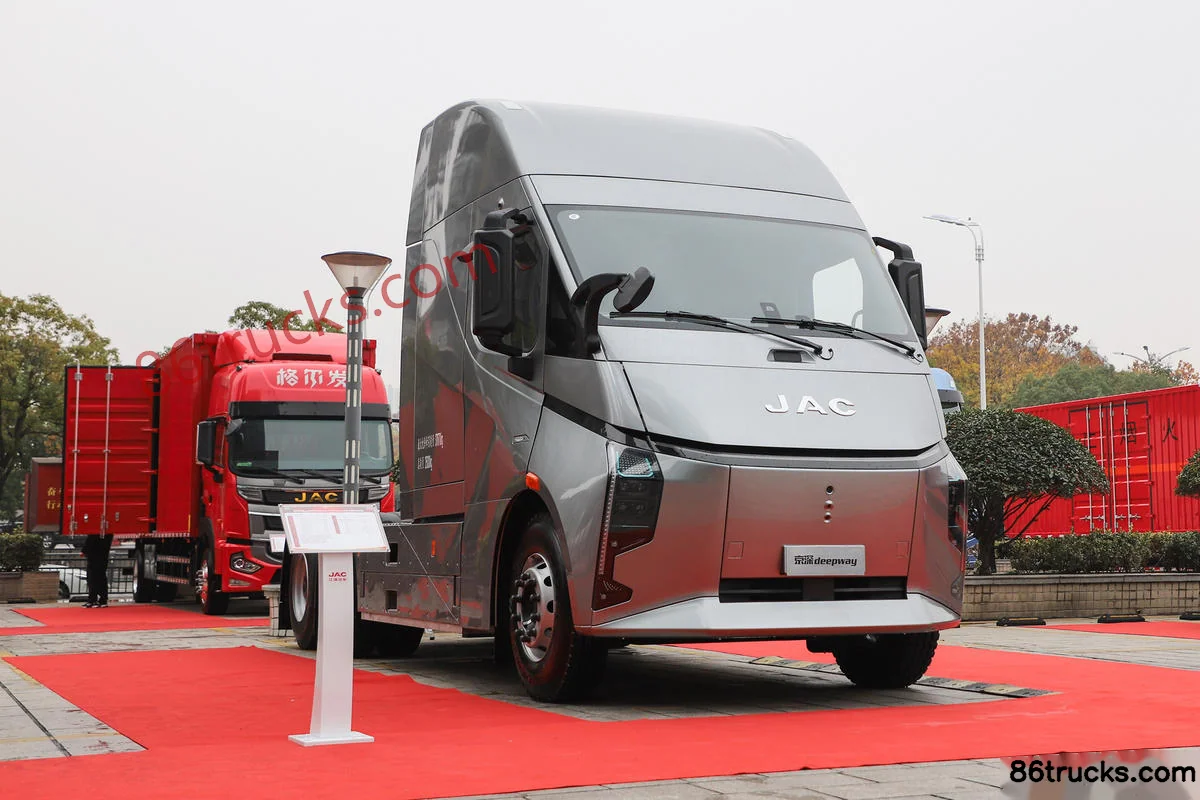

DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh exterior
View more photos (1)
Drive 6X4 (10 wheels)
battery swap support: Battery swap
Motor 1 Brand: Lv Kong
Gross Trailer Weight: 37.535ton

Overview

The DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh is a Heavy truck featuring Battery swap battery/range, Lv Kong motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC4259SEV05
Drive type: 6X4
Wheelbase: 4550+1350mm
Front/rear track width: Front track: 2090mm; Rear track: 1866/1866mm
Cab length: 7.975m
Cab width: 2.55m
Cab height: 3.95m
Gross Trailer Weight: 37.535ton
Curb Weight: 11.4ton
GVWR: 25ton
Max. speed: 89km/h
battery swap support: Battery swap
Origin: Hefei, Anhui
tonnage class: Heavy truck
Version: composite version
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ270XS-LKM0591
Motor Type: Permanent magnet synchronous motor
total rated power: 164kW
Peak power: 310kW
total rated torque: 280N·m
Motor 1 Peak Power: 310kW
Number of drive motors: Single motor
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 513kWh
Cab parameters
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5.6T
Front axle allowable load: 7000kg
rear axle description: 13T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.478
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Aluminum air tank:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):

Photos

Exterior1

DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh Exterior (1) | 86Trucks

1 photos

FAQ

What are the key specs of DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Key specs of DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh suited for?

DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh differ from other variants in the same series?

DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh belongs to DeepWay Deep Sky Electric Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export DeepWay Deepway Star Composite Version 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
