Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 8.8ton
Wheelbase:: 1800+4300+1350mm
seating capacity: 2Personnel
Drive 8X2 (10 wheels)
Cargo box type: Chassis
Horsepower 280

Overview

The Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, High roof cab and 1800+4300+1350mm wheelbase. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 8X2 (10 wheels) drive and China V emissions.

China V 280 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1315N46G3E1
Type: Chassis
Drive type: 8X2
Wheelbase: 1800+4300+1350mm
engine: SinotrukMC07.28-50
transmission: SinotrukHW13710L
Rear Axle Ratio: 4.11
Cab length: 11.625m
Cab width: 2.496m
Cab height: 3.55m
Front track width: 1950/1950mm
rear track: 1830/1830mm
Curb Weight: 8.8ton
GVWR: 31ton
Max. speed: 79km/h
Origin: Jining, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 18°
Front/rear suspension: 1.55/2.625m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710L
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: High roof
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: VPD060QB
Front axle allowable load: 6000/7000/7000kg
rear axle description: MCY11
rear axle allowable load: 11000kg
Axle ratio: 4.11
Leaf spring count: 9/9/-/9+6
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration

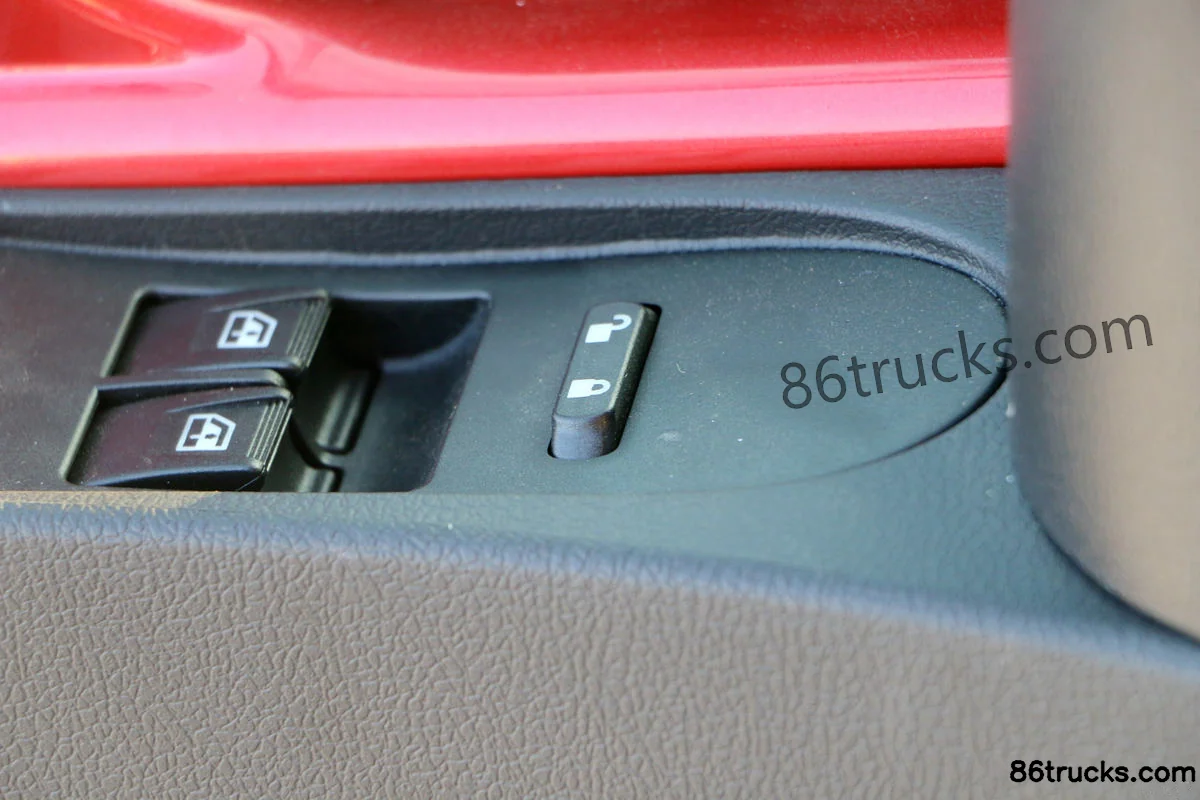

Electronic Central Lock:

Photos

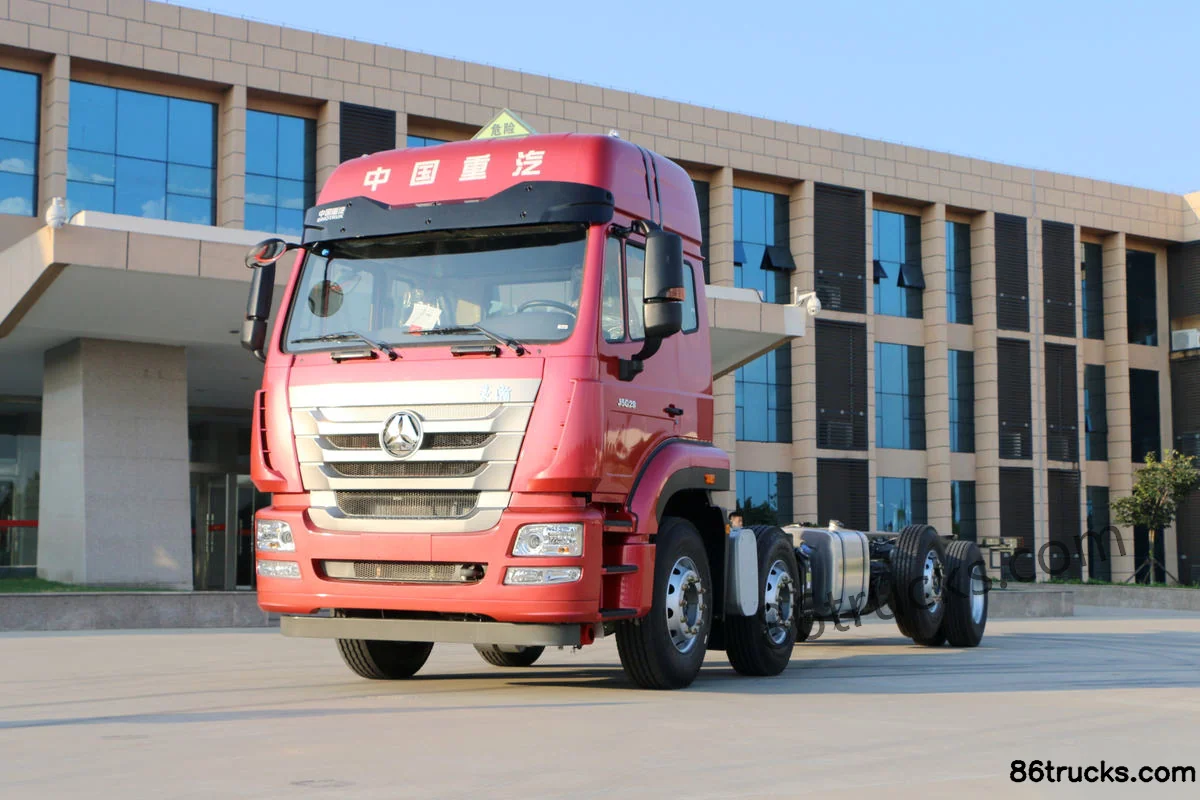

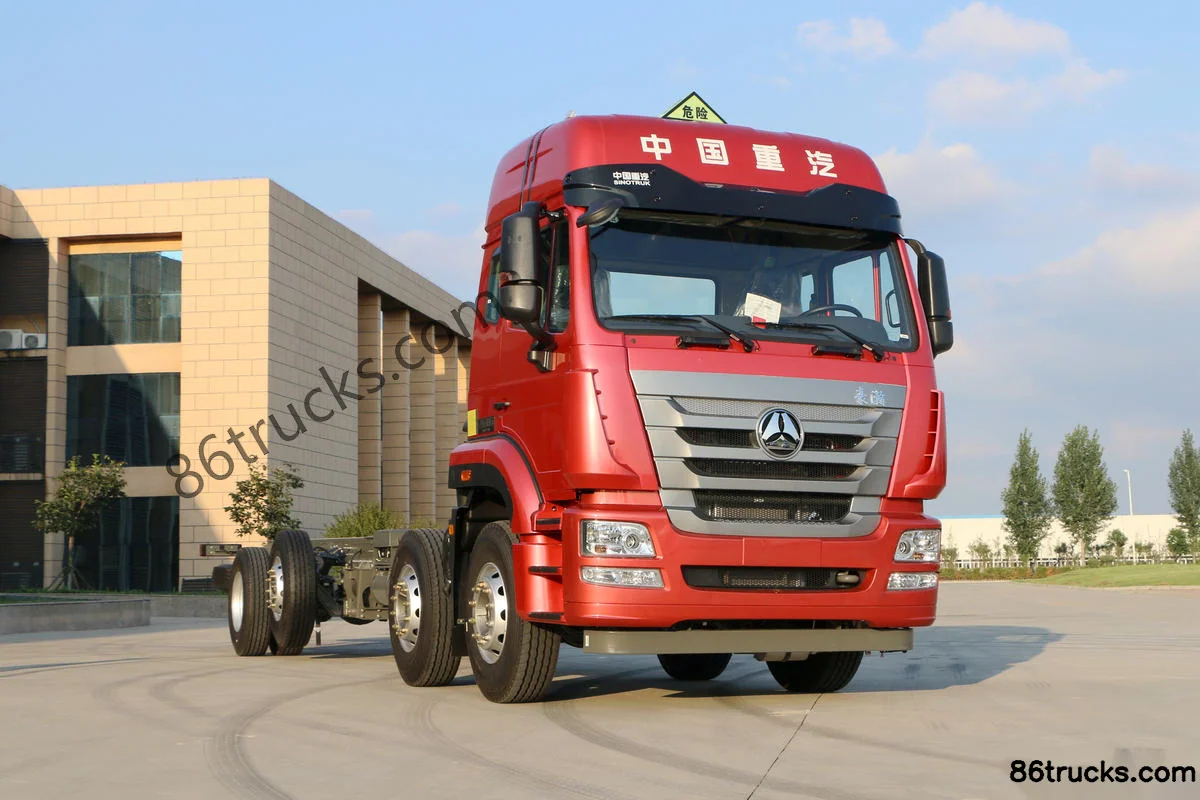

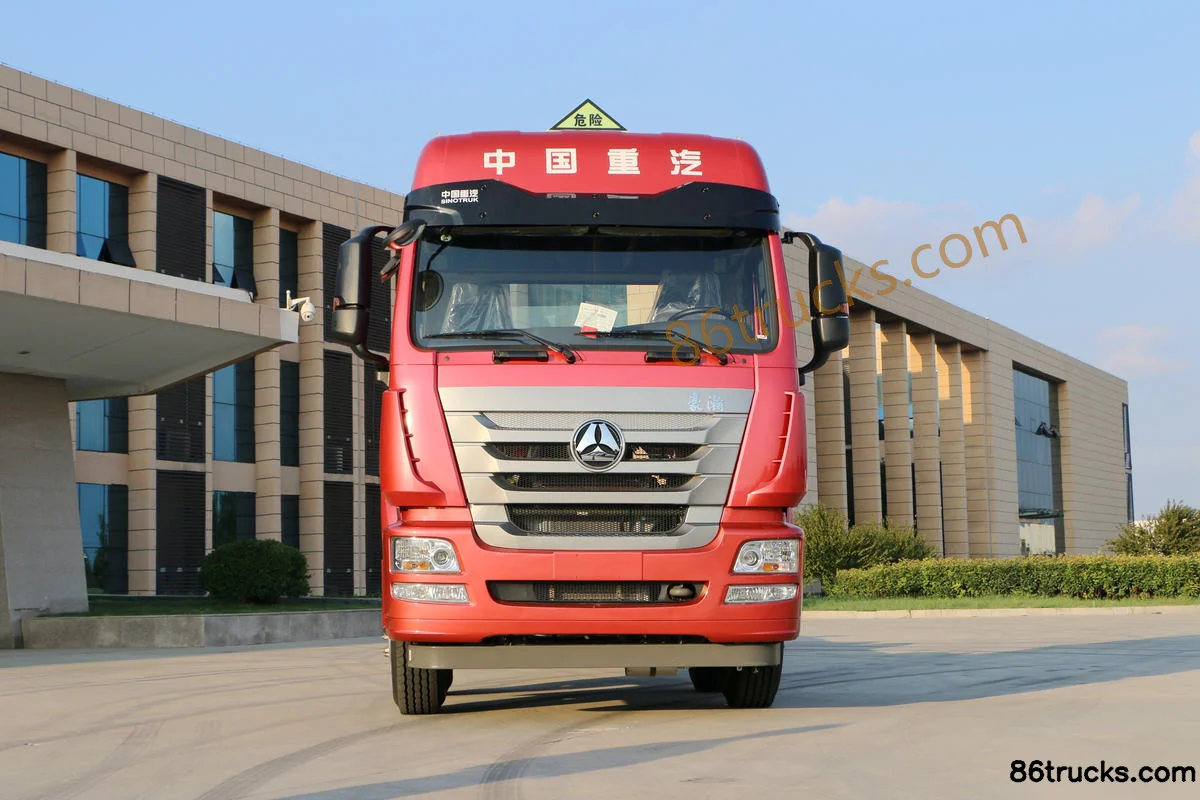

Exterior3

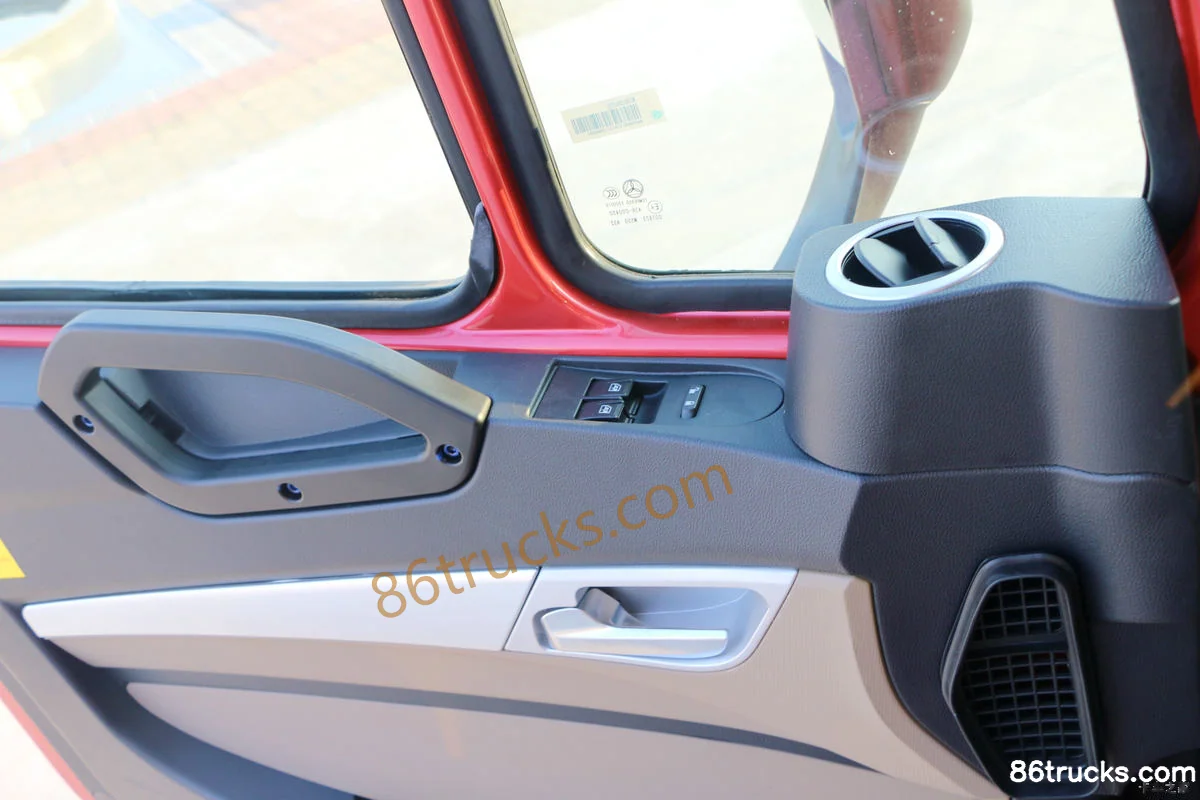

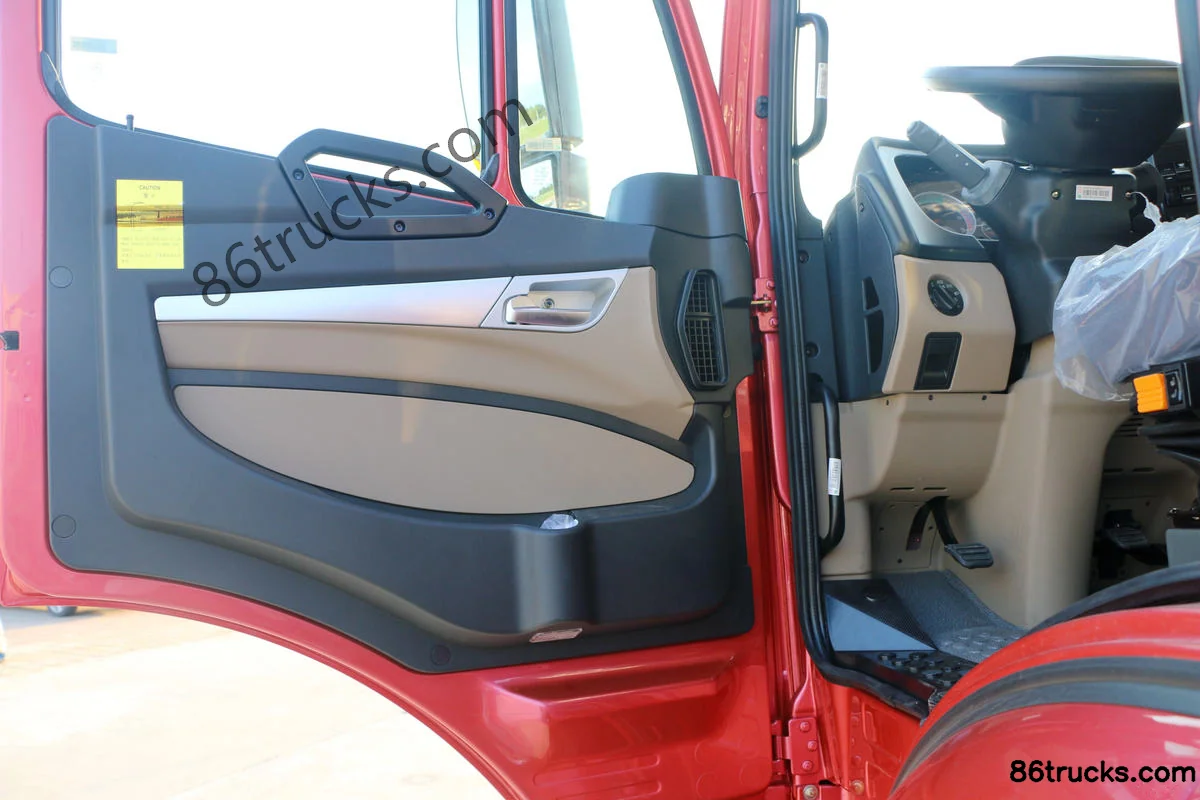

Cab3

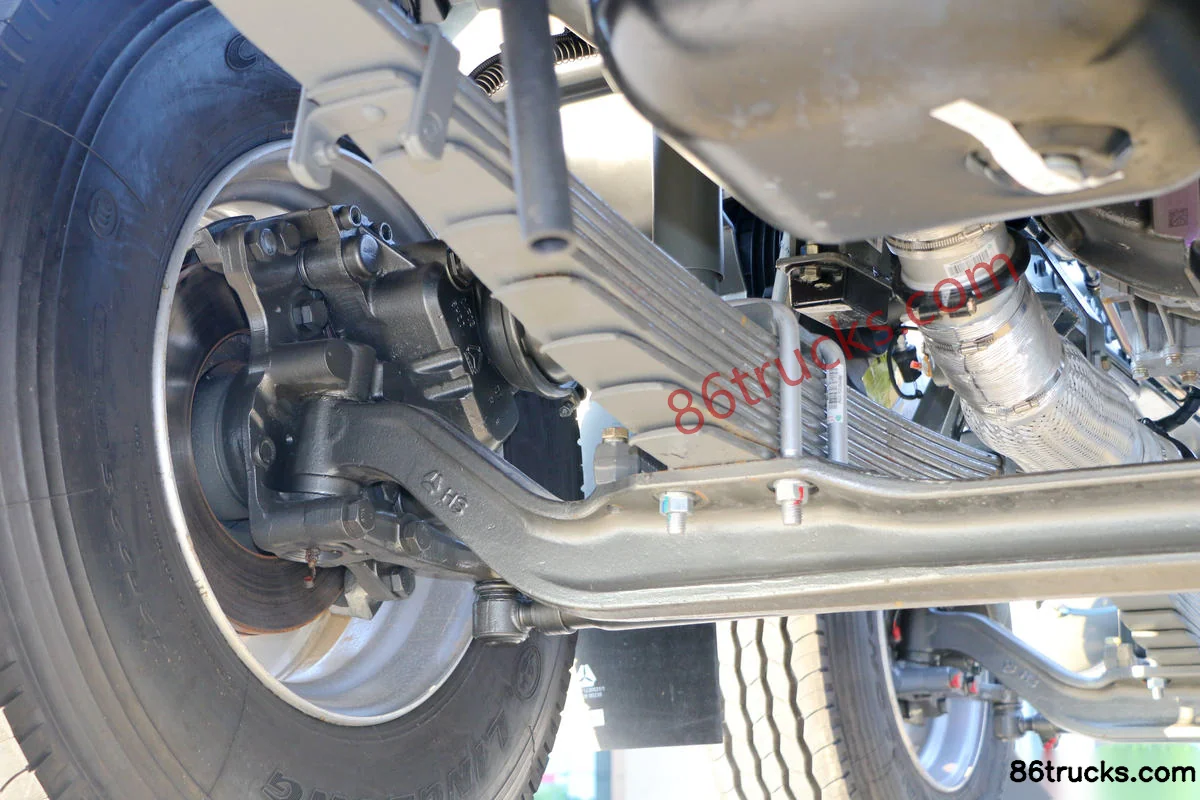

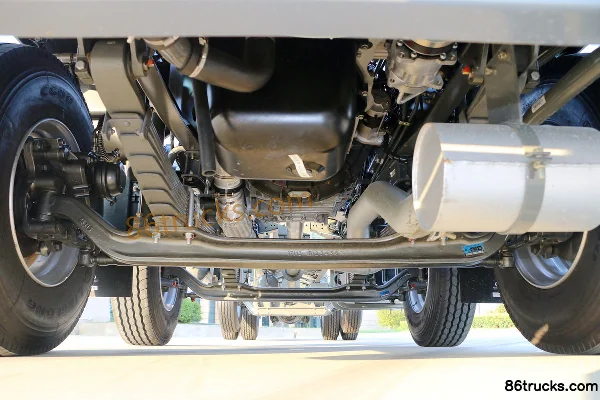

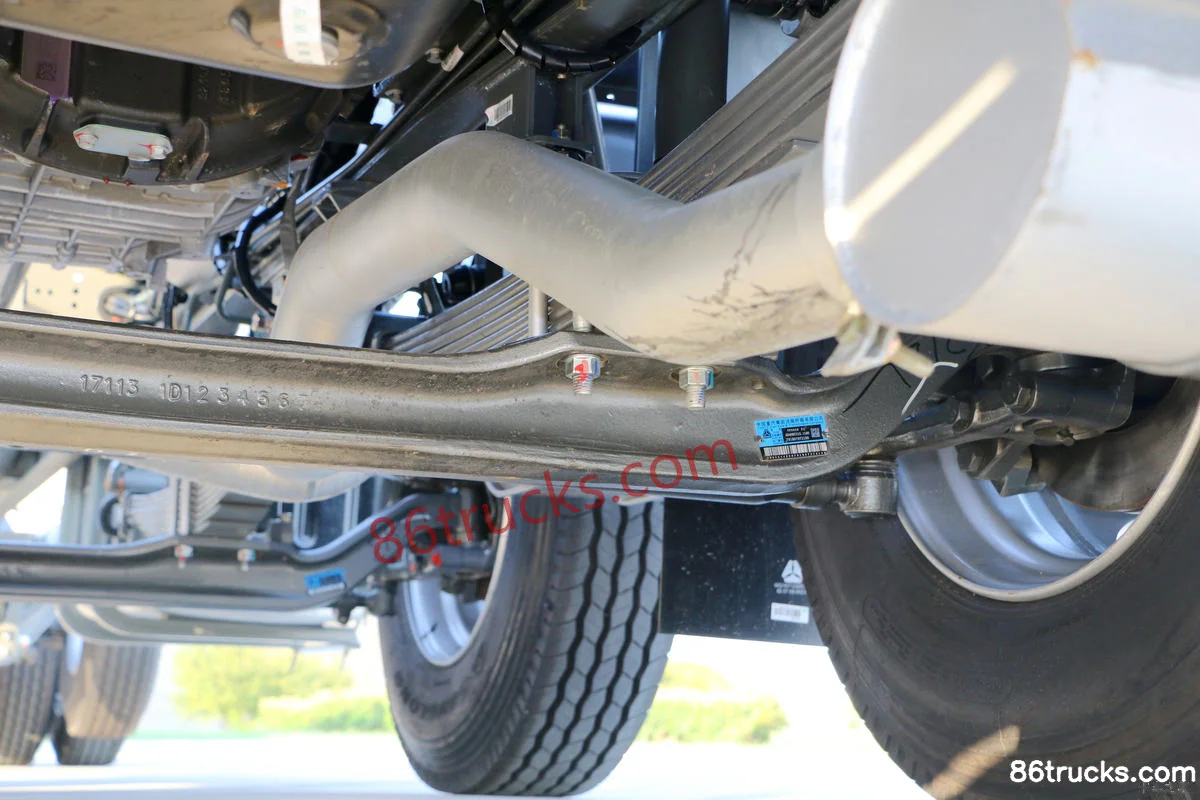

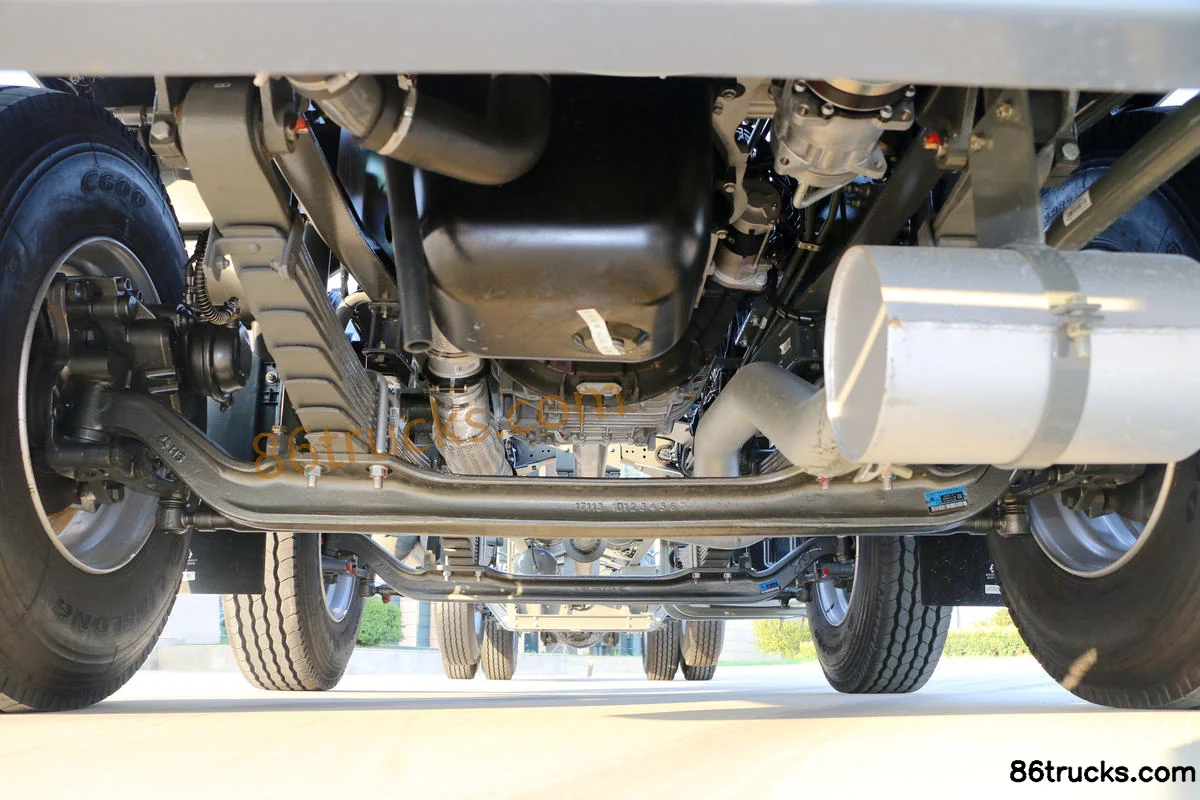

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis?

Key specs of Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis: Drive: 8x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis suited for?

Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis differ from other variants in the same series?

Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis belongs to Sinotruk J5G Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G Heavy Truck 280 hp 8X2(10 wheels) Dangerous Goods Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
