Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh

Export reference
From $64,583
MSRP ¥46.5M CNY
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: LZ4250H5DZBEV3
Front/rear track width:: Front track: 2040mm; Rear track: 1860/1860mm
Cab length:: 7.39m
GVWR:: 25ton
Drive 6X4 (10 wheels)
battery swap support: Charging
Motor 1 Brand: Fast Gear
Gross Trailer Weight: 39.17ton

Overview

The Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh is a Heavy truck featuring Charging battery/range, Fast Gear motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4250H5DZBEV3
Drive type: 6X4
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860mm
Wheelbase: 3800+1350mm
Cab length: 7.39m
Cab width: 2.525m
Cab height: 3.19m
Gross Trailer Weight: 39.17ton
Curb Weight: 9.7ton
GVWR: 25ton
Max. speed: 89km/h
battery swap support: Charging
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Battery side-mounted
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ368XSSF-SZF601
Motor Type: Permanent magnet synchronous motor
total rated power: 263kW
Peak power: 410kW
Motor 1 Peak Power: 410kW
Number of drive motors: Single motor
Battery/Charging
Battery Brand: CATL
Charging method: Dual-gun 500A
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Transmission Parameters
Transmission Model: Fast GearFS4E-200
shift method: AMT manual/auto
Forward gears: 4Gear
Cab parameters
Cab: H50W
seating capacity: 2Personnel
Chassis Specs
Front axle description: 153 reinforced
Front axle allowable load: 7000kg
Fifth wheel: 50#
rear axle description: 2*400
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Tire Type: Front wheel reinforced, rear wheel lightweight steel rim
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Exterior features
Aluminum air tank:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

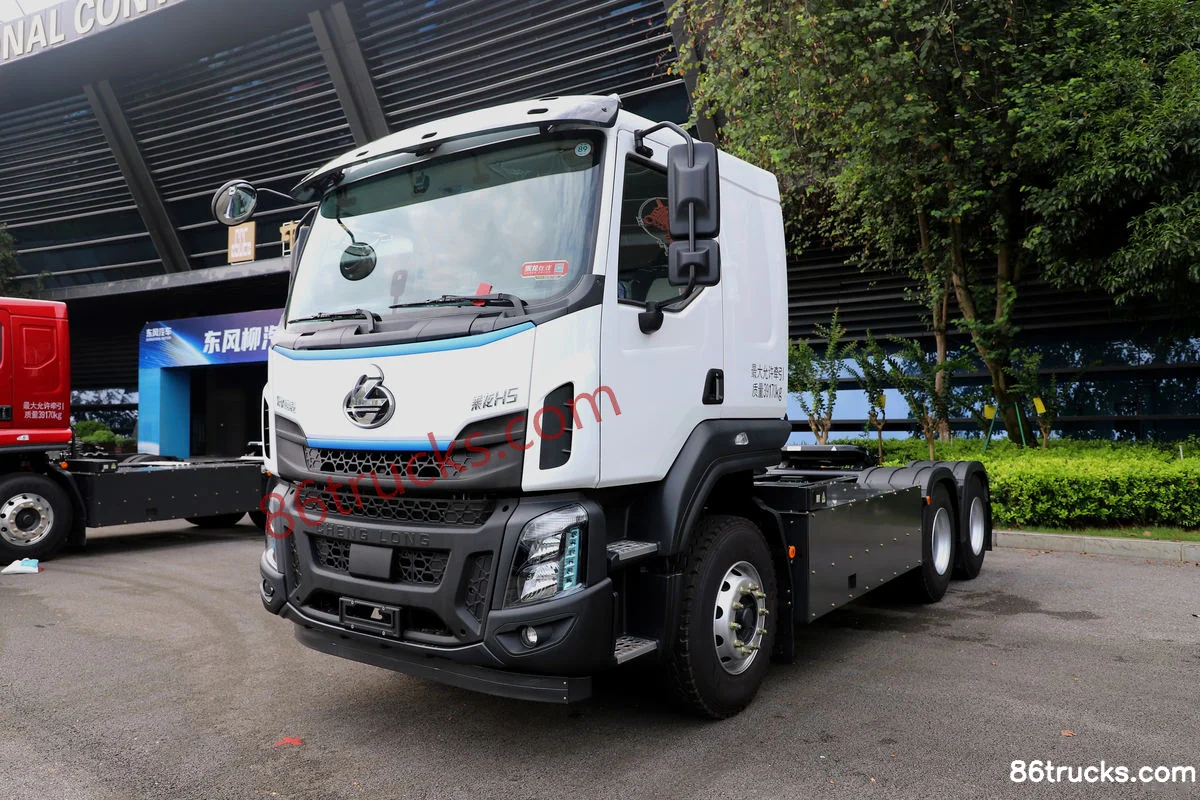

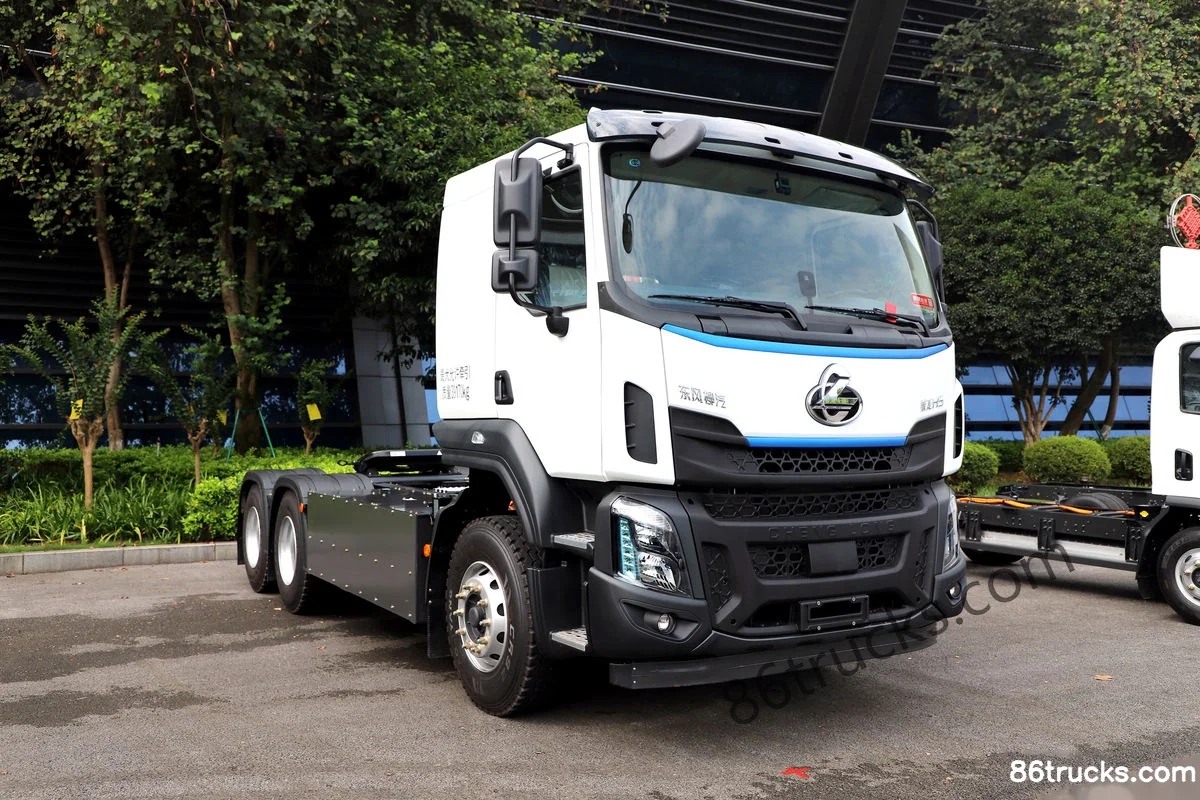

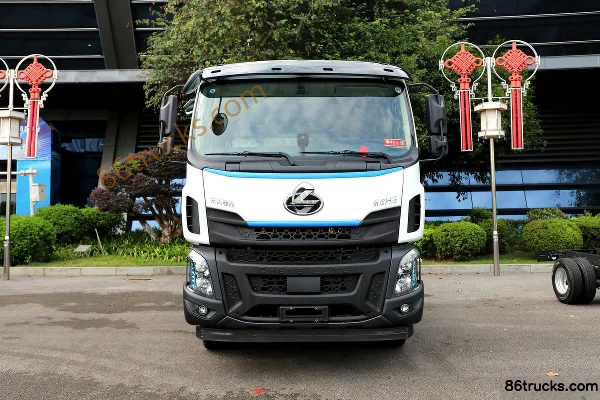

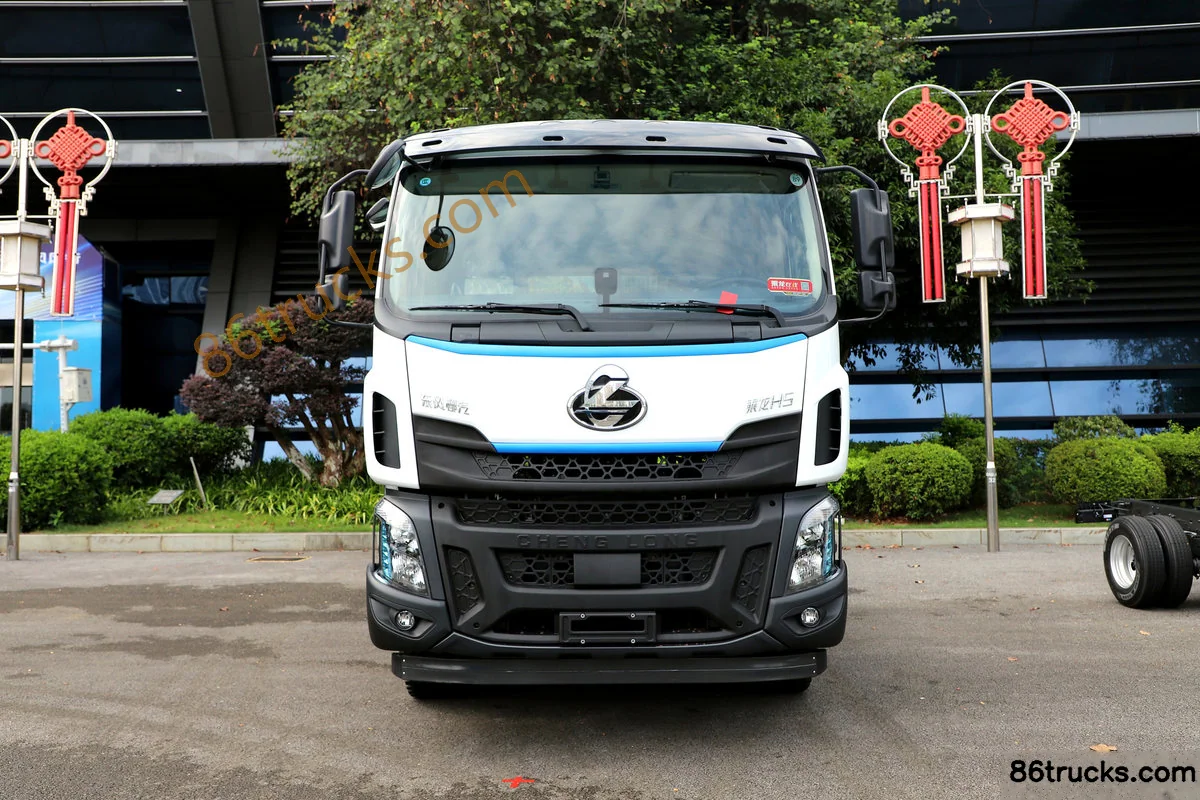

Exterior3

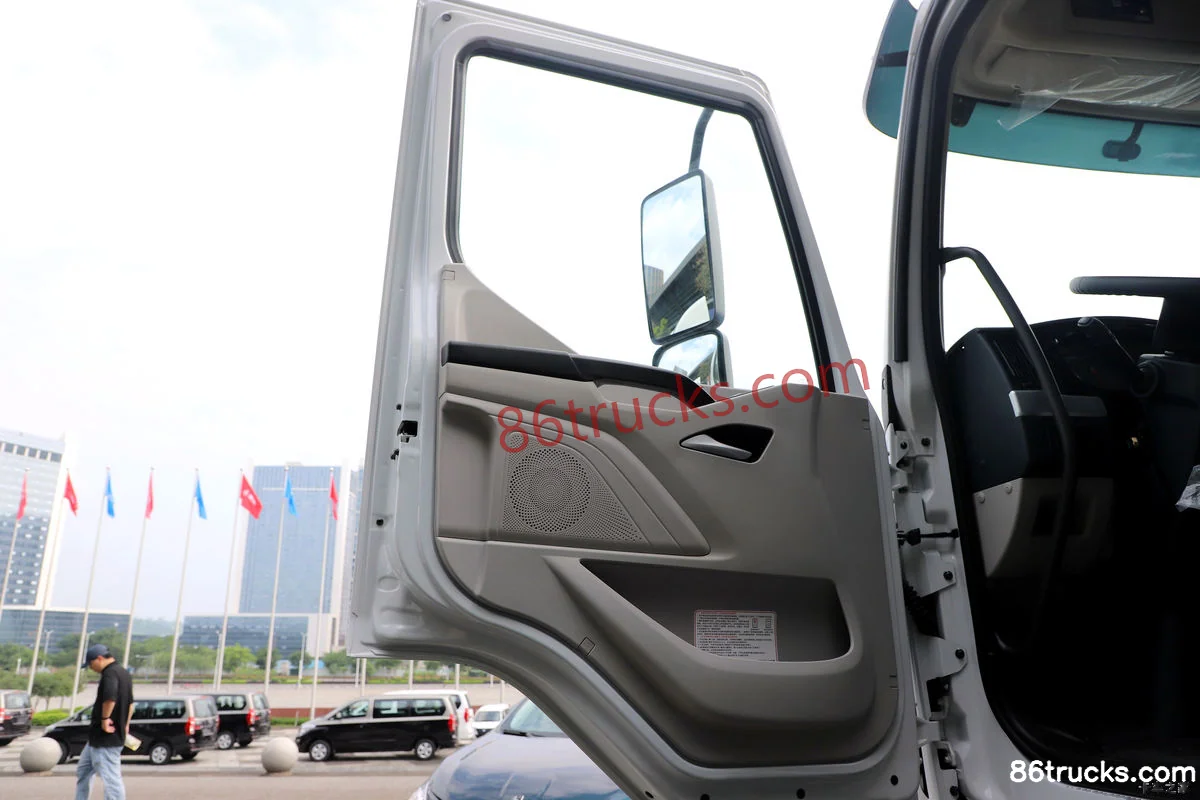

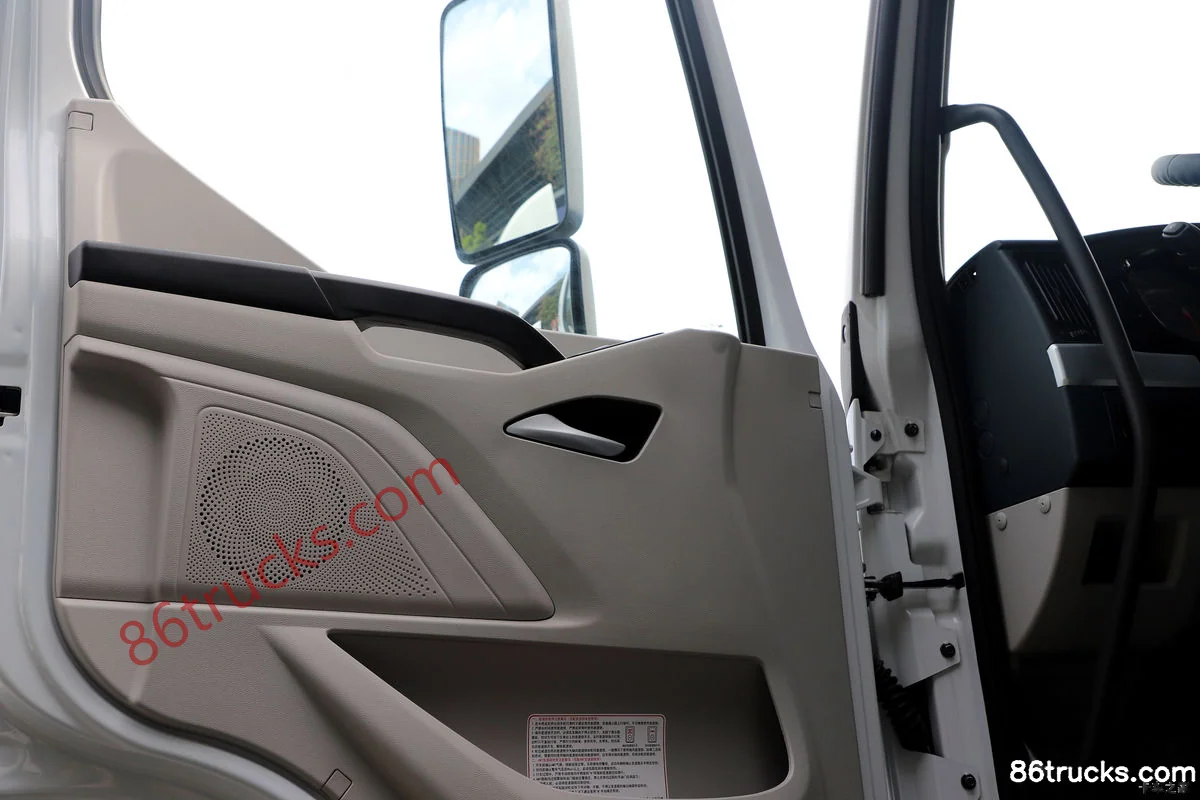

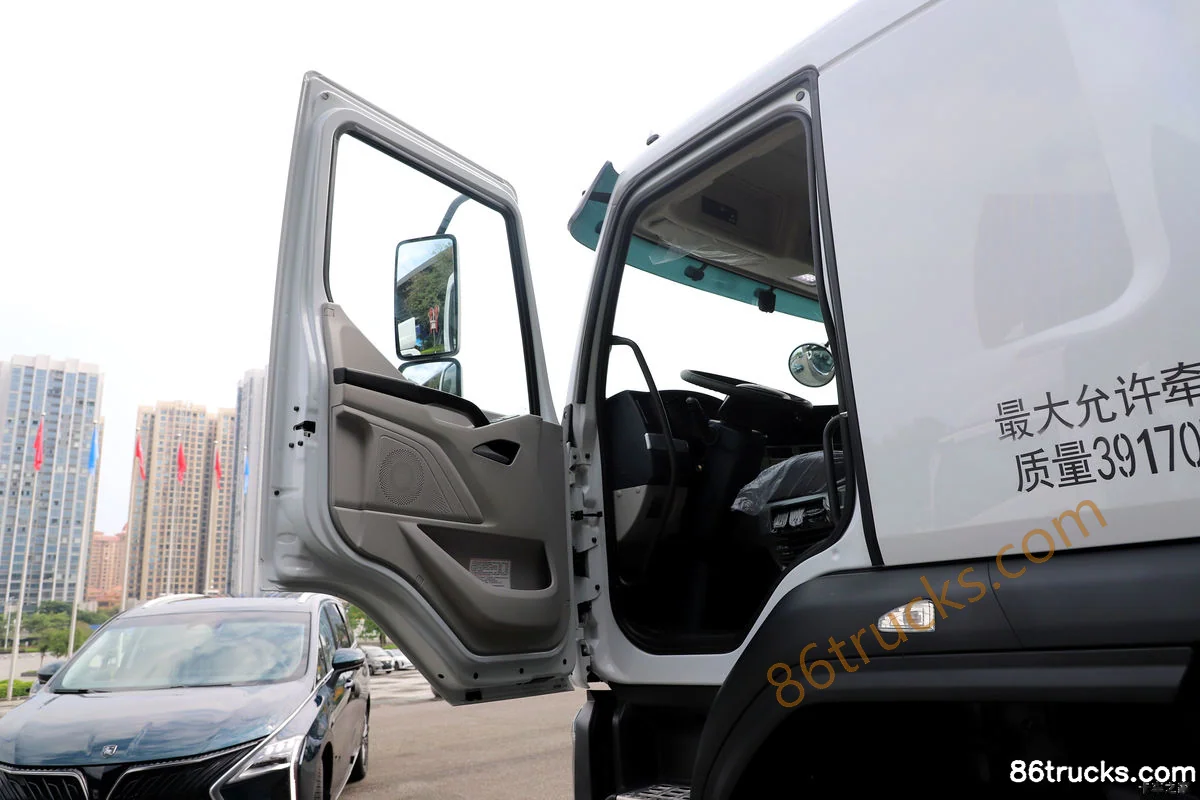

Cab3

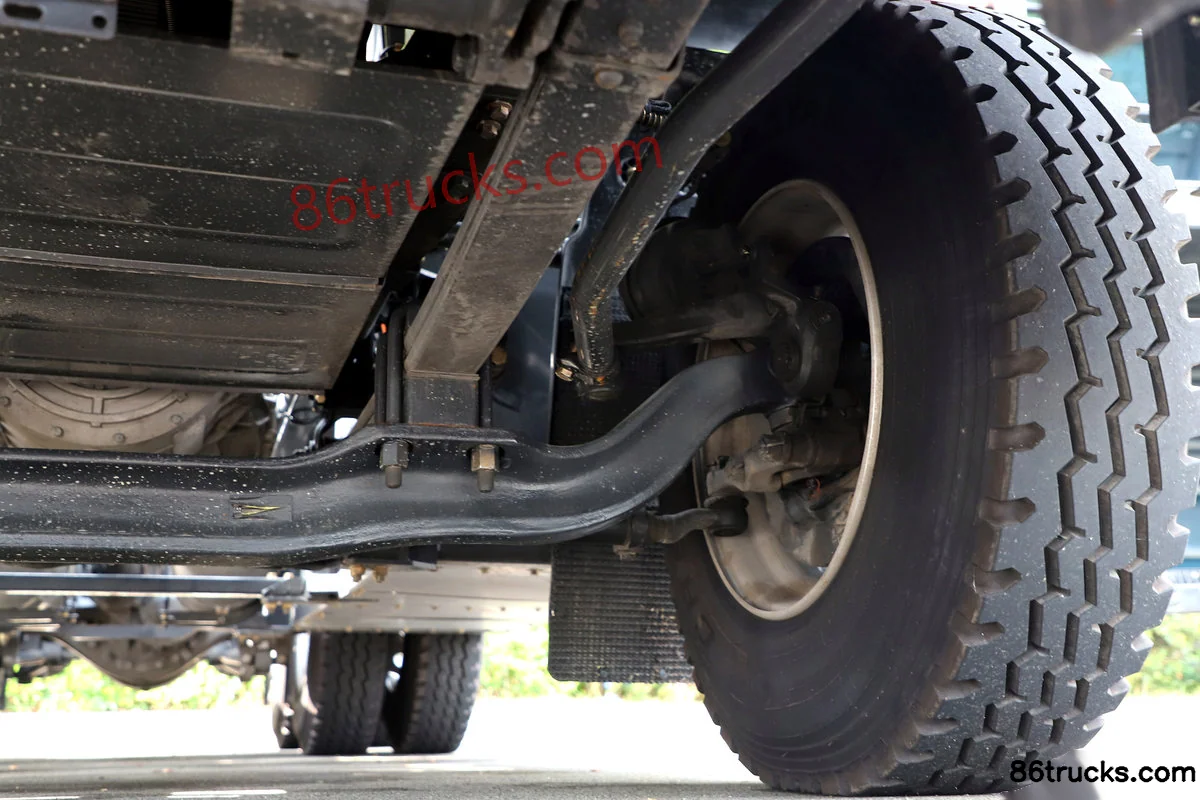

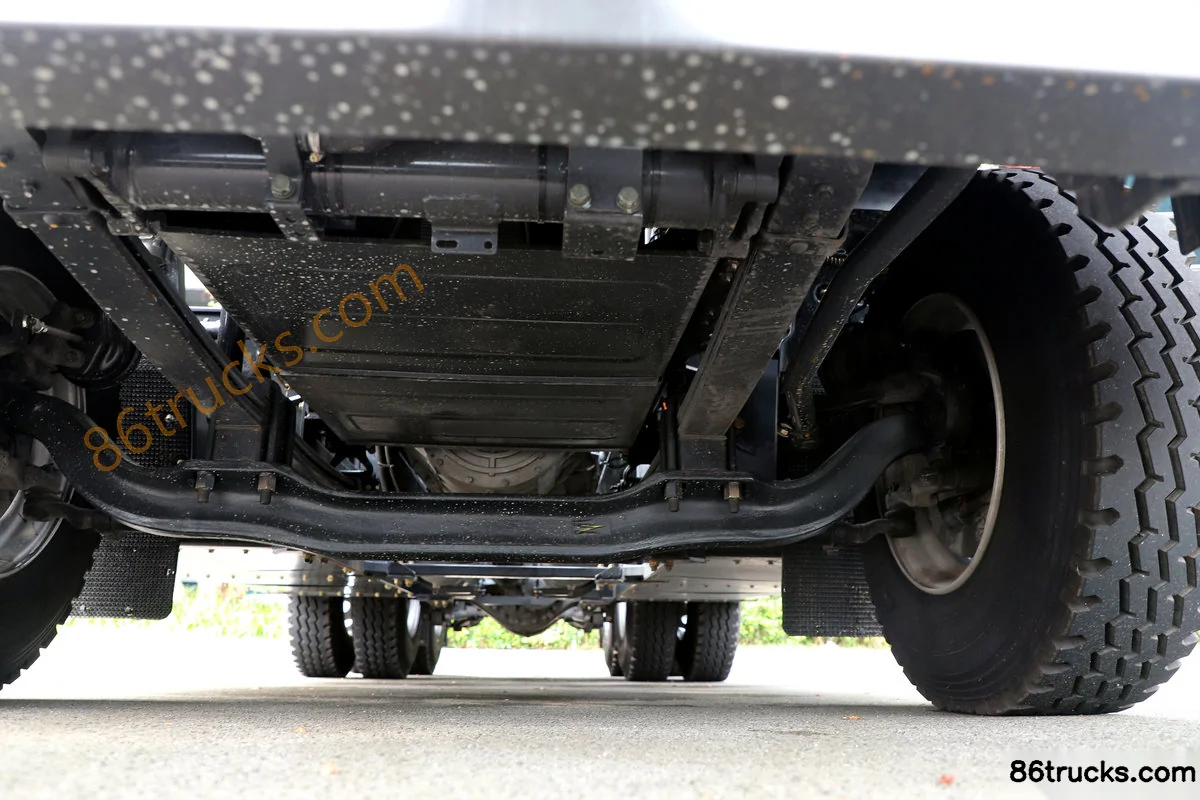

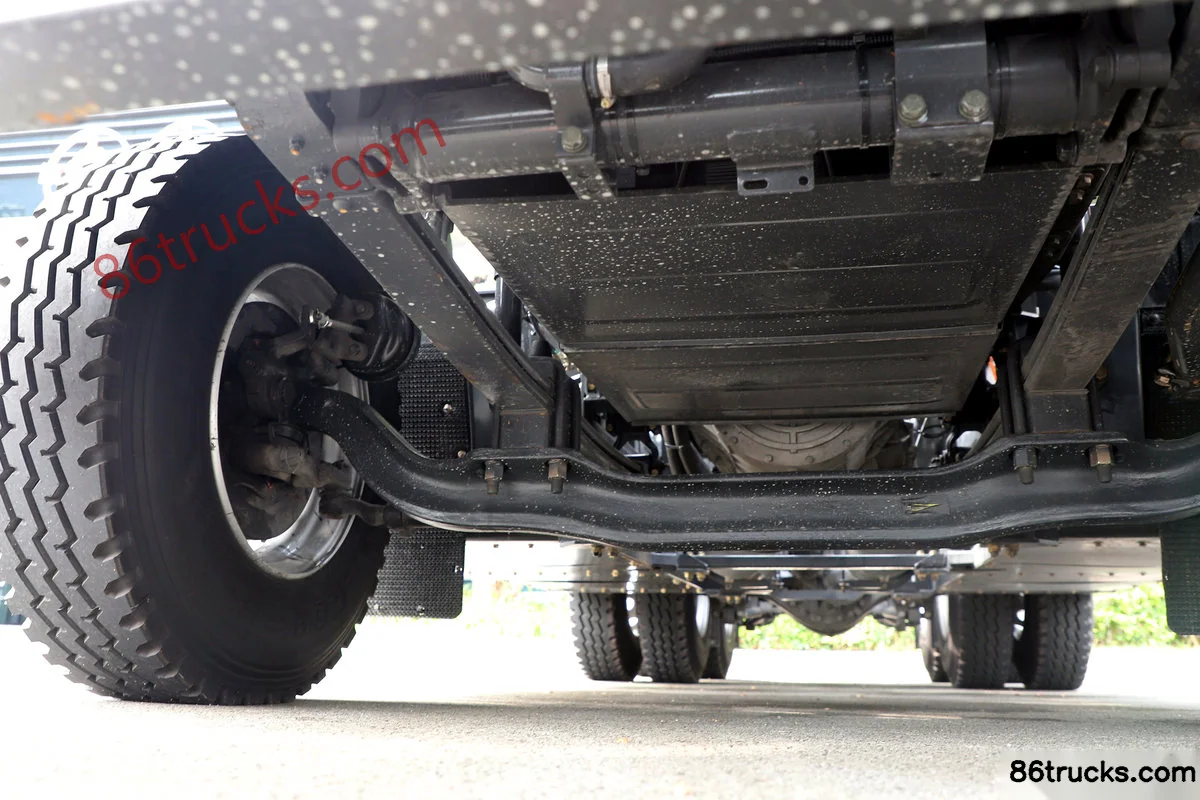

Chassis3

9 photos

FAQ

What is the export price of Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh, and what does it include?

Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh export reference is about From $64,583; MSRP is ¥46.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh?

Key specs of Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh suited for?

Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh differ from other variants in the same series?

Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh belongs to Dongfeng H5 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5 6X4(10 wheels) Fast Gear 4-speed AMT Automatic Side Battery Pure Electric Tractor Truck (Sub-vehicle) CATL 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
