BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.25ton
Wheelbase:: 3360mm
Cargo box width:: 2.06m
Model code (announced):: BYD5040XLCBEV1
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 480km
Motor 1 Brand: BYD
Curb Weight: 3.05ton

Overview

The BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 480km battery/range, BYD motor, 4X2 (6 wheels) drive and 1.25t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BYD5040XLCBEV1
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.24m
Cab height: 3.15m
CLTC range: 480km
Curb Weight: 3.05ton
Rated payload: 1.25ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Shenzhen, Guangdong
Energy Type: Electric
electric motor
Motor 1 Brand: BYD
Motor 1 Model: BYD-2217TZ-XS-T
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 130kW
Electronic Control
ECU Brand: BYD
Battery/Charging
Battery Brand: BYD
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 105.6kWh
Energy Density: 141.25
Cargo box parameters
Box volume: 15.3m³
Cargo box width: 2.06m
Cargo box height: 1.9m
Body Parameters
Others: Compartment roof sealed, non-openable. Optional refrigerated unit.
Chassis Specs
Chassis Series: T5
Chassis Model: BYD10401NBBEVD4
Leaf spring count: 3/2
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs

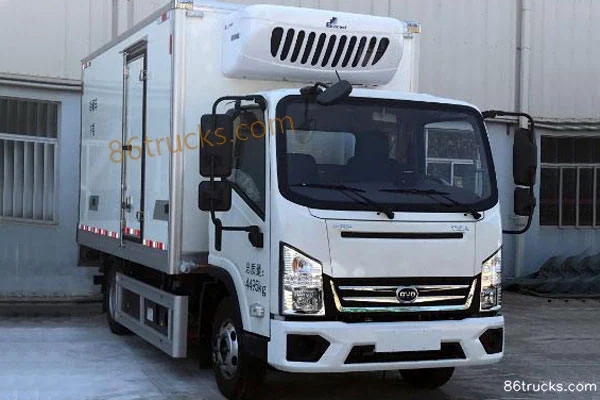

Photos

Exterior1

1 photos

FAQ

What are the key specs of BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels)?

Key specs of BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels) suited for?

BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels) differ from other variants in the same series?

BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels) belongs to BYD T5 light-duty truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T5A 4.5T 3.91m Single Row Electric Refrigerated Truck 105.6kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
