FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck

Export reference
MSRP N/A
Horsepower: 380
Emission: China VI
Fuel: Diesel
Curb Weight:: 7.52ton
Wheelbase:: 5300mm
Tire Size:: 275/80R22.5 18PR
Fuel tank capacity: 600L
Rated payload: 10.35ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 6.8×2.42×2.65m

Overview

The FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck is a Refrigerated Truck featuring 6.8×2.42×2.65m cargo body, 600L volume, 10.35t payload and High-roof large row half flat floor cab cab. On the powertrain side, it comes with 380 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 380 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.56×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Changchun
Wheelbase: 5300mm
Front track width: 2020mm
rear track: 1860mm
Curb Weight: 7.52ton
Rated payload: 10.35ton
GVWR: 18ton
Max. speed: 89km/h
Front/rear suspension: 1.5/2.76m
Energy Type: Diesel
Engine parameters
Engine Model: CA6DK2-38E65
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.751L
Emission standard: China VI
Max output power: 280kW
Max hp: 380Horsepower
Cargo box parameters
Cargo box dimensions: 6.8×2.42×2.65m
Cargo box width: 2.42m
Cargo box height: 2.65m
Body Parameters
Vehicle certification code: CA5181XLCP66K1L4E6
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J6V
Chassis Model: CA1181P66K1L4E6
Front axle description: New F5N (ConMet hub)
Frame Dimensions: 300×80×7mm

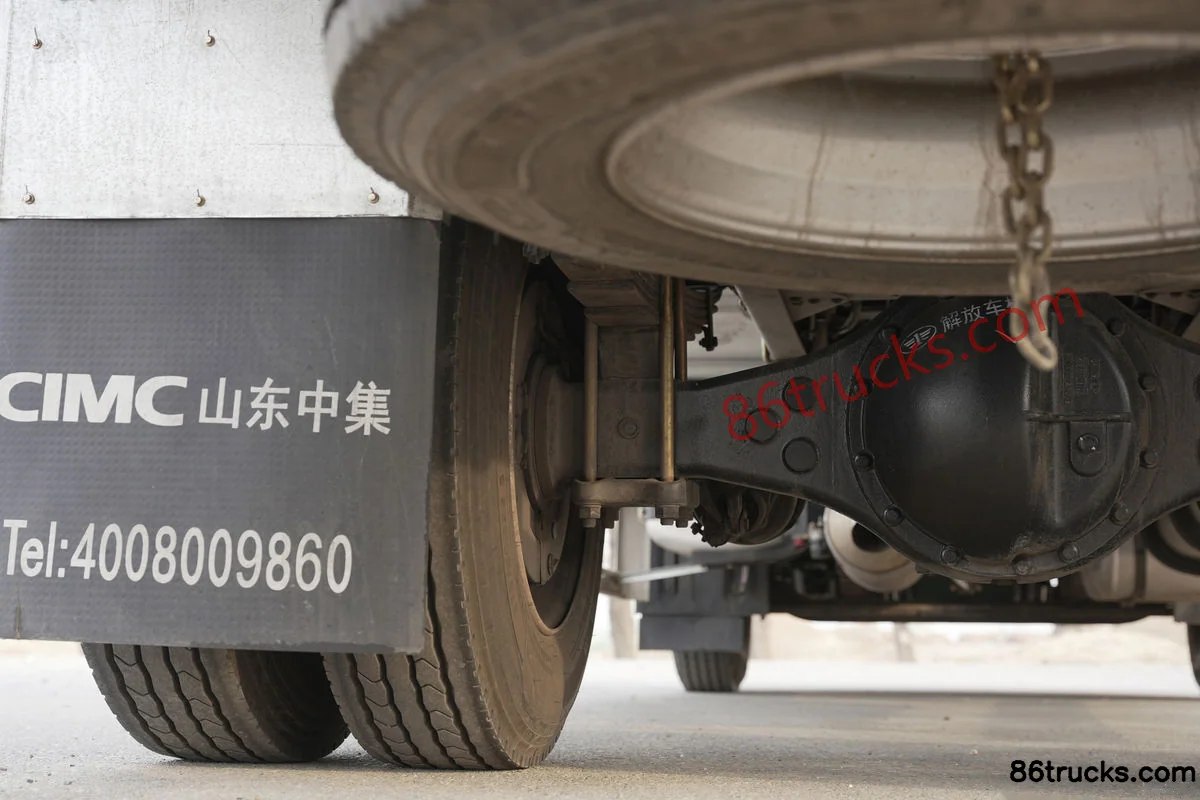

rear axle description: ф435 stamped-welded axle (ConMet hub)
Axle ratio: 3.727
Leaf spring count: 3/7+6
clutch: Φ430
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW JiefangCA10TAX130S
Cab parameters
Cab: High-roof large row half flat floor cab
fuel tank
Fuel tank capacity: 600L
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

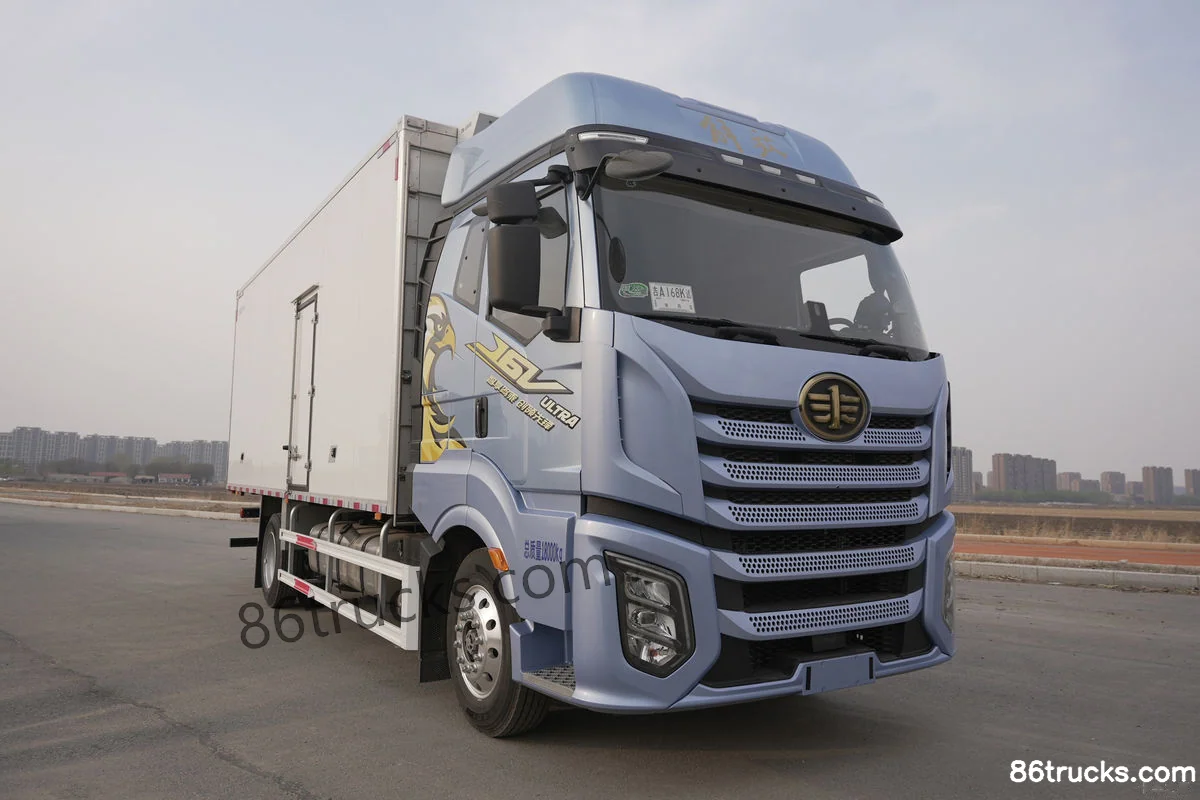

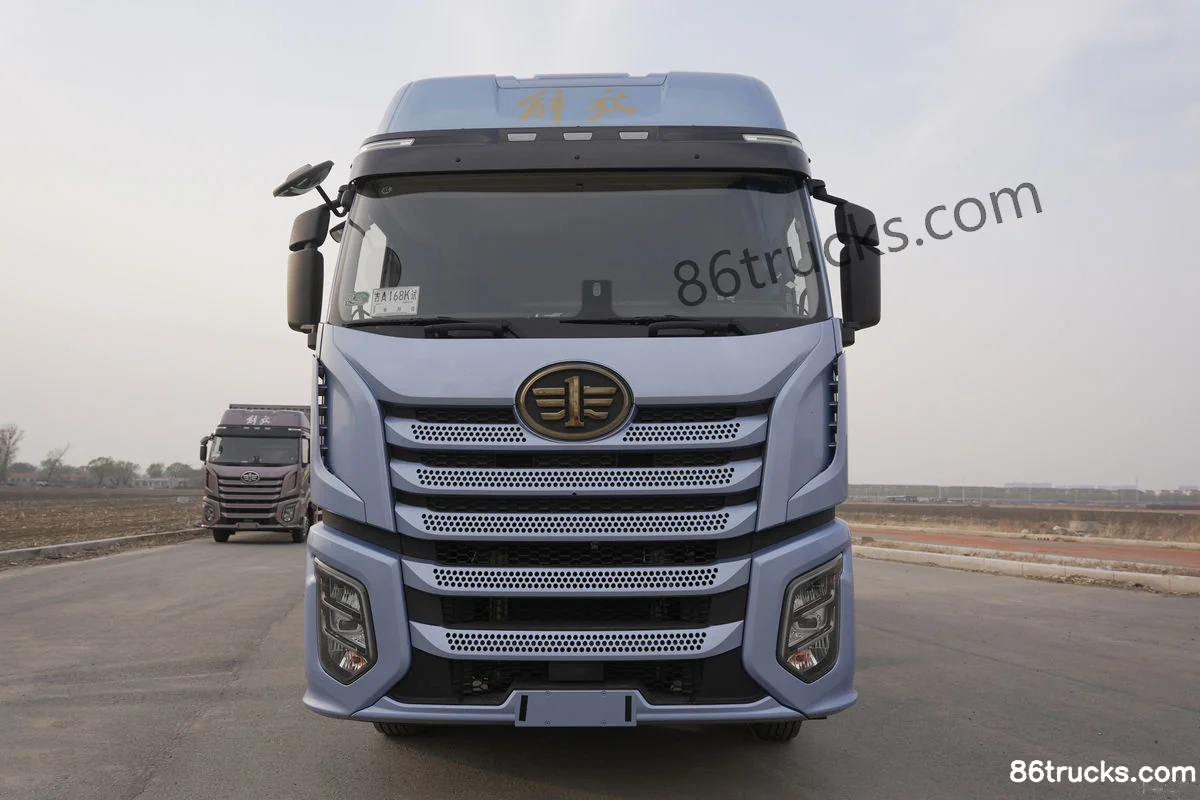

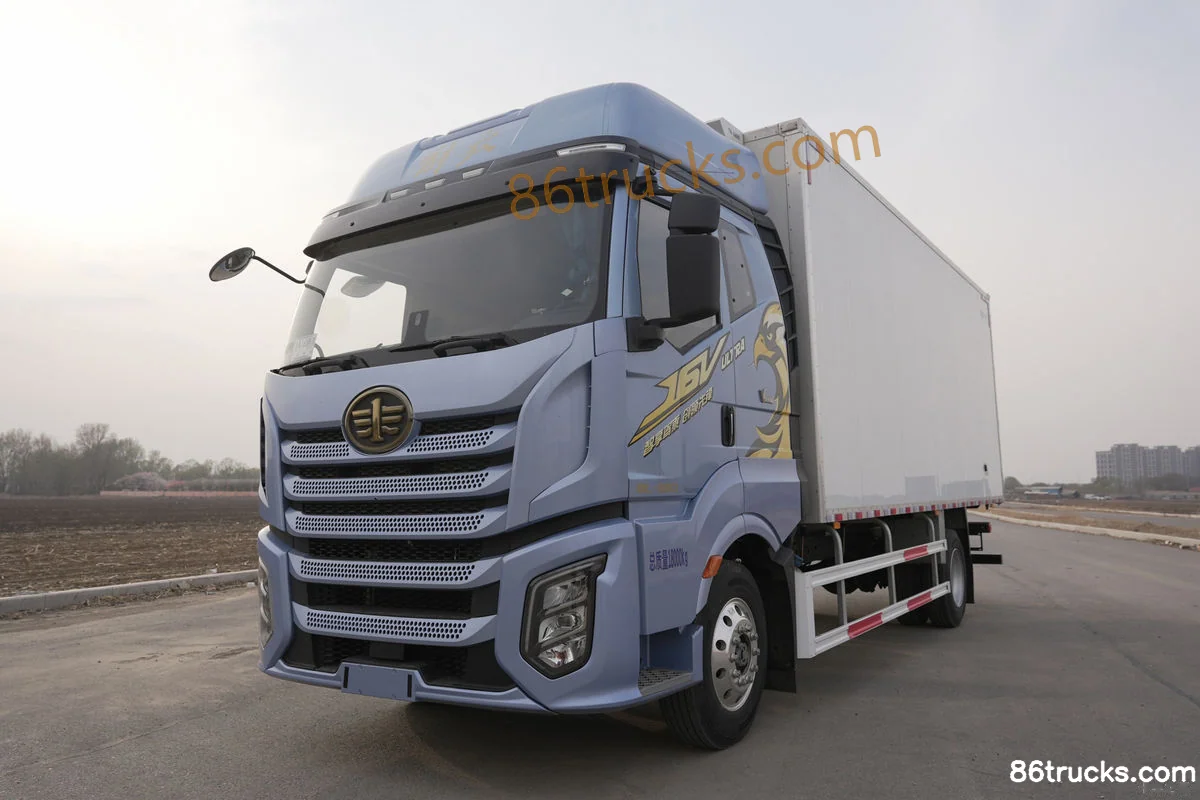

Exterior3

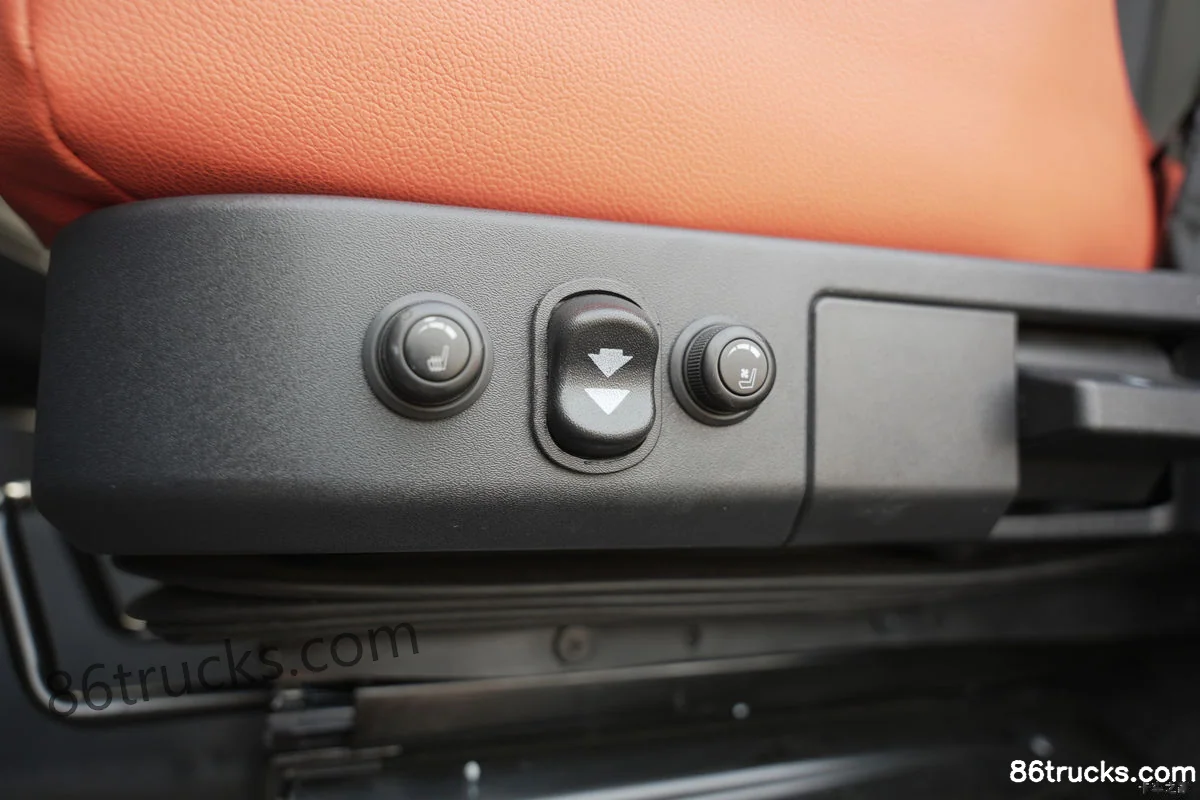

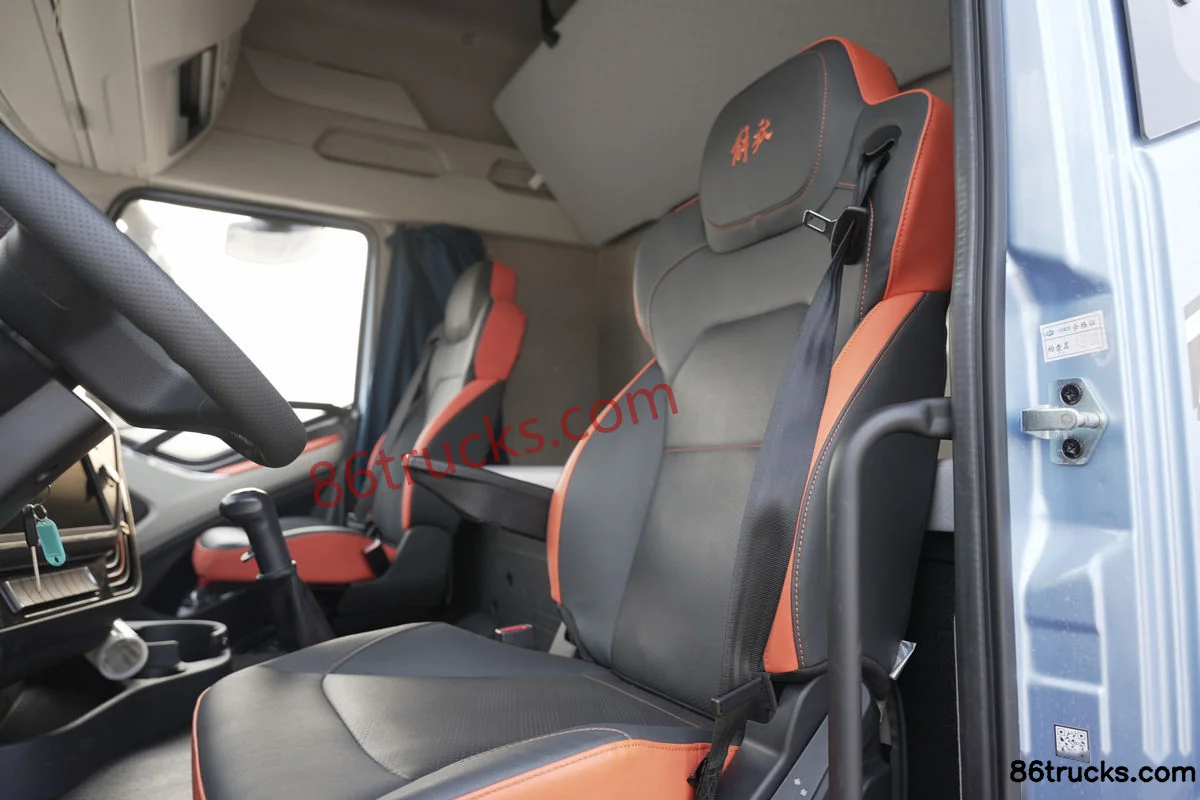

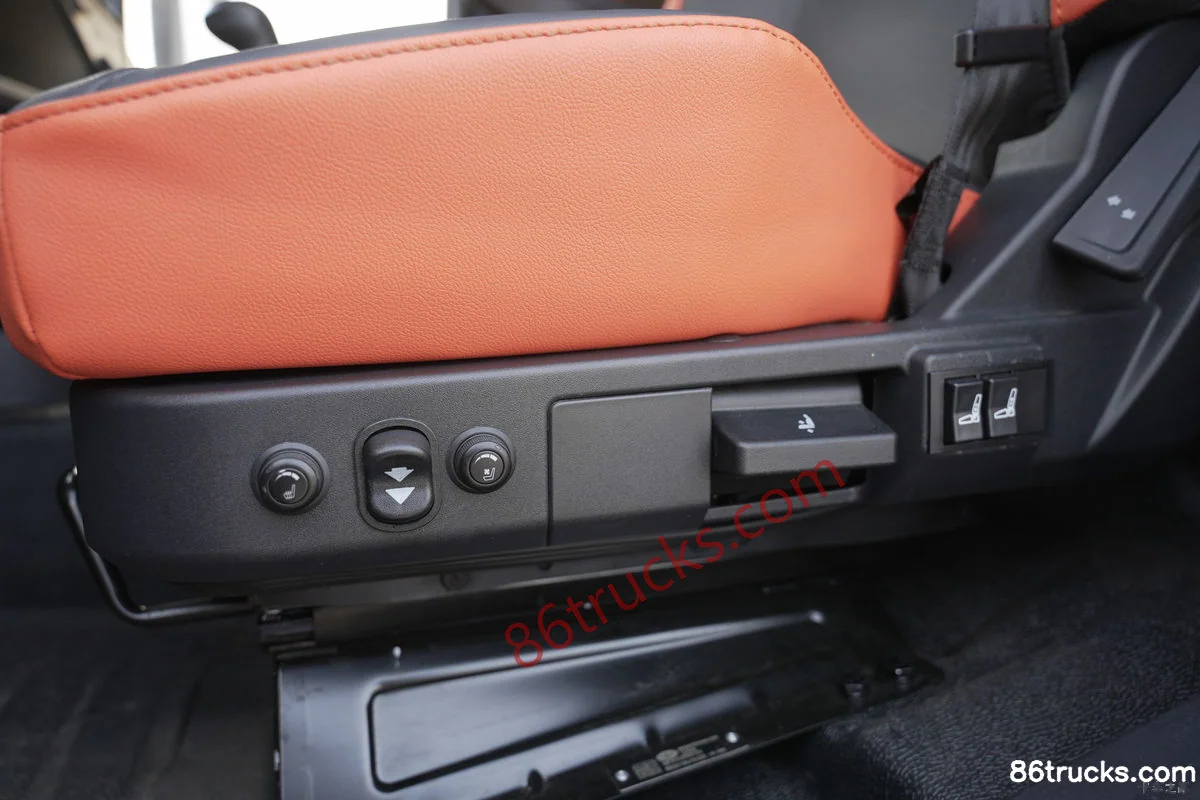

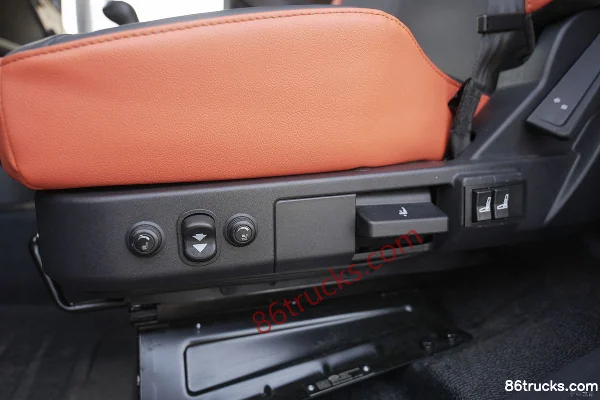

Cab3

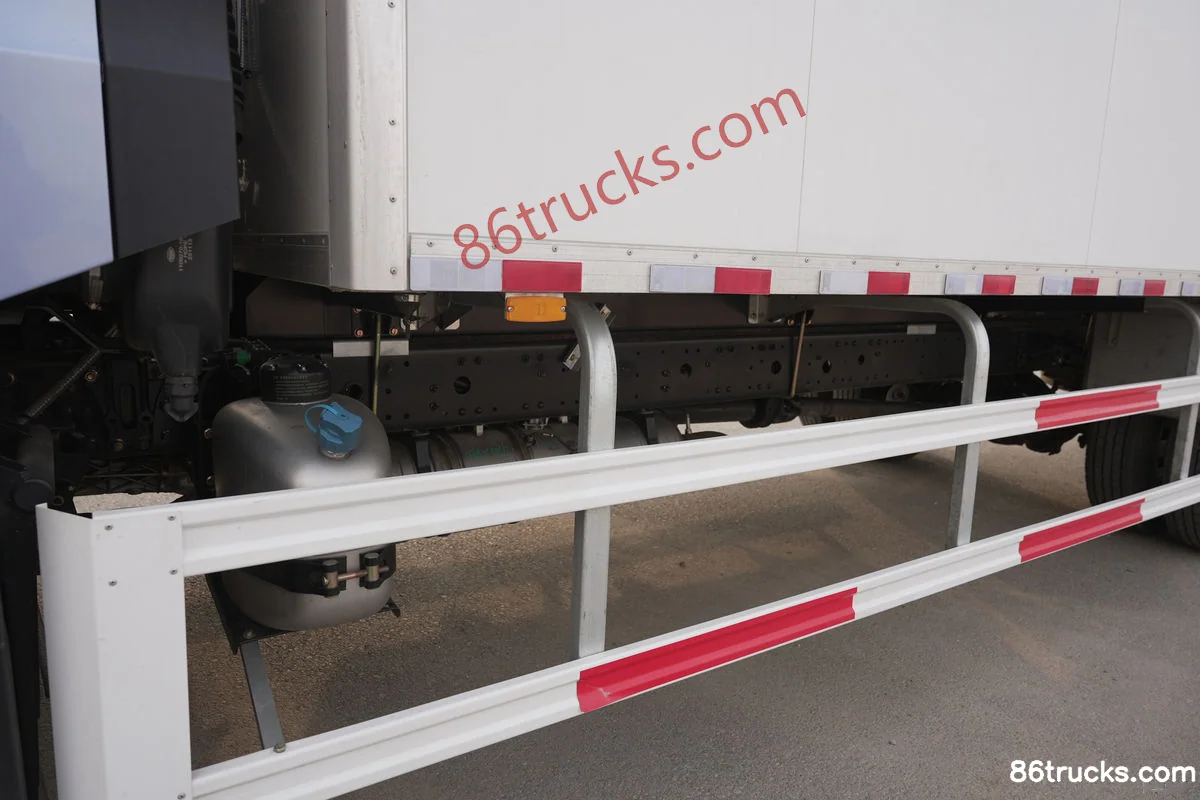

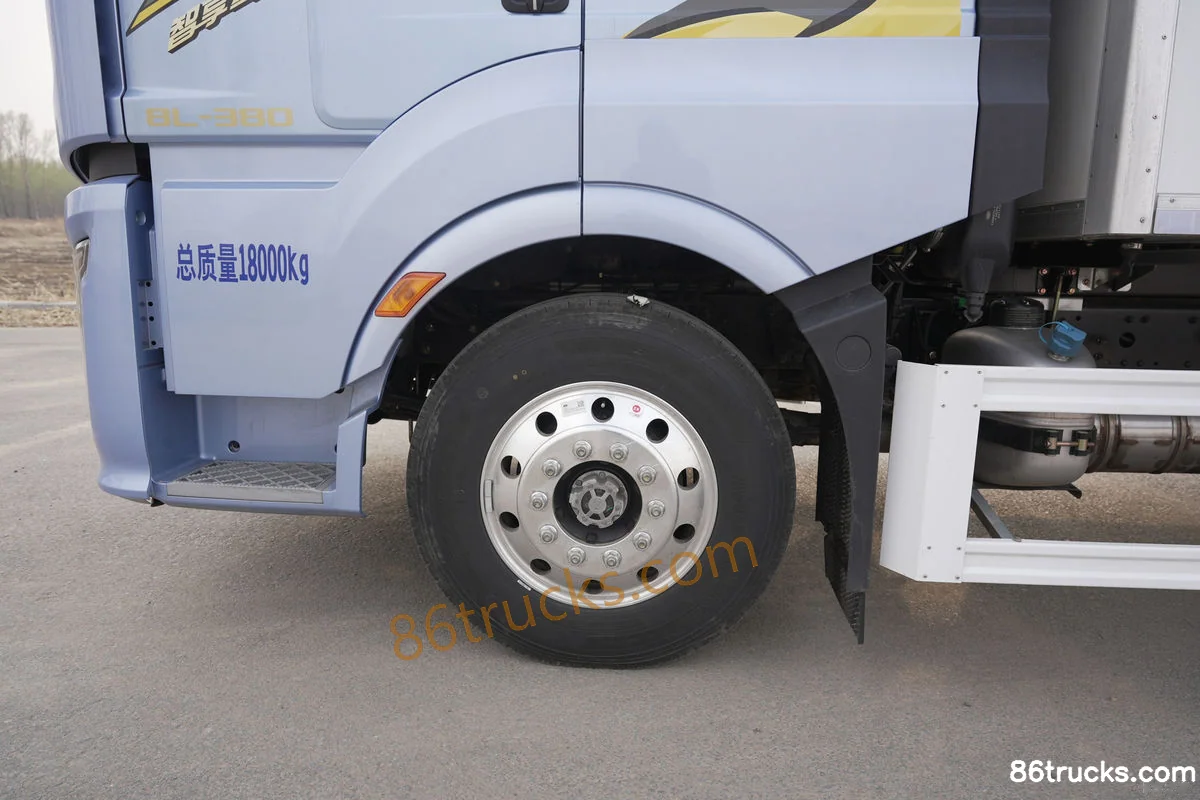

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck?

Key specs of FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck: Drive: 4x2; Horsepower: 380 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck suited for?

FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck differ from other variants in the same series?

FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck belongs to FAW Jiefang J6V Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6V Pilot Edition 380 hp 4X2(6 wheels) 10-speed 6.8m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
