Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Engine: Mercedes-BenzOM924
Curb Weight:: 4.53ton
Wheelbase:: 3250mm
Tire Size:: 365/80R20
seating capacity: 3Personnel
Drive 4X4 (6 wheels)
Cargo box type: Chassis
Horsepower 220

Overview

The Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, 5.35m cab and 3250mm wheelbase. On the powertrain side, it comes with a Mercedes-BenzOM924 engine, 220 hp, 4X4 (6 wheels) drive and China IV emissions.

China IV 220 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: Chassis
Drive type: 4X4
Wheelbase: 3250mm
engine: Mercedes-BenzOM924LA 220
transmission: 8-speed gearbox
Cab length: 5.35m
Cab width: 2.336m
Cab height: 2.725m
Curb Weight: 4.53ton
GVWR: 7.5ton
Origin: Germany
tonnage class: Light Truck
Energy Type: Diesel
Engine parameters
Engine Brand: Mercedes-Benz
Engine Model: Mercedes-BenzOM924LA 220
Engine info: Mercedes-BenzOM924
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.801L
Emission standard: China IV
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 810N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Turbocharged electronically controlled direct injection diesel engine
Transmission Parameters
Transmission Model: 8-speed gearbox
shift method: AMT manual/auto
Forward gears: 8Gear
Number of Reverse Gears: 6pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: portal axle
Front axle allowable load: 4000kg
rear axle allowable load: 4000kg
Tire
Tire Size: 365/80R20
Number of tires: 4pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Disc brake

Photos

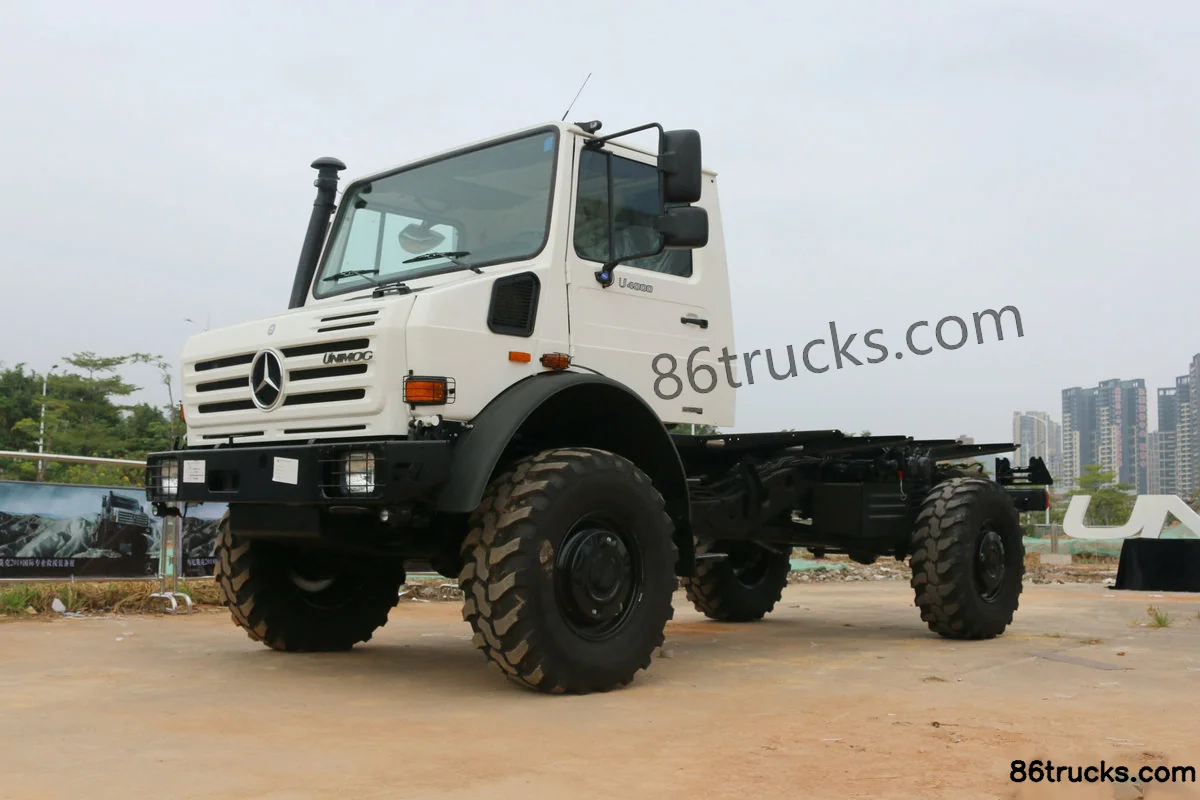

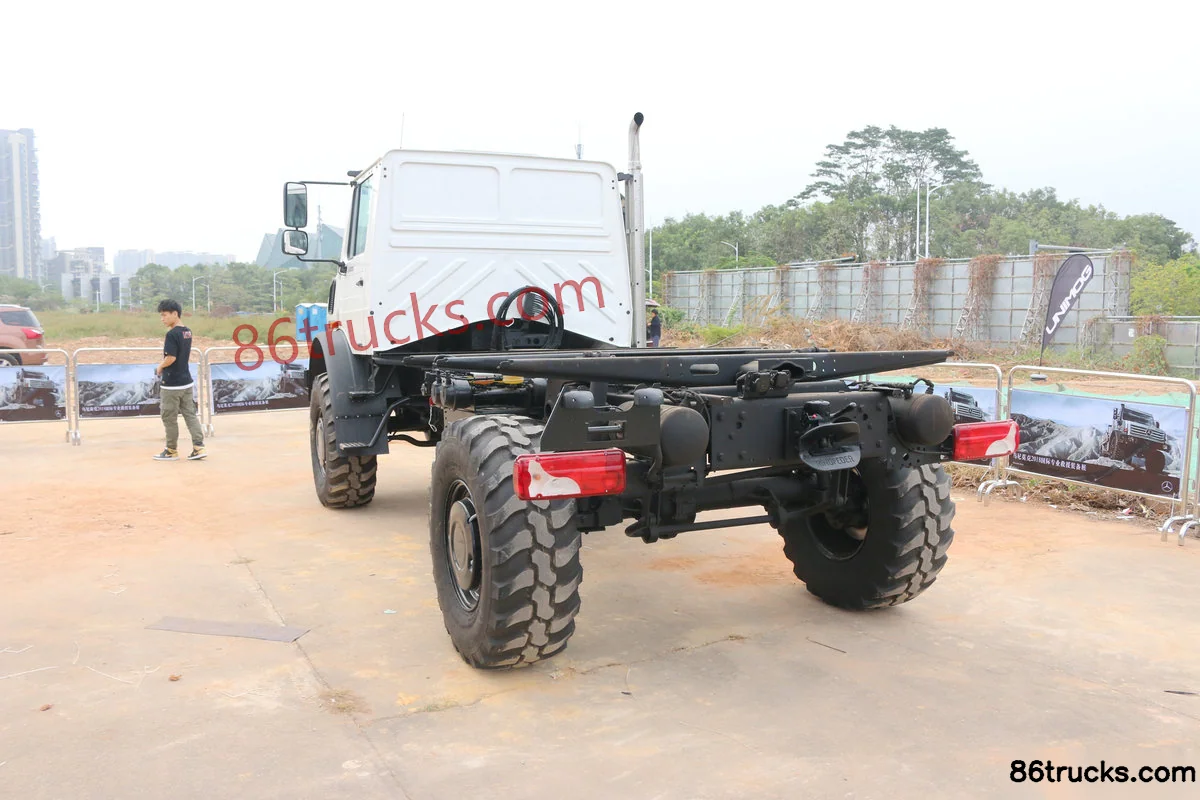

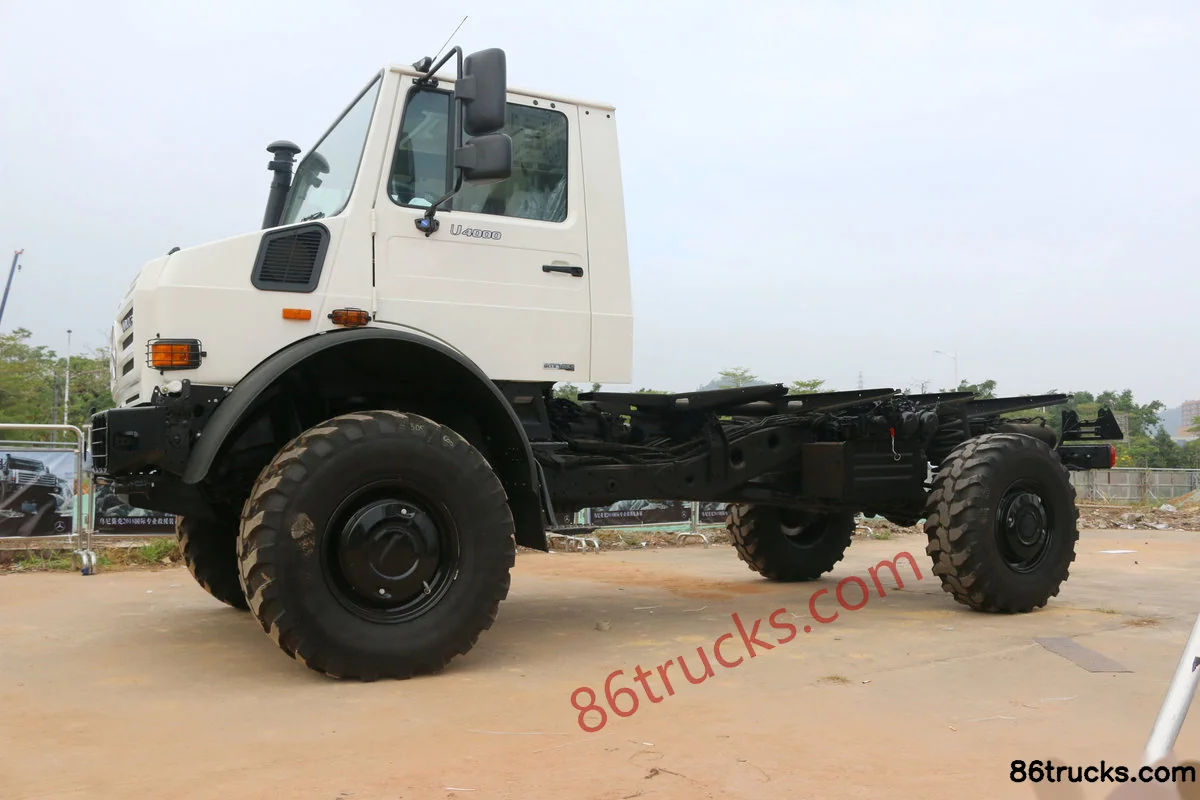

Exterior3

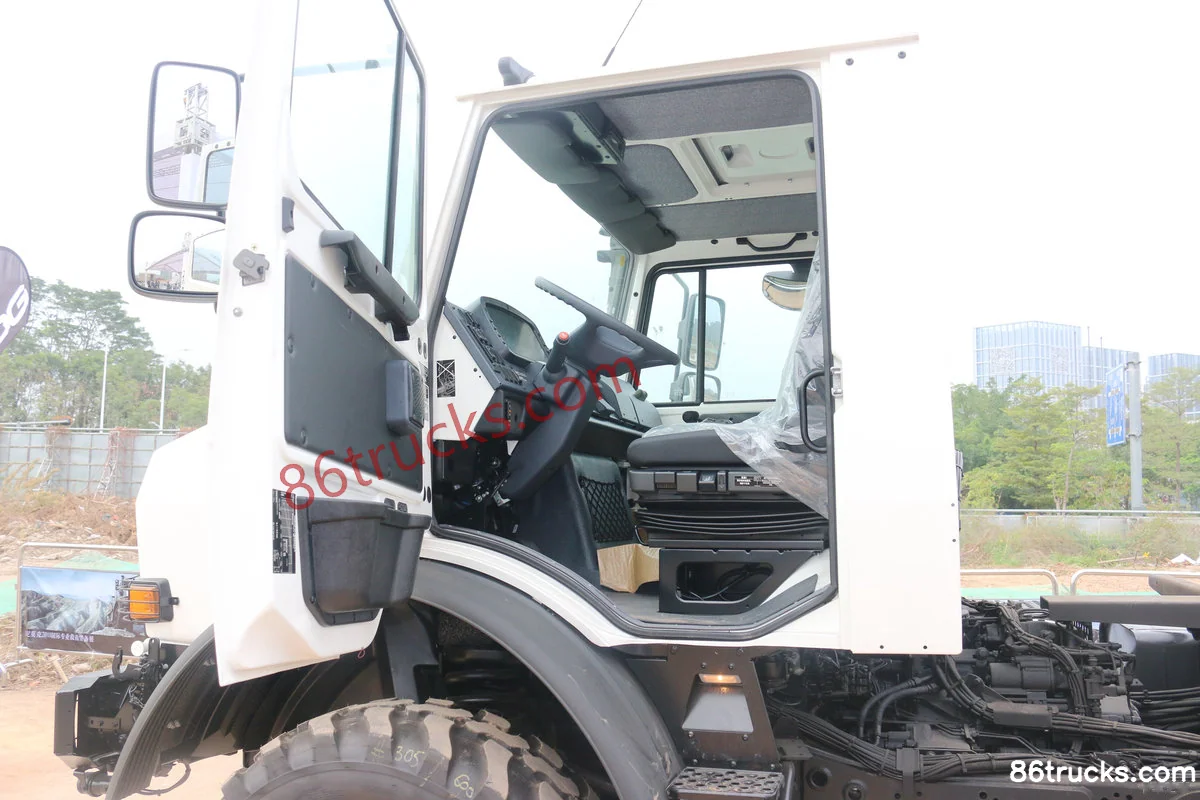

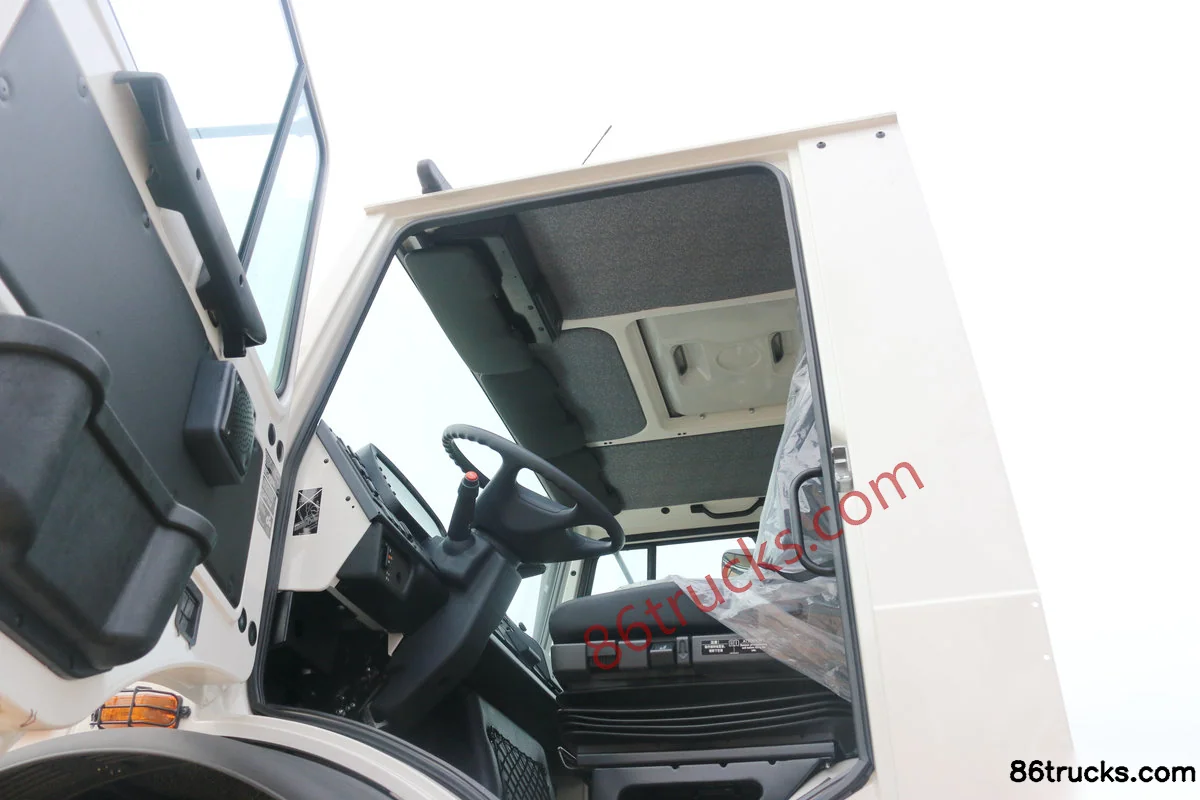

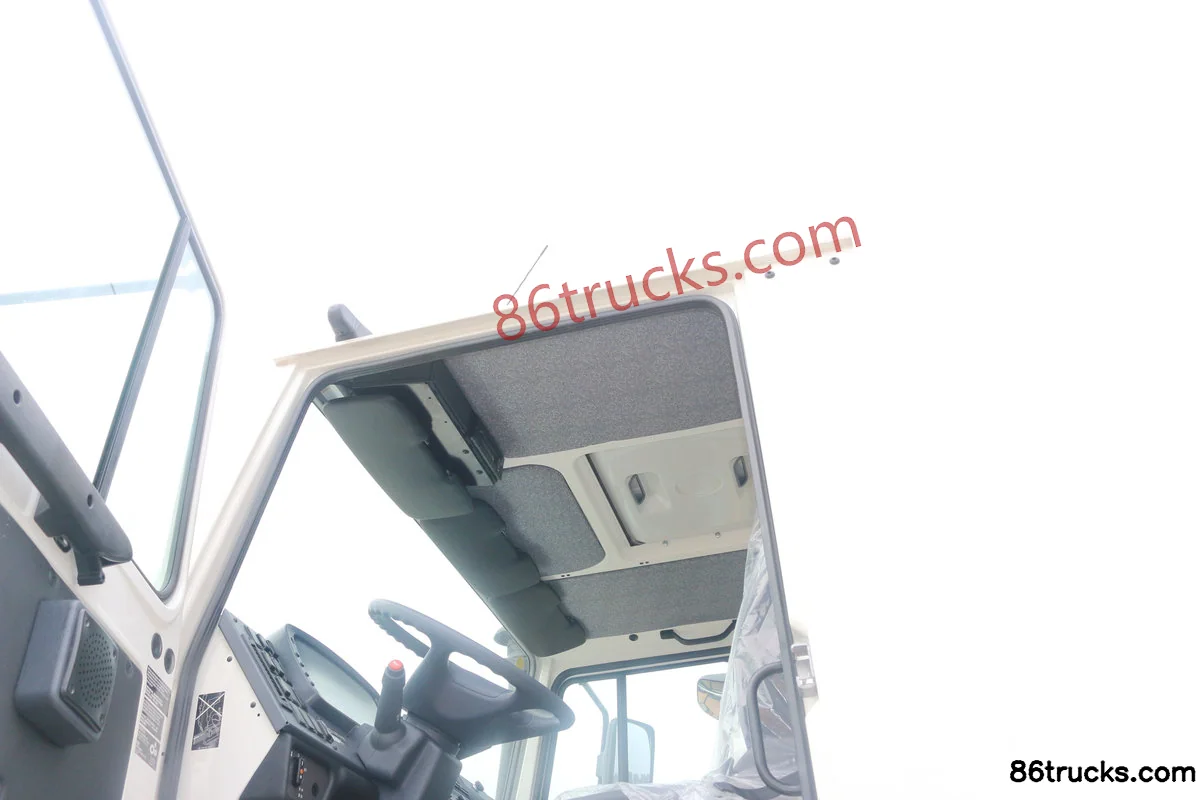

Cab3

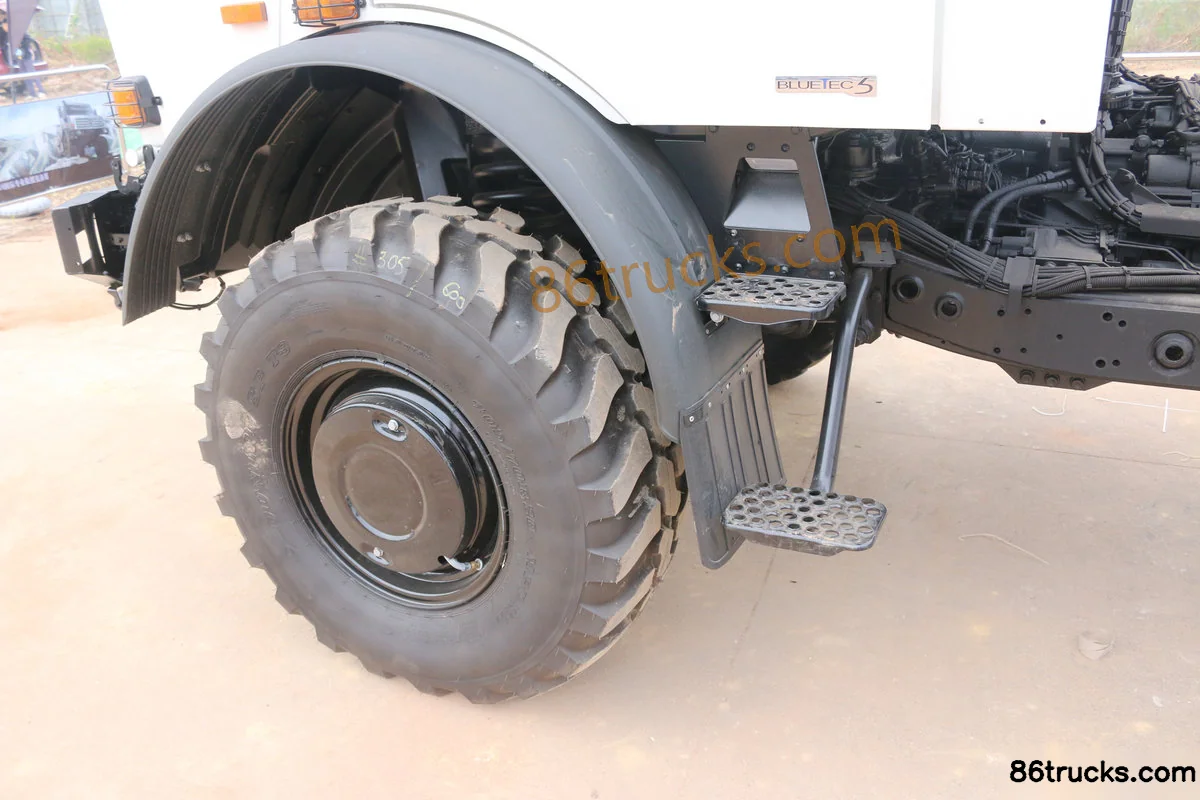

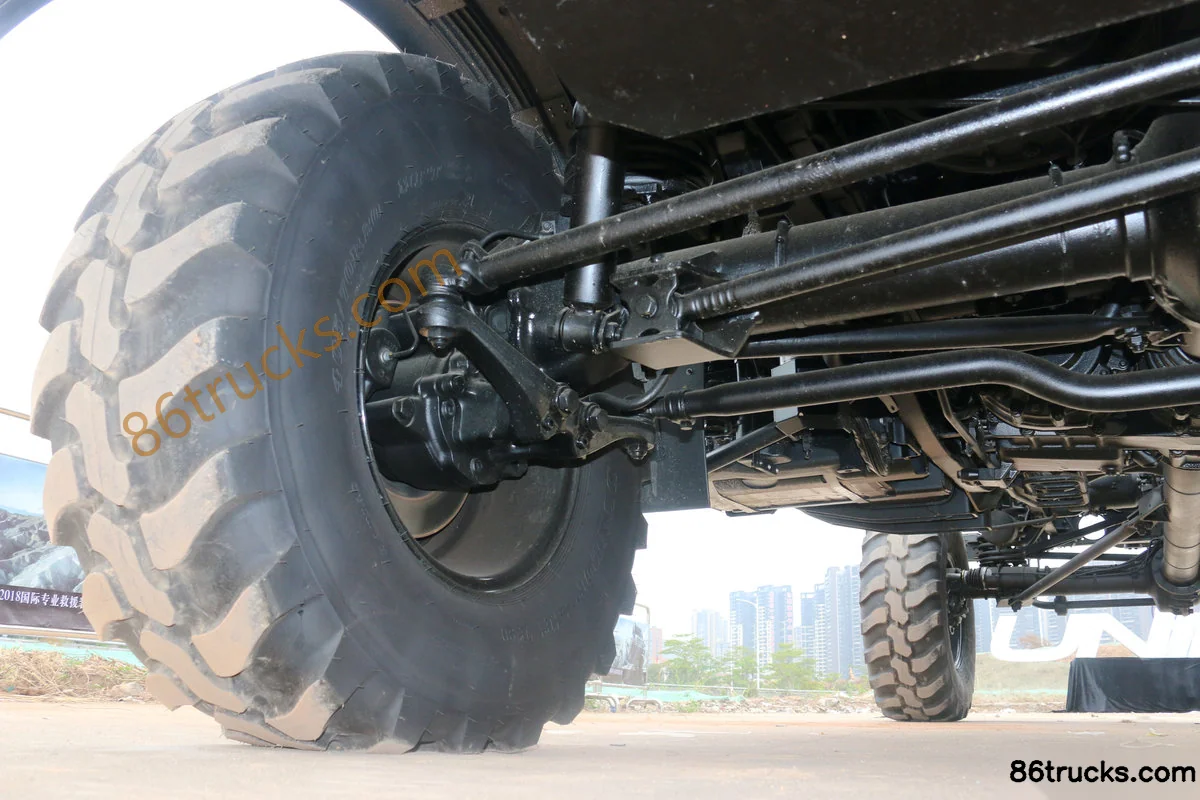

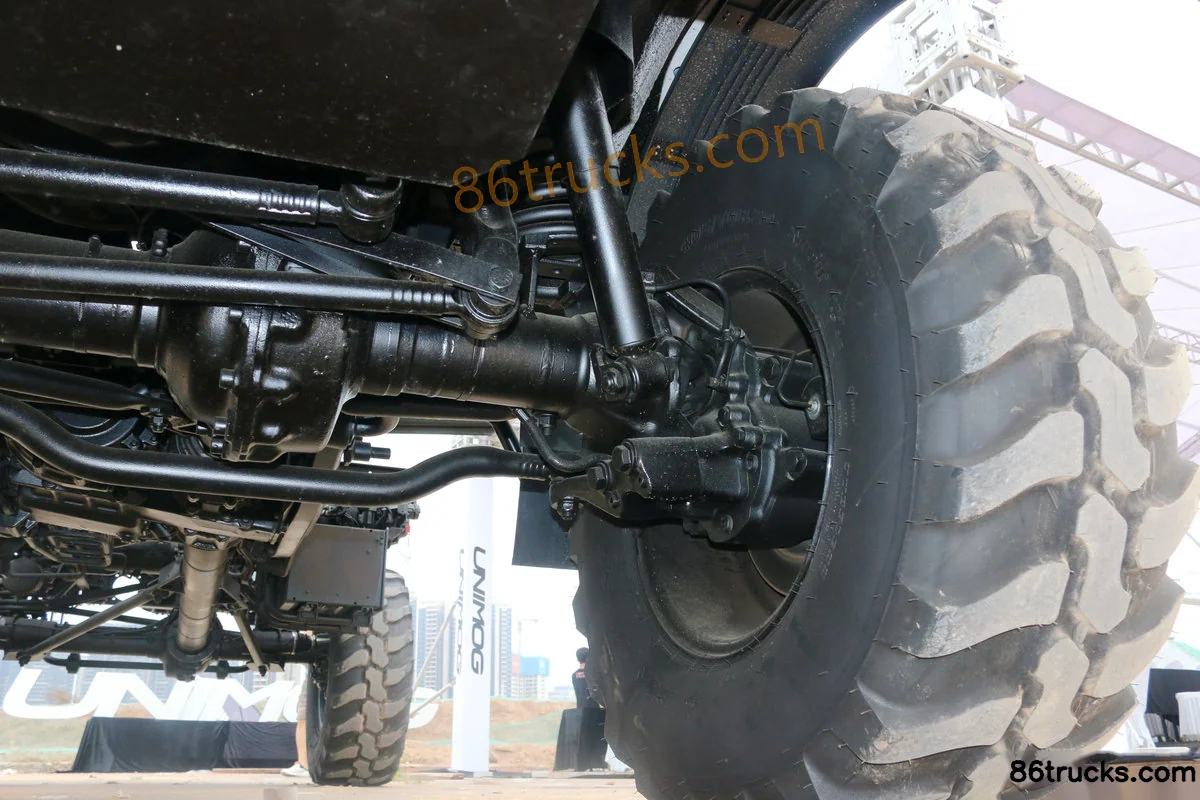

Chassis3

9 photos

FAQ

What emission standard does Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis?

Key specs of Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis: Drive: 4x4; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Engine: Mercedes-BenzOM924. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis suited for?

Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis differ from other variants in the same series?

Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis belongs to Mercedes-Benz Unimog Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Mercedes-Benz Unimog U4000 220hp 4X4(6 wheels) Off-road Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
