BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.445ton
Wheelbase:: 2700mm
Cargo box type:: stake body
Model code (announced):: BYD10311N7BEV
Type:: Cargo Trucks
Box length class:: 3.2m
Drive 4X2 (6 wheels)
CLTC range: 180km
Motor 1 Brand: BYD
Curb Weight: 1.92ton

Overview

The BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels) is a mini truck featuring 180km battery/range, BYD motor, 4X2 (6 wheels) drive and 1.445t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BYD10311N7BEV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2700mm
Box length class: 3.2m
Cab length: 5.18m
Cab width: 1.75m
Cab height: 2.06m
CLTC range: 180km
Curb Weight: 1.92ton
Rated payload: 1.445ton
GVWR: 3.459ton
Max. speed: 100km/h
Origin: Shenzhen, Guangdong
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: BYD
Motor 1 Model: BYD-2217TZ-XS-V
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 100kW
total peak torque: 300N·m
Battery/Charging
Battery Brand: BYD
Battery type: NMC lithium battery pack
Battery capacity: 40.15kWh
Energy Density: 151.2
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.14m
Cargo box width: 1.65m
Cargo box height: 0.38m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1315kg
rear axle allowable load: 2180kg
Tire
Tire Size: 185R15LT
Number of tires: 6pcs
Control configuration
ABS:

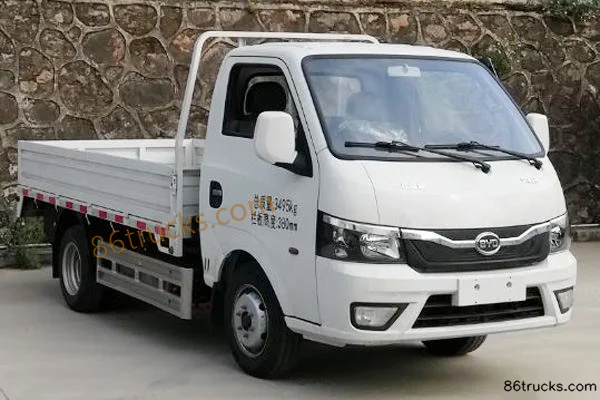

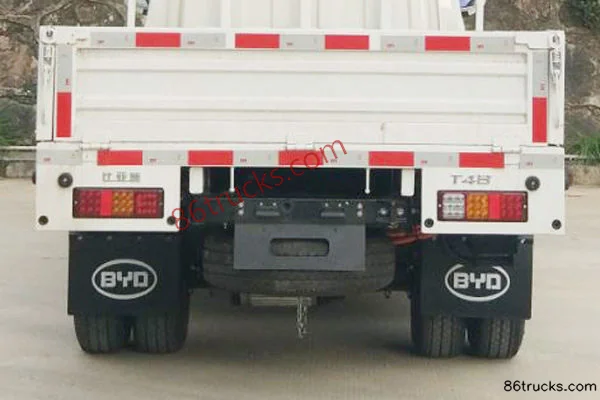

Photos

Exterior2

2 photos

FAQ

What are the key specs of BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels)?

Key specs of BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels) suited for?

BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels) differ from other variants in the same series?

BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels) belongs to BYD T4 mini truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T4B 3.46T 3.14m Single Row Pure Electric Flatbed Micro Truck 40.15kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
