Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck

Export reference
From $9,028
MSRP ¥6.5M CNY
Horsepower: 108
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: FAW Jiefang
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Shenyang Jinbei Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck is a Light Truck featuring 3.82m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai498 engine, 108 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 108 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SY1044BV5SQ3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3350mm
Box length class: 3.8m
engine: DachaiCA4DC2-10E4
transmission: FAW JiefangCATS5-32
Cab length: 5.995m
Cab width: 2.11m
Cab height: 2.355m
Front track width: 1590mm
rear track: 1560mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Shenyang, Liaoning
tonnage class: Light Truck
Approach angle: 21°
departure angle: 20°
market segment: Building materials, agricultural products
Front/rear suspension: 1.115/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-10E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 79kW
Max hp: 108Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: FAW JiefangCATS5-32
Transmission Brand: FAW Jiefang
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.82m
Cargo box width: 2.01m
Cargo box height: 0.43m
*Cargo box interior width: 2.0099999904633
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1895kg
rear axle description: 2600
rear axle allowable load: 2600kg
Leaf spring count: 8/9+3
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

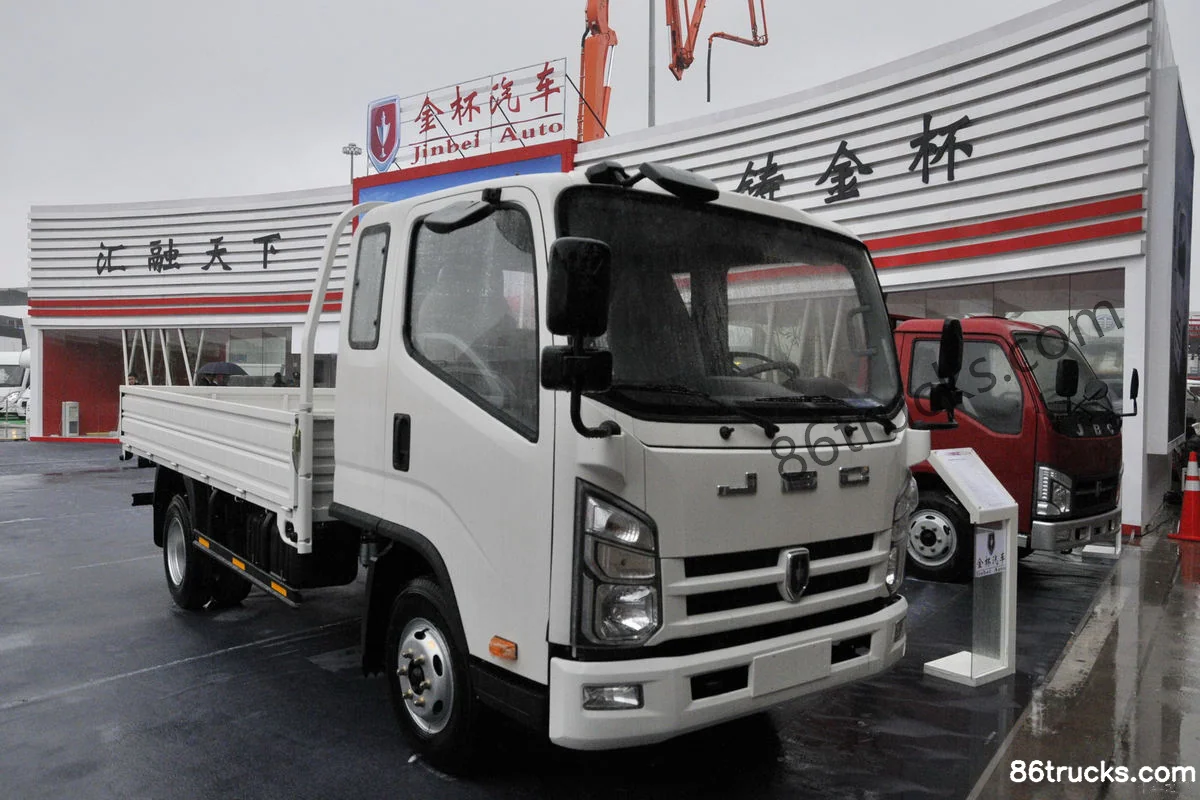

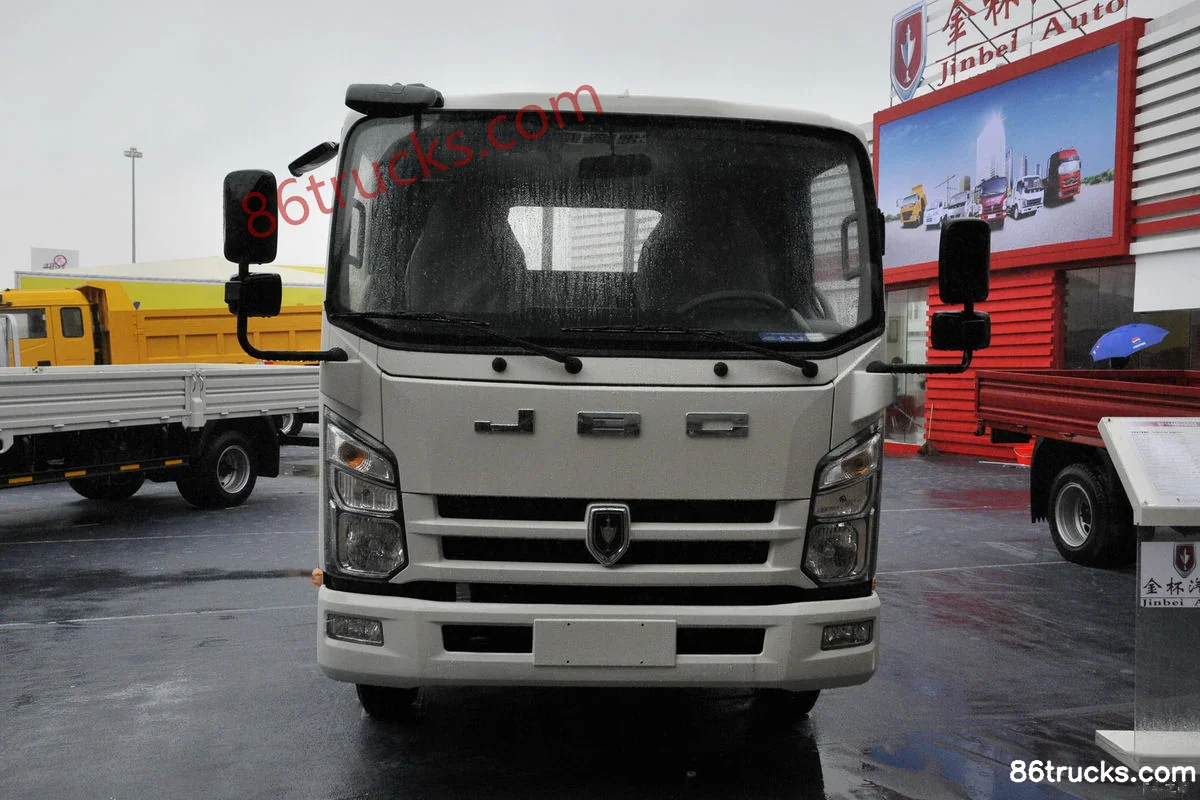

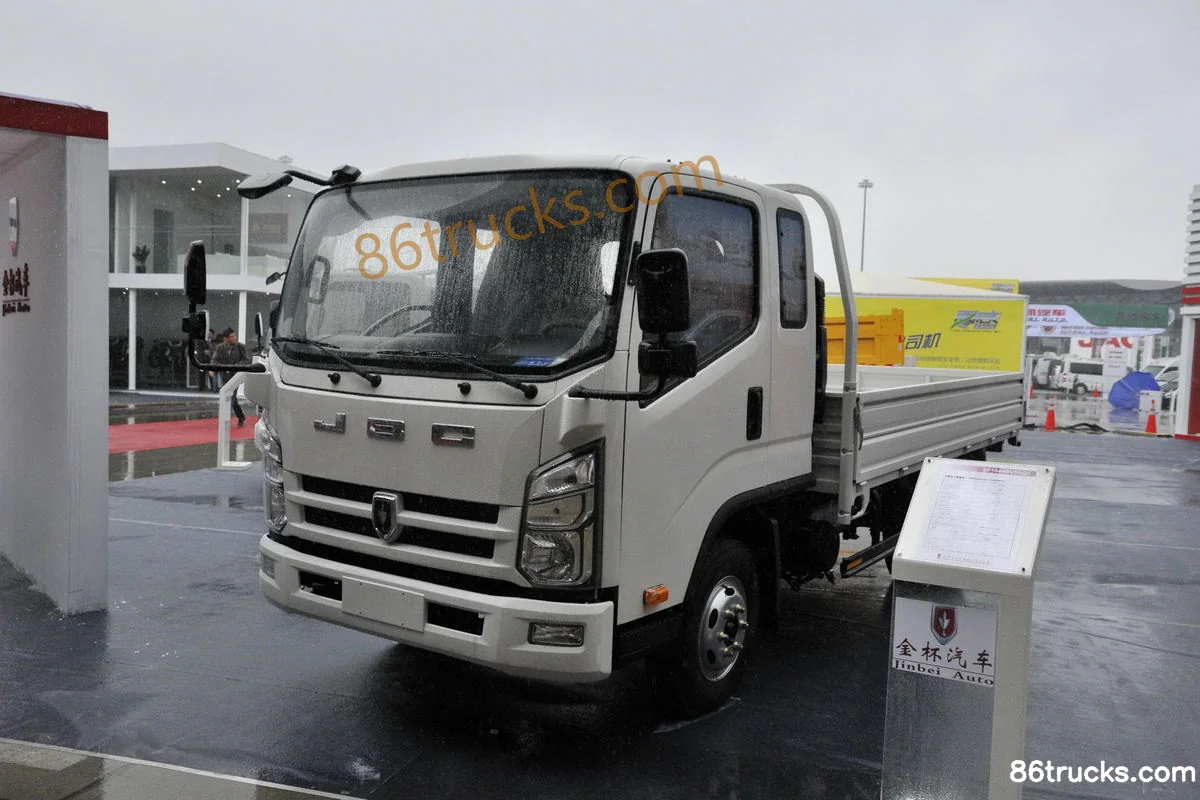

Exterior3

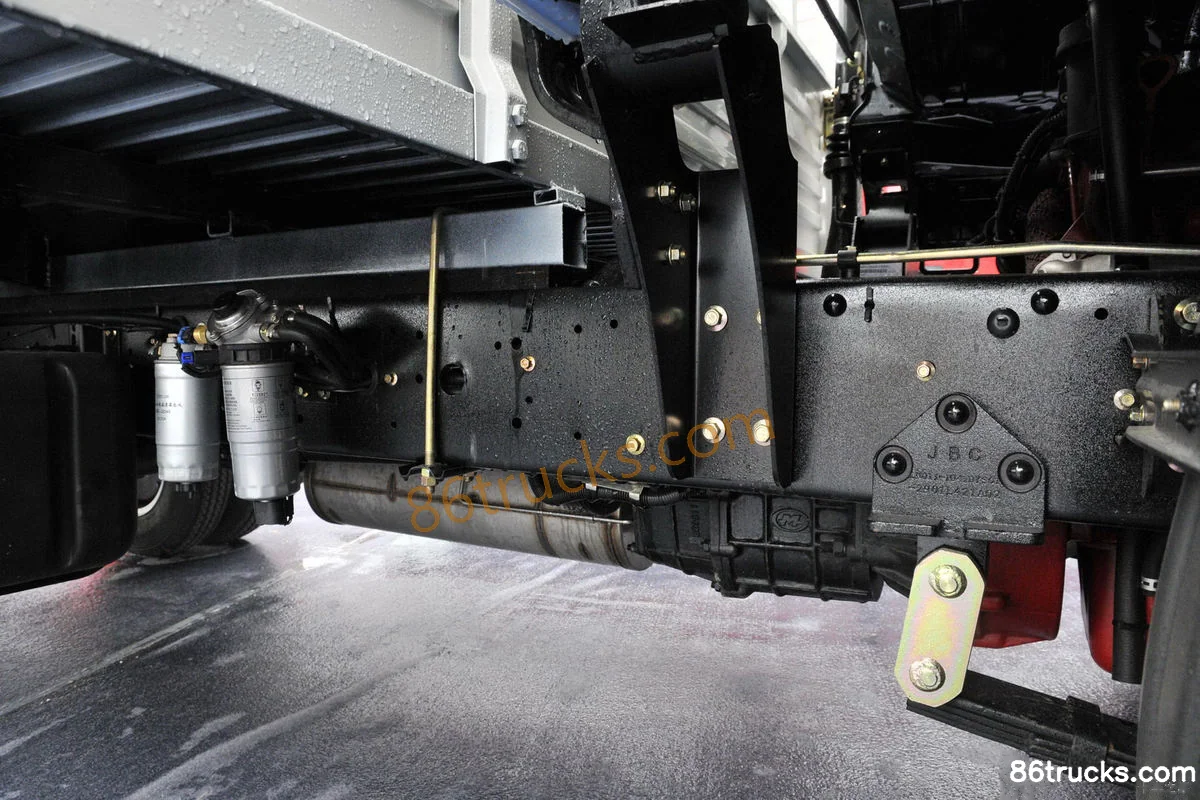

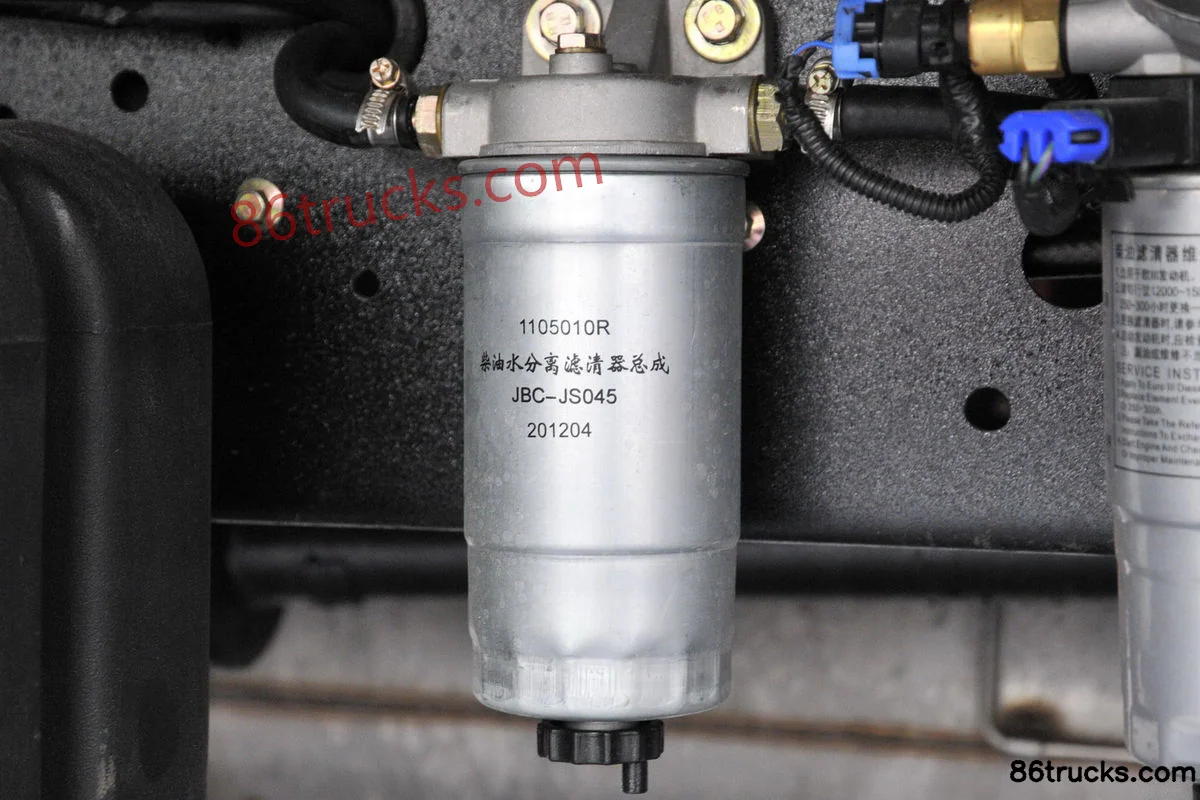

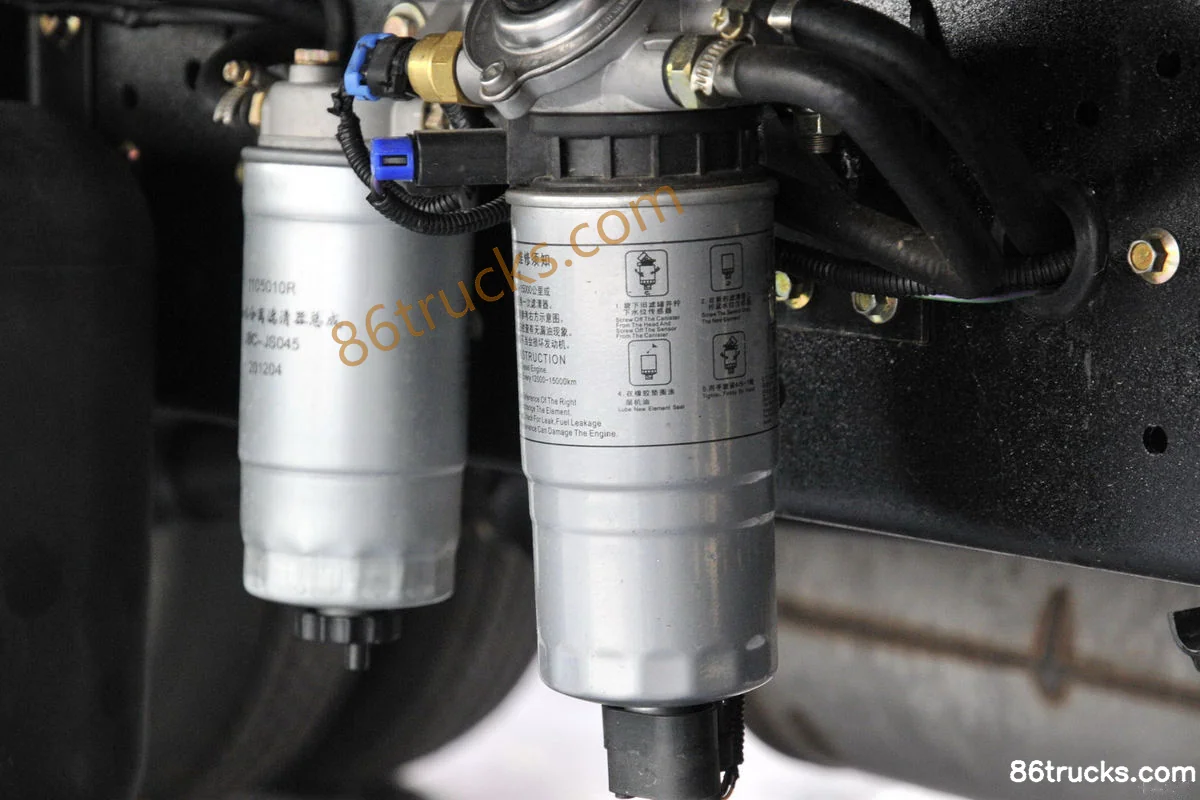

Chassis3

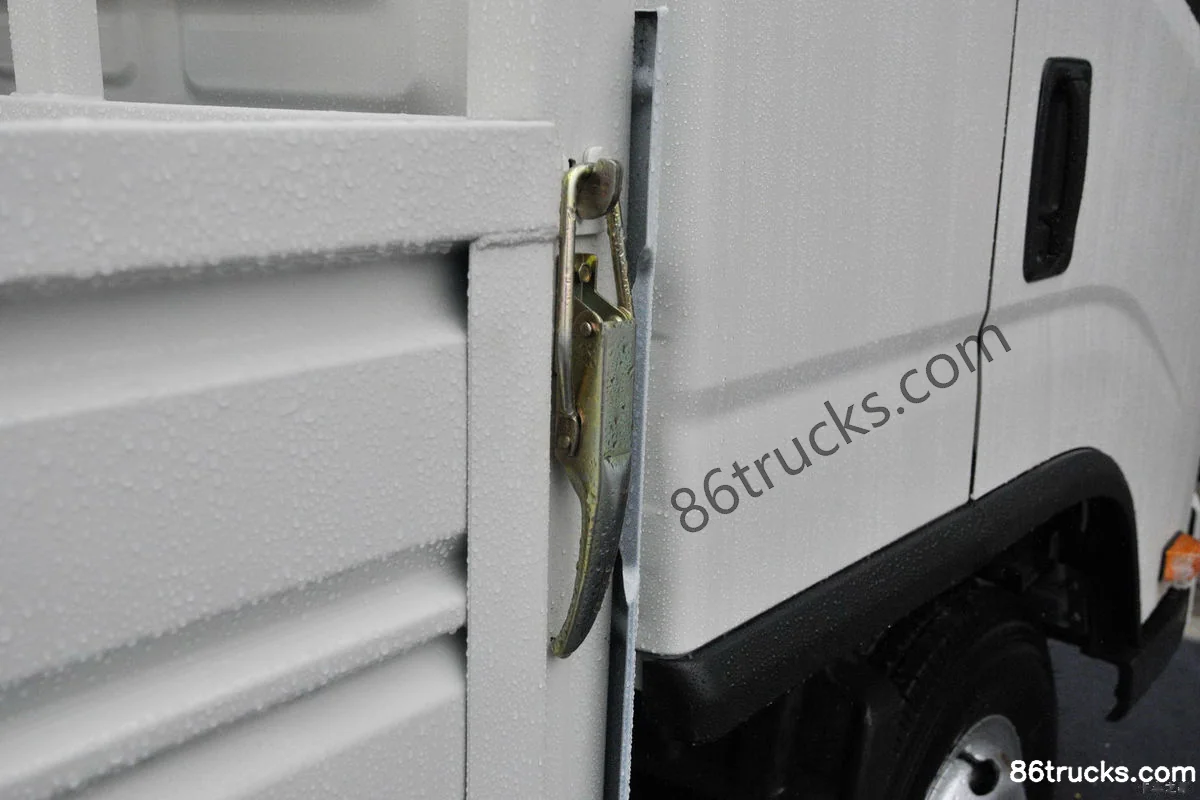

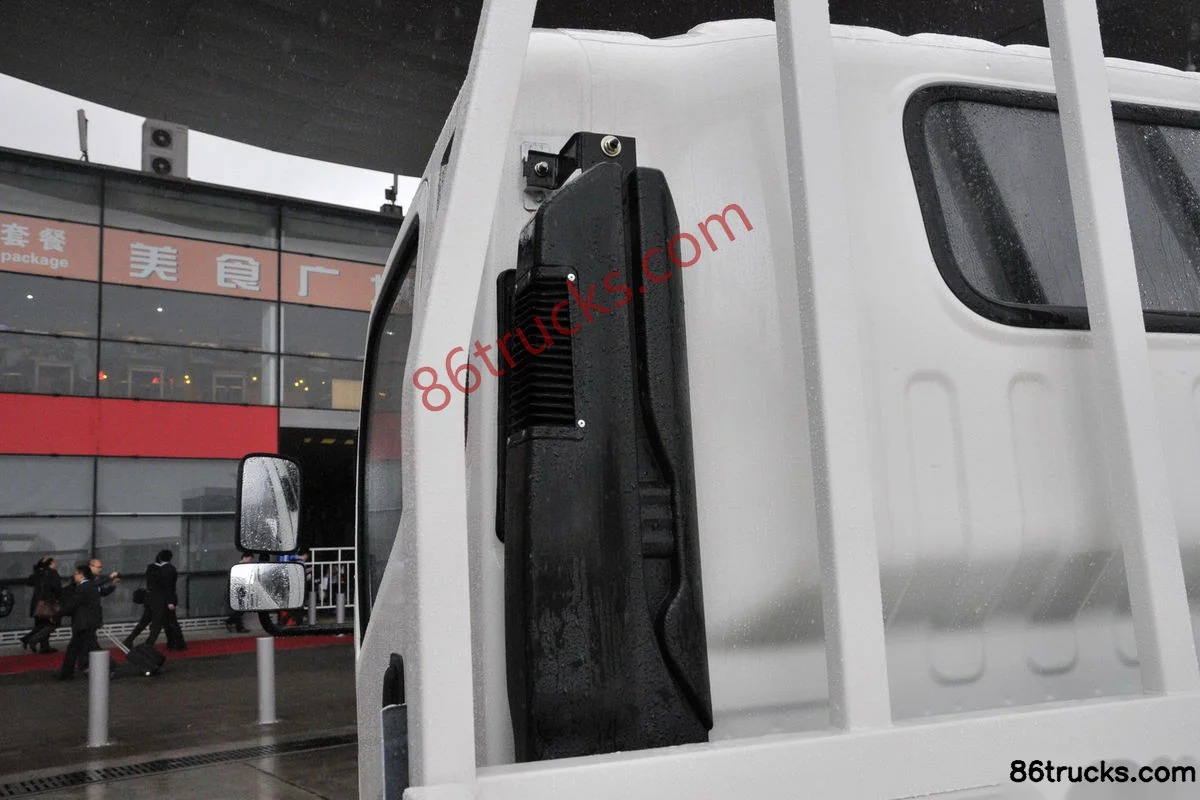

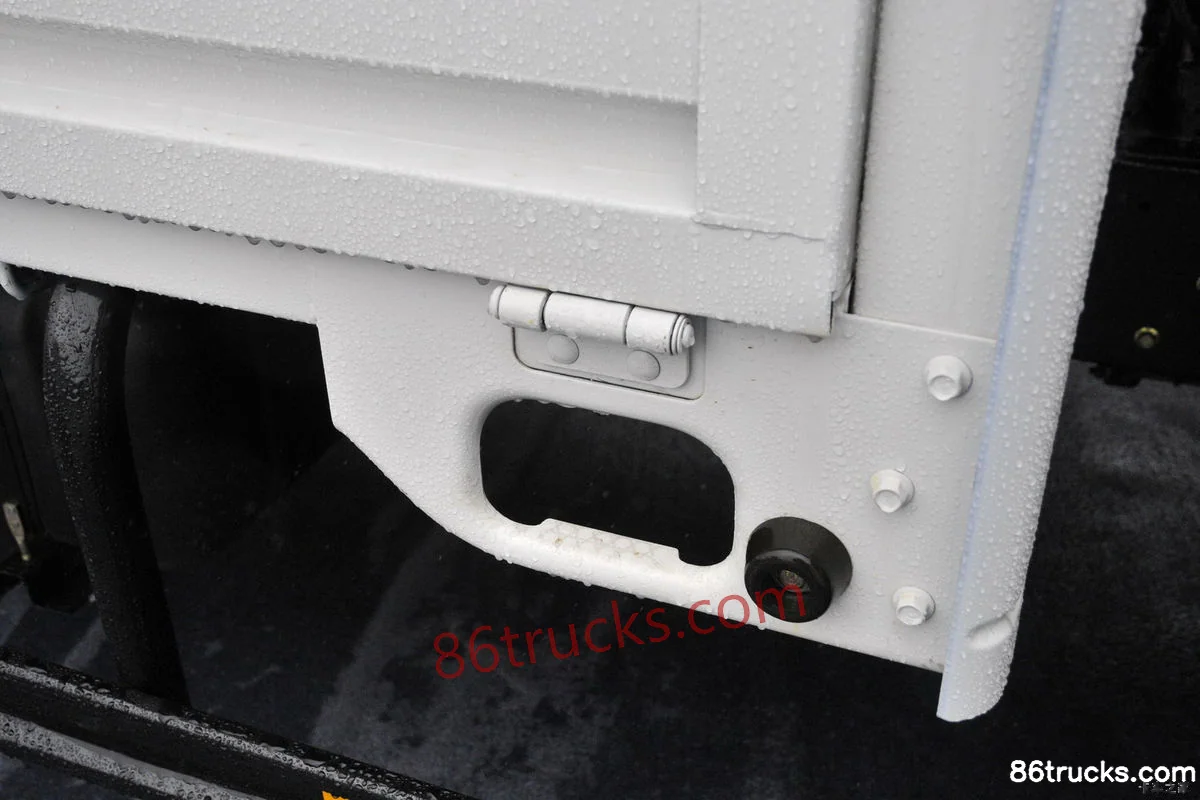

Body3

9 photos

FAQ

What is the export price of Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck, and what does it include?

Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck export reference is about From $9,028; MSRP is ¥6.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck?

Key specs of Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck: Drive: 4x2; Horsepower: 108 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck suited for?

Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck differ from other variants in the same series?

Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck belongs to Shenyang Jinbei Jinyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinbei Jinyun 108 hp 4X2(6 wheels) 3.8m Semi-Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
