CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.515ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: TEG5042XXYEV02
Type:: enclosed cargo truck
Box length class:: 4.3m
CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) ex
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: CRRC Times
Curb Weight: 2.85ton

Overview

The CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) is a Light Truck featuring 300km battery/range, CRRC Times motor, 4X2 (6 wheels) drive and 1.515t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): TEG5042XXYEV02
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.3m
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.995m
CLTC range: 300km
Curb Weight: 2.85ton
Rated payload: 1.515ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Zhuzhou, Hunan
tonnage class: Light Truck
Remarks: Standard: MP5; Optional: tire pressure monitoring, observation window, smart connectivity
Version: Standard Edition
Energy Type: Electric
electric motor
Motor 1 Brand: CRRC Times
Motor 1 Model: TZ190XS38F
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 65kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Battery rated voltage: 540V
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.27m
Cargo box width: 2.06m
Cargo box height: 2.01m
Cab parameters
Cab: Single Row
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2023kg
rear axle allowable load: 2472kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

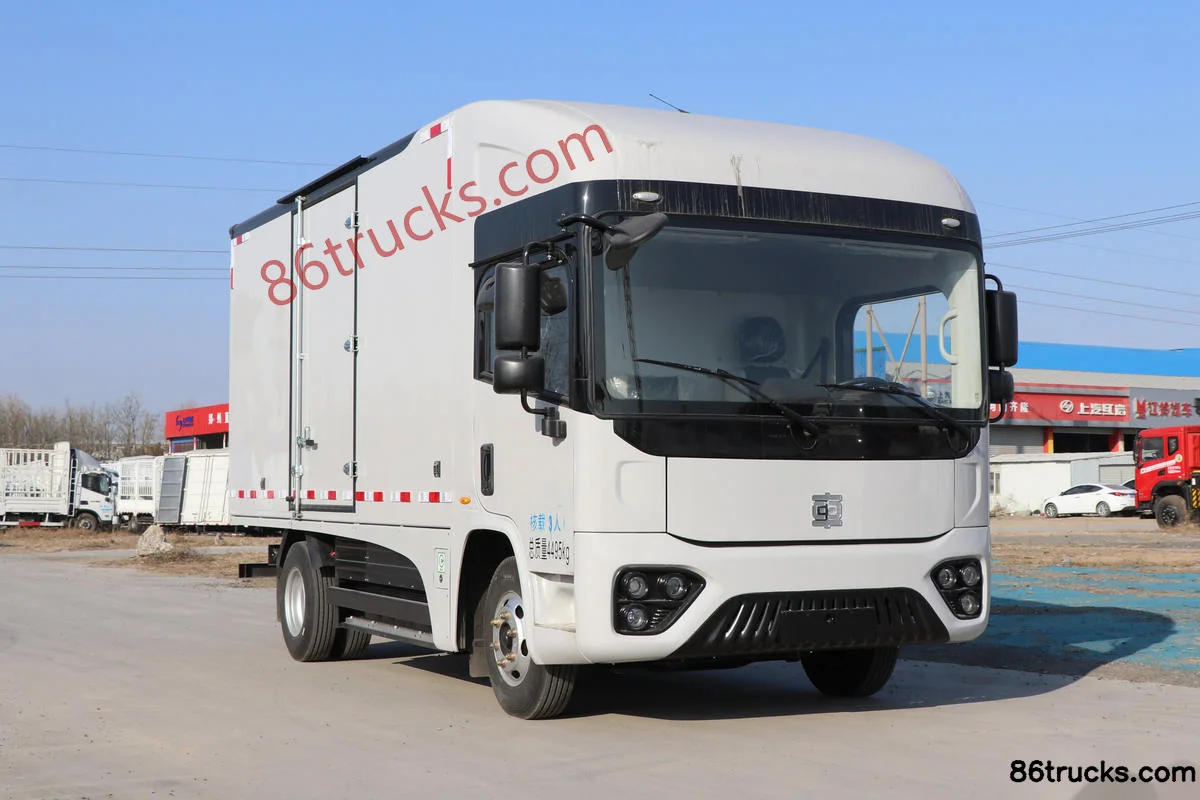

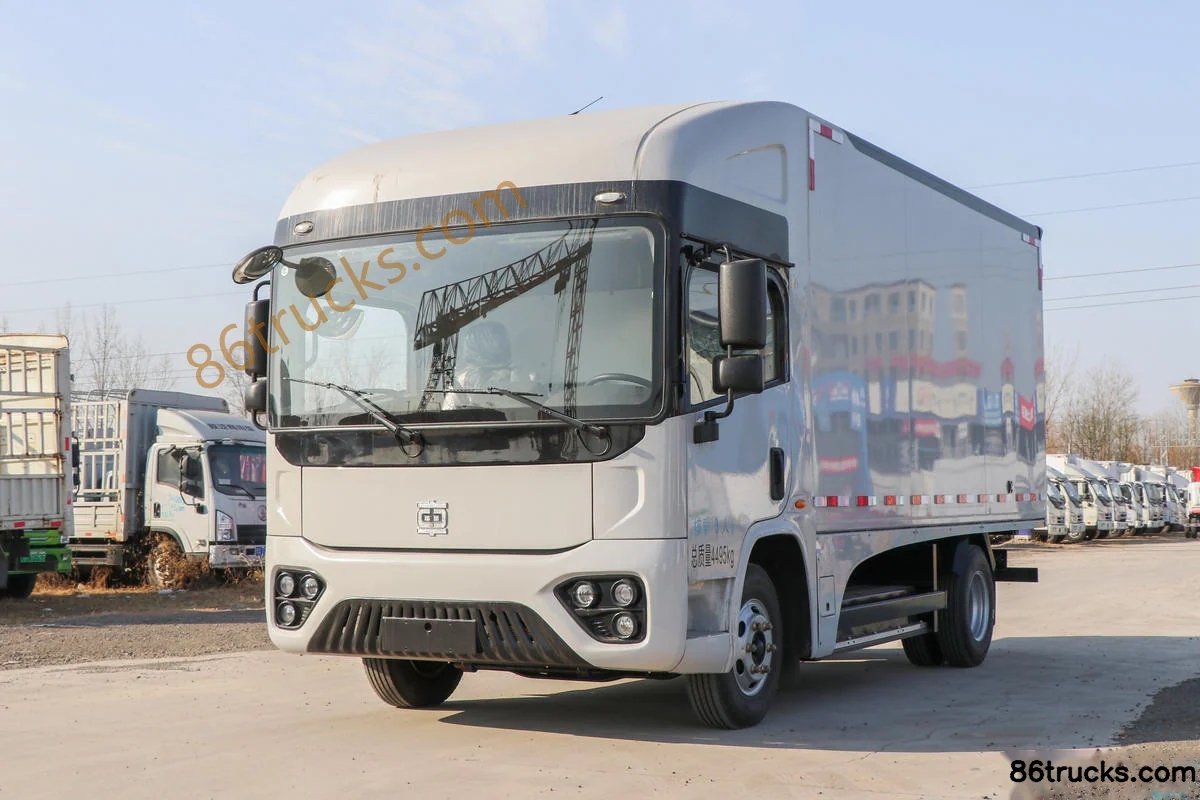

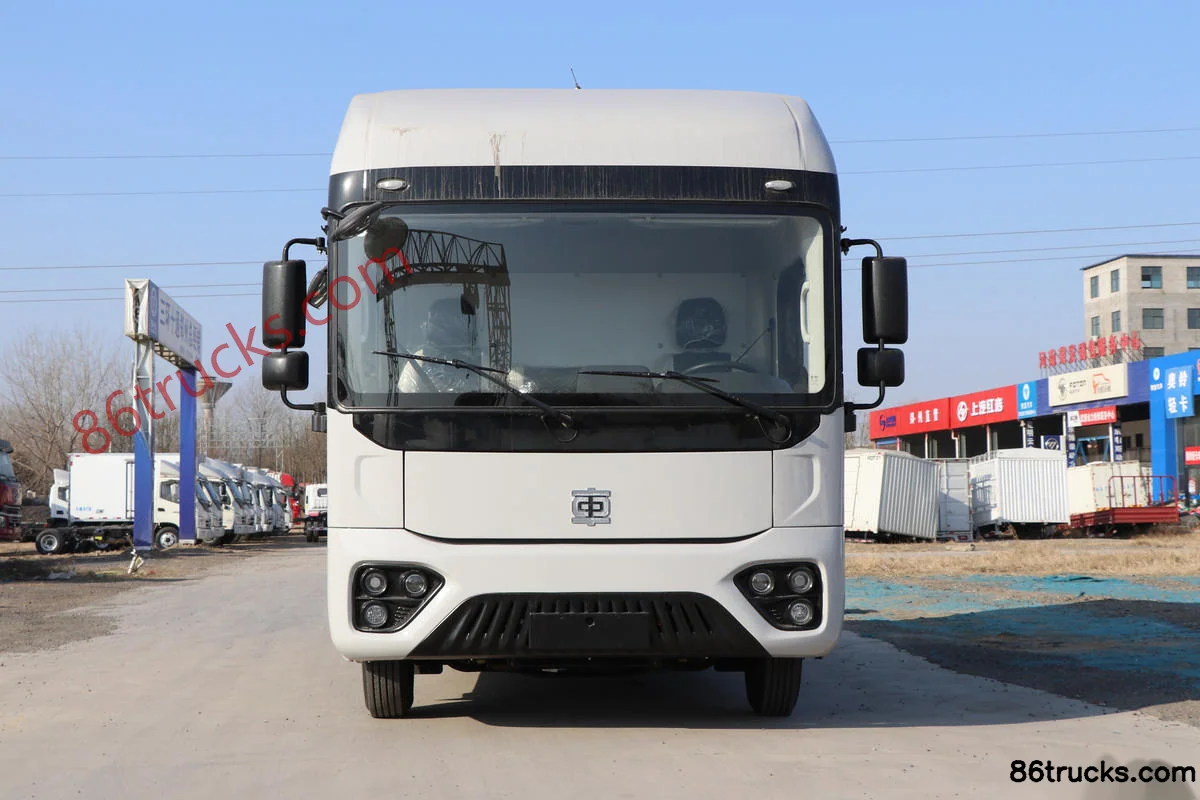

Exterior3

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Exterior (1) | 86Truck CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Exterior (2) | 86Truck CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Exterior (3) | 86Truck

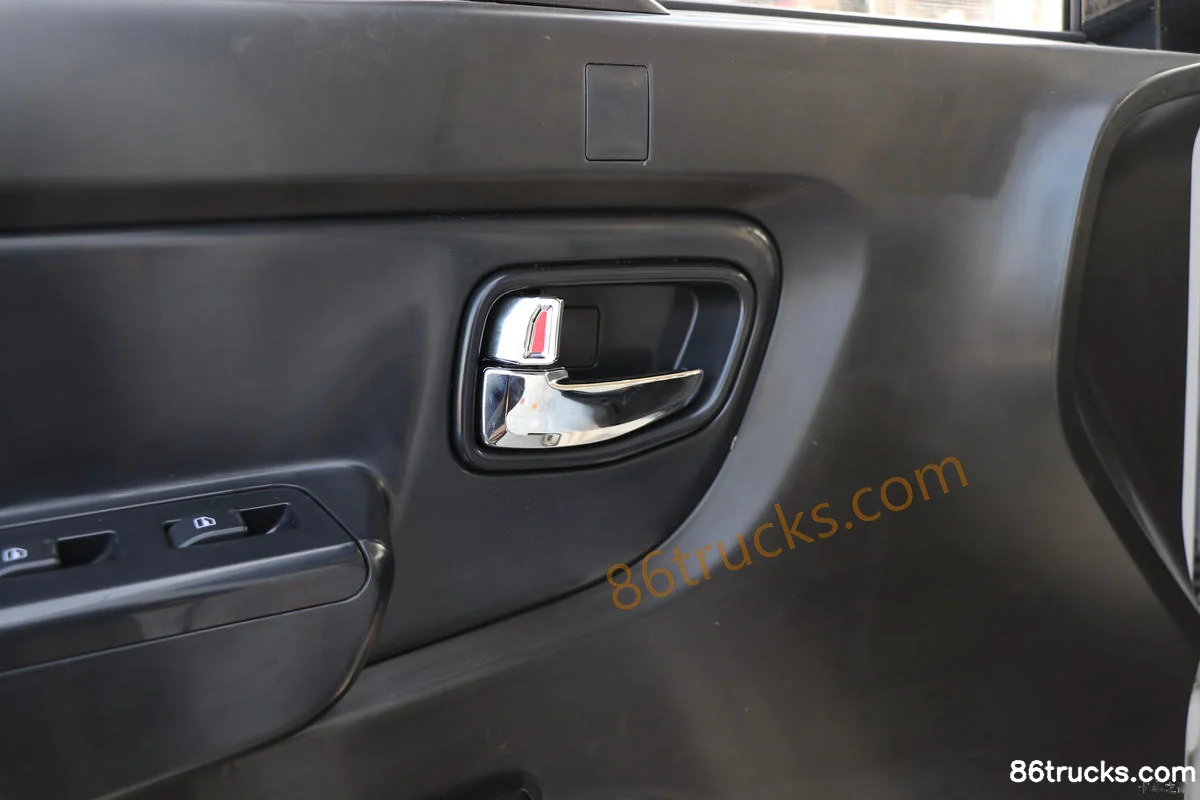

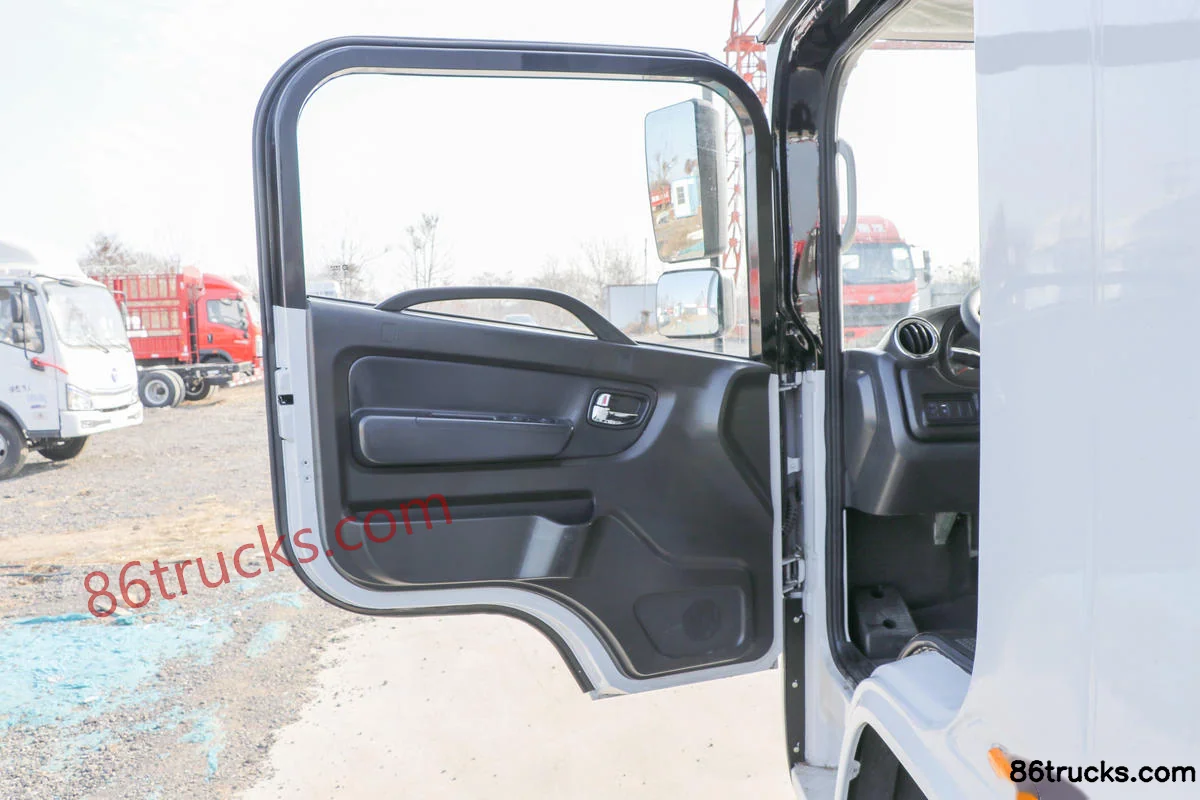

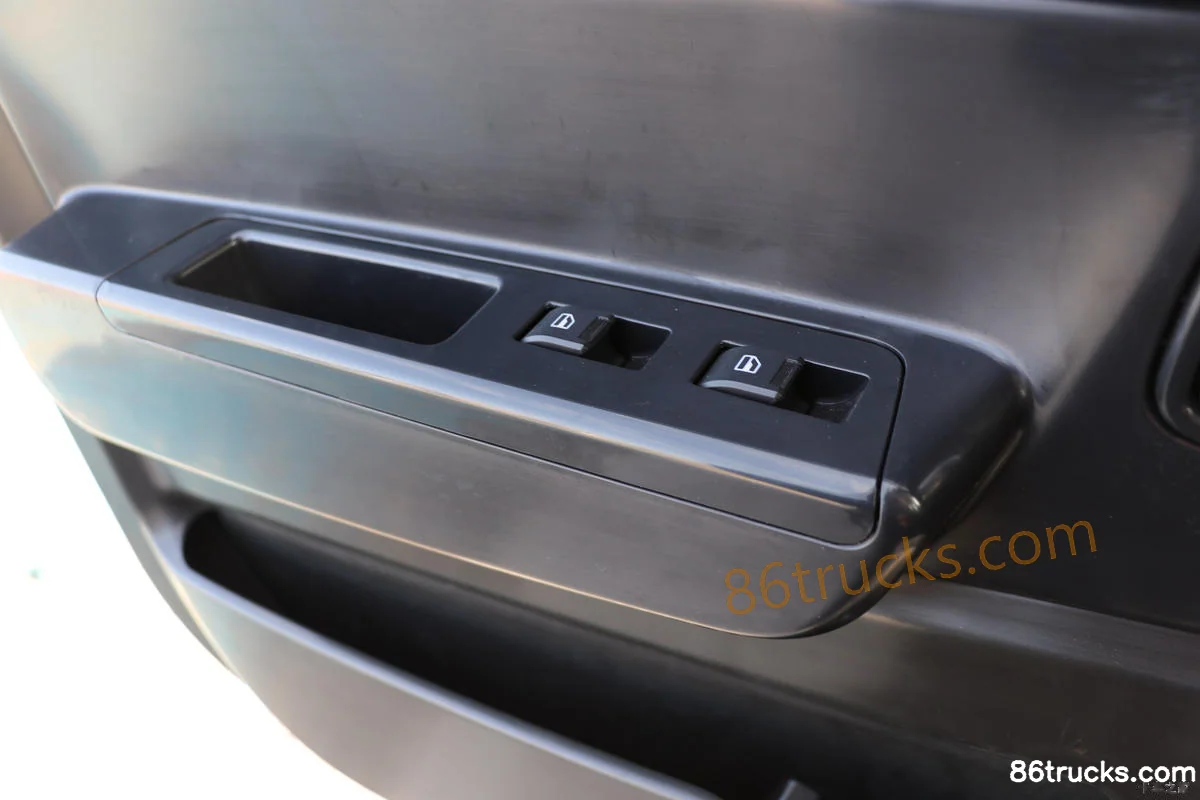

Interior3

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Interior (1) | 86Truck CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Interior (2) | 86Truck CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Interior (3) | 86Truck

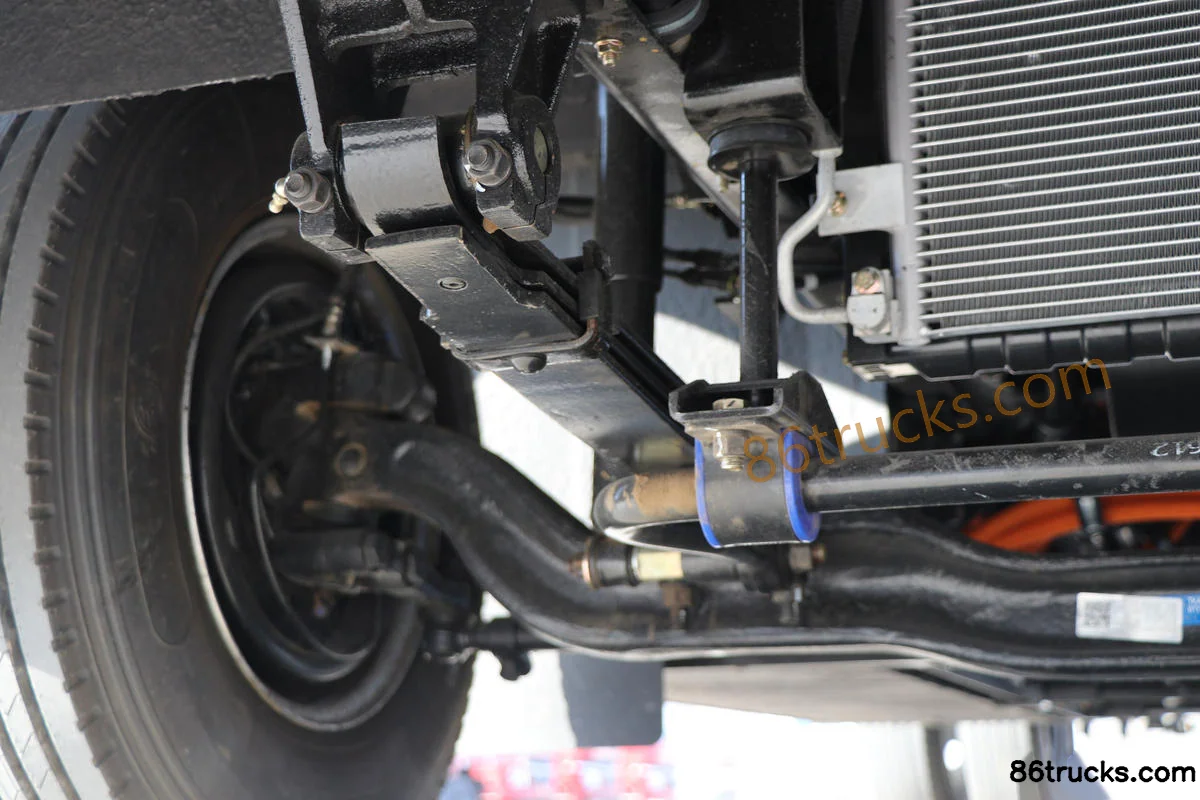

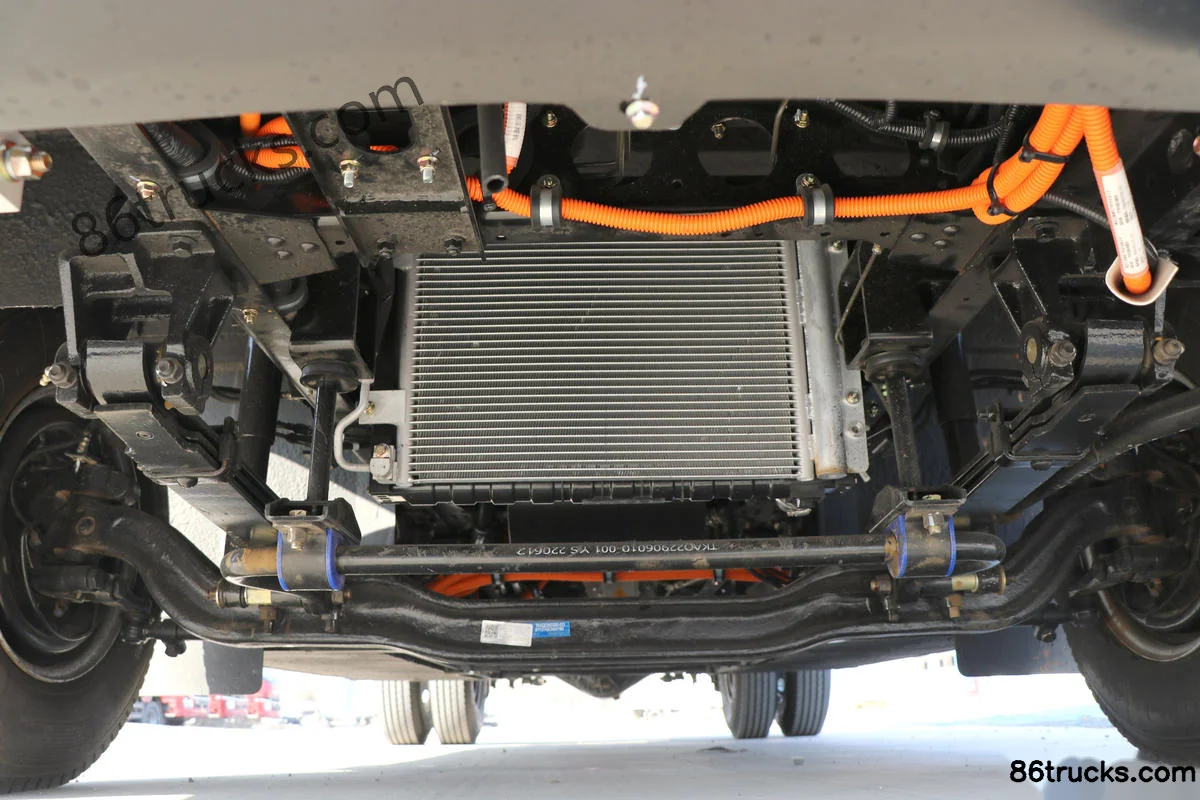

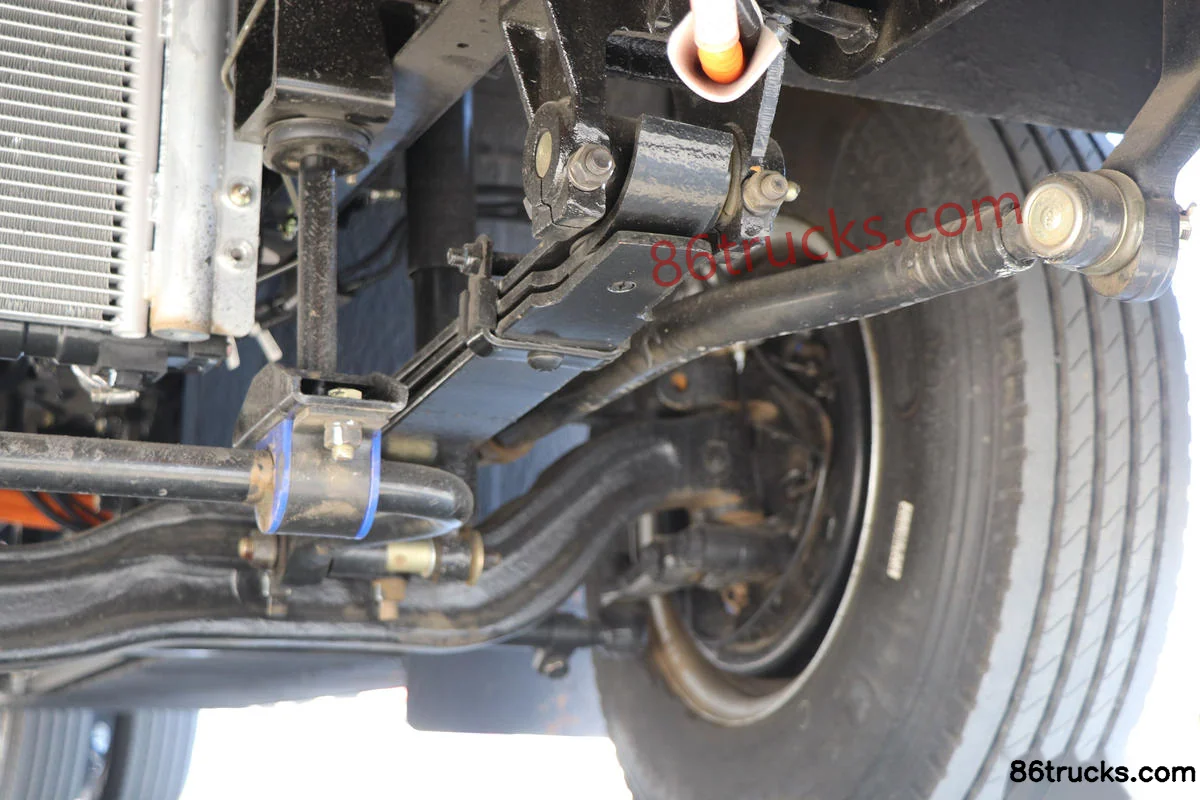

Chassis3

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Chassis (1) | 86Trucks CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Chassis (2) | 86Trucks CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Chassis (3) | 86Trucks

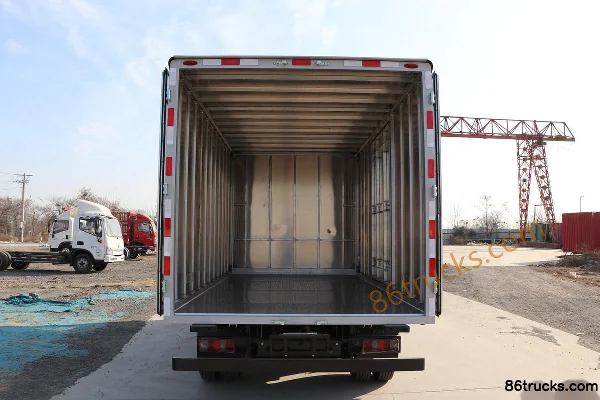

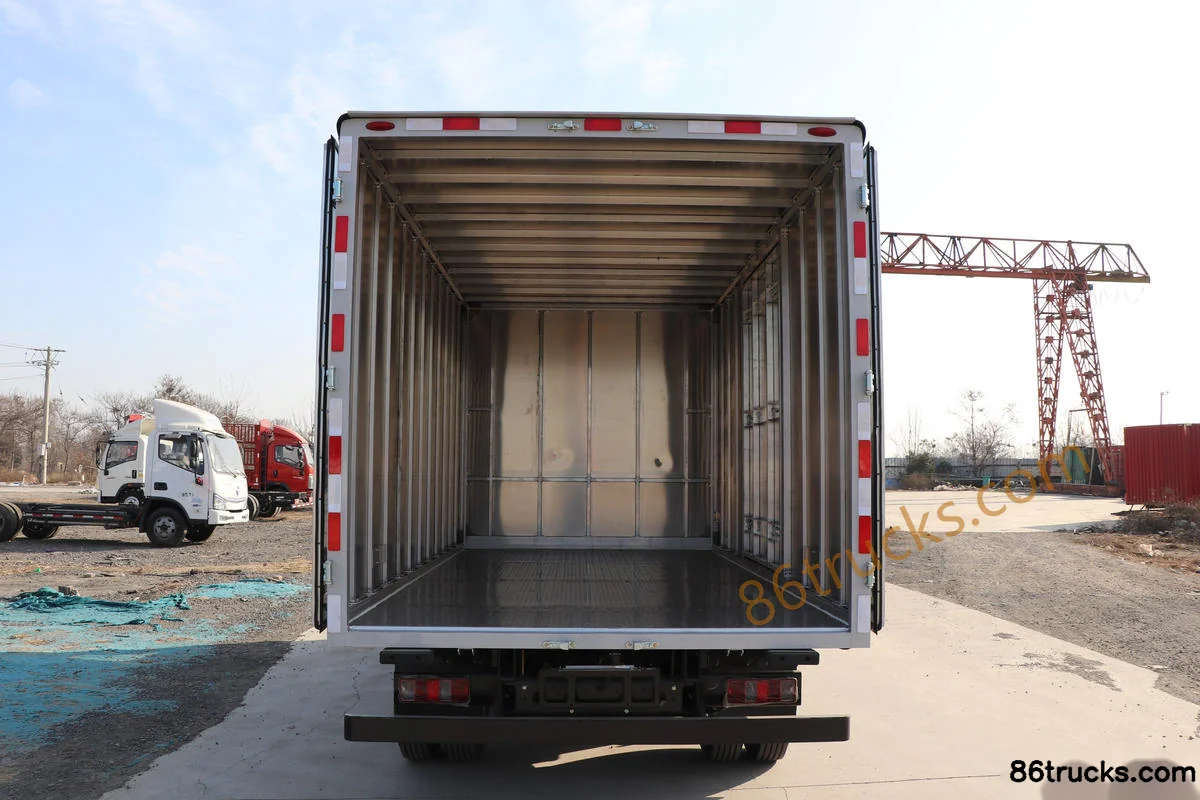

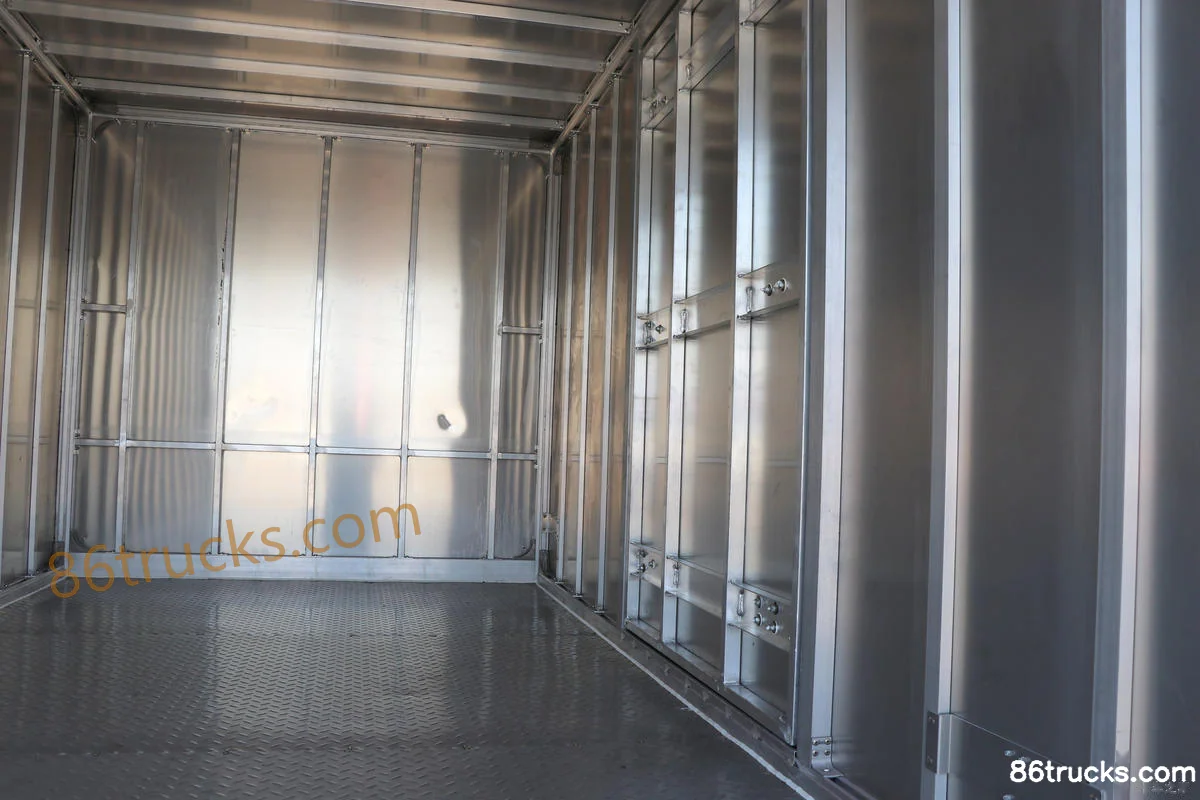

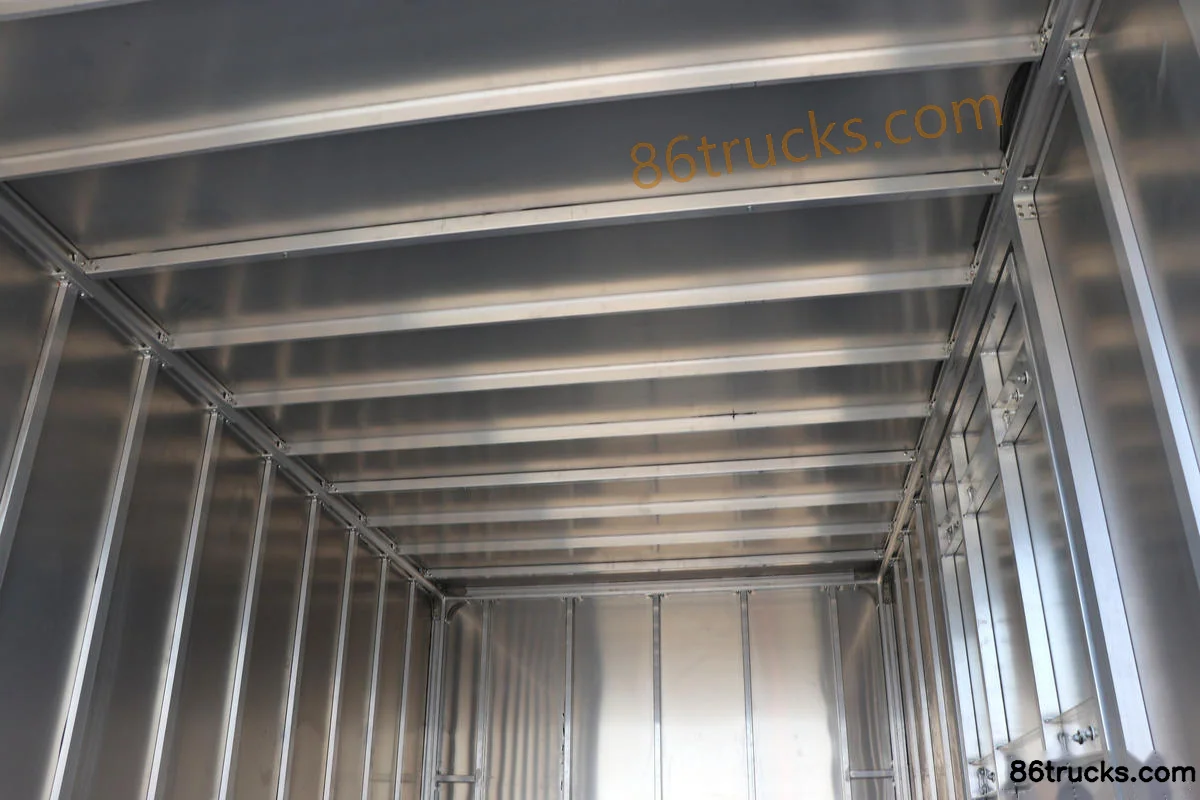

Body3

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Body (1) | 86Trucks CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Body (2) | 86Trucks CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels)?

Key specs of CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) suited for?

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) differ from other variants in the same series?

CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels) belongs to CRRC Electric (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CRRC Electric Standard Edition 3.4T 4.27m Single-row Pure Electric Van Light Truck (Oil Brake) 81.14kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
