Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels)

Export reference
From $23,333
MSRP ¥16.8M CNY
Rated payload:: 1.865ton
Wheelbase:: 3000mm
Cargo box type:: Stake type
Model code (announced):: EQ5040CCYTZBEV
Type:: stake truck
Box length class:: 3.7m
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Jingjin
Curb Weight: 2.5ton

Overview

The Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) is a Light Truck featuring 220km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.865t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5040CCYTZBEV
Type: stake truck
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 3.7m
Cab length: 5.75m
Cab width: 1.93m
Cab height: 2.67m
CLTC range: 220km
Curb Weight: 2.5ton
Rated payload: 1.865ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ180XSA05
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 100kW
Electronic Control
ECU Brand: Jiangsu Jitai Electric Co., Ltd.
Battery/Charging
Battery Brand: CATL
Charging method: DC charging
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 322V
fast charge time: 1.5h
Battery capacity: 55.7kWh
Battery total voltage: 322V
Energy Density: 146.3
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.7m
Cargo box width: 1.83m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1495kg
rear axle allowable load: 3000kg
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

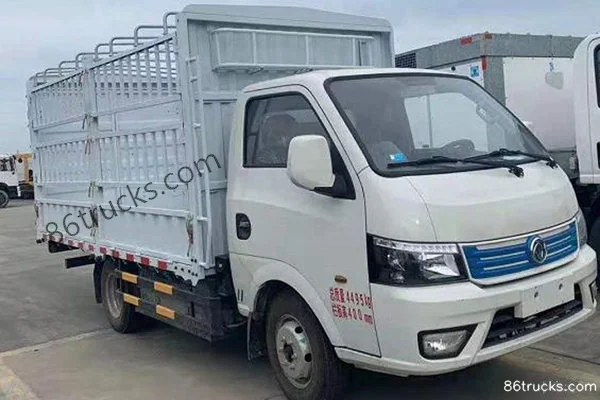

Exterior1

1 photos

FAQ

What is the export price of Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels), and what does it include?

Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels)?

Key specs of Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) suited for?

Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels) belongs to Dongfeng T15 light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T15 4.5T 3.7m Single Row Electric Stake Light Truck 55.7kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
