Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck

Export reference
MSRP N/A
Horsepower: 143
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: ZF
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck is a Light Truck featuring 3.735m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 143 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049V8BEA-FA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.7m
engine: FotonISF3.8s4141
transmission: ZFZF651B
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Urban Distribution
Front/rear suspension: 1.095/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: ZFZF651B
Transmission Brand: ZF
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.735m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.2T
Front axle allowable load: 1665kg
rear axle description: 5.5T
rear axle allowable load: 2830kg
Leaf spring count: 3+1/6+7
Tire
Tire Size: 7.00R16,7.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

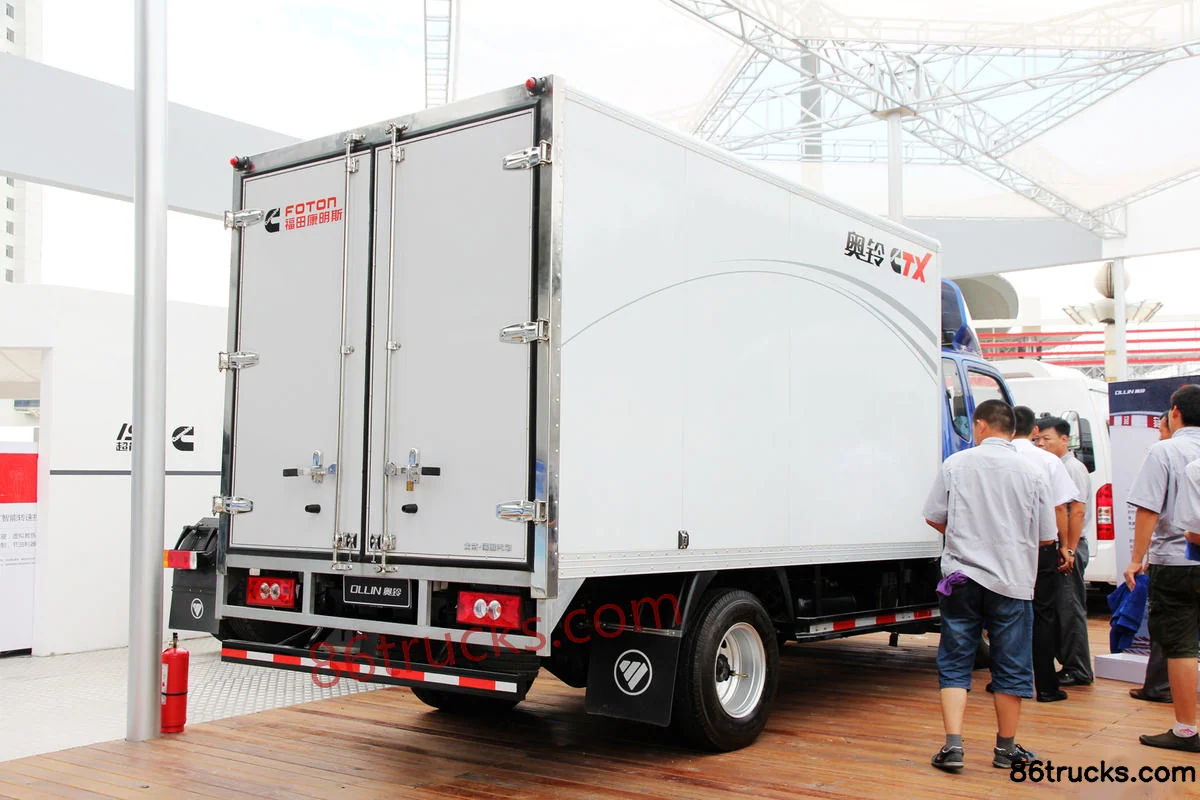

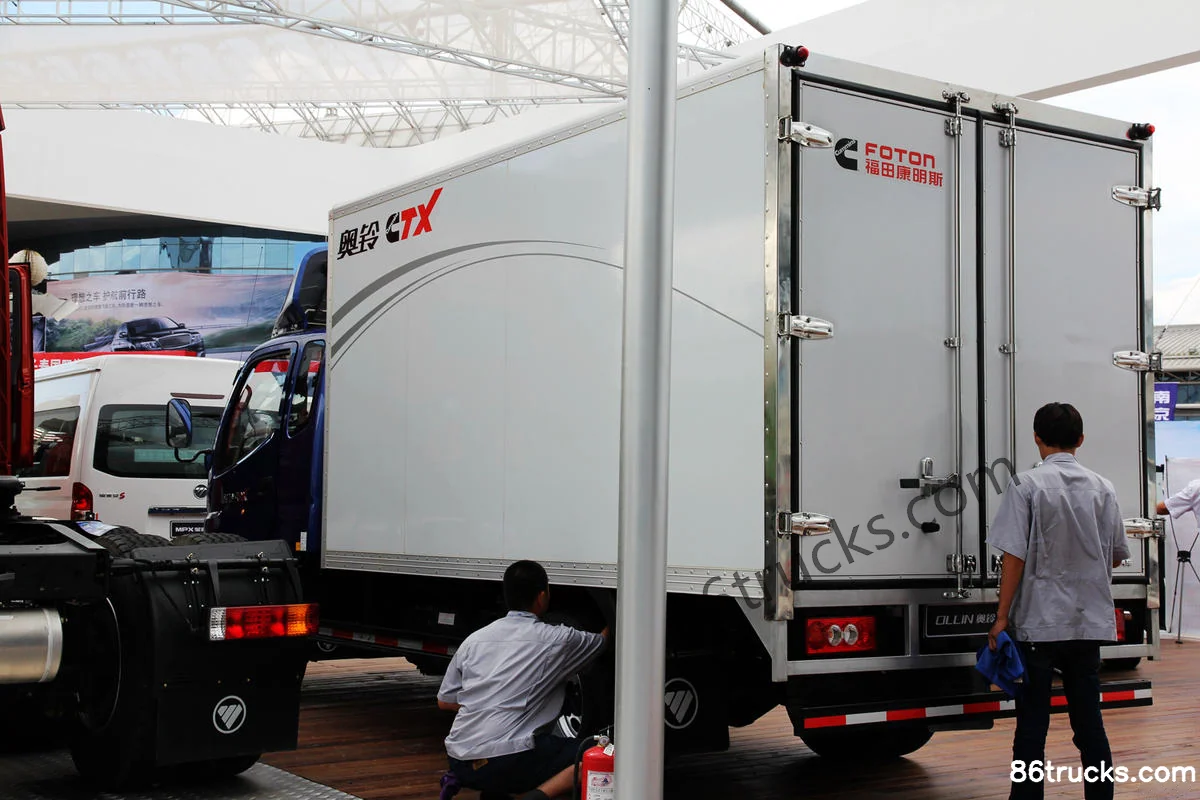

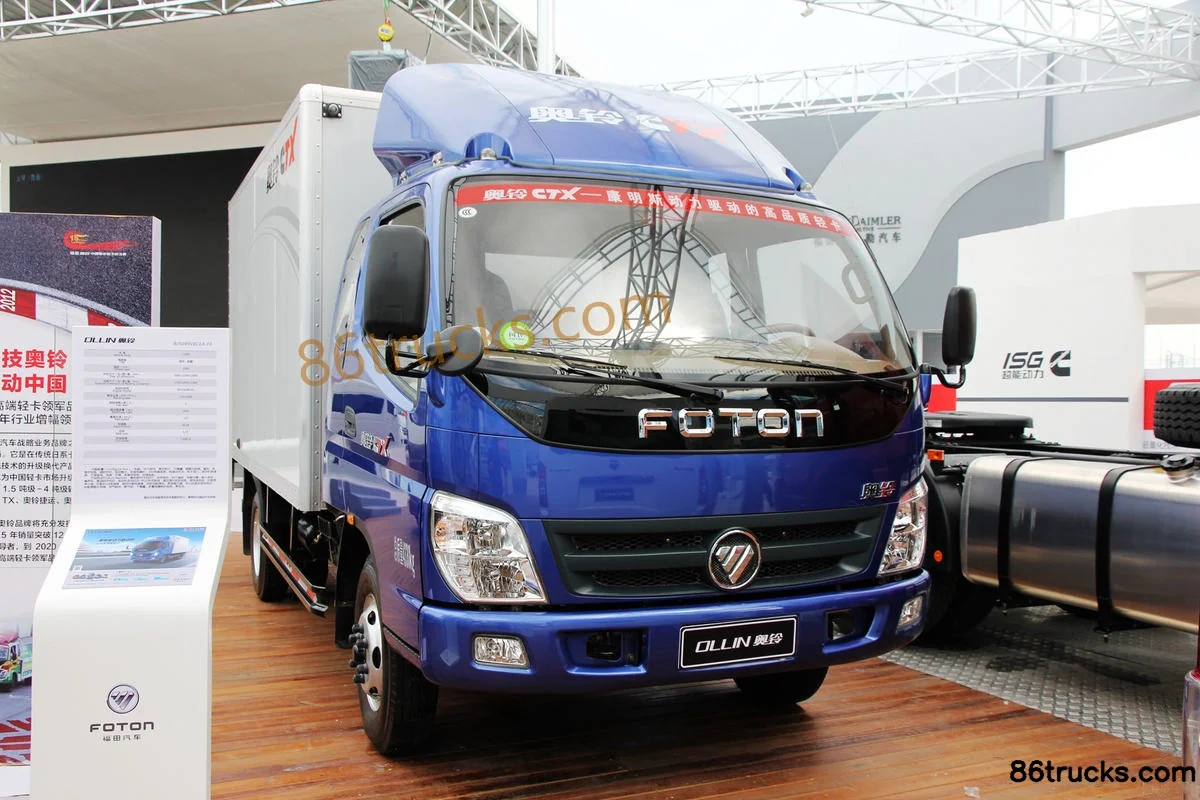

Exterior3

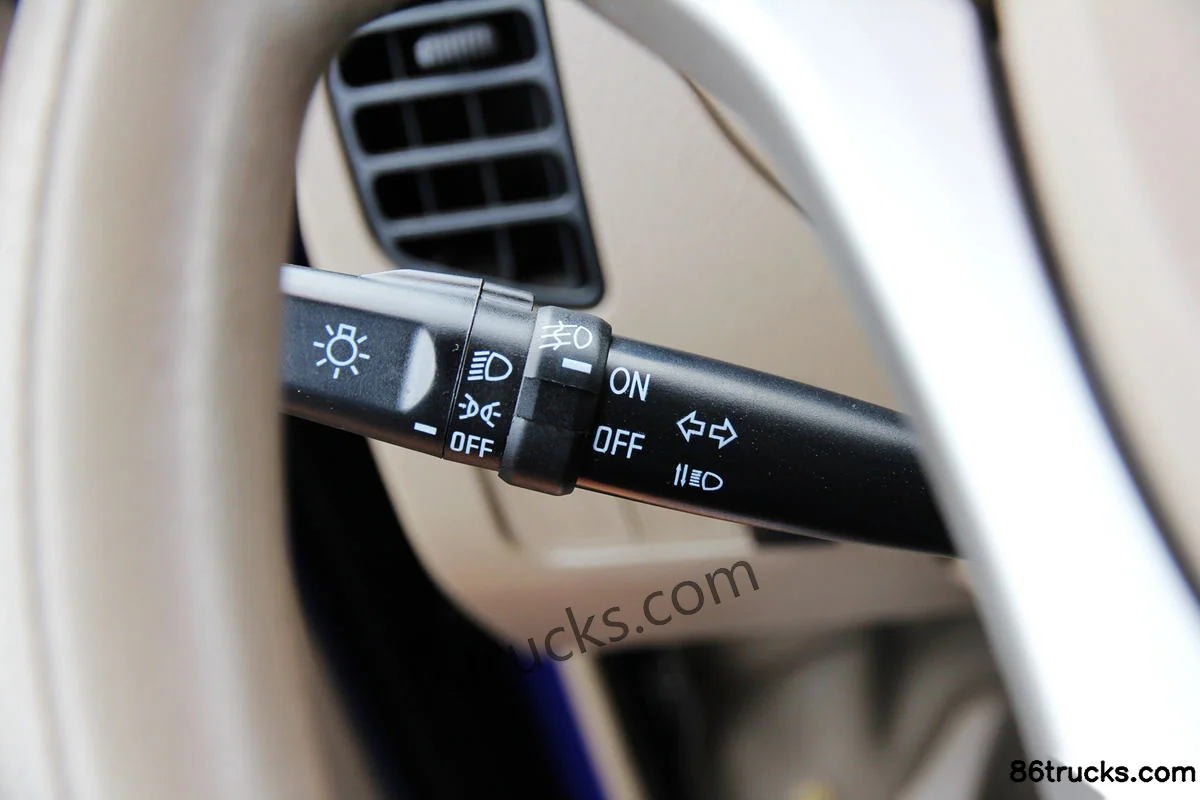

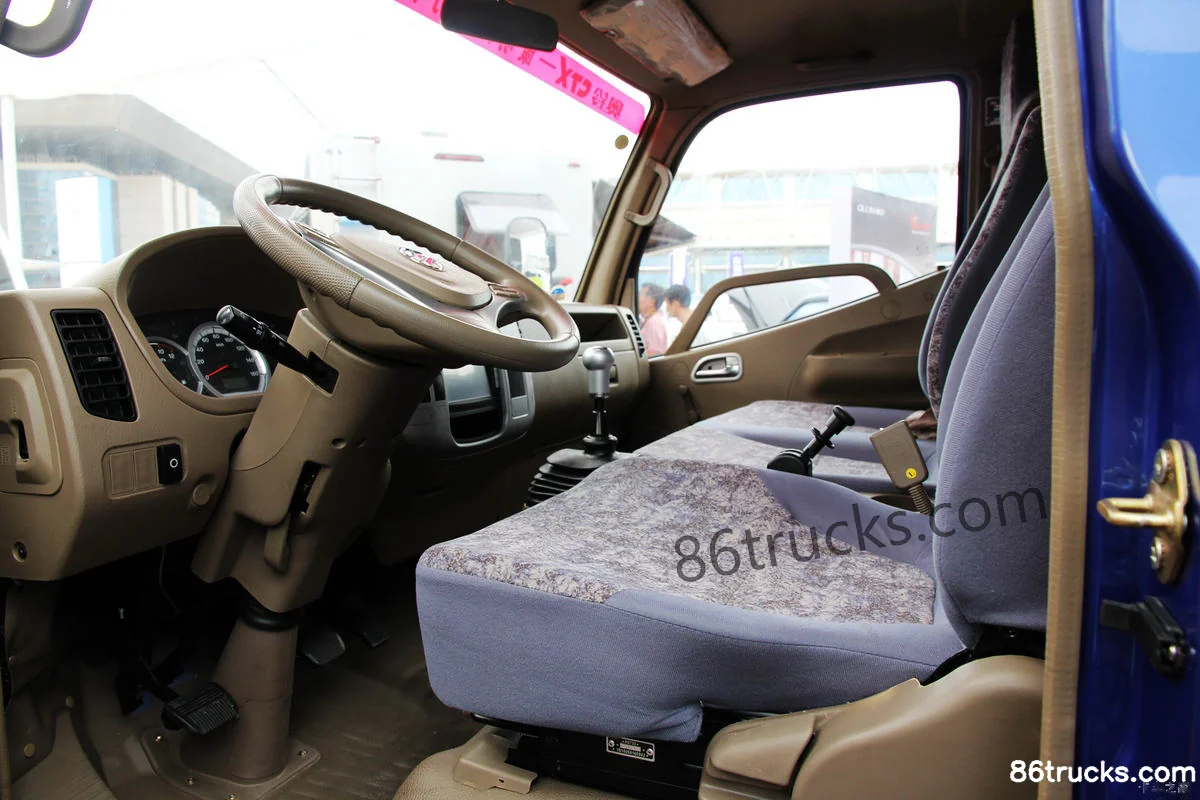

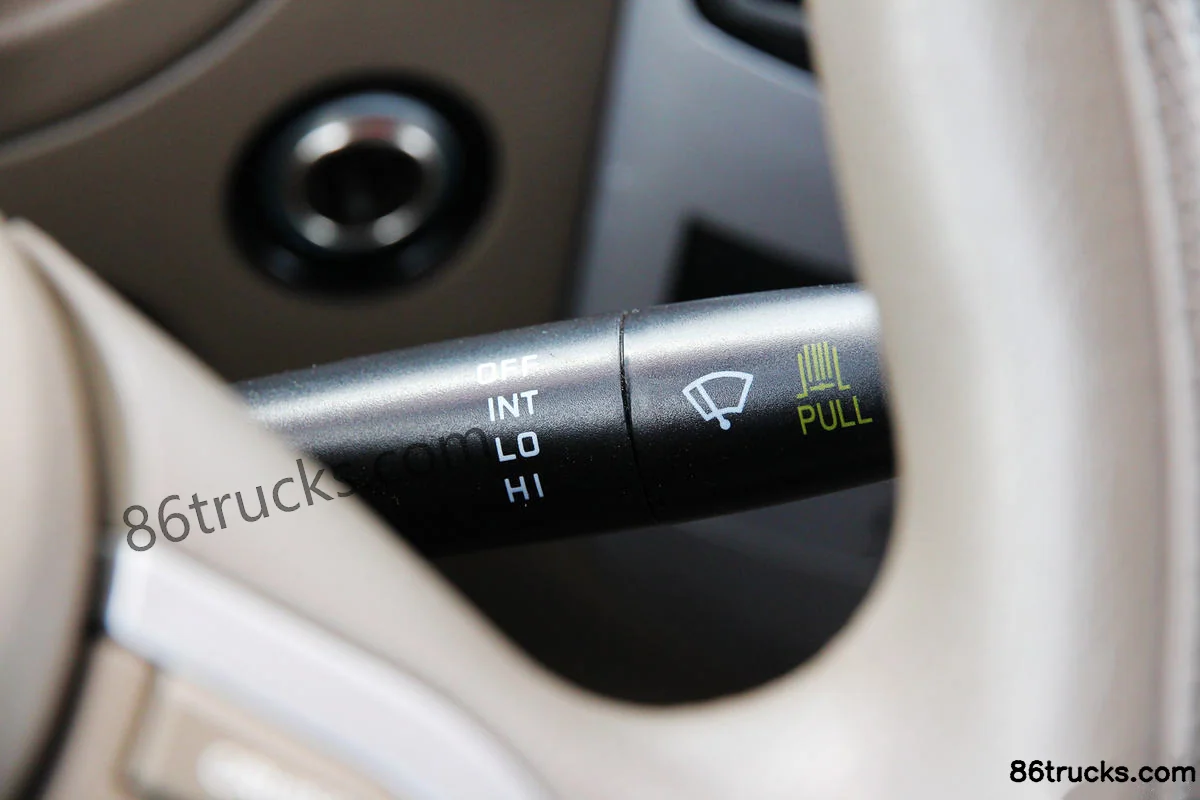

Cab3

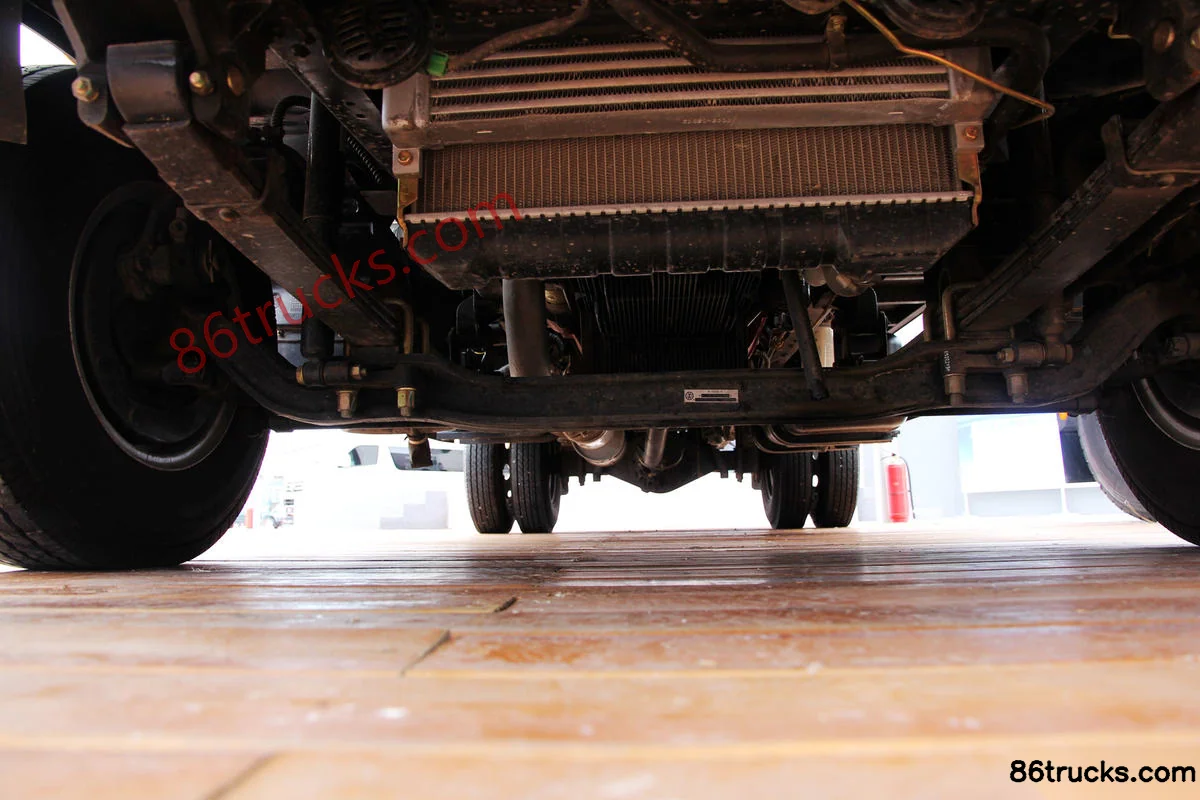

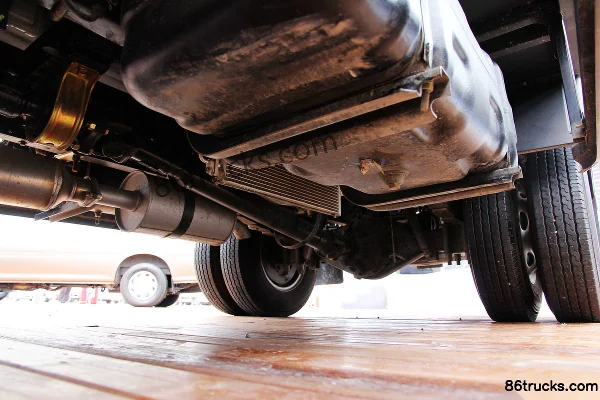

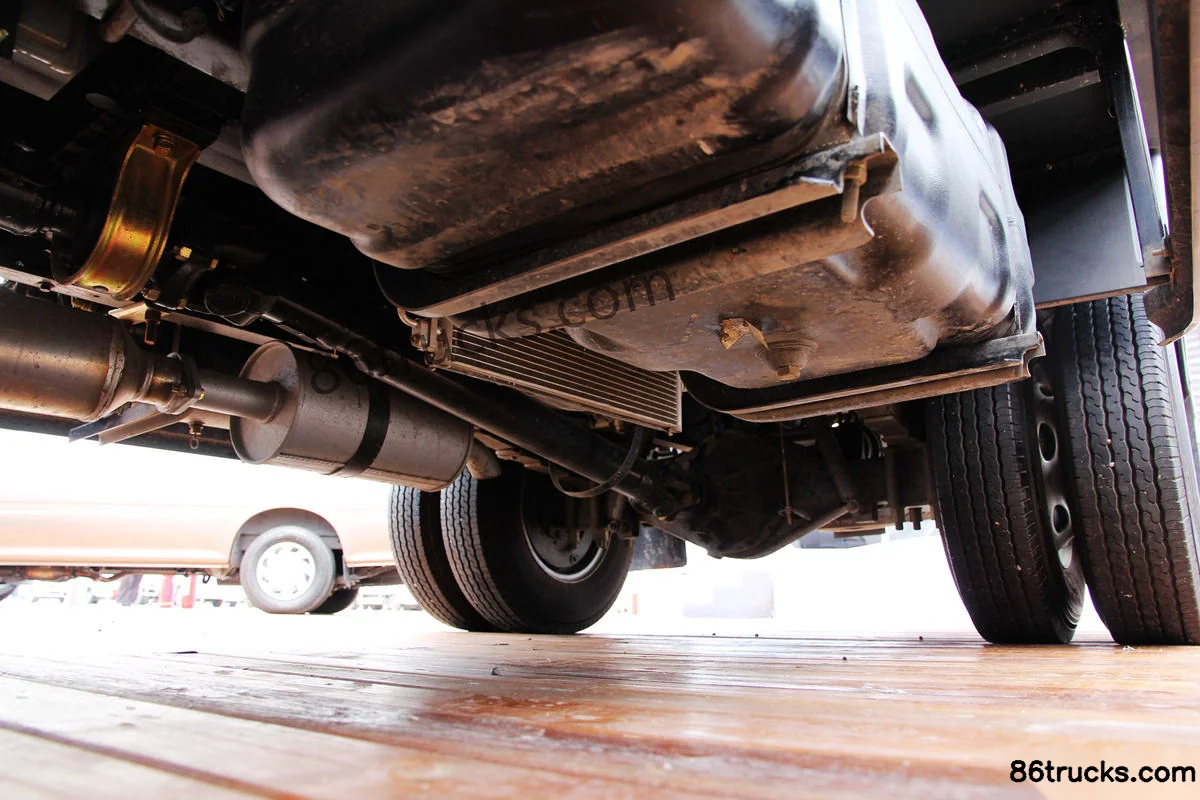

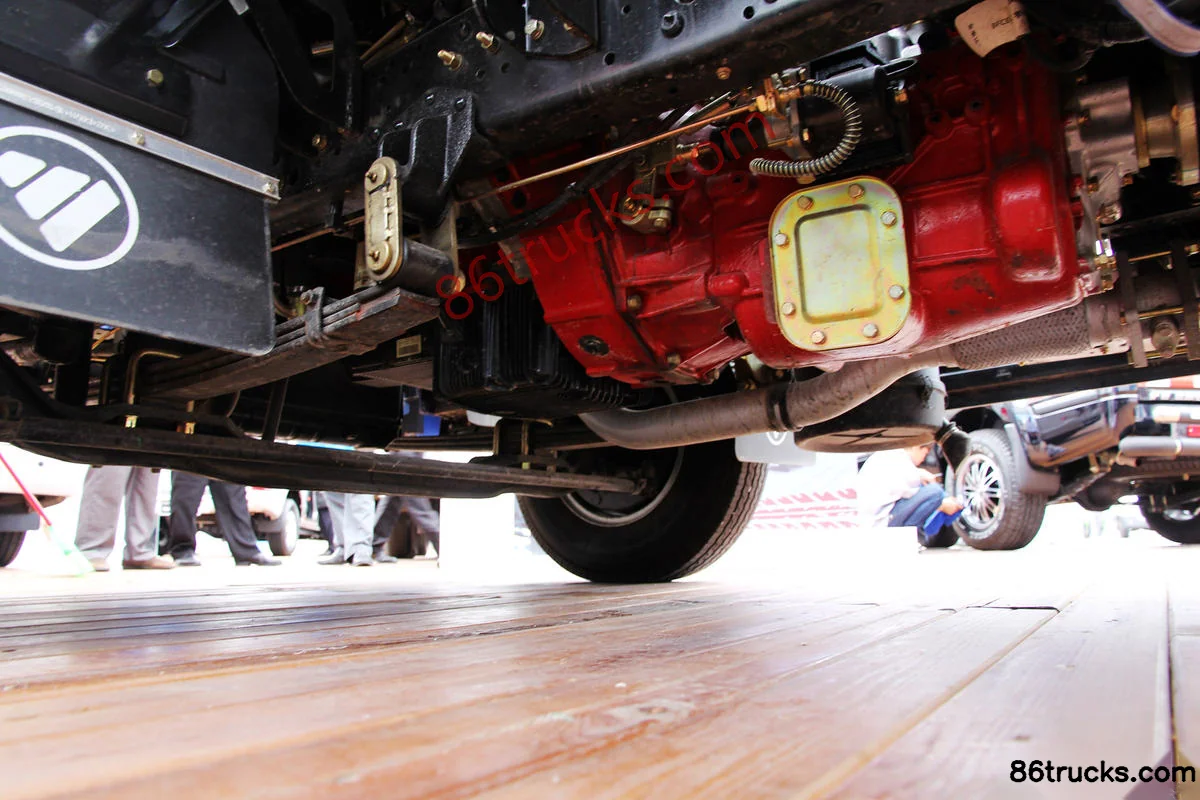

Chassis3

9 photos

FAQ

What emission standard does Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck?

Key specs of Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck: Drive: 4x2; Horsepower: 143 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck suited for?

Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck differ from other variants in the same series?

Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX 143 hp 4X2(6 wheels) 3.7m Semi-row Enclosed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
