Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle)

Export reference
From $67,056
MSRP ¥48.28M CNY
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3825+1350mm
Tire brand:: Triangle
Front axle allowable load:: 7000kg
Displacement:: 12.419L
Drive 6X4 (10 wheels)
Horsepower 430
Emission China V
Transmission ZF

Overview

The Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) is a Heavy truck featuring 6X4 (10 wheels) drive, 430 hp, 25t GVW and China V emissions. Its segment focus covers Logistics, Coal Transport and Express & Parcel, matching those duty cycles. On the powertrain side, it comes with a SinotrukMT13.43-50 engine, ZF transmission and LNG (liquefied natural gas) fuel.

China V 430 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4256V384HE1LB
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: SinotrukMT13.43-50
transmission: ZFZF16S2230 TO
Rear Axle Ratio: 5.33
Cab length: 7.45m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2041mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 101km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
market segment: Logistics, Coal Transport, Express & Parcel
Remarks: Trailer ABS spiral harness assembly, static-conductive drag strap, ECAS electronically controlled air suspension, Continental air bags, optional: Smart Connect A version, rear pintle hook, fire extinguisher
Version: Highway standard edition LNG
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMT13.43-50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.419L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 1900N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S2230 TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1400L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Sunroof: Manual sunroof
Chassis Specs
Suspension type: Front/rear standard
Front axle description: HR9 disc brake
Front axle allowable load: 7000kg
Fifth wheel: Dalishen JOST 90#
rear axle description: MCP16
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.33
Leaf spring count: 9/12,3/5,3/12
Aluminum wheels:
Tire
Tire brand: Triangle
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

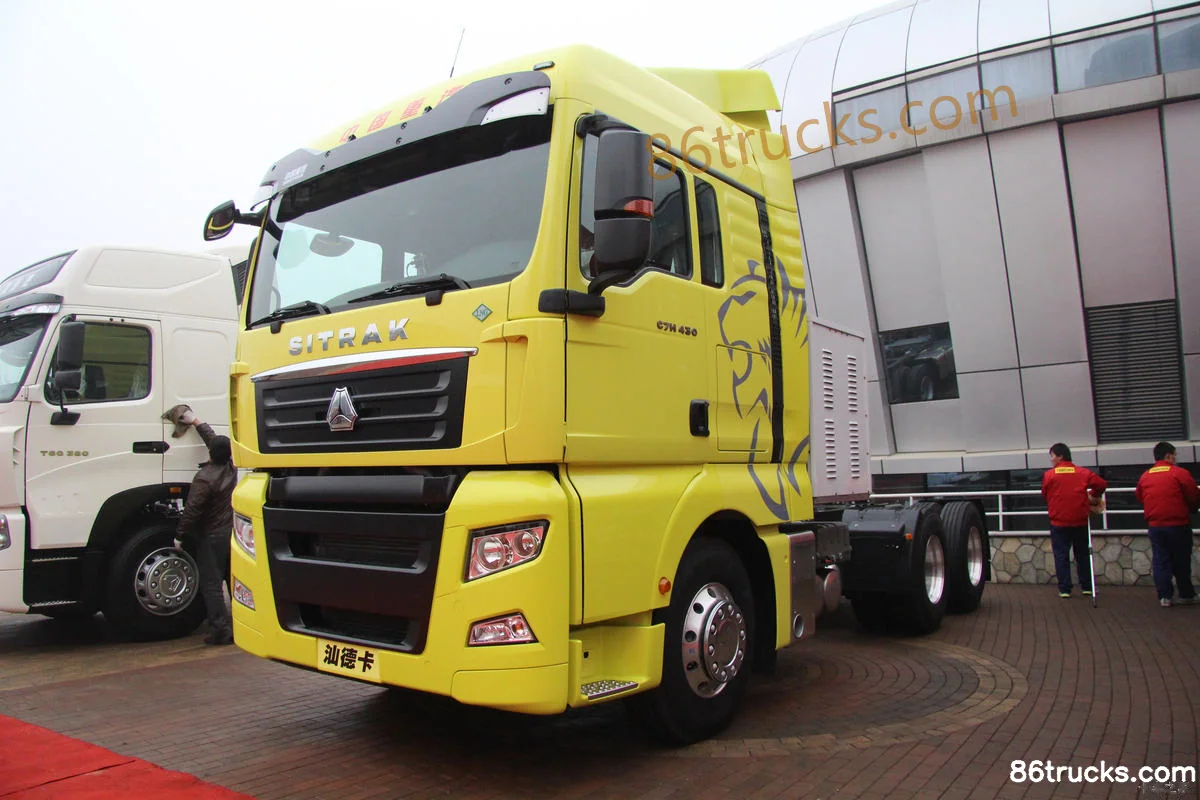

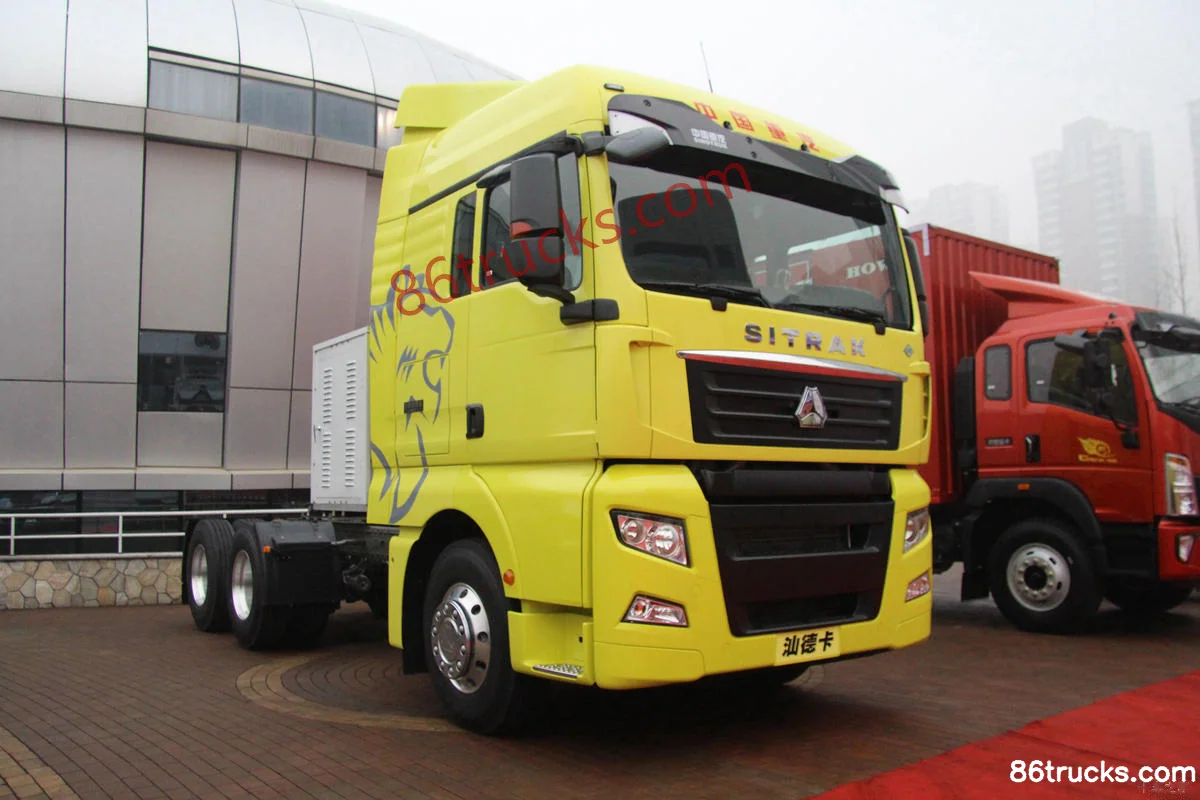

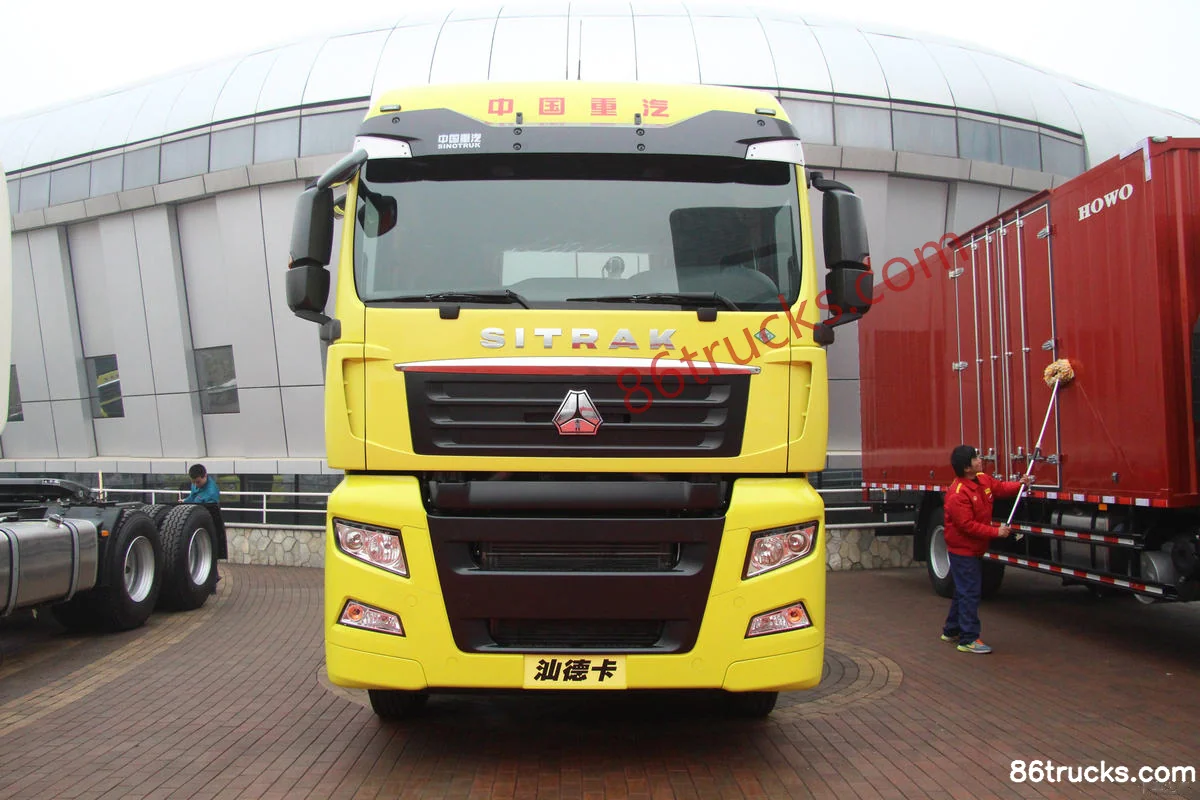

Exterior3

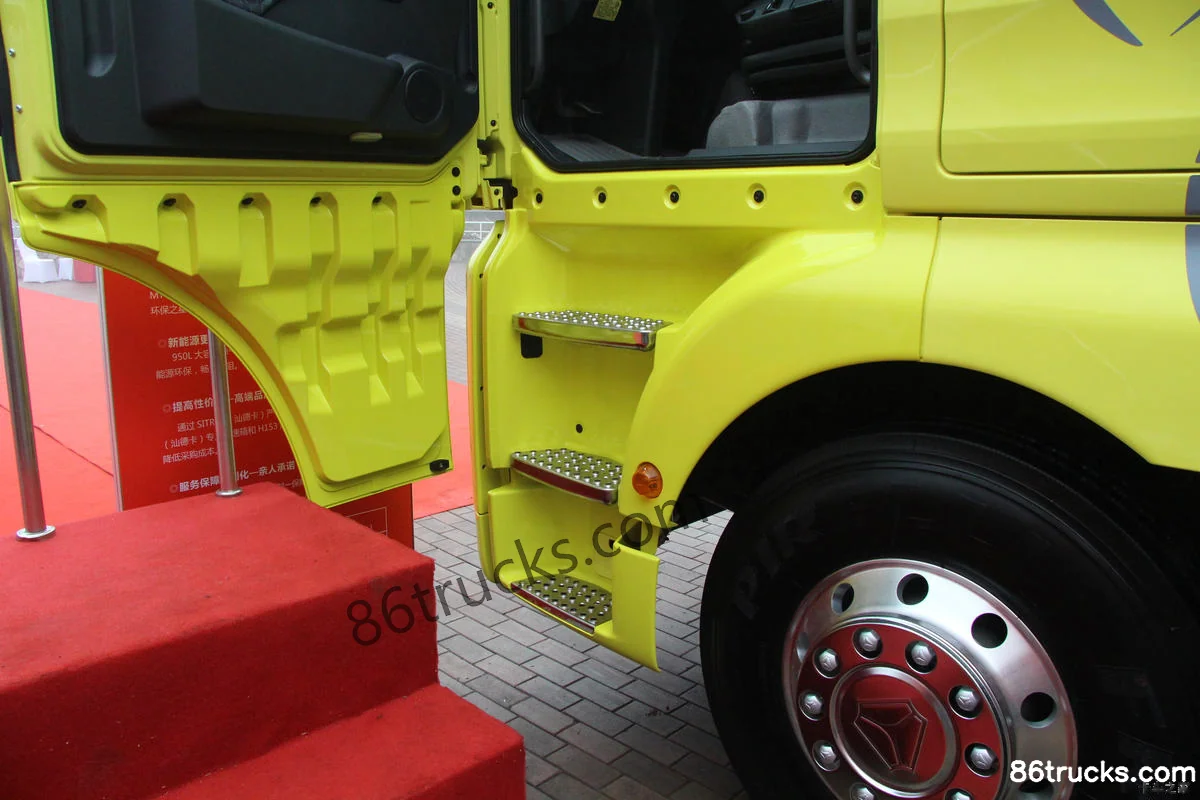

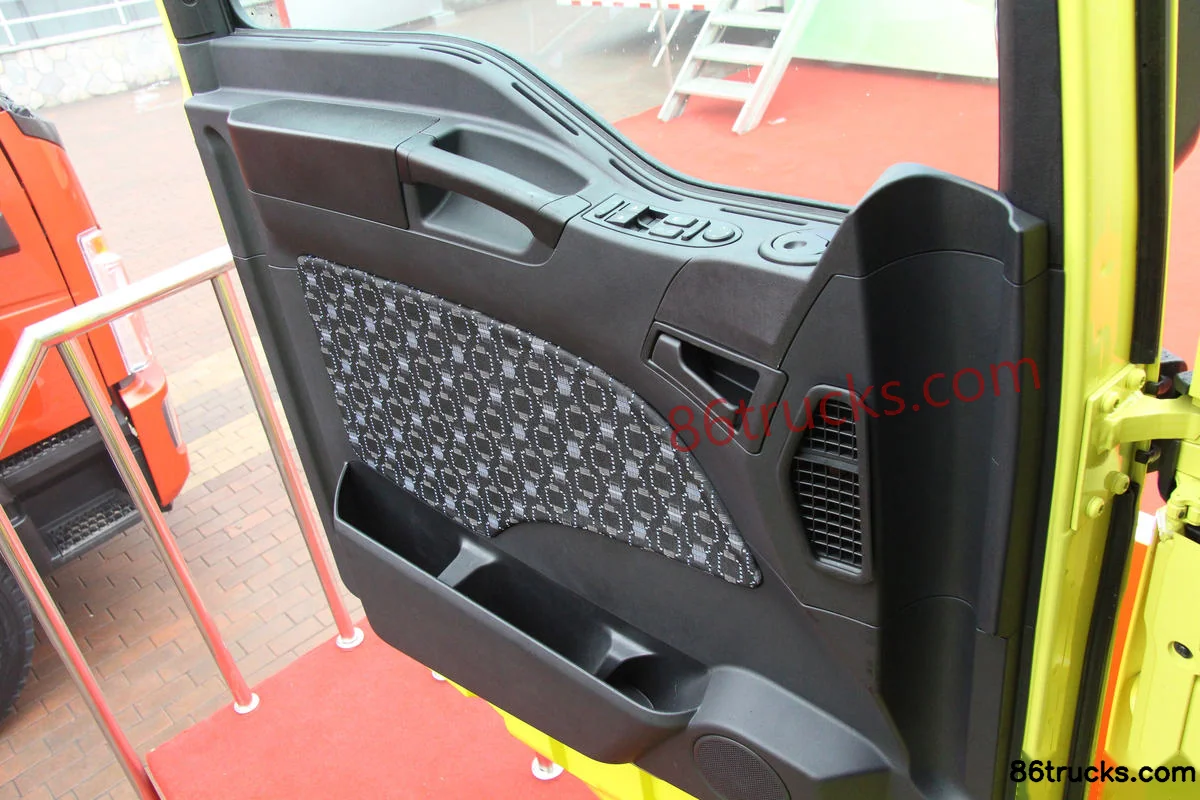

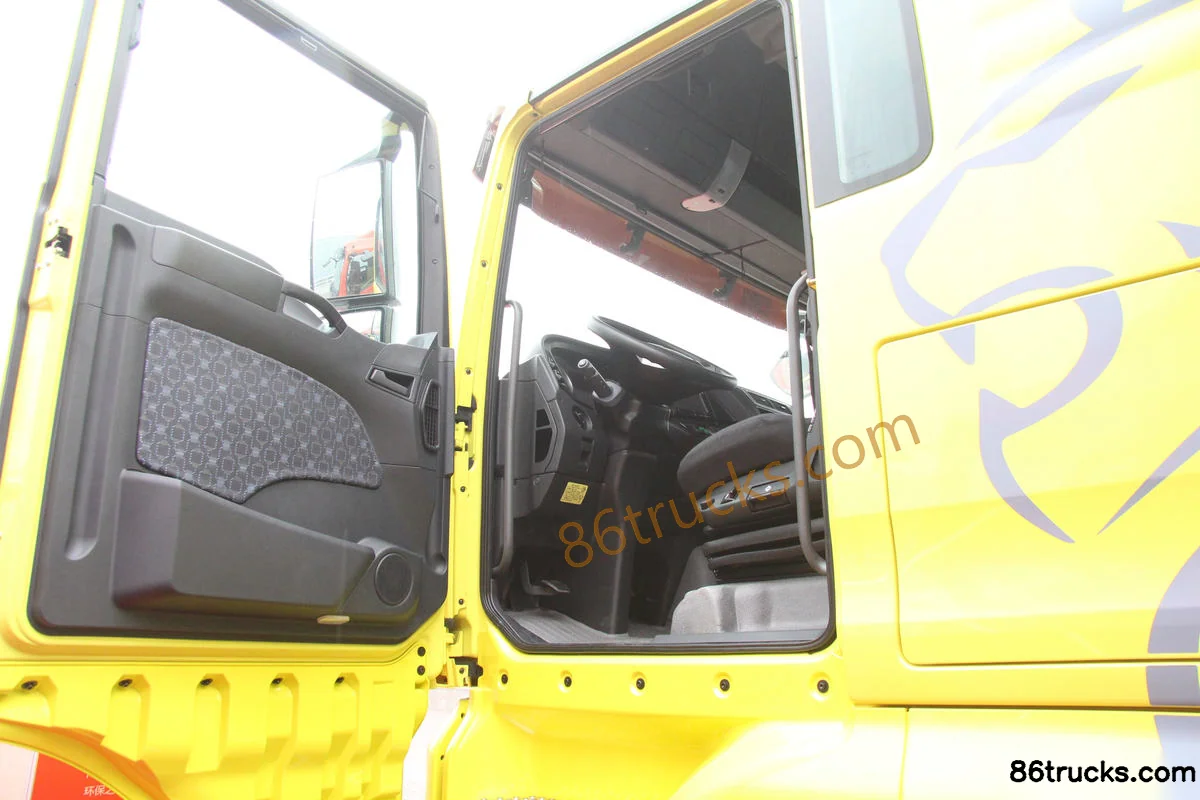

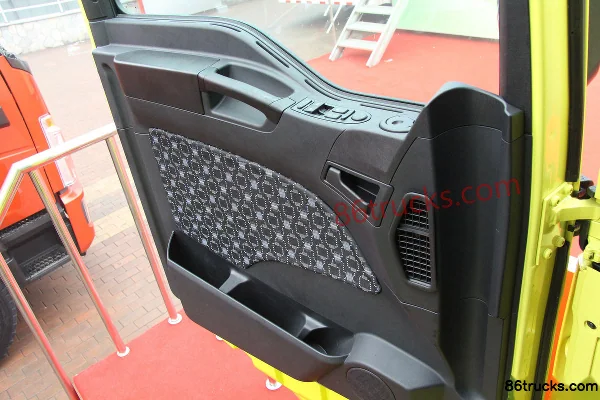

Cab3

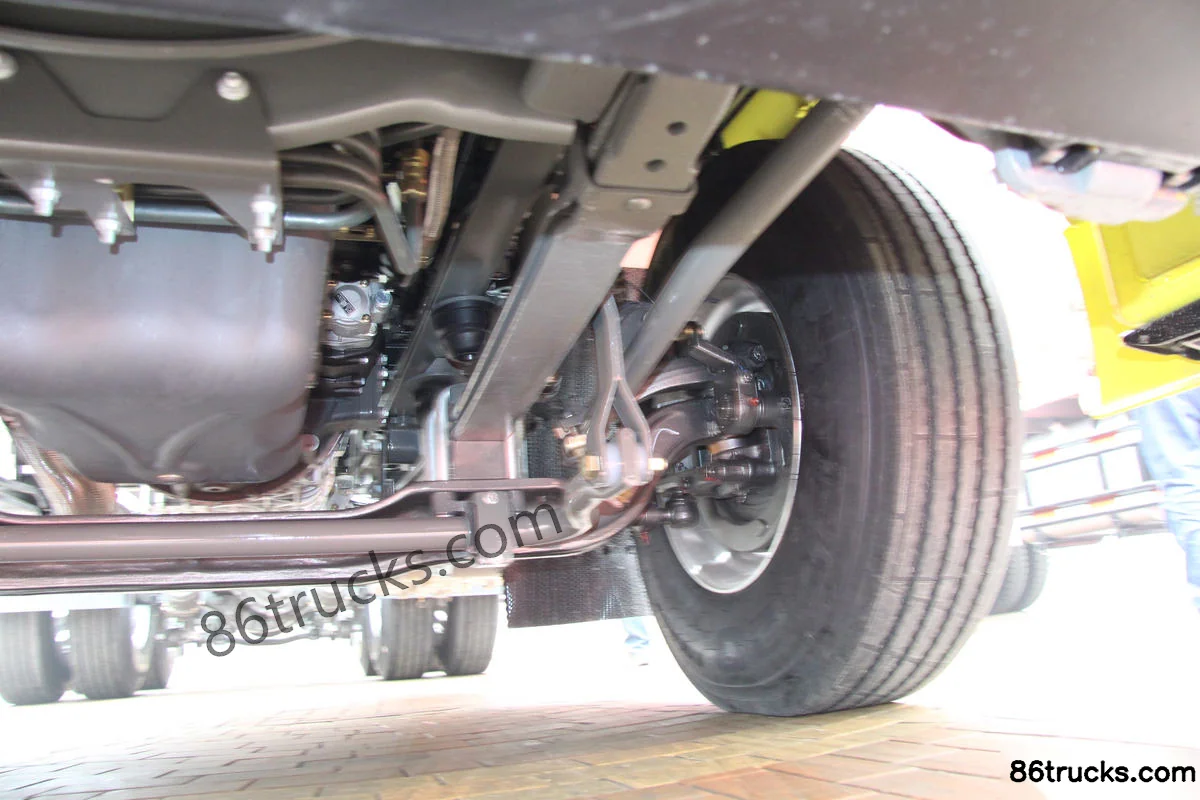

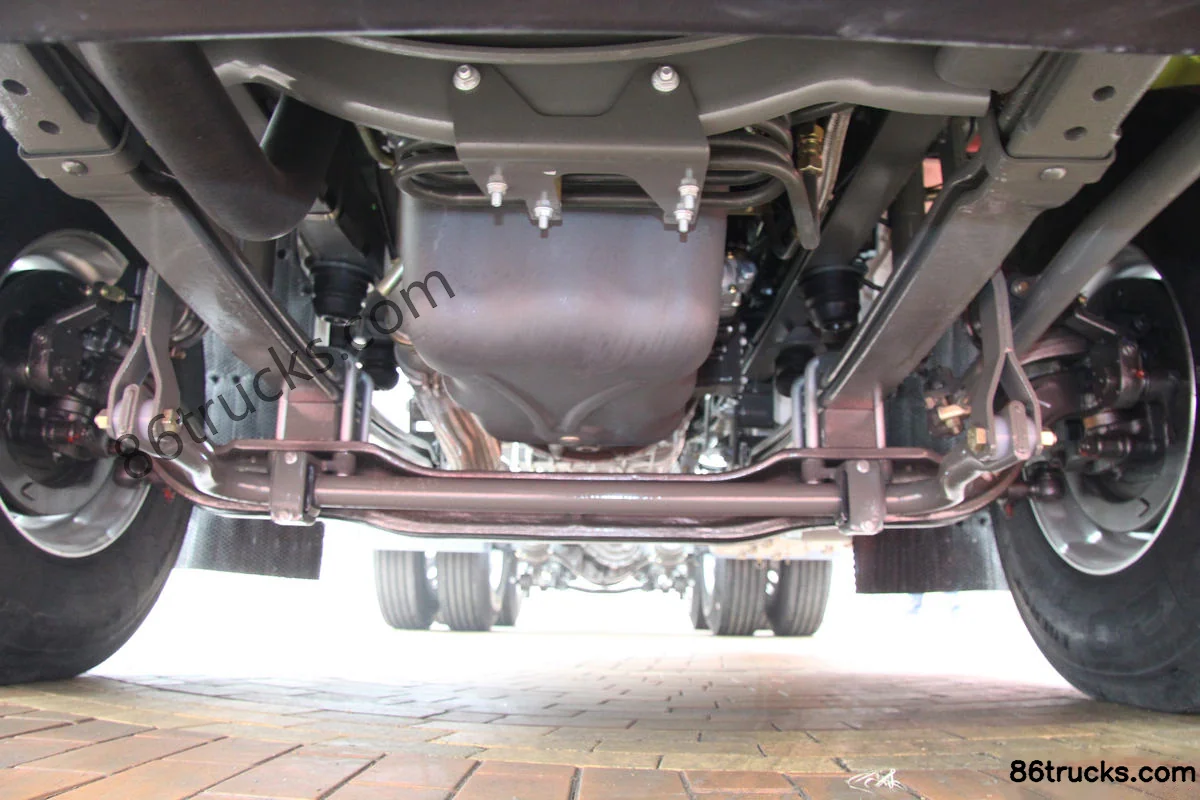

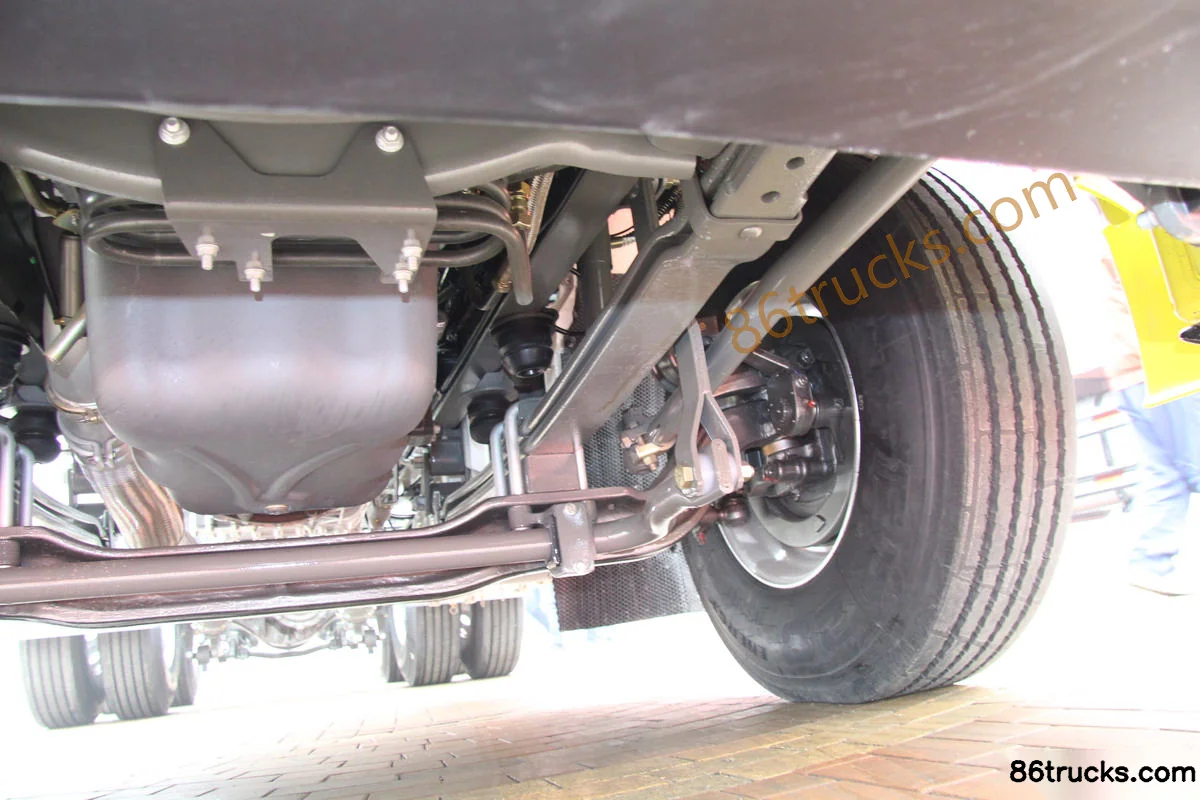

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle), and what does it include?

Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) export reference is about From $67,056; MSRP is ¥48.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle)?

Key specs of Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle): Drive: 6x4; Horsepower: 430 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) suited for?

Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) differ from other variants in the same series?

Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle) belongs to Sitrak SITRAK C7H heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H heavy truck 430 hp 6X4(10 wheels) LNG tractor truck (MCP16 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
