SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck

Export reference
From $27,083
MSRP ¥19.5M CNY
Horsepower: 245
Emission: China V
Fuel: Diesel
Engine: Yuchai6.5L
Transmission: Fast Gear
Curb Weight:: 7.15ton
SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 10.655ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck is a Medium-duty truck featuring 6.8m cargo length, Van body cargo body, 3Personnel volume and 10.655t payload. Its segment focus covers Building material transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.5L engine, 245 hp, 4X2 (6 wheels) drive and China V emissions.

China V 245 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX5180XXYLA5012
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYC6J245-52
transmission: Fast Gear8JS95TE-C
Rear Axle Ratio: 4.111
Cab length: 8.995m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 1935mm
rear track: 1800,1860mm
Curb Weight: 7.15ton
Rated payload: 10.655ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Xi'an, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 9°
market segment: Building material transport
Remarks: Tianxingjian Zhixing Edition, domestic 4-channel ABS, 135Ah maintenance-free battery. Optional: 6G70 (aluminum) + 10T MAN single reduction 4.625
Front/rear suspension: 1.34/2.655m
Version: reinforced version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J245-52
Engine info: Yuchai6.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China V
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS95TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 2.65m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 4.8T heavy-duty
Front axle allowable load: 6500kg
Frame Dimensions: 870×250(7+4)mm
rear axle description: 11.5T MAN single reduction
Steering gear: Domestic
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 10/9+6
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Service brake
Front wheel brake: Drum Type

Photos

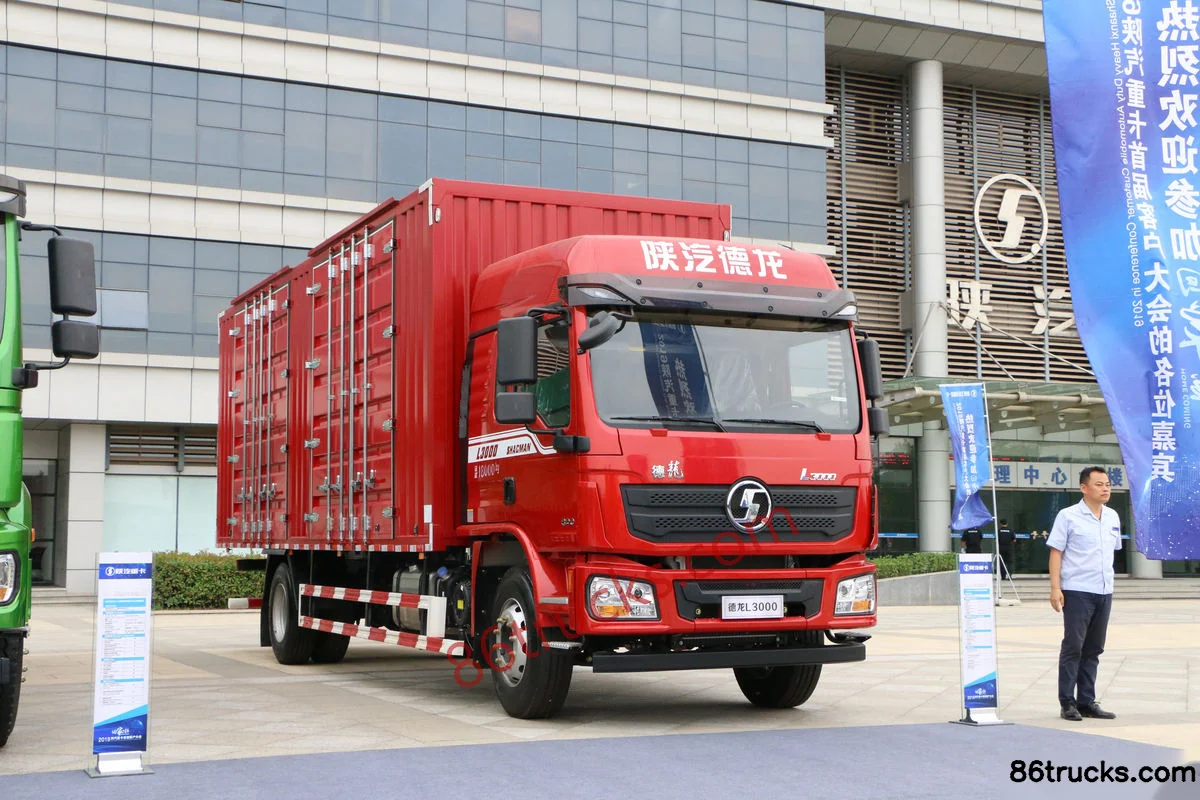

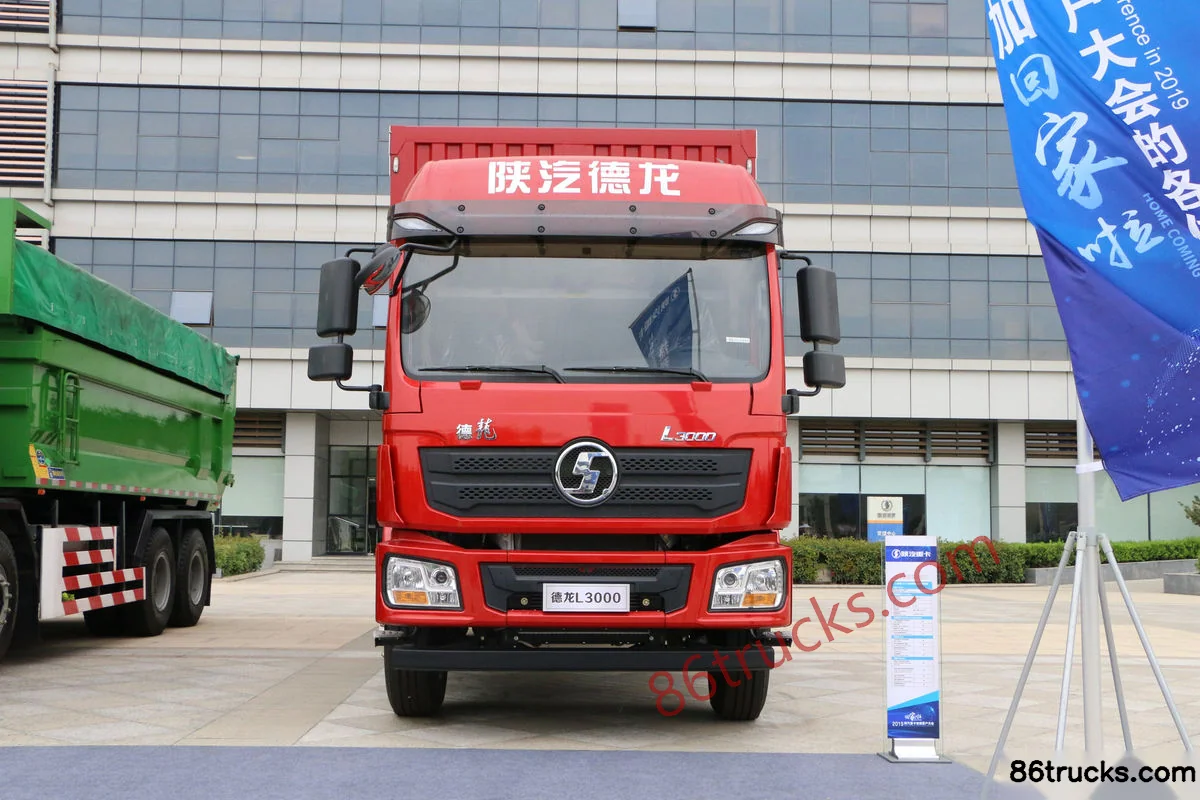

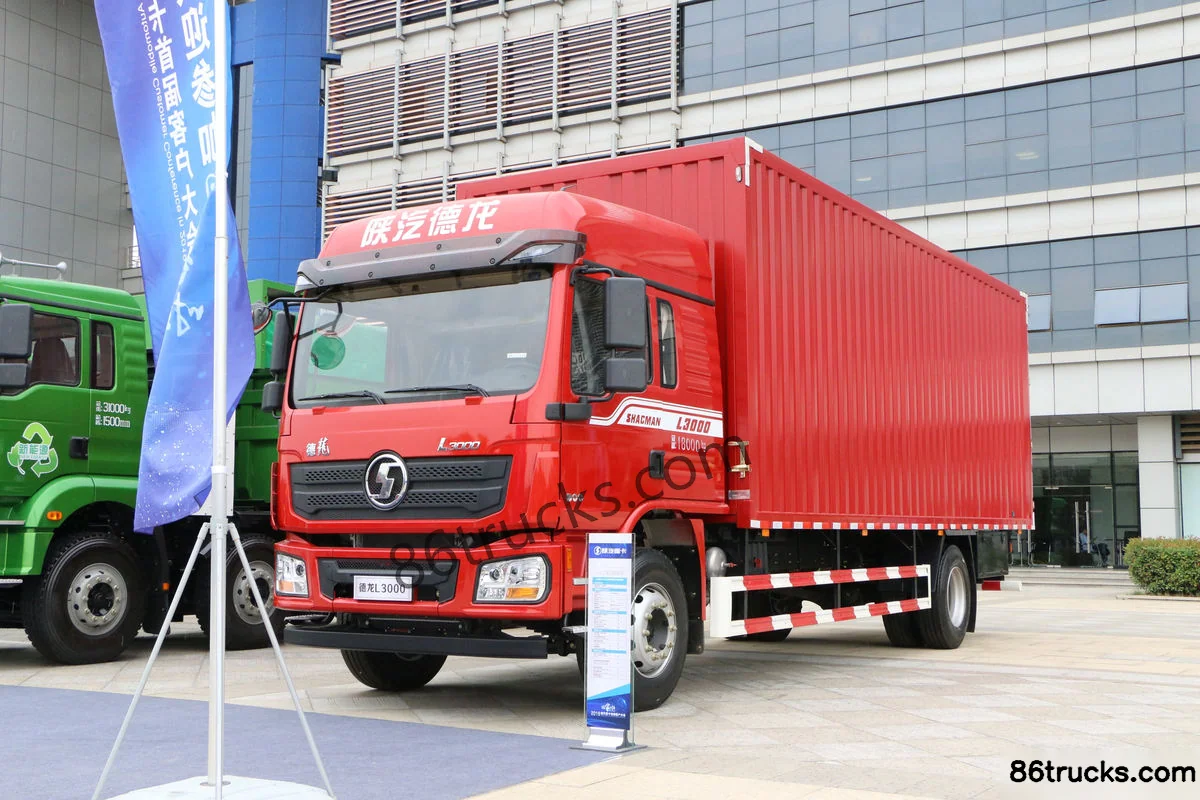

Exterior3

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Exterior (1) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Exterior (2) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Exterior (3) | 86Trucks

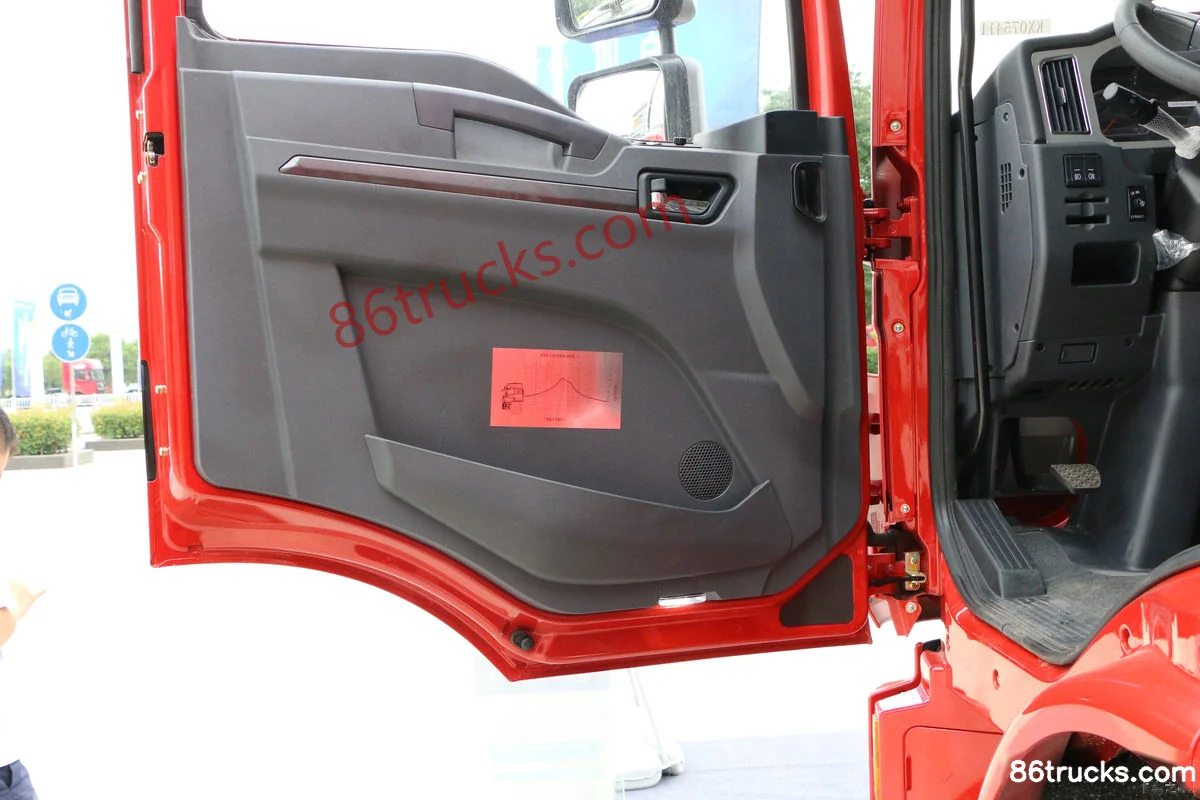

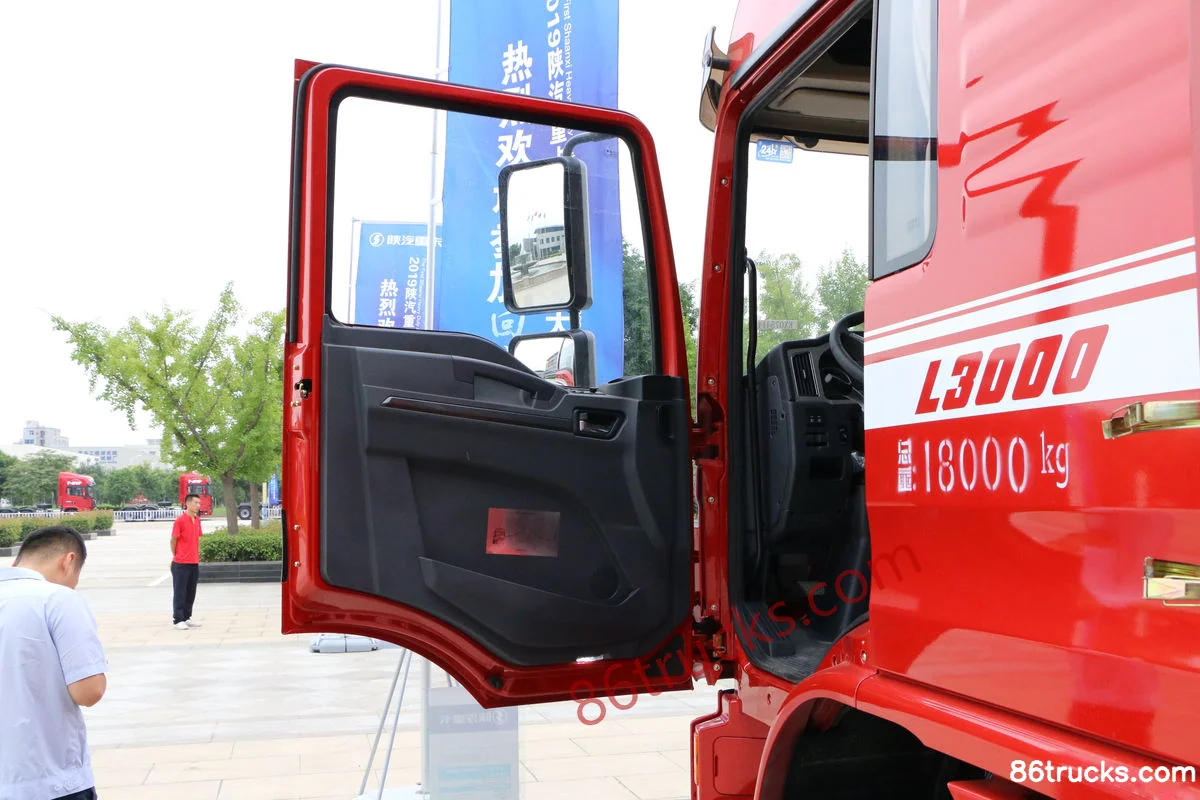

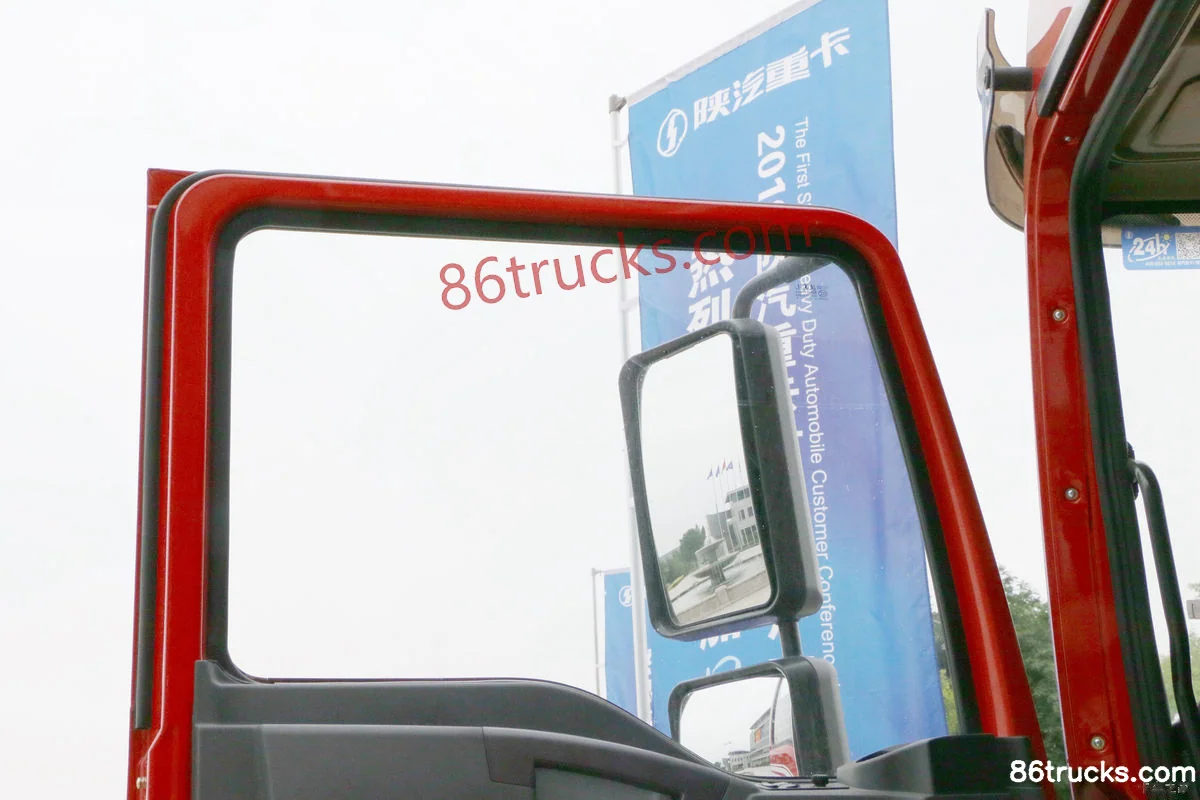

Cab3

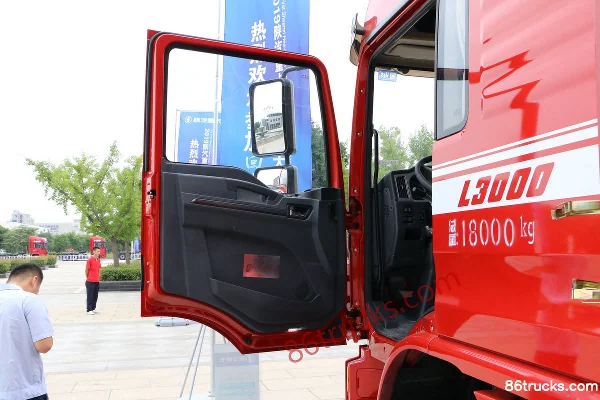

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Cab (1) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Cab (2) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Cab (3) | 86Trucks

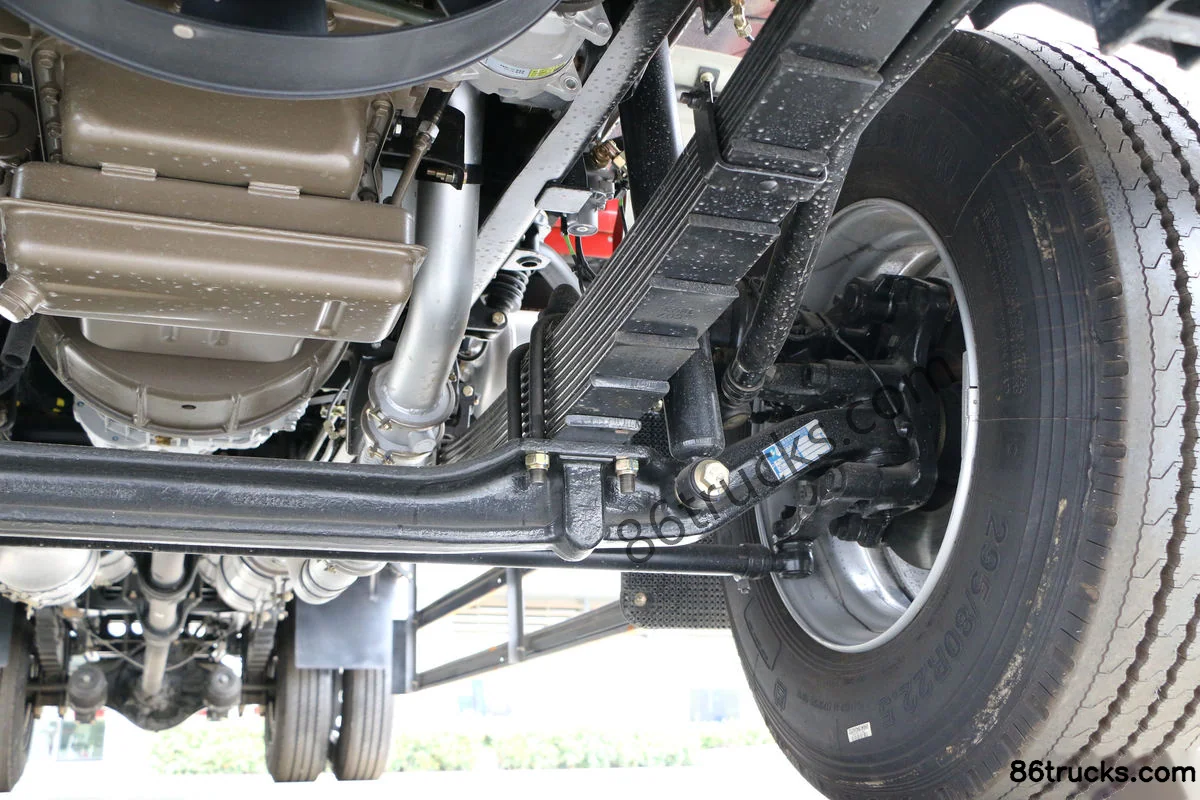

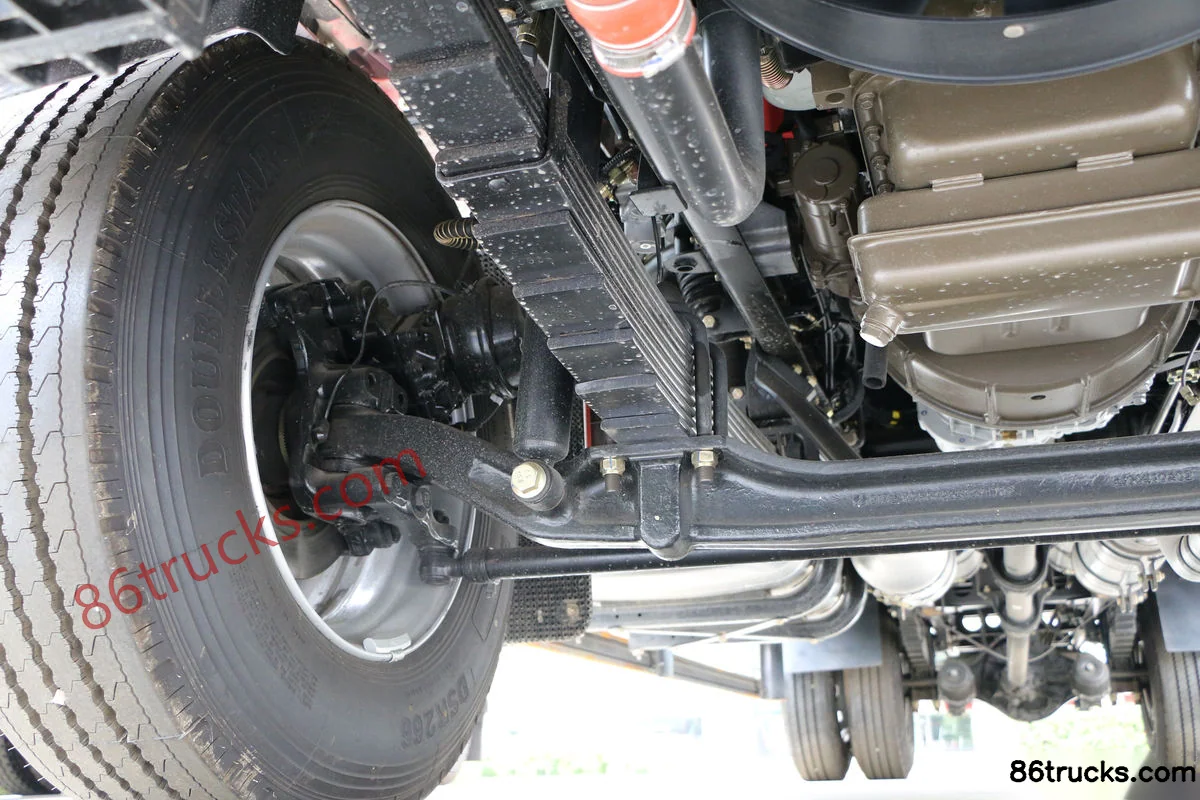

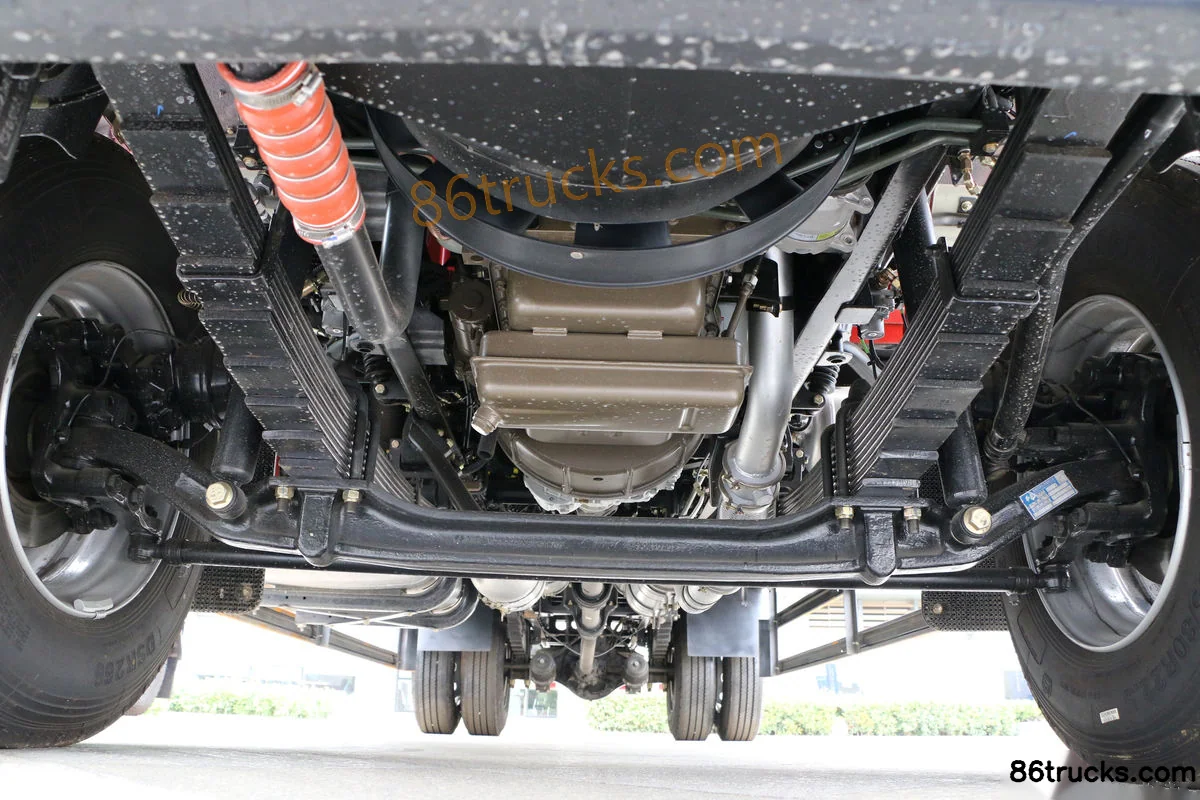

Chassis3

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Chassis (1) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Chassis (2) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck Chassis (3) | 86Trucks

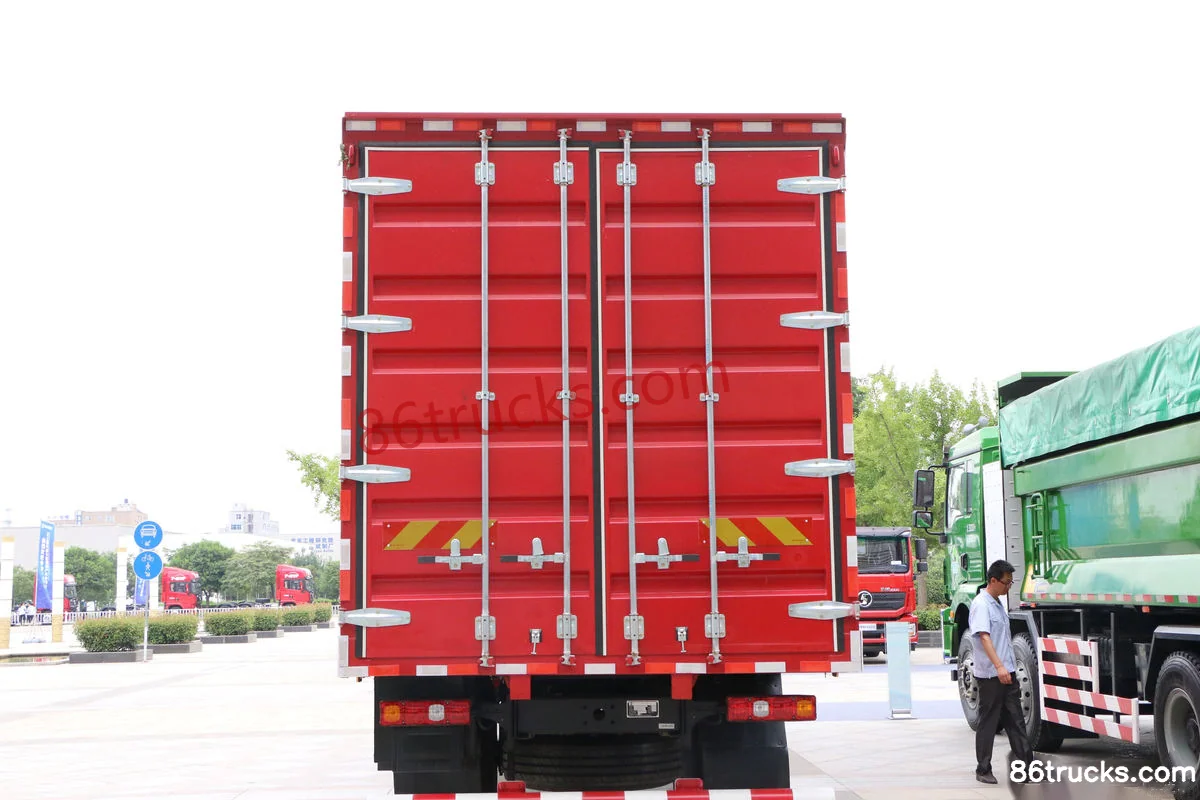

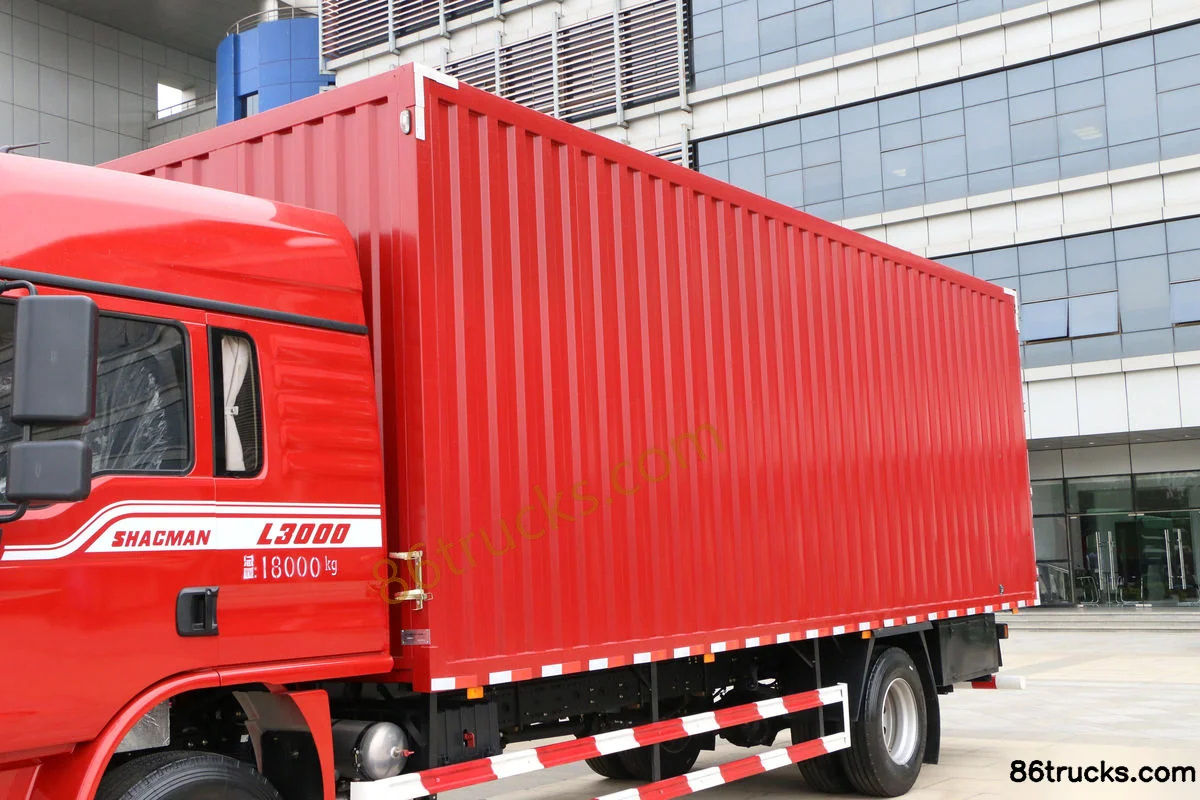

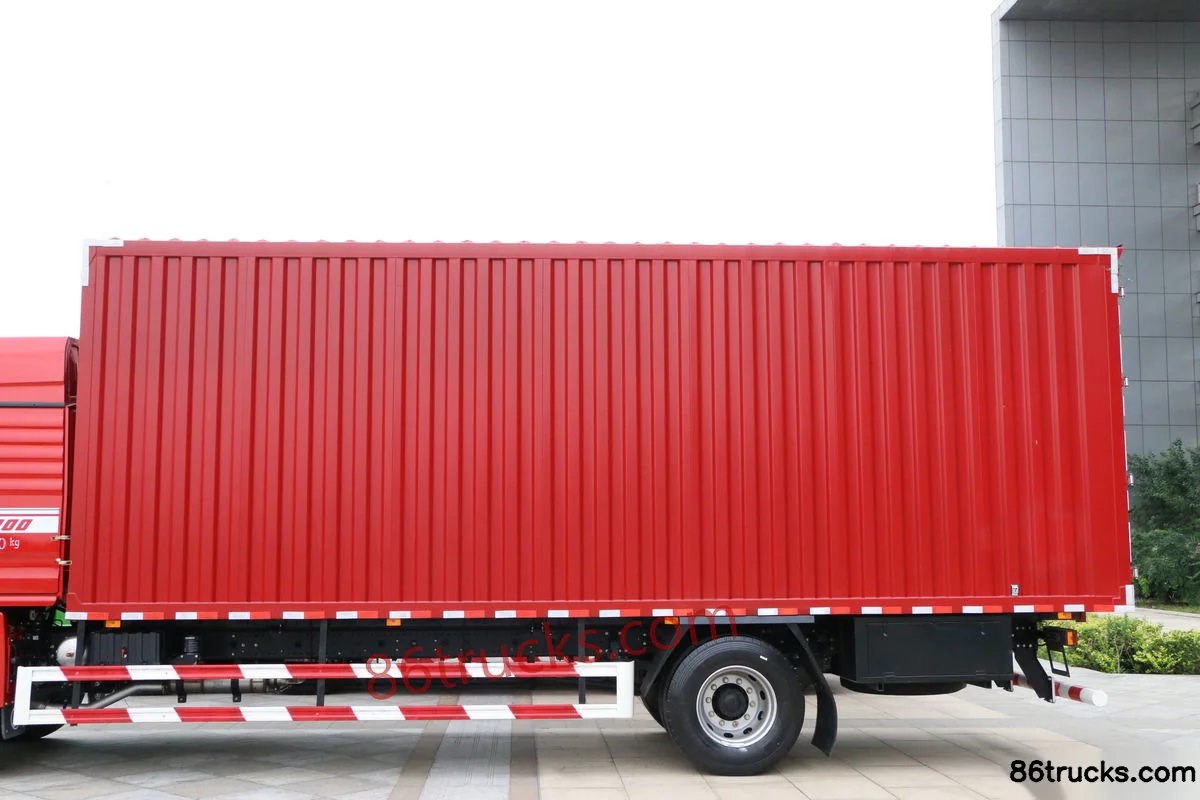

Body3

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck (1) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck (2) | 86Trucks SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck (3) | 86Trucks

12 photos

FAQ

What is the export price of SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck, and what does it include?

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck export reference is about From $27,083; MSRP is ¥19.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck?

Key specs of SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck: Drive: 4x2; Horsepower: 245 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck suited for?

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck differ from other variants in the same series?

SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck belongs to SHACMAN Delong L3000 Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong L3000 Enhanced Edition 245hp 4X2(6 wheels) 6.75m Van Body Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
