Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh

Export reference
From $9,000
MSRP ¥6.48M CNY
Wheelbase:: 2350mm
Cargo Box Height:: 1.125
Model code (announced):: HDY5010XXYBEV04
Cab length:: 3.49m
GVWR:: 1.45ton
Max. speed:: 71km/h
CLTC range: 120km
Motor 1 Brand: Minxian
Curb Weight: 0.825ton
Rated payload: 0.495ton

Overview

The Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh is a Electric Panel Van featuring 120km battery/range, Minxian motor, 0.495t payload and 1.125 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HDY5010XXYBEV04
Wheelbase: 2350mm
Cab length: 3.49m
Cab width: 1.49m
Cab height: 1.685m
CLTC range: 120km
Curb Weight: 0.825ton
Rated payload: 0.495ton
GVWR: 1.45ton
Max. speed: 71km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Minxian
Motor 1 Model: TZ145MEMX7.5
Max torque: 24N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 7.5kW
Peak power: 15kW
total peak torque: 90N·m
Battery/Charging
Charging method: Constant Flow
Battery Brand: Ganfeng
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 10.36kWh
fast charge time: 7.5h
Battery Model: GFL-MF39-3P24S
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 4Seats
Door Parameters
Number of Doors: 3
side door type: Sliding side door
Body parameters
Max body depth: 0.588
Max body width: 1.265
Cargo Box Height: 1.125
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70R13
Rear Wheel Specification: 165/70R13
Cab parameters
Seat rows:
Safety features
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
steering wheel adjustment:
AC control type: Automatic
Power Windows:
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:

Photos

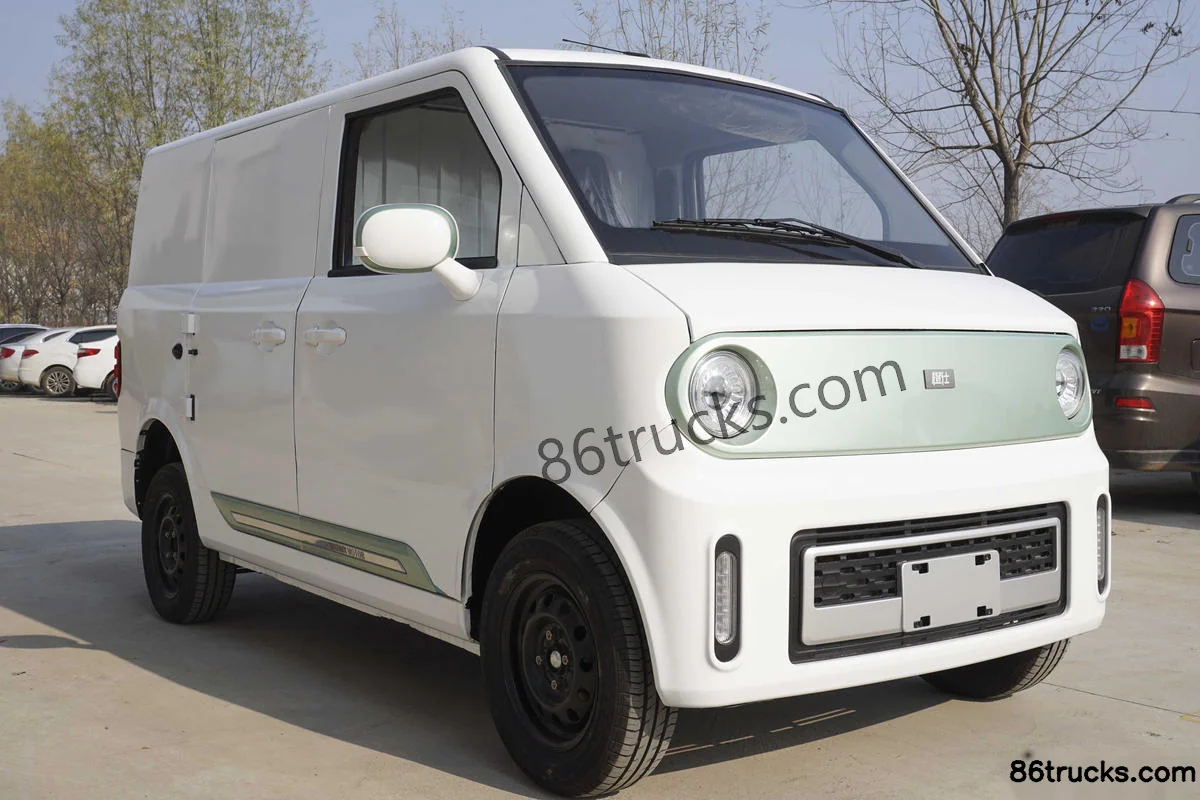

Exterior3

3 photos

FAQ

What is the export price of Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh, and what does it include?

Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh export reference is about From $9,000; MSRP is ¥6.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh suited for?

Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh differ from other variants in the same series?

Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh belongs to Chengshi01 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengshi 01 3.49m Pure Electric Closed Van 10.36kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
