FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck

Export reference
MSRP N/A
Horsepower: 530
Emission: China VI
Fuel: LNG (liquefied natural gas)
Engine: Xichai13.2L
Transmission: FAW Jiefang
Curb Weight:: 13ton
seating capacity: 2Personnel
Rated payload: 18.805ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck is a Heavy truck featuring 9.5m cargo length, Stake type cargo body, 2Personnel volume and 18.805t payload. On the powertrain side, it comes with a Xichai13.2L engine, 530 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 530 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5320CCYP25K15L7T4NE6A80
Type: stake truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6SM4-53E61N
transmission: FAW JiefangCA12TA260ST
Rear Axle Ratio: 2.867
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2042/2042mm
rear track: 1900/1900mm
Curb Weight: 13ton
Rated payload: 18.805ton
GVWR: 32ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 10°
Front/rear suspension: 1.515/2.735m
Version: Smart Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SM4-53E61N
Engine info: Xichai13.2L
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 13.2L
Emission standard: China VI
Max output power: 389kW
Max hp: 530Horsepower
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: CA12TA260ST
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.42m
*Cargo box interior width: 2.42
Cab parameters
Cab: Yinghang Flat Floor Large Half-Sleeper High-Roof Cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: F5N front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×7mm
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 19000kg
Axle ratio: 2.867
Leaf spring count: 2/2/2+-/2+-
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Tire Type: Front Axle Aluminum Alloy Wheel Rim
Number of tires: 12pcs
Control configuration
ABS:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Power Mirrors:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

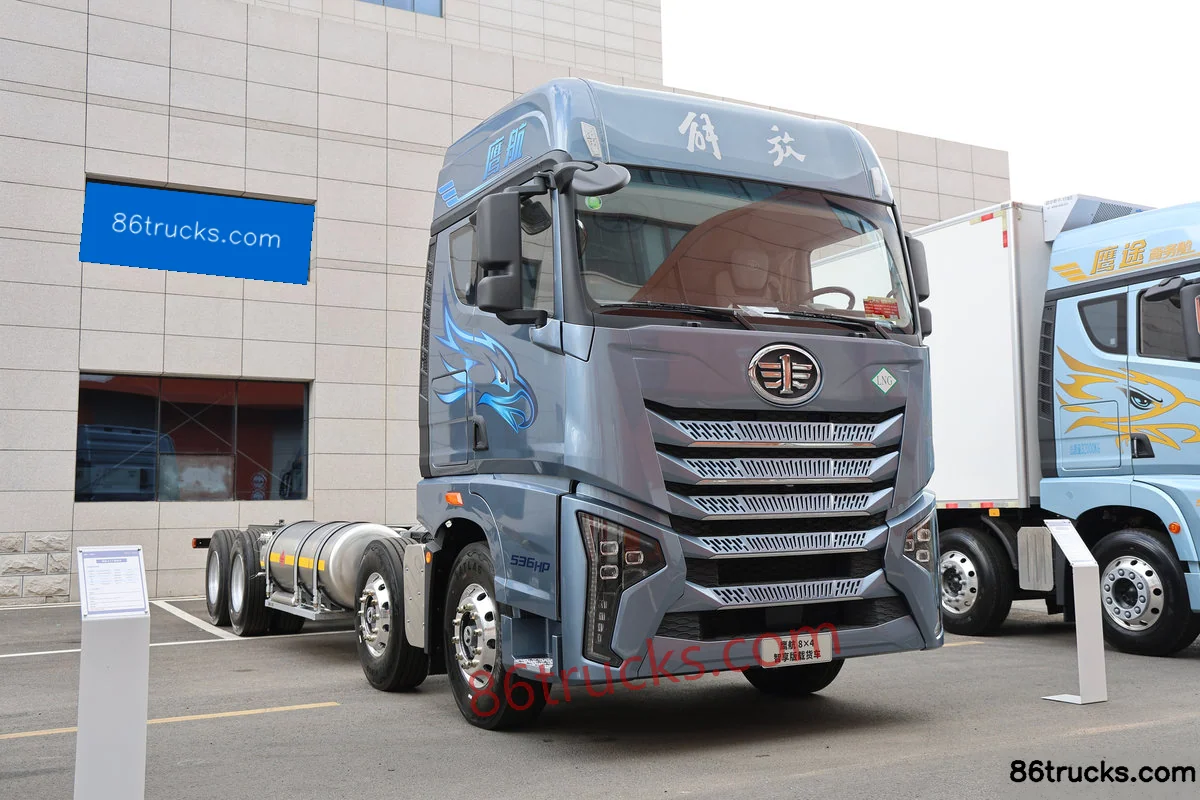

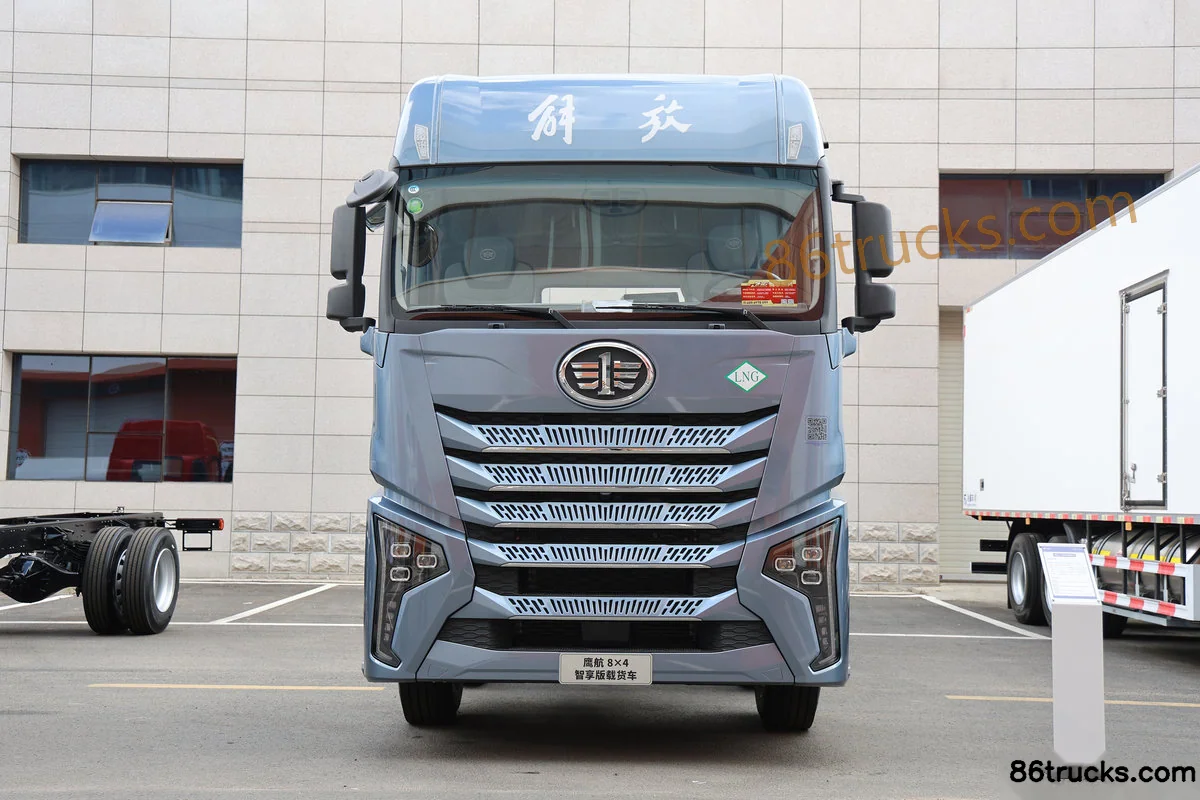

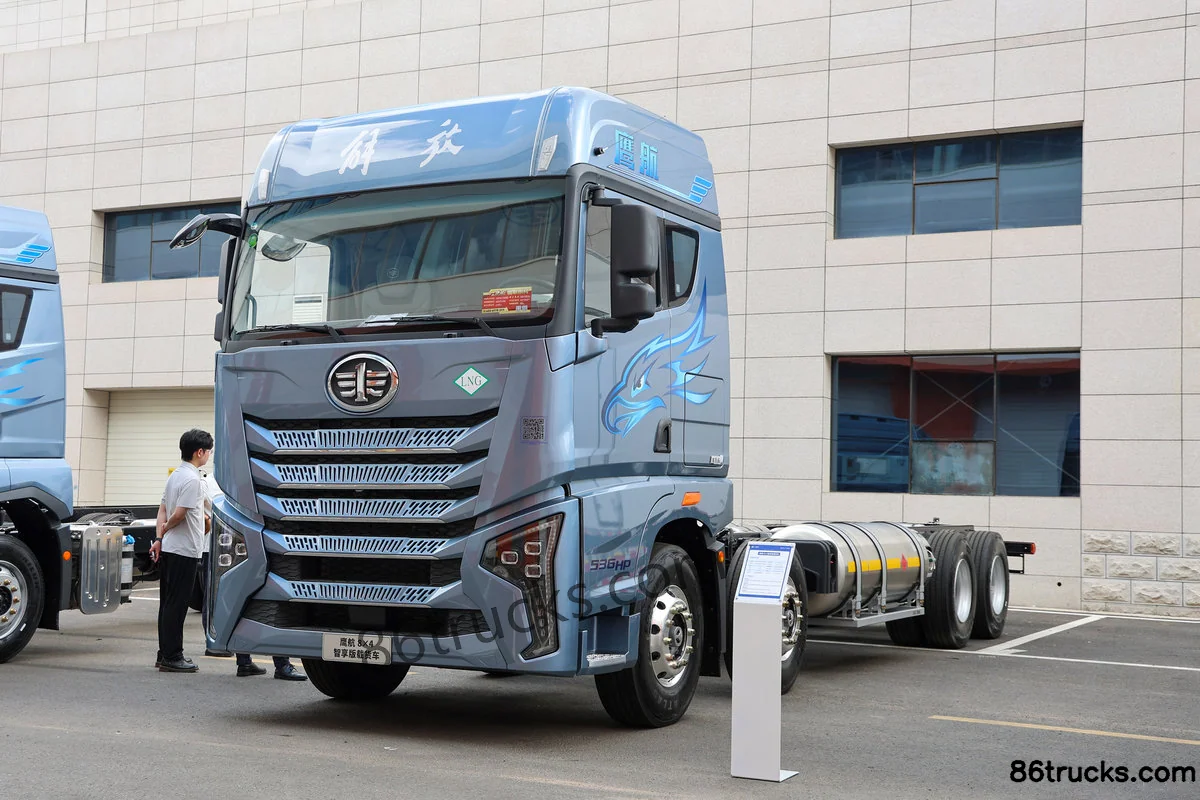

Exterior3

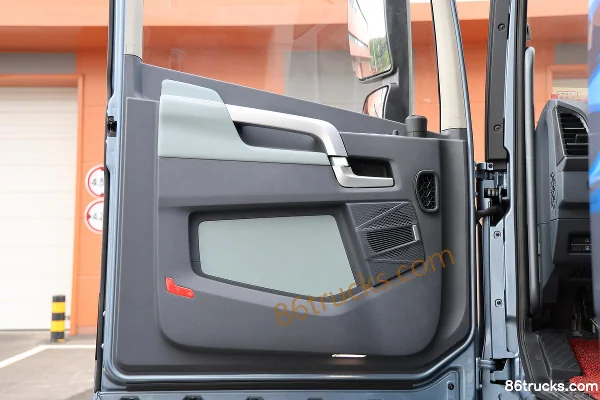

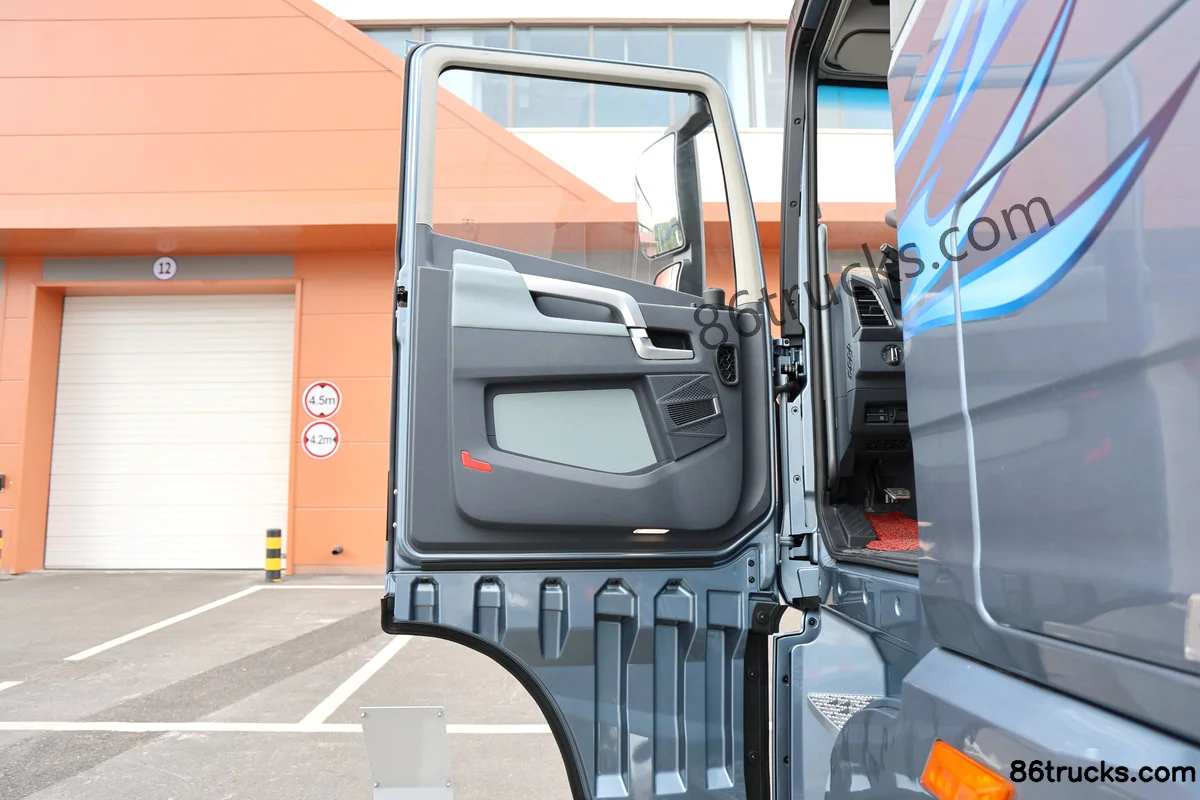

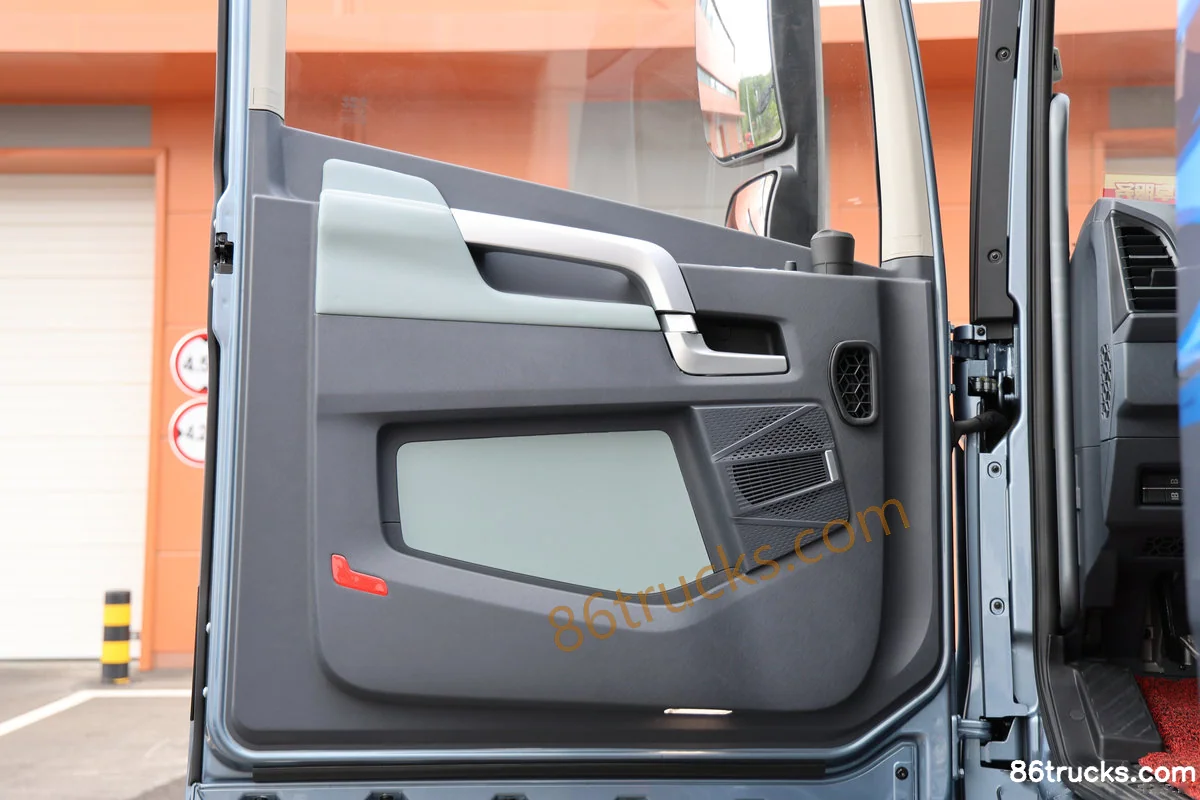

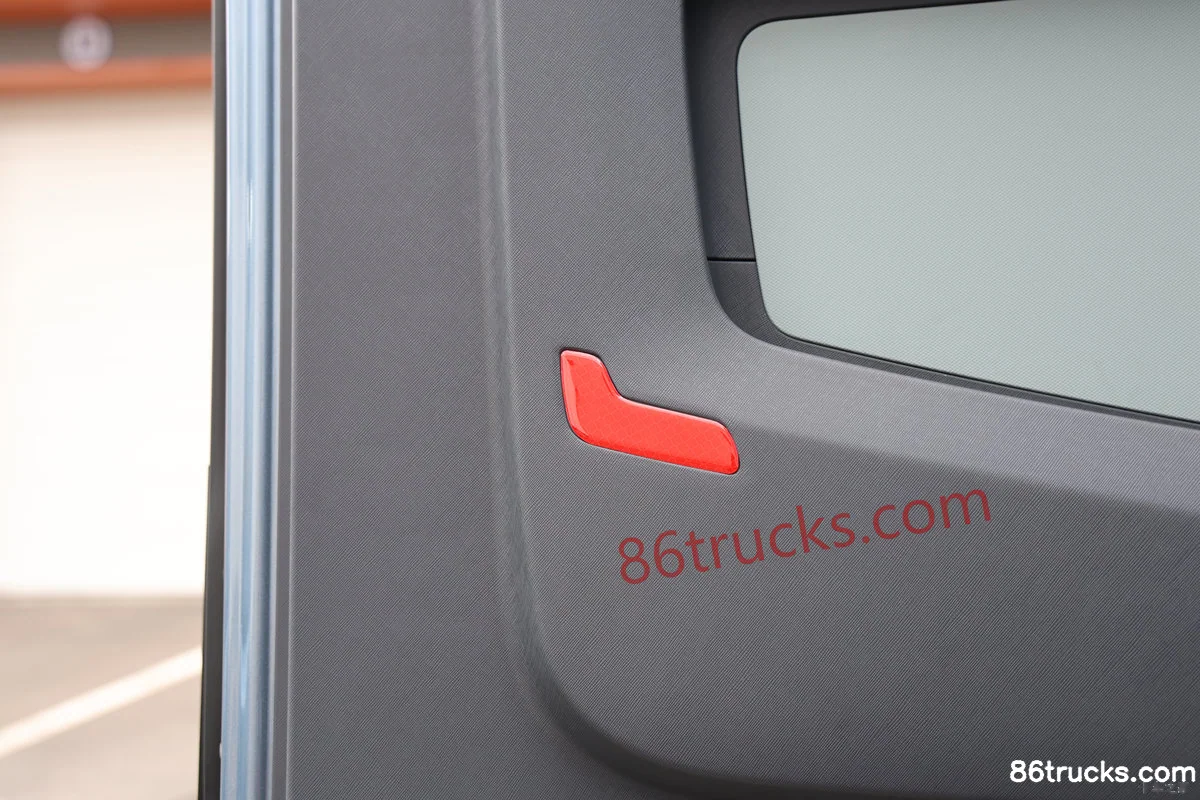

Cab3

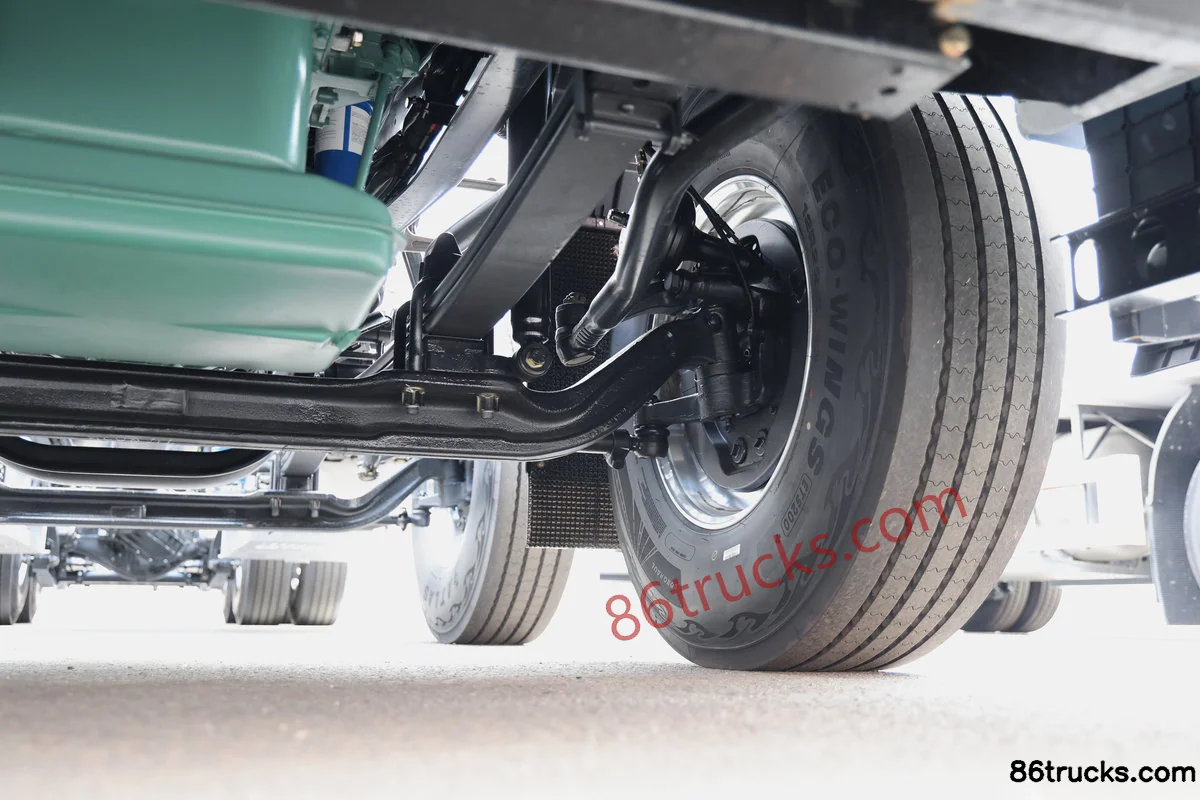

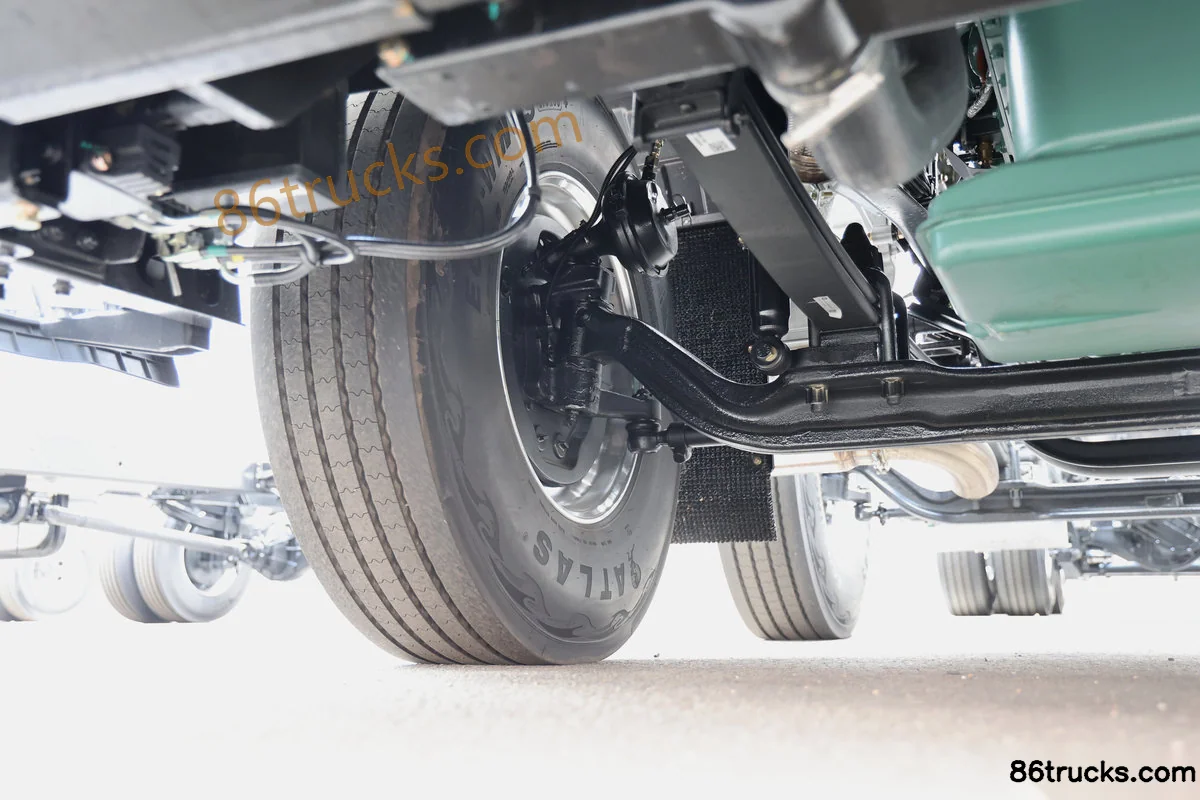

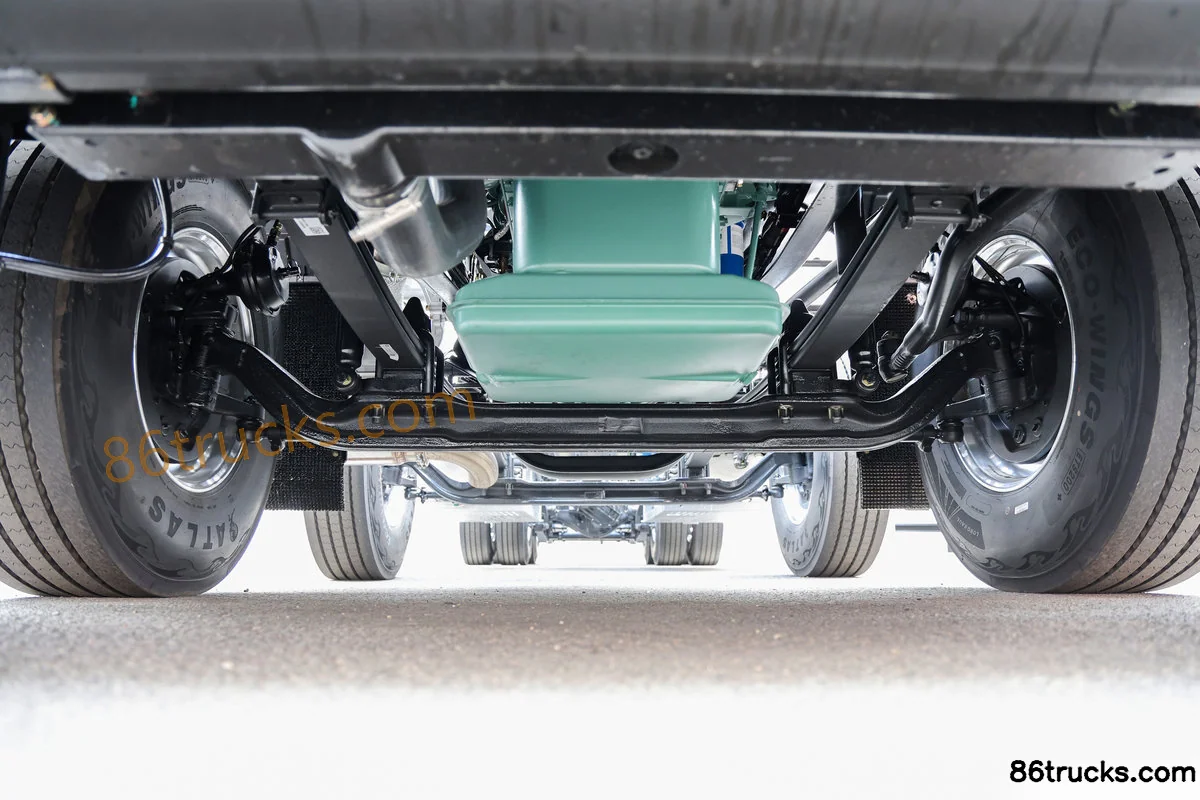

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck?

Key specs of FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck: Drive: 8x4; Horsepower: 530 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Engine: Xichai13.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck suited for?

FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck belongs to FAW Jiefang Qingdao Yinghang Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Yinghang Zhixiang Edition 13.2L LNG 530hp 8X4(12 wheels) FAW Jiefang 12-speed 9.5m Side-gate Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
