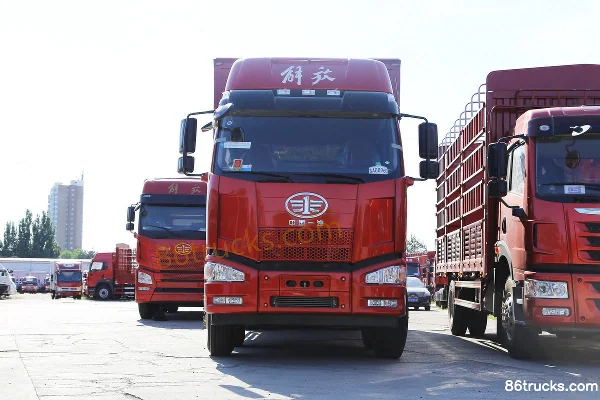

FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440)

Export reference
From $75,000
MSRP ¥54M CNY
Horsepower: 560
Emission: China VI
Fuel: Diesel
Engine: Xichai13L
Transmission: FAW Jiefang
Curb Weight:: 12.2ton
seating capacity: 3Personnel
Rated payload: 18.67ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 18.67t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Xichai13L engine, 560 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 560 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5310CCYP77K24T4E6
Type: stake truck
Drive type: 8X4
Wheelbase: 2000+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DM3-56E6
transmission: FAW JiefangCA12TAX260A5
Rear Axle Ratio: 3.727
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2050/2050mm
rear track: 1878/1878mm
Curb Weight: 12.2ton
Rated payload: 18.67ton
GVWR: 31ton
Max. speed: 120km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 14°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.515/2.635m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-56E6
Engine info: Xichai13L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China VI
Max output power: 415kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 1100-1300rpm
Rated speed: 1800rpm
Engine Type: 6-cylinder, inline, turbocharged intercooled
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX260A5
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: J7 high-roof large extended cab with flat floor
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 1000L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300*80*7mm
rear axle description: 440
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.727
Leaf spring count: 2/3/4
Tire
Tire Size: 12R22.5,295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:
Service brake
hydraulic retarder:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440), and what does it include?

FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) export reference is about From $75,000; MSRP is ¥54M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440)?

Key specs of FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440): Drive: 8x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Engine: Xichai13L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) suited for?

FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) differ from other variants in the same series?

FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440) belongs to FAW Jiefang J6M Near-Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6M Heavy Truck 560 hp 8X4(12 wheels) 9.5m AMT Automatic Stake Truck (China VI) (Rear Axle 440)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
