BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh

Export reference
MSRP N/A
Rated payload:: 13.37ton
Wheelbase:: 1850+3200+1350mm
Cargo box volume:: 20m³
Model code (announced):: BYD3310C2EV2
Cab length:: 9.8m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 280km
Motor 1 Brand: BYD
Curb Weight: 17.5ton

Overview

The BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh is a Heavy truck featuring 280km battery/range, BYD motor, 8X4 (12 wheels) drive and 13.37t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BYD3310C2EV2
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.8m
Cab width: 2.55m
Cab height: 3.52m
CLTC range: 280km
Curb Weight: 17.5ton
Rated payload: 13.37ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Changsha, Hunan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: BYD
Motor 1 Model: TZ365XSD
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 390kW
Battery/Charging
Battery Brand: BYD
Battery type: Lithium Iron Phosphate Battery
fast charge time: 2h
Battery capacity: 355kWh
Cargo box parameters
Cargo box volume: 20m³
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: Four-point coil spring full-floating
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

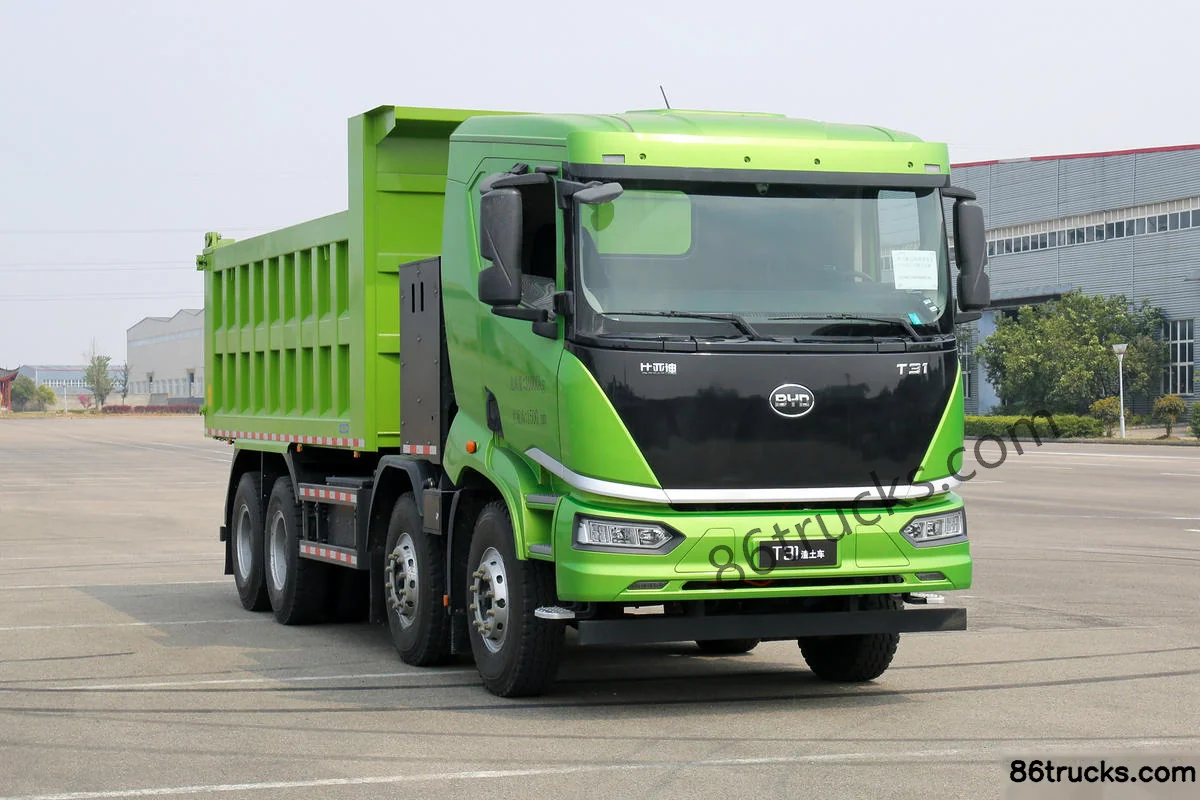

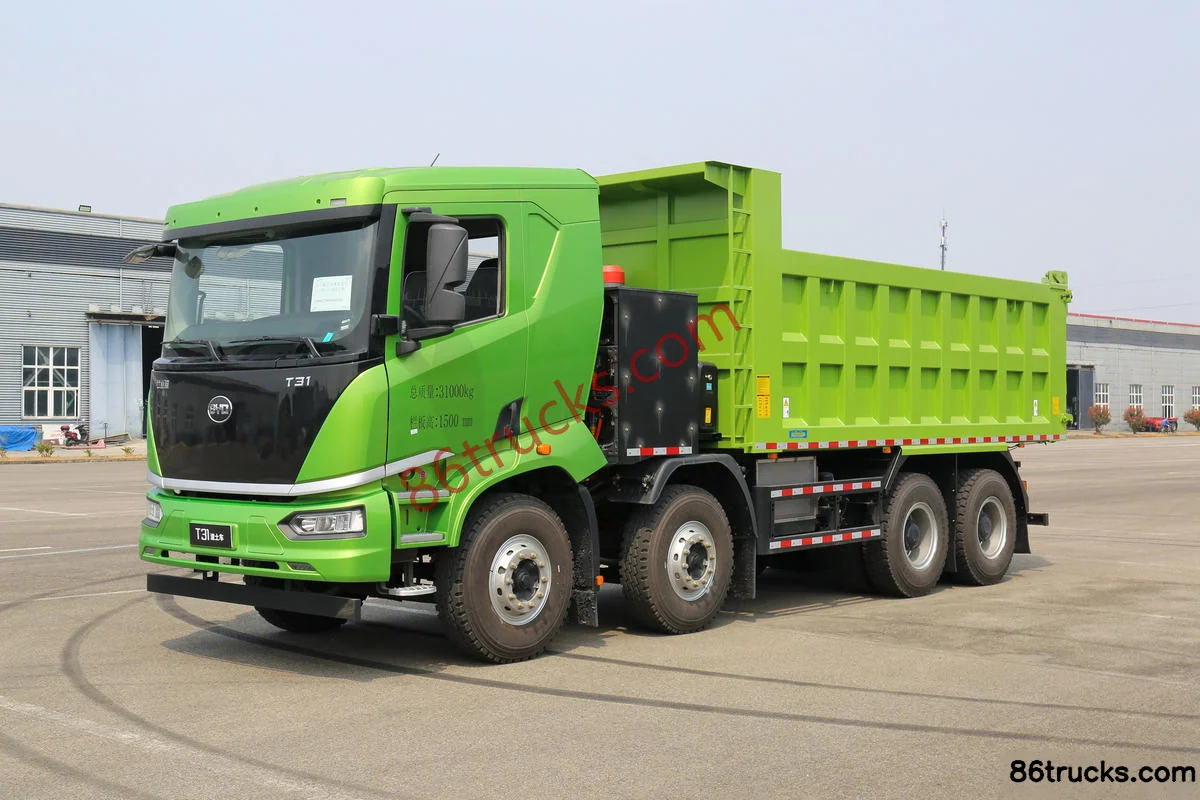

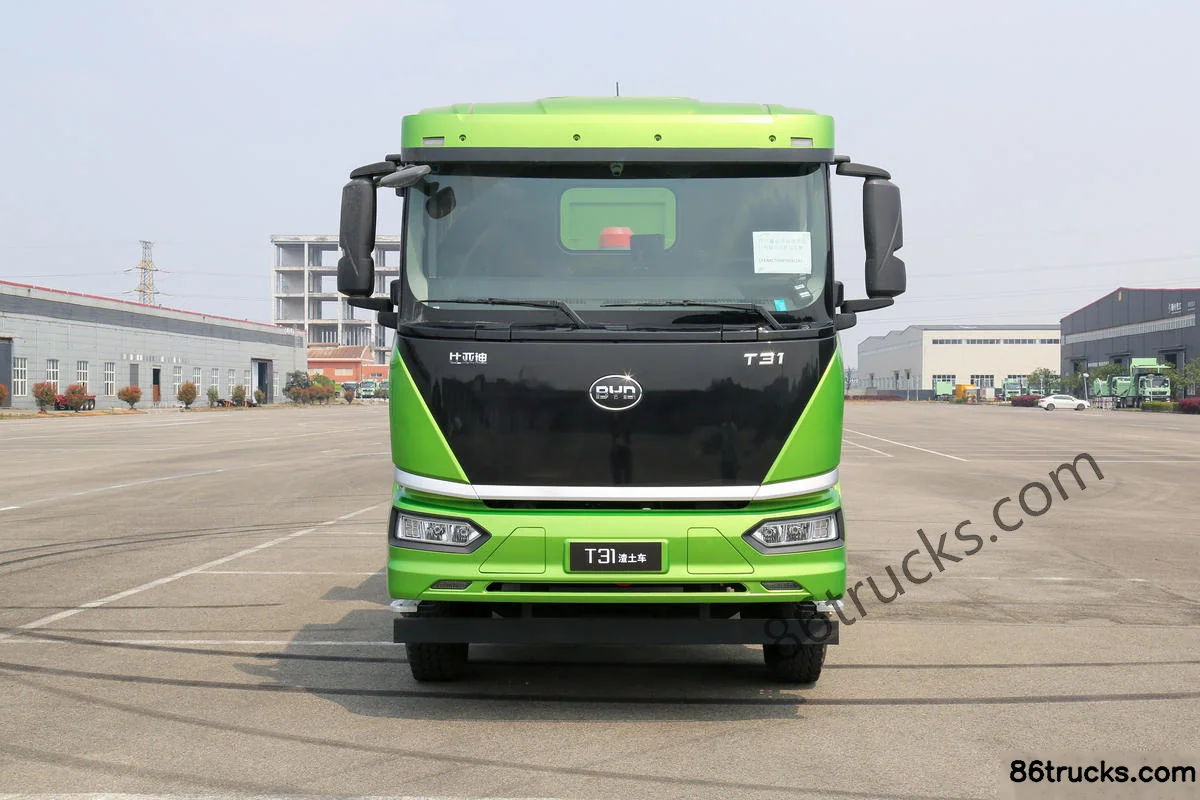

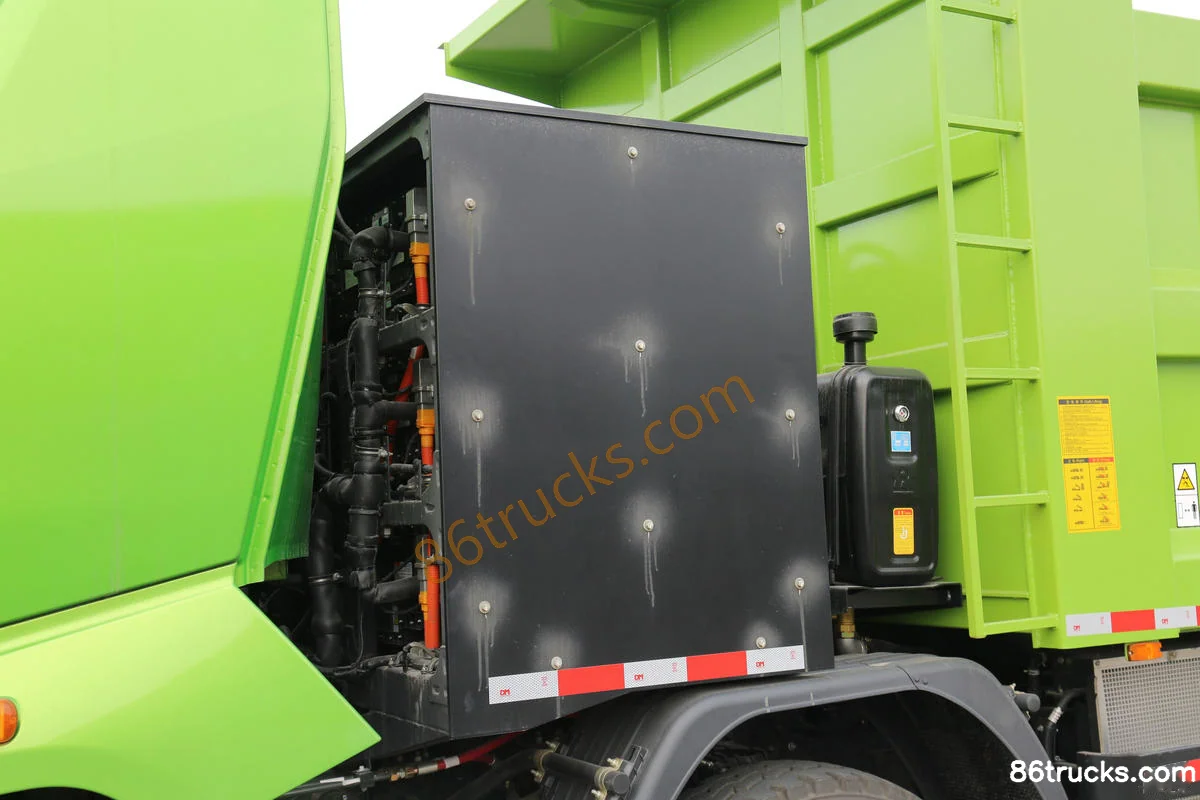

Exterior3

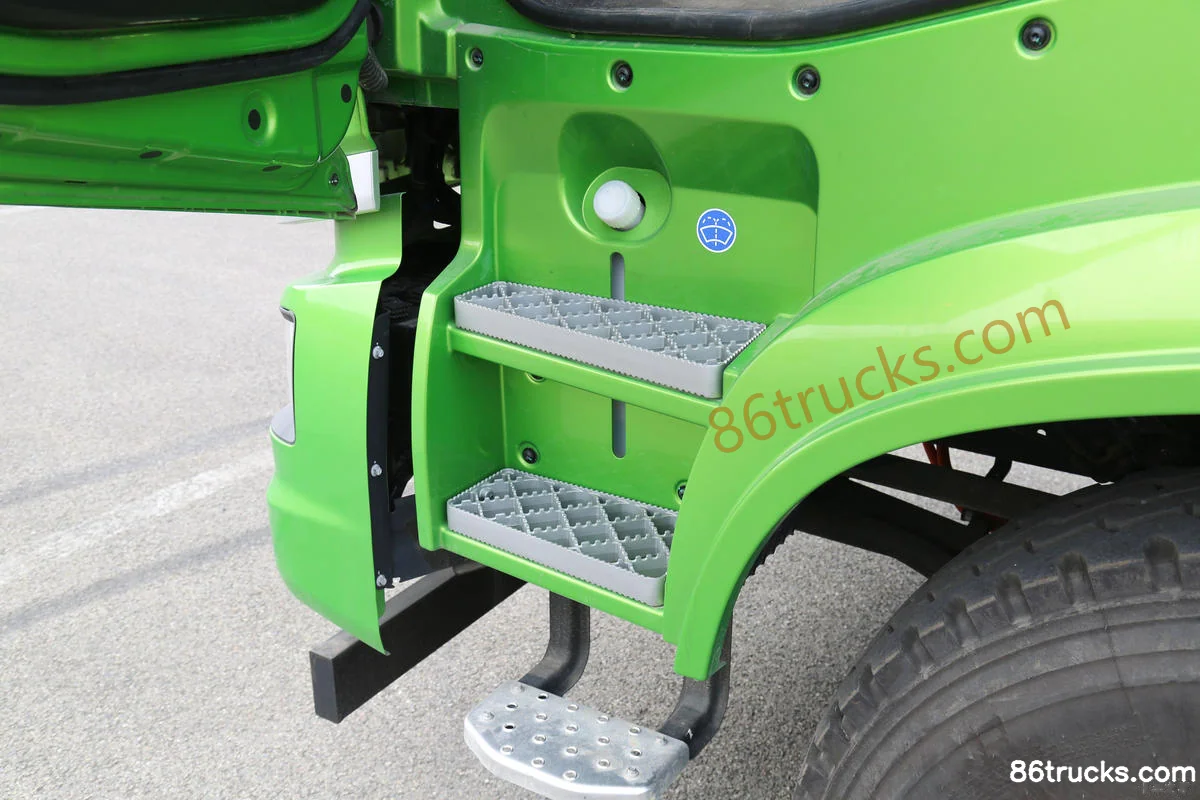

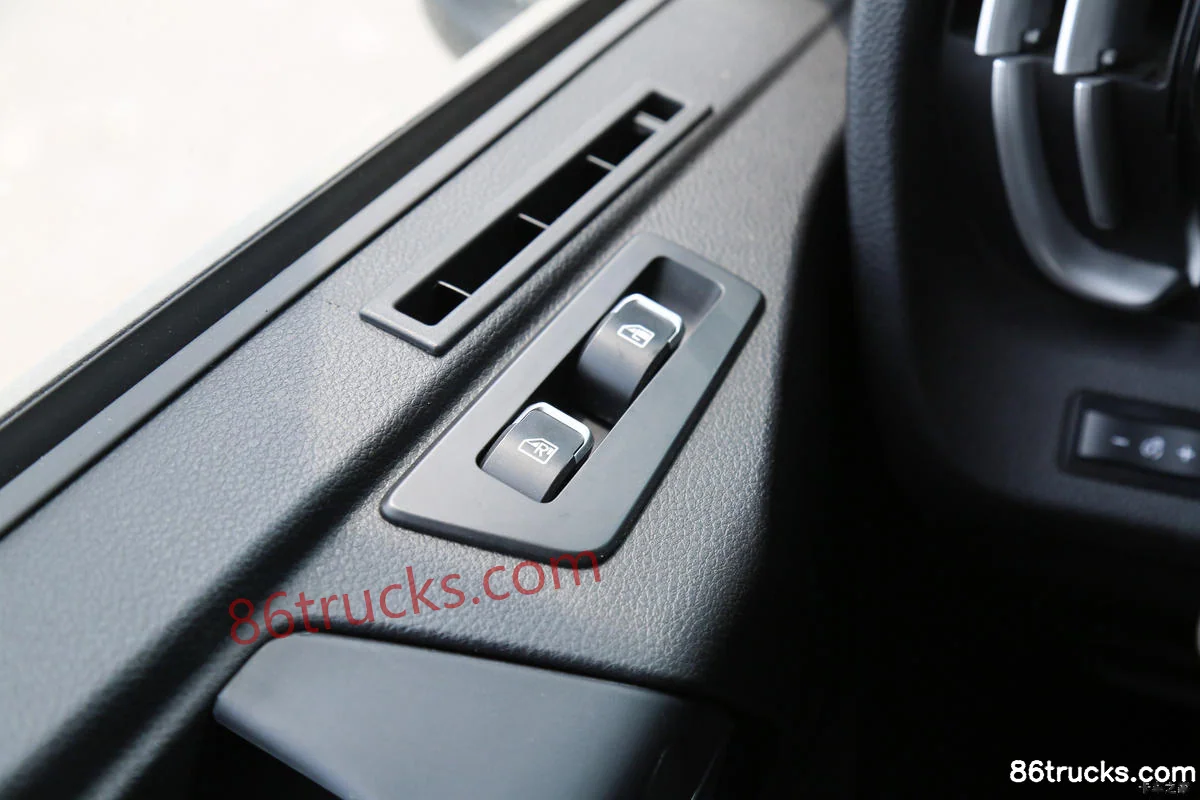

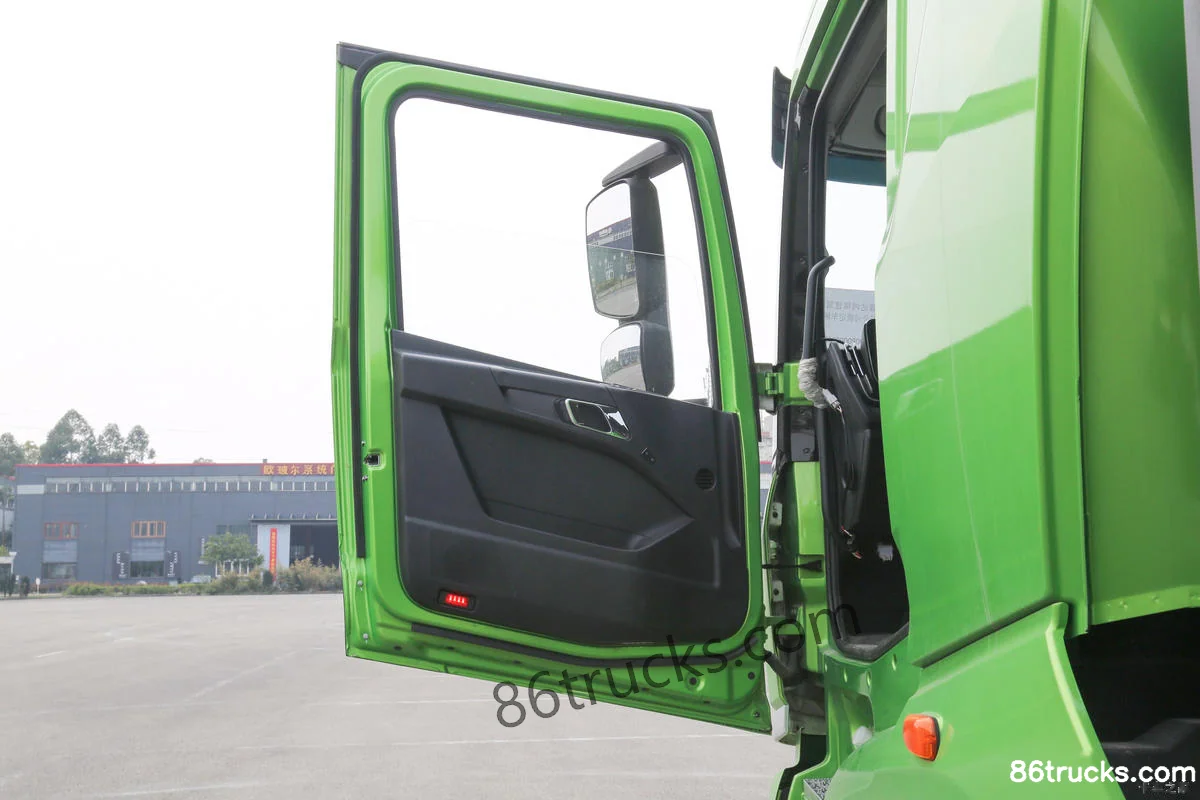

Cab3

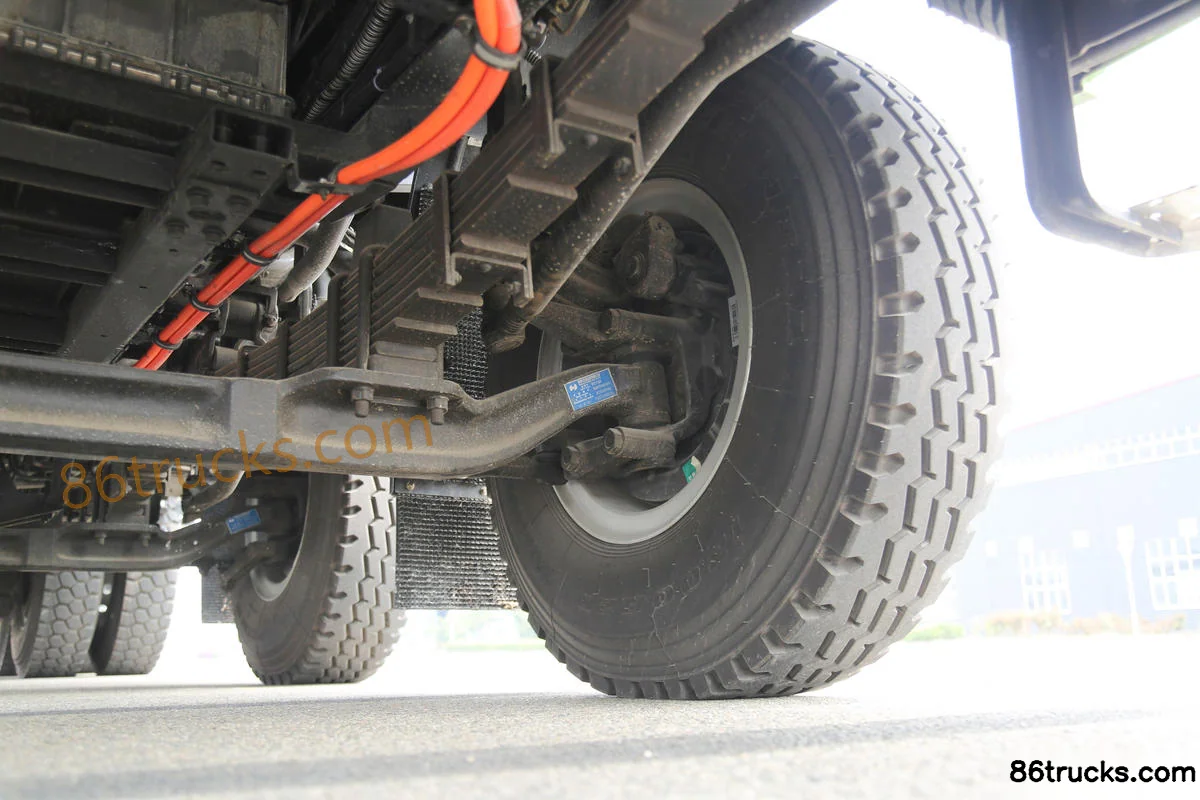

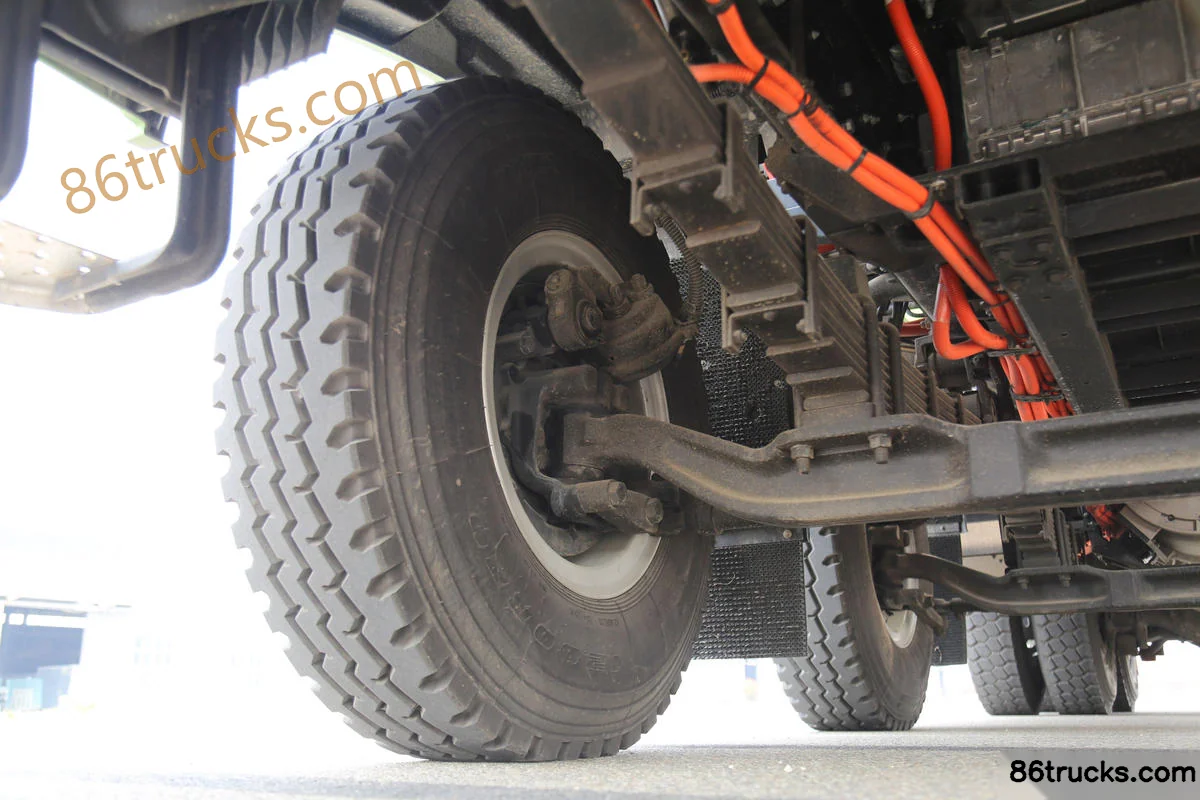

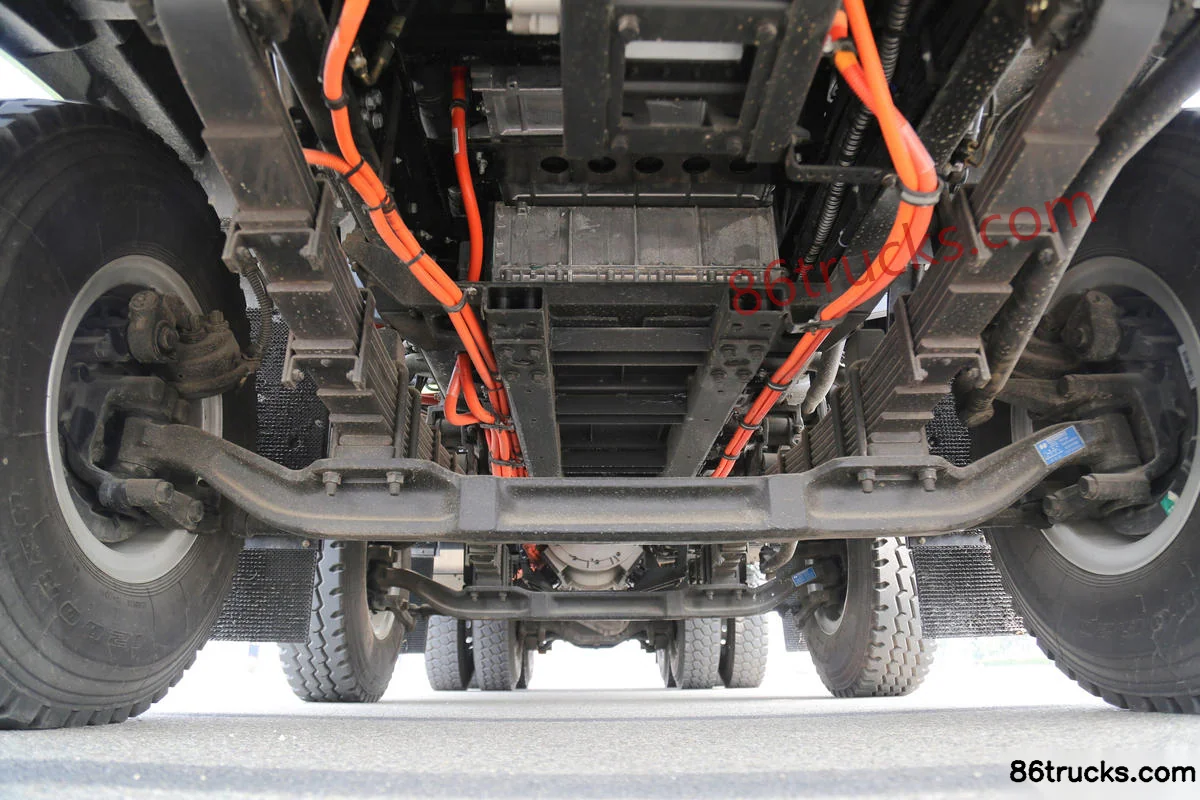

Chassis3

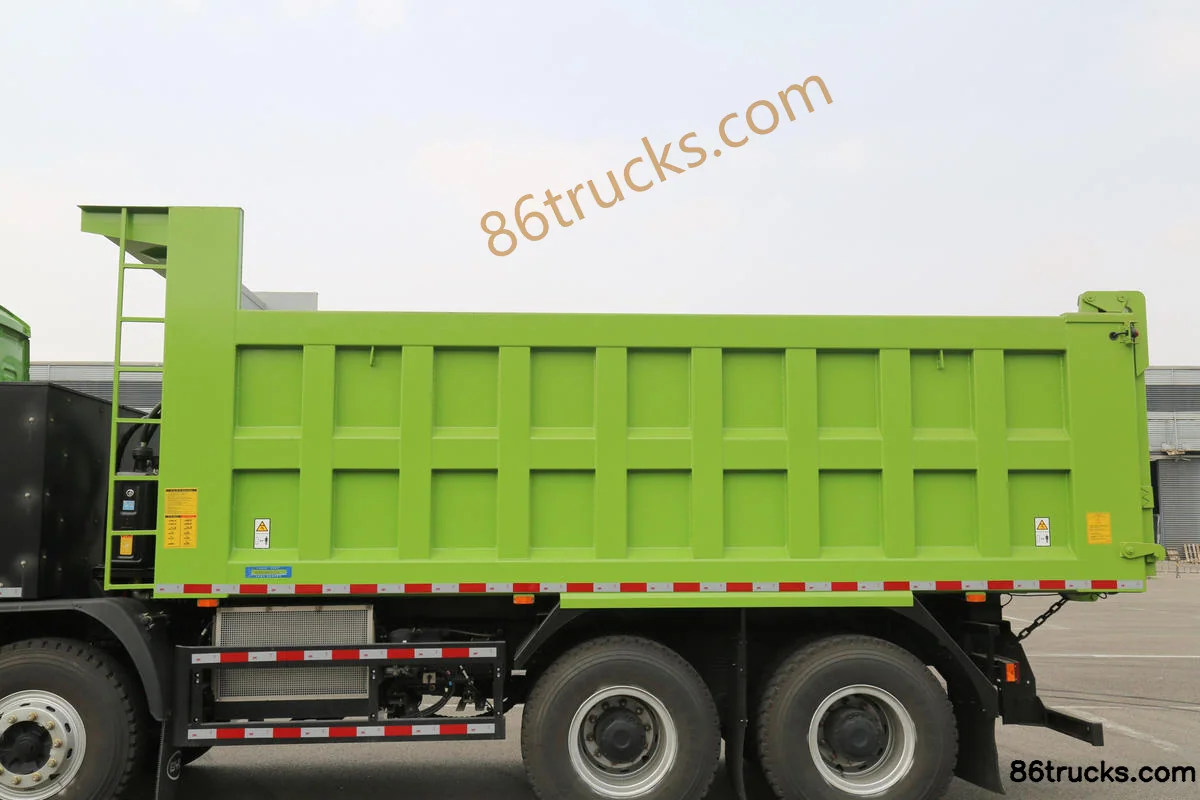

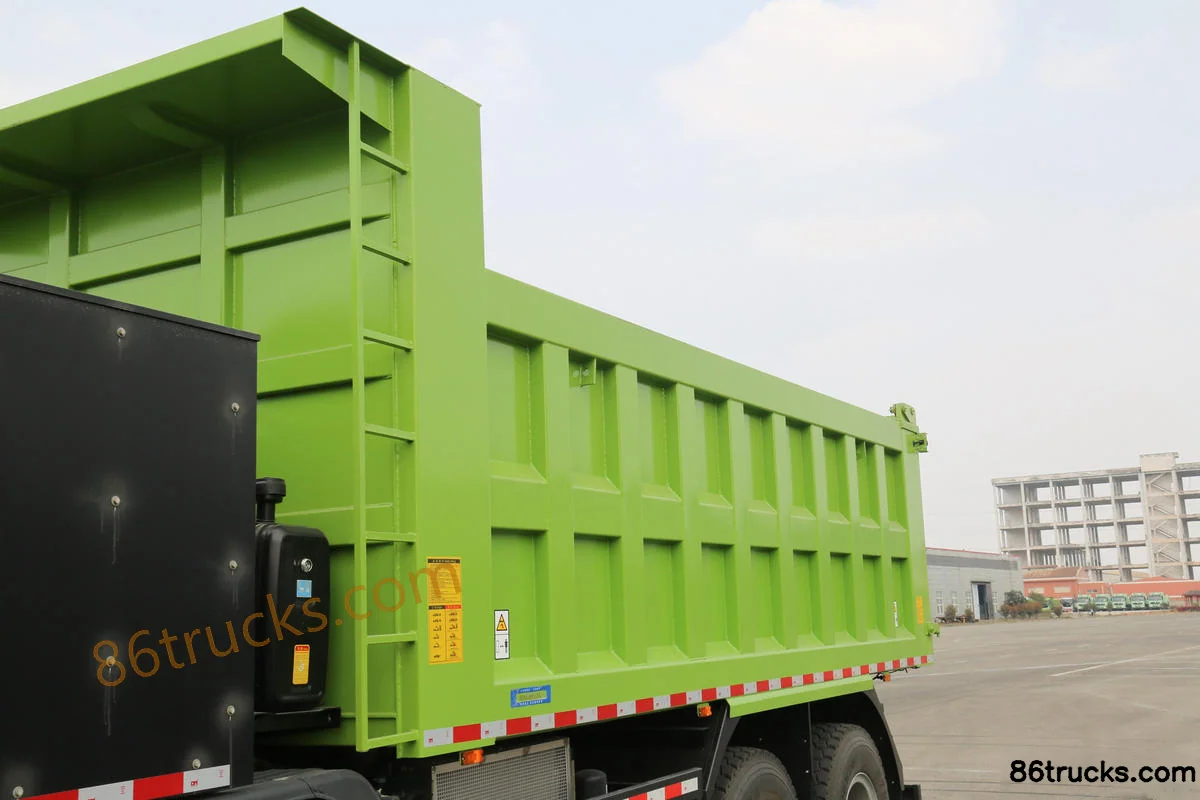

Body3

12 photos

FAQ

What are the key specs of BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh?

Key specs of BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh suited for?

BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh differ from other variants in the same series?

BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh belongs to BYD T31 heavy-duty truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T31 31T 8X4(12 wheels) 5.6m Pure Electric Dump Truck 355kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
