Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)

Export reference
From $33,306
MSRP ¥23.98M CNY
Rated payload:: 1.17ton
Wheelbase:: 3360mm
Cargo box type:: Stake type
Model code (announced):: SQR5042CCYBEVH75
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Suzhou Green Control
Curb Weight: 3.13ton

Overview

The Chery Commercial Vehicle Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) is a Light Truck featuring 300km battery/range, Suzhou Green Control motor, 4X2 (6 wheels) drive and 1.17t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5042CCYBEVH75
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.29m
CLTC range: 300km
Curb Weight: 3.13ton
Rated payload: 1.17ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Remarks: Keyless entry + push-button start, T-BOX, OTA FARIZON upgrade, mobile app control
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ270XS-LKM0401
Motor Type: Permanent magnet synchronous motor
total rated power: 100kW
Peak power: 200kW
total peak torque: 440N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 100.46kWh
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.2m
Cargo box width: 2.1m
Cab parameters
Cab width: 2030mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1960kg
rear axle allowable load: 2535kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

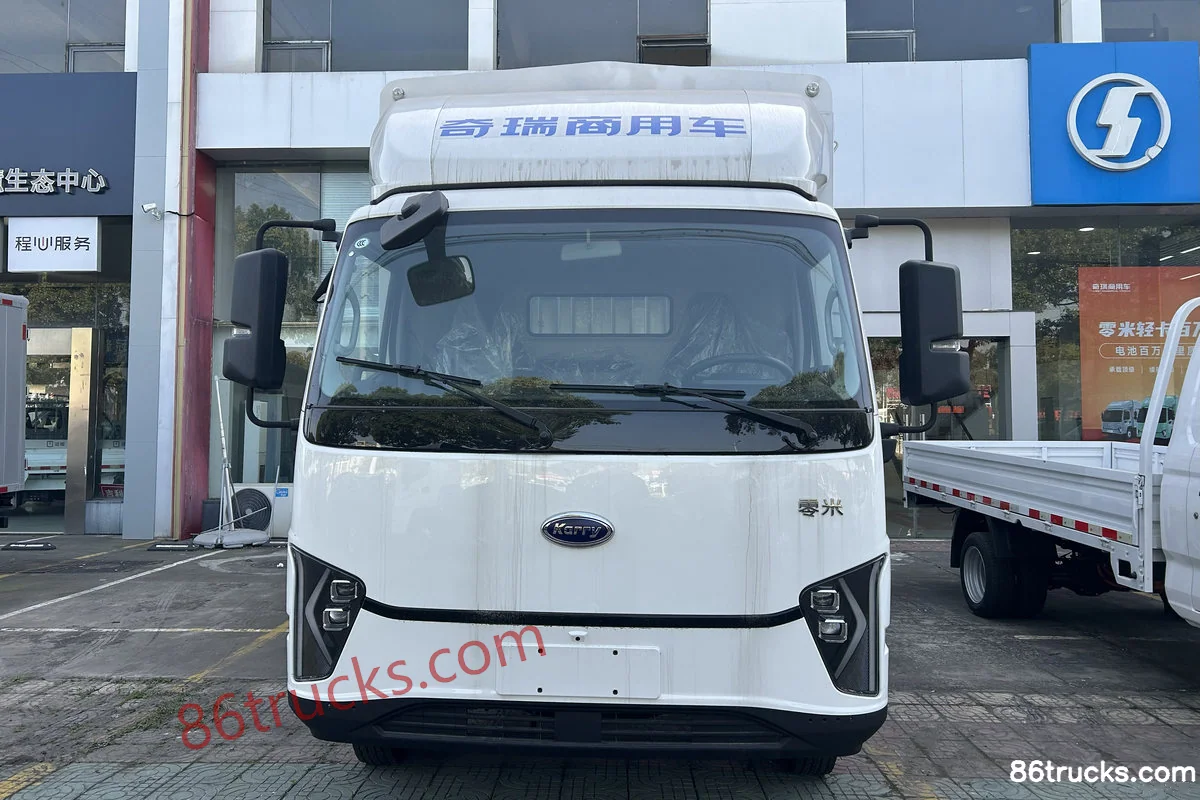

Exterior3

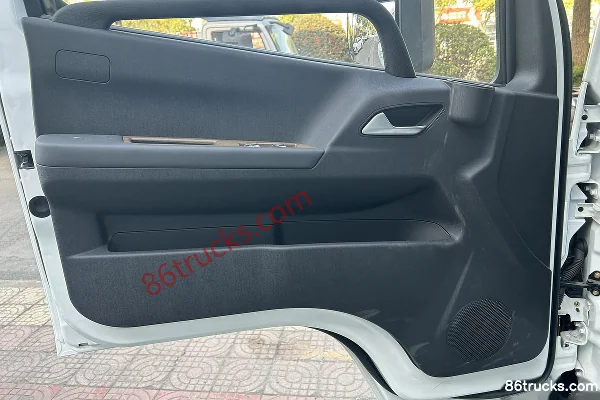

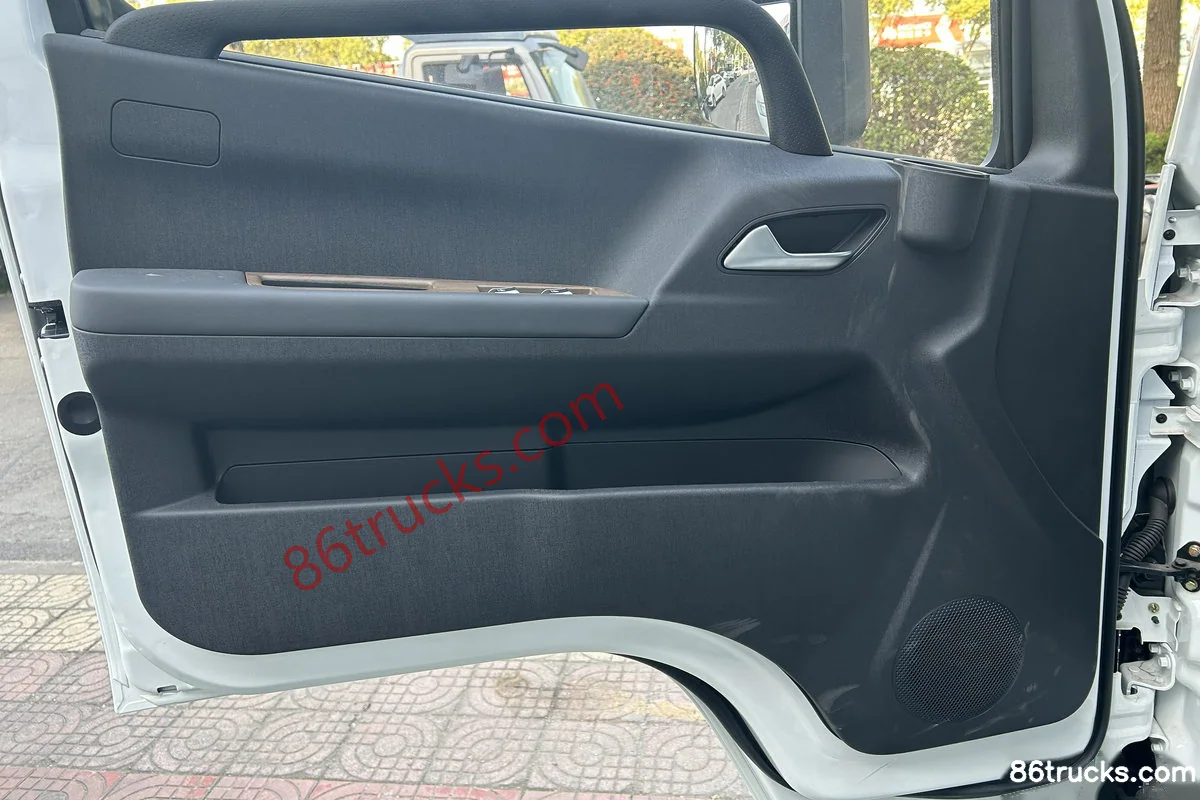

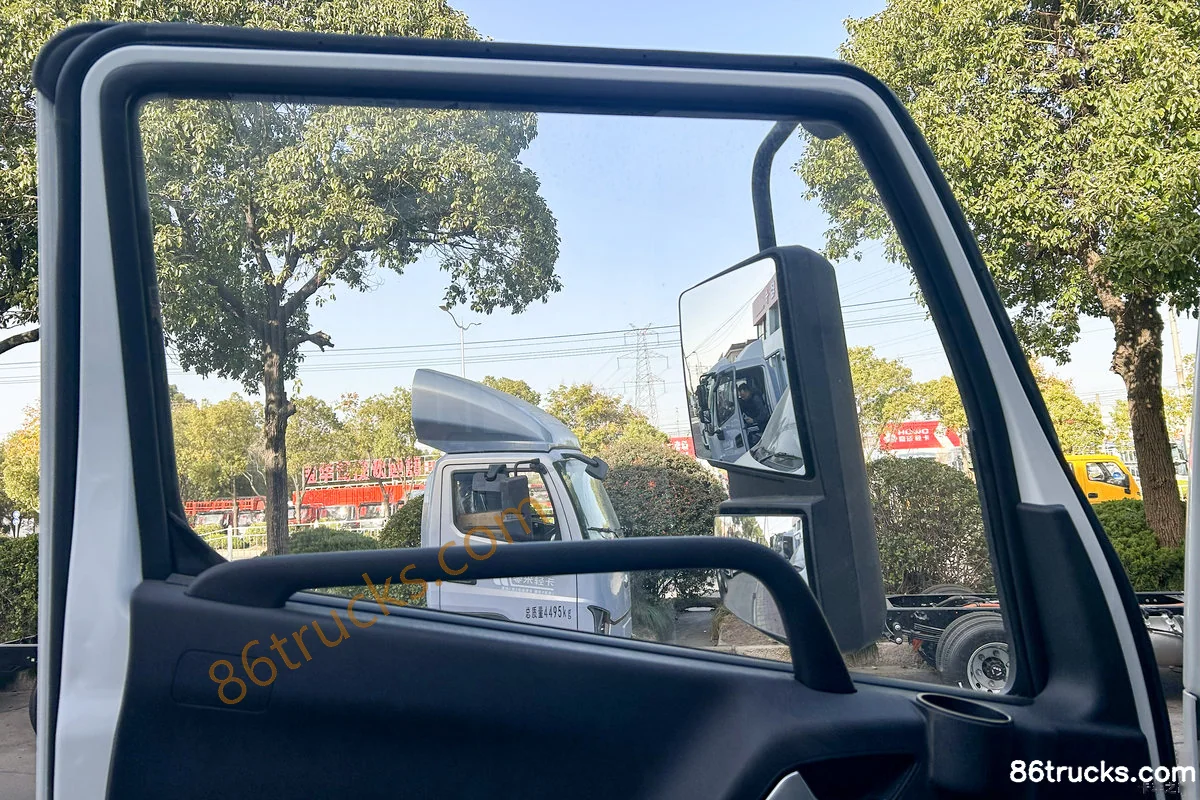

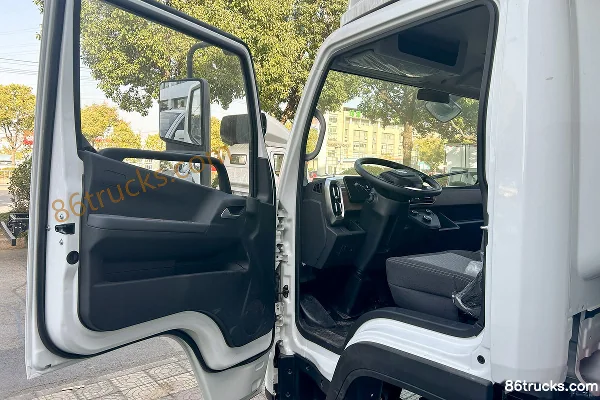

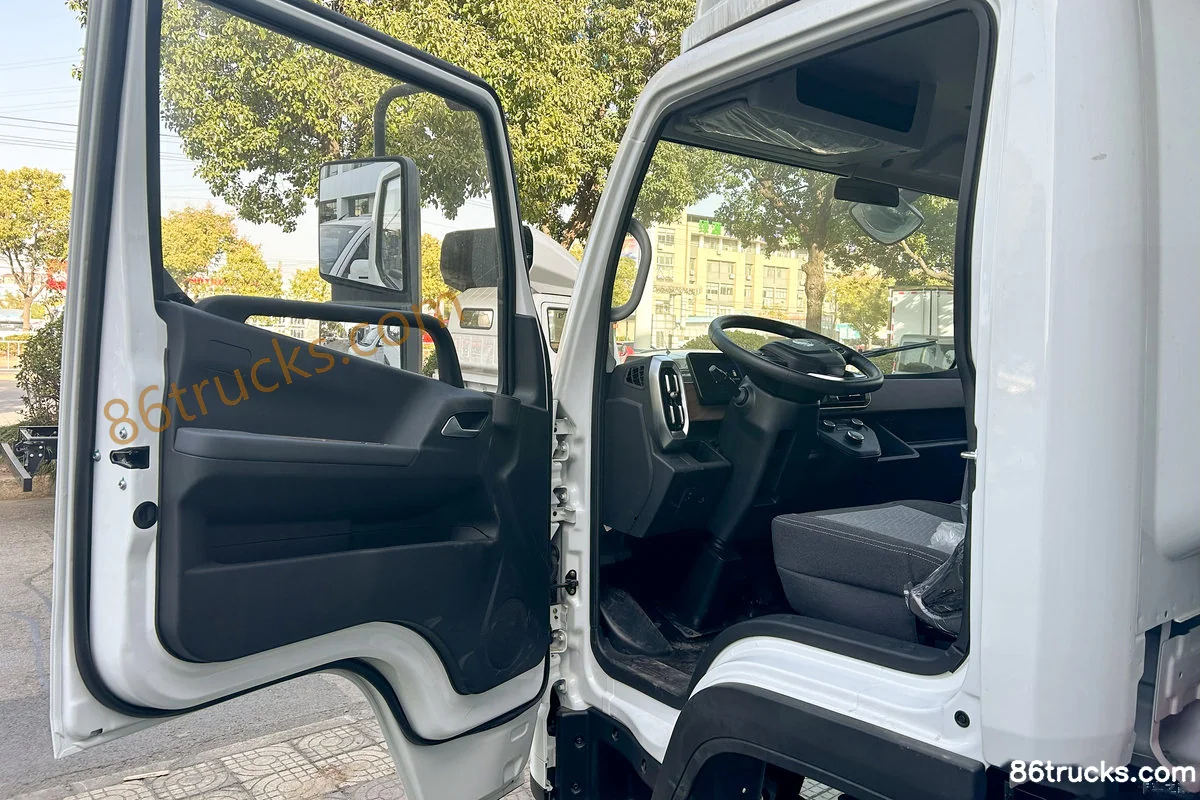

Cab3

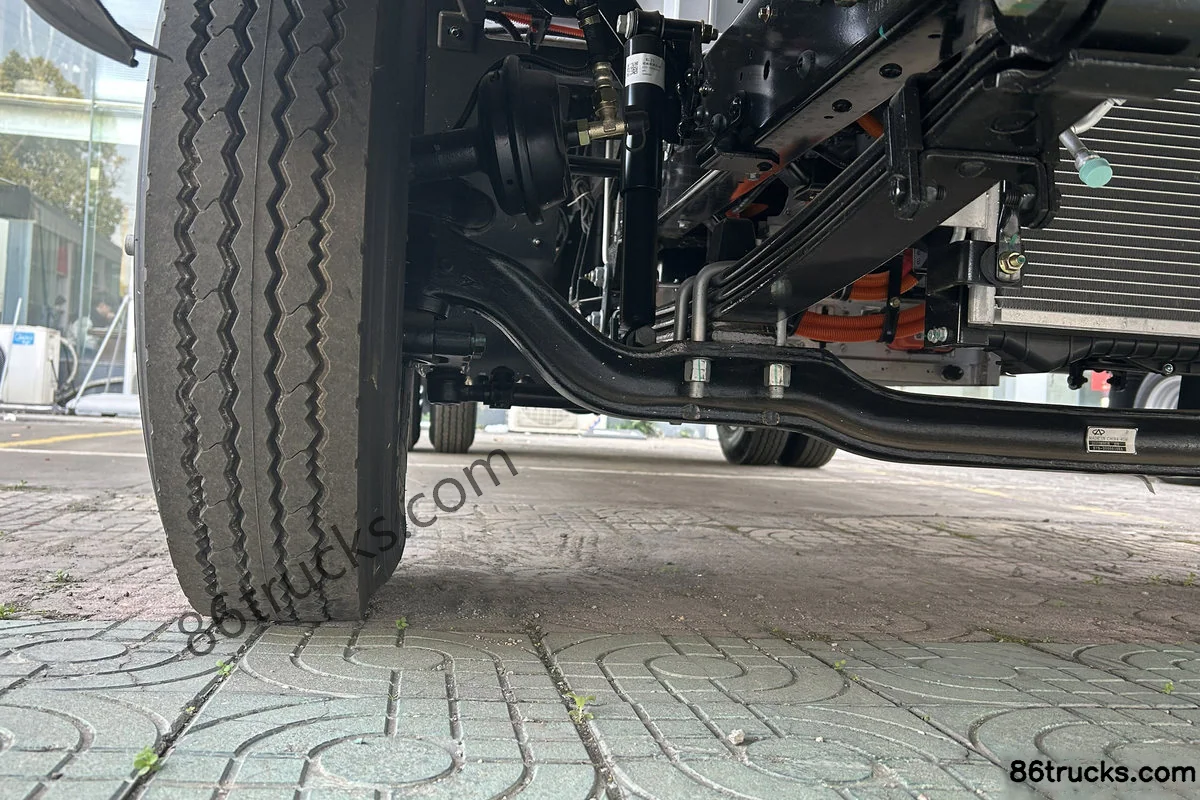

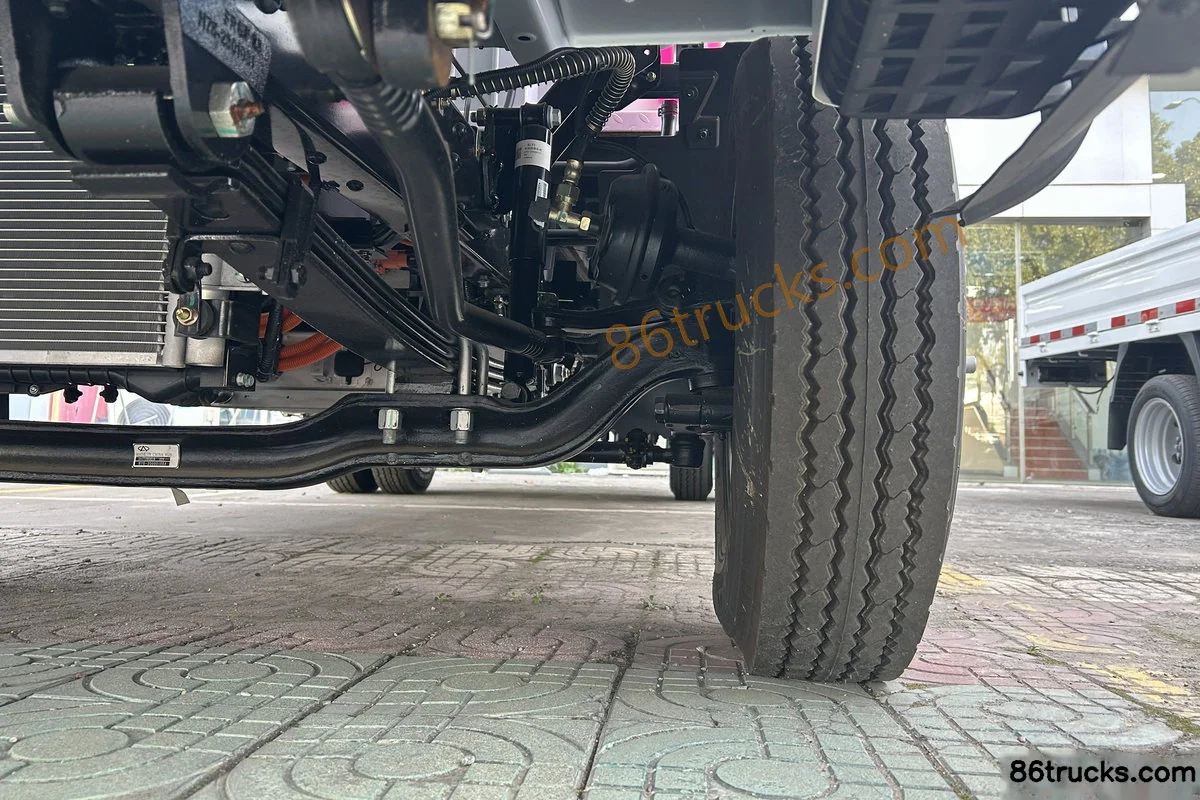

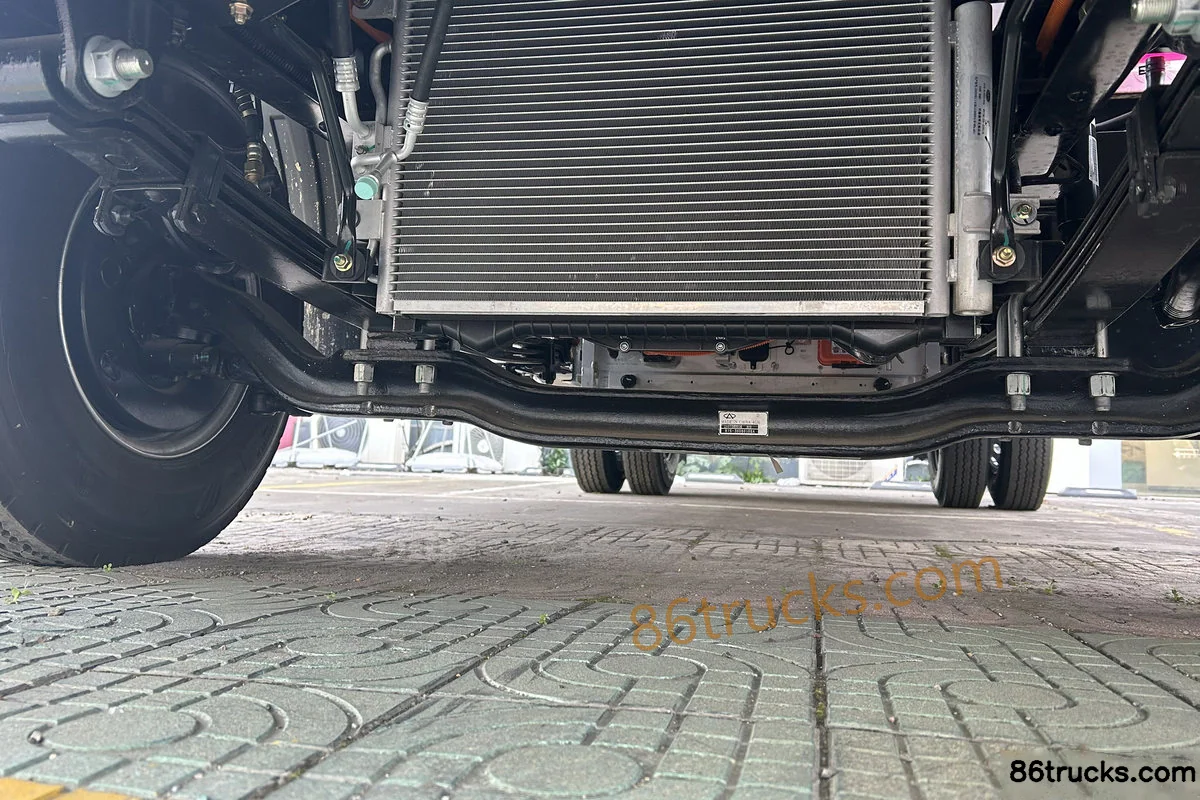

Chassis3

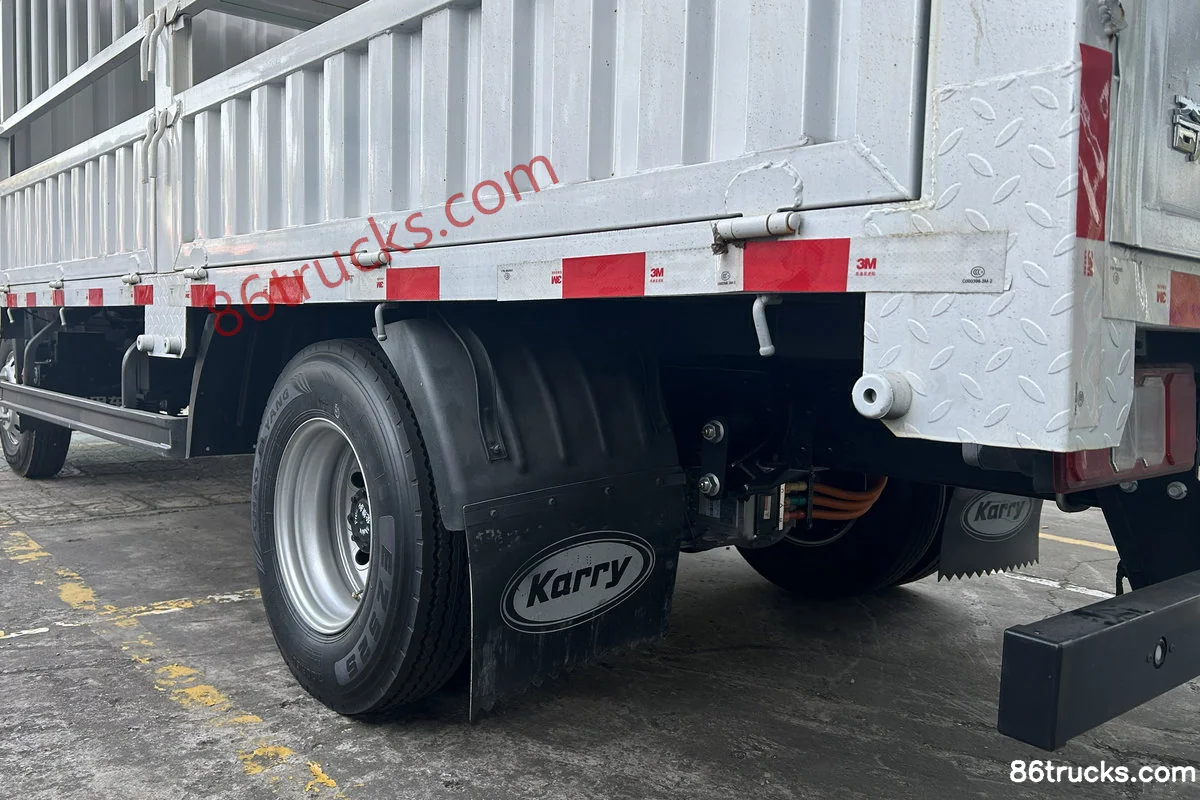

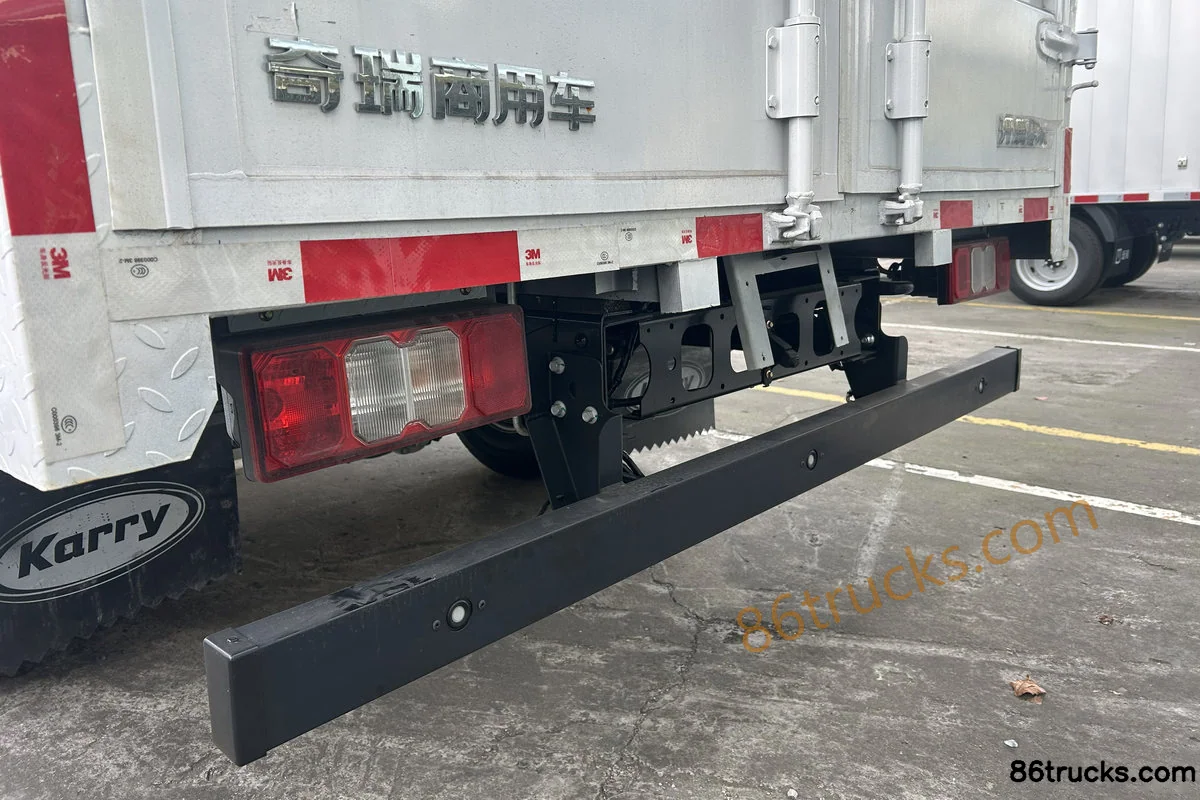

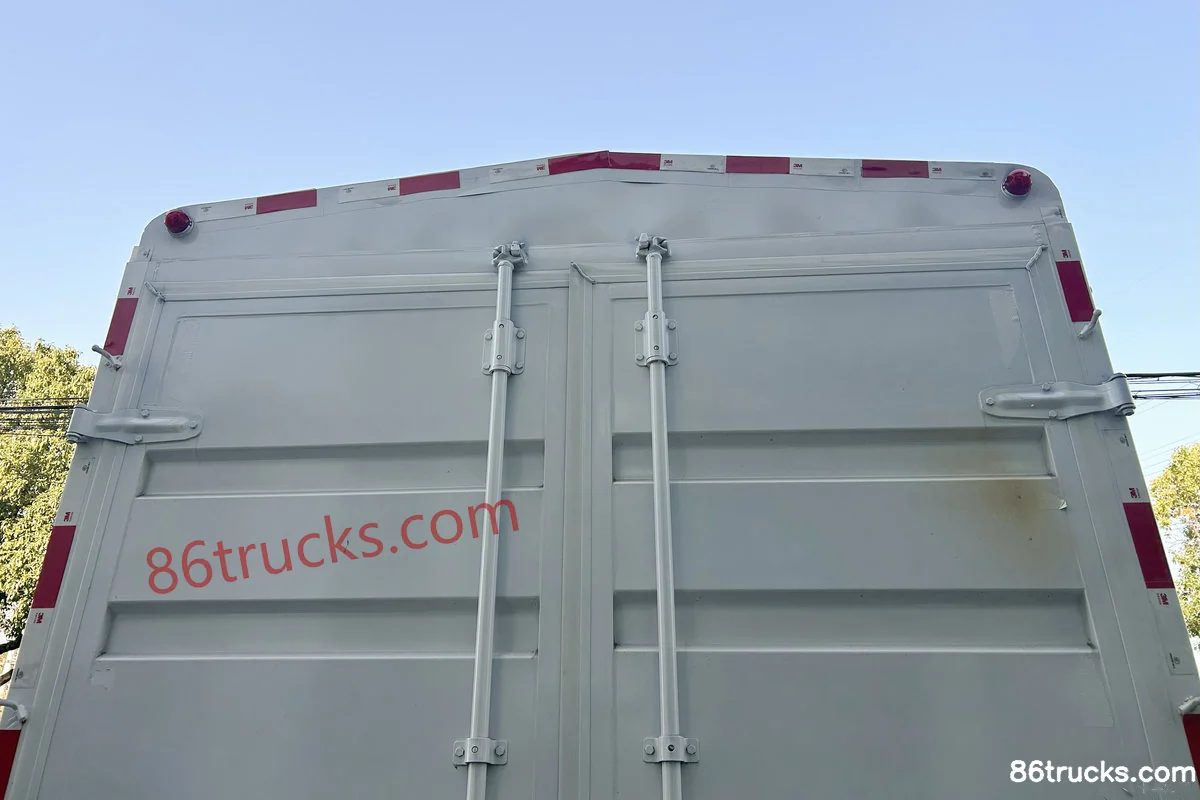

Body3

12 photos

FAQ

What is the export price of Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels), and what does it include?

Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) export reference is about From $33,306; MSRP is ¥23.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Key specs of Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) suited for?

Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) differ from other variants in the same series?

Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels) belongs to Chery Commercial Vehicle Zero Meter (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Lingmi 4.5T 4.2m Single Row Pure Electric Stake Truck CATL 100.46kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
