Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis

Export reference
From $14,556
MSRP ¥10.48M CNY
Emission: China IV
Fuel: Diesel
Engine: Foton493
Transmission: WLY
Curb Weight:: 2.125ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 110

Overview

The Karry Green Card Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume and 3360mm wheelbase. On the powertrain side, it comes with a Foton493 engine, 110 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR1040H29D-E
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
engine: Foton4J28TC
transmission: WLYWLY6T100
Rear Axle Ratio: 5.375
Cab length: 5.94m
Cab width: 2m
Cab height: 2.32m
Front track width: 1680mm
rear track: 1525mm
Curb Weight: 2.125ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 23°
departure angle: 18°
Front/rear suspension: 1.125/1.455m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC
Engine info: Foton493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3600rpm
Engine Type: Inline, vertical, water-cooled
Transmission Parameters
Transmission Model: WLYWLY6T100
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Axle ratio: 5.375
Leaf spring count: 8/4+6
Tire

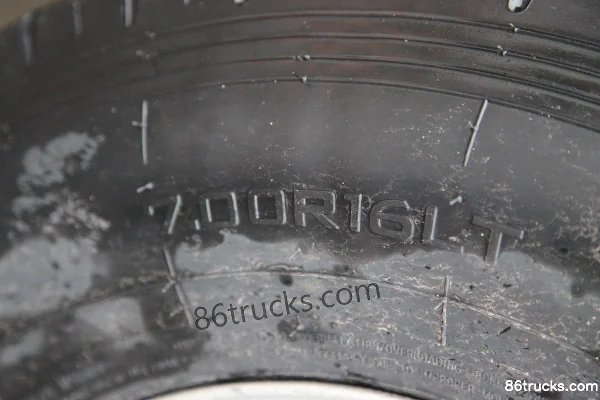

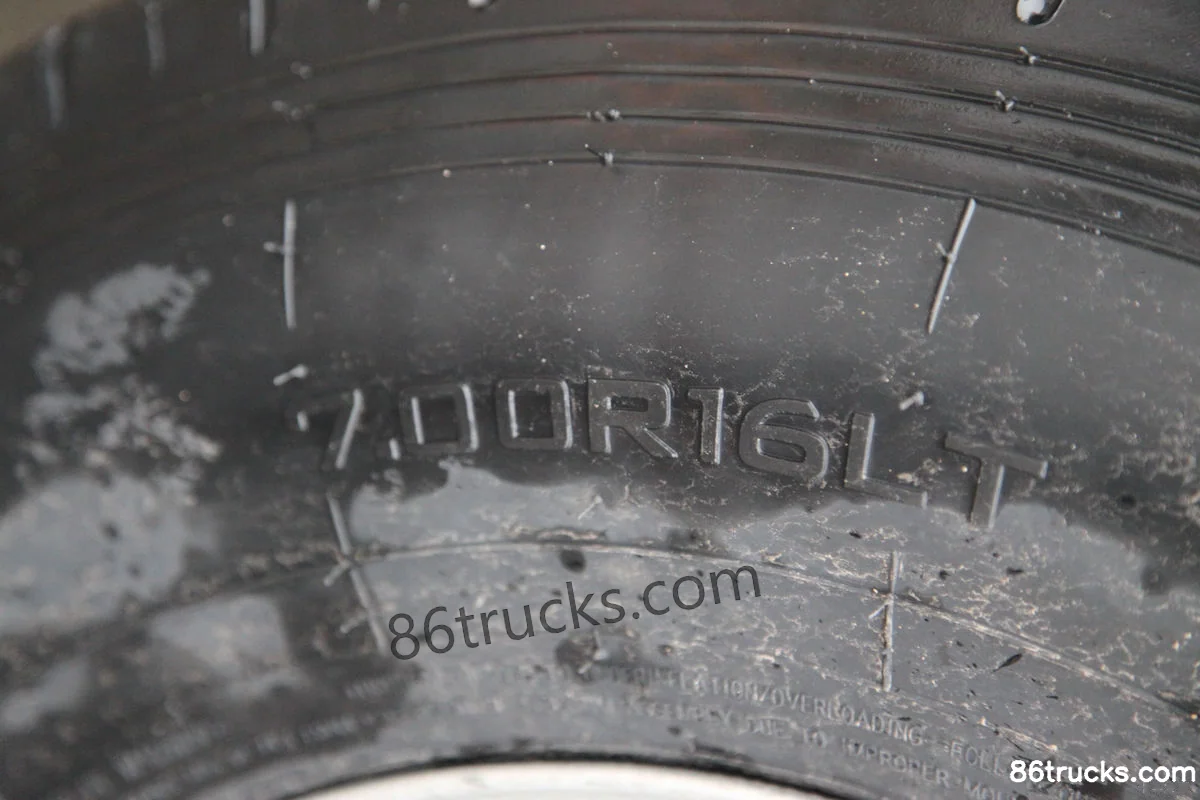

Tire Size: 7.00R16LT
Tire Type: Radial tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
AC control type: Manual
Service brake
Brake Type: Air brake
Exhaust brake:

Photos

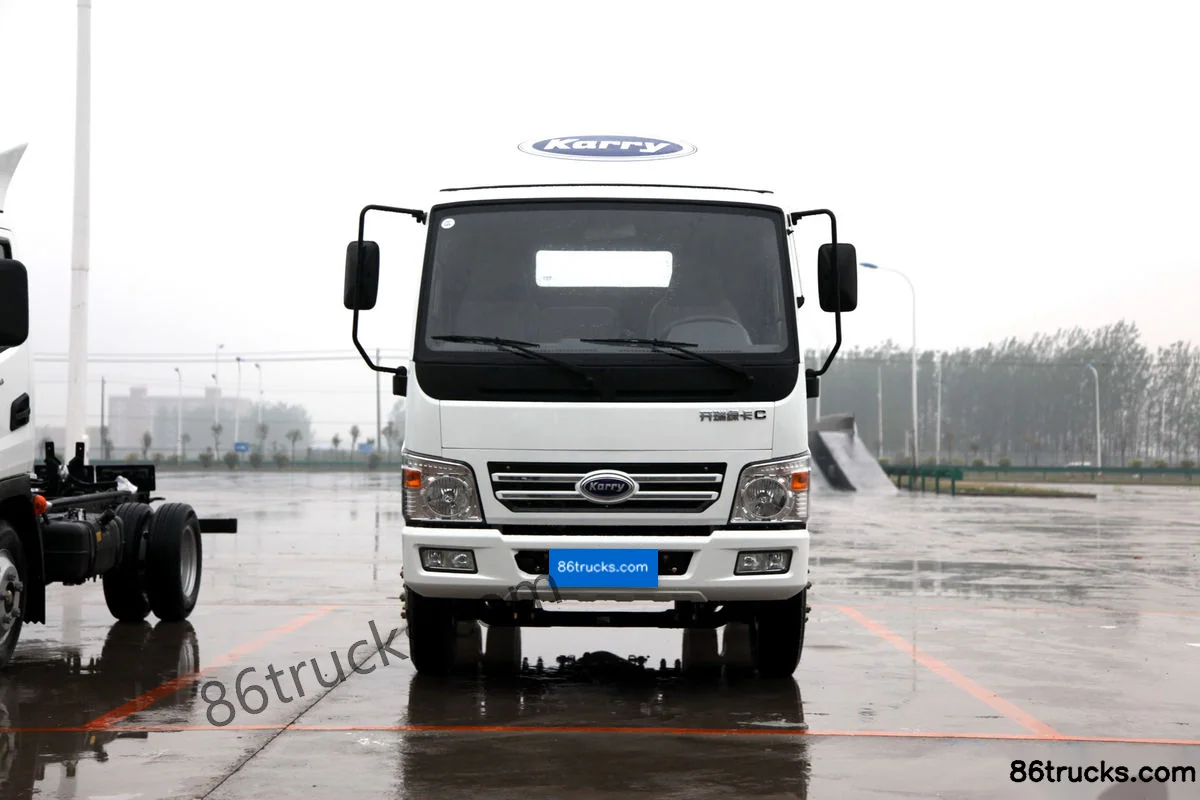

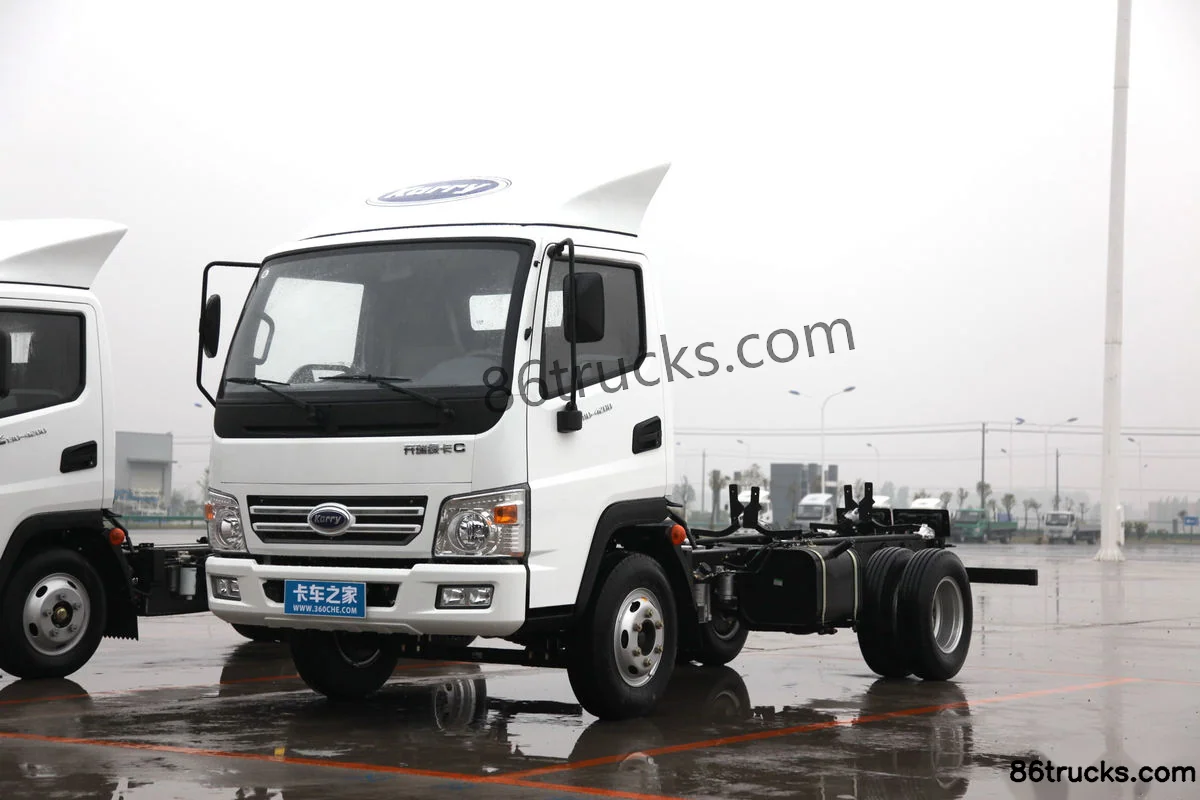

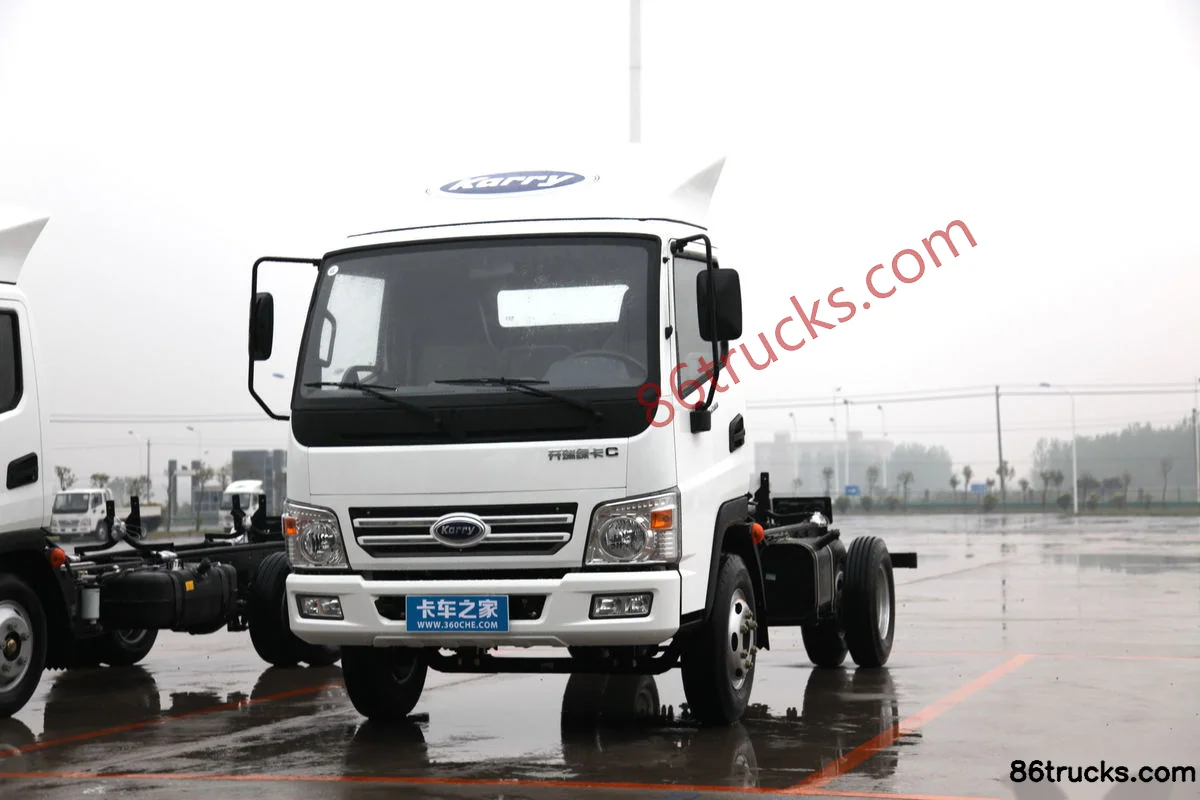

Exterior3

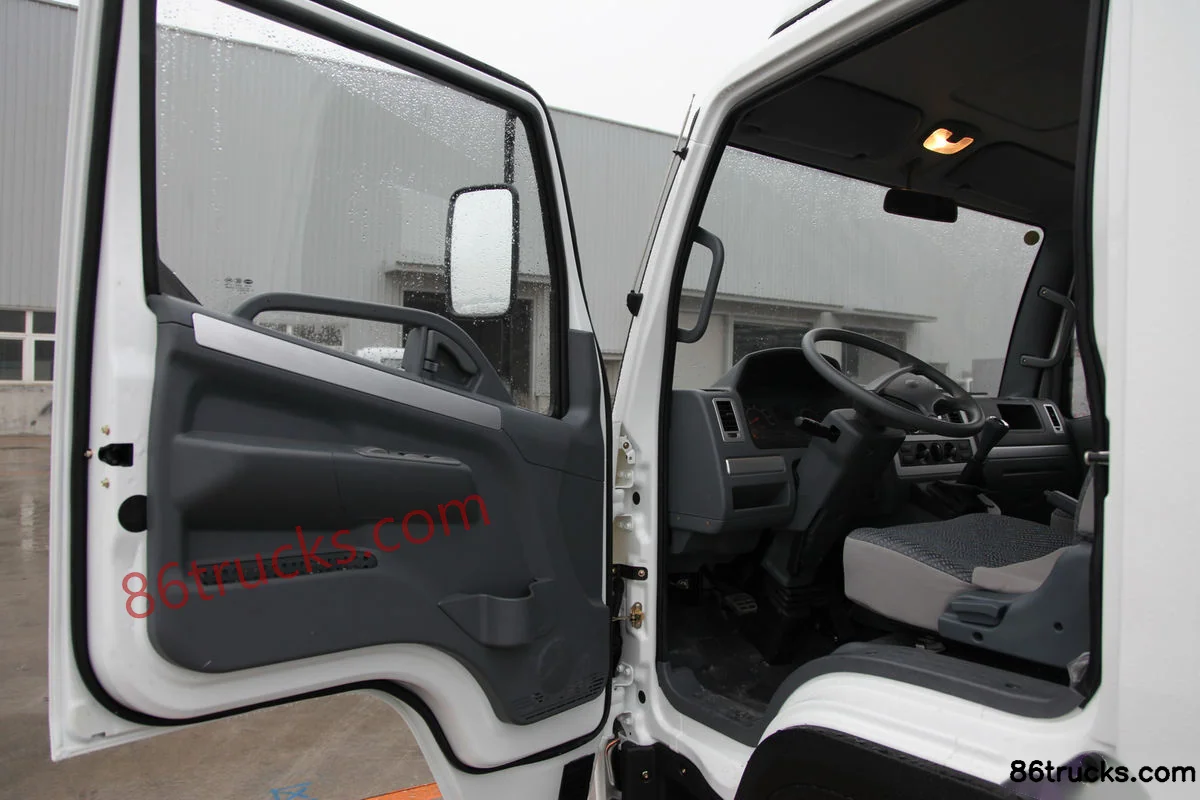

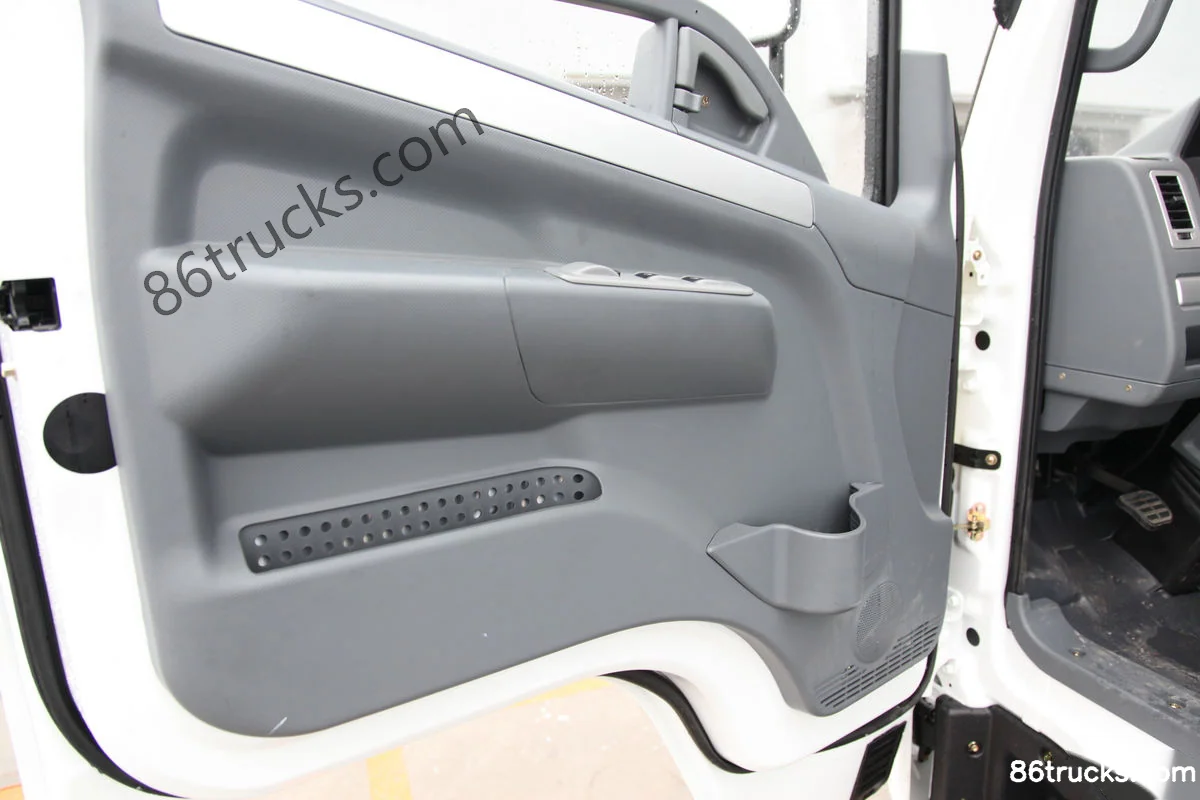

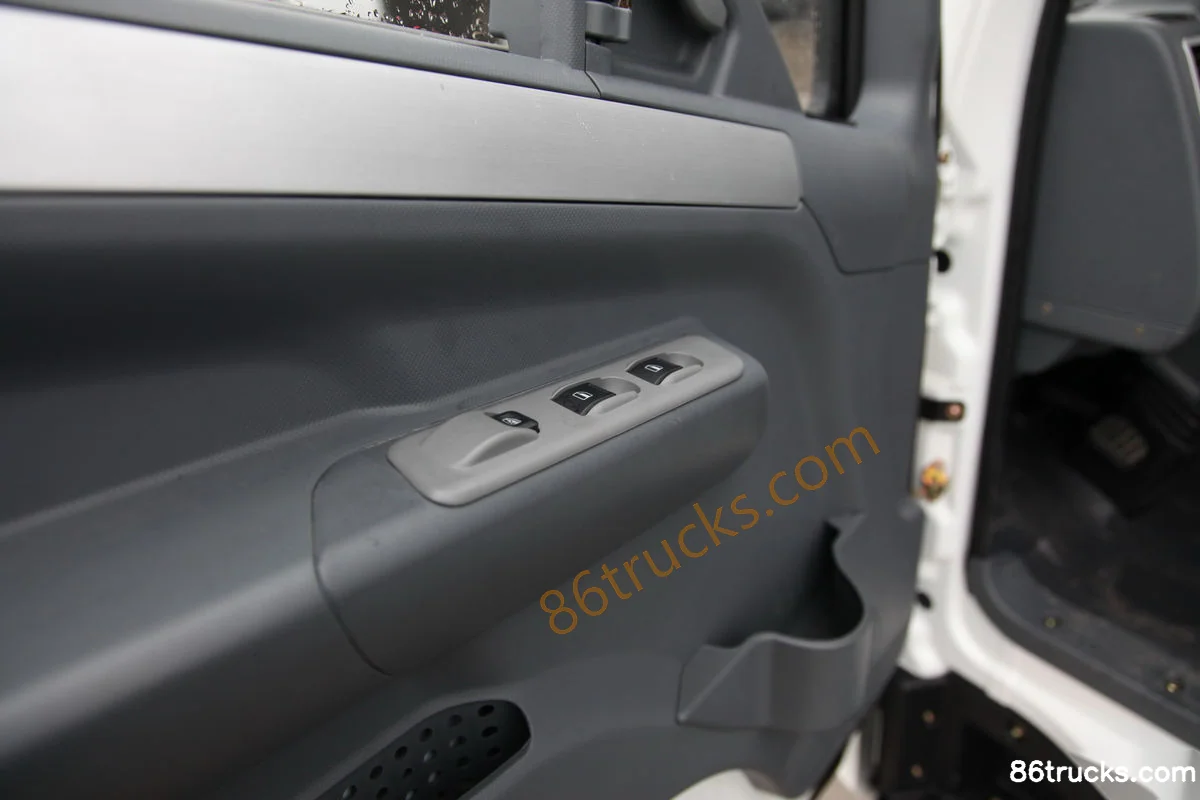

Cab3

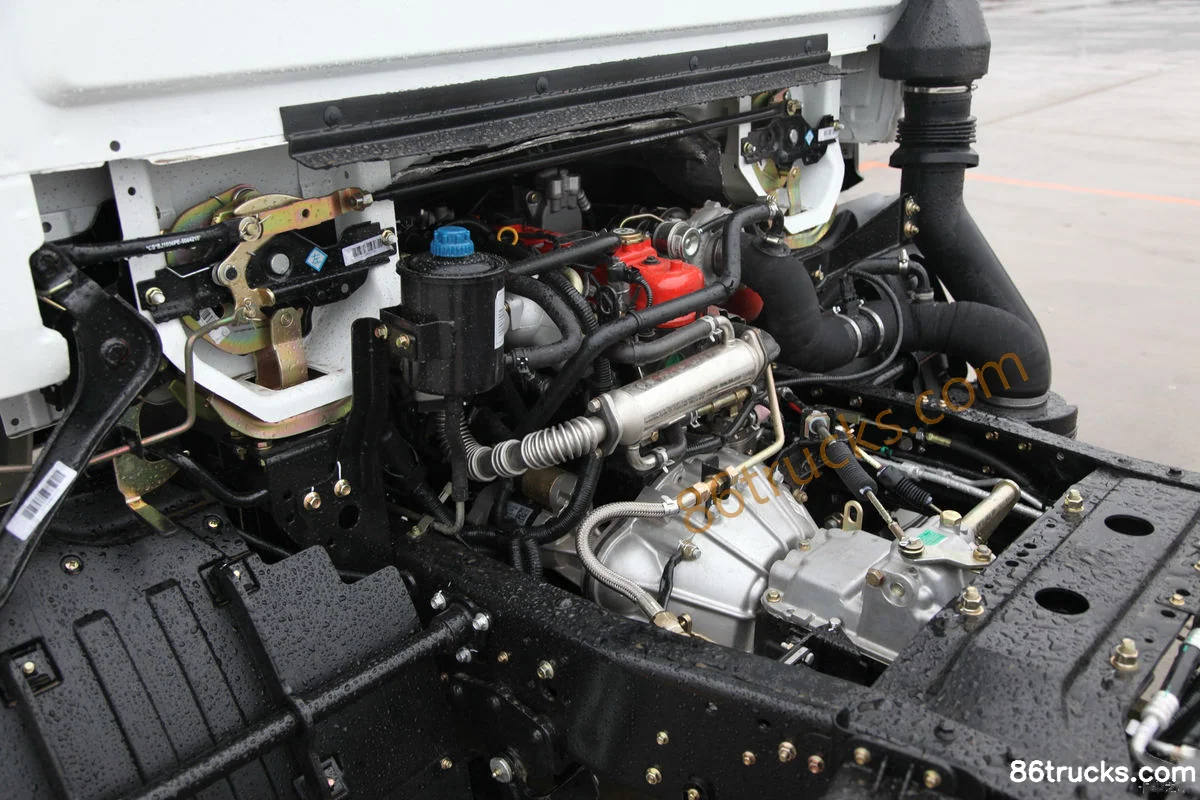

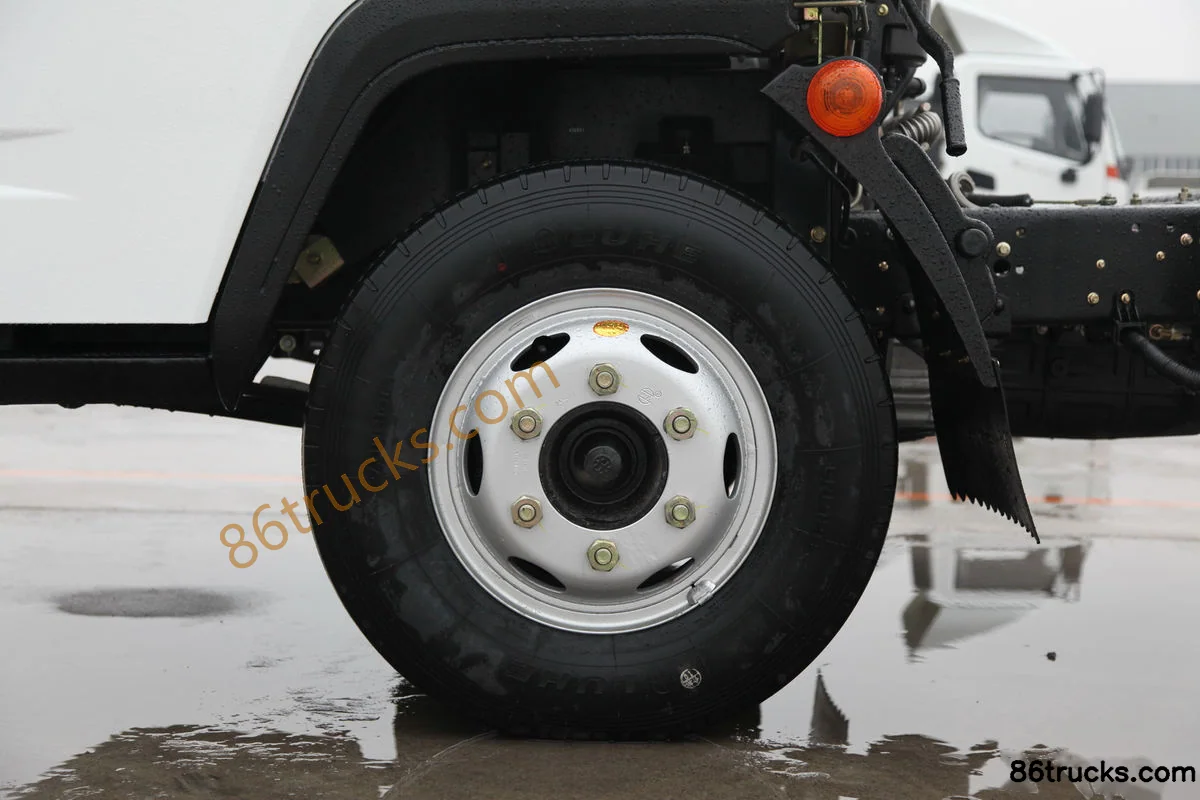

Chassis3

9 photos

FAQ

What is the export price of Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis, and what does it include?

Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis export reference is about From $14,556; MSRP is ¥10.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis?

Key specs of Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis: Drive: 4x2; Horsepower: 110 hp; Emission: China IV; Fuel: Diesel; Engine: Foton493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis suited for?

Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis differ from other variants in the same series?

Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis belongs to Karry Green Card C Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kairui Green Card C 110 hp 4X2(6 wheels) 3360 Wheelbase Single Row Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
