Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck

Export reference
From $9,181
MSRP ¥6.61M CNY
Horsepower: 88
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 1.772ton
Wheelbase:: 3200mm
seating capacity: 5Personnel
Rated payload: 1.4ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Forland Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck is a mini truck featuring 3.1m cargo length, stake body cargo body, 5Personnel volume and 1.4t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with 88 hp, 4X2 (6 wheels) drive, China V emissions and WLY transmission.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1030V5AB5-DB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 3.1m
engine: Quanchai4A2-88C53
transmission: WLYWLY5T20
Rear Axle Ratio: 5.657
Cab length: 5.74m
Cab width: 1.83m
Cab height: 2.05m
Front track width: 1410mm
rear track: 1320mm
Curb Weight: 1.772ton
Rated payload: 1.4ton
GVWR: 3.497ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 23°
departure angle: 24°
market segment: Building materials, agricultural products
Remarks: Optional ratio 3.302, 1.6
Front/rear suspension: 1.075/1.415m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-88C53
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.156L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder, inline, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: WLYWLY5T20
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.1m
Cargo box width: 1.71m
Cargo box height: 0.36m
*Cargo box interior width: 1.710000038147
Cab parameters
Cab: Flat roof
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 55L
Chassis Specs
Front axle allowable load: 1295kg
rear axle allowable load: 2202kg
Axle ratio: 5.657
Leaf spring count: 3/5+2
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

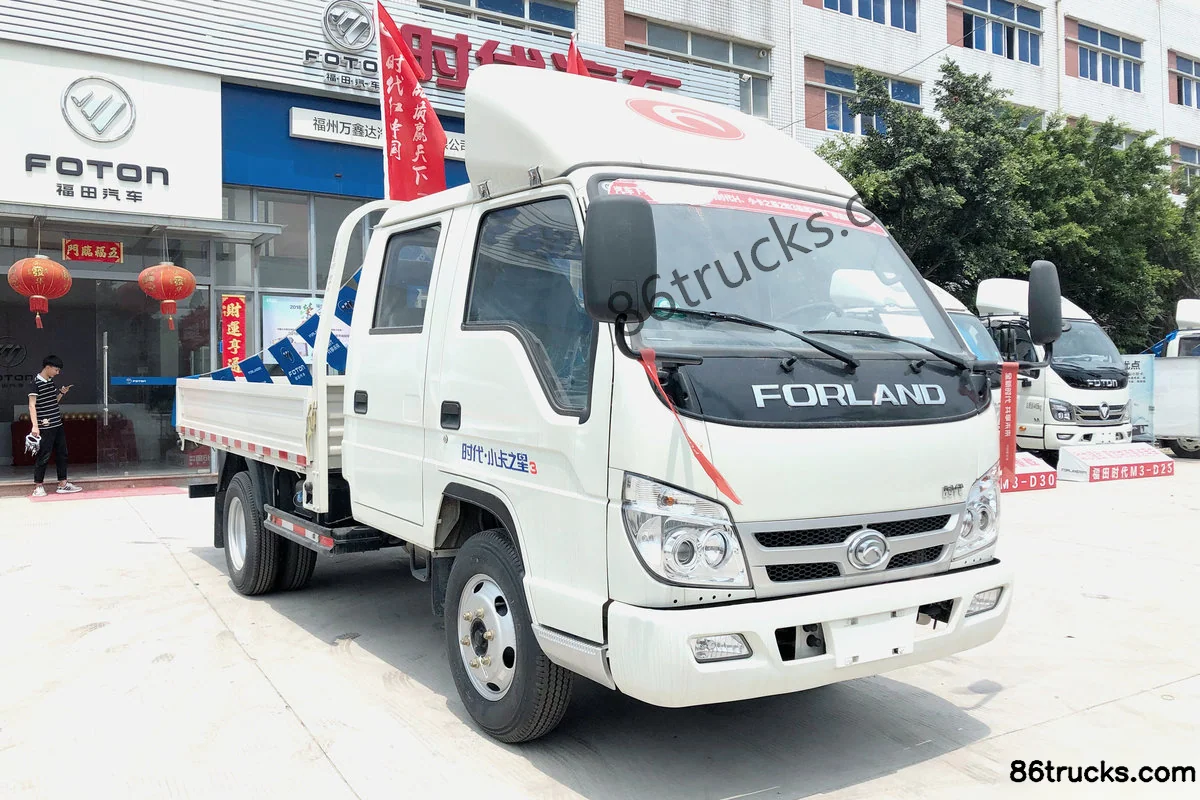

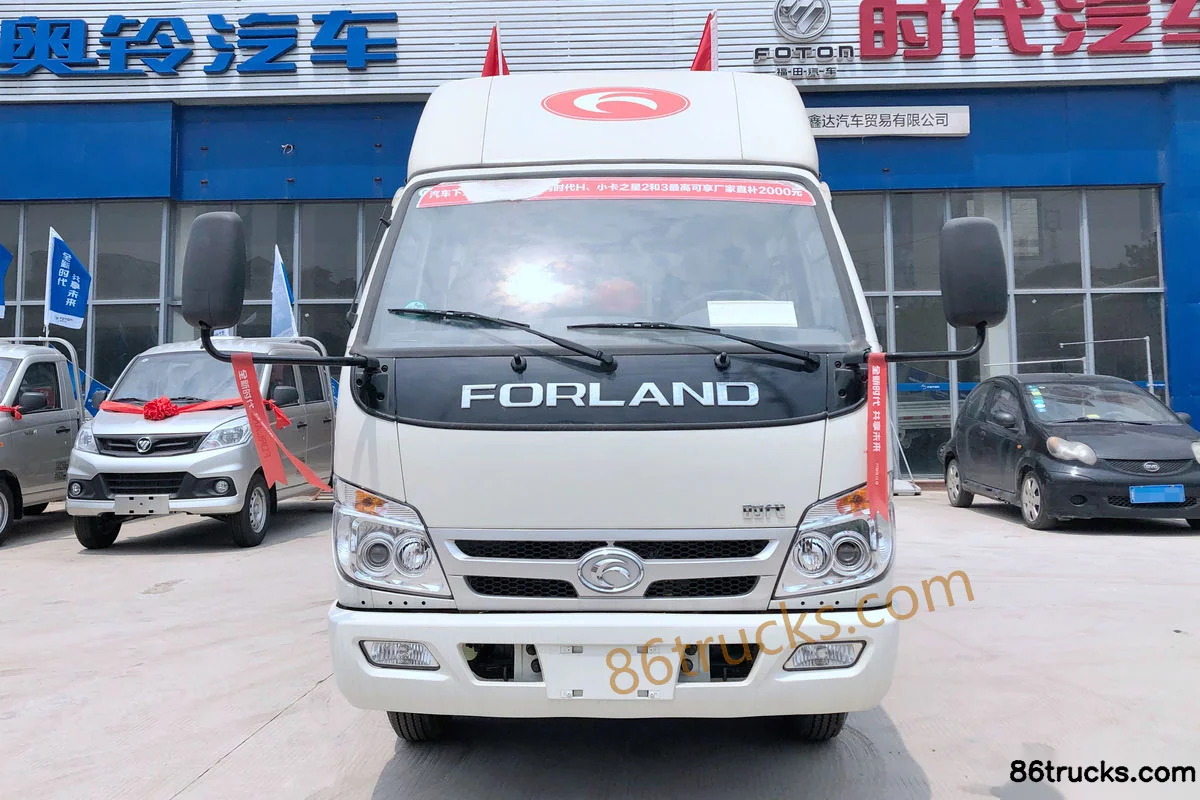

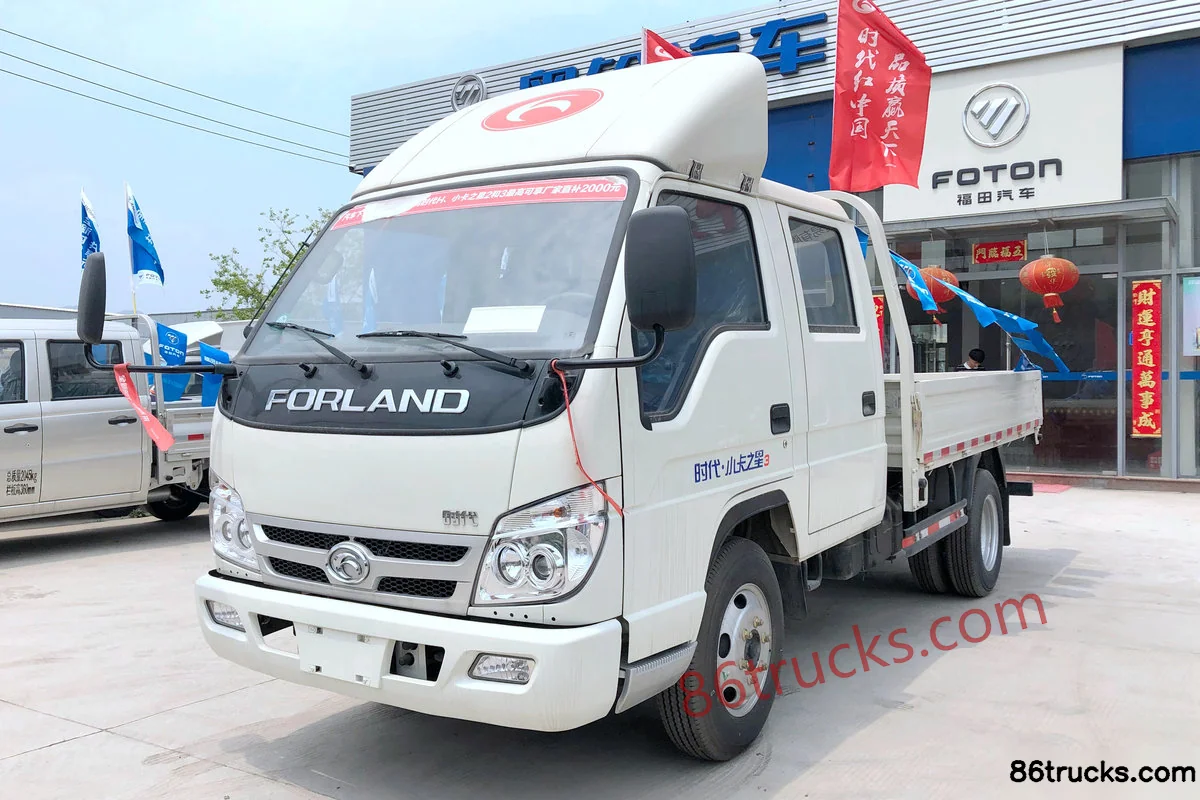

Exterior3

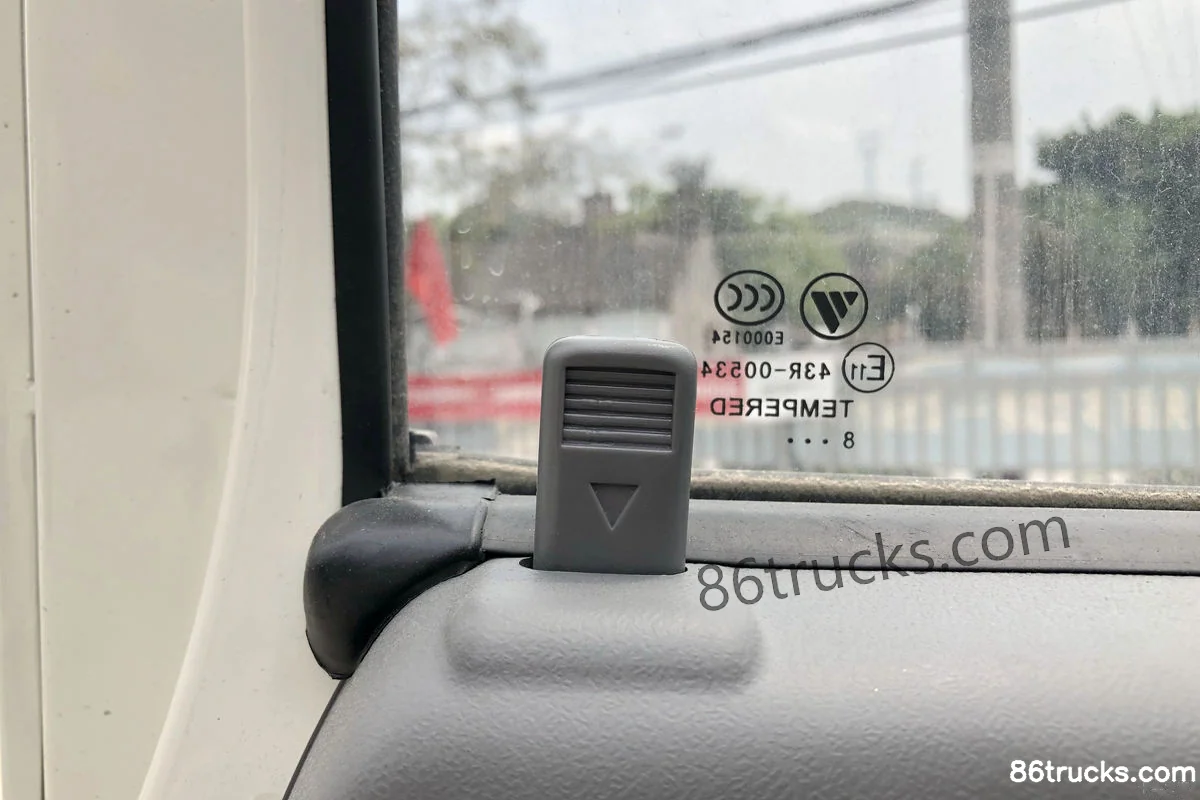

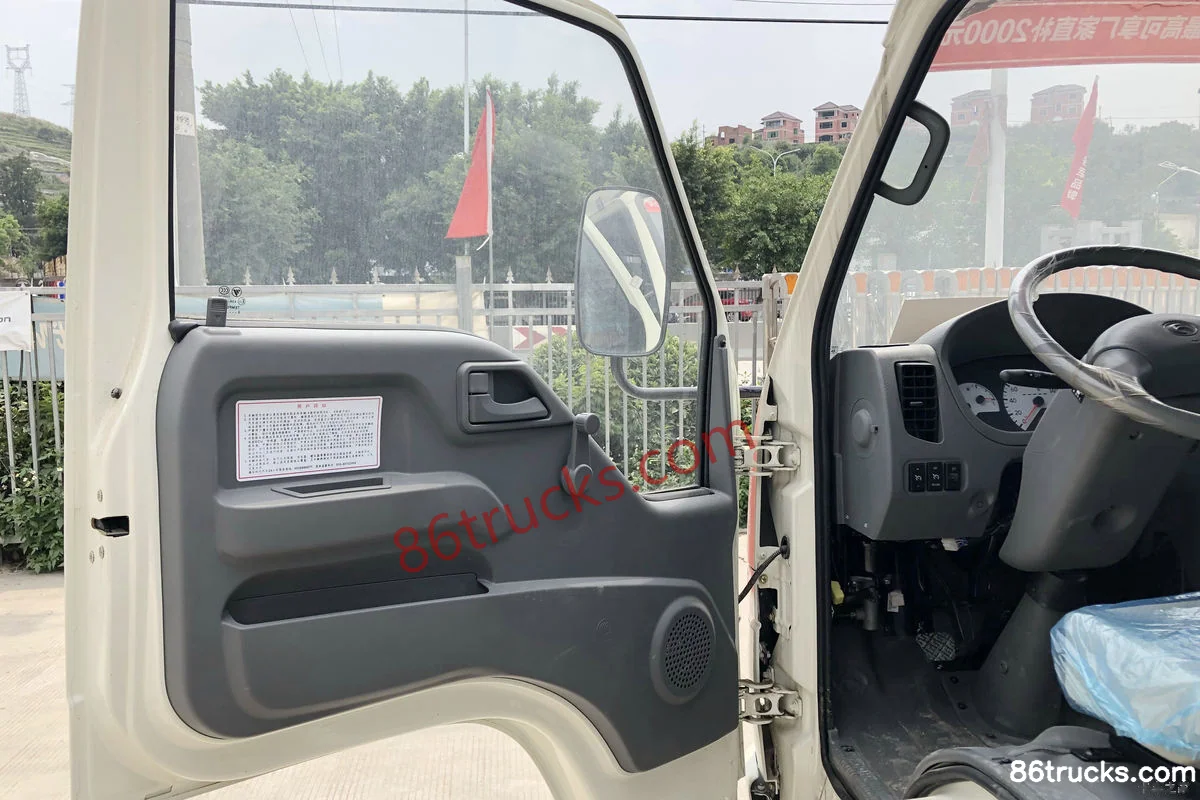

Cab3

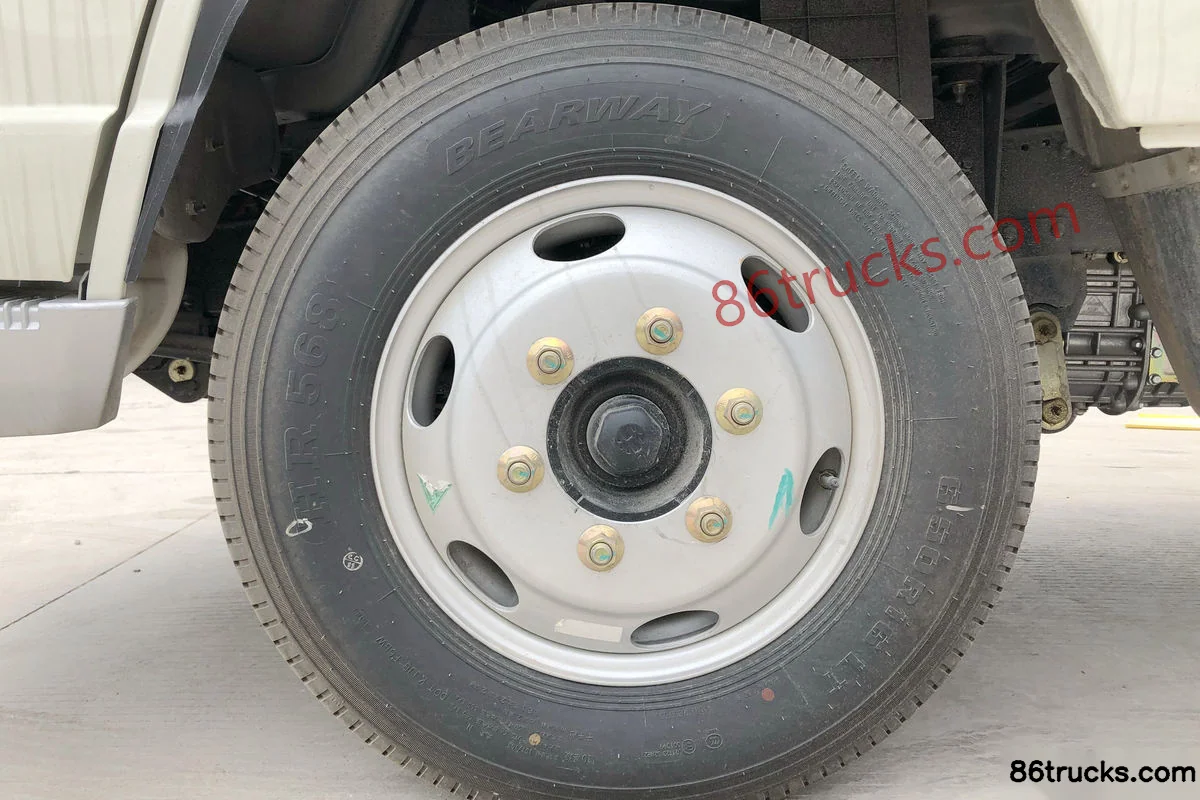

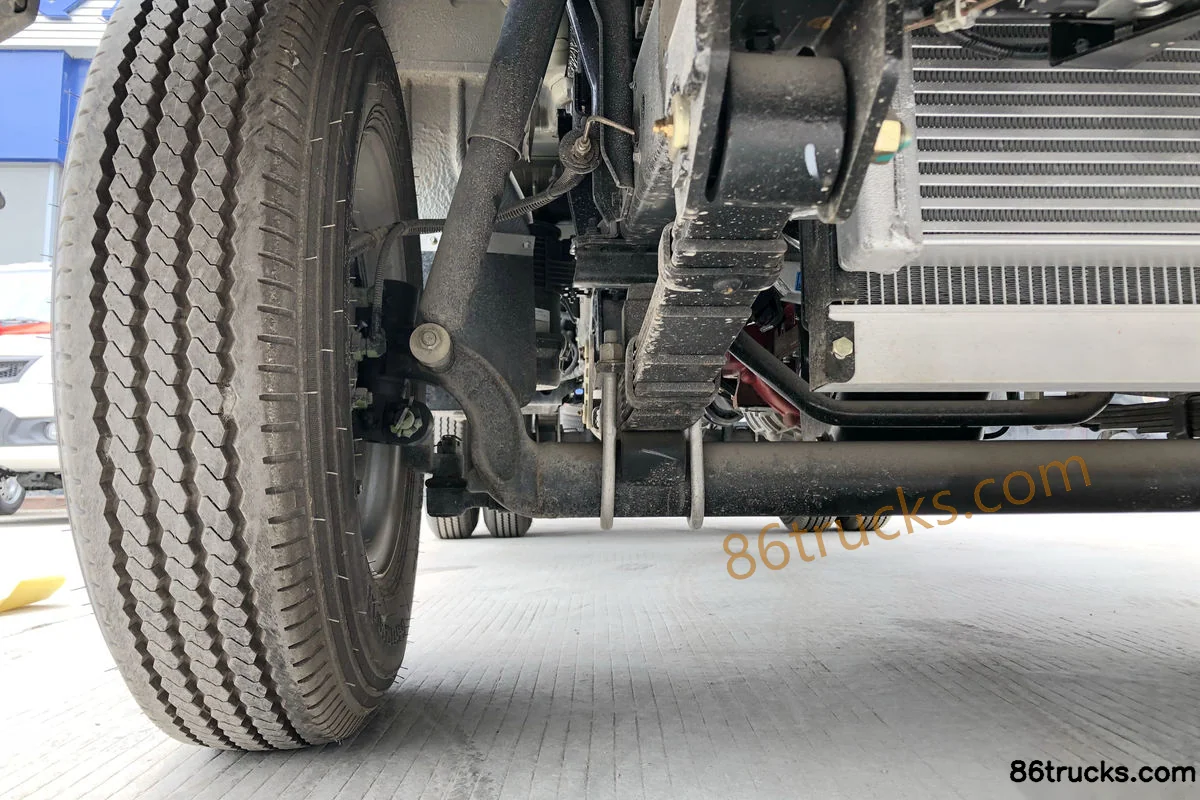

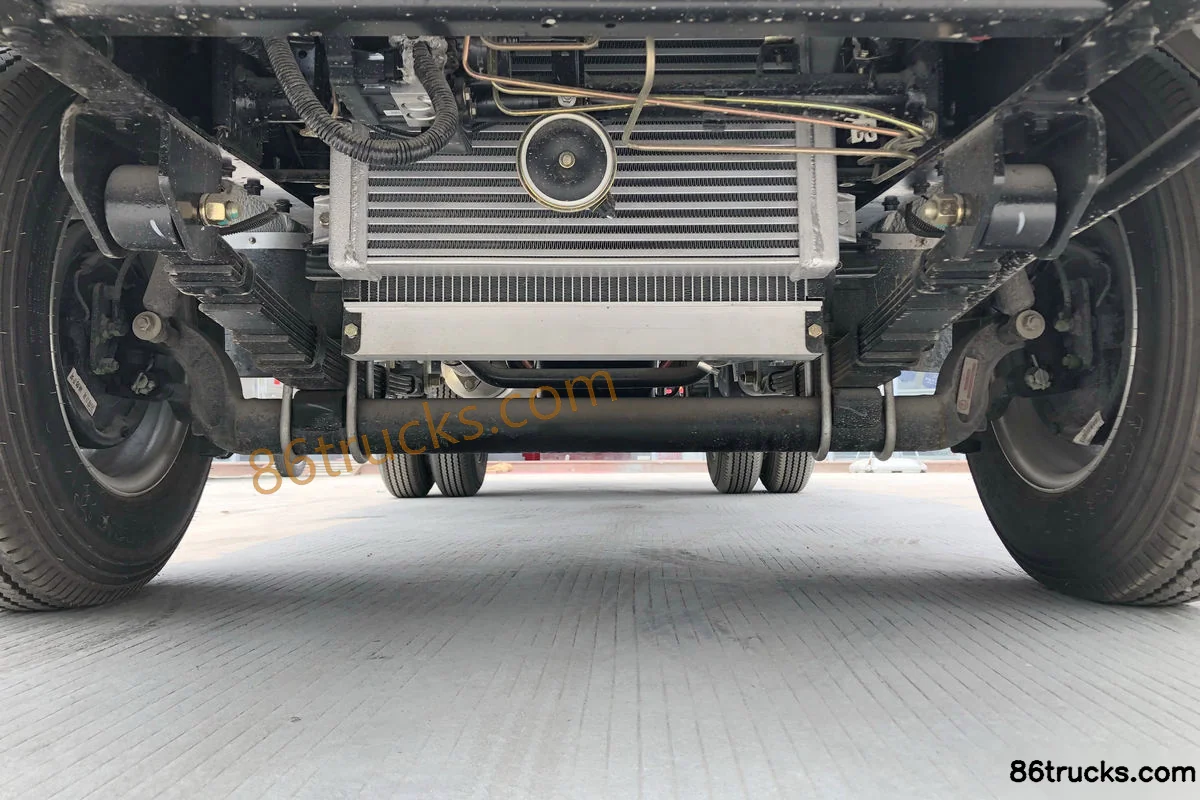

Chassis3

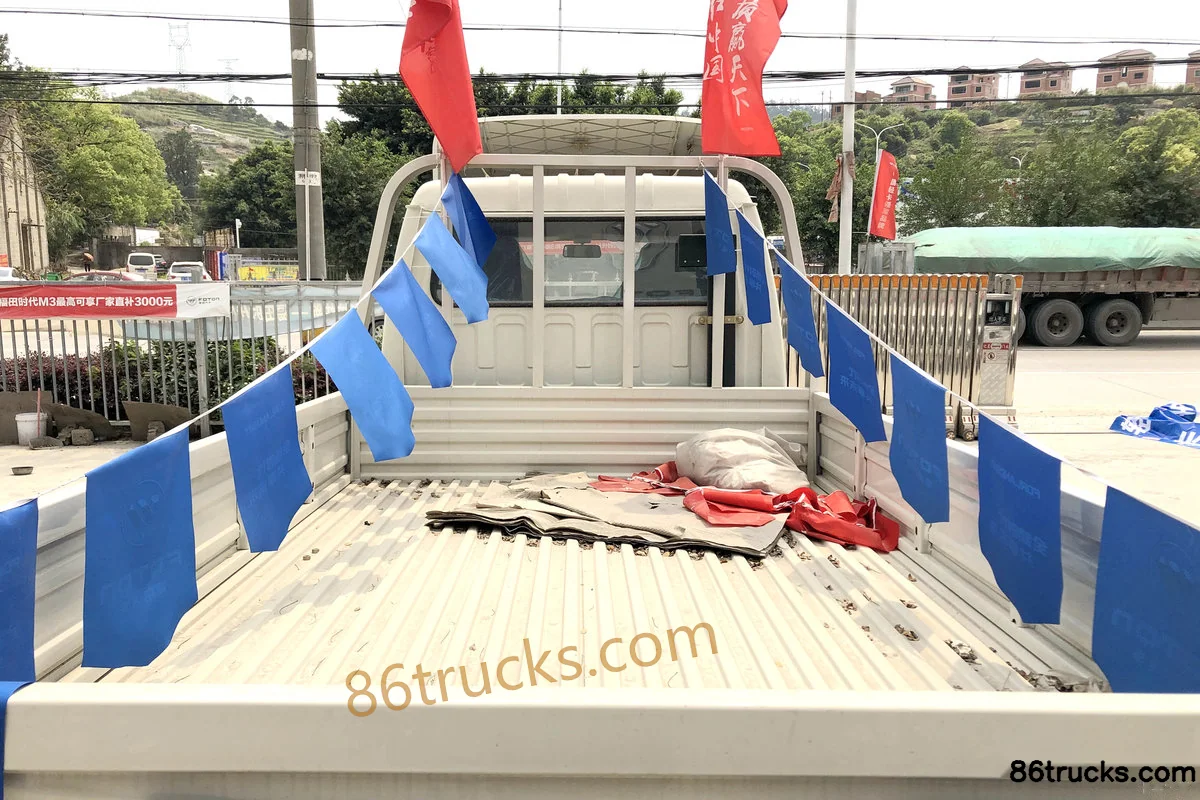

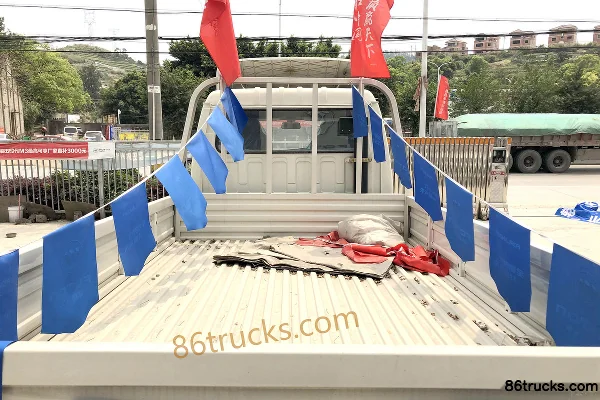

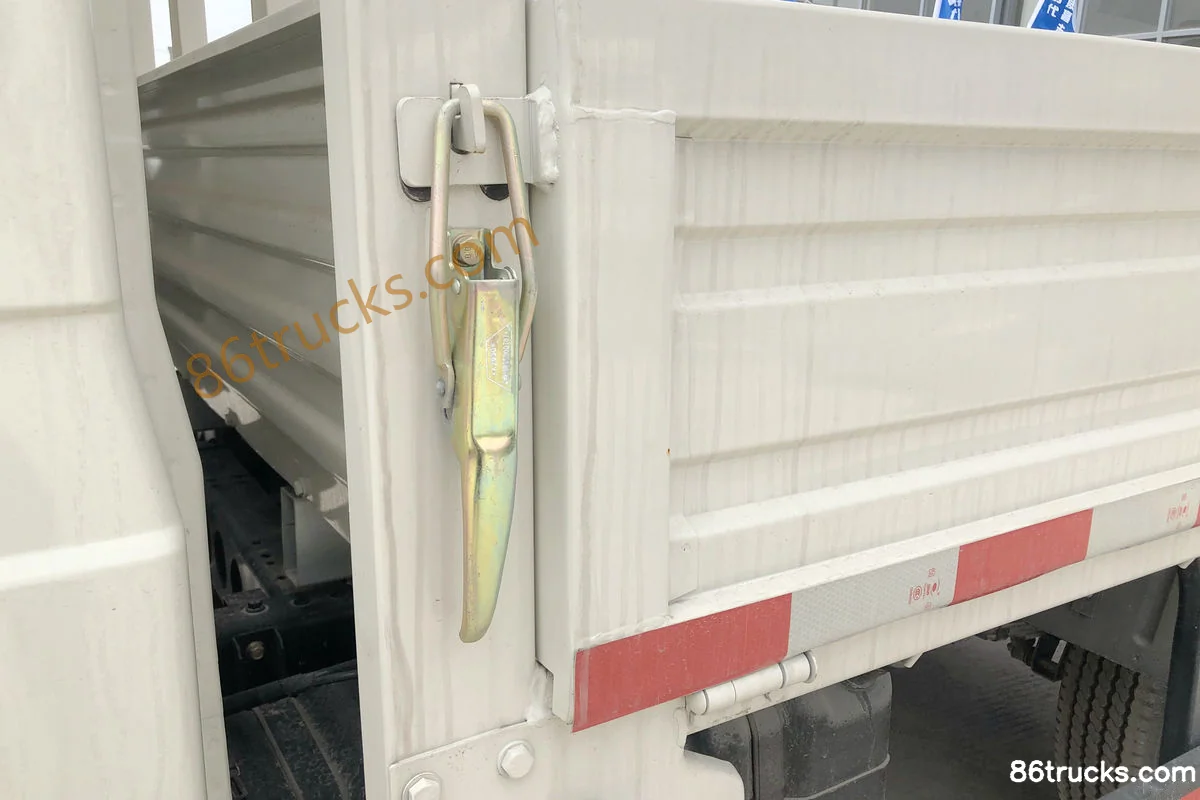

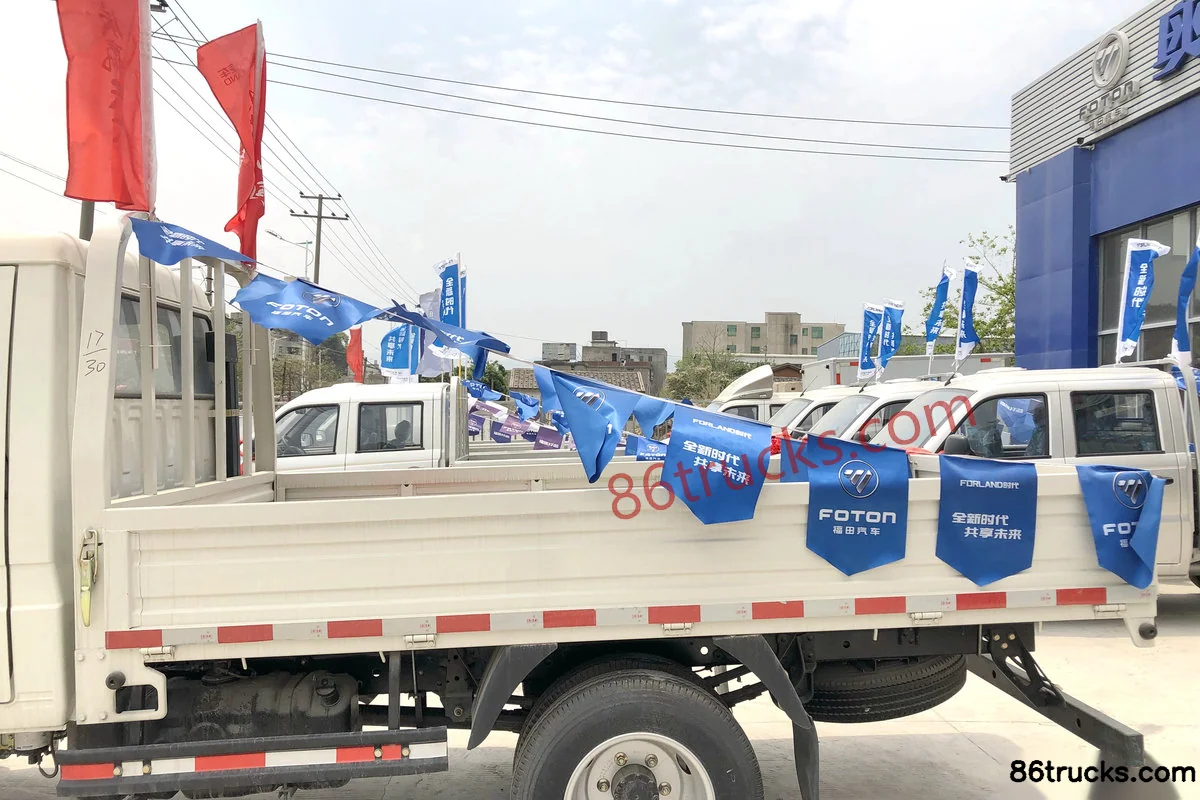

Body3

12 photos

FAQ

What is the export price of Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck, and what does it include?

Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck export reference is about From $9,181; MSRP is ¥6.61M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck?

Key specs of Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck: Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck suited for?

Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck differ from other variants in the same series?

Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck belongs to Foton Forland Xiaoka Star 3 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Xiaoka Star 2.2L 88hp 4X2(6 wheels) Diesel 3.1m Double Row Flatbed Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
