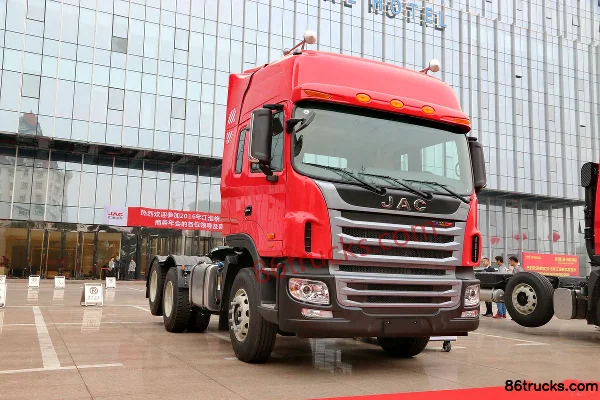

JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 39.4ton
Wheelbase:: 3300+1350mm
Tire Size:: 11.00R20,12R22.5
rear axle allowable load:: 18000 (twin axle)kg
Displacement:: 9.726L
Drive 6X2 (8 wheels)
Horsepower 300
Emission China IV
Transmission Fast Gear

Overview

The JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) is a Heavy truck featuring 6X2 (8 wheels) drive, 300 hp, 24.5t GVW and China IV emissions. On the powertrain side, it comes with a WeichaiWP10.300E40 engine, Fast Gear transmission and Diesel fuel.

China IV 300 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4241P1K5E33F
Drive type: 6X2
Wheelbase: 3300+1350mm
engine: WeichaiWP10.300E40
transmission: Fast Gear12JSD160
Rear Axle Ratio: 4.11
Cab length: 6.685m
Cab width: 2.495m
Cab height: 3.46m
Front track width: 2040mm
Gross Trailer Weight: 39.4ton
rear track: 1847/1847mm
Curb Weight: 8.8ton
GVWR: 24.5ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.300E40
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Frame Dimensions: 280×80×8mm
rear axle description: 457 rear axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.11
Leaf spring count: 10/12,3/4
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 10pcs

Photos

0 photos

FAQ

What emission standard does JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle)?

Key specs of JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle): Drive: 6x2; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) suited for?

JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) differ from other variants in the same series?

JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle) belongs to JAC Gallop A5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W Heavy Truck 300 hp 6X2(8 wheels) Tractor Truck (457 Rear Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
