FAW Jiefang J7 Chuangling Edition 15L LNG 640 hp 6X4(10 wheels) FAW Jiefang 12-speed AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 4200+1350mm
Tire Size:: 315/70R22.5
Front axle allowable load:: 7000kg
Displacement:: 14.96L
Drive 6X4 (10 wheels)
Horsepower 640
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang J7 Chuangling Edition 15L LNG 640 hp 6X4(10 wheels) FAW Jiefang 12-speed AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 640 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6SV3-64E61N engine, FAW Jiefang transmission and LNG (liquefied natural gas) fuel.

China VI 640 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P77M25T1E6
Drive type: 6X4
Wheelbase: 4200+1350mm
engine: XichaiCA6SV3-64E61N
transmission: FAW JiefangCA12TA300AR
Rear Axle Ratio: 2.688
Cab length: 8.03m
Cab width: 2.55m
Cab height: 4m
Front track width: 2100mm
rear track: 1850/1850mm
Gross Trailer Weight: 40ton
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Version: Chuangling Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: CA6SV3-64E61N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 14.96L
Emission standard: China VI
Max output power: 471kW
Max hp: 640Horsepower
Transmission Parameters
Transmission Model: CA12TA300AR
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: 1500L
Cab parameters
Cab: J7 Chuangling Edition pure flat-floor cab
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 7T Maintenance-Free Front Axle
Front axle allowable load: 7000kg
Frame Dimensions: 300*80*8mm
rear axle description: 440 Press-Welded Axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.688
Leaf spring count: 2/-
Tire
Tire Size: 315/70R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Tire Pressure Monitoring System (TPMS):
Lane Departure Warning System (LDWS):

Photos

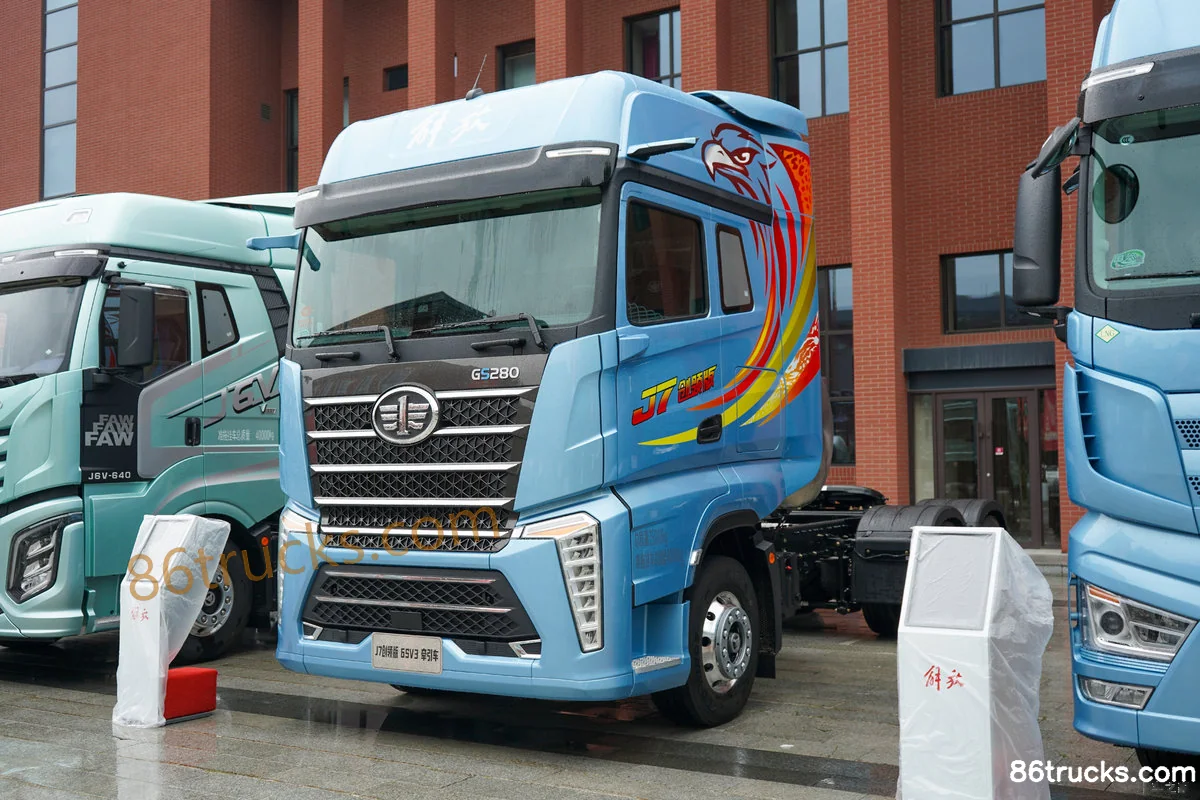

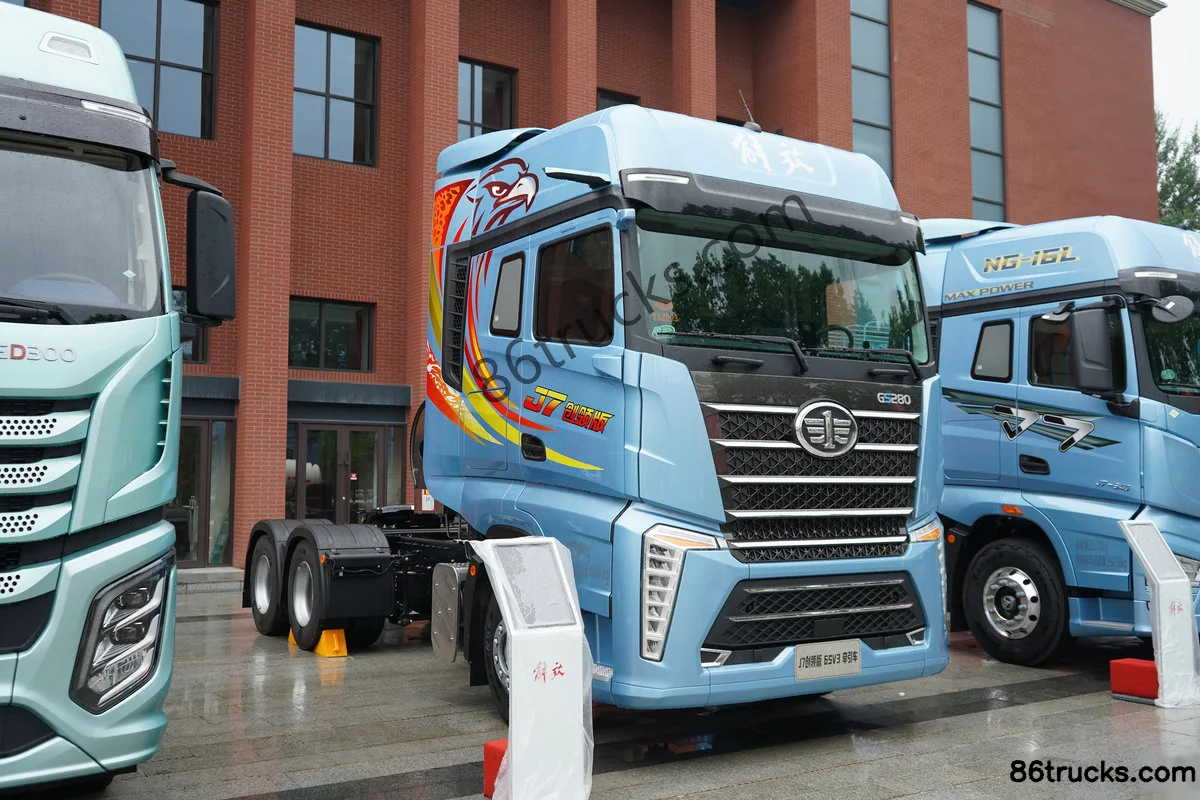

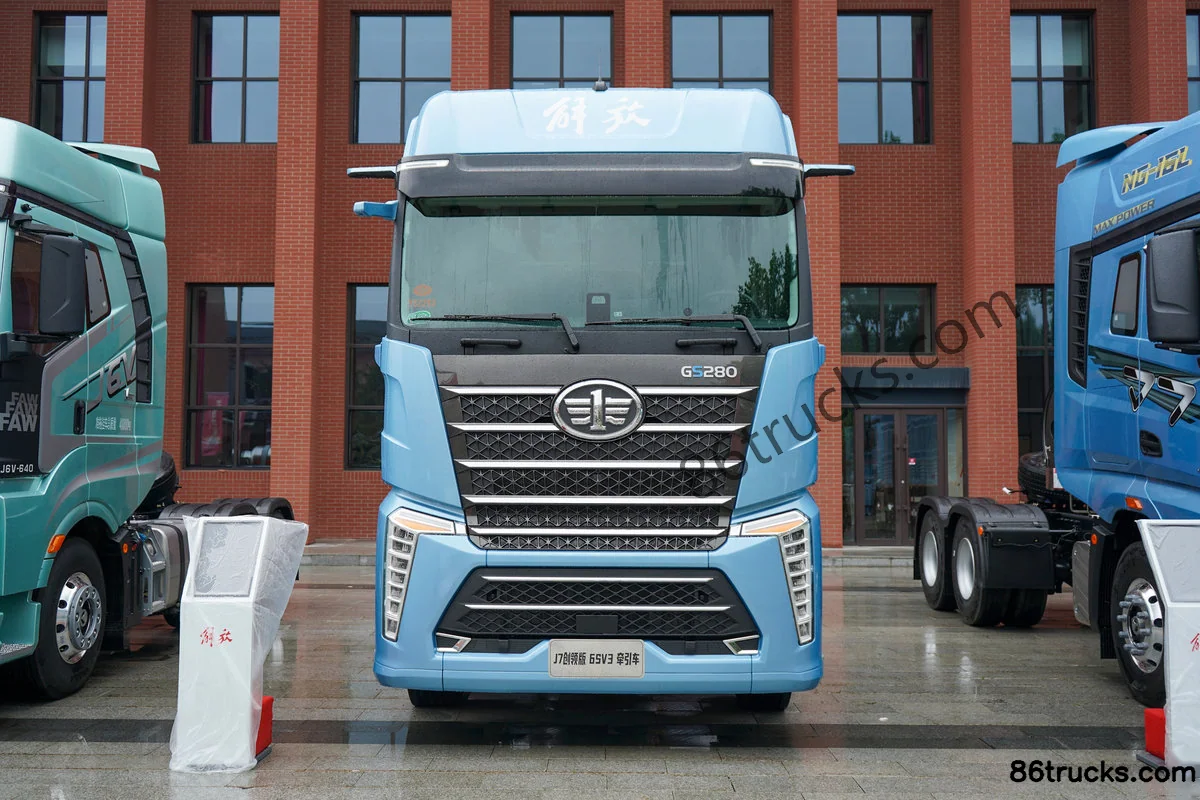

Exterior3

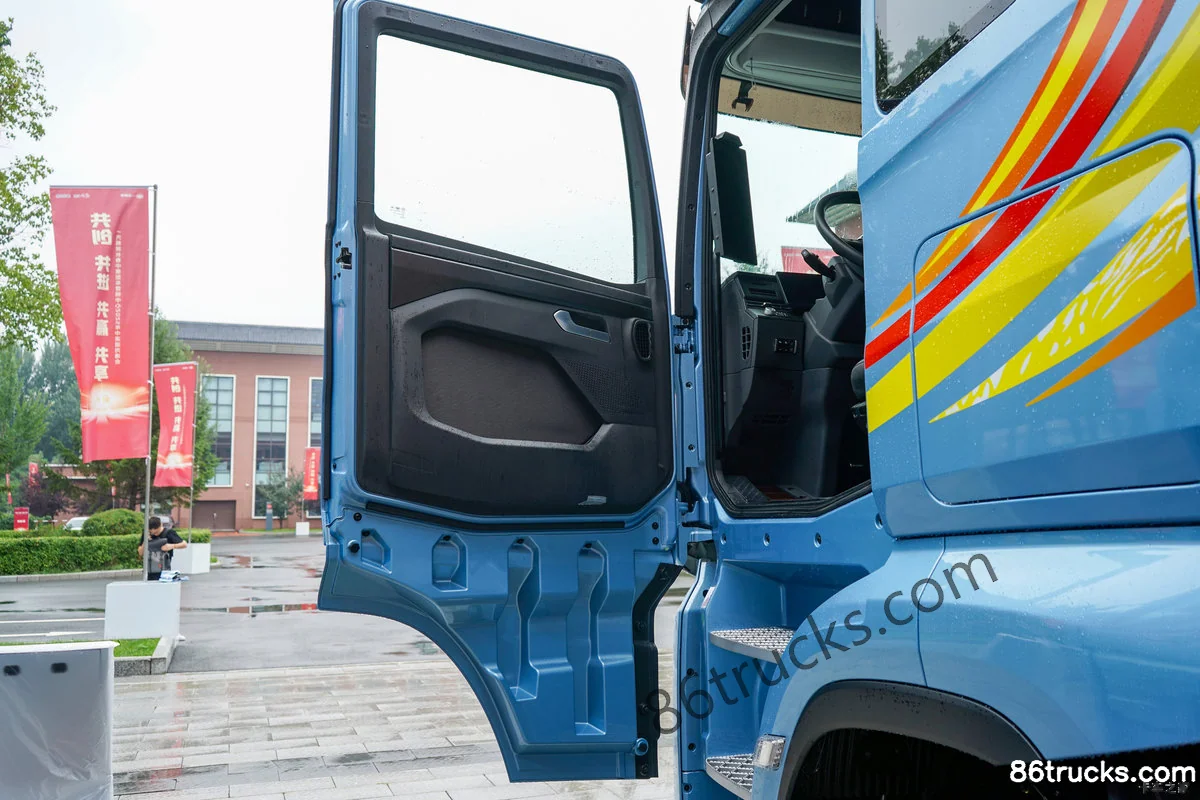

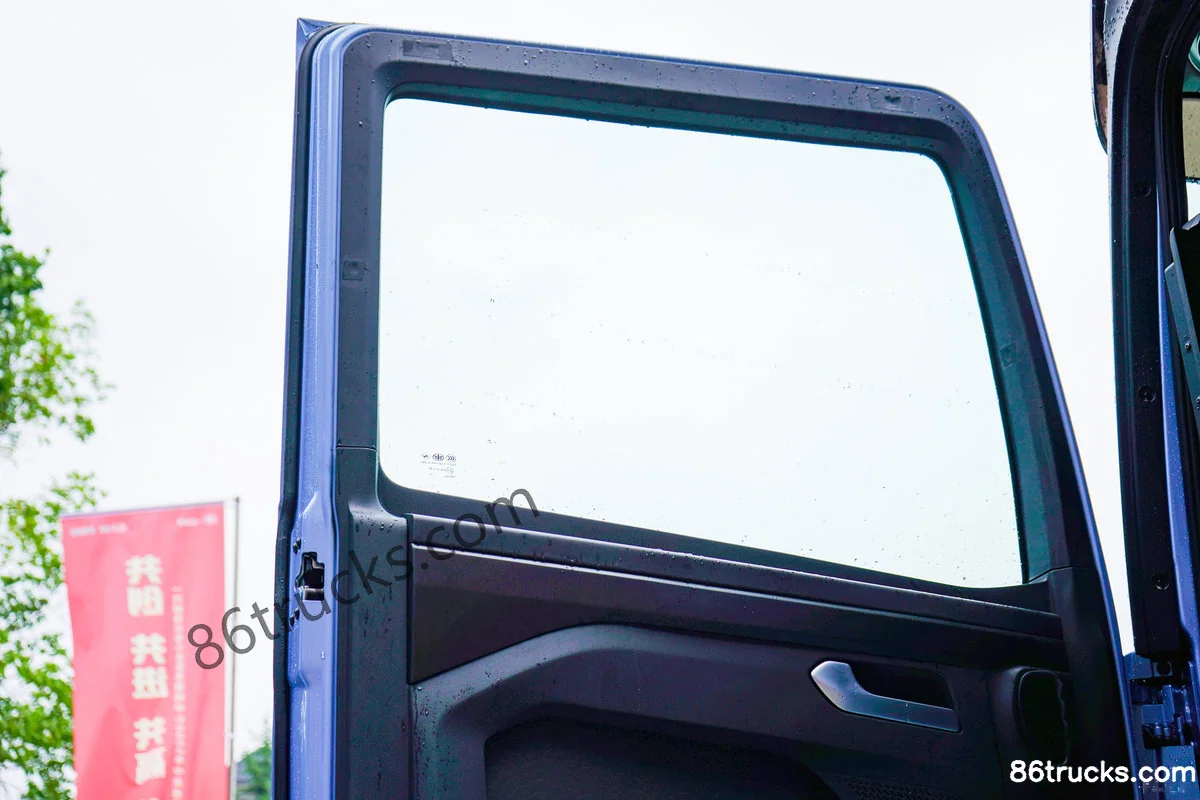

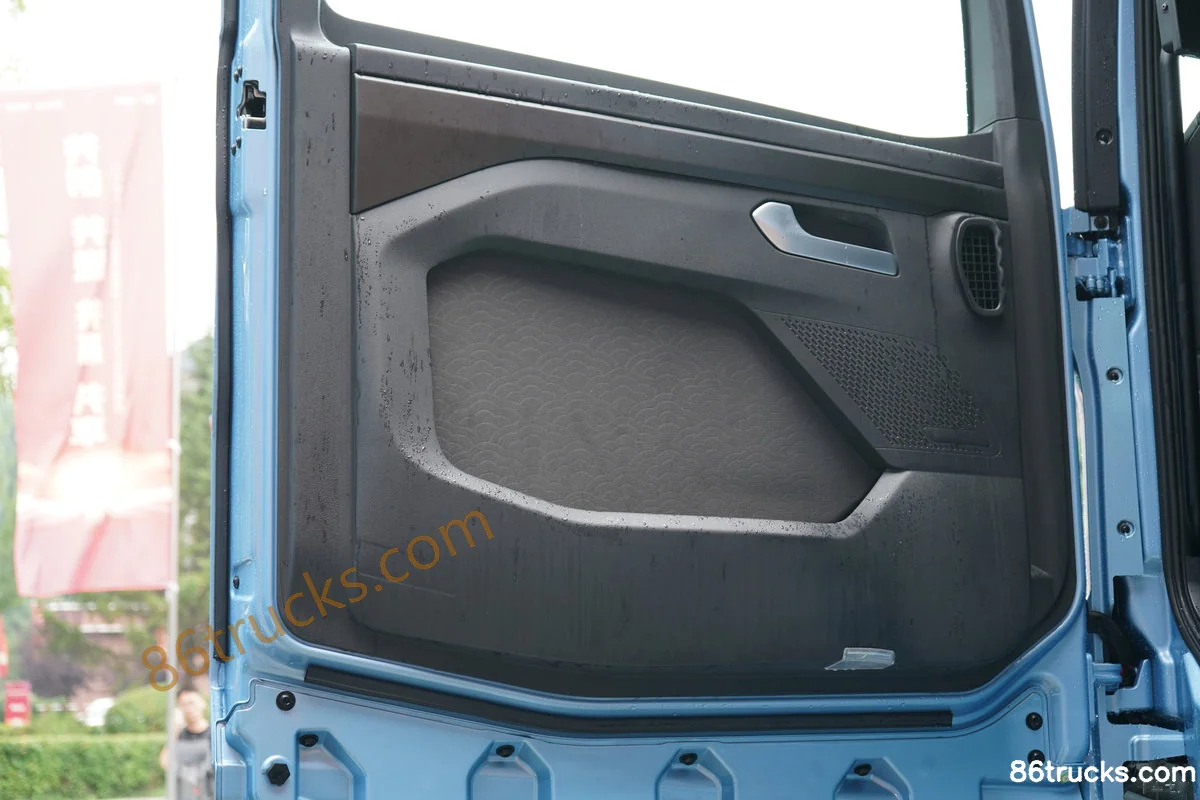

Cab3

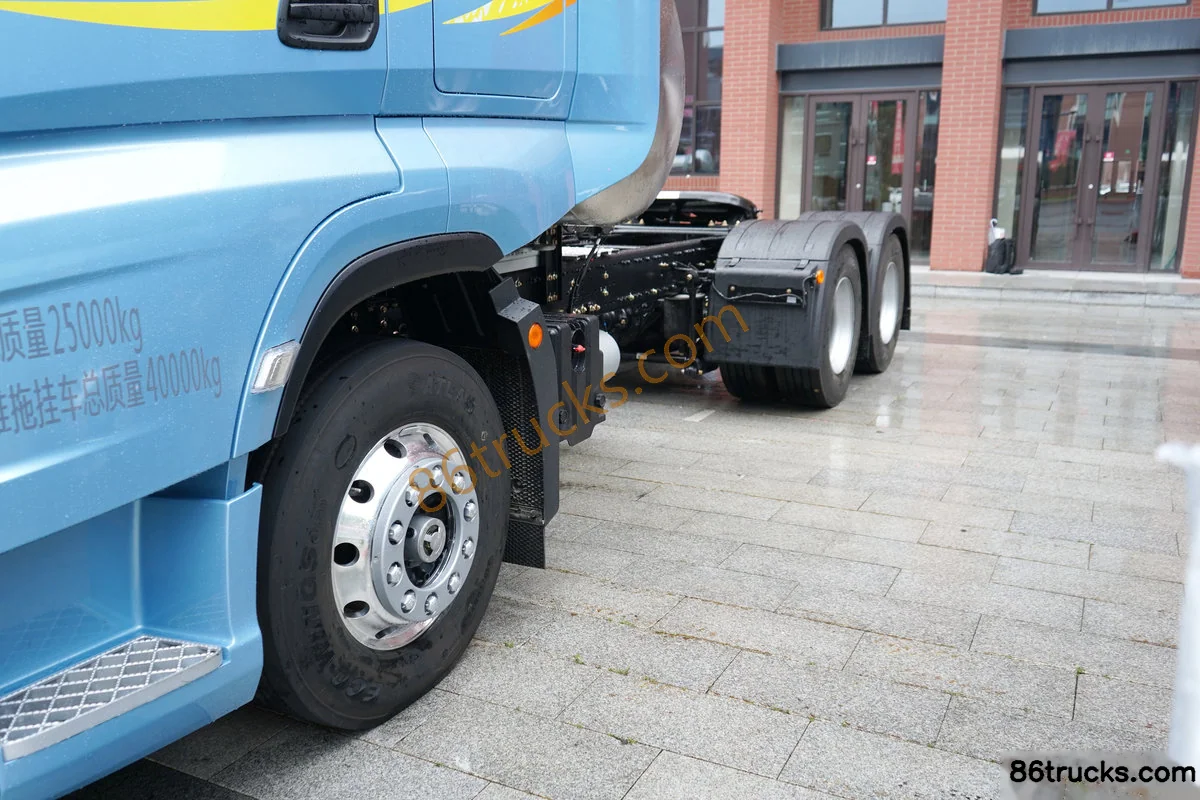

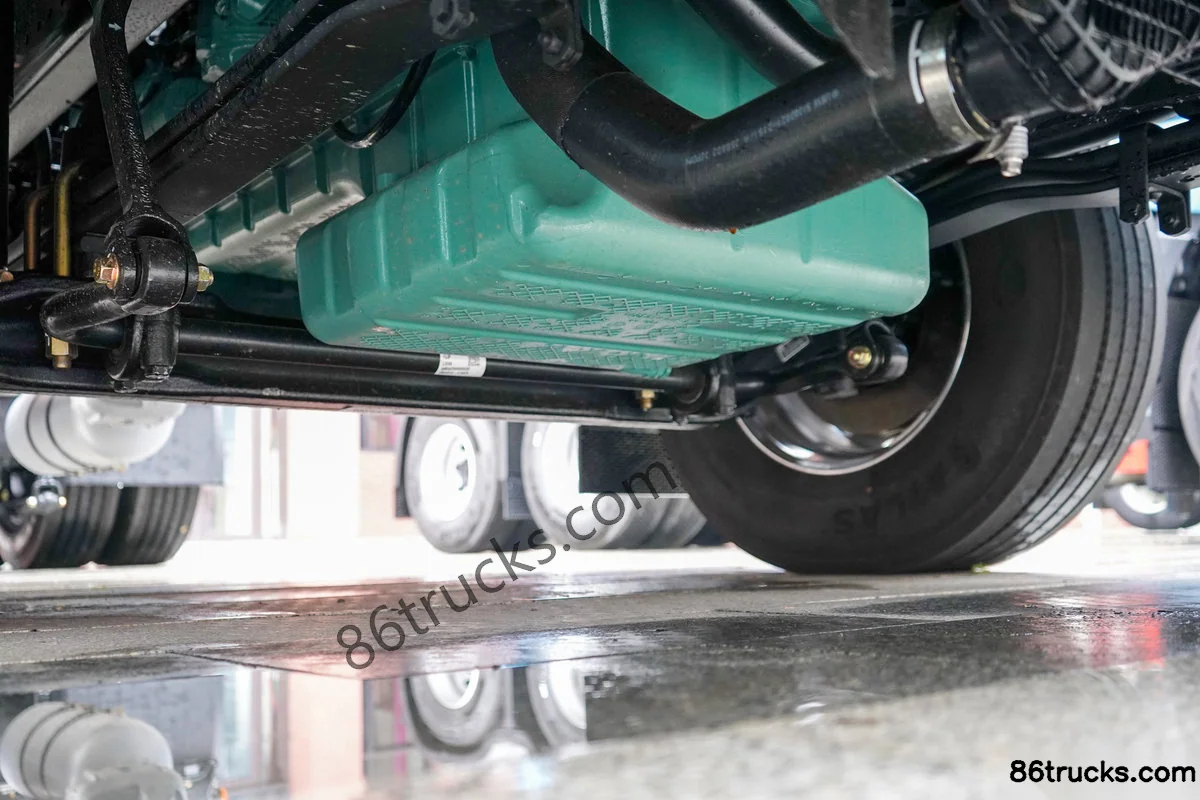

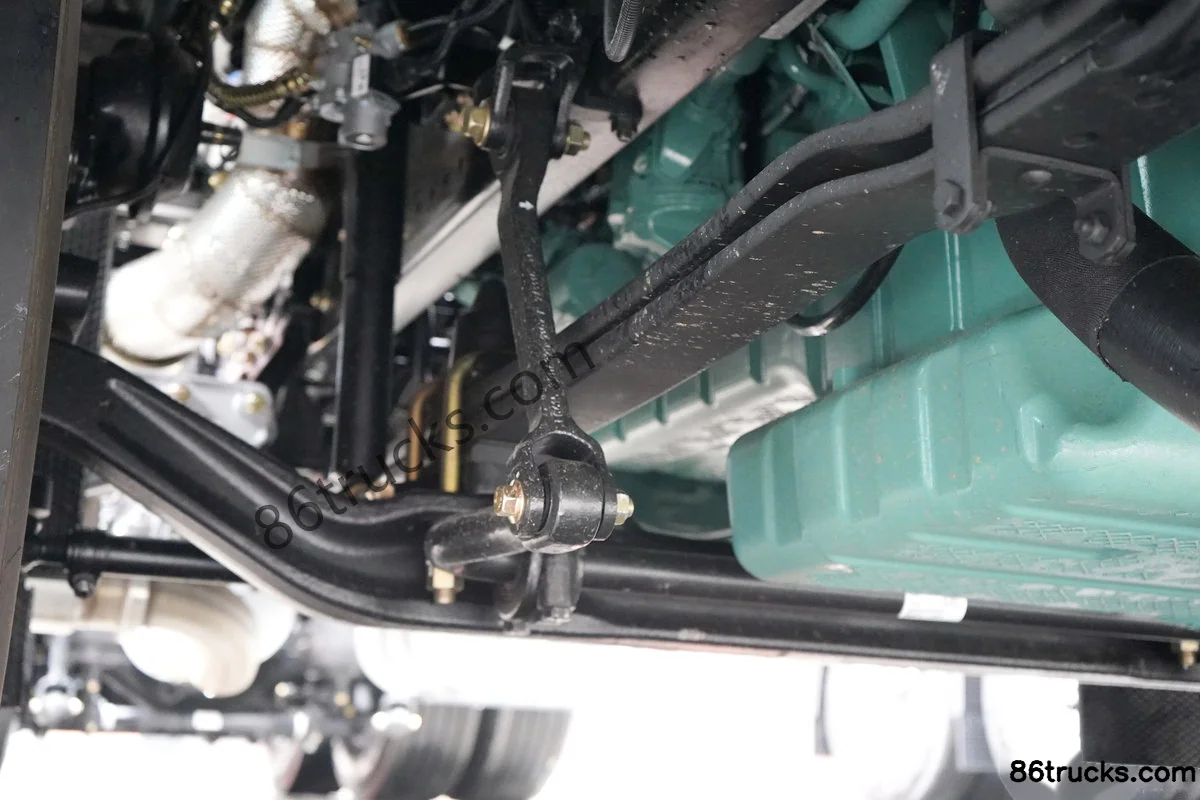

Chassis3

9 photos
