Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand)

Export reference
MSRP N/A
Curb Weight:: 32ton
Emission: China VI
Fuel: Diesel
Wheelbase:: 1800+4757+1400mm
Cab dimensions:: 11.92×2.5×3.2m
Truck Type:: Fuel tanker truck
Tank Size: 8.95×2.49×1.65m
Rated payload: 20.62ton
Drive 8X4 (12 wheels)
Horsepower 350

Overview

The Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) is a fuel tanker truck featuring 8.95×2.49×1.65m tank capacity, 20.62t payload, 26m³ volume and 32ton GVW. On the powertrain side, it comes with 350 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.92×2.5×3.2m
Truck Type: Fuel tanker truck
Drive type: 8X4
Vehicle origin: Jinan, Shandong
Wheelbase: 1800+4757+1400mm
Front track width: 1998/1998mm
rear track: 1850/1850mm
Curb Weight: 32ton
Rated payload: 20.62ton
Max. speed: 80km/h
Front/rear suspension: 1.45/2.695m
Energy Type: Diesel
Body Parameters
Tank Size: 8.95×2.49×1.65m

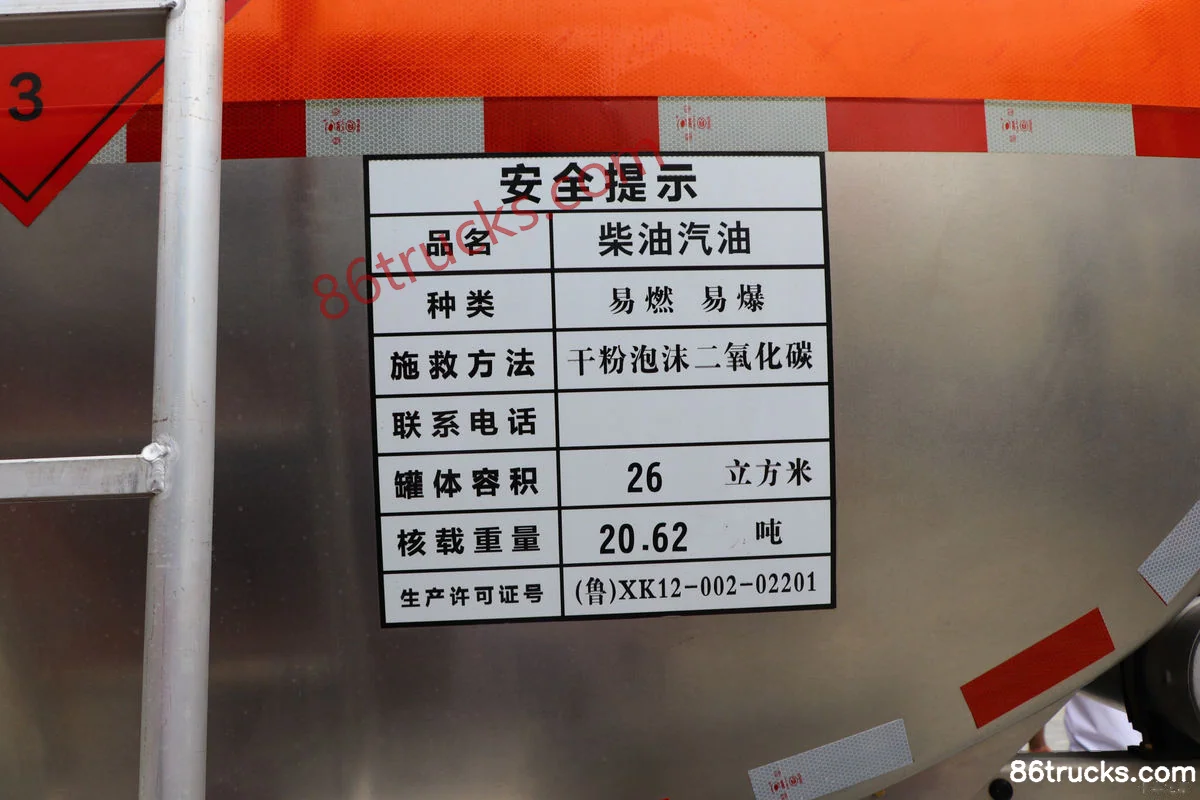

Tank Volume: 26m3
Vehicle certification code: JYJ5326GYYF
Body Brand: Luye Brand
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07H.35-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.36L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SitrakC5H
Chassis Model: ZZ5326XXYN466GF1K
Frame Dimensions: 8+4/280mm
rear axle description: MCJ11
Axle ratio: 4.63
Leaf spring count: 3/3/-/-
Transmission Parameters
Number of gears: 9Gear
Transmission Model: SinotrukHW13709XSTC2
Cab parameters
Cab: Sitrak Flat Roof
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs

Photos

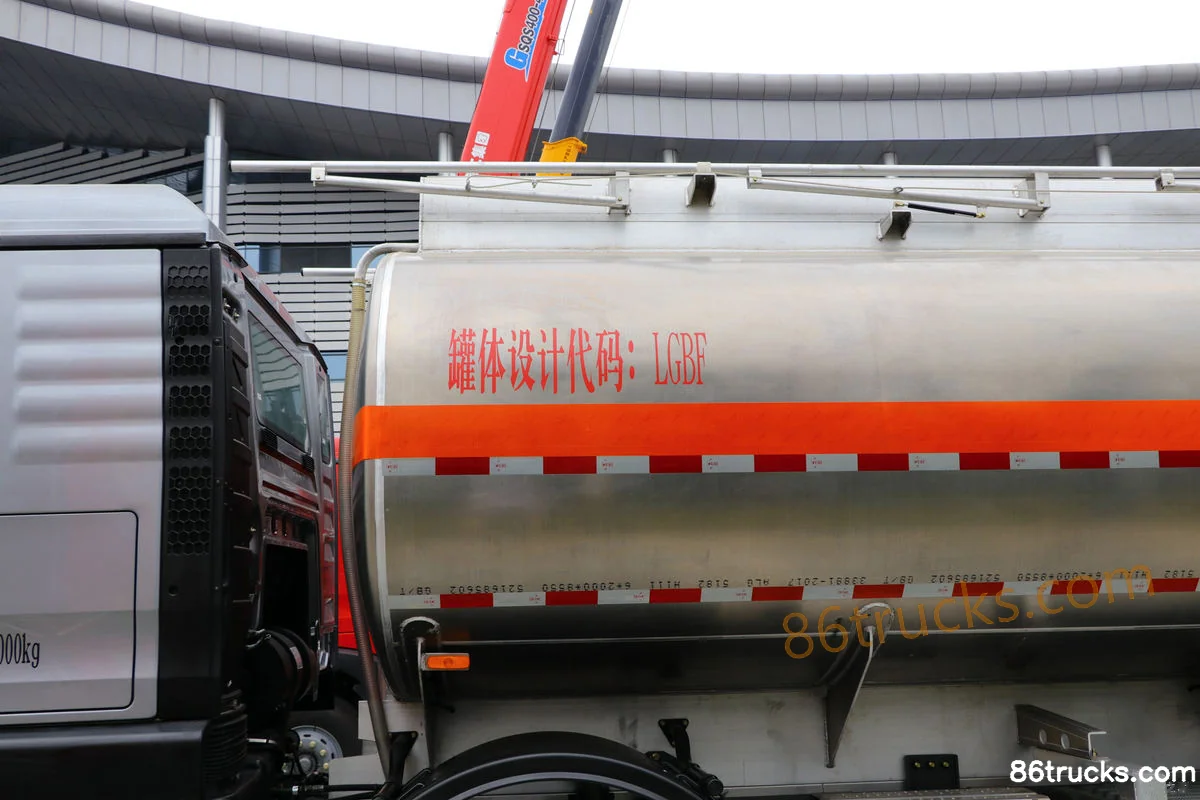

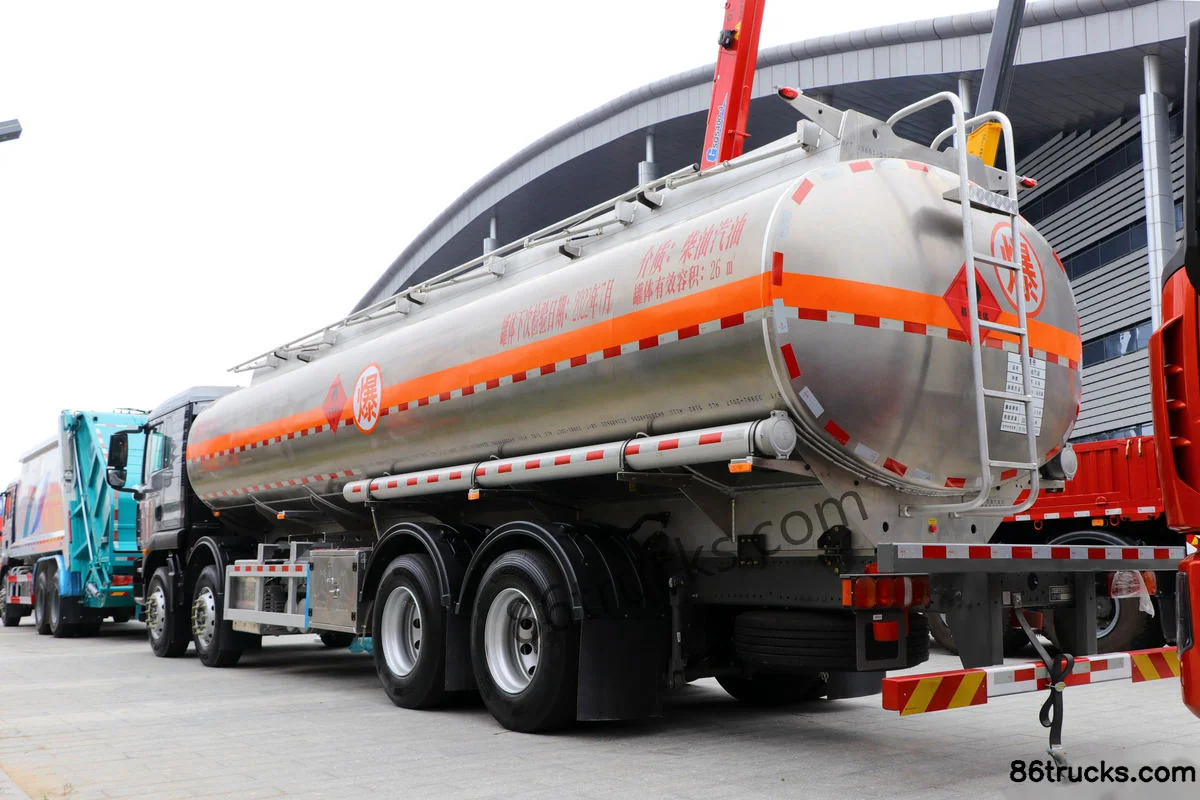

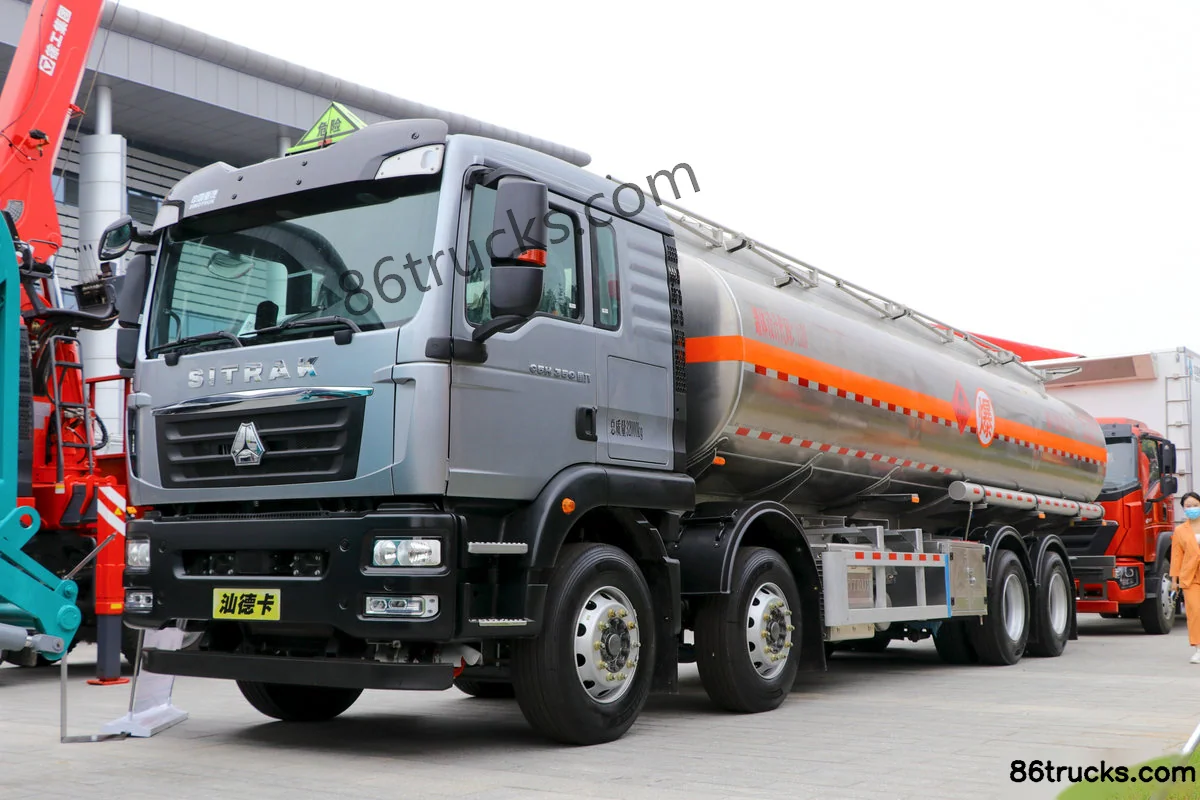

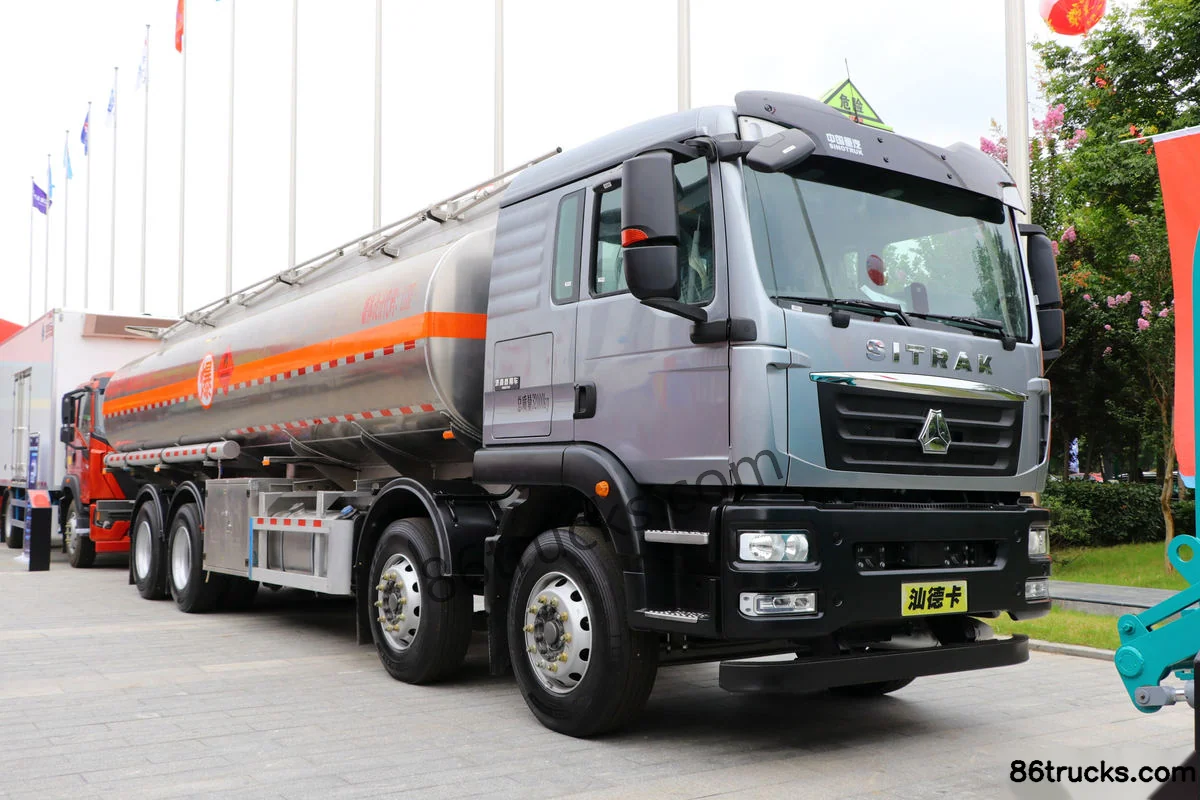

Exterior3

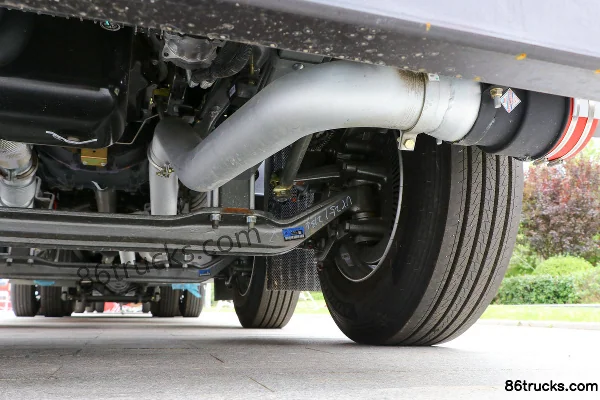

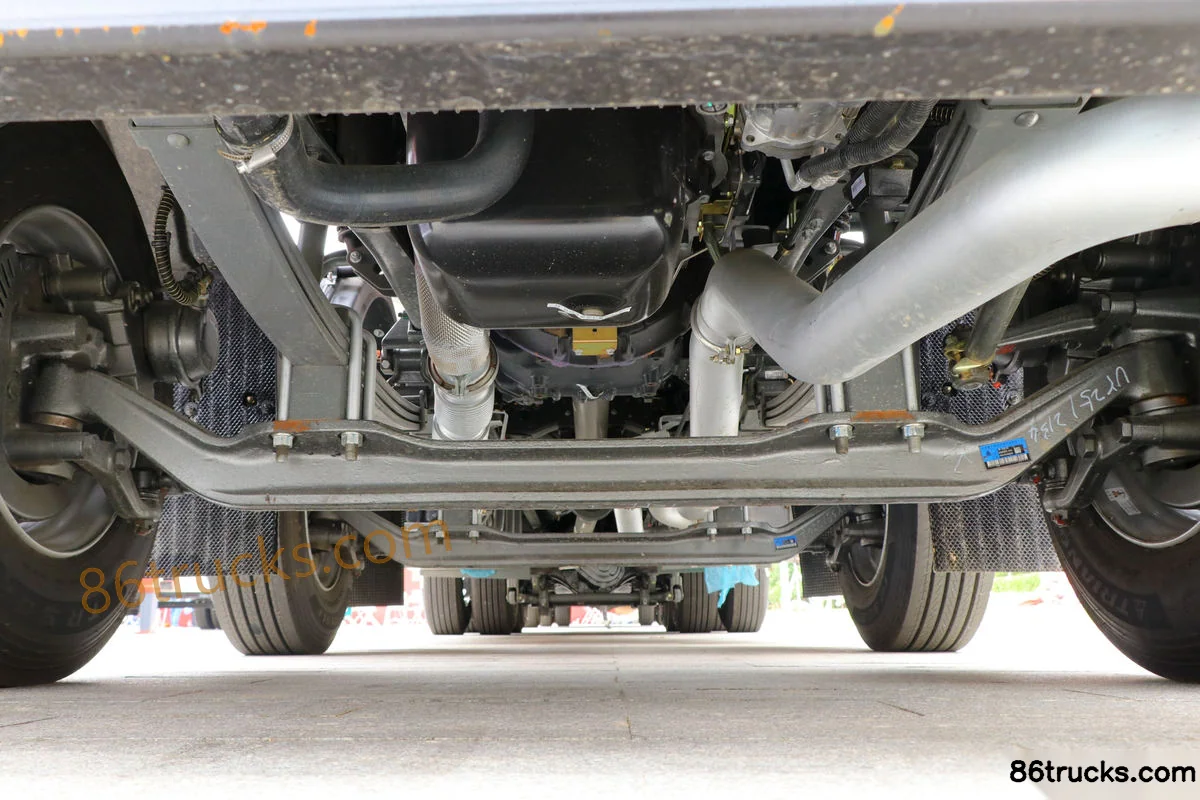

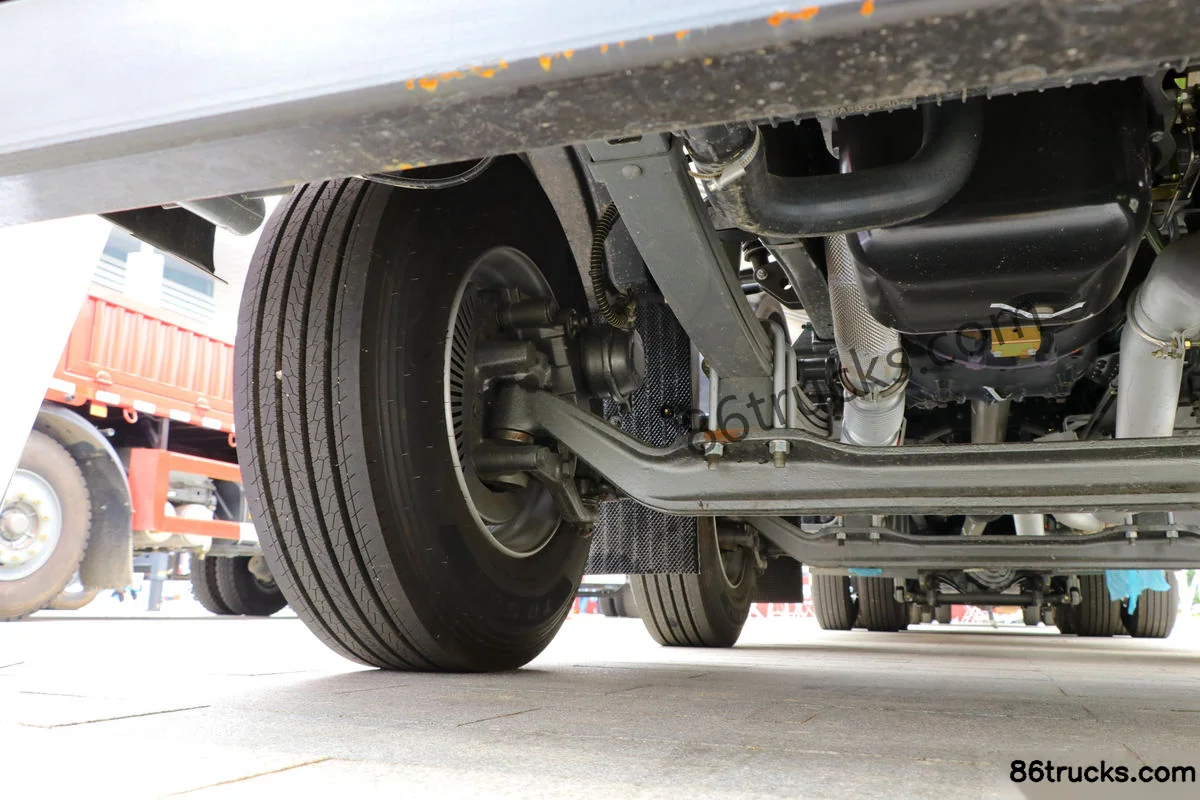

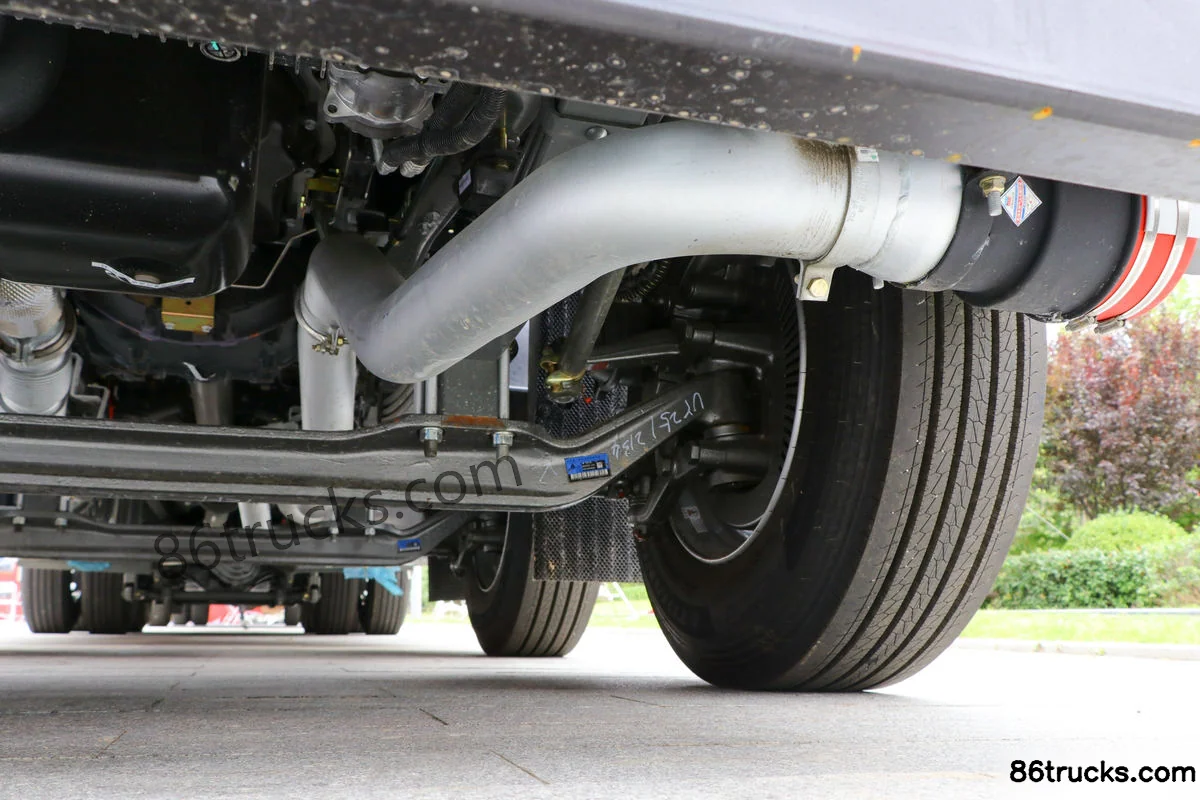

Chassis3

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand)?

Key specs of Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) suited for?

Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) differ from other variants in the same series?

Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand) belongs to Jinan Sinotruk (Luye) Sitrak Chassis (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C5H 350 hp 8X4(12 wheels) Oil Transport Truck (China VI) (Lvye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
